Readers Rides, for pics and specs on your Toy(s). (3 Viewers)

[MUD EMPIRE]

Aus-Lux

Cheers from downunder.........just thought that I'd join up to see how yoos Yanks go "wheelin".
I've got a '97 LN106 single cab Lux...It's got all the regular stuf like air lockers, XP9500, turbo diesel, rock sliders,
upgraded springs and such. We have mostly slippery, rutted and extremely closed in skinny tracks.
Some stuff is nasty steep rocky tracks...other stuff is deep muddy and twisty inbetween big trees and thick scrub.

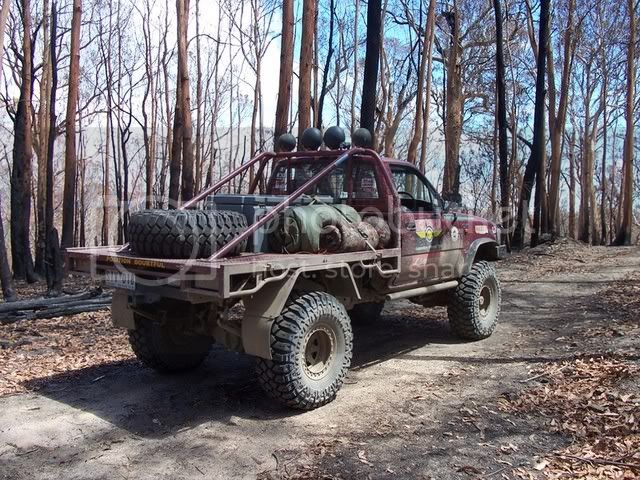

Here's my Lil Lux...........



[toyminator]

1989 P/U
All Pro SAS 5.5" Springs
5.29 V6 Rear Diff w/Detrioit, 5.29 High Pinion ARB
95 4Runner Front Grill, lights, core support and bumper.

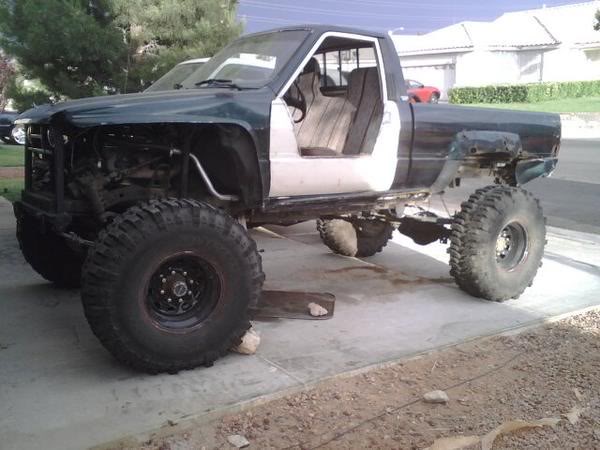

Still in Primer here but I had to get it out wheelin' after doing all the bodywork.



[Blaze]

I'm Rich Parker from Utah

I have owned a Toyota 4Runner for over twenty years now. I have built it many times.

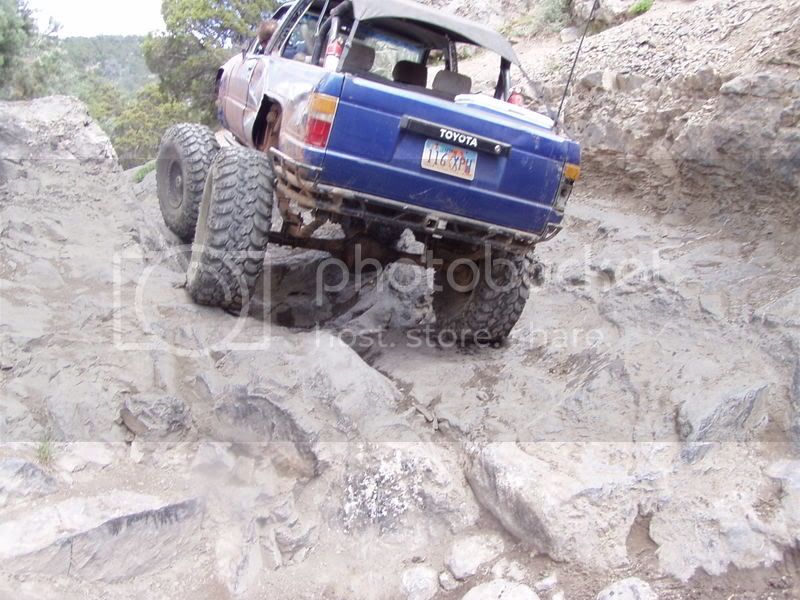

I'll start with the pics of how it sits now. I love to wheel.

Chevy HP 4.3 Vortec 4L60E
Marlin dual cases FROR cross member
AOR Orbiteye 5" springs
Blue Torch Fab Highsteer arms u-bolts and plates
Bilstien 7100's on all four
Dana 60's front and rear 5.38's ARB front Detroit rear
42" Iroks on 17x9 Allied rockathons

This is what it looked like before the last build



[solli]

1985 HiLux

6 point cage, cutted fenders, 35 Boggers on homemade beadlock steelies. Welded rear and limited slip in front.

Low cost beater.

Need: Servo steering and 4.88



[Texx]

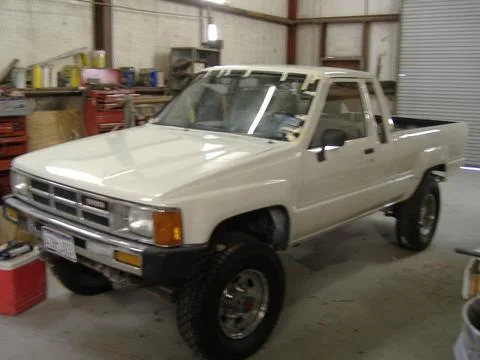

Jill's hilux

Stockin her out for my daughter's first car...driveable resto, mainly paint, body, and restoring back to stock as possible...



[jkimmel]

Here is mine. I have a 1985 pickup, its a regular cab. I have added:

dual ultimate Marlin Crawler
dana 60 front, 5.86 gears, ARB, 35 spline outers
dana 61 rear, 5.86 gears, welded, FF 35 spline
4 link rear suspension with 16 SAW air shocks
3" Marlin buggy springs up front, mixed with 6" all pro's
stock G52 5 speed
stock 22R with a slighty modified carb
42" Irocs
17 Trailready beadlocks(waiting on PSC wheels )

I think thats about it, some tubework also.



[EarlKann]

Hello all,

I registered here quite a while ago, but I always forget to come here. So here is my into post finally.

I'm in SoCal in the San Bernardino Mtns near lots of good wheeling in the Big Bear area. Got an 85 4runner with most of the usual stuff.

22re, 5-speed, Marlin Dual Ultimate Crawler, FROR crossmember, AllPro driveline ebrake. Axles are filled with 5.29 Yukons, V6 Detroit rear, Aussie locker front with Longfield 30-splines. AllPro dropped front hanger and 4" springs, Marlin 5" rear springs.



[mickey_rubicon]

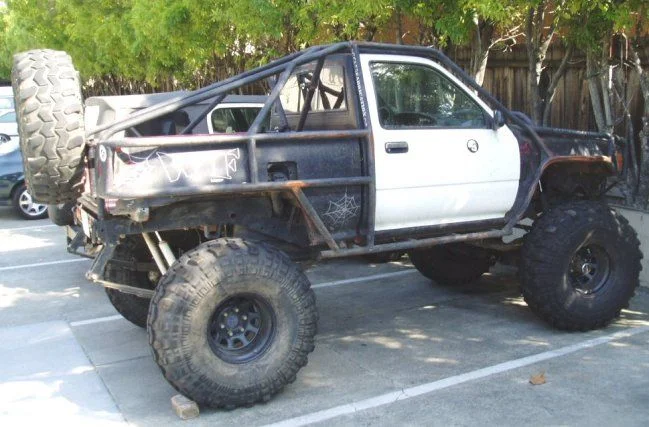

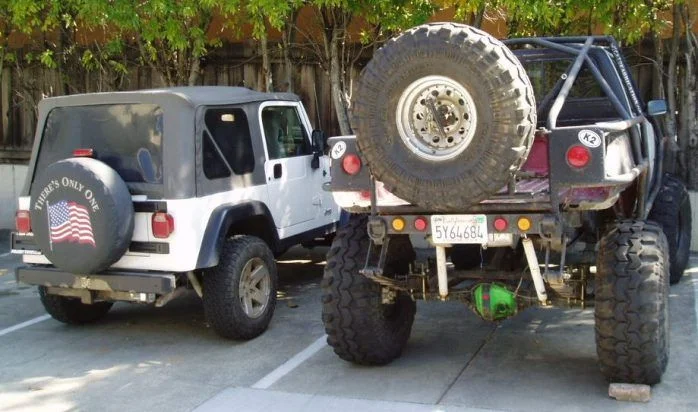

mickey's 92 pickup by wicked fab

1992 toy pickup built by Ryan Coelho(RIP) at wicked fab in santa clara - it ~ needs a dash of tlc
dana 60 rear with detroit bui9lt by moser eng.
dana 44 chro molly front end with lock-rite
geared for 38.5 icnh superswamper tsl's
marlin dual transfer case setup
removable steering wheel
nice stereo
just passed CA smog on the dino hwy legal (bearly and registered till 08
I need to add a parking brake
I need to do a full tune-up
I need to kill the rust (rust bullet?)
I will have action shots soon as a Rubicon run is peeking around the corner

cheers



[DanS HJ-45]

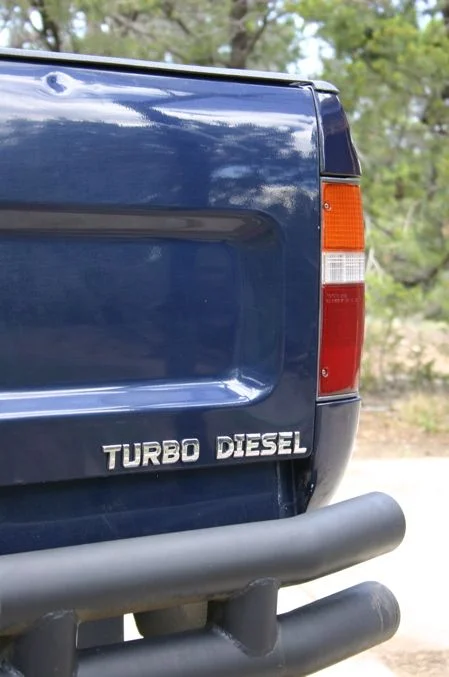

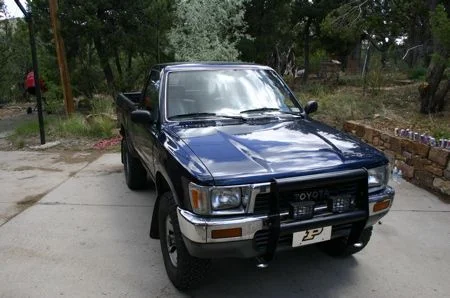

1991 4x4 DLX shortbed pickup.

Pretty much stock....

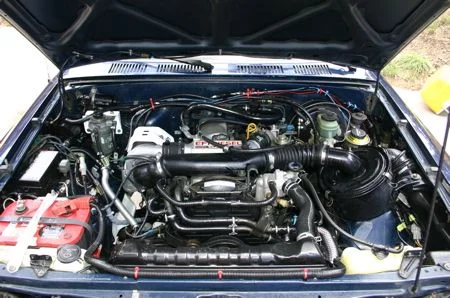

But I did remove the 22R-E and G tranny to install this 2LT-E/R series tranny. Only took a year (OK, 5 weeks of actual work, but a year on the calendar). Pretty nice getting 30-35 mpg on biodiesel, plus it has more power and torque than I could ever want. Lots of people have had problems with the 2LT-E heads, but so far I've been lucky (knock on wood). I'm sure someday I'll have to replace the head with a 3L part, but so far...

Other than that it's got Aisin hubs (yeah, like that's hard work!), 4 runner bucket seats, and 10" subs (need big speakers when you don't have AC).

It's got about 220K on the odometer, 15K since the diesel swap. Drives like it's new.

Plans? For the immediate future: none. The body is still in WAY too good of shape to wheel it, but due to an unfortunate couple of months without a tailpipe, there is some rust on the rear left fender, in a couple years it might peek through. For that reason (and because I want one), in a while (probably after I've got the HJ-45 restored) I'm planning on doing a SAS up front, and finding a double cab body/bed to finish the job of making it a Hilux (yes, I know hilux trucks never had 2LT-Es). But like I said, that's a couple years away at least.

Right now, all I want to do is listen to my turbo whine, smell my exhaust, and go 100 miles before the fuel level even comes off the peg.

Dan

PS-I'm glad I took those pictures when I did, I doubt I wash it even twice a year! It sure cleans up nice, you just can't beat the Toyota paint!



[mudntz]

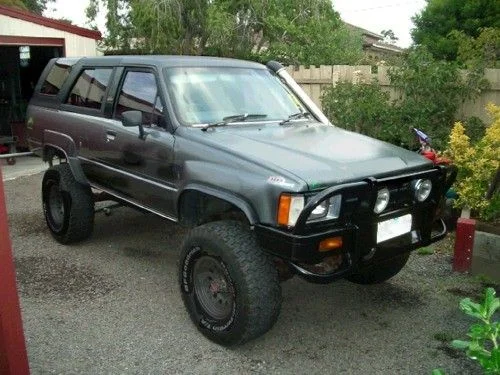

heres my 1984 aussie toyota 4runner
2lt 3y petrol motor
2" spring lift
33 x 12.5 x 15'' bfg all terrains
soon to have 33'' simex tyres
3.5" stainless steel snorkel

future mods custom front tube winch bar, rock sliders, custom rear tube bar, rollcage and airlockers



[ron86toy]

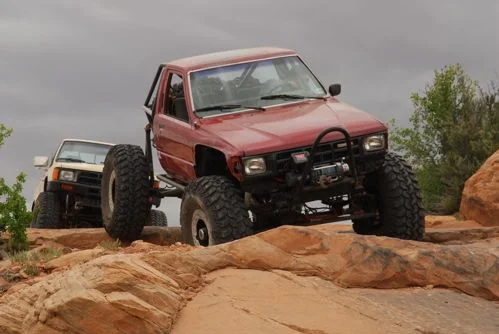

86 4R SAS
5.29 r spool,f hp detroit
hybrid toy d-60 front axle
Walker Evans remote res shocks
T-Max winch w/Master pull syn. line
DIY beadlocks
35" Rockers
LC Engineering from the head to exhaust tip
Calmini trans



[Lizard Lips]

85 Toy
350 w/ about 400hp and 385 ft/lbs torque-TH350-NP205
Fullwidth D44 & 14 bolt 4.56's detroits
Hysteer toy rears front 63's rear
38x15" boggers on 16x10 spokes
dovetailed frontend 26" radiator moved to the bed
ford 22 gallon tank in the bed between the frame
half doors, sliders, blah blah blah
here's an old pic

and after all the crap I've done to it



[Lizard Lips]

84 Runner
302-435-205
fullwidth D44 & 14 bolt 5.13's detroits
38" sx on 15x10 wagons
toy rears front 63's rears with johnny joint hangers.
22 gallon ford tank between the frame. sliders.

the drivetrain is being taken out and everything moved into this



[ToyotaNick]

1990 toyota (obviously)extended cab pickup.

1990 toyota pickup
-3 inch body lift with 4 inch suspension clearing 37" interco super swamper IROKS
-bushwacker pocketstyle flares that were heated up and bent to allow me to cut as much out of the body to allow the most clearance.
-i put a warn front bumper on it but due to body lift i had to cut and add 3 inches to bracket along with making the bracket thicker.
-ive got a i think its a 6k puond winch on the front.
-other than the lift the suspension is stock.
-interior has beenmodified. i cut out the storage in the back and flattened the floor so i could put 2 10 inch diamond audio woofers, and still have the seats.
-it has been converted to sr5 and i have made custom door panels.

IT IS A STANDARD



[JSTMUD]

My 1983 truck

Hello everyone. My name is Tony and i live and offroad in Alaska. I came across your sweet yoda site and thought i would join. If your woundering what it's like to wheel in Alaska just visit ALASKA4X4NETWORK.COM

83 trk (4cyl.)
All-Pro Extreme lift (6inch)
All-Pro Winchbumper
All-Pro Flatbed kit
Warn M8000 (front)
Champion 8000 (rear)
ARB Air Lockers
Optima yellow top
5.29 gears
38-14.5 Thornbirds (i prefer boggers)
Wheel spacers
2 inch body lift

Thats pretty much it but theres a lot more on the wish list to do!!!!

Well i originally bought the truck for $350. It had 131,000 miles on it. I had to put a new motor in it because of the engine knock. It came with no lift and 31's on it. So i put a 4inch trail master lift on and some 33 bf muds. Then i took the bed off, put a 2inch body lift, threw some 35 boggers on, put in the air lockers and 5.29's. After that i put the All-pro extreme lift on. Now the last thing i finally did (with a bunch of help from friends through out this build) was put the All-pro bumper and flatbed kit on along with the 38's. This is how she sits today.

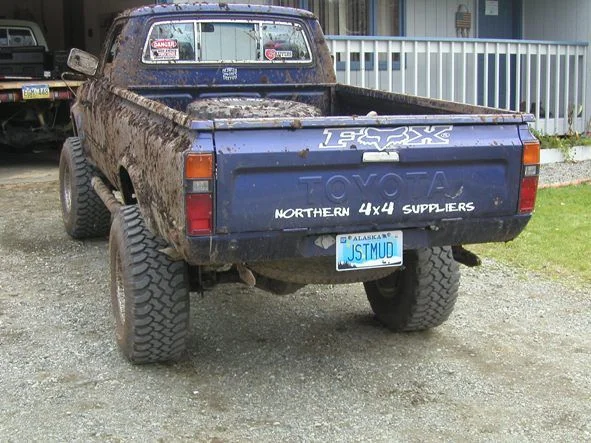

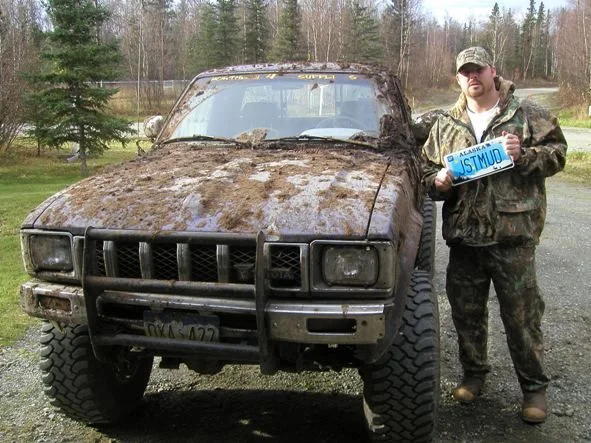

The first few pics are when i just put the 33's on and the 4inch lift. The rest of them are present pics.



[JSTMUD]

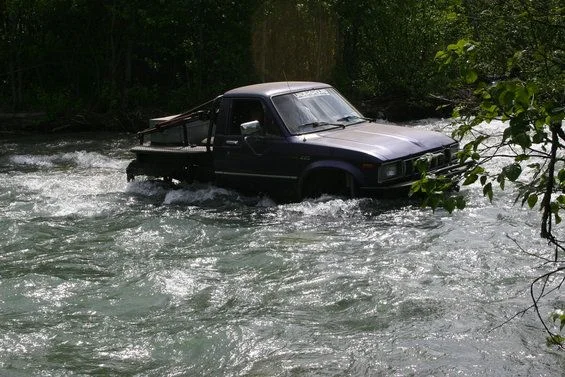

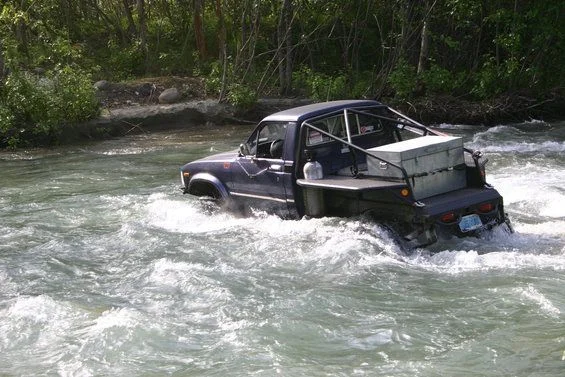

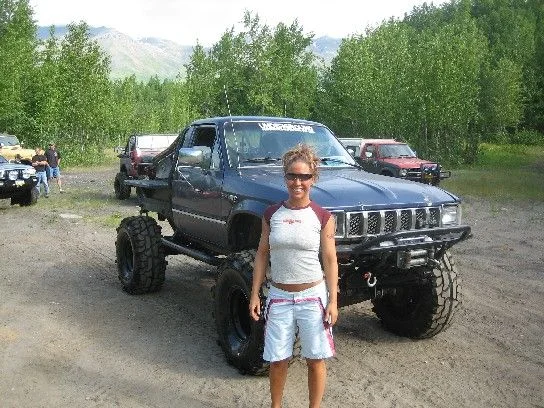

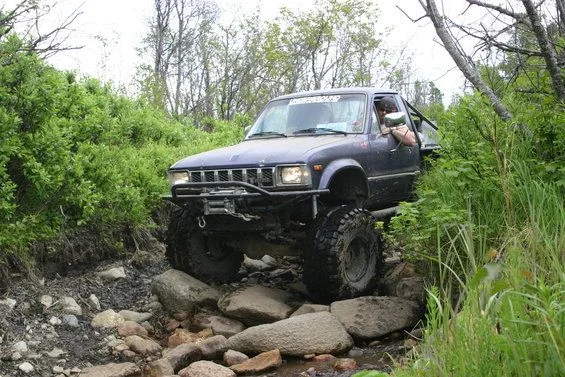

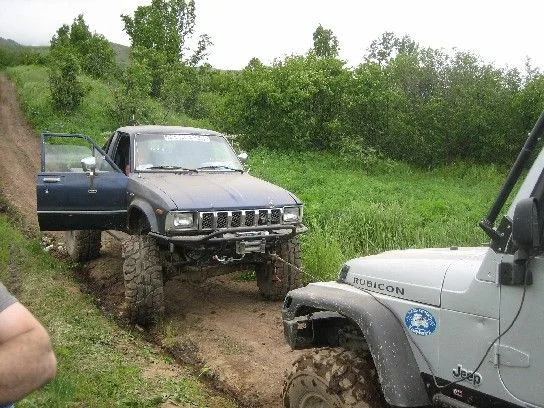

present pics



[JSTMUD]

more



[fortysixandtwo]

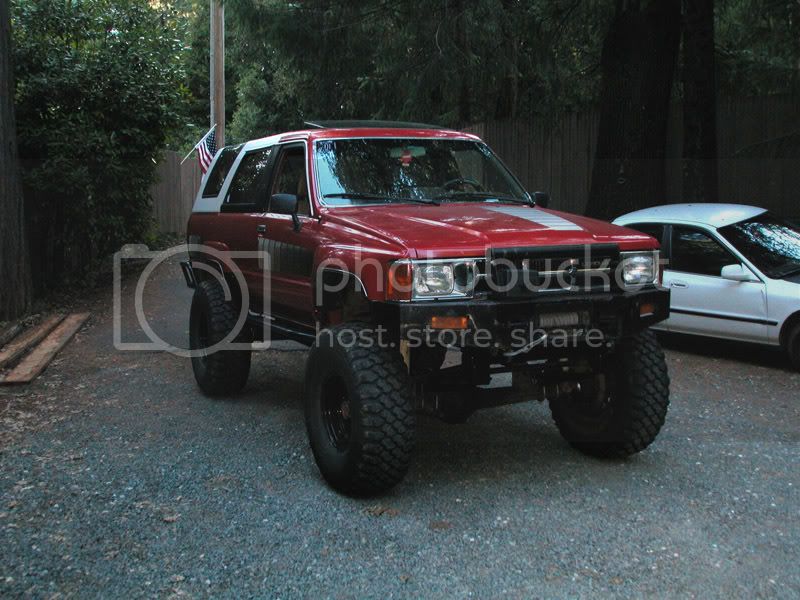

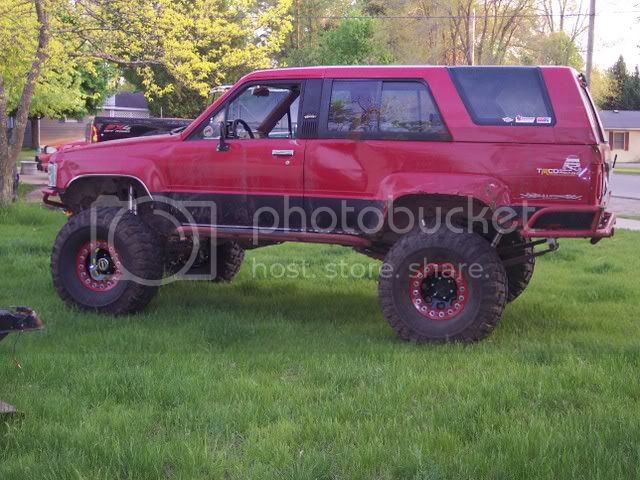

My 1985

Hey everyone. This is my 1985 4Runner SR5. I have owned it for 3 years now and it has evolved quite a bit in that time. (edit for the new year, got my duals in)


Engine:
DOA Racing rebuilt 22RE w/ approx 20,000 miles since rebuild
Downey Header
Flowmaster muffler (going to swap it with a Magnaflow)
Optima Red Top battery
22RTE 3 core radiator
V6 brake master cylinder

Transmission:
W56

Tcase:
Dual top shift cases with 4.0 Marlin Crawler T-case gears in the crawl box
BudBuilt dual case Xmember

Drivelines:
Shortened rear
Homemade square front

Front Axle:
1985 solid axle
5.29 R&P
Open (soon to be ARBed, Longfields)
V6 brake calipers
FJ60 Vented rotors
Stainless steel brake lines

Rear axle:
1989 V6 pickup rear axle
5.29 R&P (open, still need a locker)

Wheels/Tires:
15x10 all black rock crawlers
35x12.50 Discoverer Mud Terrains

Armor:
Custom front bumper w/ Warn winch
Marlin Crawler rock sliders
Marlin Crawler rear tube bumper

Front Suspension:
4x4 Labs 2" drop box, moved 1.5" foreward
44044 Jeep wagoneer springs
6" shackles
14" Bilstein 5125s
Full frame plates
Ford shock towers
88 IFS steering box
Marlin Crawler high steer

Rear Suspension:
63" Chevy springs w/ add a leaf
Dual shackle: stock chevy/6" shackle with extended shackle bumpstops
14" Bilstein 5125s

And lots of other goodies...



[dyogim]

Here's mine: SASed 00 Tundra SR5 V8

Specs: 00 Tundra SR5 V8 auto. SASed in 2004. Was in accident where an uninsured motorist went over the center divide and took out my front driver side (suspension, drivetrain and body were damaged). Truck was paid off and I took the money from the ins. co. and paid for the SAS.

Engine/drivetrain: stock. Only mod is a JBA exhaust.

Suspension: 5100's all around. 12" in the front, 14" in the rear. Front leafs are Rancho 4" Chevy lift springs, Rear leafs are 63" chevy (4x4) w/AAL.

Rear axle: toy tundra housing, stock shafts, 4.88's, lockright locker.

Front axle: D44 from wide track cherokee, 4.88's, lock right locker, X-over steering(switched from hi-steer), everything from steering knuckles to hubs are from a chevy. Currently in the process of swapping out the front axle for a HP44 from a 78 F250, mounting the ram for hydro assist and swapping out the steering box for a tapped box. Still debating on running X-over or hi-steer.

Hell Hole Reservoir

Hollister: at the bottom of Truck Hill

Hollister: at the bottom of Truck Hill



[tube yj]

Hello, i am new here. Here is my Toyota

91 toyota, sas, dual cases, 30 spline longs, locked, geared, bed bobbed, etc.

Next things planned are 37 inch IROKs, stauns, and a in cab cage
