Project 16

Discussion in 'NM- High Desert Cruisers' started by BionicCruiser, Jul 12, 2009.

  1. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

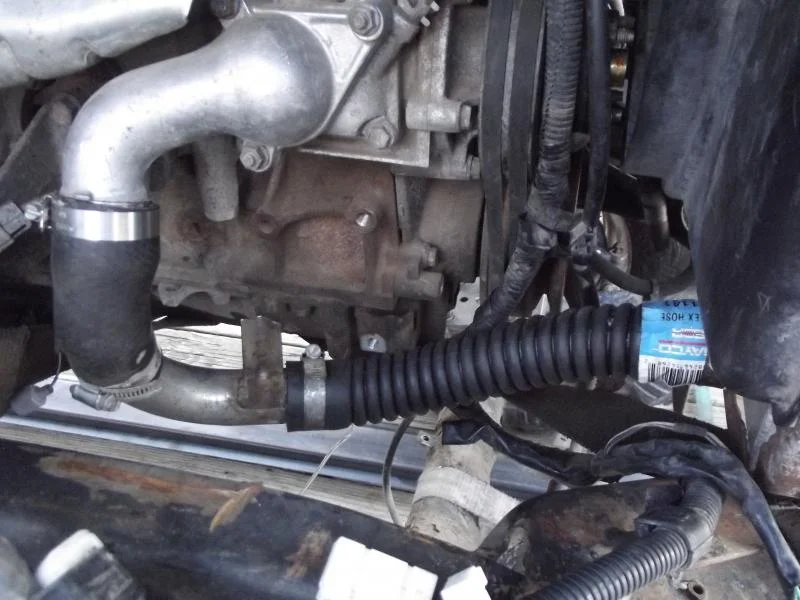

    next was getting the radiator hoses figured out. some trimming on stock hoses and a flex hose got one side mocked up and the other side only needs a 6" metal pipe piece.


    Attached Files:

  2. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

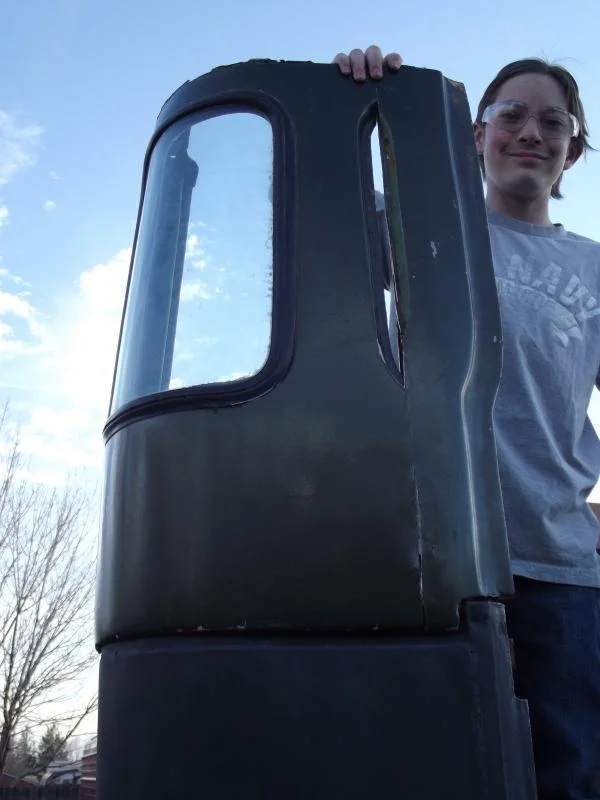

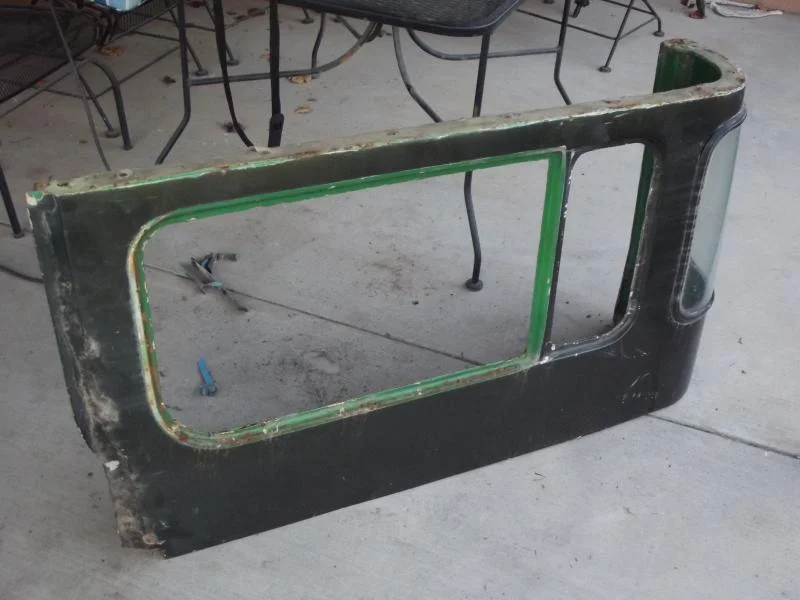

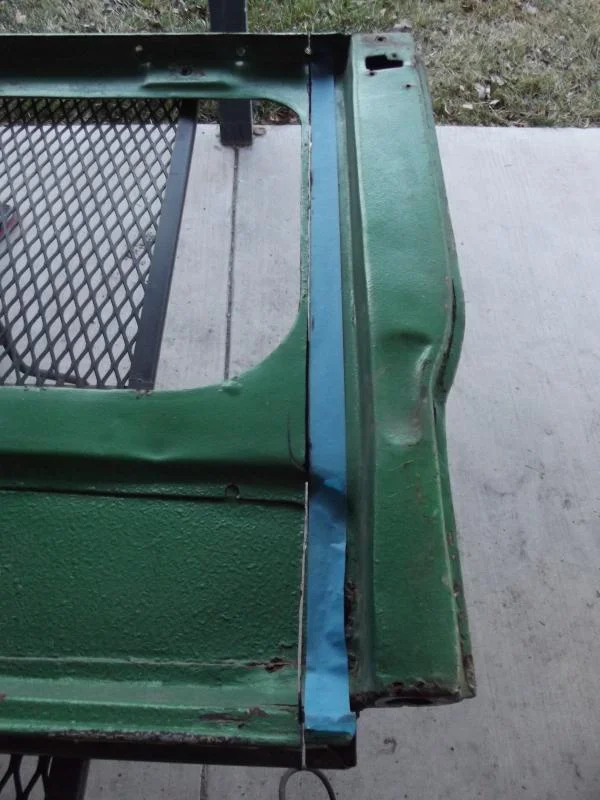

    then we started on the hard top. we have 2 sides and a fiberglass top. we still need the rain gutters. the hard top needs to be close to in place to fit the roll cage.


    Attached Files:

  3. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

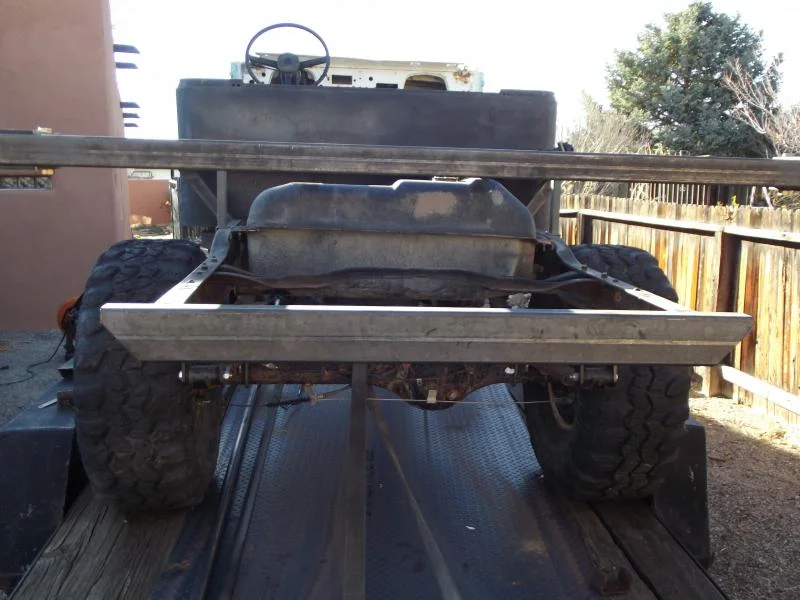

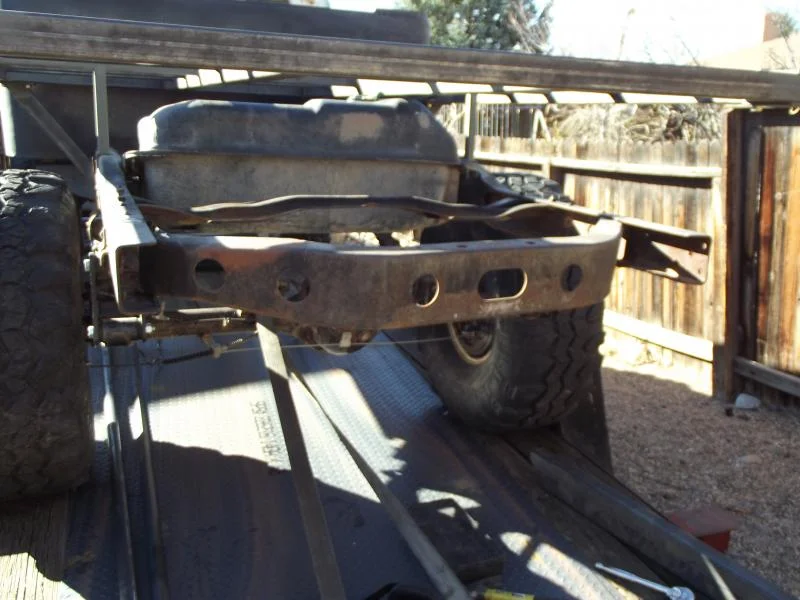

    big long day of fab work today! we were both home all day, so we cut the front and rear bumpers out, as well as rocker sliders. then we cut the rear x-member out and trimmed the rear frame, then tacked in the new bumper.


    Attached Files:

  4. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM
    pics coming tomorrow, the cab body mount bracket was trimmed to mount the sliders and the front mounts were cut. a little grinding and the sliders are ready to weld in.

  5. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

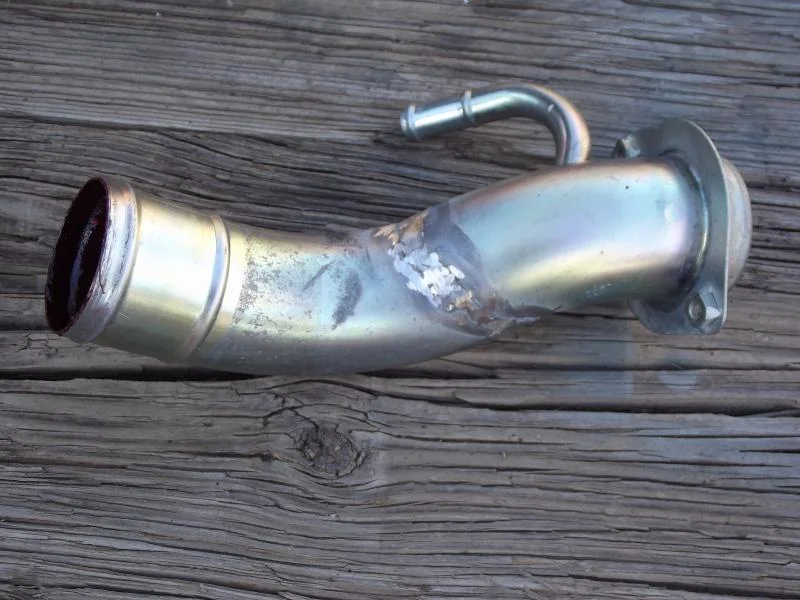

    ok, we ground the welds on the second filler neck and sealed it with fuel cell sealer(red kote). it had some rust inside so the sealer gets the rust and welds all sealed.
    tomorrow I work, so if things are slow, I hope to get the sliders welded in and front bumper mounts started.


    Attached Files:

  6. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

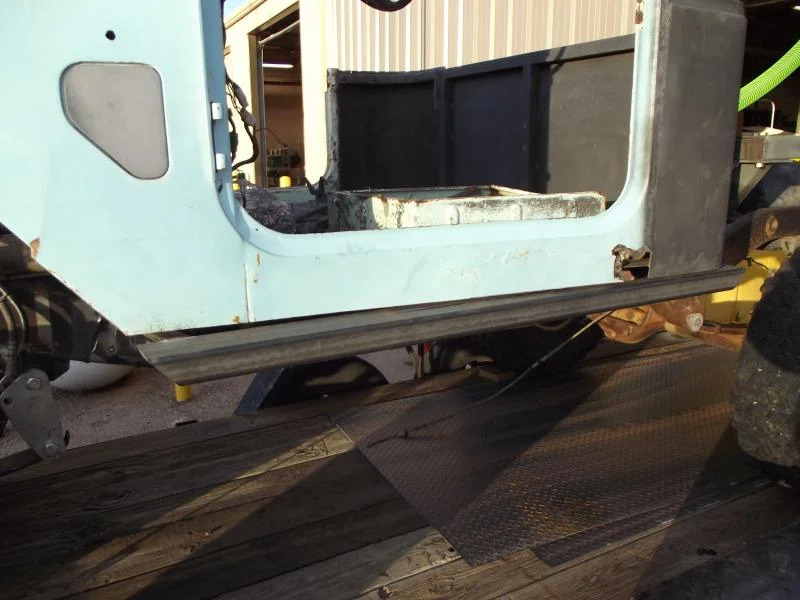

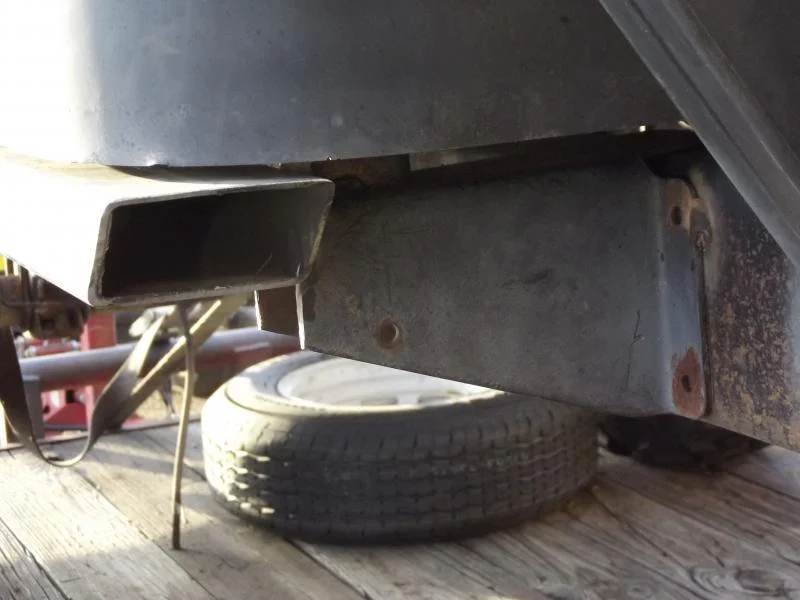

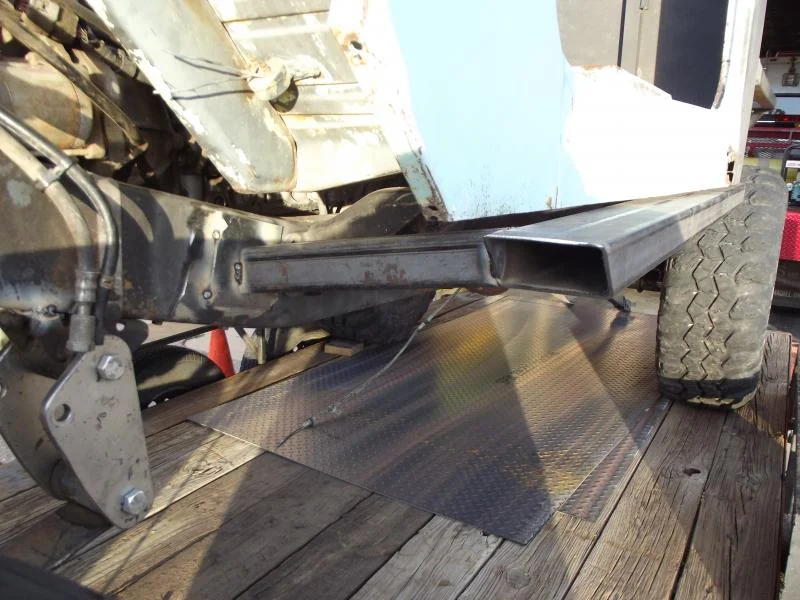

    I was able to get the sliders tacked on today. the rear mount will be the same bracket as the body mount. it will get trimmed and boxed.


    Attached Files:

  7. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

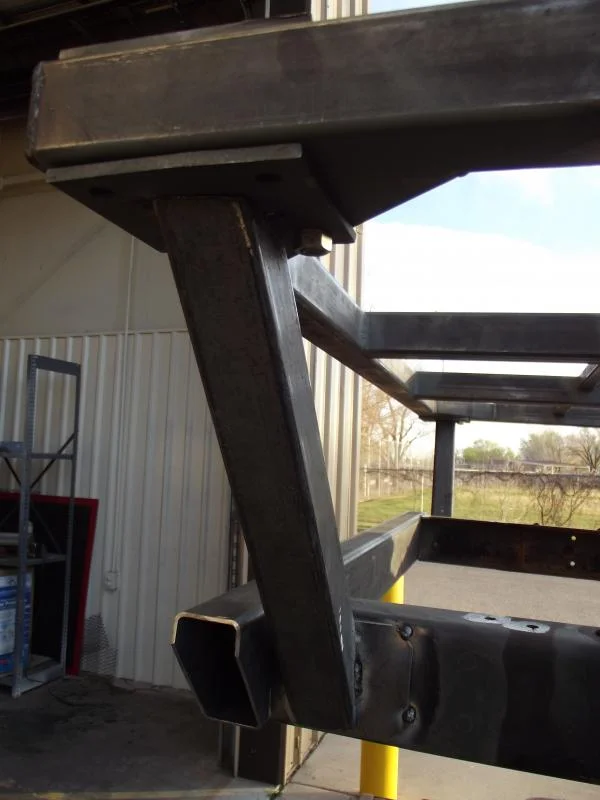

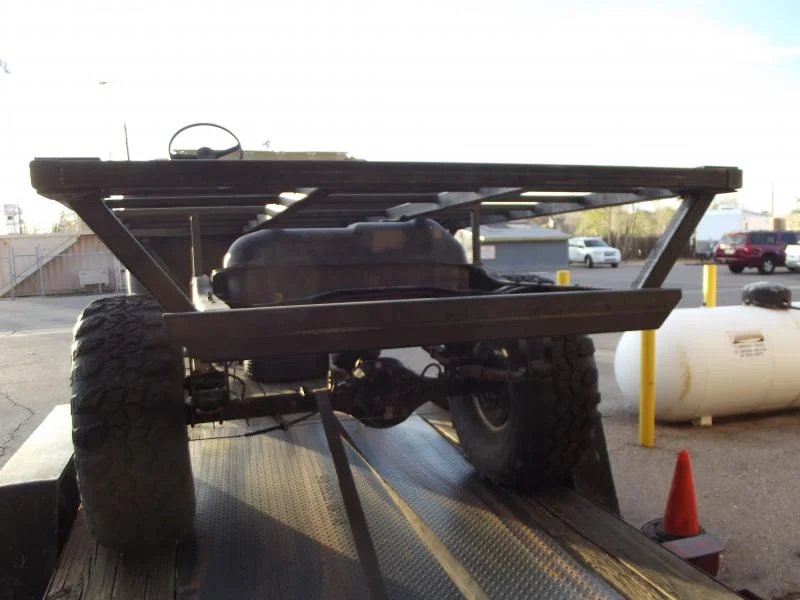

    next up was the rear bed mounts. no pics, but I also got the front frame horns prepped for the front bumper brackets.


    Attached Files:

  8. Pyro-boy

    Pyro-boy

    Messages:
    562
    Media:
    2
    Albums:
    1
    Likes Received:
    20
    Joined:
    Jun 10, 2004
    Location:
    Northern New Mexico, Espanola
    Looks good Shawn:cheers:...what are you planning to deck the bed with?

    Vince

  9. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM
    already in my possession, 14g steel diamond plate. that will also be used for the tail light plate and maybe the under bed storage box. in fact, in several of the pics above, you can see it on the trailer under the rig.

    we got the front bumper on, no pics yet, but hit a road block on making the tube fenders. my cheap bender isn't going to cut it. I may have to buy a die set for my buddies good bender.

  10. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM
    we've been working on the project, but hadn't gotten pics yet. things slowed down a little when my chop saw broke from the final time and we found the roll bar tubing we got was the wrong size. I paid for 1.75" and they loaded me with 2". I have to go back and get the correct size that my buddy has a die for. so here are some pics!

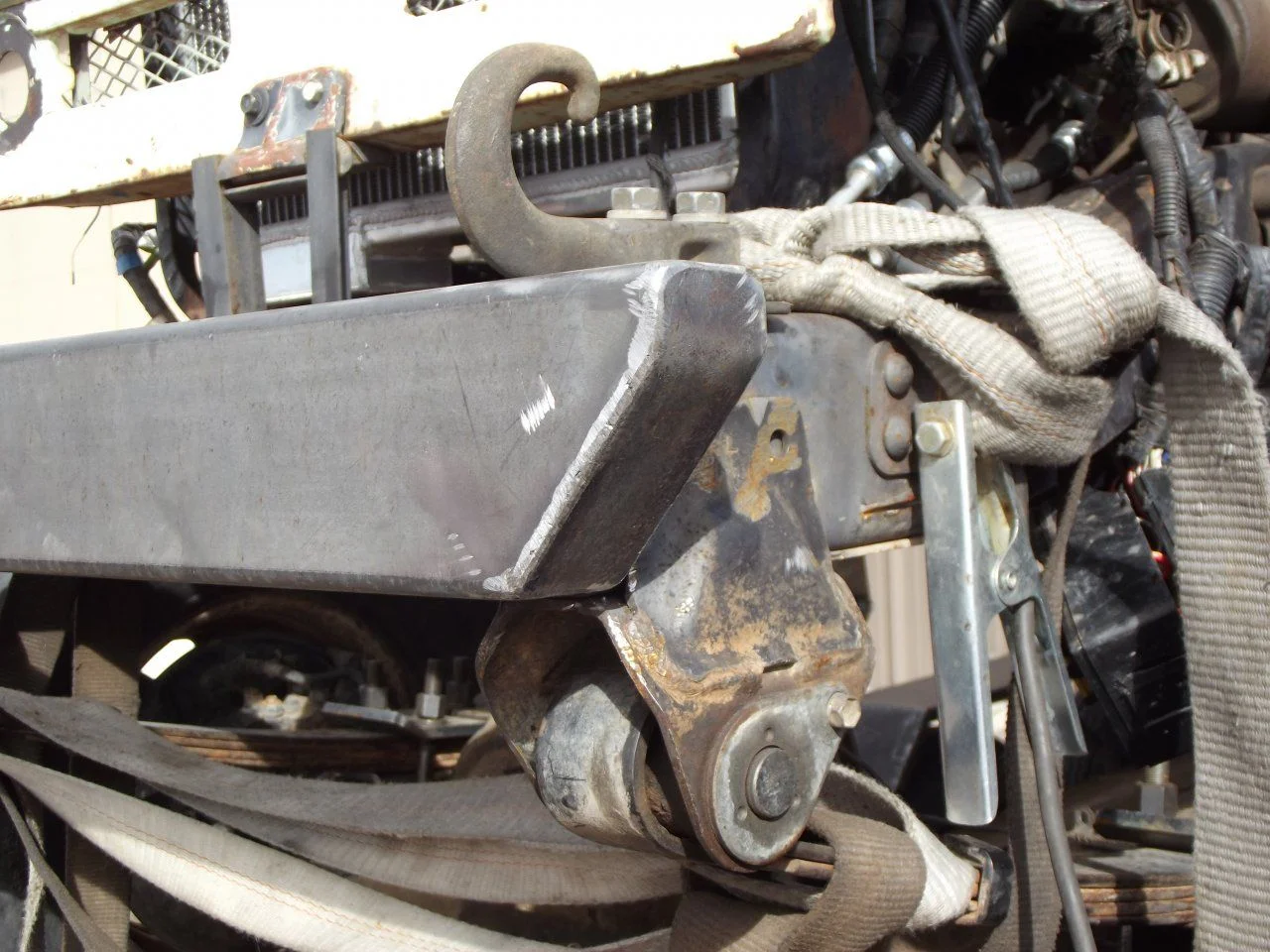

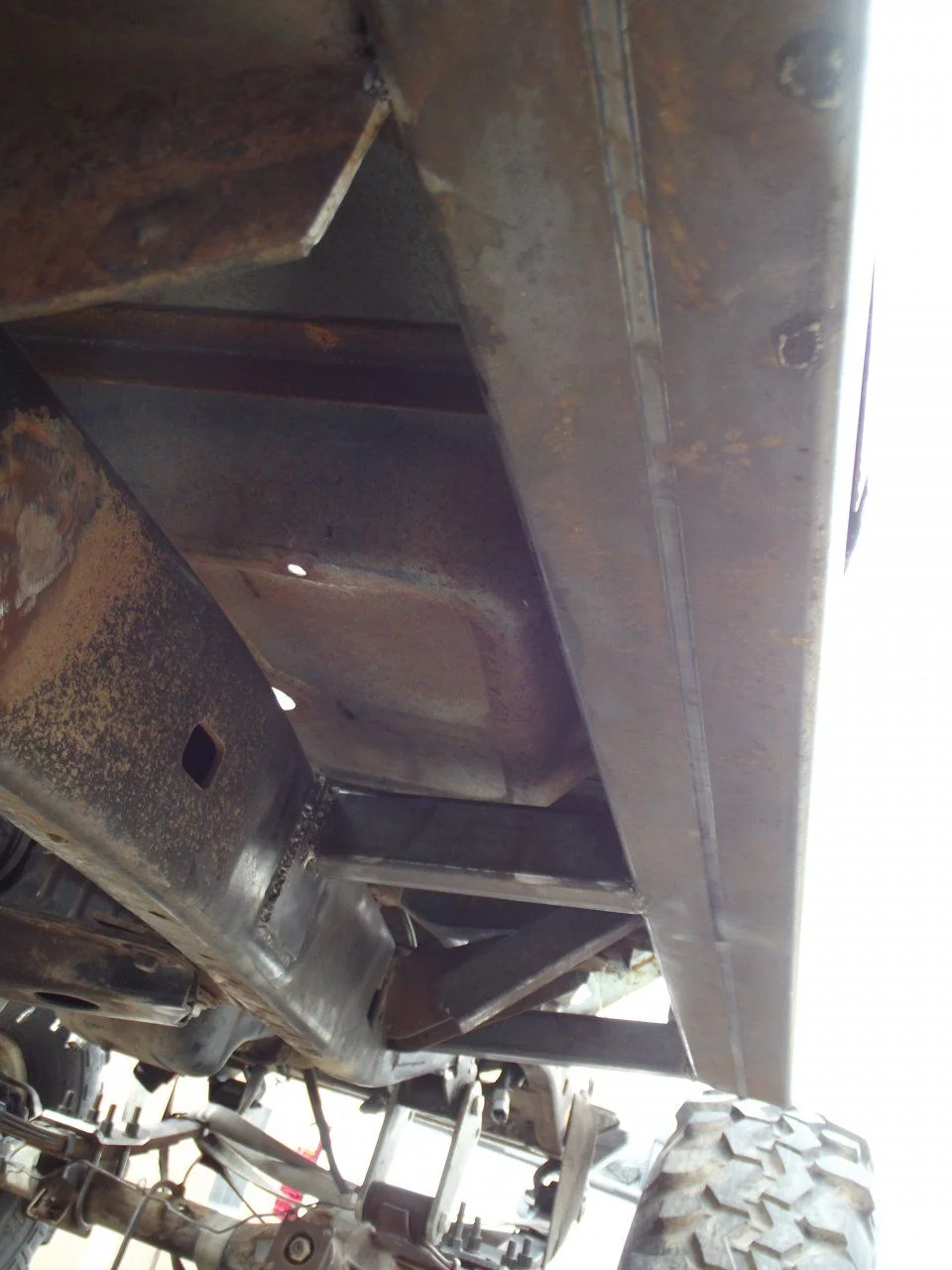

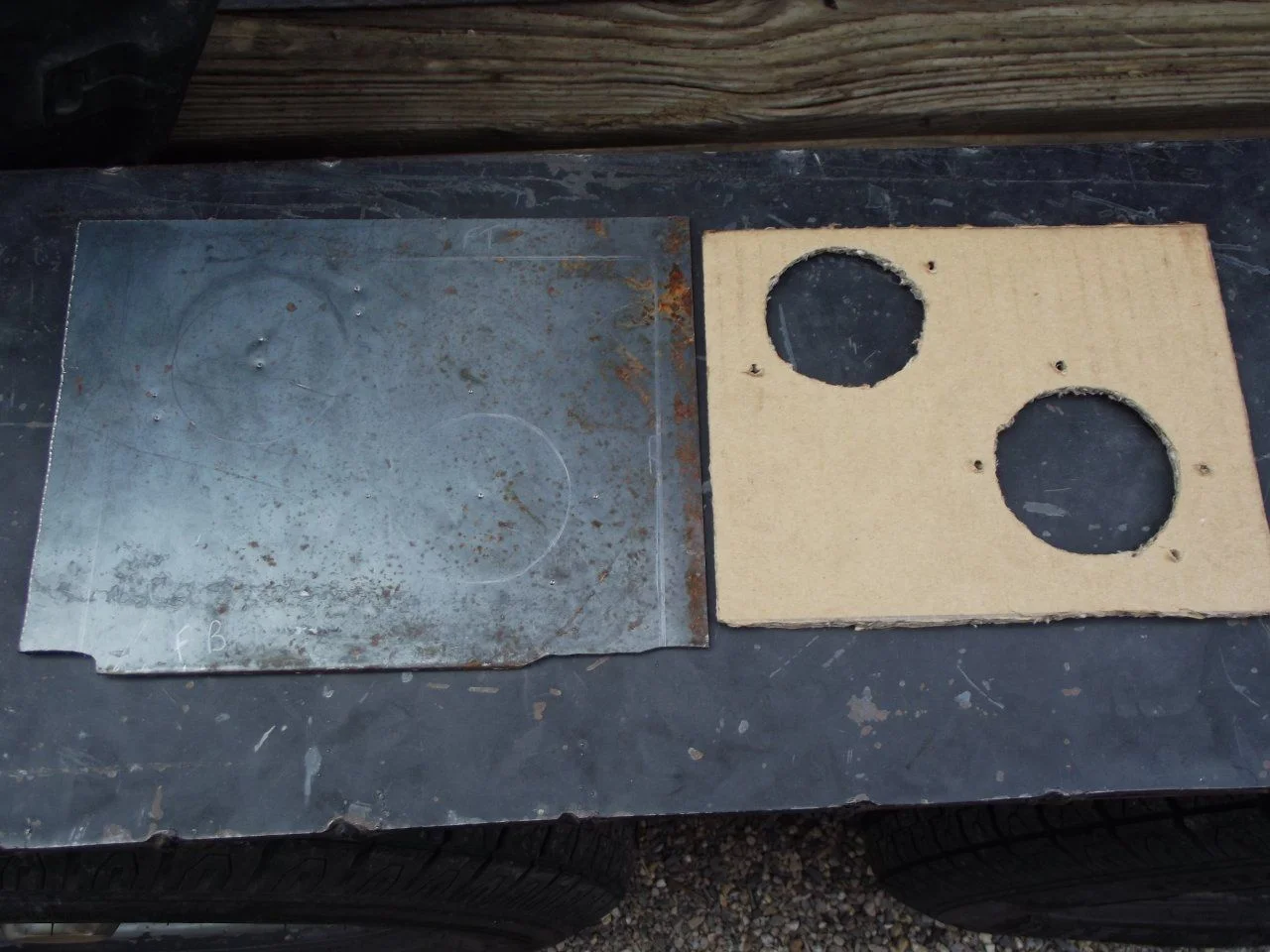

    first is the middle support for the sliders. then the front bumper, then the frame for the fuel filler necks and the mounting plate template


    Attached Files:

  11. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

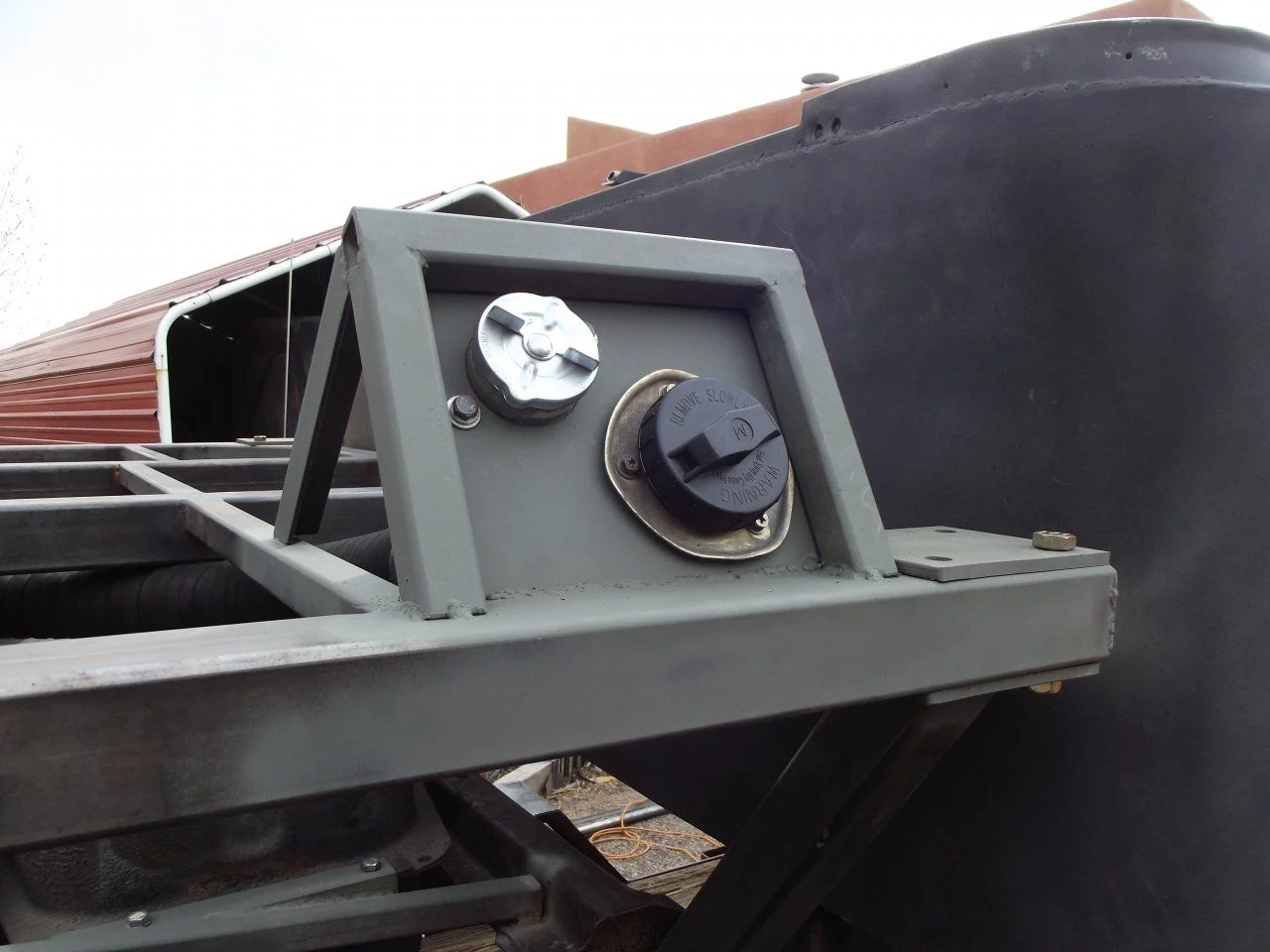

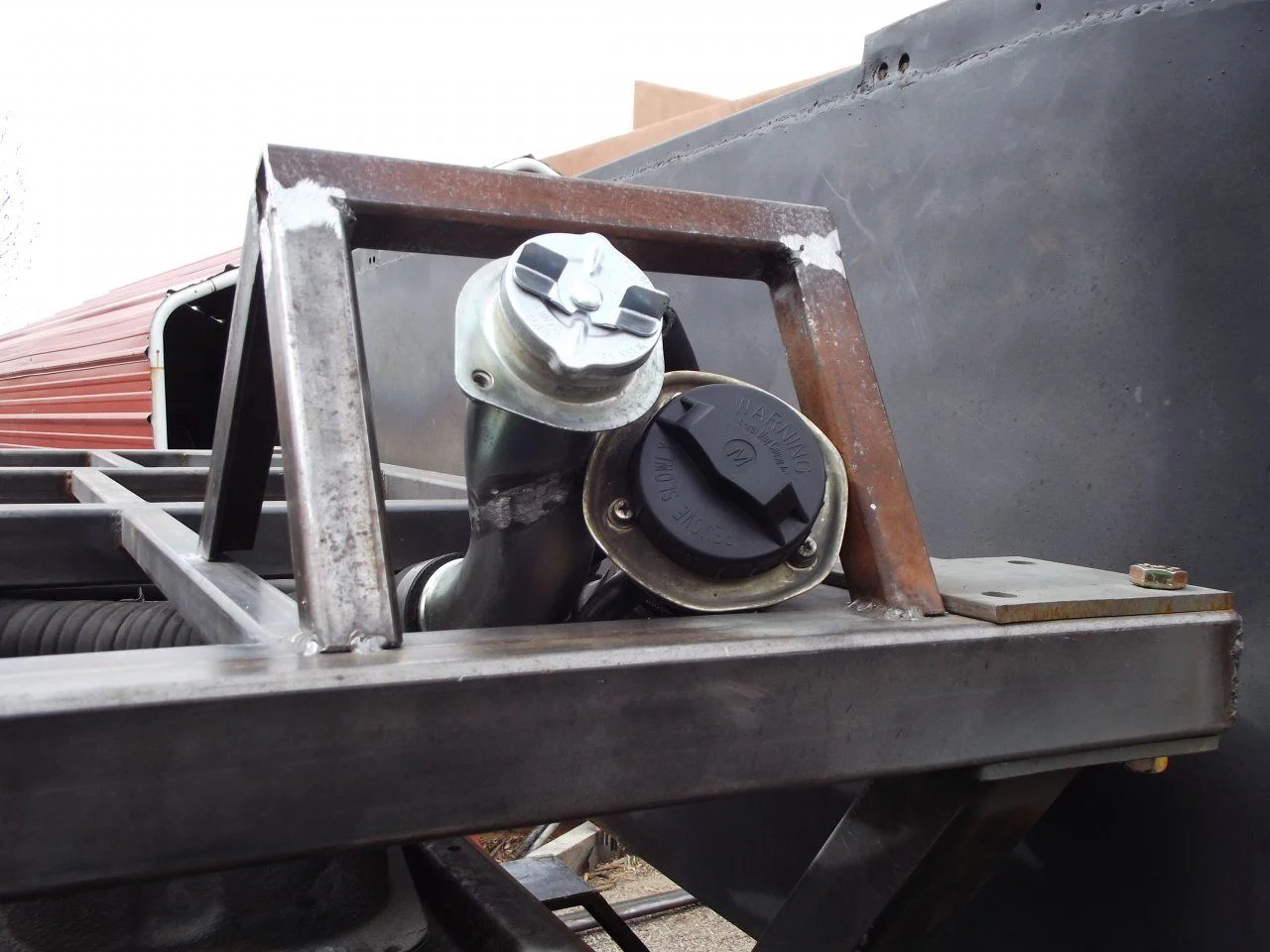

    today we finished up the fuel filler mount.


    Attached Files:

  12. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

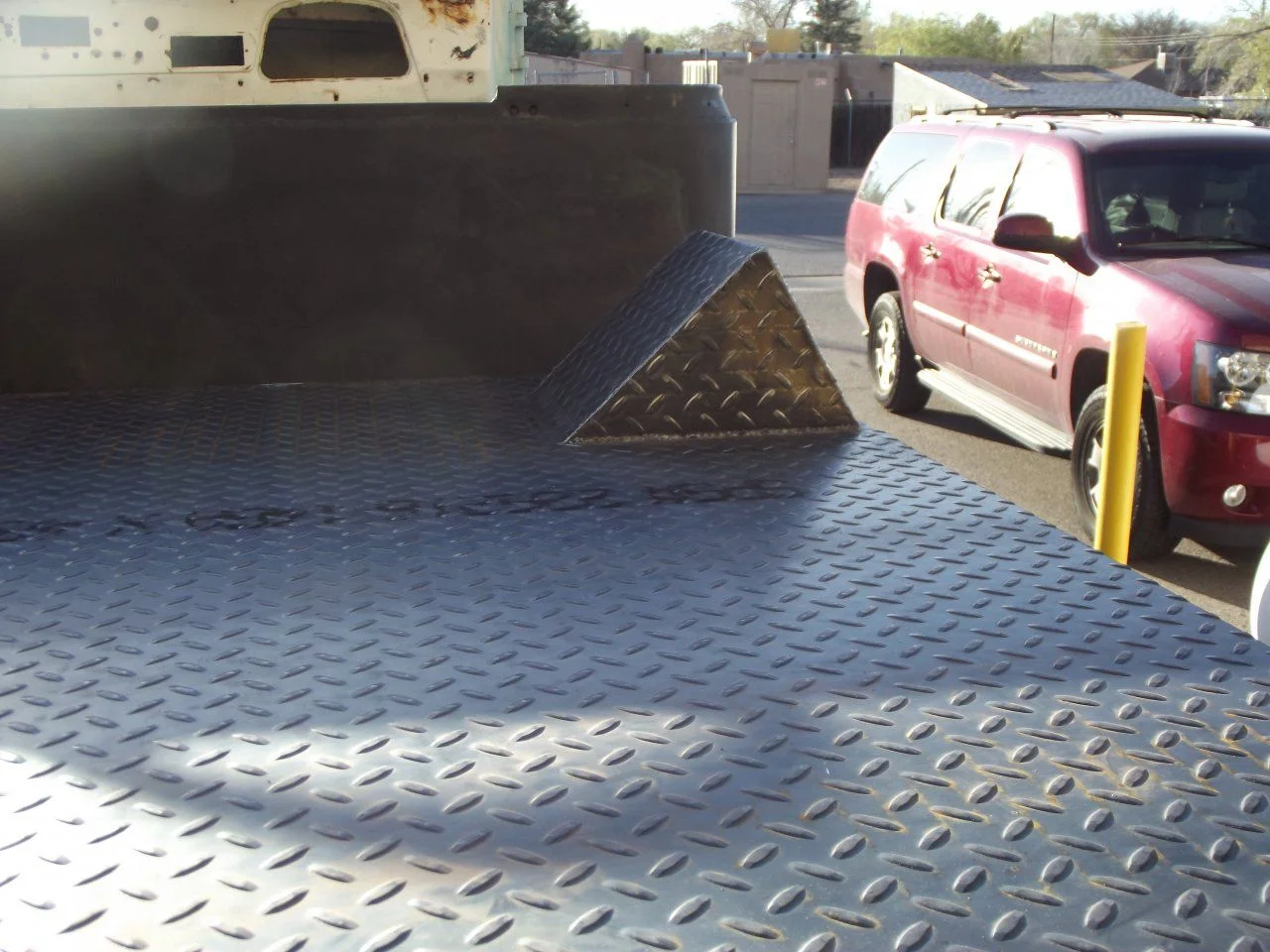

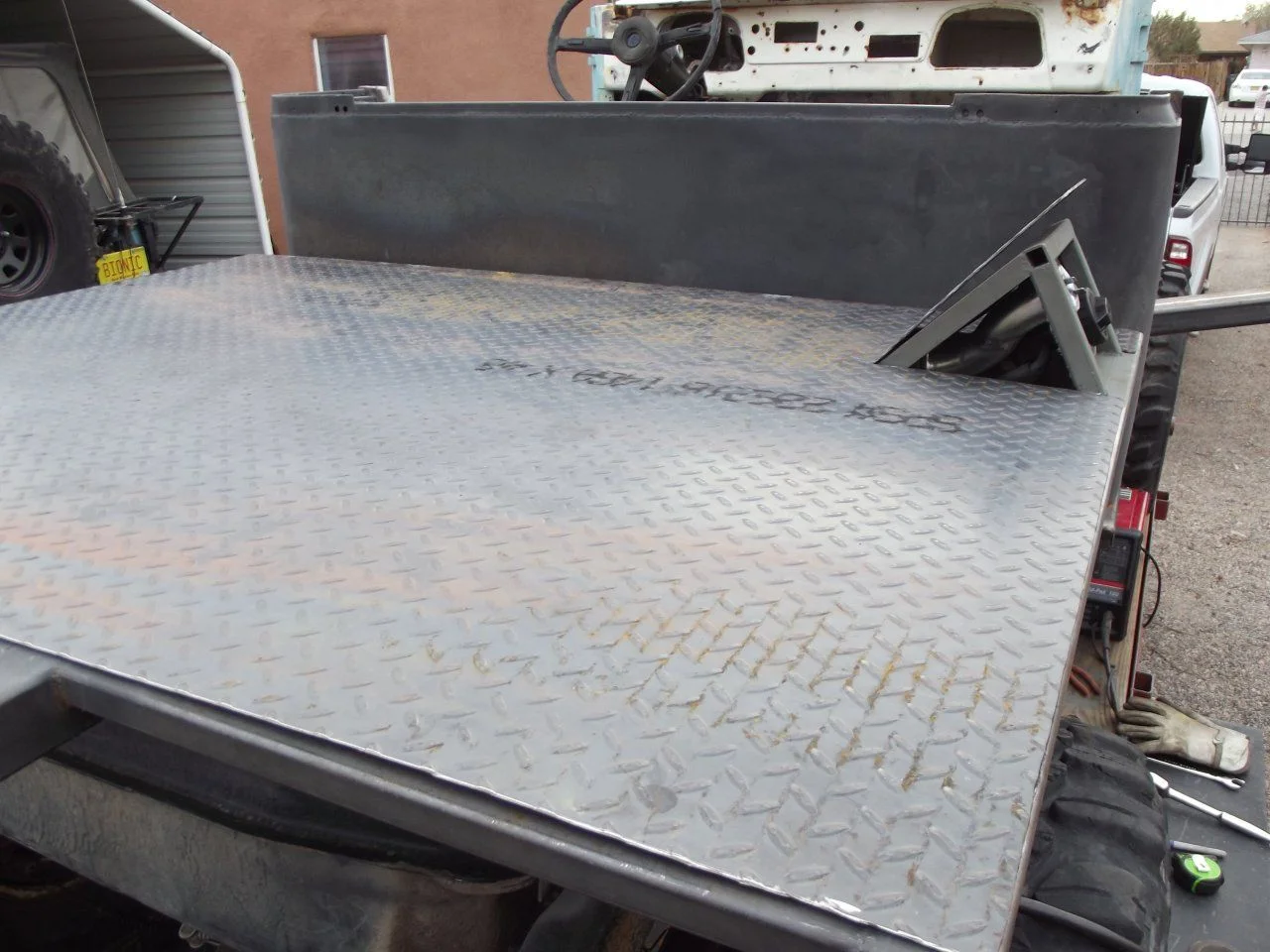

    then moved on to covering the bed. the area of the fuel fillers had to to be notched and bent up. then everything was trimmed and squared up.


    Attached Files:

  13. jstncse

    jstncse Crawling over something

    Messages:
    1,274
    Media:
    2
    Albums:
    1
    Likes Received:
    135
    Joined:
    Dec 15, 2010
    Location:
    Albuquerque
  14. Pyro-boy

    Pyro-boy

    Messages:
    562
    Media:
    2
    Albums:
    1
    Likes Received:
    20
    Joined:
    Jun 10, 2004
    Location:
    Northern New Mexico, Espanola
    Looking good. :cheers: That set up is slick!

  15. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

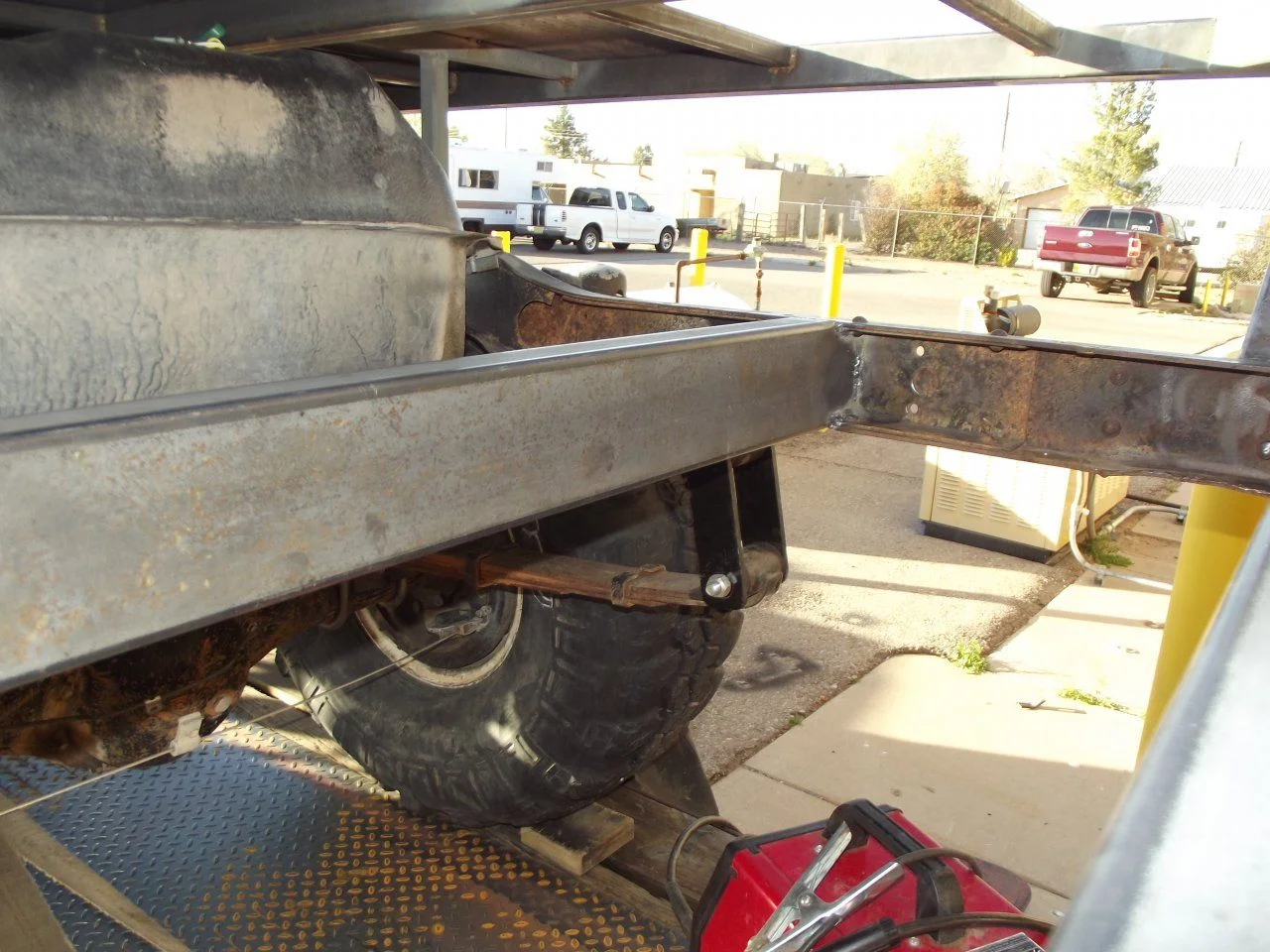

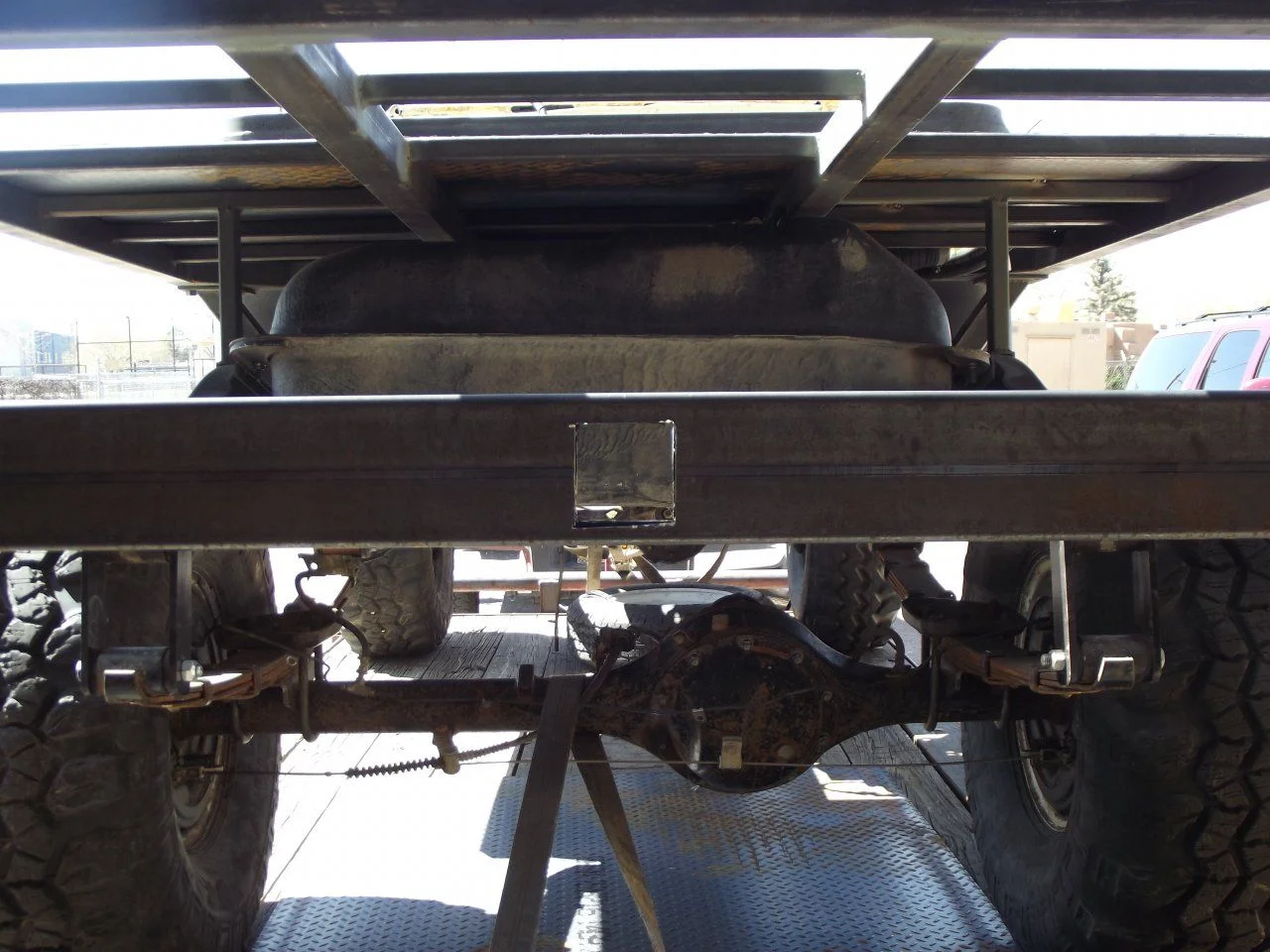

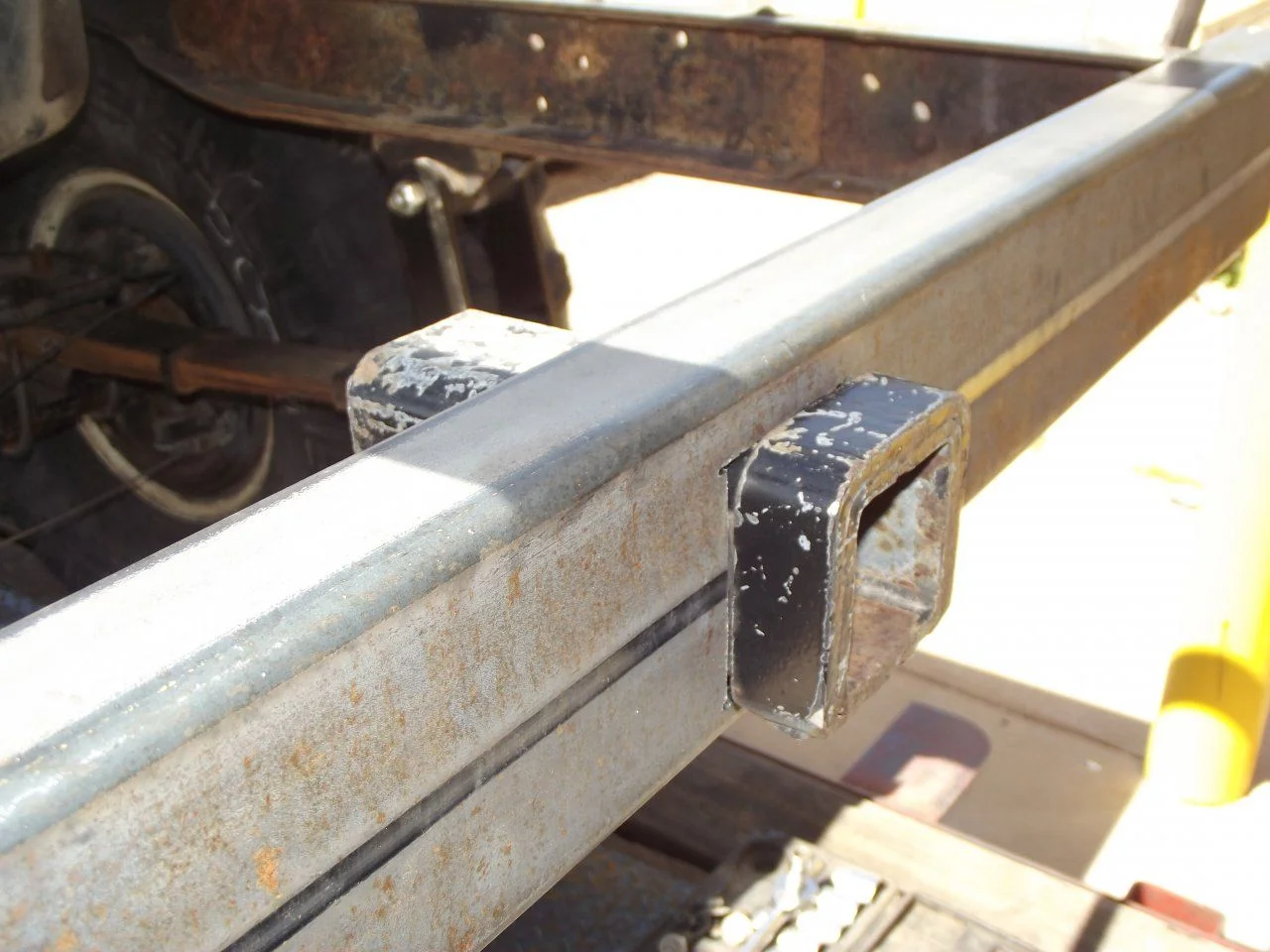

    today I cut the hole in the rear bumper for the receiver hitch, removed the xmember for the spare tire rack and installed a new one. it will double as the floor support for the gear box and a tie in for the receiver hitch.


    Attached Files:

  16. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM
    also got the sides of the filler neck mount cut and welded in.


    Attached Files:

  17. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

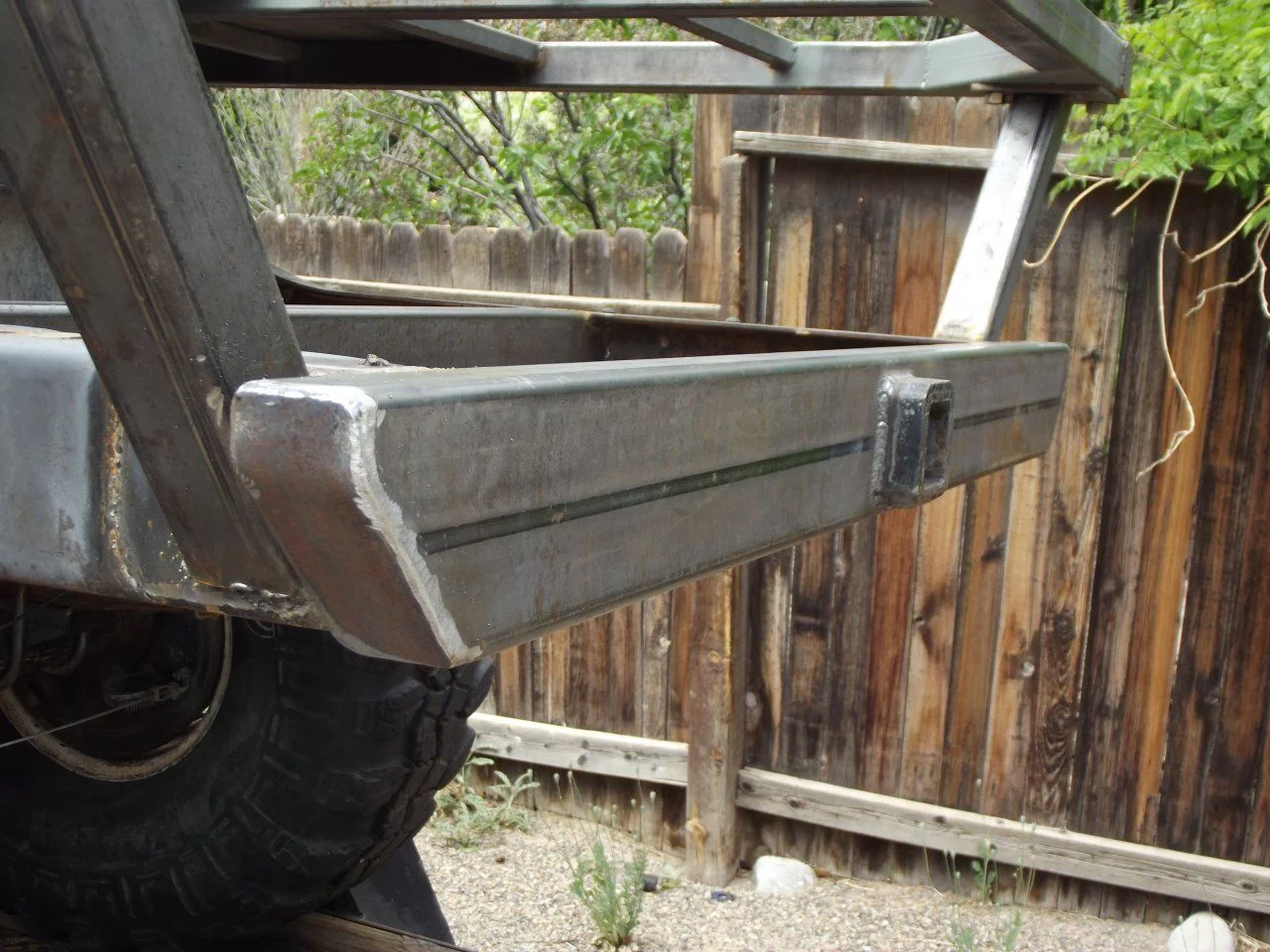

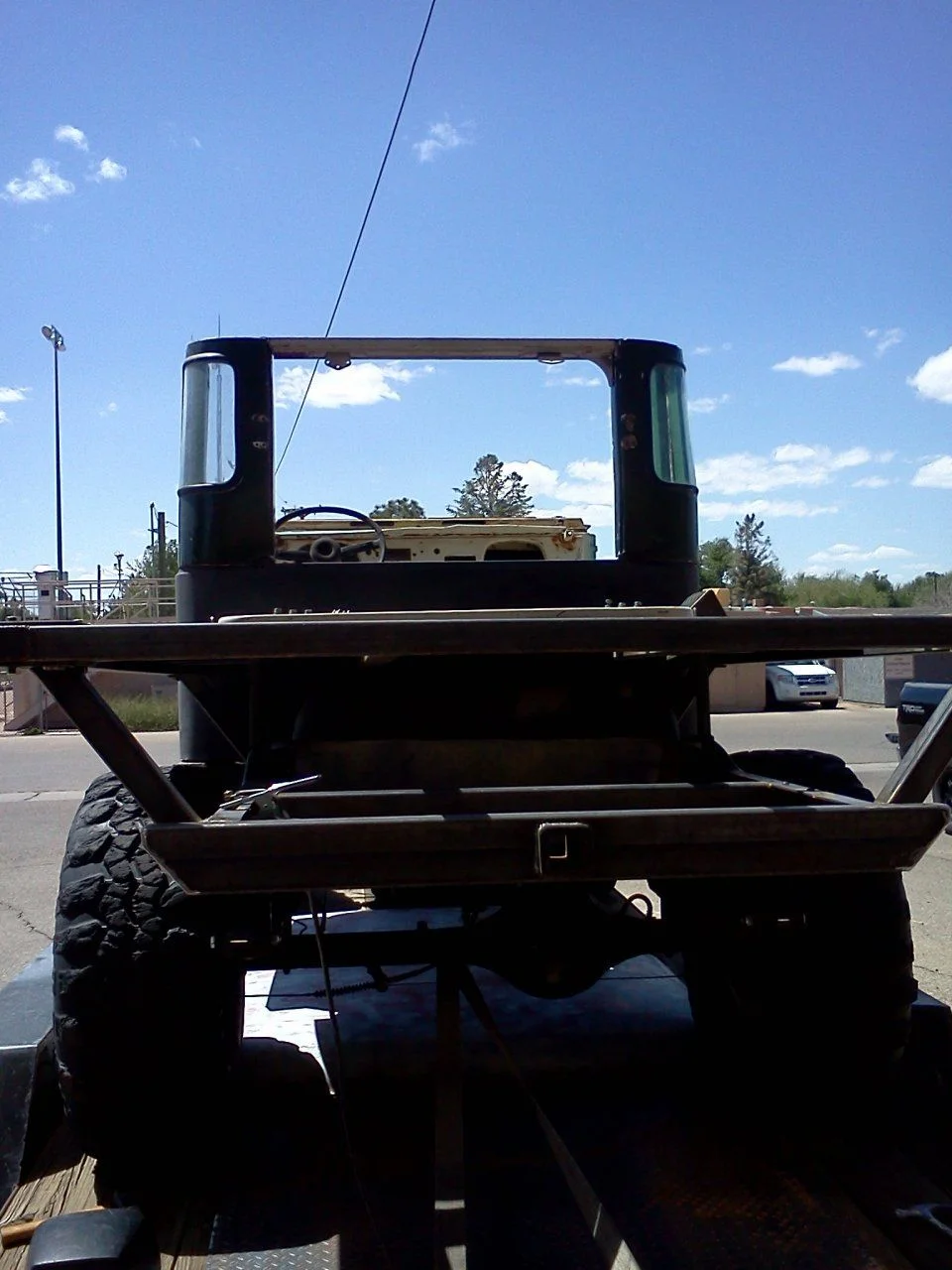

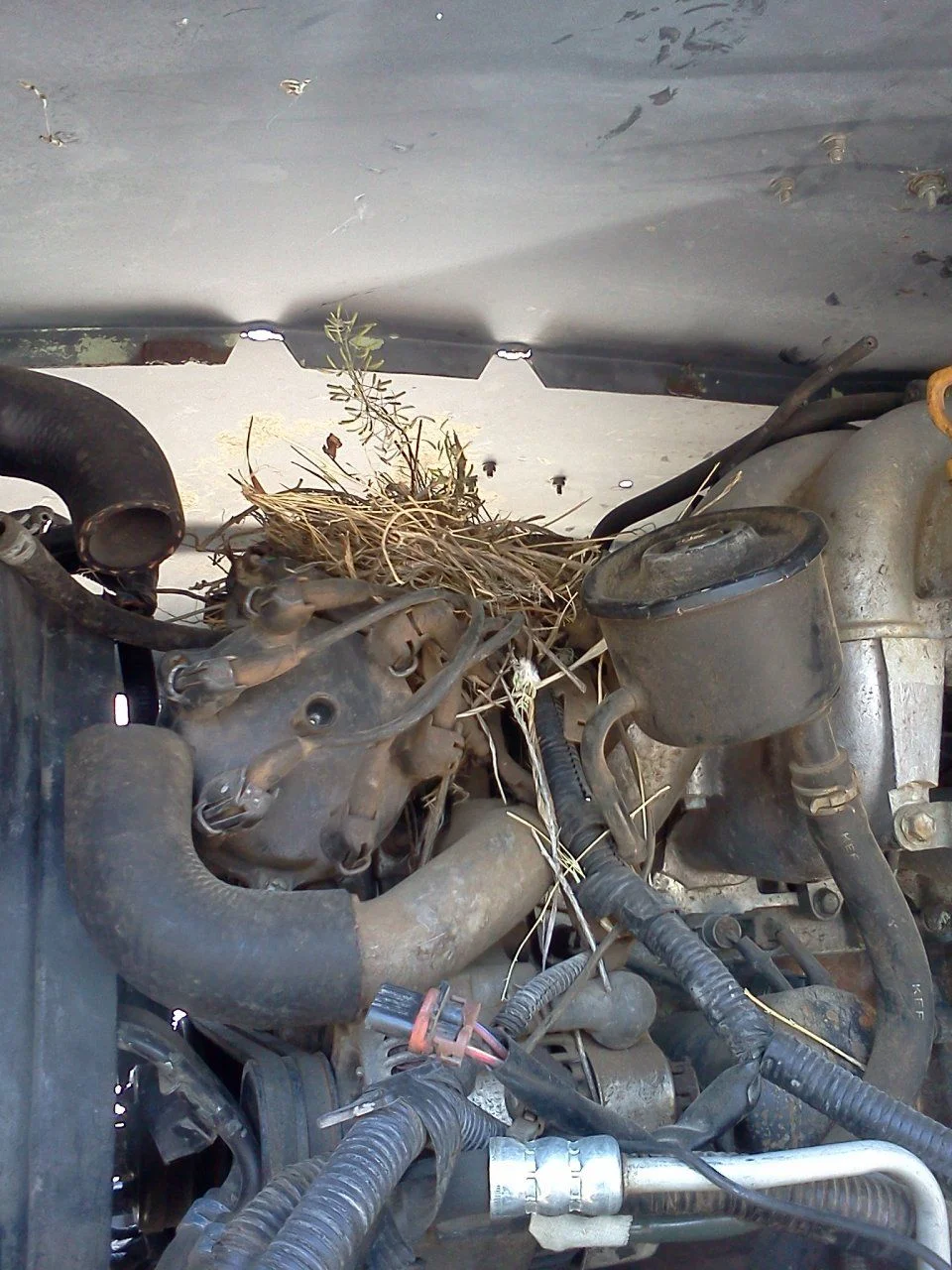

    IMG_20140509_142755.jpg DSCF0976.JPG IMG_20140509_143214.jpg we took a few weeks off for a vacation and then waiting on $. it's time to get going again when birds start thinking it will never move...
    so I welded up the rear bumper end caps and the receiver hitch. then put in a post for one side of the hard top and checked on the alignment with the rear top rail.

  18. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

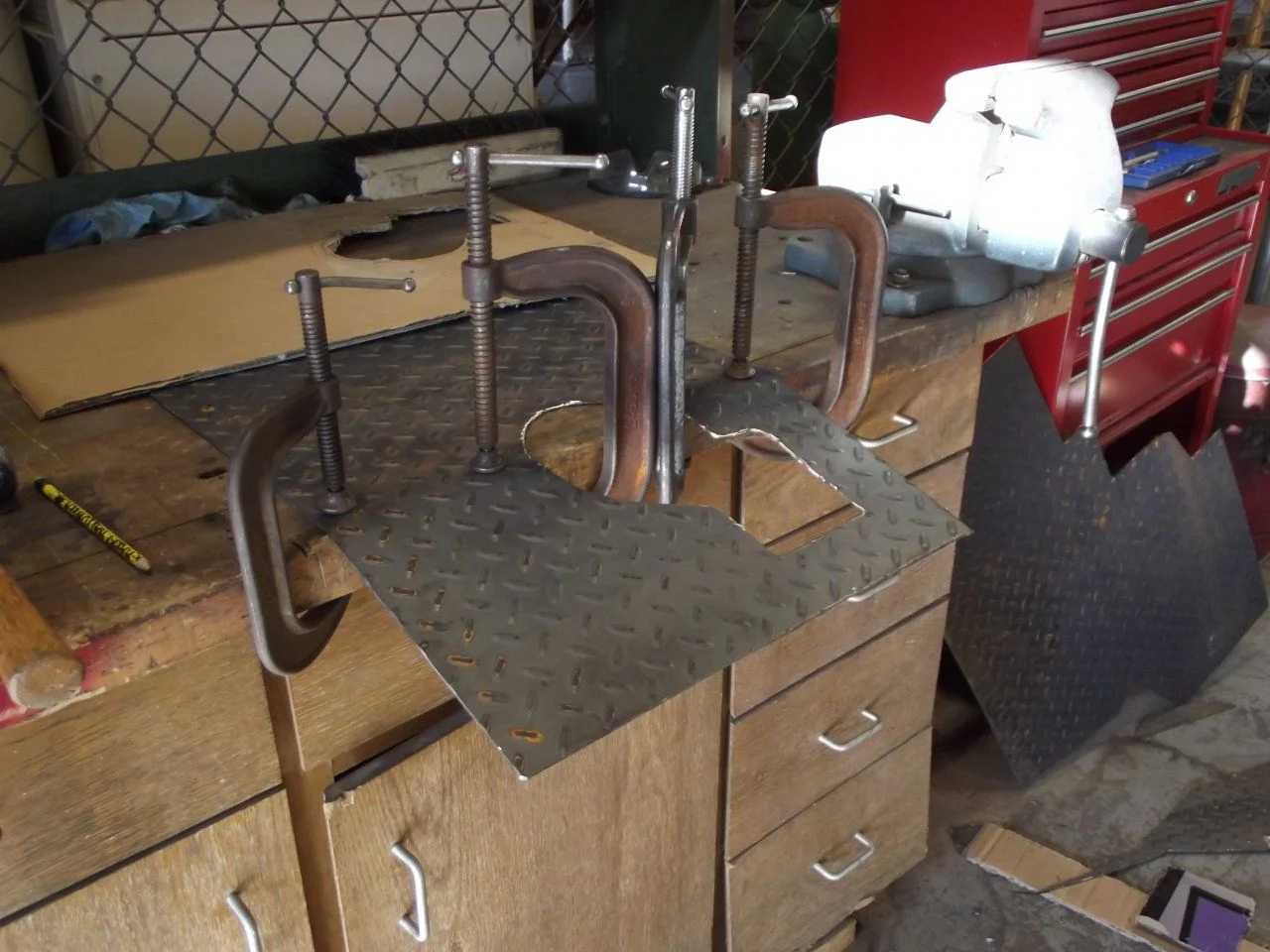

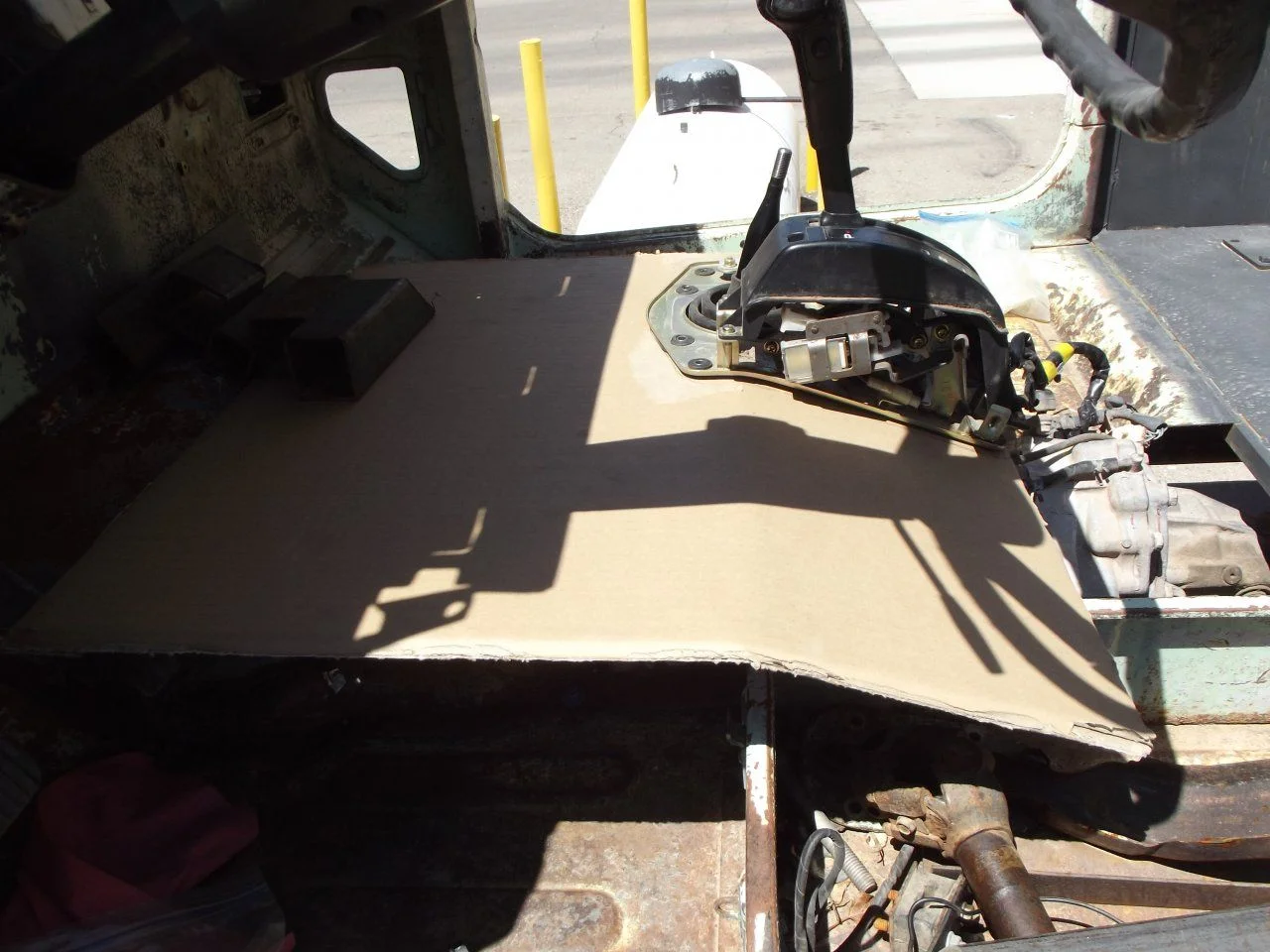

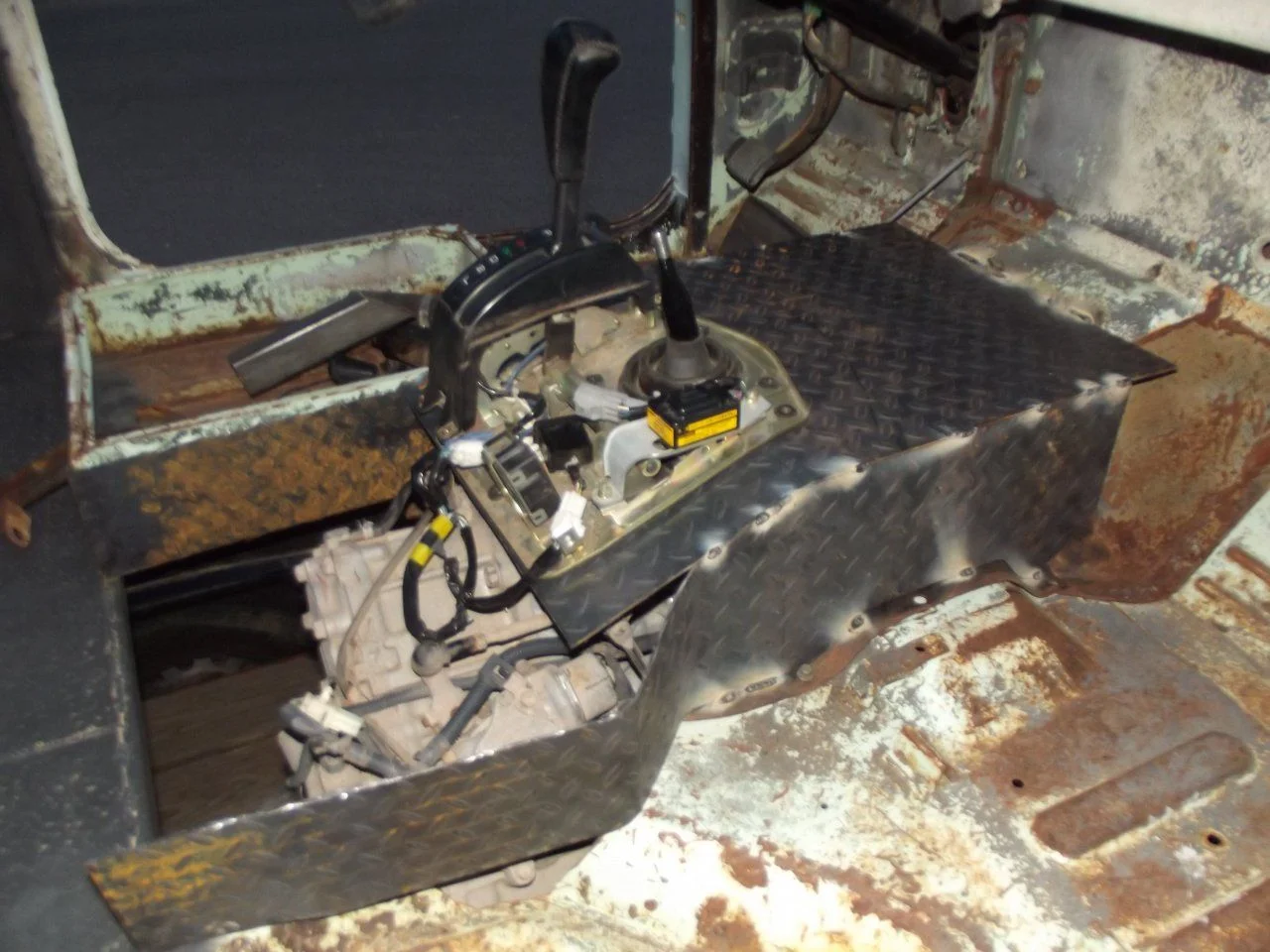

    busy day. I made a cardboard template of the trans hump. got it all cut out and tacked in. it may be a bit too high based on the plastic piece that goes over the shifter. I'll have to look at it again in the next day or so. have to make the front corners and the rear.
    [​IMG]
    [​IMG]
    [​IMG]

  19. BionicCruiser

    BionicCruiser

    Messages:
    2,847
    Likes Received:
    114
    Joined:
    Mar 3, 2003
    Location:
    Albuquerque, NM

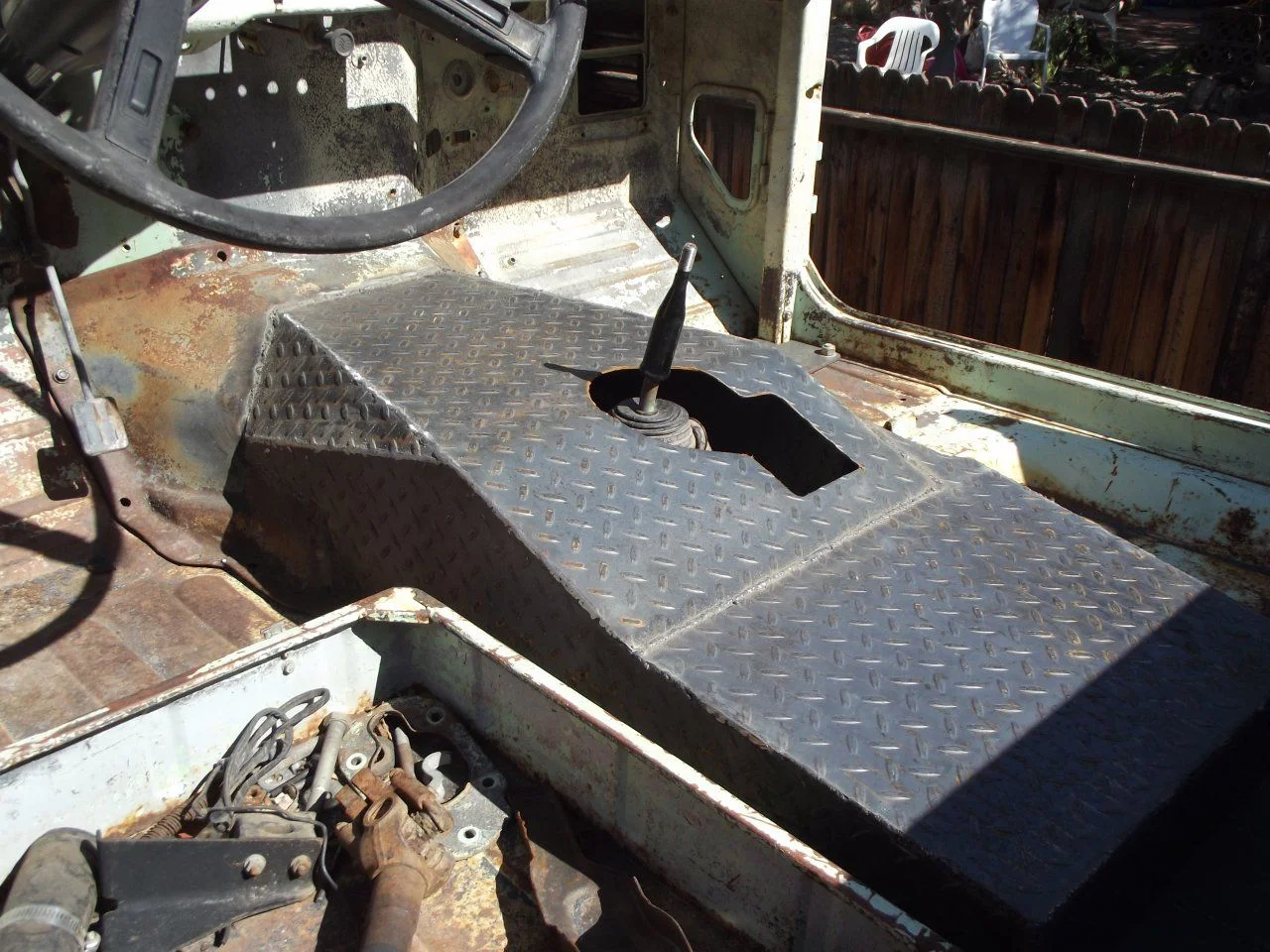

    DSCF0994.JPG we finished up the transmission hump. one small piece left to fab and make the bolt down tabs, but she came out better than I had hoped!

  20. evanz80

    evanz80

    Messages:
    1,670
    Likes Received:
    37
    Joined:
    Jan 7, 2007
    Location:
    Tijeras NM
    Looking good! I can't wait to see it on the trail.
