OEM (style) 40 series Fog Lights/Lamps

[Living in the Past]

What's interesting about that drawing is it shows CLEARANCE LIGHTS mounted on the frame horns.

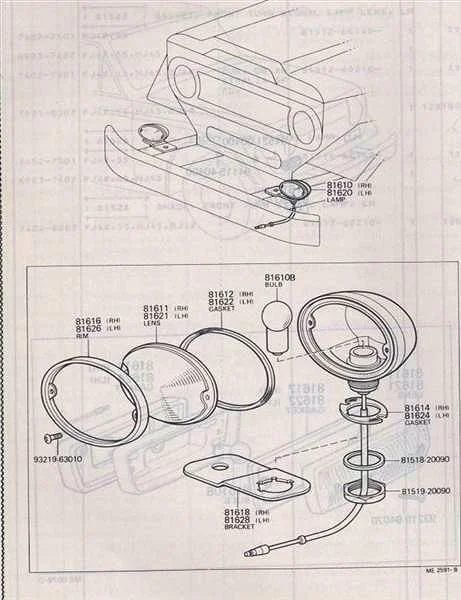

Here is a pic of the clearance lights...View attachment 1047252

I think I remember a old cruiser with lights shaped light this. Believe it was in Australia.



[JohnnyC]

@Coolerman

those extra lights were added on in some markets ... predecessor to the larger turn signals that started in some markets in 74' ... we got the larger directionals in 75

think Mot had looked into those before (Mot the king of lights )

does the manual that you have say what years? 73'? just 73 or started earlier?

I havent seen any of those clearence lights in literature.... yet



[Coolerman]

What? With all the literature you have, not ONE pic of one with clearance lights?



[JohnnyC]

not with the clearance lights... but i do have lit with the earlier 74' large lights

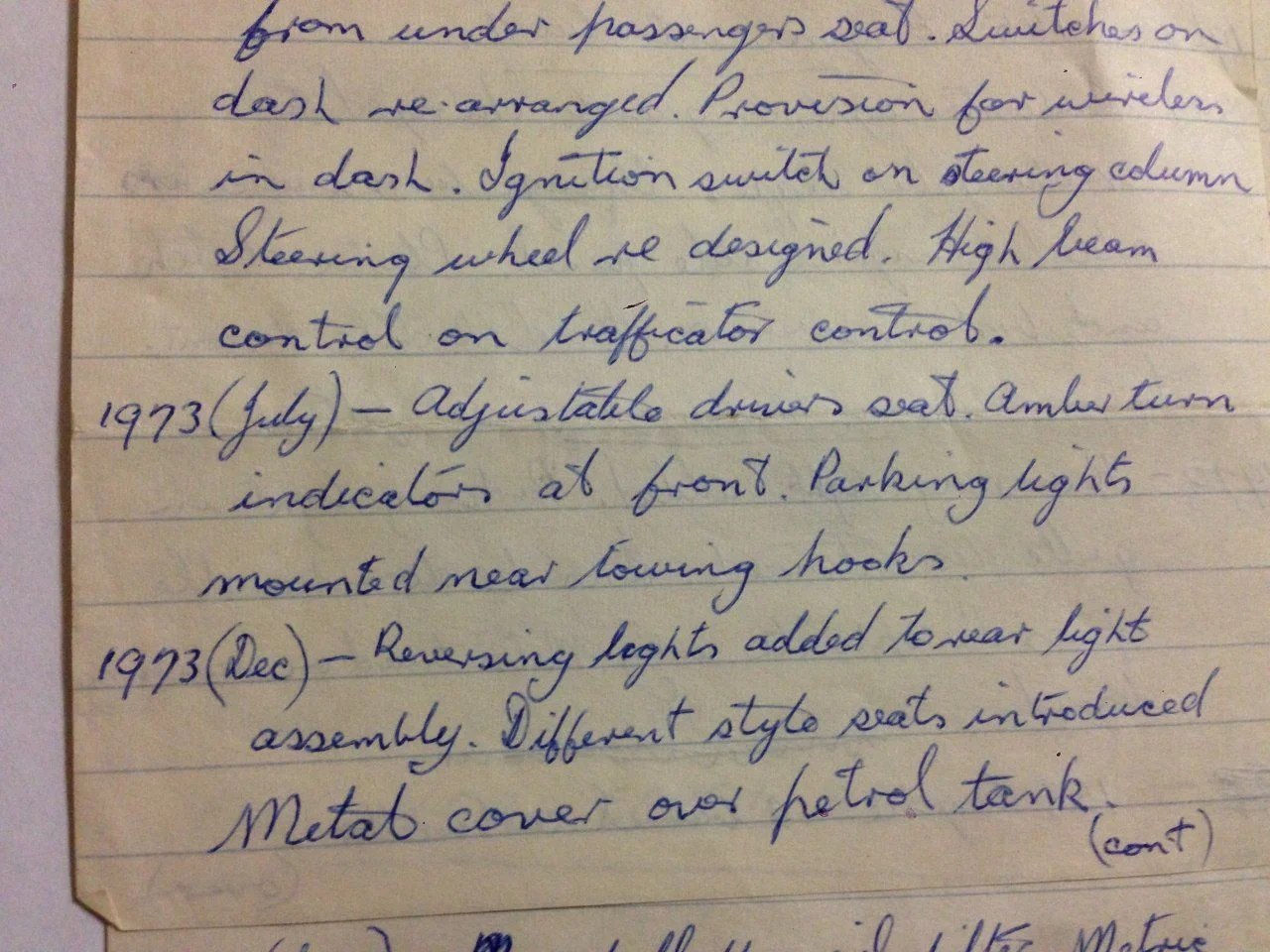

and we have hand written notes about the change over in Oz pic from @ozcruiser



[Racer65]

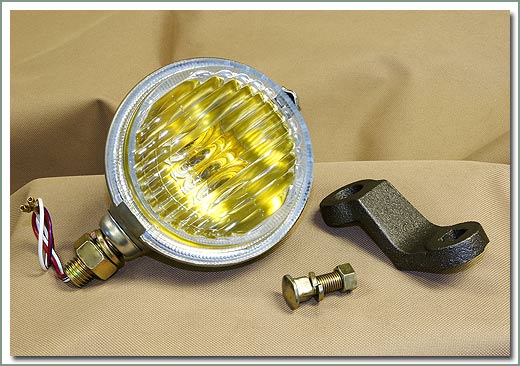

Does anyone know the size and/or source for the bolt/nut/washer in this photo, which is used to secure the bracket to the bumper?



[jgeoffr]

Nut and washer is still available. Not so for the bolt. Planning on trying one of the bumper carriage bolts.

-Geoff



[Coolerman]

Looks like a standard bumper(carriage) bolt (10mm x 1.25 x 25mm long). You would need it to be longer to accommodate the thick bracket. I'm sure SOR will sell you one for $10.00 plus $24.95 shipping...



[Coolerman]

http://autobolt.net/carriage-bolts just one of many possible sources...



[Cruiser804]

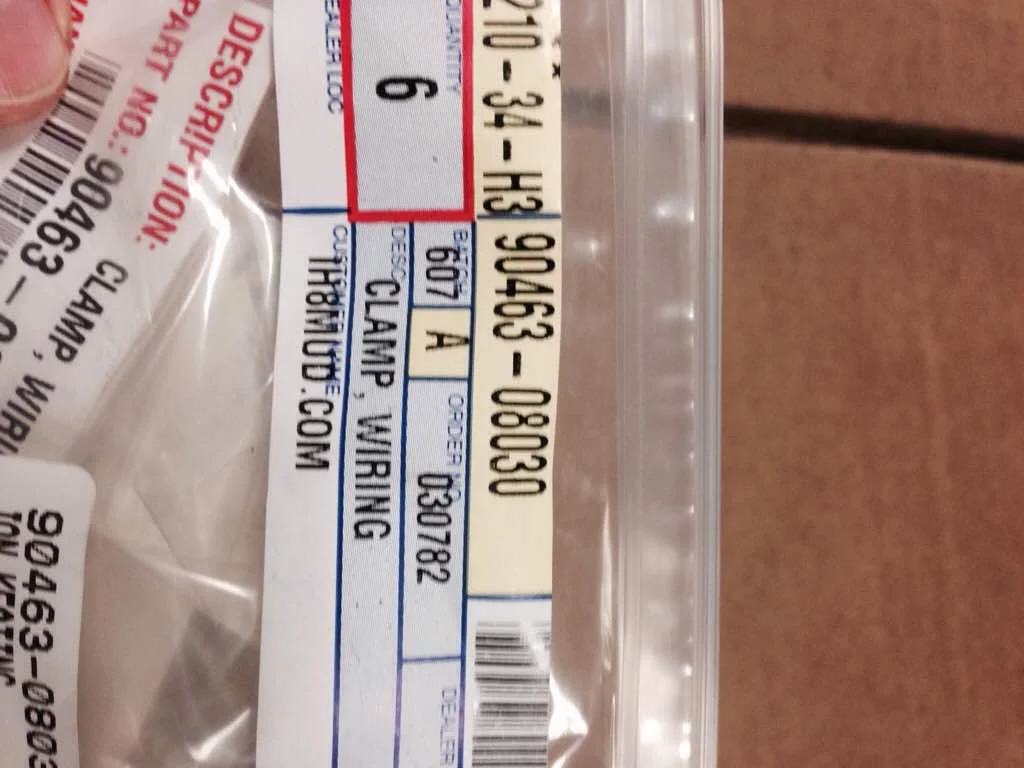

Another note, the fastener listed with the number 7 appear, I bought some, to be the same ones in the wiring channel located at the bottom of the front grill. Looks like they need to be welded in place. Wonder if the BJs come with them already?



[Cruiser804]

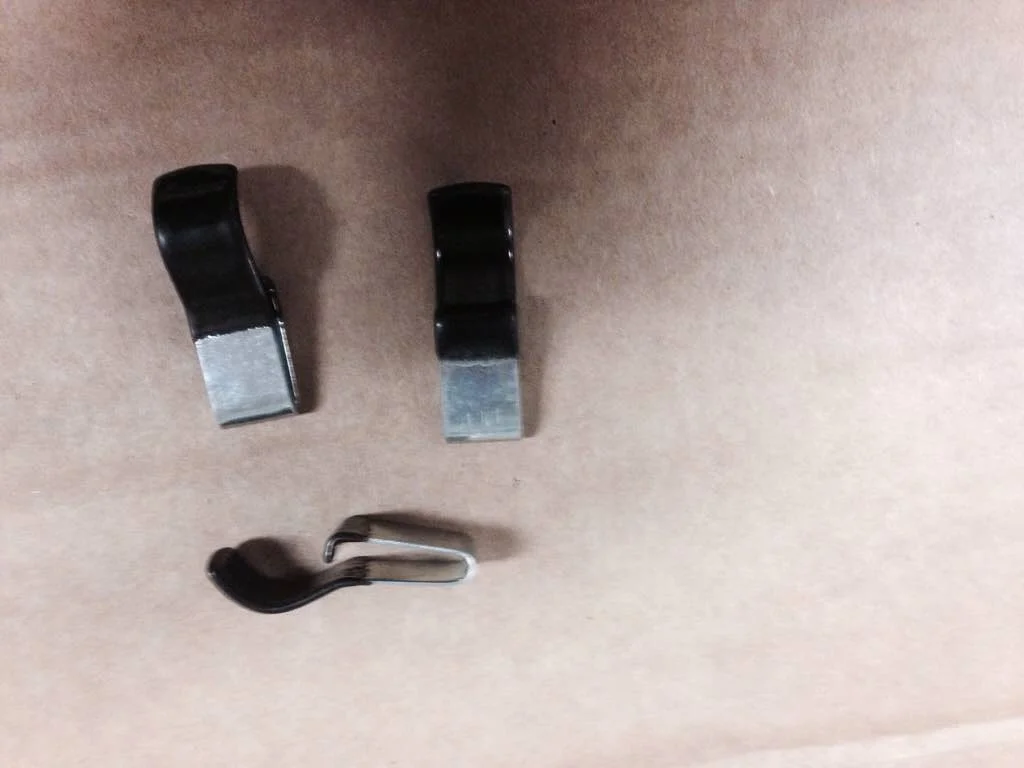

Here's a few pictures of the clips. After doing some research I think these might just clip onto the open side of the frame.



[Coolerman]

How much were those clips? I can get that exact same clips but without the zinc plating and rubber stuff.... Would be easy enough to dip them into plastic-dip.



[Cruiser804]

Like 2 bucks from Beno. Do they just clip to open the open side of the frame to hold wired in place?



[Coolerman]

Yes they are a "spring" so you spread the ends and slide onto the edge of the frame then lift to slide the harness under the curved part.



[TicoCafe]

Does anyone know what style base (is it 1156 style bulb???) for the yellow fog bulb below?



[ToyotaMatt]

Does anyone know what style base (is it 1156 style bulb???) for the yellow fog bulb below?

View attachment 1929464

Yes, its a 1156 style SAE base



[ToyotaMatt]

Does anyone know what style base (is it 1156 style bulb???) for the yellow fog bulb below?

View attachment 1929464

But , @Racer65 sells the real deal bulbs

also as well

at a fair NON-USA price



[TicoCafe]

Yes, its a 1156 style SAE base

Thanks for confirming this...



[ToyotaMatt]

Thanks for confirming this...

Curious ?

have u found something better then the OEM JDM AMBER Globe Bulb 90981-



[TeamJB]

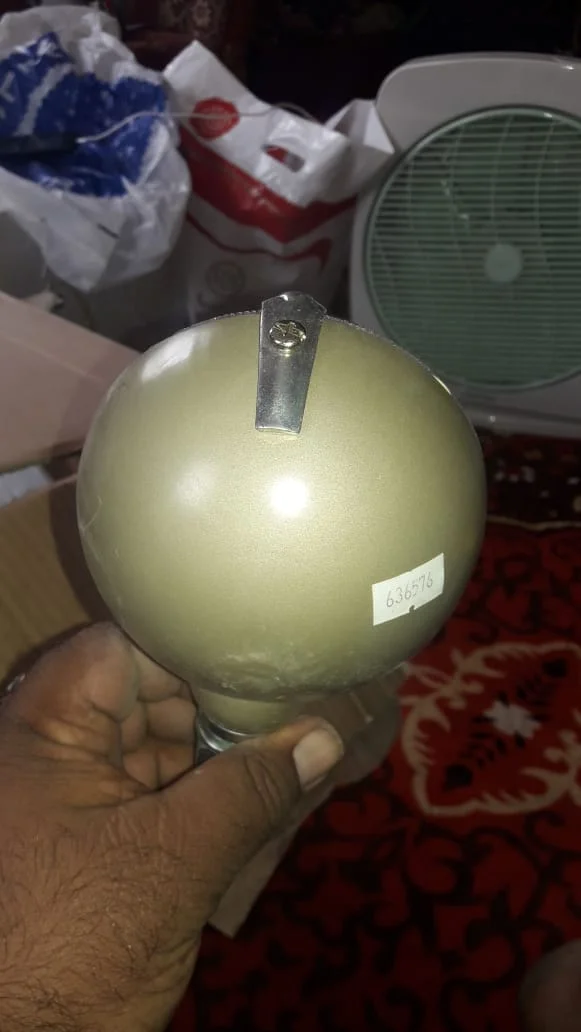

Taiwan made new OEM style Fog lamps available.
