Missing bolts?

Joined
Dec 15, 2019
Messages
75
Location
Raleigh NC

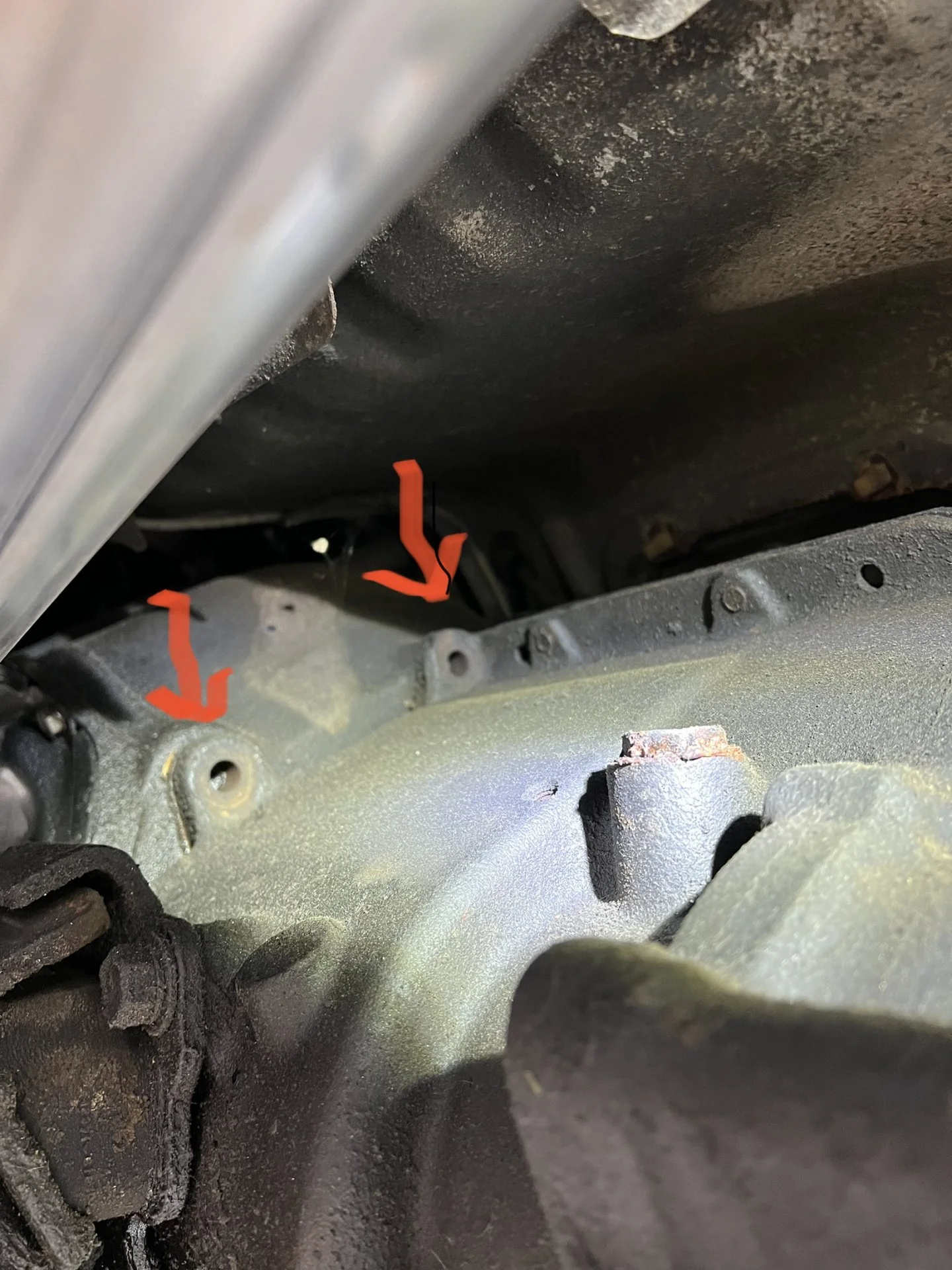

I was crawling up until my cruiser today and it looks like im missing 2 of the bolts that hold the gearbox to the bellhousing on my FJ60. It’s been like that for years but I suppose that I need bolts here. Would anyone have a couple of these bolts I could buy ?


Last edited:
Joined
Mar 3, 2012
Messages
1,390
Location
Adelaide, South Australia
Do my eyes deceive me or does the lower one in fact appear to be broken off in the hole?


OSS

SILVER Star
Joined
Jun 30, 2017
Messages
4,925
Location
Oblivion
A disaster in the making.

I “think” those are M10x1.25 but don’t hold me to it. Don’t recall the length.
If both of them aren’t broken off (@duncanrm has eagle eyes) then you could get a few different lengths of the M10 bolt at your hardware store and see what fits.

If they are broken bolts - a transmission jack purchase is in order.

Joined
Mar 3, 2012
Messages
1,390
Location
Adelaide, South Australia

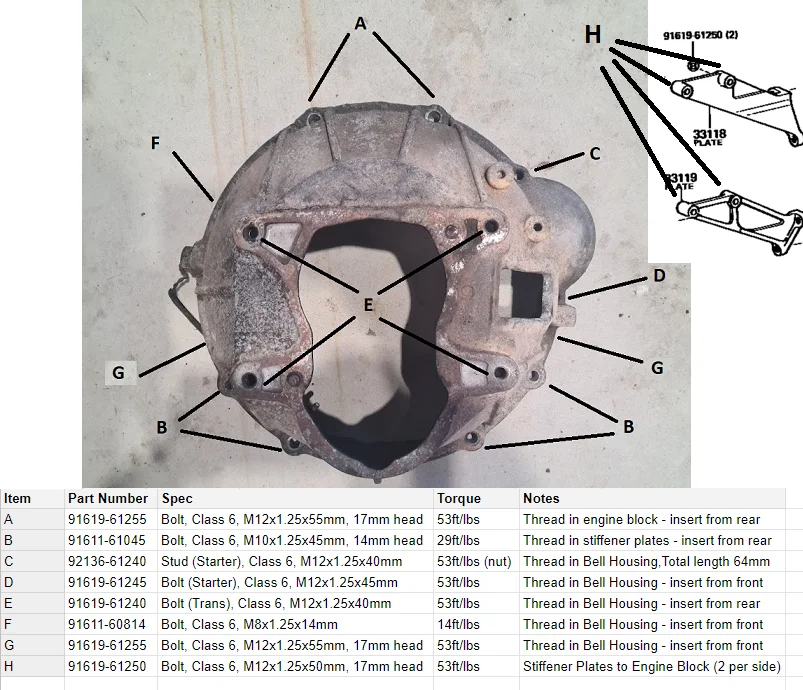

The bolts are almost certainly the same spec as H55F/2H.. E on this diagram I created.. Part number and bolt spec..



BGarcia88FJ62

SILVER Star
Joined
Dec 1, 2004
Messages
1,436
Location
Calhoun, Ga.
Yea, those hold the transmission to the bell housing. I'd get that fixed ASAP.
✌️ :beer:

Joined
Dec 15, 2019
Messages
75
Location
Raleigh NC
Does anyone know if these bolts should have flat washers or lock washers under them?


cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
12,300
Location
Winter Park, Florida
Website
www.facebook.com
The correct OEM bolt has a integrated lock washer and a 17mm head so you will actually be able to put a socket or wrench on it. Call your local Toyota dealership and order 91619-61240 for about $2.50 each. They will have them the next day.

Joined
Dec 15, 2019
Messages
75
Location
Raleigh NC
Thanks guys, I have ordered the proper bolts and will be getting this done soon. I wanted to ask anyone who might know... im wondering what scenario would allow these bolts to not be in place. If I was dropping the tranny to install a new clutch disk, I would remove the bell housing to motor bolts. The bolts I am missing are gearbox to bell housing, So im assuming at some point somebody dropped the gearbox, leaving bell housing and clutch assembled, presumably to do some work or replace the gearbox? Anyhow its sloppy mechanic-ing.


cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
12,300
Location
Winter Park, Florida
Website
www.facebook.com
Joined
Dec 15, 2019
Messages
75
Location
Raleigh NC
Not on a 2F you wouldn't be.
Matt-
Ive done clutches on sports cars but not on a FJ60. I guess in a cruiser, you would drop the gearbox/ transfer case, then remove bell housing to get at the clutch? Im trying to surmise if my clutch has been replaced or not by the fact that I have these 2 missing bolts.


cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
12,300
Location
Winter Park, Florida
Website
www.facebook.com
Matt-
Ive done clutches on sports cars but not on a FJ60. I guess in a cruiser, you would drop the gearbox/ transfer case, then remove bell housing to get at the clutch? Im trying to surmise if my clutch has been replaced or not by the fact that I have these 2 missing bolts.

It's not unreasonable to guess that.
It's just that the flywheel comes off before the bellhousing (There are two bellhousing bolts under the flywheel).

If you remove the lower bellhousing inspection cover, you can have someone press on the clutch and you will be able to see the clutch disc condition. It's a 35-42 year old vehicle so no assumptions any more.


2mbb

SILVER Star
Joined
Sep 1, 2003
Messages
5,699
Location
WC, CA
I would consider using something to clean the threads out before you try and screw your new bolts in there. maybe some kind of a tap. And it probably wouldn't hurt to put anti-seize on the bolt threads.

I find that a long extension that will reach over the transfer case and transmission is helpful for some of those bolts.

good luck


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
6,300
Location
Alabama
Thanks guys, I have ordered the proper bolts and will be getting this done soon. I wanted to ask anyone who might know... im wondering what scenario would allow these bolts to not be in place. If I was dropping the tranny to install a new clutch disk, I would remove the bell housing to motor bolts. The bolts I am missing are gearbox to bell housing, So im assuming at some point somebody dropped the gearbox, leaving bell housing and clutch assembled, presumably to do some work or replace the gearbox? Anyhow its sloppy mechanic-ing.

Possible scenario - the clutch was changed and those two bolts were only finger tightened, and properly torquing the bolts was overlooked. Road and engine vibration loosened the bolts and they dropped off.

Joined
Dec 2, 2002
Messages
16,952
Location
Helena MT
did you ever check the 2 bolts on the other side?

Joined
Dec 15, 2019
Messages
75
Location
Raleigh NC
Yes I did check the other side, both bolts are there. This truck has been running for years like that with 2 missing bolts.
