Leaf Spring Flex Pic Thread

[number057]

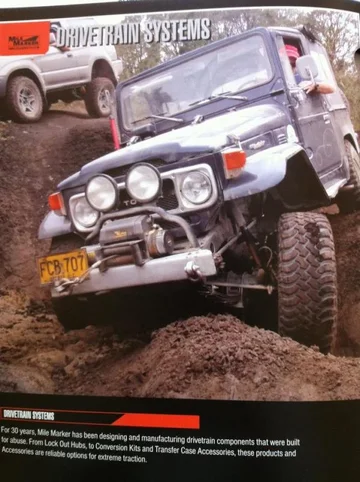

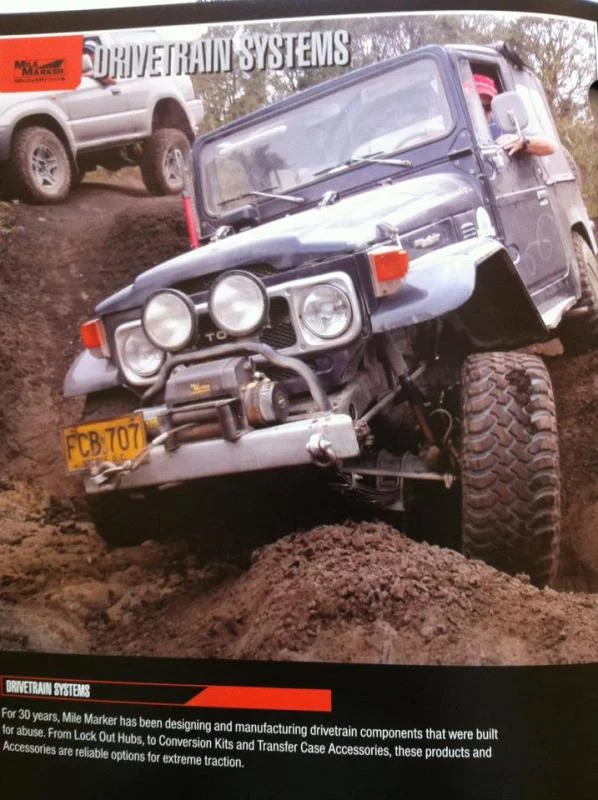

Poser Shot on the new Mile Marker Catalog, Stock springs, SR , 33" in tires an 3" Shackels.



[number057]

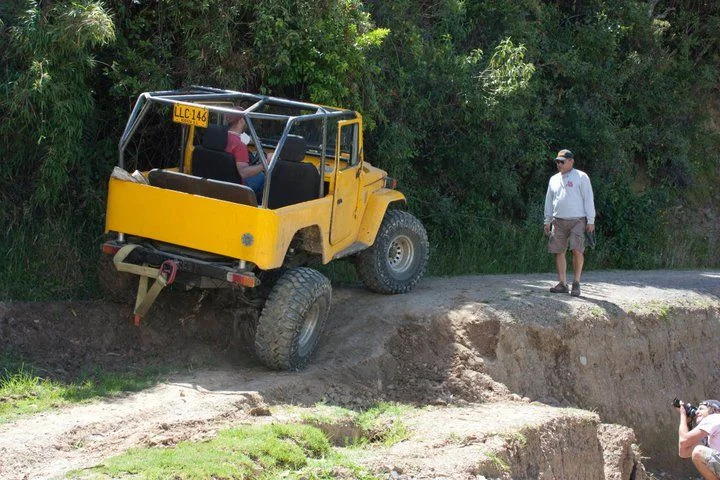

Leaf springs on the rear, SOA , coils on front. 37X14.5 Tires.



[Isaacjohnstar]

I know i've put my 40 on this thread too many times but I swear after a year the springs are still getting better at flexing. Skyjacker 4" SUA 33" tires



[steverb]

Easter Wheeling.



[JasonH]

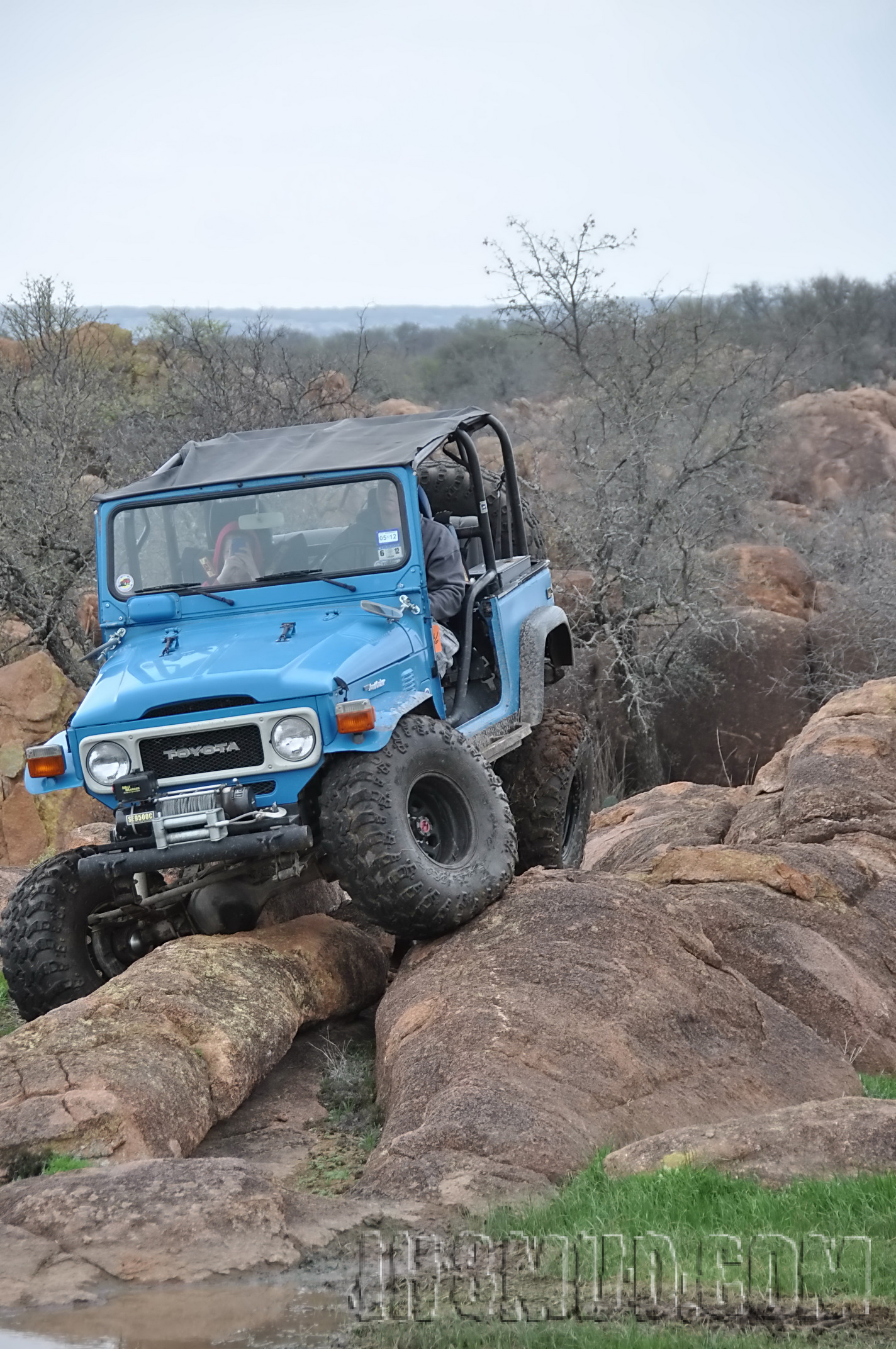

From the Roundup this year. SOA, 37 Iroks.



[twoturtlesracing]

BUMP!



[Josie'sLandCruiser]

Hi All:

Here is a pic from November 2011 at the Elbe Hills ORV Area in Washington State.

Regards,

Alan



[TLC76]

Ok, so I finally got out and flexed the suspension, thought I'd post a few pics. Actually flexed better than I thought it would.



[AlexJet]

nice pictures. Subscribed



[Aaron17]

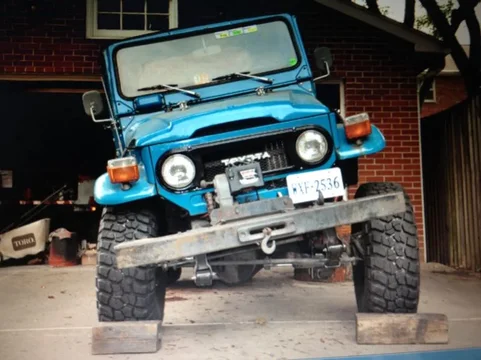

Did a Lil more tweeking to mine over the summer. Thinking about linking the rear over the winter.



[SAWTOOTH 55 LC]

Just a SUA



[MBOffroading]

^^^ Ours looks close! Flat back ftw.

Not the cutest thing out there, or the biggest rock, but it does get the job done.

SUA - 33" tires.



[TLC76]

I think it IS the cutest thing out there.

One more:



[jim land]

little flex from sua set-up



[jim land]

more poser shot



[MBOffroading]

more poser shot

/thread hijack
Got more details of the air tank setup? I've been wanting to do something like that.
/thread hijack



[SEMPERFJ]

SUA plus 4" lift springs and 1.5" extended shackles with 35's

Sent from my iPhone using IH8MUD



[Awl_TEQ]

Solid axle, 0.070" lift, 0.268" tires



[TLC76]

Hoped you're locked or you'll never make it over the delete button.



[hairy_apple]

Ha ha... "Bucket" poser shot from couple weeks ago.

His and her's poser shot from back when we had very first started dating.

And 16 year old me thinking I was a total badass with my bone stock cruiser! hahahaa.
