Ignition Switch Help (1 Viewer)

[LongPlay]

Hello All - Anyone know what color the wires are to the ignition switch? 1970 dash mounted ignition switch. I have 4 post cylinder and find 4 wires loose in my field find project.
I searched Haynes manual but can't make out the color codes and t does not show positions.
Thanks for any help.

Appreciate It!



[fyton2v]

Using a multimeter to check for continuity, as you turn a key into the accessory and ignition positions, will tell you which posts do what.



[B y r o n]

Maybe the info in this thread will help.



[ToyotaMatt]

Hello All - Anyone know what color the wires are to the ignition switch? 1970 dash mounted ignition switch. I have 4 post cylinder and find 4 wires loose in my field find project.
I searched Haynes manual but can't make out the color codes and t does not show positions.
Thanks for any help.

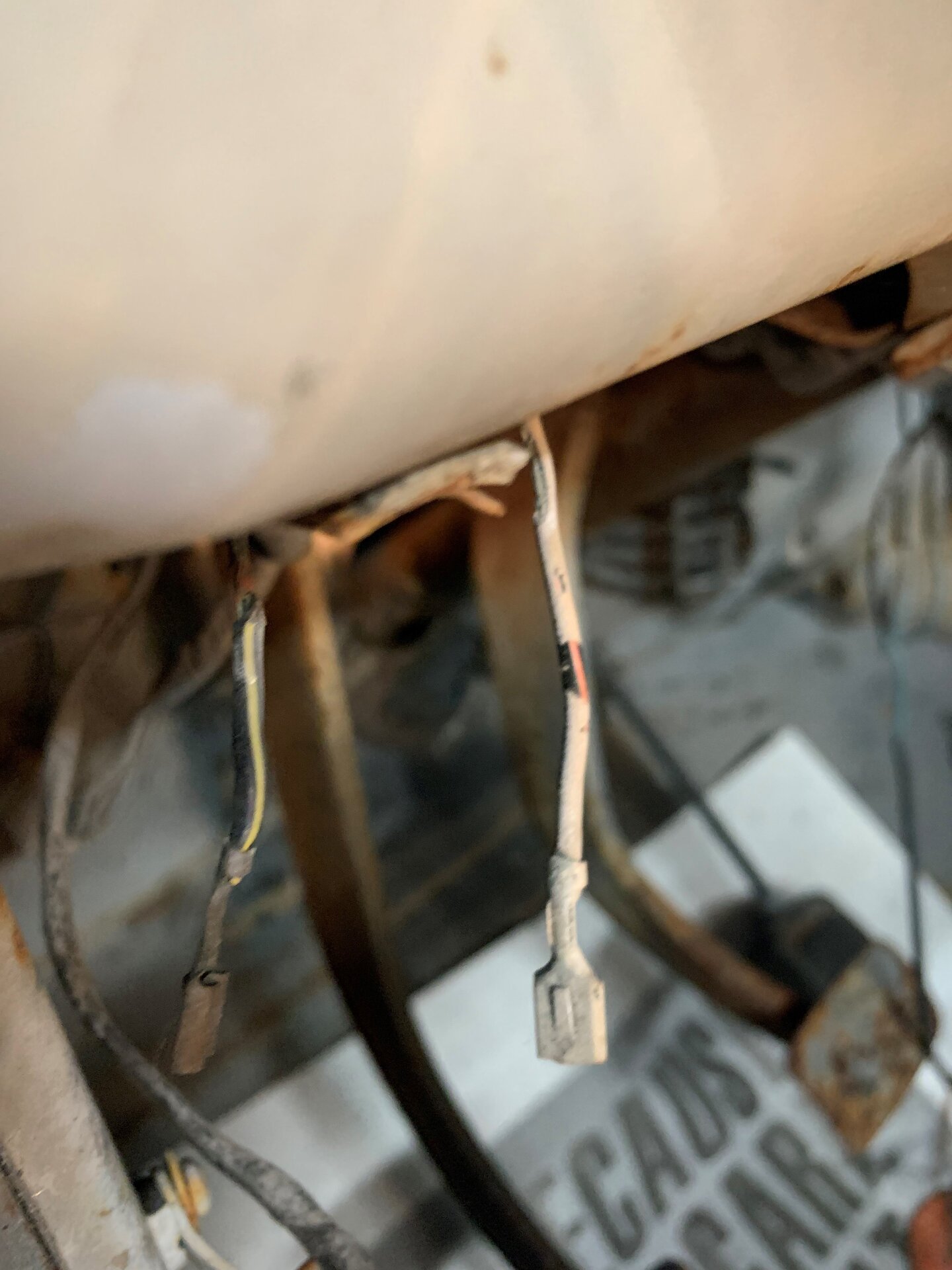

View attachment 3530382

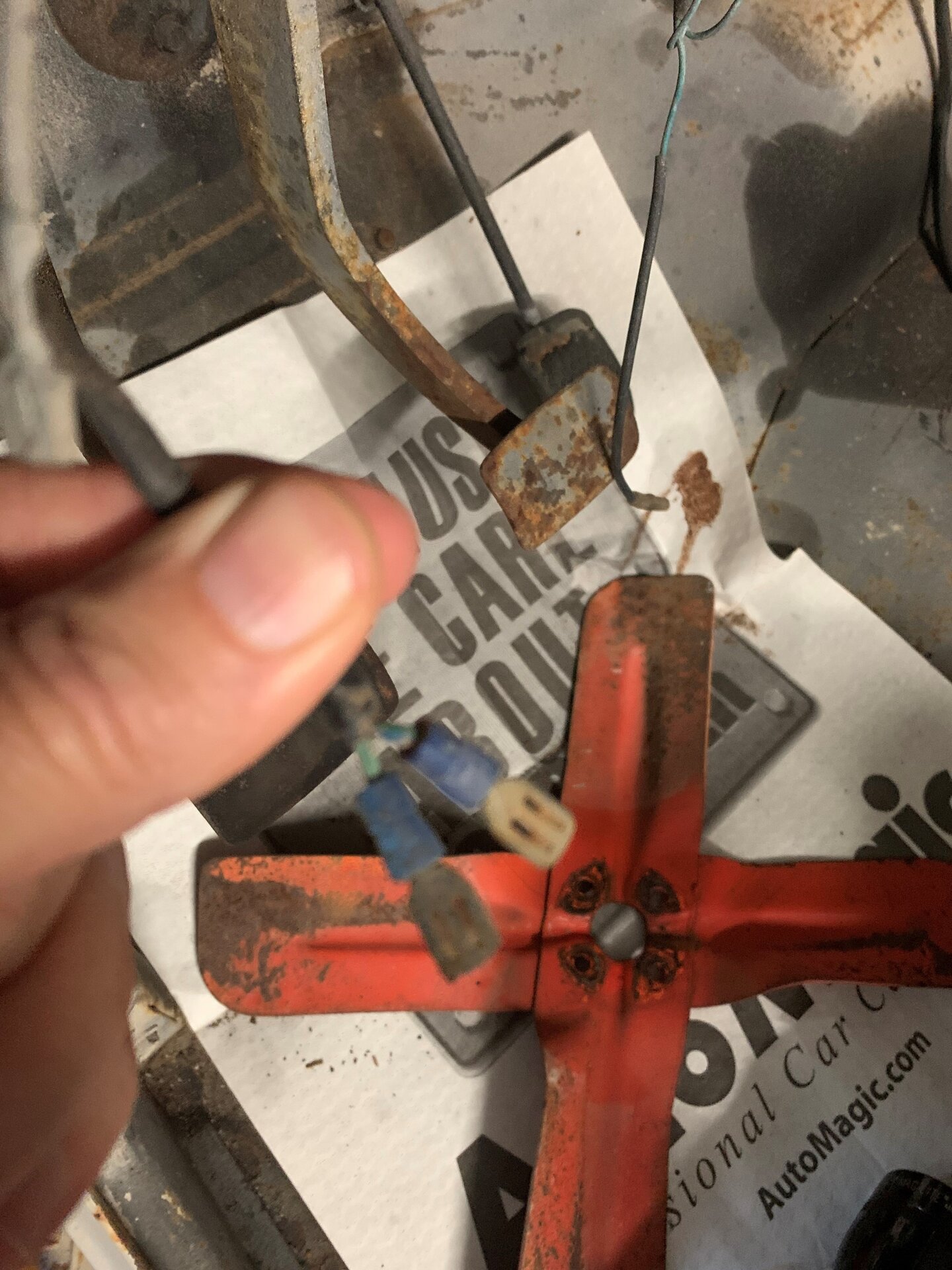

View attachment 3530383
View attachment 3530385
Appreciate It!

Maybe the info in this thread will help.

m



[ToyotaMatt]



[ToyotaMatt]

Maybe the info in this thread will help.

Maybe the info in this thread will help.

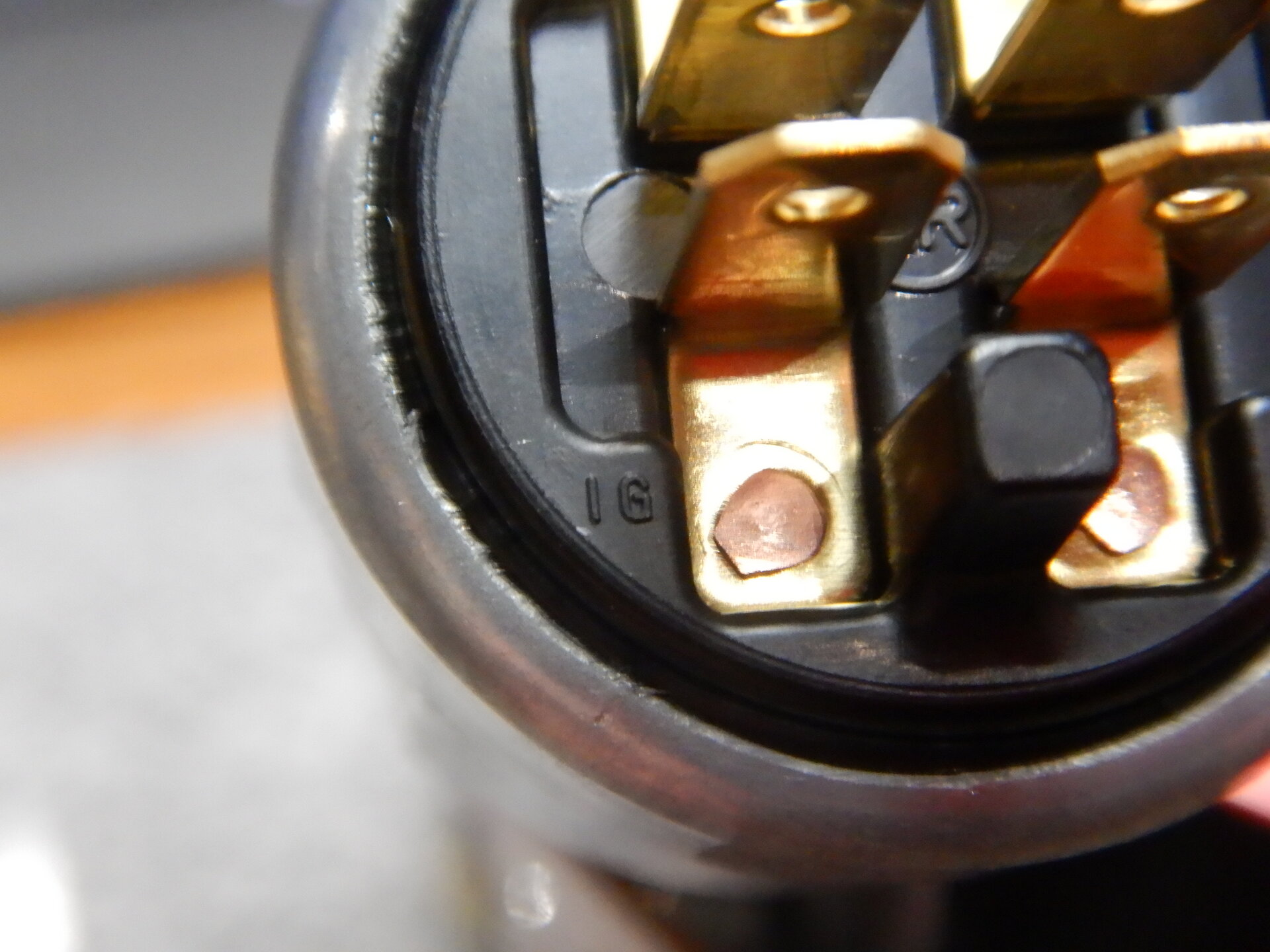

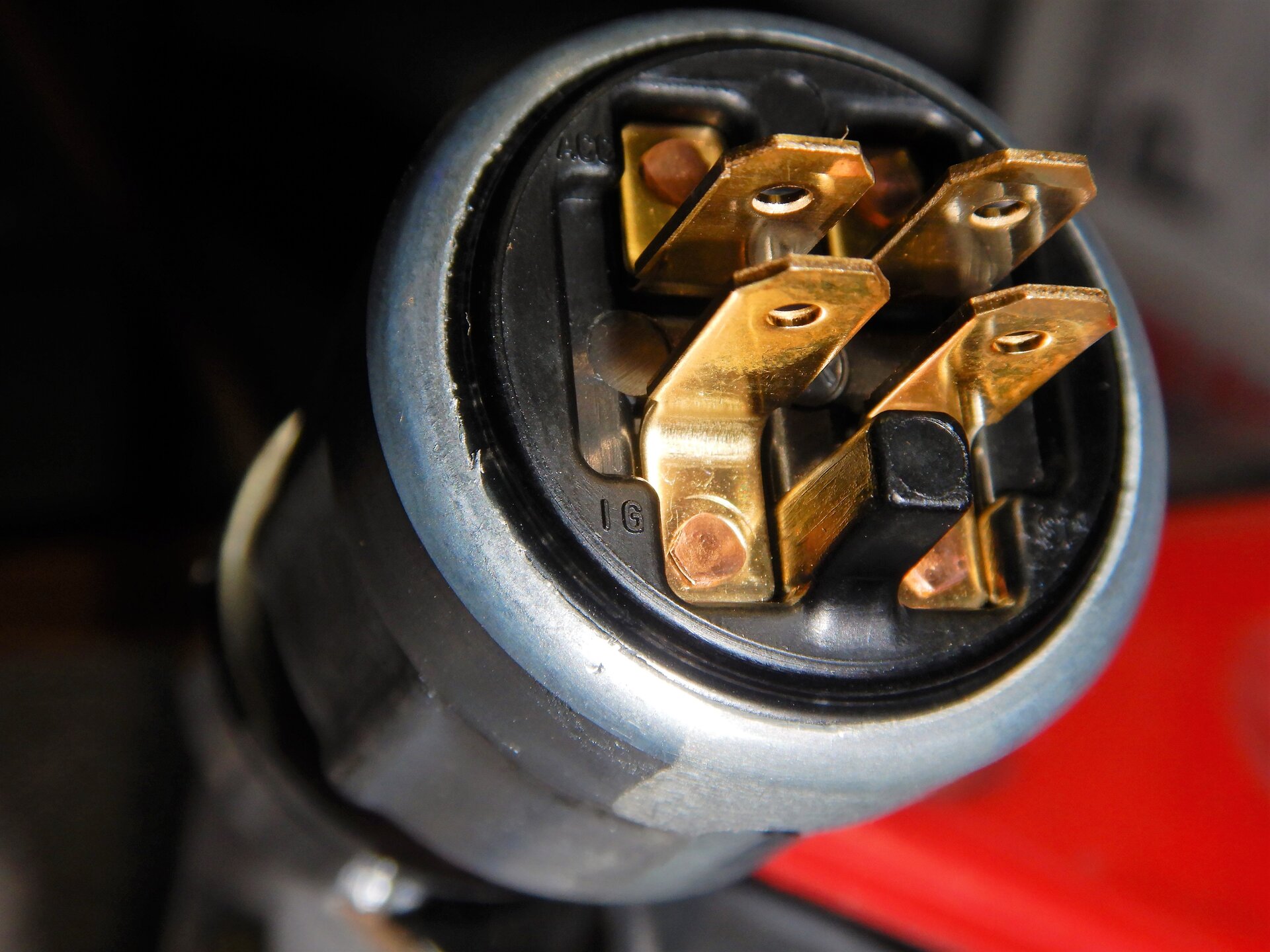

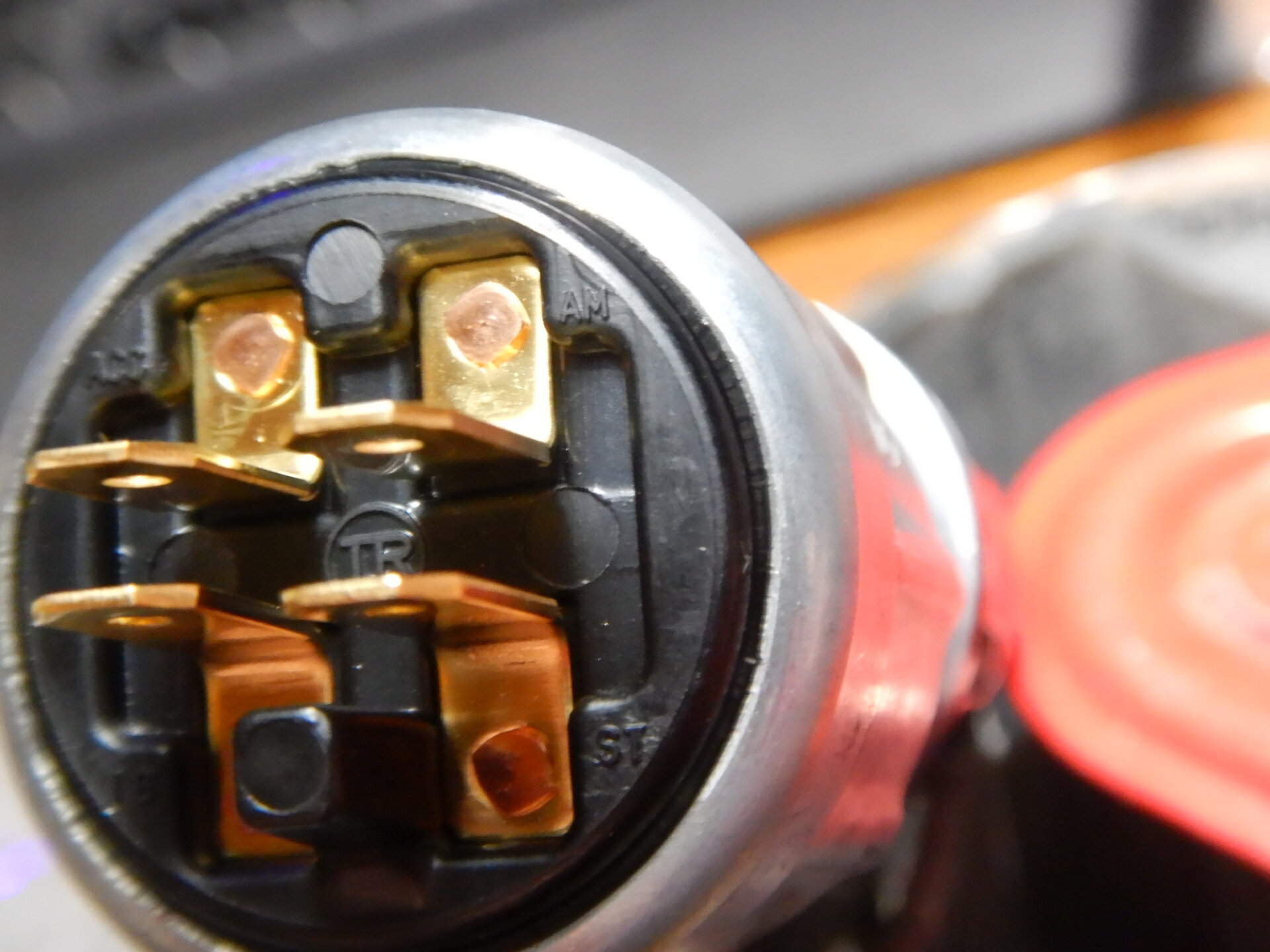

make sure you take NOTE , of the black PIN or STUD sticking out of the rear terminals of this modern , revised update OEM Ignition Key Switch above here , yours is broken off , or it might be a aftermarket older one ?

either way ALL toyota OEM male brass terminals part #'s and subsequent designs till now , DID have this feature , its called a " Interference key "

it is there so you can't flip the White Connector Plug that your truck did have at one point early in it's life , that is now missing ?

i can see clearly , due to your Excellent tech photos above , that your 1970 was factory equipped like i discuss above ....

see the below Tech.. examples of a text-book OEM correct set up , and how all the color coded tracer stripe wires are arranged too

- the simple re-use of these now bare old crusty oem terminals is super sketchy and your cheating fate if you mearly just push them back on , and say wrap it all up with black electrical tape ?

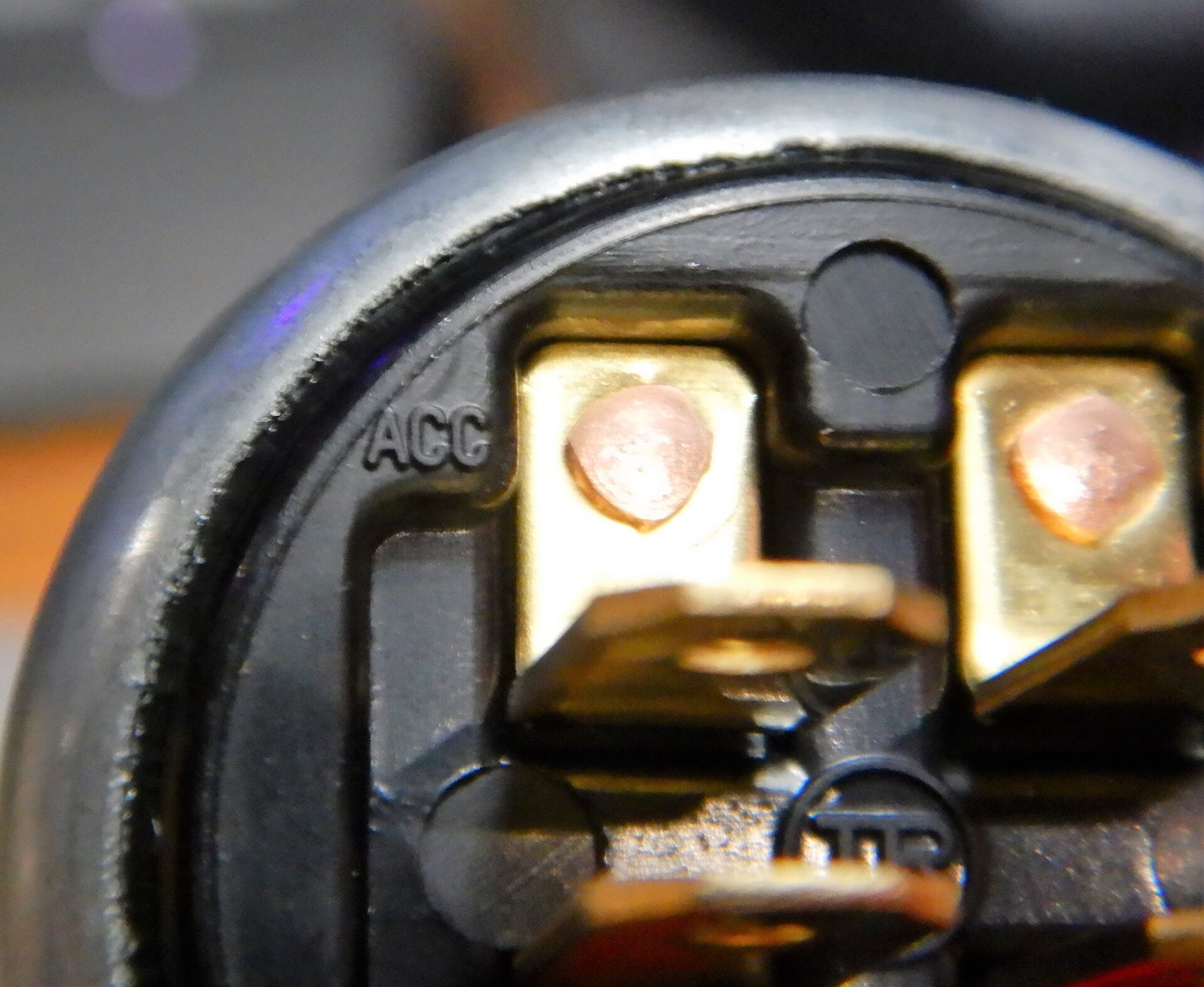

- examine the fact your key switch brass terminals each have a small tiny hole in them , then look closely at my first tech. image below .....

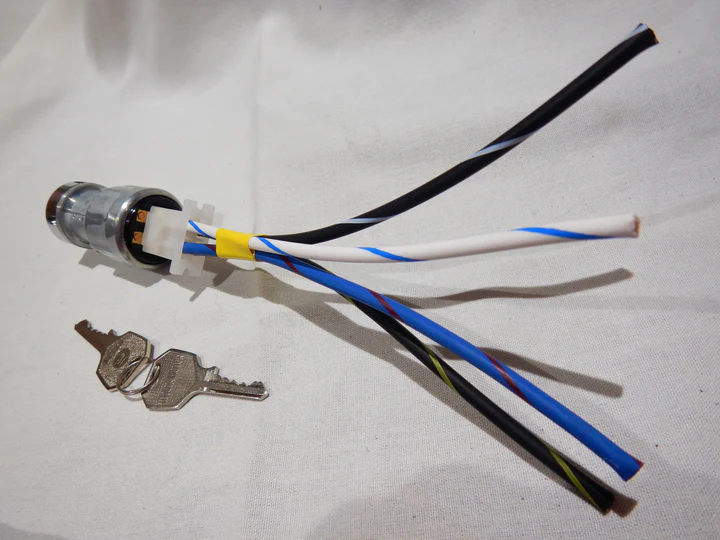

- the pigtail plug input connector set up i hand craft here at the Skunk Works Laboratory , is fitted with these most modern of possible OEM Japan Spec. Solid Brass ANTI-PULL-OFF locking tab types .......


- THIS IN THE only-safe WAY ......


matt

.
