Headlight bucket bolts

[Krondor]

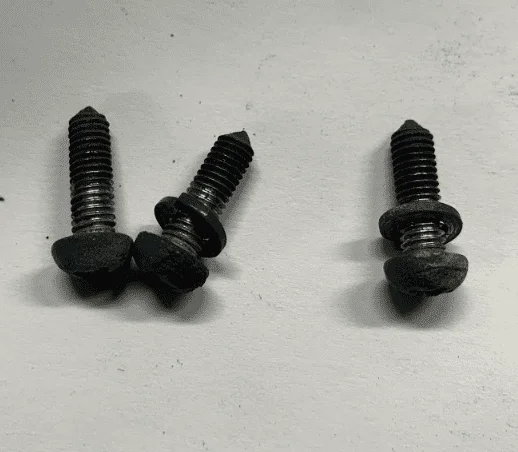

Cant seem to find a part number or anyone selling headlight bucket bolts. The ones used to attach the headlights to the front bib.



[Krondor]

Bump to the top.



[Jdc1]

Bump to the top.

This might get you close

SEMS Captive Washer | BelMetric Fasteners

www.belmetric.com

I used SS JIS bolts.



[Krondor]

I want to say that these are M5 since they are smaller than M6. But thanks That website just might get me there.



[Jdc1]

I want to say that these are M5 since they are smaller than M6. But thanks That website just might get me there.

They have M5 as well. That’s a great site for a lot of the stuff we use. Fast shipping too.



[73FJ40]

@Krondor

The 1969 parts fiche indicates
Screw W Washer - Toyota (93319-15016) which is an M5 x 16mm with a captured lock washer.

$1.32 list price at your local Toyota dealer.



[Krondor]

Excellent. Thank you @73FJ40
