Head Gasket Job Underway

Joined
Jan 19, 2006
Messages
2,013
Location
Tulsa, OK
Website
www.cardomain.com
Been picking away at this for the last week or so, a couple hours at a time. Almost everything has been straight forward, with a few tips from some great guys here on Mud.

The biggest Pita IMO was deciding what method to use on removing the intake manifold, as the wiring harness creates a very discouraging obstacle; patience is key here. I finally decided to remove it as an entire unit and then remove the head. I will seperate the halves and clean it now.

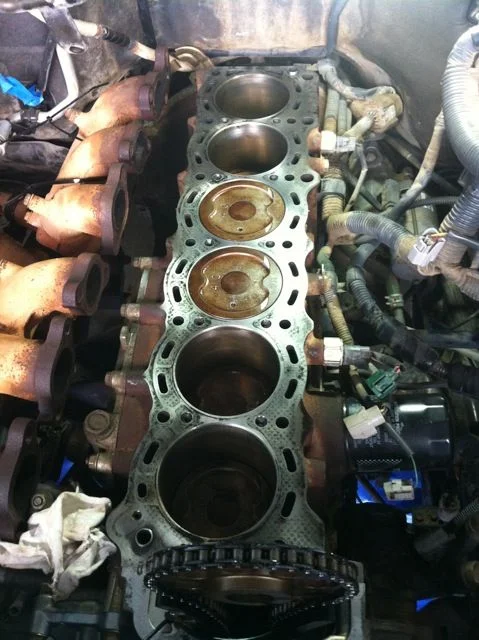

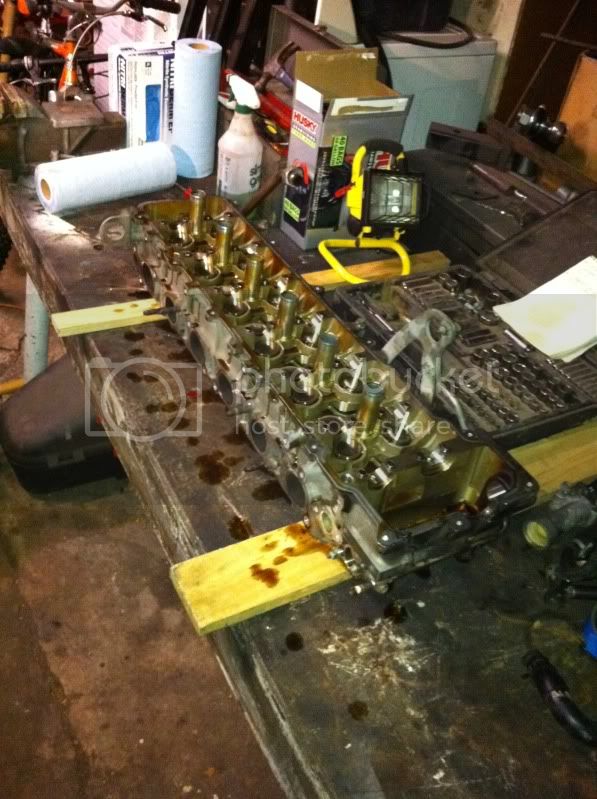

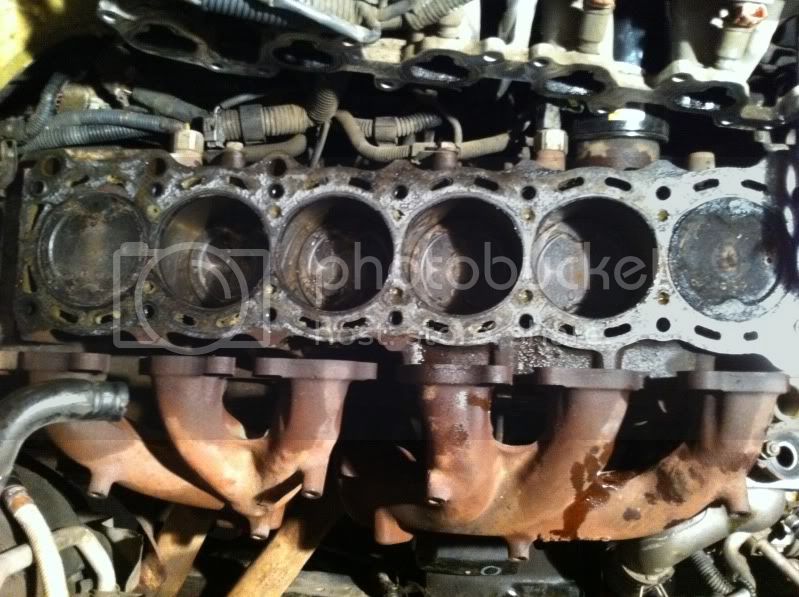

Here are a few pics.







Half way there; maybe:beer:

Joined
Apr 13, 2011
Messages
12
I'm sitting in the exact same spot w/ my HG replacement, drop the head off tomorrow at the shop to take a little off the bottom. Good wrenchin to ya!

Joined
Jun 8, 2007
Messages
1,300
Location
Houston
Watchout for those knock sensors! $170ea, I and a few others broke one when disassembling/reassembling... Much easier to remove and then reinstall later...

I would also clean up that head surface on the block...

Last edited:
Joined
Jan 21, 2010
Messages
465
Location
Colorado Springs
This clears something up for me. You don't have to pull the engine to take the head off. Or did you? I was under the impression that the engine had to be pulled for this HG job.


desertdude

SILVER Star
Joined
Nov 29, 2003
Messages
3,301
Location
Arizona
What's a good tool to use when cleaning the block surface/ piston tops, without scratching anything up?

Scotch Brite

I scraped with a clean straight razor first 0 being very careful to stay flat - then polish up with the Scotch Brite.

ALSO: I ran a shop vac while I was scraping and sanding to keep the ports and cyl's clean as they could be.


My arms and chest still hurt from leaning and squeezing doing the HG :crybaby:



:::

Joined
Jan 19, 2006
Messages
2,013
Location
Tulsa, OK
Website
www.cardomain.com
Very nice Desertdude. Tell me about keeping the timing chain on the crank gear. I have the chain zip tied to the cam gear up top. I don't really want to remove the timing cover unless it's totally necessary.


desertdude

SILVER Star
Joined
Nov 29, 2003
Messages
3,301
Location
Arizona
yep thats it- I moved the zip ties up top at 10 & 2 o clock once I was ready to place the head back on.

when you get close to finish cleaning; I wiped it all down with acetone to get it very clean and free from stuff - then oiled up cyl's and moved the crank to get the pistons to lift up and last minute debris - with a final oil wipe with clean oil.

I changed the water pump while I was there - just because it was easy.


CycloSteve

SILVER Star
Joined
Mar 16, 2009
Messages
2,750
Location
Stuck between a rock and a hard place
A neat trick I learned from Robbie when cleaning the block is to cut-out some thin cardboard 'rounds' and place them in the cylinders / over the pistons. This reduces the amount of crud which falls in-between the cylinder wall, piston, and top compression ring.

:cheers:

Steve


cme4lyt

SILVER Star
Joined
Jan 2, 2010
Messages
1,424
Location
Walnut Creek, CA Bay Area
This clears something up for me. You don't have to pull the engine to take the head off. Or did you? I was under the impression that the engine had to be pulled for this HG job.

You don't have to pull the engine but the job is waaaaaaay easier if you do: ask me how I know.

Yes, you might need a 'engine picker' and some other stuff and a buddy to help out but I'd never do it in the engine bay.

Just my 0.2 cents

Of course, when you pull it, you start with all those 'while I'm in there' decisions: lot easier to take care of some of the PM things when the engine is pulled.

Rgds...

Joined
Jan 8, 2011
Messages
147
Location
Fort McMurray, AB
You don't have to pull the engine but the job is waaaaaaay easier if you do: ask me how I know.

Yes, you might need a 'engine picker' and some other stuff and a buddy to help out but I'd never do it in the engine bay.
Agreed. I don't know how any of you guys are doing these jobs with it in the bay. The wiring harness takes about 15 minutes to pull through the firewall. Pull the transmission and case along with the engine and it gets even easier!

Joined
Mar 19, 2011
Messages
140
Location
Comaville in the Midwest
Watchout for those knock sensors! $170ea, I and a few others broke one when disassembling/reassembling... Much easier to remove and then reinstall later... .

I've been testing some knock sensors from other Toyota engines on the 1FZ-FE and so far all with the same size thread and electrical connector have been working fine. Most junk yards don't know what they are or assume they are temp sensors and let them go for <$5.


OGBeno

www.olc4x4.com
Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
30,212
Location
Patagonia, Arizona, USA
A2ShedsJackson said:
I've been testing some knock sensors from other Toyota engines on the 1FZ-FE and so far all with the same size thread and electrical connector have been working fine. Most junk yards don't know what they are or assume they are temp sensors and let them go for <$5.

This is true.

Knock sensors as well as 4WD switches are the same across many models. Some have different connectors but that is easy to get around.

They are all 2 position logic sensors. Either the sensor is reading knock or not...either the switch is on or off.
