Gremlins-i need help from any electrical gurus out there

Discussion in '60-Series Wagons' started by Amamet, Jan 1, 2014.

  1. Output Shaft

    Output Shaft SILVER Star

    Messages:
    4,524
    Likes Received:
    2,576
    Joined:
    Mar 31, 2014
    Location:
    Gone
    One of the grounding junctions for the headlights is behind the gauge cluster. The entire gauge assembly needs to come out to gain access to it. On this model year, the ground junction is the small orange thingy with the green arrow pointing at it.
    headlight ground junction.jpg
    --------------------------------------------------------------------------------------------------------------------


    This picture below shows the wire junction pulled out a bit to gain access to it. A burnt spot can be seen. This looks mighty suspicious. The blue wires are all connected to each other and the white/black wires are all (supposed to be) connected to each other, but the blue wires are kept separate from the ground wires by this special plug. It is not a single connection spot, but two.


    ---------------------------------------------------------------------------------------------------------------------


    Picture shown below shows the culprit. Obvious problem. This was the gremlin for all the weird headlight and dash indicator strangeness... one bad ground connection in this junction.

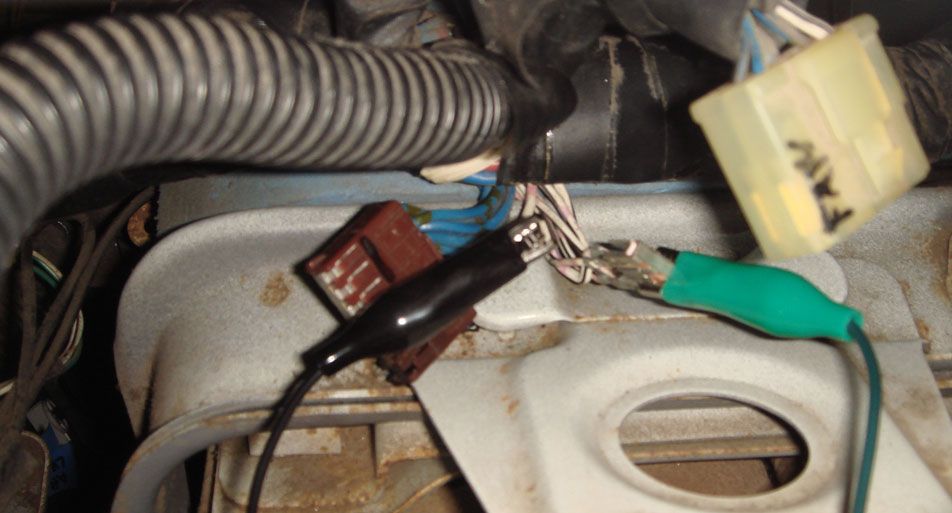

    All the white/black wires were removed from this connector and were cleaned up and all joined together and connected with a jumper to a known good ground to test if this was the problem.

    It was.





    Testing grounds test ground.jpg

    All the dash indicator lights then worked perfectly as did the headlights after this ground wire connection was fixed.

    >>>>

    Ultimately the question may be asked, "why did this happen?"

    25 years ago, high wattage H4 halogen headlamps were installed without upgrading the wiring harness with remote relays. The increased amp draw was beyond what the stock wiring and connectors were designed to carry.

    The increased current found a weak link in this grounding connector that only uses tiny sliding pins as junctions. The increased resistance at this poor-contact, pin to pin junction created excessive heat, which melted the plastic, creating carbon, coating the metal pin and female connector with insulating contaminates.

    Lesson learned from this particular problem:
    Always upgrade the lighting wiring harness with remote relays if upgrading to higher wattage headlamps... & it is a good idea to do so anyway if the stock sealed beams are retained.

    Last edited: Feb 7, 2015
  2. DoubleNickels

    DoubleNickels

    Messages:
    705
    Likes Received:
    193
    Joined:
    Jan 21, 2014
    Location:
    Boise, Idaho
    Good Lord, thanks @Output Shaft , held my hand through my exact issue. Thanks again!

    Output Shaft and NeverGiveUpYota like this.
  3. NeverGiveUpYota

    NeverGiveUpYota Dare me. SILVER Star

    Messages:
    2,315
    Likes Received:
    1,600
    Joined:
    Mar 28, 2011
    Location:
    East Hampton, CT
    This thread needs to go into the stickys, @Cruiser Jimmy!!!! @Output Shaft, you out did yourself in making those connections understandable. I applaud you!

    Output Shaft likes this.
  4. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,108
    Likes Received:
    2,137
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    So, being lazy and not wanting to dig out a schematic, what are the larger blue wires for? I'm guessing the larger brown/black stripe wire is the Headlights?

    Could one just connect everything in a Bus Bar like this ?

    [​IMG]

  5. lovetoski

    lovetoski SILVER Star

    Messages:
    4,507
    Likes Received:
    174
    Joined:
    Jul 13, 2003
    Excellent thread - yes it should be a sticky!!

  6. Output Shaft

    Output Shaft SILVER Star

    Messages:
    4,524
    Likes Received:
    2,576
    Joined:
    Mar 31, 2014
    Location:
    Gone
    I don't know what the blue/brown wires connect to, but as I recall they are separated from the black wires inside that connector. All the black wires connected to each other & all the blue connected to each other.

    At first I was thinking the same thing of removing all the black wires & connecting them to a little buss bar connector, but after pulling them out of the connector, I then discovered how short they are and how little room there is to work in there. After chewing over the possibilities, I didn't think I could improve the situation by doing that, so I cleaned up all the pins with fine emory and reinstalled it back together.

    Ive heard of guys soldering the whole mess together. That's a lot of wires and which would require a big iron which would probably start melting the insulation.

    Spike Strip likes this.
  7. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,108
    Likes Received:
    2,137
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    @beno

    Is is possible that connector (or equivalent) is available?

  8. Cruiser Jimmy

    Cruiser Jimmy Moderator

    Messages:
    2,025
    Media:
    100
    Albums:
    4
    Likes Received:
    477
    Joined:
    Sep 15, 2004
    Location:
    Grand Junction, CO
  9. Spike Strip

    Spike Strip Adorable Deplorable SILVER Star

    Messages:
    12,108
    Likes Received:
    2,137
    Joined:
    Nov 22, 2005
    Location:
    Sucking Kalifornia
    Hmmmm..... Love that gooey deliciousness.

    :clap:

    JMJA and NeverGiveUpYota like this.
  10. Toyoviatt

    Toyoviatt

    Messages:
    1
    Likes Received:
    2
    Joined:
    Apr 7, 2017
    Location:
    New Mexico
    Thank you! I was having similar problems-no headlights with buzzing relay, turn signal indicators both turning on when headlights triggered, fan super weak, turn signal indicators turning on when fan triggered. The wire connector behind the gauges as shown above was the culprit. Mine looked exactly like the one in the pic, last white ground wire burnt out. So glad this thread was easy to find.

    NeverGiveUpYota and Output Shaft like this.
  11. 4Cruisers

    4Cruisers SILVER Star

    Messages:
    2,125
    Likes Received:
    1,824
    Joined:
    Apr 2, 2015
    Welcome to MUD, it's always good to see another member from the Land of Enchantment. Yes, a lot of helpful information here.
