Early FJ45 Tailgate Hinges

Joined
Aug 23, 2004
Messages
696
Location
San Jose, Ca.

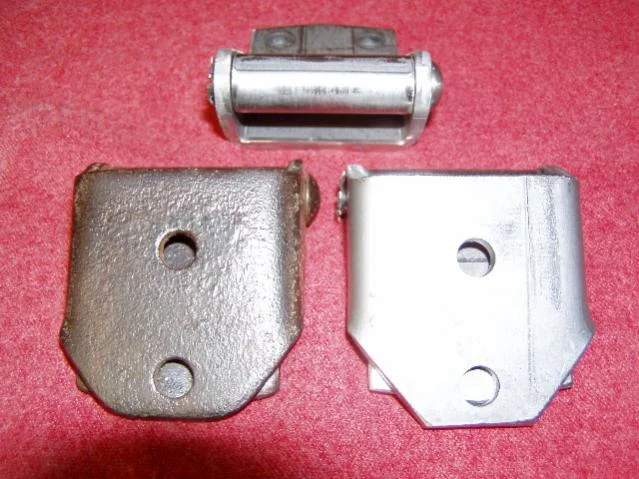

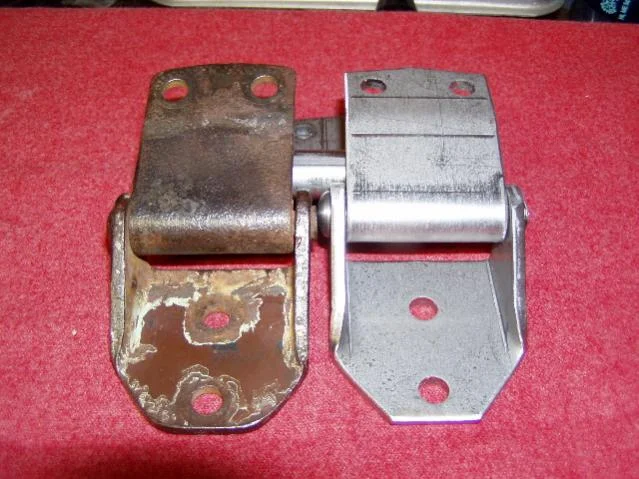

I know that these have been discontinued by Toyota, so I started looking for some one to repro these, this is what I came up with. there not an exact copy but close. let me know what you think. These are just samples, but getting the bends right took a while.

SOLD OUT

Last edited:
Joined
Dec 2, 2002
Messages
16,906
Location
Helena MT
looks nice

Joined
Aug 23, 2004
Messages
696
Location
San Jose, Ca.
Looks good Mike!

When do we submit our orders?:D

Thanks,

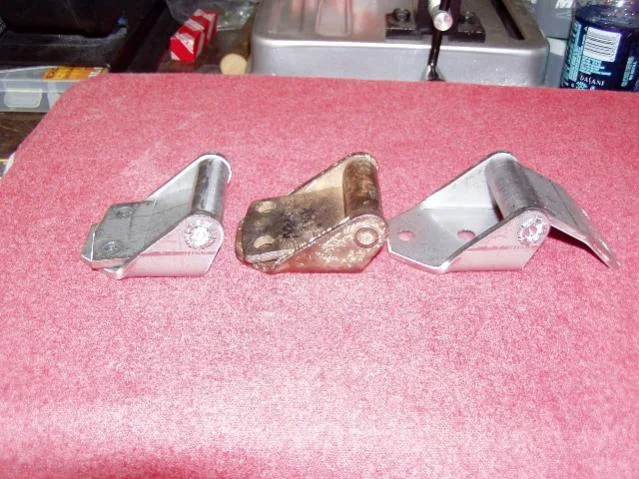

I'm working on that, the one thing I'm not happy with is the way the hinge pin is finished off. On the stock hinge, when pressed the pin end rolled over it's self, on the repro the steel in harder and it kind of shattered (see the pic above side view). were trying to work this out.

Joined
May 10, 2004
Messages
1,150
Location
Los Angeles
Wow, that looks great! That shattered pin end is the only thing I saw that looks like it could be improved. A little rounding of the corners on a grinder and some paint and you'll never see it's a repro. Great job.

Joined
Dec 20, 2007
Messages
954
Location
Orcas Island in NW Washington State
Website
www.mtpickettwoodworking.com
Beautiful job! And just in time. I need 3 of 'em.

Joined
Feb 19, 2002
Messages
2,603
Location
Washington, DC
On the stock hinge, when pressed the pin end rolled over it's self, on the repro the steel in harder and it kind of shattered (see the pic above side view). were trying to work this out.

Those look great! Could you anneal the end of the pin that will be getting peened over, to soften it up?

Joined
Aug 23, 2004
Messages
696
Location
San Jose, Ca.
Those look great! Could you anneal the end of the pin that will be getting peened over, to soften it up?

Nice!!
I have been wondering how to roll the hollow for the pin.. can you share or is that a secret?

I wish I had the skill to do this, but I don't. I'm having a machine shop do the work, and they are going to try a different approch on the pin. Also for those that are wondering I have no idea on price yet, it's taken a lot of time to get to the point you see here.

Last edited:

Awl_TEQ

Supporting Vendor
Joined
Aug 27, 2008
Messages
3,907
Location
Calgary Alberta
Anybody know if the later trucks (78) use the same hinge.........I guess I could get off my ass, walk 30' and check.........

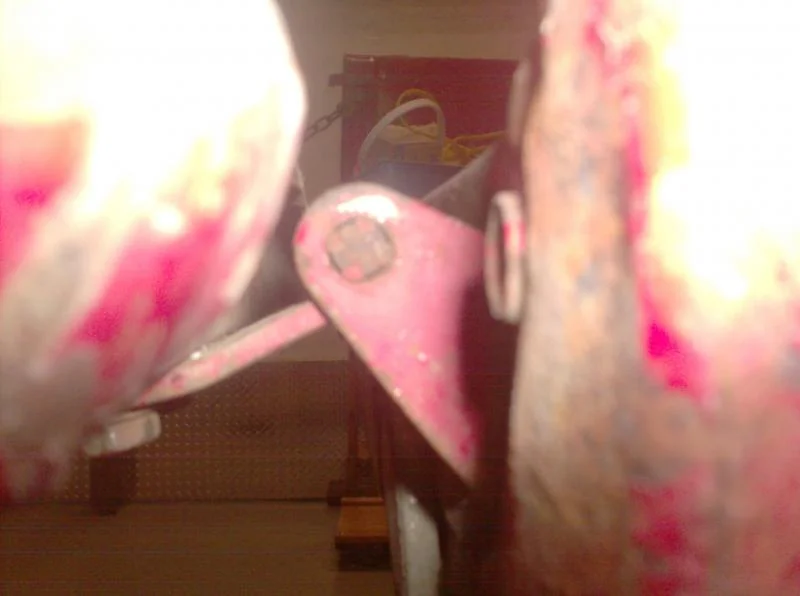

Yeah, they are the same, at least by eye. Though there are four of them. My pin is also different. The pins on mine are hammered with a punch that makes four little bulges to retain it. I took several pics but I need a new camera.......this is the best one.....


Awl_TEQ

Supporting Vendor
Joined
Aug 27, 2008
Messages
3,907
Location
Calgary Alberta
Good to know - Thank you. I think mine are OK, but I haven't taken them off yet. They do look the same or similar design/shape just a little different I take it. :cheers:


65swb45

Elder Statesman
Supporting Vendor
Joined
Apr 14, 2004
Messages
33,448
Location
818-953-9230
Website
www.marksoffroad.net
I'm totally with Brett on the idea of warming the pin up before trying to flare it out.

The pins on my Ehsan hinges are solid stock, peened over on both ends. I'll try and get a pic.

Just a thot. Rather than put your guy in an ackward situation with the pins, why not just pay him to make the plates and have the pins done somewheres else. Shops that manufacure gates are pretty handy with welding and shaping pins.

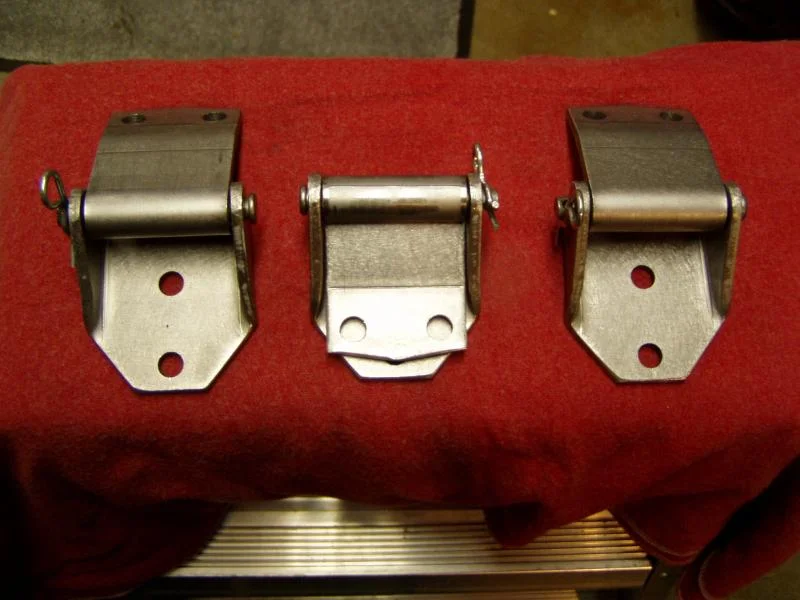

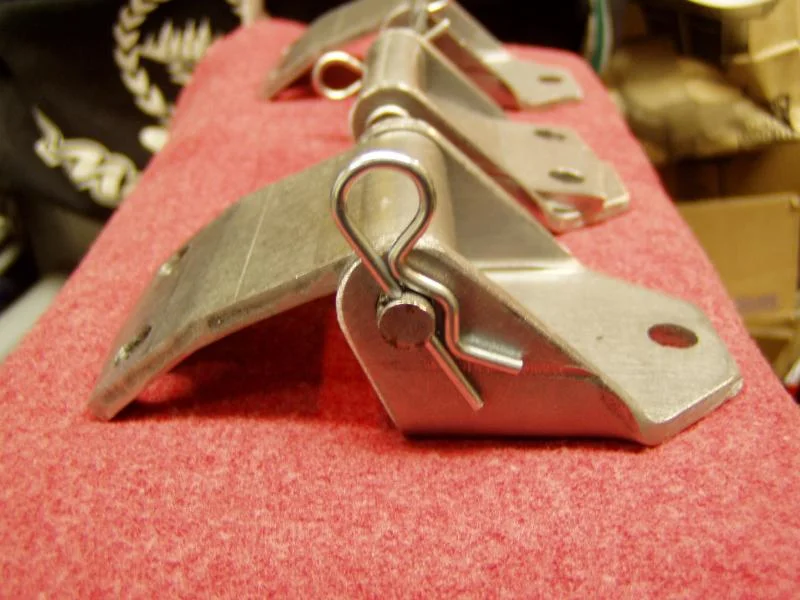

Another thot. The SWB tailgate hinges are cotter pinned on one side, making them removable for servicing. I've thought on more than one occasion that it would be handy if the LWB hinges had a similar feature. It would make it a tad easier for those times you need to remove the gate as well, instead of unbolting. Hmmm.

Best

Mark A.

Joined
Dec 20, 2007
Messages
954
Location
Orcas Island in NW Washington State
Website
www.mtpickettwoodworking.com
I'll take mine with the cotter pins. Good idea, and you might just be able to get clevis pins already made up for the hinge pins. My gate is missing the center hinge and the other 2 are all bent up and WELDED in place , so I'll be removing them with the angle grinder...:crybaby:


Bear

SILVER Star
Joined
Nov 2, 2005
Messages
2,968
Location
California
Something you might want to consider:

With the rarity and high cost of tailgates, are you making it easier for someone to steal your gate?
At least with closed-pin hinges, you can replace a few bolts with security-head bolts just to make it a bit tougher on the bad guys.

Just a thought.

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
If you are worried about theft, you could just tack weld the pin in place, or if you still want to be able to remove it, use a bolt, not a pin. Would take the bad guy a little longer to unbolt them.
