Door panel removal process

Discussion in '100-Series Cruisers' started by dnp, Oct 26, 2009.

  1. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS
    There are some of you on this forum that are more adept at finding results using the SEARCH function than am I, so please forgive me if this procedure is, indeed, posted somewhere on the 100-series forum. That being said, I performed a search for "door panel removal" process, and although I came up with bits and pieces on several threads, they all left out steps that I needed to know. Accordingly, on the chance that someone needs to know how to do this from beginning to end (the front doors on an LX470, anyway), the following is a rundown (sorry for the three photos per entry):

    1. Locate the tweeter cover, and just pull it off. It has a couple of push-in grommets that will come out easily.

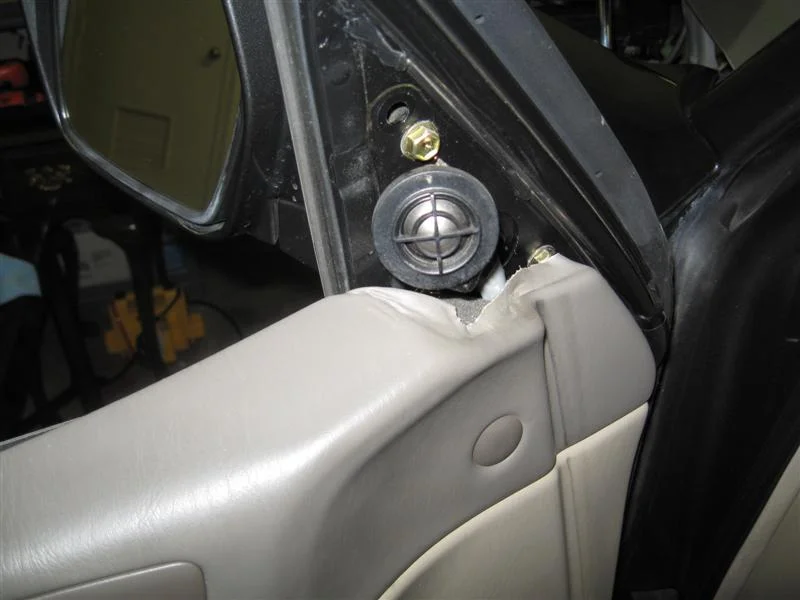

    2. This is what the door looks like with that cover removed

    3. Locate the two plastic screw covers below the tweeter, and remove them by prying them off with a small flat blade screwdriver or other flat tool, being careful not to nick/scratch your door panel. (This is what the door panel looks like with the covers removed.) Remove these two screws
    IMG_0858 (Medium).JPG IMG_0857 (Medium).JPG IMG_0856 (Medium).JPG

    jumptrader, LXFAM, beachbumin and 7 others like this.
  2. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

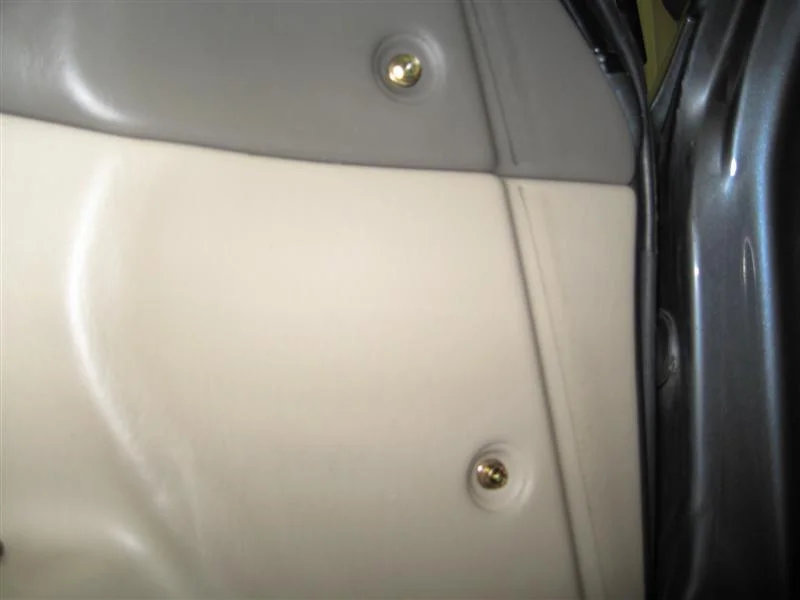

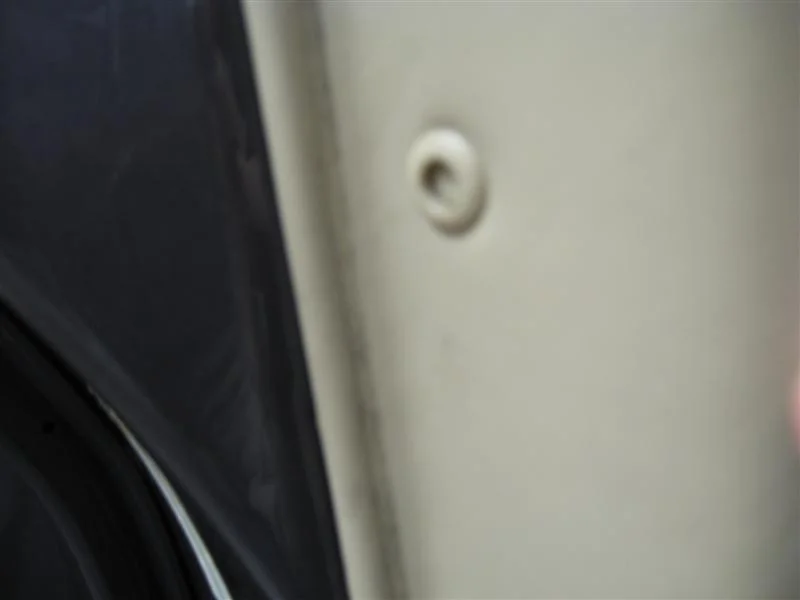

    4. Locate the three plastic "rivets" on the door panel. They will be lower on the panel, with one rivet in the leading end, and two in the trailing end of the door panel. Push the center of the rivet in slightly with the edge of a screwdriver or other object (this will release the "catch" on the rivet), then, being careful not to nick/scratch your door panel), pry the rivet out with a flat tool.

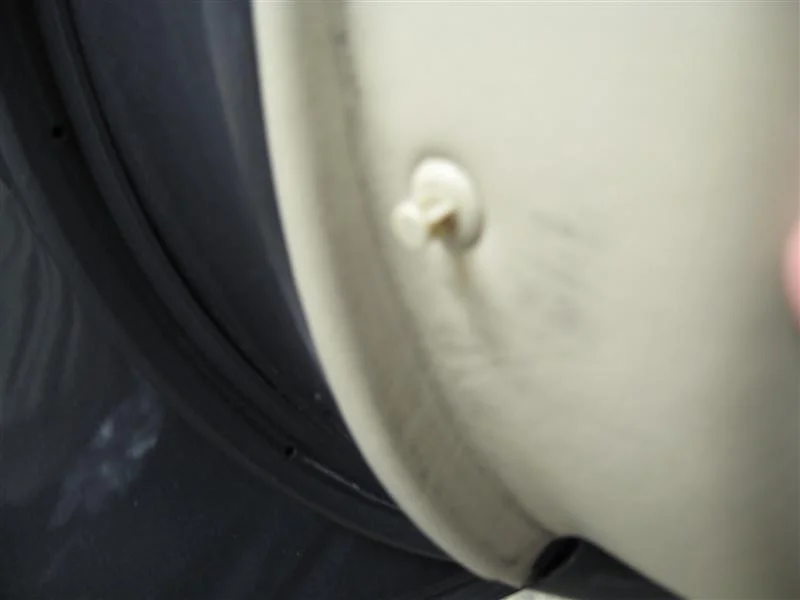

    5. While we're on these rivets, the way to reinstall them is to push on the pointed end of the rivet to make the blunt end stick out of the body of the rivet. Then, when you reinstall the rivet into the door panel, you push the center in to make it flush with the body of the rivet to make it hold tight again.

    6. Pull back on the door seal on the bottom of the door panel to reveal the 4 screws on the bottom. Remove these 4 screws
    IMG_0854 (Medium).JPG IMG_0855 (Medium).JPG IMG_0851 (Medium).JPG

    Last edited: Oct 26, 2009
    WeAreTR, verruckt1 and beno like this.
  3. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

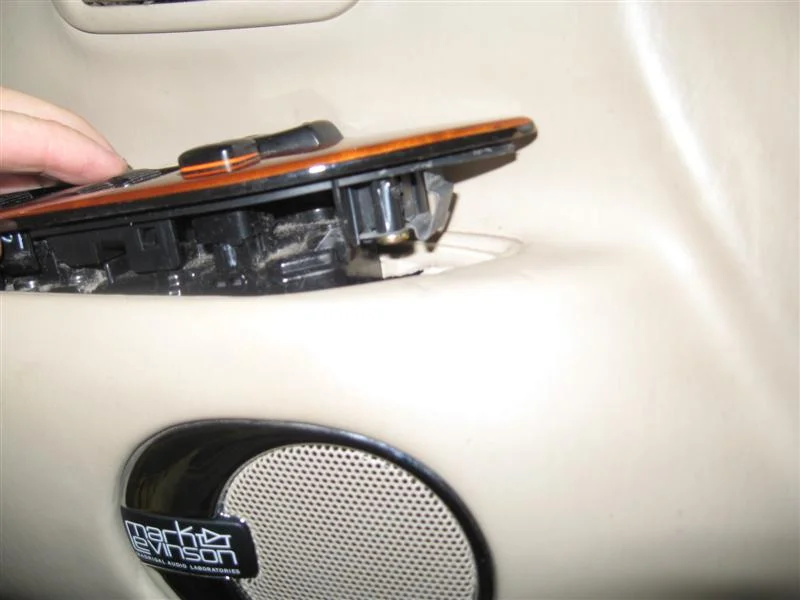

    7. Push a flat blade screwdriver (carefully) under the front edge of the window/lock control escutcheon, and push in the front of the spring retainer to get it to release from the door panel (look on the front of the first two photos, and you'll see what it looks like)

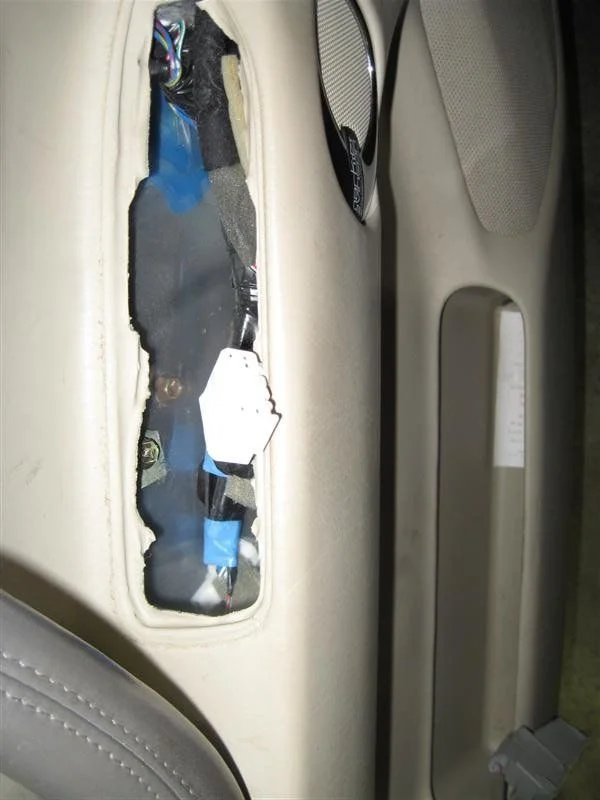

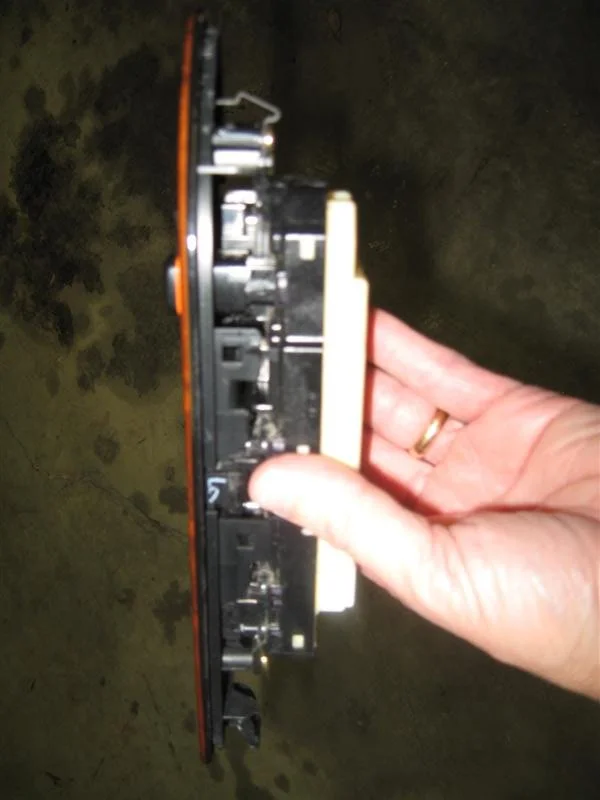

    8. Remove the white wiring harness connector. This is what it looks like when removed.
    IMG_0850 (Medium).JPG IMG_0849 (Medium).JPG IMG_0848 (Medium).JPG

    WeAreTR, verruckt1 and beno like this.
  4. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

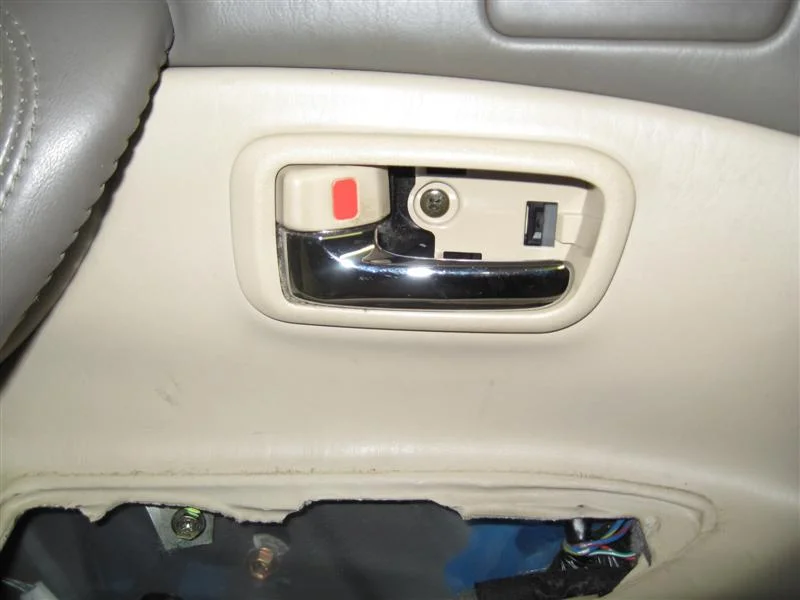

    9. Carefully pry off the cover underneath the door opening latch handle

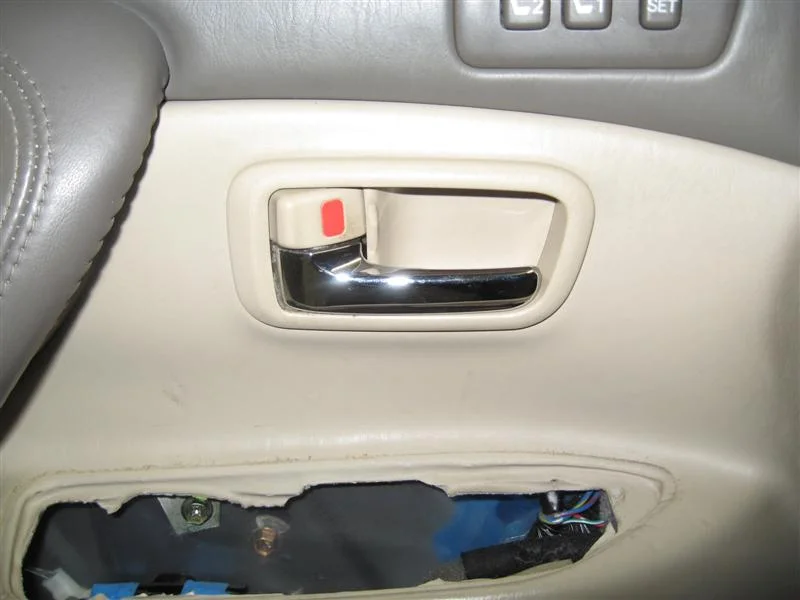

    10. This is what it looks like removed. Remove the phillips head screw in the center under the handle.
    IMG_0847 (Medium).JPG IMG_0846 (Medium).JPG

    Last edited: Oct 26, 2009
  5. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

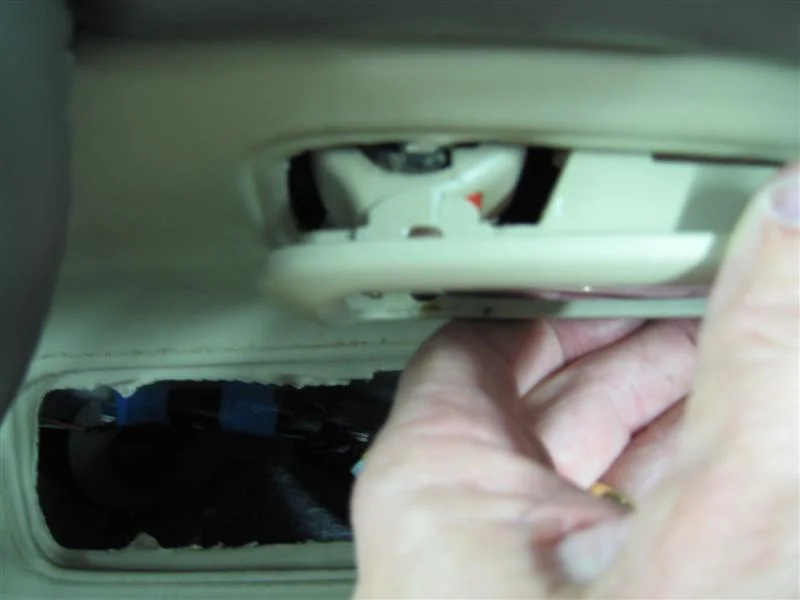

    11. Carefully pry off the trim piece around the door lock latch handle. I'm not really sure the best way to do that, so the next photos show what the part looks like so you'll know how/where it attaches. I pried it from above and made the round holes disengage from the top of the latch. Likewise, it also has a tab that slides into the front of the latch. Just look at the part, and you can probably figure out how to get it off.
    IMG_0845 (Medium).JPG IMG_0843 (Medium).JPG

  6. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

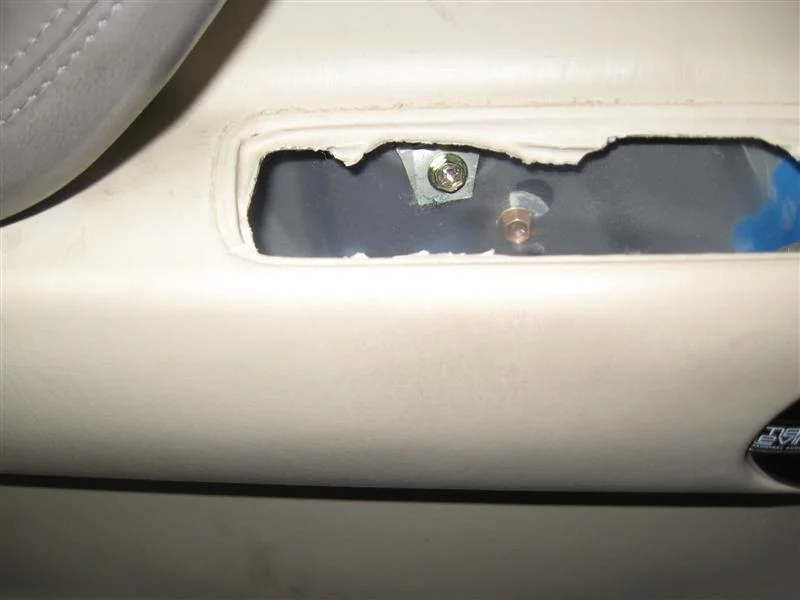

    12. Remove the phillips head screw from under where the window/lock escutcheon was.

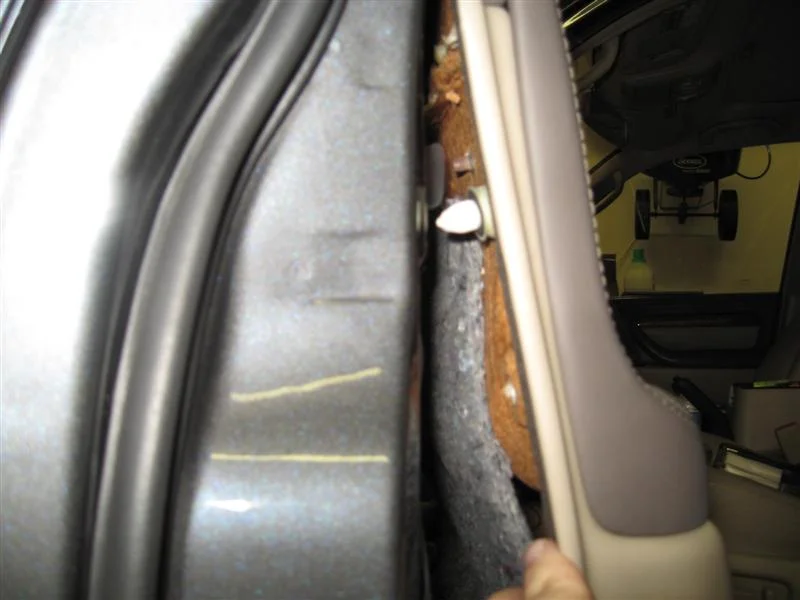

    13. Pull the bottom of the door panel away from the door, and near the top of the trailing edge of the door, there is another push-in grommet that needs to be released. Pop that away from the door

    14. Everything holding the door panel should be released from it (except wiring - shown in second photo in the next post), so grab the leading and trailing edges of the door panel and, with the window DOWN, wiggle the door panel upwards and off of the top edge of the door (see the first photo in the next post for what the top of the door panel looks like, so you'll know how it fits down on the top of the door)
    IMG_0841 (Medium).JPG IMG_0840 (Medium).JPG IMG_0839 (Medium).JPG

  7. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

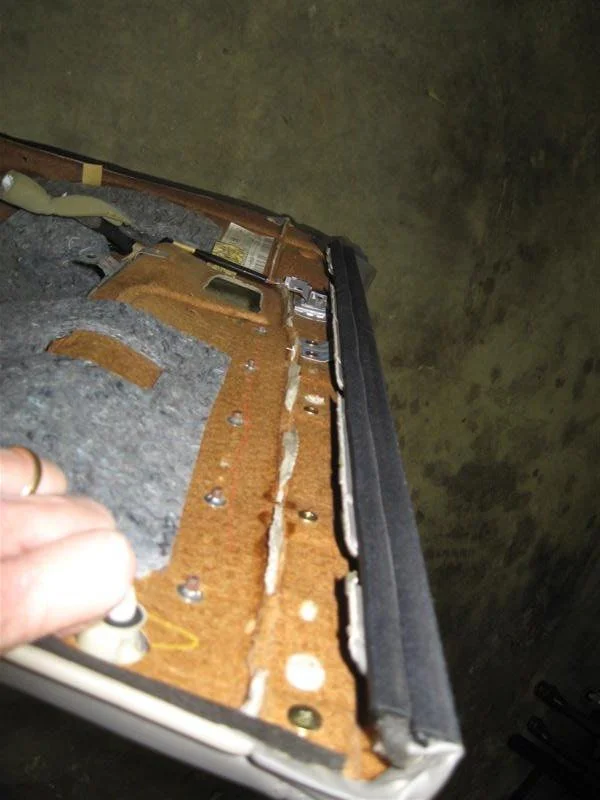

    First photo: see how there is a channel at the top of the door panel that fits down over the top of the door? It can be a bit stubborn to get the door panel off of the door, but if you push in slightly while rocking/wiggling it (while pulling up), it will come off.

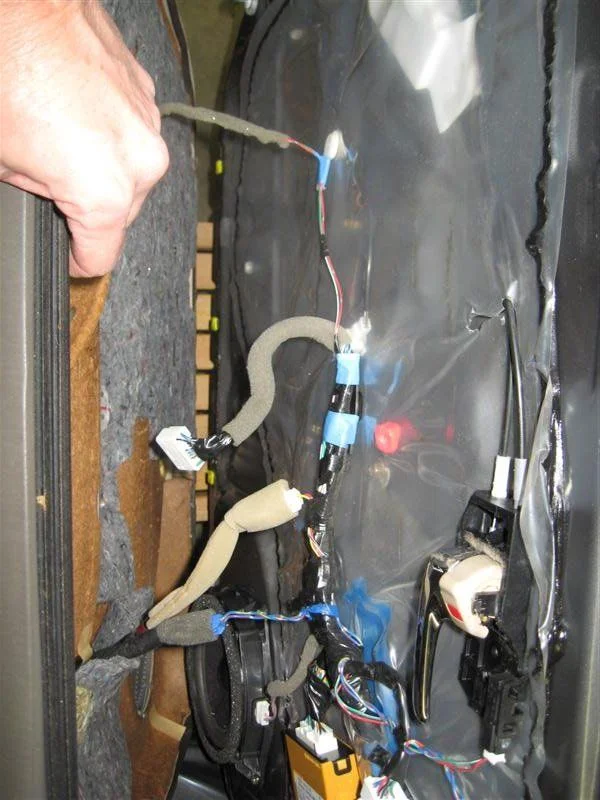

    Second photo: wiring still attached to the door panel (I don't know how a Land Cruiser looks with regard to wiring, but this is how my '03 LX470 with Mark Levinson stereo looks)
    IMG_0837 (Medium).JPG IMG_0838 (Medium).JPG

    Last edited: Oct 26, 2009
    carolynk, WeAreTR and beno like this.
  8. dnp

    dnp Supporting Vendor SILVER Star

    Messages:
    4,359
    Likes Received:
    1,713
    Joined:
    May 2, 2004
    Location:
    Jackson, MS

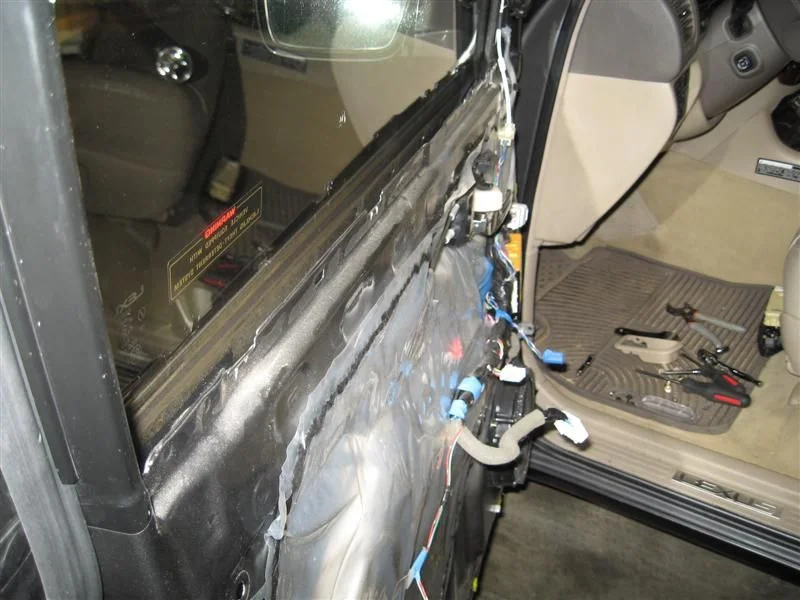

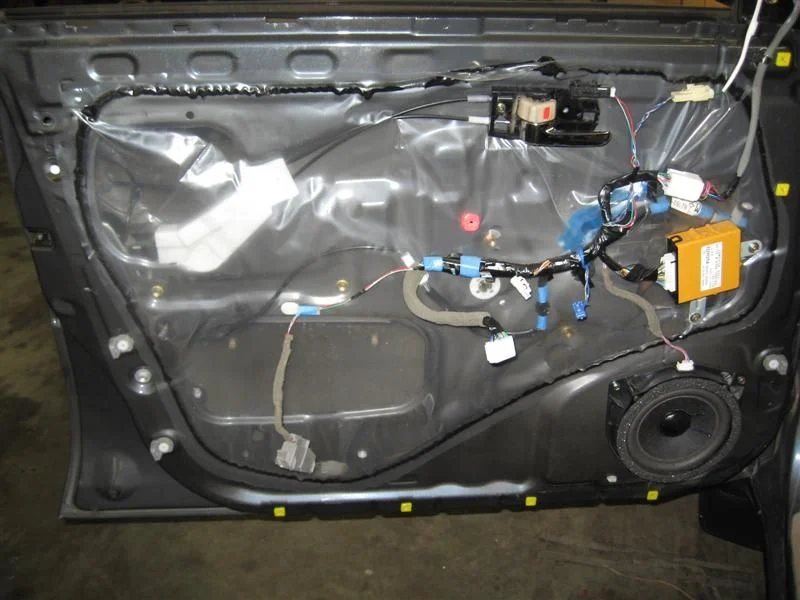

    Photos of the door panel removed. Reinstall by reversing this process.
    IMG_0836 (Medium).JPG IMG_0835 (Medium).JPG

    carolynk, WeAreTR, verruckt1 and 2 others like this.
  9. TXLX470

    TXLX470

    Messages:
    542
    Likes Received:
    0
    Joined:
    Oct 31, 2006
    Location:
    Houston, TX
    Nice write up....will be helpful when I replace my speakers
