Clutch master cyl differences? (H55F swap related)

Discussion in '60-Series Wagons' started by Skniper, Mar 13, 2018.

  1. Skniper

    Skniper

    Messages:
    1,115
    Likes Received:
    423
    Joined:
    Sep 29, 2004
    Location:
    Houston, the bowel of TX
    Is there a difference in FJ60 clutch master cylinders between early models and later ('86 '87) models.

  2. mwebfj60

    mwebfj60 SILVER Star

    Messages:
    1,576
    Likes Received:
    1,936
    Joined:
    Sep 17, 2010
    Location:
    Central Valley, CA
    The part number changed after 11/85’. I’m not sure of the differences although the slave and fork system changed around the same time.

  3. klinetime574

    klinetime574 Positive Vibes SILVER Star

    Messages:
    5,359
    Likes Received:
    566
    Joined:
    Jul 23, 2006
    Location:
    Houston, TX
    EDIT (I mixed up master cylinder and slave cylinder) This is still useful info though... :)

    Early clutch slave cylinders utilize an external spring to pull the clutch release bearing (TOB) away from the pressure plate. There is a small bracket that the bolts pass through before going through the master cylinder and larger bracket that then bolts to the flywheel. The small bracket has a hole for the external spring. The fork has a small hole on the end for the other side of the spring.

    Late clutch slave cylinders utilize a internal spring to keep constant pressure on the clutch release bearing. Radically different design that does the same thing.

    The slave cylinders use a different length rod. Different clutch fork. And I believe a different mounting system.

    It’s important to use all matching components. Otherwise you won’t be able to adjust the clutch correctly.

    I’m using early clutch slave and master components with my 2F bellhousing and H55F.

    Last edited: Mar 14, 2018
  4. evilorgoodtwin

    evilorgoodtwin SILVER Star

    Messages:
    666
    Likes Received:
    495
    Joined:
    Oct 27, 2009
    Location:
    Front Range Colorado
    Hmmm I hope I have the right one in mine. Haven’t needed to adjust it

  5. OSS

    OSS SILVER Star

    Messages:
    1,144
    Likes Received:
    1,487
    Joined:
    Jun 30, 2017
    Location:
    ?
    The clutch master cylinder currently sold by Toyota has the same part number for all model years.

  6. g-man

    g-man SILVER Star

    Messages:
    1,313
    Likes Received:
    957
    Joined:
    Sep 5, 2006
    Location:
    Charlottesville VA
    The clutch fork and slave cylinder probably have more to do with the clutch housing than the transmission. I believe the h55 has the same size housing as 42 and probably the same length input shaft

  7. cruisermatt

    cruisermatt ランドクル62! SILVER Star

    Messages:
    5,790
    Media:
    11
    Albums:
    2
    Likes Received:
    2,499
    Joined:
    Jul 22, 2012
    Location:
    Orlando Florida

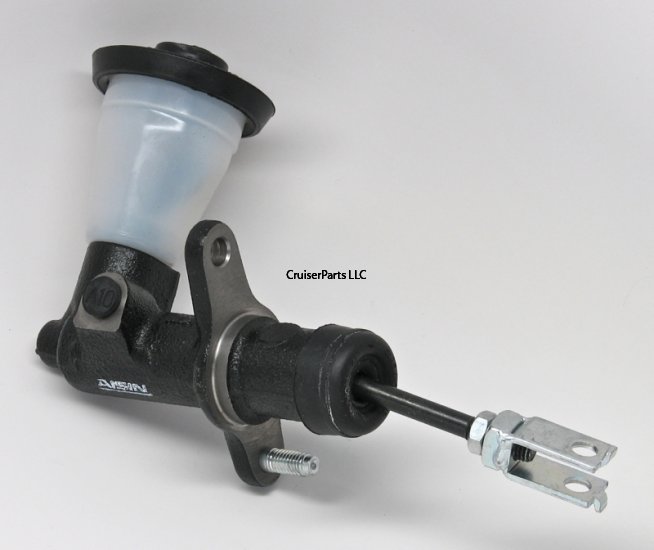

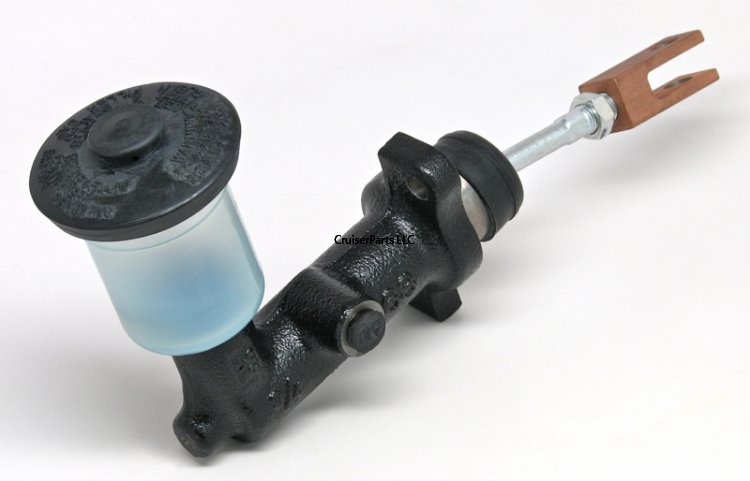

    The difference between the 80-84 and 85-87 clutch masters are the angle of the two studs on the firewall. If you don’t use the correct master cylinder your resivior won’t sit vertically.

  8. klinetime574

    klinetime574 Positive Vibes SILVER Star

    Messages:
    5,359
    Likes Received:
    566
    Joined:
    Jul 23, 2006
    Location:
    Houston, TX
    @OSS Dang it. You’re right. I got excited. I’ll go edit my post.

    OSS likes this.
