Coolant Level Slowly Dropping – Chasing Down the Cause (‘96 80 Series, 190K)

Hey folks — hoping to tap into the collective knowledge here.
I’ve been noticing a gradual coolant loss on my 1996 80 Series (1FZ-FE, 190K miles). Nothing major or catastrophic, but it’s enough that I’m topping off the overflow every couple of weeks. No overheating, no puddles — just a slow, consistent drop. It did have 1 'hot' event which spawned the trouble shooting, it ended up taking about 0.5 gal coolant to top off the radiator. temps have been normal since.

• Coolant level in overflow tank drops slowly
• No visible leaks under the truck
• Temps stay normal
• No white smoke, no milky oil
• No coolant smell inside the cabin
• Small amount of milky (oil?) residue under the rad. cap - I have read this can be normal?

Background:​

• PO said the head gasket was done ~3 years ago
• Stock cooling system as far as I know
• Radiator looks original

What I’ve Checked:​

• All hoses and clamps look tight
• Radiator cap is OEM — thinking about swapping just in case
• Water pump weep hole is dry
• Heater core seems fine — no wet carpet or smell
• Haven’t done a pressure test yet, but it’s on the list
• Not seeing bubbles in overflow or rad. while the truck is idling

Theories So Far:​

• Micro-leak under pressure somewhere not obvious
• Radiator cap not holding pressure anymore
• Could be early signs of a head gasket issue (but no clear symptoms yet)
• Maybe something sneaky like the heater control valve or rear heat lines?

Planning to:

• Do a cooling system pressure test
• Swap in a new cap just to eliminate that variable

​

Would love to hear where you found your leak if you’ve chased a similar issue. Especially interested in things that are easy to miss. I’ll update this thread with anything I find in case it helps the next guy.

Thanks in advance!



[jpoole]

I'd consider pulling the spark plugs and scoping the cylinders as a step to perform in your information gathering process. If the coolant is disappearing into a cylinder at a high enough rate that cylinder/plug will be cleaner than the others and could help you determine if that's where the coolant is going.

That foam on the rad cap is concerning to me as it should not normally be there based on my experience. It's possible that oil is leaking into the coolant. It's also possible that when the HG work was done that they didn't clean the cooling system out sufficiently and that you are seeing that foam as a result of residual oil/contamination that was left in the system. It would be lower down on my list but I would plan to flush the coolant system or at least change the fluid out once you figure out what's going on and have completed the other necessary repairs.

Failure in the oil cooler can allow oil and coolant to mix. I'm not sure which way the fluids would flow but someone here probably knows that. If it's just oil into the coolant though, causing the foam, that wouldn't account for the loss of coolant you are seeing so this seems less likely than a HG failure where the coolant is getting into the cylinders.

Some folks have had freeze plug or small crack leaks on these where a slow leak while the engine is at temp was causing the coolant to evaporate and not puddle on the ground. Something like that could be going on here and account for you not seeing coolant on the ground. I think I recall that there's a freeze plug or similar at the back end of the head that can lead to this scenario.



[rebelcruiser]

Mine was a head gasket



[Kernal]

Agree, unless someone has added something other than coolant to the cooling system (?sealer), if that foam is a new/recent development it's concerning

You could collect a sample of the current engine oil and send it to Blackstone Laboratories for an Engine Oil Analysis (EOA),
if coolant is getting into the oil it will show up on that test.

Also you could use one of the kits that sniff the vapor in the cooling system to see if it detects combustion gases.

Or as mentioned you could hook up a cooling system pressure tester.

Or, all/some of the above.

Oil Analysis | Blackstone Laboratories

Learn what's going on in your engine with oil analysis. Our free kits are easy to use and we explain the results in plain English! Since 1985.

www.blackstone-labs.com

Radiator Pressure Tester Kit

Amazing deals on this Radiator Pressure Tester Kit at Harbor Freight. Quality tools & low prices.

www.harborfreight.com

Pardon Our Interruption



[LongDuck]

Can you take a pic of your water pump, Thermostat housing area, and the Radiator Hoses nearby? This should help us eliminate those as sources of your slow leak. This can be done from the passenger side of the engine bay,



[BILT4ME]

Coolant Level Slowly Dropping – Chasing Down the Cause (‘96 80 Series, 190K)

Hey folks — hoping to tap into the collective knowledge here.
I’ve been noticing a gradual coolant loss on my 1996 80 Series (1FZ-FE, 190K miles). Nothing major or catastrophic, but it’s enough that I’m topping off the overflow every couple of weeks. No overheating, no puddles — just a slow, consistent drop. It did have 1 'hot' event which spawned the trouble shooting, it ended up taking about 0.5 gal coolant to top off the radiator. temps have been normal since.

• Coolant level in overflow tank drops slowly
• No visible leaks under the truck
• Temps stay normal
• No white smoke, no milky oil
• No coolant smell inside the cabin
• Small amount of milky (oil?) residue under the rad. cap - I have read this can be normal?

Background:​

• PO said the head gasket was done ~3 years ago
• Stock cooling system as far as I know
• Radiator looks original

What I’ve Checked:​

• All hoses and clamps look tight
• Radiator cap is OEM — thinking about swapping just in case
• Water pump weep hole is dry
• Heater core seems fine — no wet carpet or smell
• Haven’t done a pressure test yet, but it’s on the list
• Not seeing bubbles in overflow or rad. while the truck is idling

Theories So Far:​

• Micro-leak under pressure somewhere not obvious
• Radiator cap not holding pressure anymore
• Could be early signs of a head gasket issue (but no clear symptoms yet)
• Maybe something sneaky like the heater control valve or rear heat lines?

Planning to:

• Do a cooling system pressure test
• Swap in a new cap just to eliminate that variable

​

Would love to hear where you found your leak if you’ve chased a similar issue. Especially interested in things that are easy to miss. I’ll update this thread with anything I find in case it helps the next guy.

Thanks in advance!



View attachment 4007151View attachment 4007152

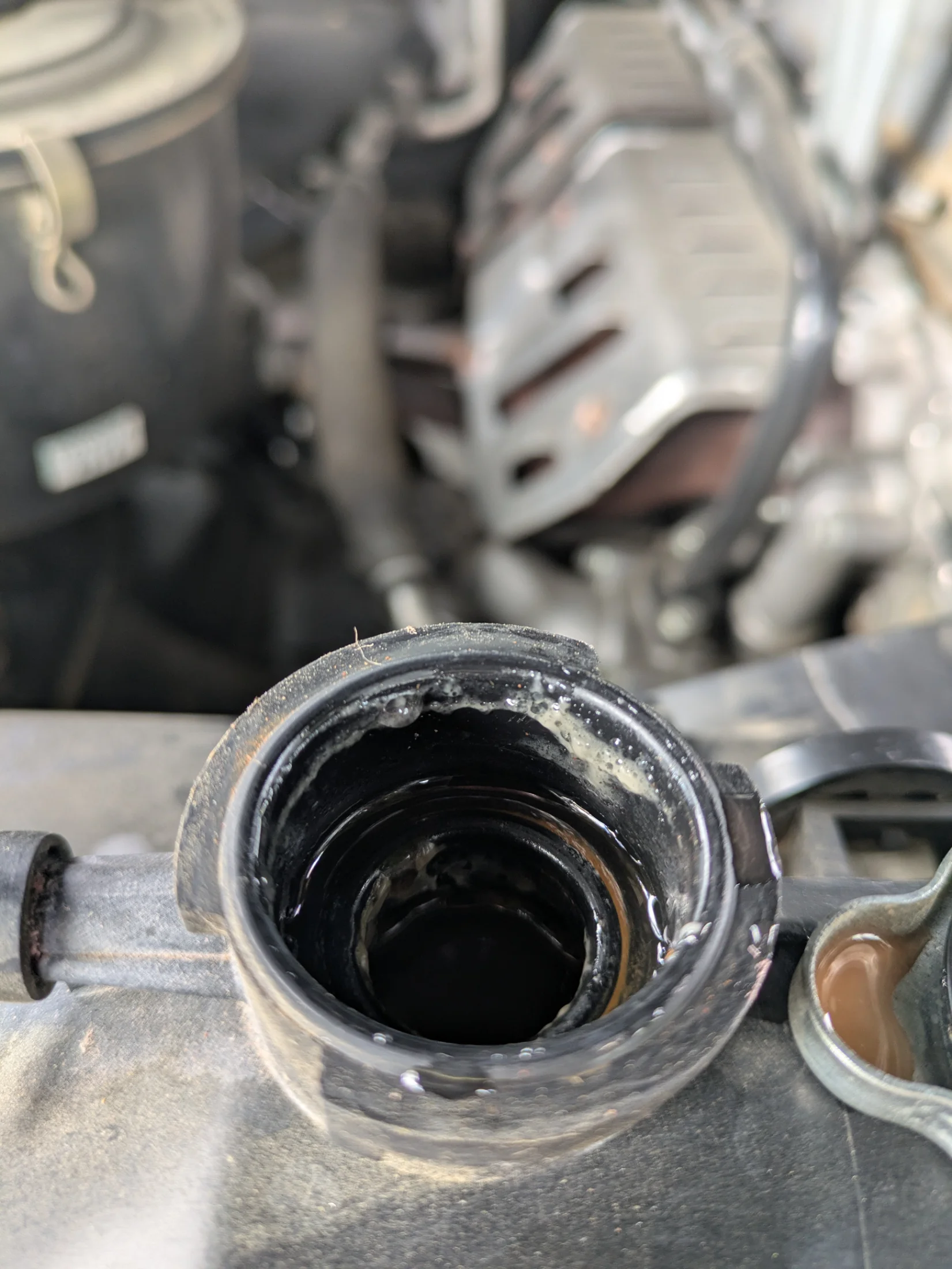

I would be concerned about the milky looking crud on that radiator cap. That indicates contamination, however, it could be residual if that's from a recent rebuild and a blown HG with inadequate flushing.

I would look at the aluminum bypass pipe with the (3) O-Rings right above the T-Stat.

I had a similar issue and it took me over two years to find it. I would lose coolant, but never find the location. Mine is a DD so it was regularly run up to temp.

I discovered a drip one day after driving several hundred miles, then opened the hood at a gas station, and there was a drip under the bypass pipe. The coolant evaporated by the time I got to the next stop, so it was just timing that I found it.

If/when you replace it, buy the (3) new O-Rings, a new sleeve, and even consider buying a new bypass pipe, just to speed up the process. It took me a bit to clean up all the crud on the Bypass pipe.
I destroyed the sleeve (nipple) trying to remove it. I cleaned up the bore with Scotchbrite pads and used antifreeze as a lubricant for the new O-Rings (don't use grease)



[LimitingFactor]

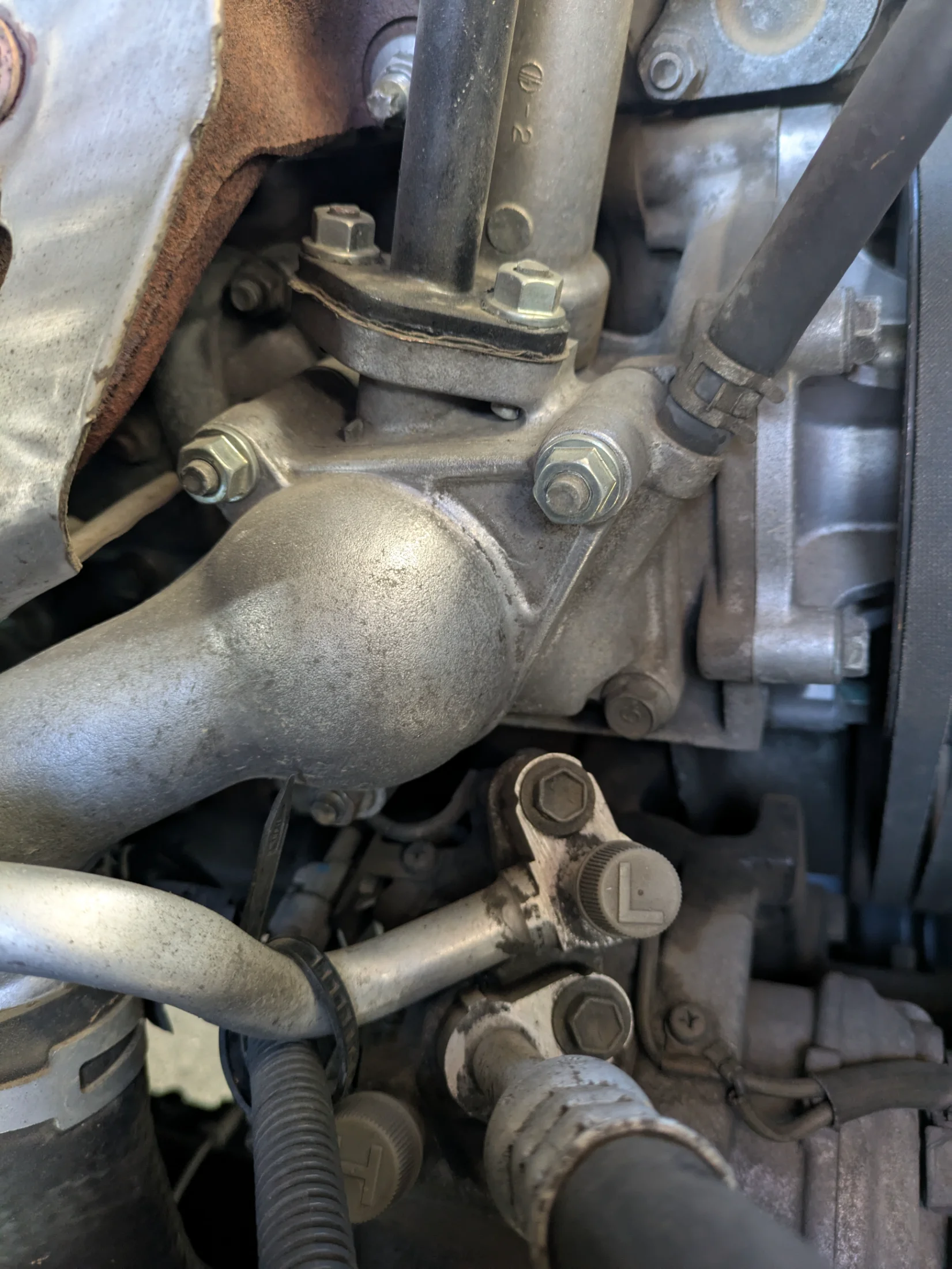

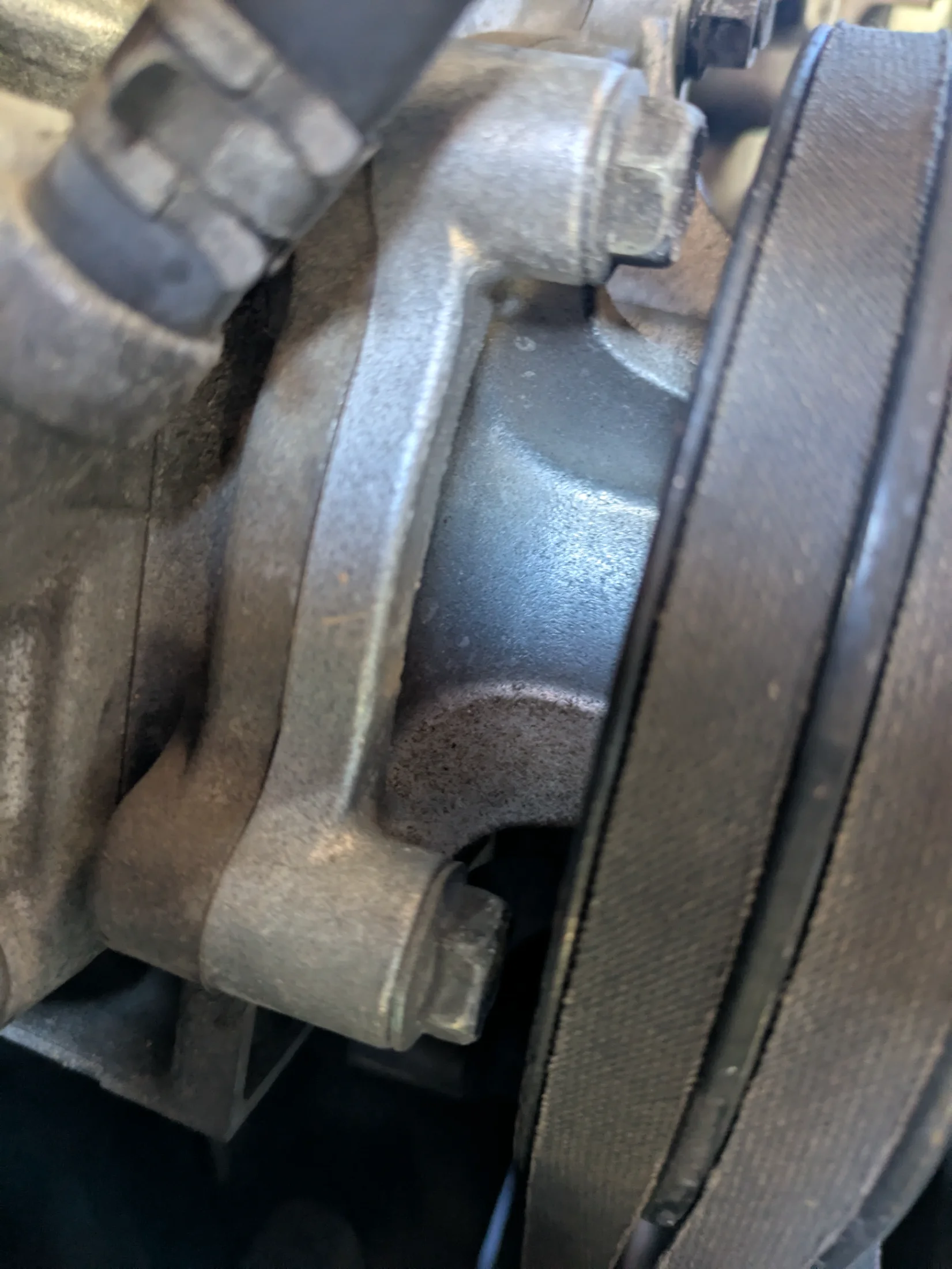

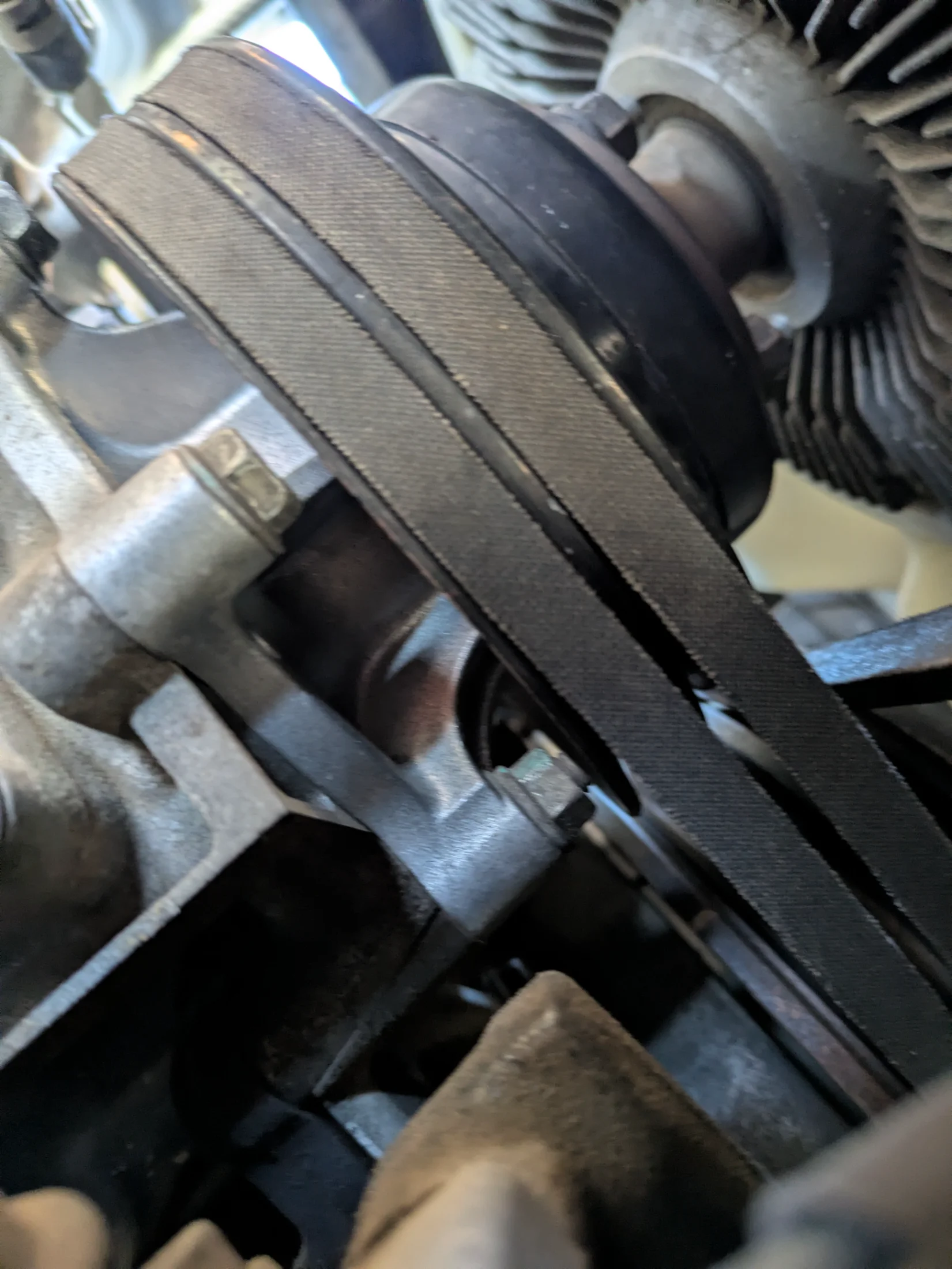

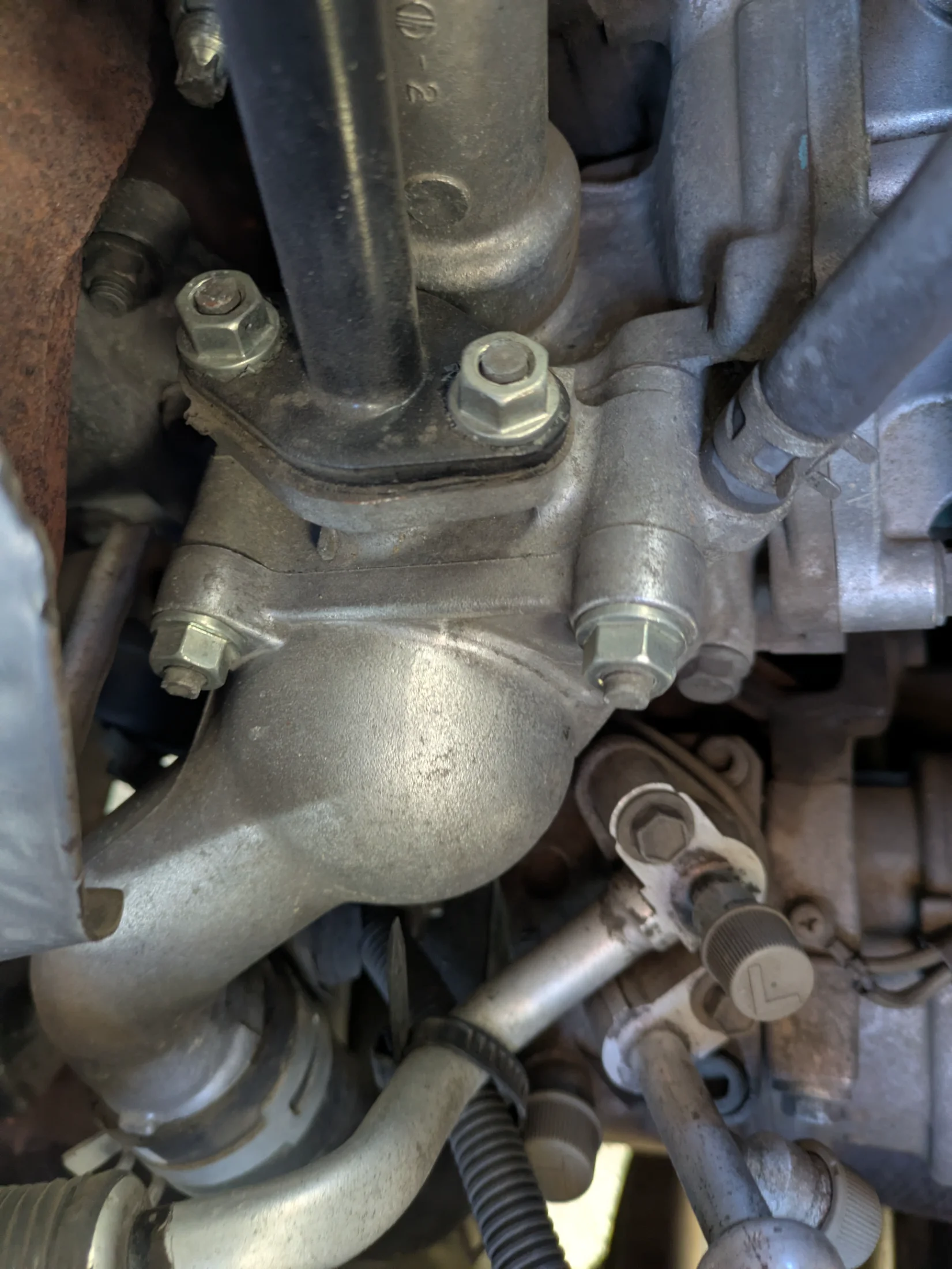

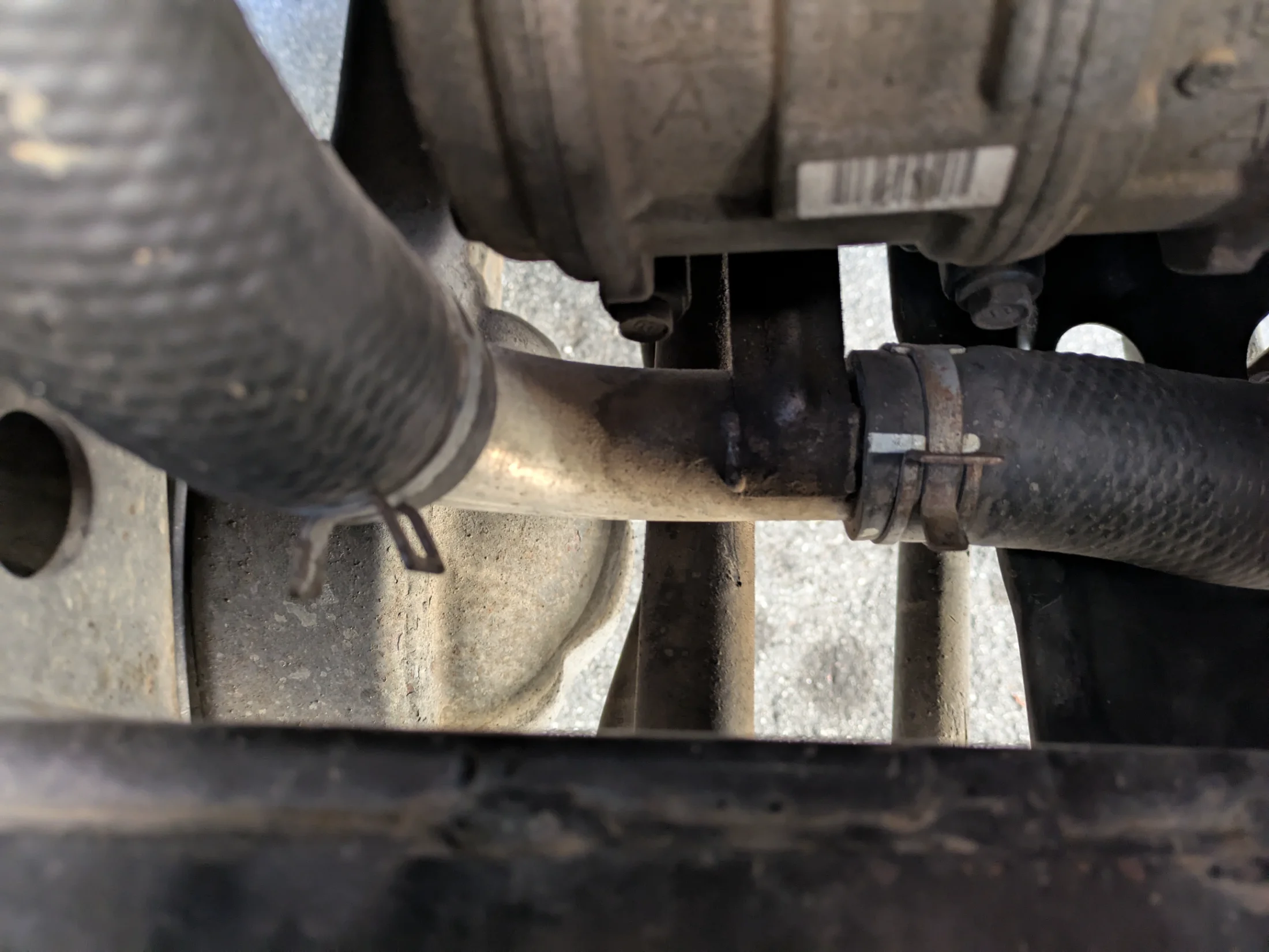

Here's a few quick pictures I grabbed of the potential problem areas, they are not great as I didn't crawl under and get any from the bottom. @BILT4ME I also DD mine so it gets to temp regularly. I think I took off the overflow tank from the 'low' line every other week or so?



[BILT4ME]

Here's a few quick pictures I grabbed of the potential problem areas, they are not great as I didn't crawl under and get any from the bottom. @BILT4ME I also DD mine so it gets to temp regularly. I think I took off the overflow tank from the 'low' line every other week or so?

View attachment 4008340

View attachment 4008341

View attachment 4008342

View attachment 4008343

View attachment 4008344

In the second pic, there is a "pocket" that will catch the drips up and to the right of the bolt in the opic.
If you look there is a bit of oink staining in there. That is where mine was leaking. The bypass pipe is the piece with the (//) - 2 molded into it.



[LimitingFactor]

Update: Oil analysis results — coolant confirmed in oil

Well, I finally have a real data point to share. I sent in an oil sample and just got the analysis back, and it does show coolant contamination in the oil. That lines up with the slow, unexplained coolant loss I’ve been chasing and explains why I could never find an external leak.

A couple of key notes from the report:

• Coolant present — enough to be flagged as abnormal.
• Elevated aluminum — the report suggests this could be from piston wear.

For context, this is a 1996 80 Series with ~190k miles, head gasket was previously done. Oil otherwise looked normal to the eye (no milkshake), no obvious white smoke, so this appears to be a slow internal leak, not a catastrophic failure.

At this point, the likely suspects seem to be:

• Head gasket seepage (despite being “done” previously)
• Head or block issue allowing coolant into the oil under certain conditions
• Less likely, but still possible: oil cooler or related passage issue

The aluminum number is what concerns me most long-term. Even if the coolant leak is slow, it may already be contributing to increased wear, so I don’t plan to ignore it or just keep topping off.

Next steps:

• Short oil interval and resample to confirm trends
• Compression and leak-down tests
• Cooling system pressure test combined with oil inspection
• Check plugs/borescope to see piston tops/cylinder walls
• Preparing mentally (and financially) for the possibility that the head needs to come back off

Not the update I was hoping for, but at least it’s no longer a mystery. Appreciate all the input so far — if anyone has seen a post-HG 1FZ still seep coolant internally like this and found the root cause, I’m all ears.



[LimitingFactor]

Update:
I ran a combustion gas test on the cooling system to see if I could confirm the blackstone results. Used one of the common CO₂ test kits from Amazon with the blue fluid and radiator neck adapter.

Followed the usual procedure — engine fully warm, coolant level dropped a bit, pulled vapors through the test fluid. Result was… meh. No color change, but also nothing I’d call a confident “all clear.” Based on the residue under the rad cap, level dropping and the blackstone results.

So it didn’t scream “combustion gases in the coolant,” but it also didn’t give me the warm fuzzy that this definitely isn’t some slow/intermittent internal leak. If it is leaking, it’s either very minor or only shows up under specific conditions.



[ajax1]

Look underneath the water pump where the hole is, I use an inspection mirror



[LimitingFactor]

Yeah worth checking. I'm also considering ripping apart the oil cooler. That seems like a component where oil/coolant could mix in both directions:
Coolant found in oil and oil sludge seen under rad cap.



[robnicko]

check your oil dipstick or underneath the fill cap 1st thing in the morning for milky residue, if there is like the picture you posted previously then yeah its mixing somewhere
the oil cooler is a good place to check as well

do you exhibit any excessive high pressure in the radiator hoses or engine stuttering due to spark plugs getting coolant on them?



[60wag]

Check the freeze plugs near the oil filter. The block can crack near the plugs resulting in a small leak.



[LimitingFactor]

I did another quick sanity check per the suggestions. Freeze plug and water pump both look good, no signs of coolant. Apparently the water pump was done with the HG so should be decent but the documents from the PO are somewhat suspicious..



[LimitingFactor]

Could the oil cooler be a possible culprit here? Since oil/coolant mix was confirmed, I’m trying to rule out anywhere the two intersect.

Has anyone had a bad oil cooler or cooler seal cause a slow internal coolant leak with no obvious external signs? What’s the best way to diagnose or rule out the oil cooler — pressure test, bypass, dye, etc?

Appreciate any firsthand experience.



[dallen341]

Check driver side freeze plug at #4 cylinder. My block had a crack that would weep ever so slightly. I know I am not the only one that had same issue at that particular spot.

Stitching pins fixed me up. 1st picture is the crack, 2nd stitched up repair.



[rhc404]

My next steps would be to borescope cylinders, check head bolt torque, then remove the head. Seems like maybe the head wasn't decked during the previous job.



[MissahPapaJ]

I'd consider pulling the spark plugs and scoping the cylinders as a step to perform in your information gathering process. If the coolant is disappearing into a cylinder at a high enough rate that cylinder/plug will be cleaner than the others and could help you determine if that's where the coolant is going.

That foam on the rad cap is concerning to me as it should not normally be there based on my experience. It's possible that oil is leaking into the coolant. It's also possible that when the HG work was done that they didn't clean the cooling system out sufficiently and that you are seeing that foam as a result of residual oil/contamination that was left in the system. It would be lower down on my list but I would plan to flush the coolant system or at least change the fluid out once you figure out what's going on and have completed the other necessary repairs.

Failure in the oil cooler can allow oil and coolant to mix. I'm not sure which way the fluids would flow but someone here probably knows that. If it's just oil into the coolant though, causing the foam, that wouldn't account for the loss of coolant you are seeing so this seems less likely than a HG failure where the coolant is getting into the cylinders.

Some folks have had freeze plug or small crack leaks on these where a slow leak while the engine is at temp was causing the coolant to evaporate and not puddle on the ground. Something like that could be going on here and account for you not seeing coolant on the ground. I think I recall that there's a freeze plug or similar at the back end of the head that can lead to this scenario.

Not new to professionally wrenching ( 20 years now ) but newish to LC80 ownership. Are there freeze plugs in the bell housing area? Asking for a friend.



[MissahPapaJ]

Coolant Level Slowly Dropping – Chasing Down the Cause (‘96 80 Series, 190K)

Hey folks — hoping to tap into the collective knowledge here.
I’ve been noticing a gradual coolant loss on my 1996 80 Series (1FZ-FE, 190K miles). Nothing major or catastrophic, but it’s enough that I’m topping off the overflow every couple of weeks. No overheating, no puddles — just a slow, consistent drop. It did have 1 'hot' event which spawned the trouble shooting, it ended up taking about 0.5 gal coolant to top off the radiator. temps have been normal since.

• Coolant level in overflow tank drops slowly
• No visible leaks under the truck
• Temps stay normal
• No white smoke, no milky oil
• No coolant smell inside the cabin
• Small amount of milky (oil?) residue under the rad. cap - I have read this can be normal?

Background:​

• PO said the head gasket was done ~3 years ago
• Stock cooling system as far as I know
• Radiator looks original

What I’ve Checked:​

• All hoses and clamps look tight
• Radiator cap is OEM — thinking about swapping just in case
• Water pump weep hole is dry
• Heater core seems fine — no wet carpet or smell
• Haven’t done a pressure test yet, but it’s on the list
• Not seeing bubbles in overflow or rad. while the truck is idling

Theories So Far:​

• Micro-leak under pressure somewhere not obvious
• Radiator cap not holding pressure anymore
• Could be early signs of a head gasket issue (but no clear symptoms yet)
• Maybe something sneaky like the heater control valve or rear heat lines?

Planning to:

• Do a cooling system pressure test
• Swap in a new cap just to eliminate that variable

​

Would love to hear where you found your leak if you’ve chased a similar issue. Especially interested in things that are easy to miss. I’ll update this thread with anything I find in case it helps the next guy.

Thanks in advance!



View attachment 4007151View attachment 4007152
