Brake Controller for 2018 GX460 Luxury (1 Viewer)

heliwill10 · Jun 9, 2020

Any recommendations for a unit?

Jacket · Jun 9, 2020

This one matches with a switch bezel (sold separately) that will fit into one of the GX's blanks on the dash.

Home - Slee Off Road

Employment

sleeoffroad.com

Or this one:
Amazon product ASIN B000P17NXQ

heliwill10 · Jun 9, 2020

ok cool, do you know if I have to run a seperate wire for the brakes back to the connector? I have a factory hitch and wiring.

heliwill10 · Jun 9, 2020

maybe this would work?

Replacement O.E.M. Tow Package Wiring Harness for Lexus GX 460,Toyota 4Runner

Replacement O.E.M. Tow Package Wiring Harness for Lexus GX 460,Toyota 4Runner - Fits: *2010 - 2014 Lexus, GX 460, All Styles *2010 - 2011 Toyota, 4Runner, All Styles *Exact re...

www.drawtite.com

(7 pin already installed with factory hitch)

Jacket · Jun 9, 2020

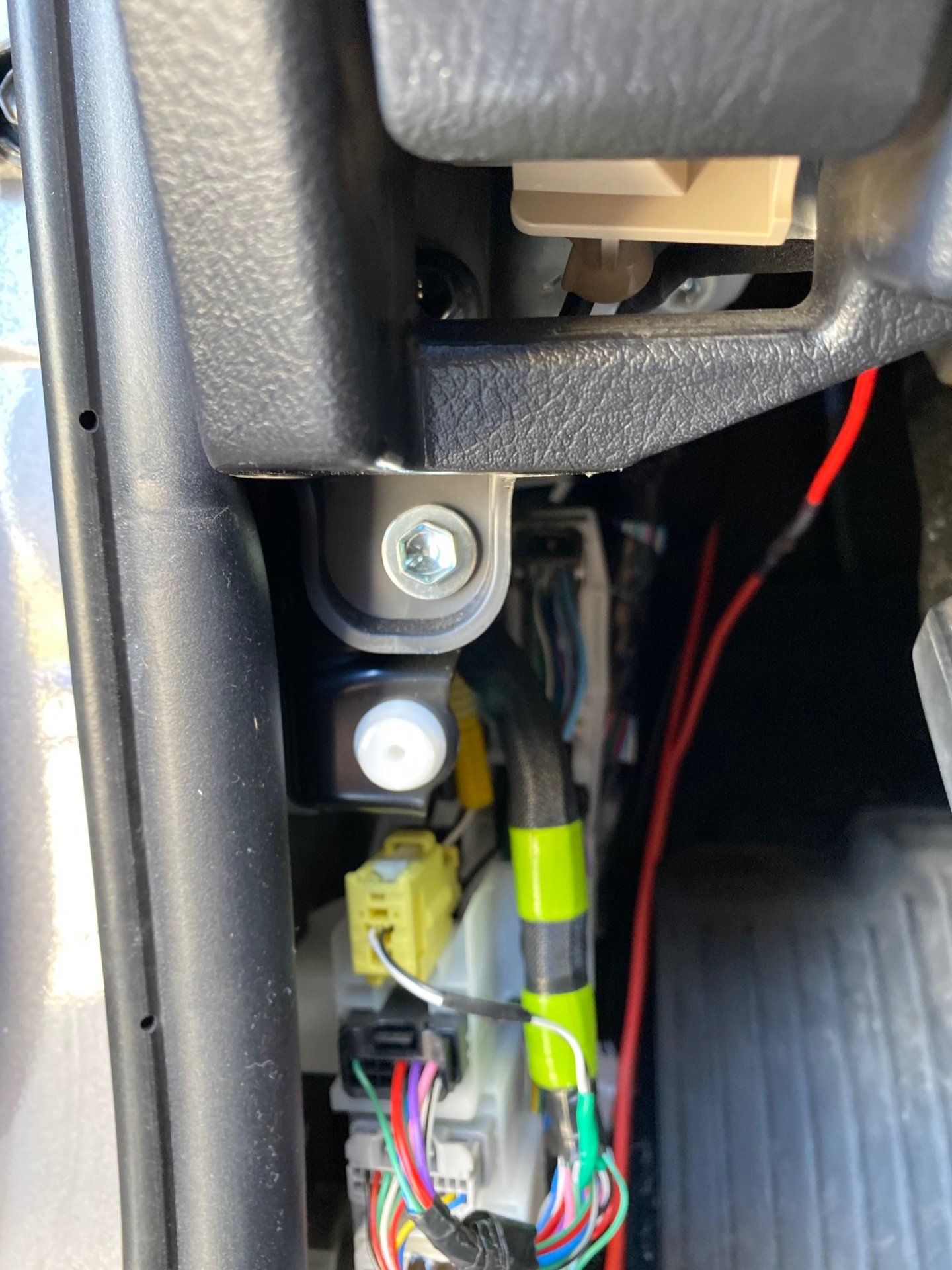

I believe this is true for both (I have the Redarc installed), but the unit comes with a pig tail that you need to splice into your factory brake controller pigtail that should have come with your GX if you have the tow package installed (it's usually in your glove box, or maybe in the rear in one of the cubbies). Splice these two harnesses together (4 wires), and then plug the GX end into the harness down by the dead pedal/kick panel on the left side. You can see it below in the upper left of the pic - the white harness by the ebrake.

If you don't have the GX pigtail in your glovebox, then you'll need to source that as well.

heliwill10 · Jun 9, 2020

I believe this is true for both (I have the Redarc installed), but the unit comes with a pig tail that you need to splice into your factory pigtail (Do you have a picture of this?) that should have come with your GX if you have the tow package installed (it's usually in your glove box, or maybe in the rear in one of the cubbies). Splice these two harnesses together (4 wires) (What harnessnes? The ones at the hitch I assume?) , and then plug the GX end into the harness down by the dead pedal/kick panel on the left side. You can see it below in the upper left - the white harness by the ebrake.

heliwill10 · Jun 9, 2020

I might have found a picture online that is starting to makes sense...

(I created a picture tutorial below)

Ol Yeller · Jun 9, 2020

I’ve had good results with Tekonsha over the years.

heliwill10 · Jul 2, 2020

So I purchased the redarc controller and have the Lexus pigtail. Couple extra wires on the Lexus side.... I noticed the Toyota pigtail that redarc sells has a white wire with a eyelet attached to it.... Any suggestions or diagrams?

heliwill10 · Jul 2, 2020

Help - Wiring/Connectors under the dash

Have a new to me 200, trying to tidy up wiring and install brake controller. First off, what gauge wire is used for the switches? It looks smaller than 22 to me, but I am not sure. Second, if I wanted to get new terminal pins what is the connector style? How do I identify the proper style...

forum.ih8mud.com

I found that for reference if it helps someone in the future.

ClangClang · Jul 2, 2020

I've been investigating the same thing in preparation for a 2000 mile road trip this summer towing a ~5k-6k lbs trailer. I found this video on YT with full install instructions. Looks pretty comprehensive. This guy has a bunch of tutorials on projects he did on his 460.

r2m · Jul 4, 2020

ClangClang said:
I've been investigating the same thing in preparation for a 2000 mile road trip this summer towing a ~5k-6k lbs trailer. I found this video on YT with full install instructions. Looks pretty comprehensive. This guy has a bunch of tutorials on projects he did on his 460.

Would mind posting this also in the "Manuals" thread? GX 460 Manuals
It would be a lot easier for people to find when needed.
Thank you from all of us!!

ClangClang · Jul 4, 2020

r2m said:
Would mind posting this also in the "Manuals" thread? GX 460 Manuals
It would be a lot easier for people to find when needed.
Thank you from all of us!!

Posted!
