GX 460 Manuals (2 Viewers)

[r2m]

This post will hopefully be a permanent thread along with the "150 Series Pic Thread" thread as a easy to find resources for all types of GX 460 manuals. Suggested manuals/material to post being:

• Factory Service Manual (FSM)
• Owner Manuals (for each year)
• Wiring diagrams
• Anything that may relate to assembly, disassembly, repair, maintenance, operation, modification, etc.

If you're posting a year specific manual, please note the year/s being referenced.
Please post any links, PDF's or any other media related to maintenance, repair and operation of our vehicles!

Thanks in advance to all who contribute to this very important thread!



[r2m]

Here is the link to the GX 460 Factory Service Manual:

It is a down load PDF that links to a website for data. Don't worry about the "Whoops!" message, the link is good.
Note, it is very large and may take a couple of minutes to download.



[Acrad]

FAQ/SEARCH-Maintenance/MODS/Repairs/Diagnostics/Info/Service Campaigns/Recalls/OBD - ClubLexus - Lexus Forum Discussion

GX - 2nd Gen (2010-2023) - FAQ/SEARCH-Maintenance/MODS/Repairs/Diagnostics/Info/Service Campaigns/Recalls/OBD - Updated 1.27.2024 [Maintenance/Repairs] ABS Sensor Wires...

www.clublexus.com

FAQ: GX 460 OEM Part Numbers - ClubLexus - Lexus Forum Discussion

GX - 2nd Gen (2010-2023) - FAQ: GX 460 OEM Part Numbers - Updated 7.29.2023 ••••🛑 EDIT: Please send me a PM if you come across a part number that has been superseded Black Line parts are listed in this post. I am creating this thread so we can consolidate OEM part numbers that are amassed...

www.clublexus.com

FAQ: GX 460 Model Year Changes - ClubLexus - Lexus Forum Discussion

GX - 2nd Gen (2010-2023) - FAQ: GX 460 Model Year Changes - Last update: 5.22.2022 **If you see any errors or omissions please PM me or reply to thread. I will do my best to correct Here is list of known published and discovered model year changes for US Models. Let me know the ones I’ve missed...

www.clublexus.com

What to look for if buying a used GX 460 - ClubLexus - Lexus Forum Discussion

GX - 2nd Gen (2010-2023) - What to look for if buying a used GX 460 - I will refine this first post but features, option, potential problem areas, should I be concerned about this issue?, etc (I will think of others) :-) Check vehicle service history (VIN Needed)...

www.clublexus.com

GX 460 Torque Specs

All year owner's manuals and brochures can be obtained here

start [GX Offroad]

lexusgxor.com

Torsen CDL

https://atracom.blob.core.windows.net/webinars/import/toyota_4x4.pdf

Torsen Diff (VF4BM) - Technical overview / Diagnostics / Troubleshooting - ClubLexus - Lexus Forum Discussion

GX - 2nd Gen (2010-present) - Torsen Diff (VF4BM) - Technical overview / Diagnostics / Troubleshooting - The FSM would be best but here is a document on troubleshooting various Toyota 4WD/AWD systems. The center diff/transfer case unit in GX is the same one used in this document for the 4th Gen...

www.clublexus.com



[r2m]

Thanks for contributing to this thread!



[Acrad]

Repairs/Diagnostics/Info/Service Campaigns/Recalls/OBD	What to look for buying used 460	Torque Specifications
460 Model Year Changes	OEM Part Numbers	KDSS Info & Diagnostics



[r2m]

Jacket (Matt), many thanks for sticking this thread with the picture thread!
Much appreciated!



[r2m]

I know this is not a manual but still a valuable resource.
22Eyunu35VO posted a great link regarding questions for our GX460's: start [GX Offroad]
Thanks 22Eyunu35VO!



[r2m]

Here is a link to the Lexus website for Owner's Manuals, Warranty And Service Guides and Navigation and Multimedia Systems Manual's.
Just plug in your model and year.

Resources

There's no better time to get to know your Lexus. Explore videos, manuals, warranties, guides, vehicle specifications, FAQs and software updates here.

drivers.lexus.com



[zhs]

Hello everybody. I want to share useful information

Lexus GX460 Repair Manual



[zhs]

Lexus GX460 service repair manuals and wiring diagrams



[Armed in Utah]

this ?

https://drivers.lexus.com/t3Portal/document/om-s/OM60G24U/pdf/OM60G24U.pdf



[zhs]

this ?

https://drivers.lexus.com/t3Portal/document/om-s/OM60G24U/pdf/OM60G24U.pdf

This is for wife



[Acrad]

[Accessories]
2013 Accessory Application Chart
2017 Lexus SUV Accessories
2018 Lexus SUV Accessories
2019 Lexus SUV Accessories
Crossbar Installation
Exhaust Tip Installation
Glass Break Sensor Owner's Guide (2010-2019)
Remote Engine Starter Owner's Guide (2010-2015)
Remote Engine Starter Plus Owner's Guide (2010-2015)
Russian 2010-2013 Catalog


[Brochures-Canada]
2014
2015
2016
2017
2018
2019
2020


[Brochures-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2020 (Puerto Rico)
2021

[Brochure-World-outside of US/Canada]
2012 GX 460 Service/Maintenance Schedule Russia
2014 GX 460 Russia
2017 GX 400 China
2018 GX 460 Oman
2019 GX 460 Bolivia
2019 GX 460 Costa Rica
2019 GX 460 Philippines
2019 GX 460 Russia
2019 GX 460 UAE
2019 GX 460 Vietnam
2020 GX 460 Kazakhstan
2020 GX 460 Russia
2020 GX 460 Vietnam

[Multimedia Owner's Guides-USA]
2014
2015
2016
2017
2018
2019
2020
2021

[Navigation/Owner's Guides-Canada]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Navigation/Owner's Guides-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Owner's Manuals-Canada]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Owner's Manuals-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Personalized Settings ]
2010-2013
2014-2019

[Product Info-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020

[Quick Guides-Canada]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Quick Guides-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Specification Sheets-Canda]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021

[Specification Sheets-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020

[Warranty/Service Guides-Canada]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020

[Warranty/Service Guides-USA]
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020



[r2m]

Outstanding job 22Eyunu35VO!!
This is AWESOME!



[Acrad]

NHTSA | National Highway Traffic Safety Administration - free access to TSBs - Manufacturer Communications

GX 460

2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020



[Acrad]

Torque specs:

3 x Strut top plate to chassis frame: 64 Nm / 46 ft-lb

Bracket, Front Suspension Member: 25 ft-lbs (pic)

Caliper slider bolts: 65 ft-lb (for replacing brake pads)

Differential Front Fill: 29 ft-lb

Differential Front Drain: 48 ft-lb

Differential Rear Fill: 36 ft-lb

Differential Rear Drain: 36 ft-lb

Oil Drain plug: 30 ft-lb

Oil Filter cap metal: 18.43-22.13 ft-lb

Oil Filter cap plastic: 18 ft-lb

Oil filter end plug (metal oil cap mod): 9-10 ft-lb

Rear shock absorber bottom bolt: 98 Nm / 72 ft-lb

Skid plate for oil filter access: 21 ft-lb

Spark Plugs: 15 ft-lbs

Strut lower bolt: 95 Nm / 70 ft-lb

Tie rod end ball joint (castle nut): 91 Nm / 67 ft-lb

Track rod ends (to frame chassis): 110 Nm / 81 ft-lb

Transfer Case Drain: 27 ft-lb

Transfer Case Fill: 27 ft-lb

Transmission Check Valve: 15 ft-lb (many have sided closer to 10 ft-lb)

Transmission Drain Plug: 15 ft-lb (many have sided closer to 10 ft-lb)

Transmission Fill Plug: 29 ft-lb

UCA to spindle (castle nut): 110 Nm / 82 ft-lb

Wheel lugs: 83 ft-lb



[r2m]

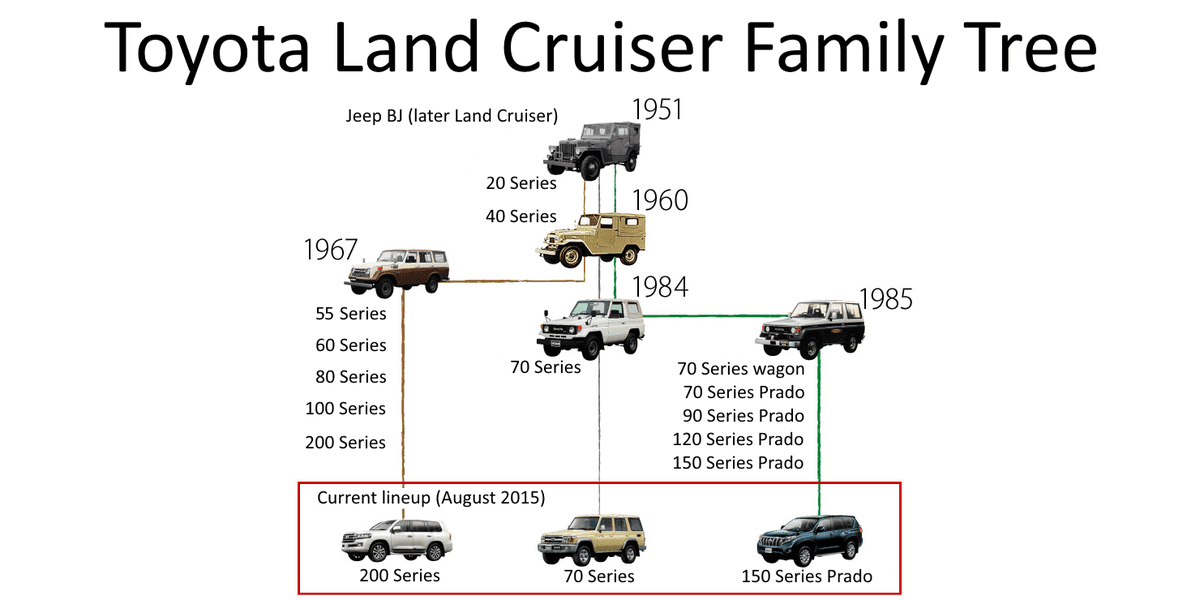

History of the Land Cruiser poster, courtesy of jakemccurdy and his video: Idiot YouTuber Compares GX 460 to Land Cruiser Prado Post #1



[DRANGED]

This
thread
is
awesome!


Is there a similar thread for 470?



[r2m]

This may be reaching a bit, but this site has some great info on:

• Brochures
• TV ads
• Paint
• Specs
• Art

Check it out here: ImportArchive / Lexus GX Brochure 2010‑ Free Preview Gallery 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020
And here: Lexus GX Touchup Paint Codes, Image Galleries, Brochure and TV Commercial Archives



[r2m]

A couple more history charts:
