- Vehicle Model
- 70 Series
- Location
- Bellingham, Washington United States

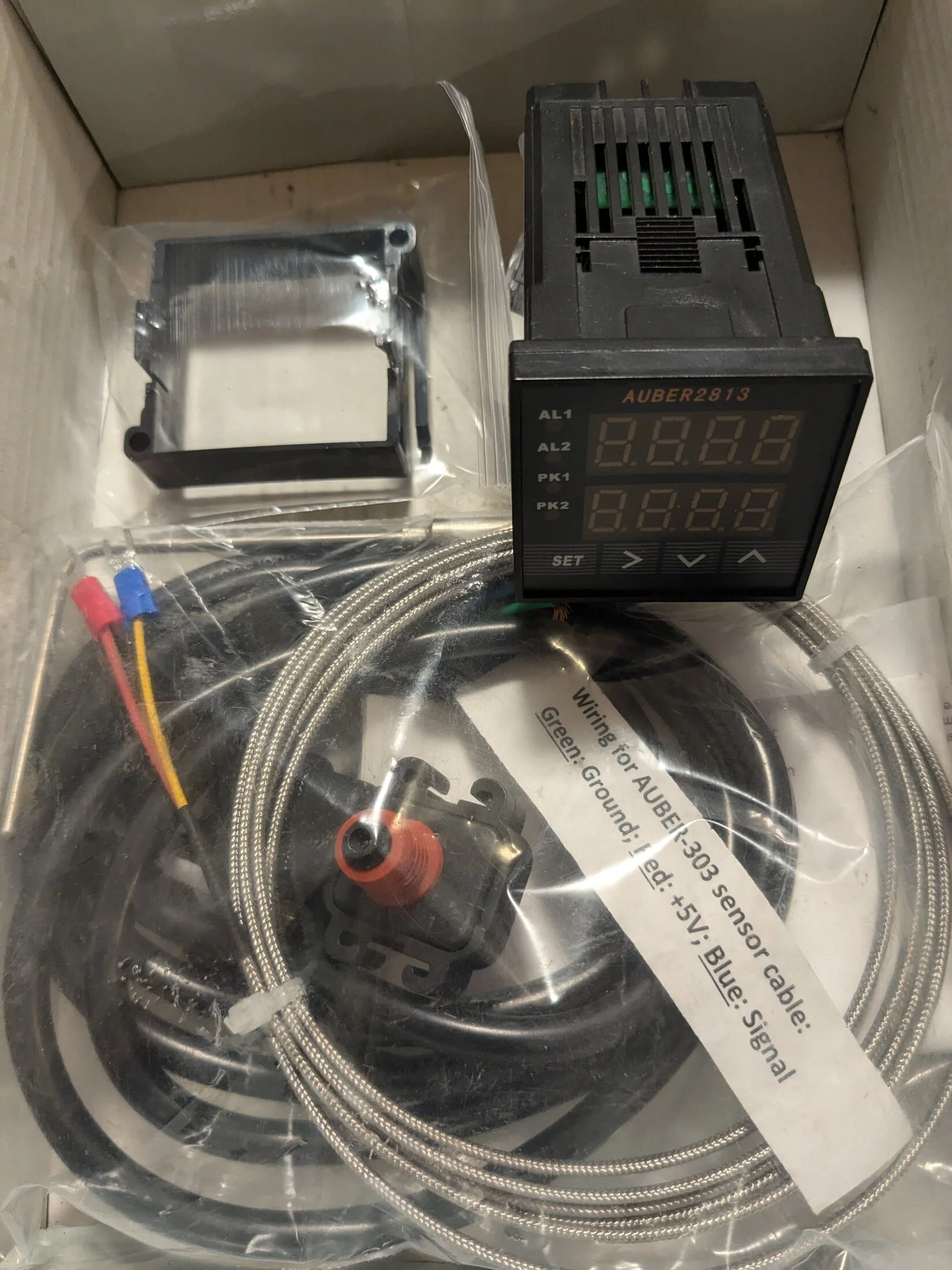

Auber Boost & EGT Gauge

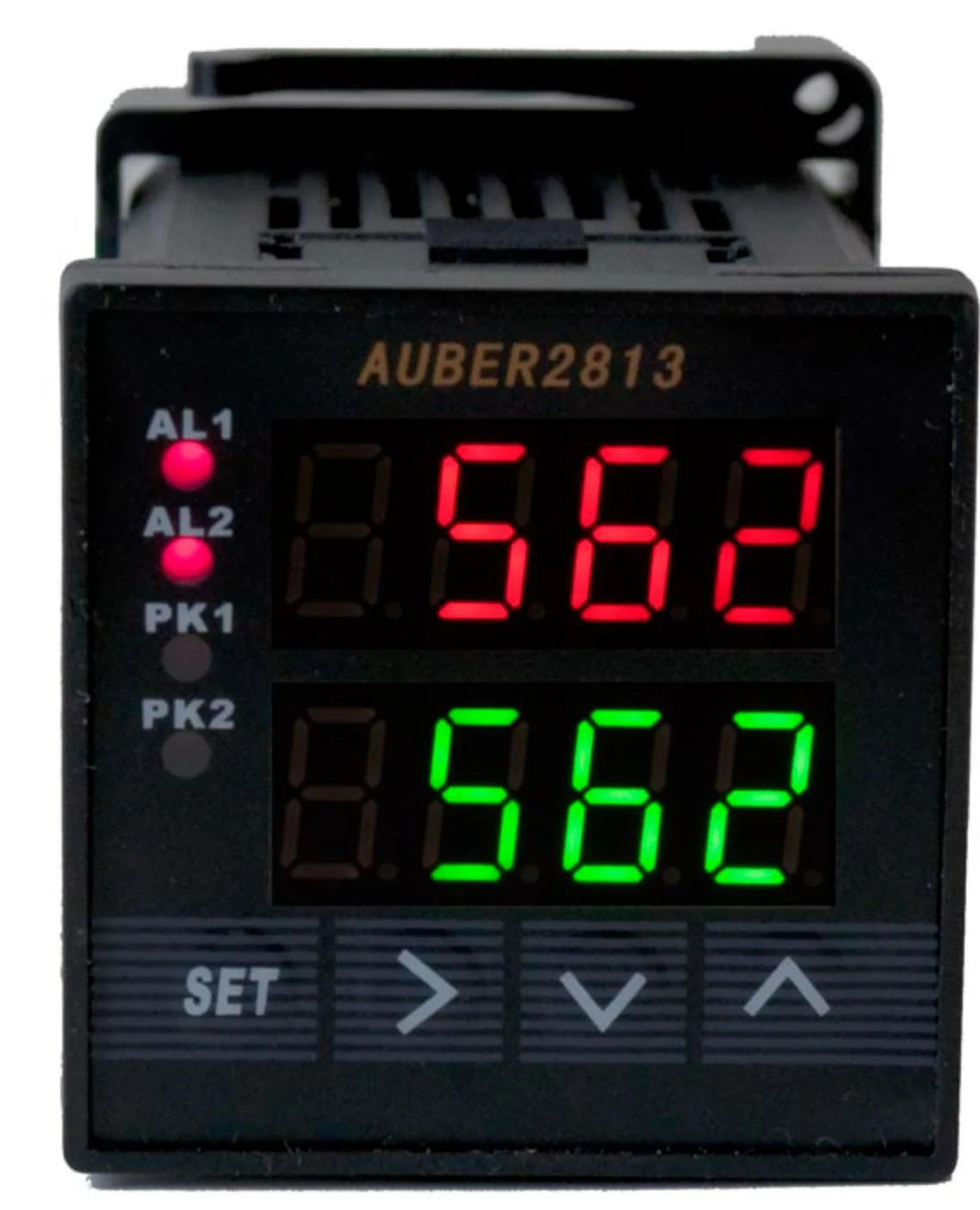

Digital Dual Channel Gauge Set with EGT Probe & Boost Sensor
Green LED readouts (unlike the last photo)
1/8" NPT EGT Probe
3 Bar Boost Sensor
New, never installed.
Two programmable alarms will turn on the LED in the front panel to get the driver's attention if the temperature/pressure is above the setting point. It will also close a relay output port that can be used to turn on a buzzer, shut off the fuel, or turn on a cooling fan. Each channel contains one relay. The meter stores the peak temperature/pressure with time stamps that can be checked later. It can also operate in the peak holding mode so that only the maximum value is displayed. The brightness of the LED display can be synchronized with headlights. When the headlight is turned on at night, the display will be dimmed by the illumination signal. It can also be dimmed directly on the key pad. Developed based on industrial grade instruments, this four digits gauge offers up to 10 times the resolution and accuracy of most 3 digits gauges on the market. For thermocouple sensor, this gauge has a cold junction compensation circuit to improve the accuracy at low temperature and reduces the temperature drift when a thermocouple sensor is used.
The gauge is 48 x 48 mm, slight smaller than 52mm round gauge. It is 85mm in depth.
Digital Dual Channel Gauge Set with EGT Probe & Boost Sensor
Green LED readouts (unlike the last photo)
1/8" NPT EGT Probe
3 Bar Boost Sensor
New, never installed.
Two programmable alarms will turn on the LED in the front panel to get the driver's attention if the temperature/pressure is above the setting point. It will also close a relay output port that can be used to turn on a buzzer, shut off the fuel, or turn on a cooling fan. Each channel contains one relay. The meter stores the peak temperature/pressure with time stamps that can be checked later. It can also operate in the peak holding mode so that only the maximum value is displayed. The brightness of the LED display can be synchronized with headlights. When the headlight is turned on at night, the display will be dimmed by the illumination signal. It can also be dimmed directly on the key pad. Developed based on industrial grade instruments, this four digits gauge offers up to 10 times the resolution and accuracy of most 3 digits gauges on the market. For thermocouple sensor, this gauge has a cold junction compensation circuit to improve the accuracy at low temperature and reduces the temperature drift when a thermocouple sensor is used.
The gauge is 48 x 48 mm, slight smaller than 52mm round gauge. It is 85mm in depth.
