Builds Atwalz 2013 TLC 200 Build Thread. (8 Viewers)

[MScruiser]

Looks great, @Atwalz



[Sinister]

Wow nice work.



[Atwalz]

Looks good. I'd be interested in knowing the final material cost of the sliders.

Final cost of material (steel, fasteners, and paint) excluding tools was ~$600.



[MScruiser]

Thanks for that. It goes to show you (me) how really expensive sliders are to produce!



[NLScooby]

Don't forget the labor!



[MScruiser]

True. Man, those White Knuckles really are a hell of a steal.



[codyaustin5]

True. Man, those White Knuckles really are a hell of a steal.

They are! Can't wait to get mine installed!



[brooksy]

How come it cost you so much. I use race spec DOM tubing, brushed stainless & 1/4"- 5/16" plate & I would barely reach $400. I then sell them for approx $900. Price of materials in USA can't be that expensive is it ?




Brooksy



[NLScooby]

I'm guessing an individual purchasing a small amount of steel doesn't get wholesale pricing nor a volume discount. U.S. steel has also increased in cost as many of the plants moved to China.

Nice work on those sliders as well Brooksy!



[Atwalz]

^ what he said.



[Atwalz]

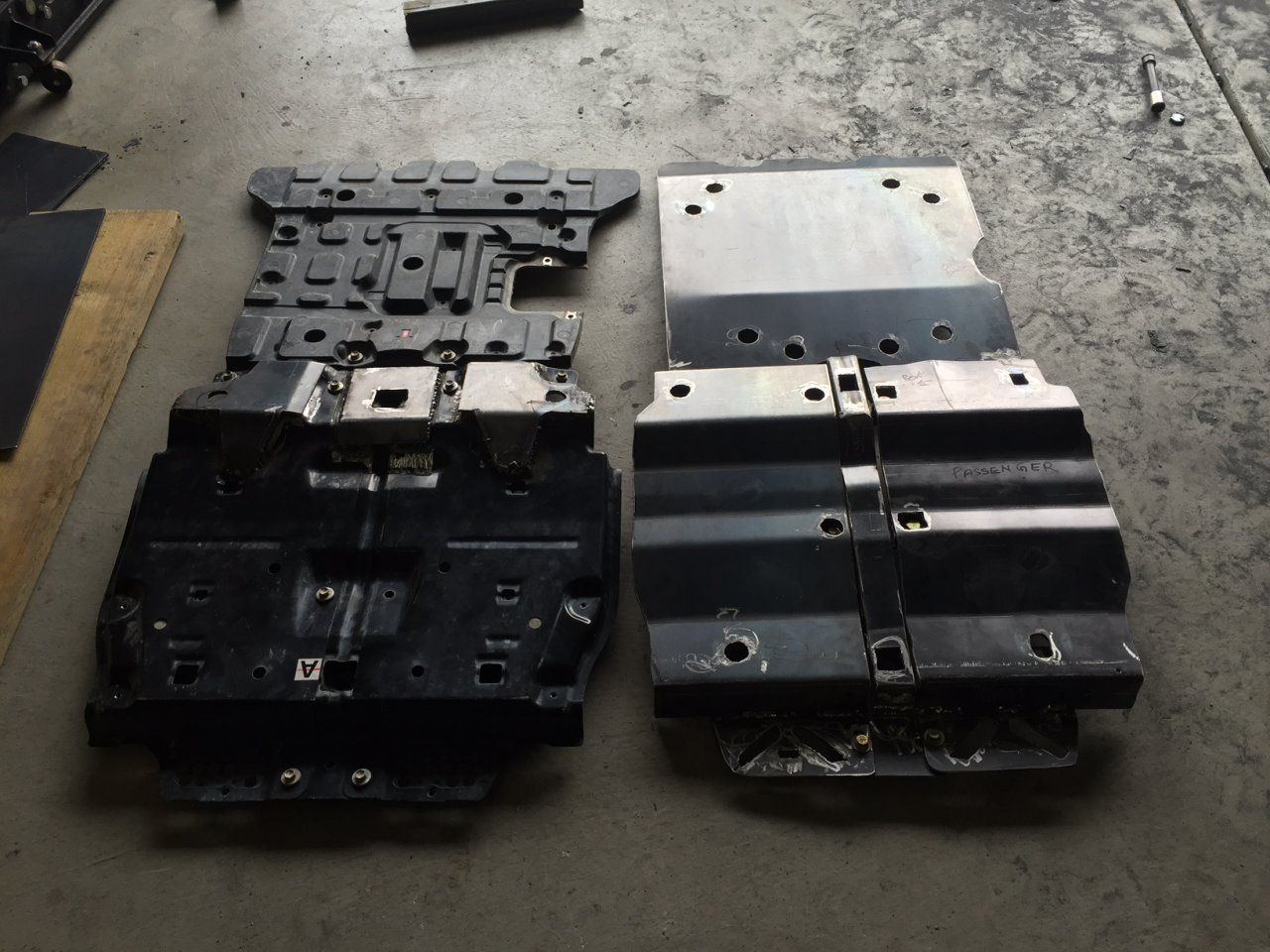

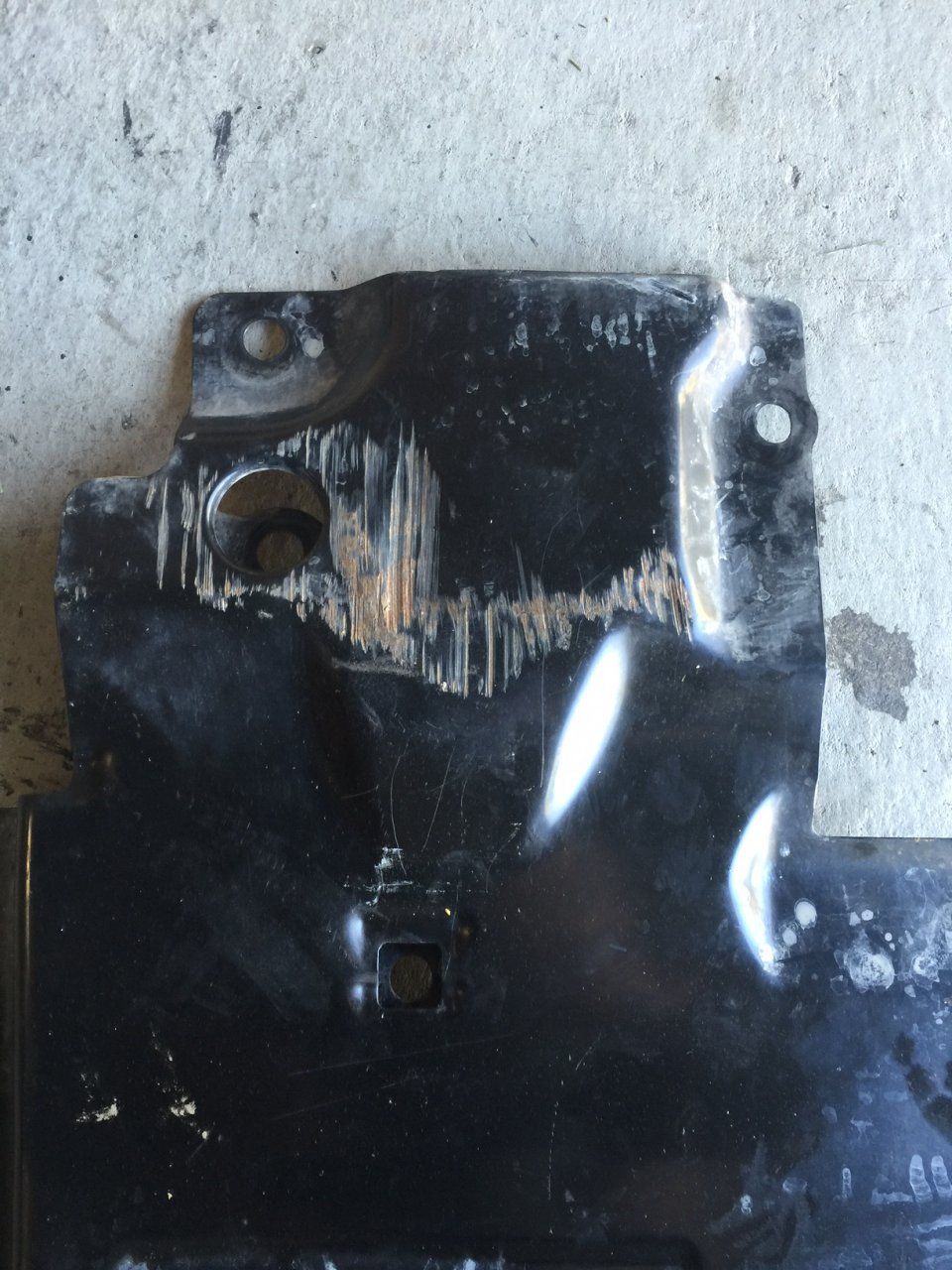

I scrapped my skid plates on Black Bear Pass last year. So hence this project. After 3 days of hard work, I finished building two skid plates to protect engine's belly pan. They are similar style as OE but 3/16" mild steel. All of the bolts are recessed. front skid plate and center cross member linking radiator support bracket and front cross member for engine/LCA. Fasteners are mix of SAE3/8" grade 8 or 8mm metric grade 10.9. I have yet to paint them. I will use spray can with semi gloss finish.



[Canyonero]

Very cool Atwalz. Definitely a true "build" thread, since you're the one doing the building. Looks solid!



[jmw101]

Nice work Atwalz ! Love seeing the fruits of hard work and determination.



[MScruiser]

Yeah, very nice. I just bolt in parts. You are actually fabbing stuff. Well done!



[Atwalz]

Yeah, very nice. I just bolt in parts. You are actually fabbing stuff. Well done!

Thanks. This time material cost of skid plates were free as I had the left over steel from past project.



[Atwalz]

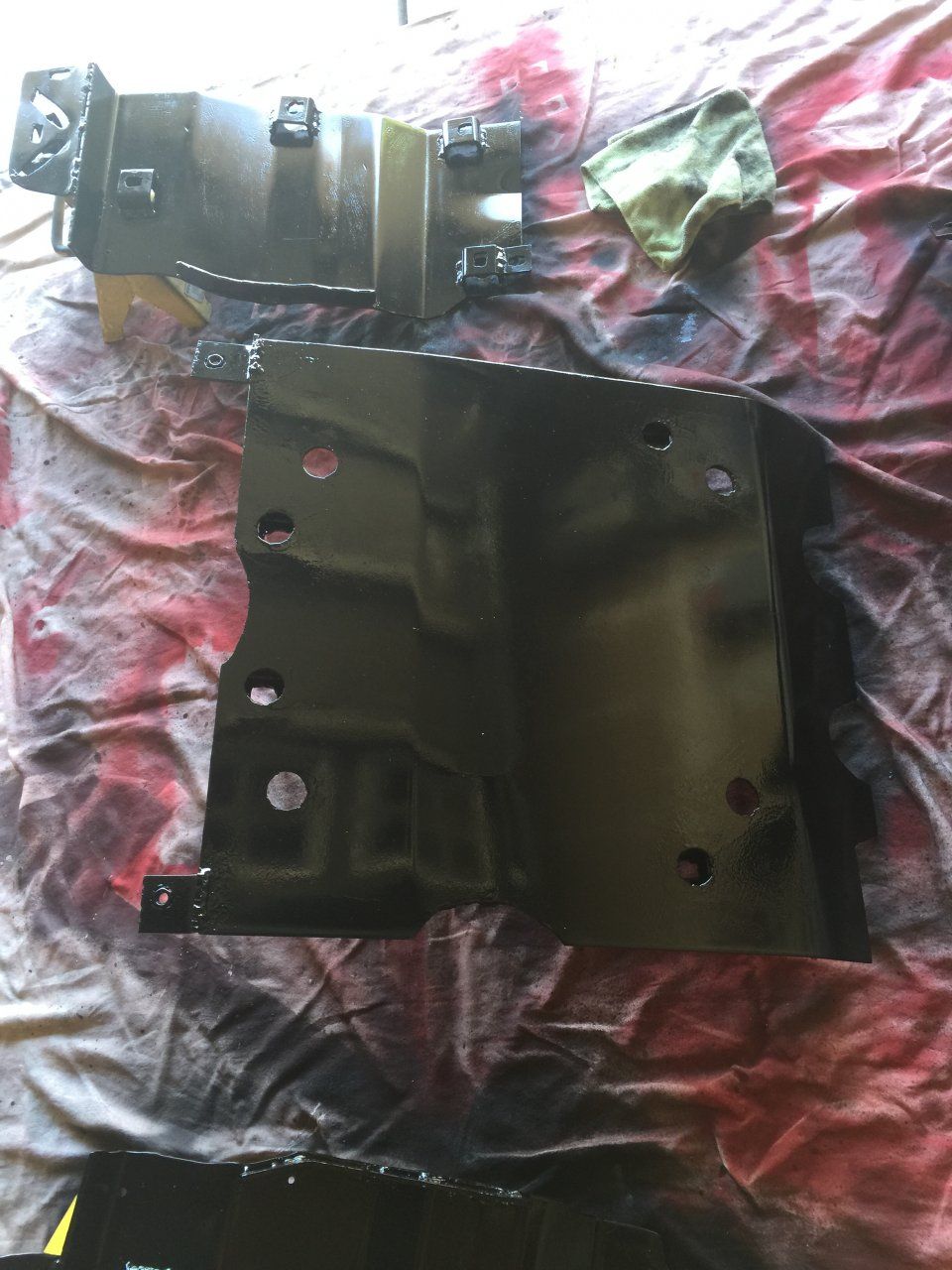

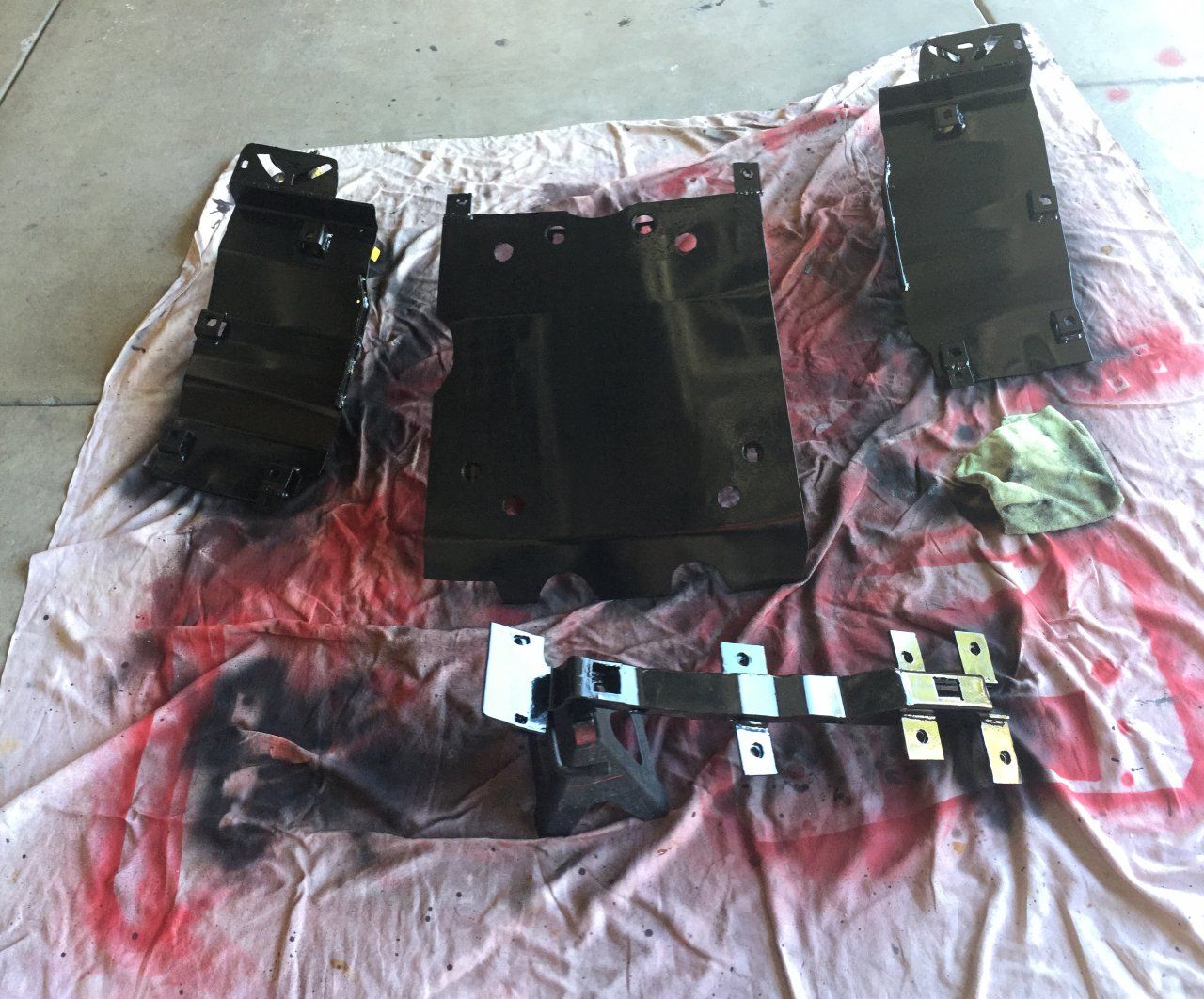

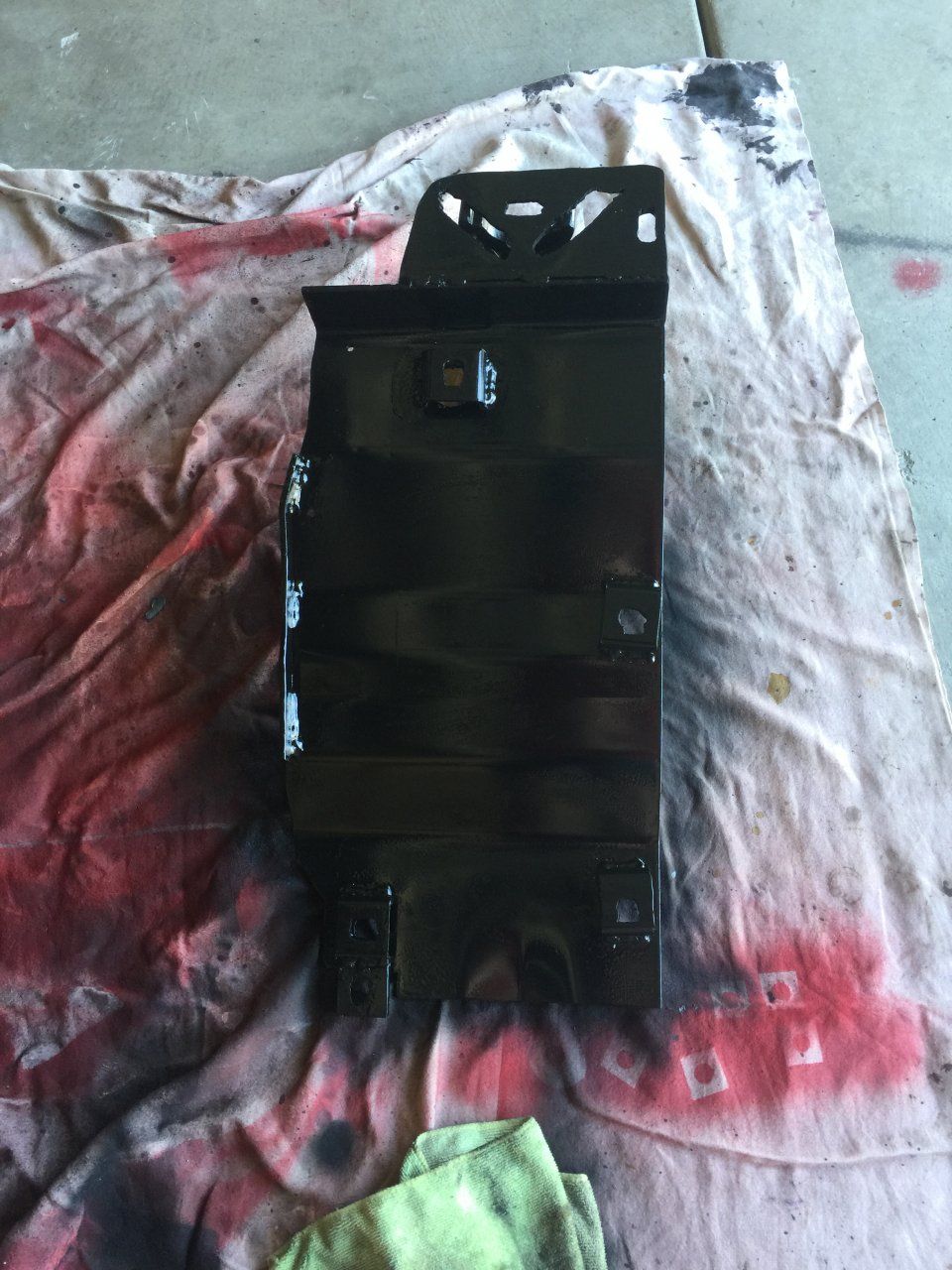

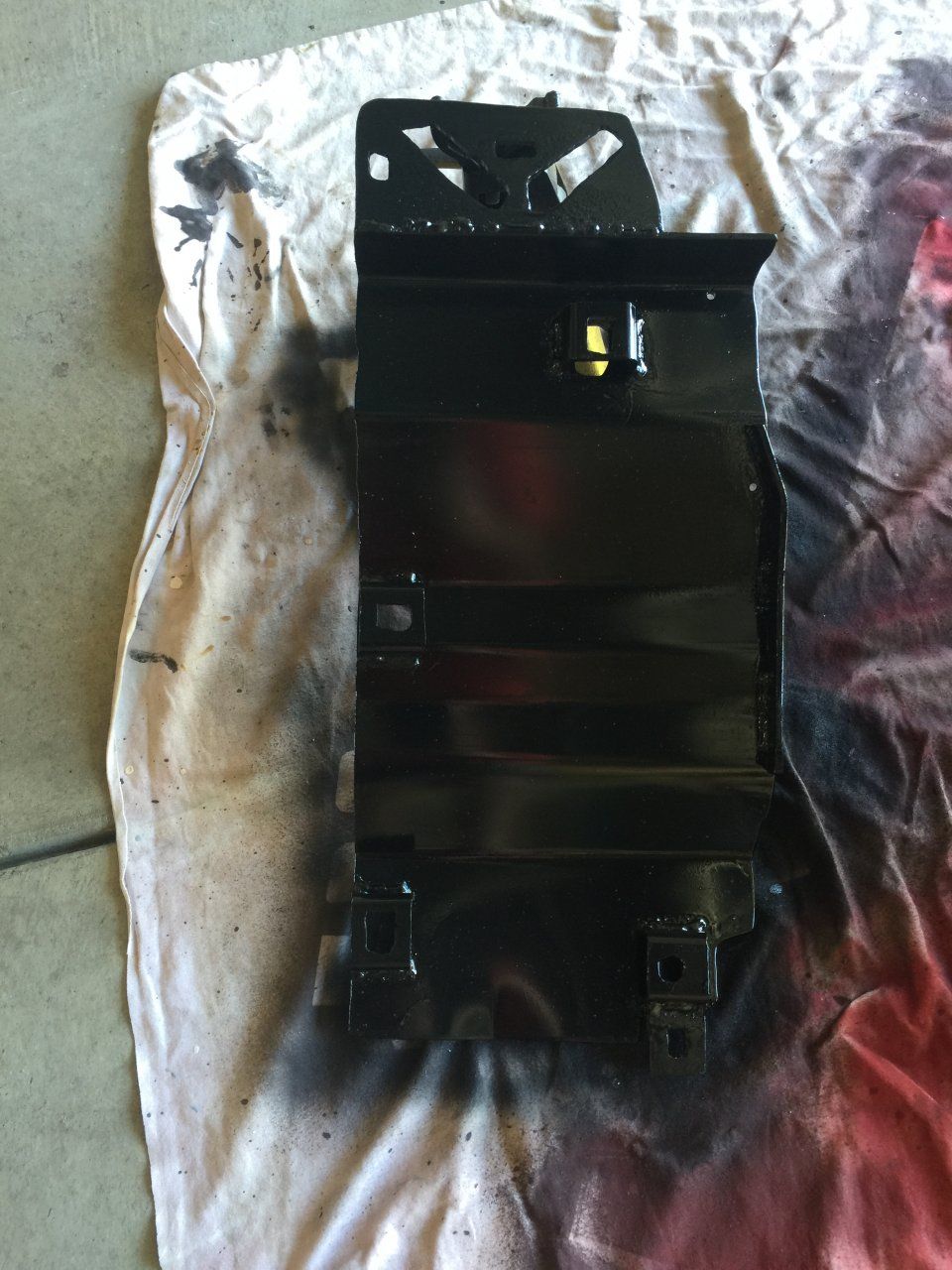

Sprayed them with semi glass black.



[Canyonero]

Very cool!



[Atwalz]

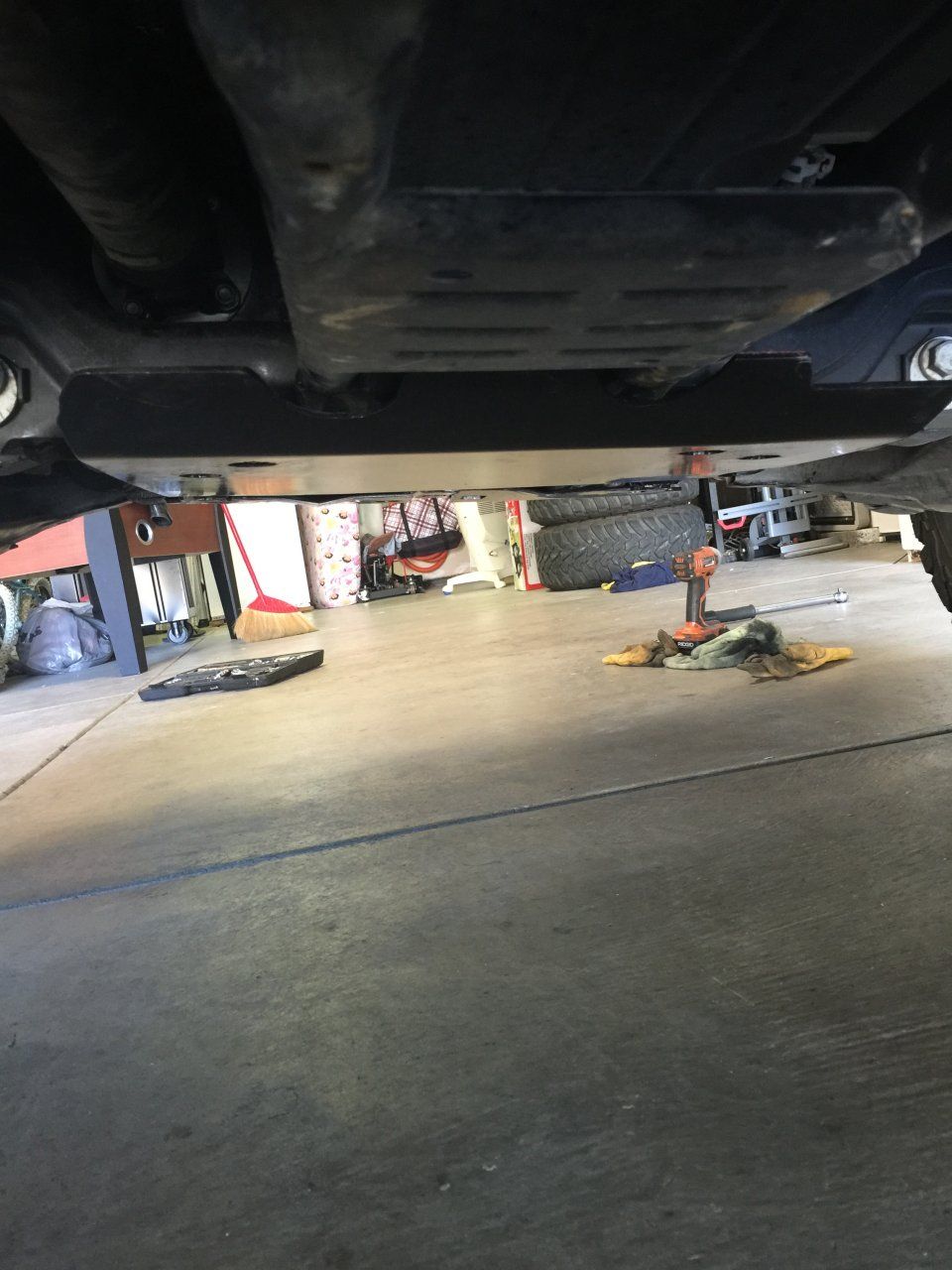

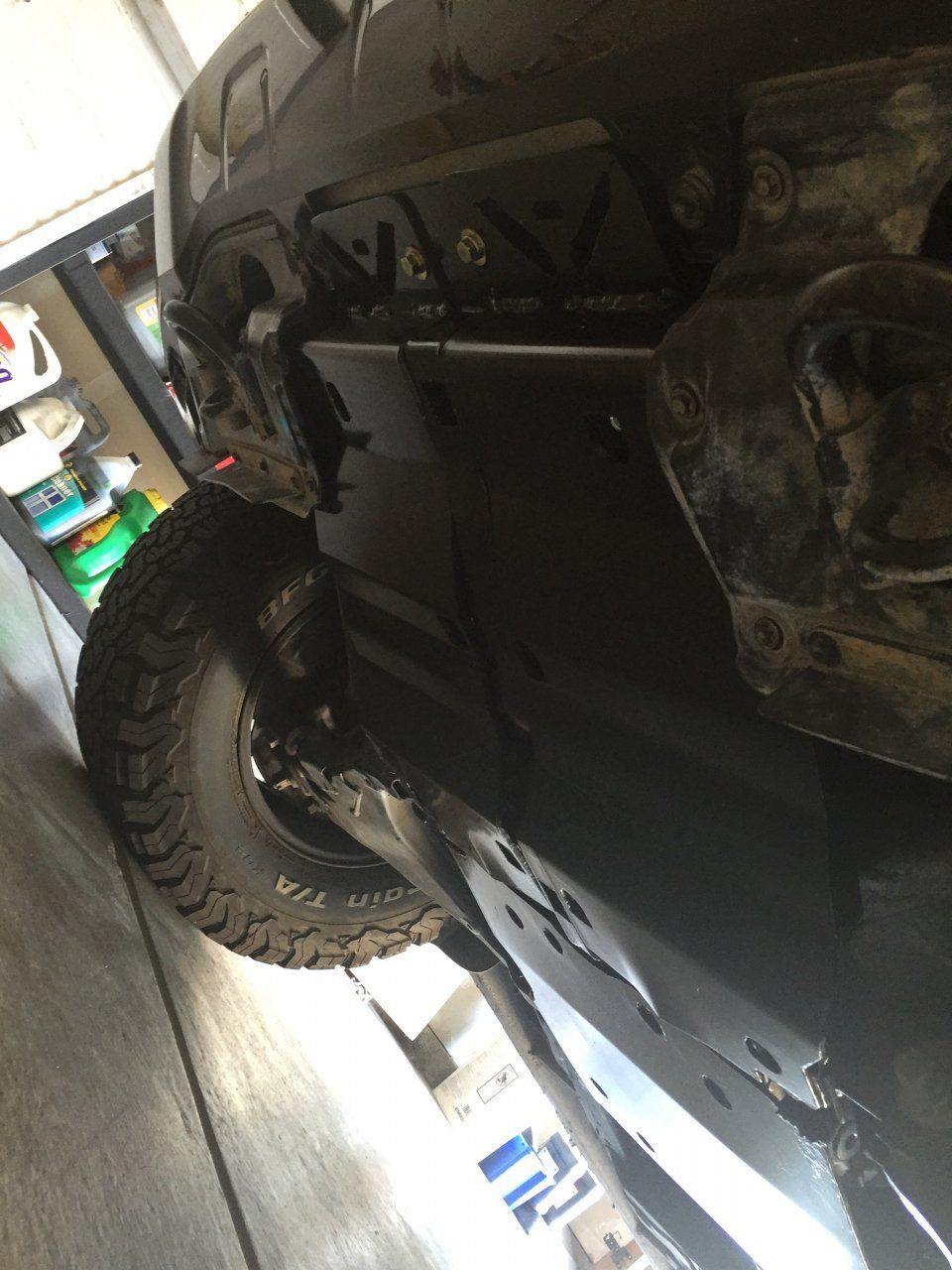

Installed and ready for summer trip.



[Atwalz]

Now doing my research on building adjustable rear lower control arms. I will be making my shopping list once I figure out the tubing size, heim joints size and bushing size.



[Willy beamin]

nice work man
