Build Airbagged 80 series on 42 inches. Low cost Russian build thread

[allan man]

Hi, thanks for sharing this build its awesome!Newbie here on air bags...What controls the rebound on your suspension?



[Obrokoff]

Hi, thanks for sharing this build its awesome!Newbie here on air bags...What controls the rebound on your suspension?

Thanks
Now only 4 rocker switches and air gauges. Later I have to buy accuair elevel or same height controller



[Obrokoff]

Really impressive truck there. You have some great engineering and fabrication skills too! Thanks for sharing!

Thanks



[Obrokoff]

Those tires are sick, it looks like the wheels you have for the goodyears are beadlocks? they have an inner piece of pipe (PVC) between them that keep the tires to the wheels?

Great pics BTW

It’s JDM Lodio Drive rims. One rim complete from two inners and center.



[Obrokoff]

What a wild place that is. Beautiful country there.

Thanks.



[Obrokoff]

I love how out of the box this build is. Thanks for the write up, always been curious when in the past you have posted little tid bits and pics.

Thanks



[Obrokoff]

Transmission oil cooler. Chinese “Euro” type 30 row oil cooler, 9 inch fan, custom made radiator shroud 0.8mm thickness.



[Obrokoff]

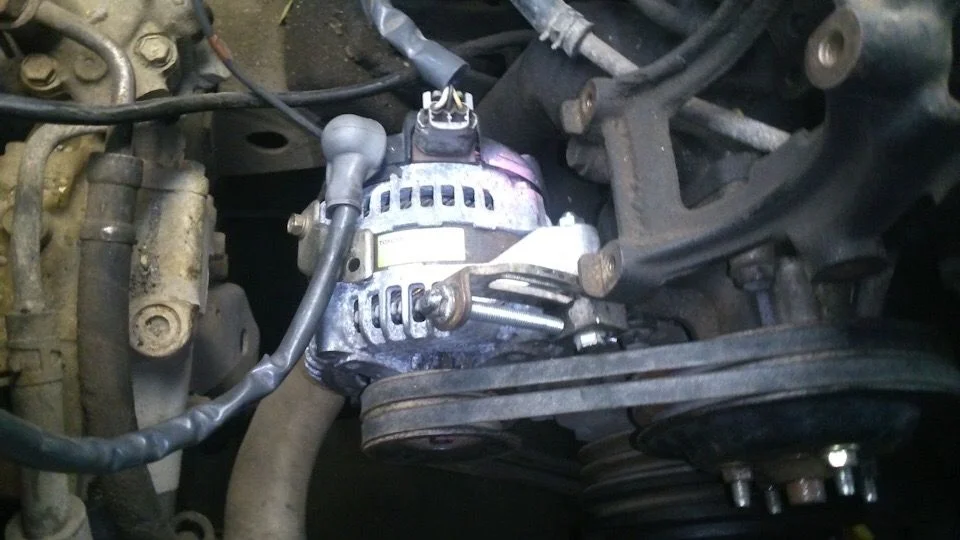

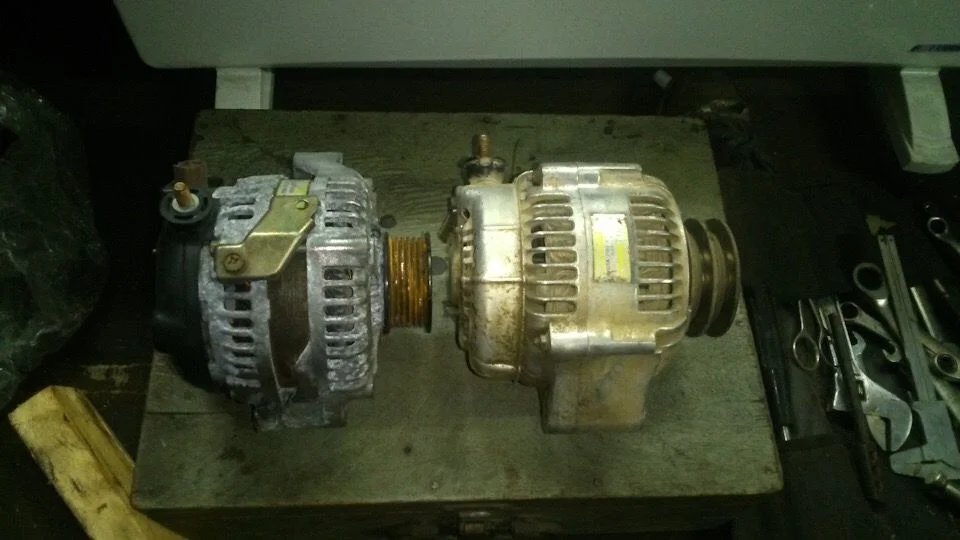

I replace the alternator. Stock 80A, new 130A. Alternator from jdm toyota mark-2 jzx110 1jz-fse engine. P/n 27060-46320. Fits without any mods except pulley change from stock. 3Pin plug same as on stock.

Left 130A

Power cable changed to 25mm2, it’s about 3ga



[Obrokoff]

Let’s continue

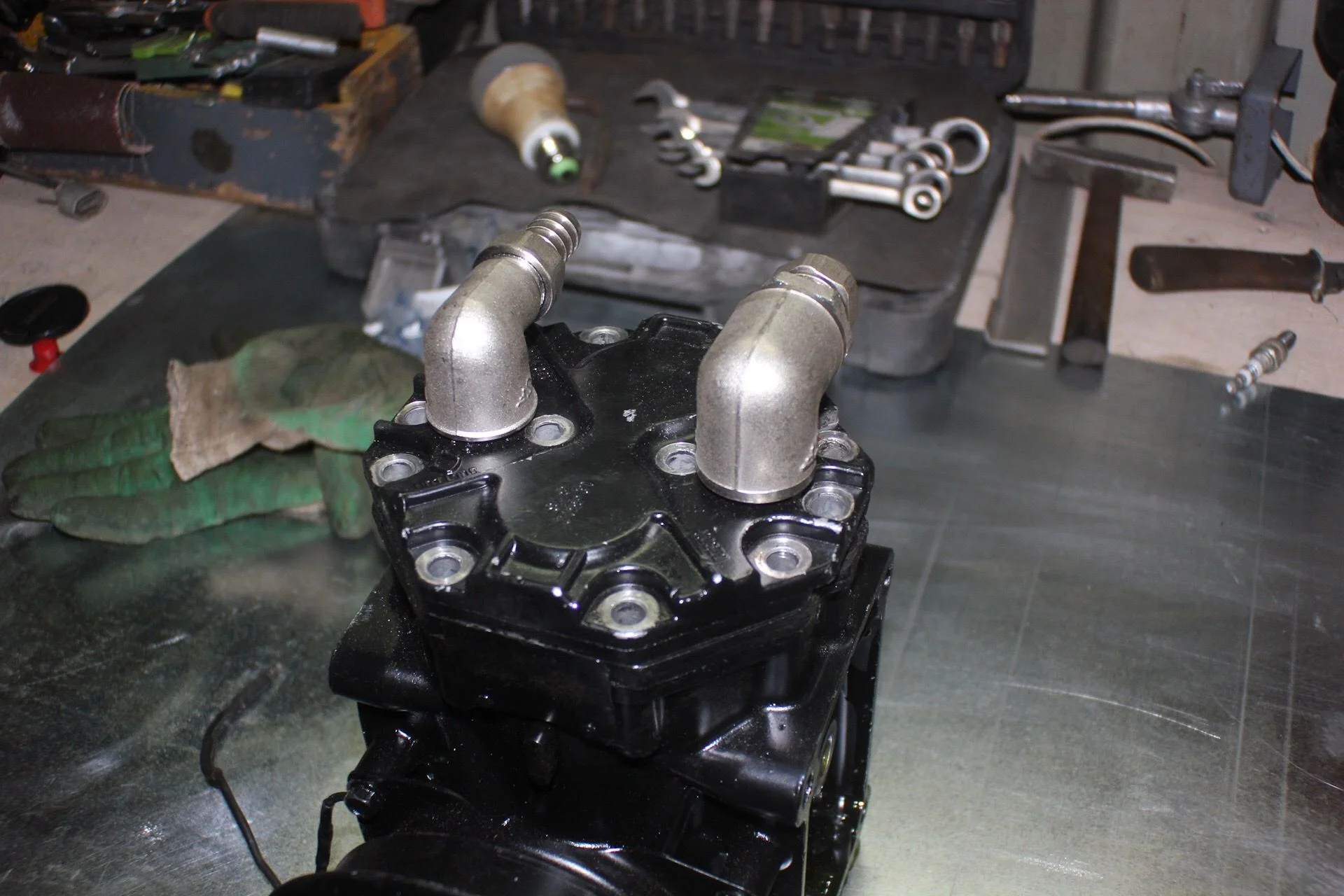

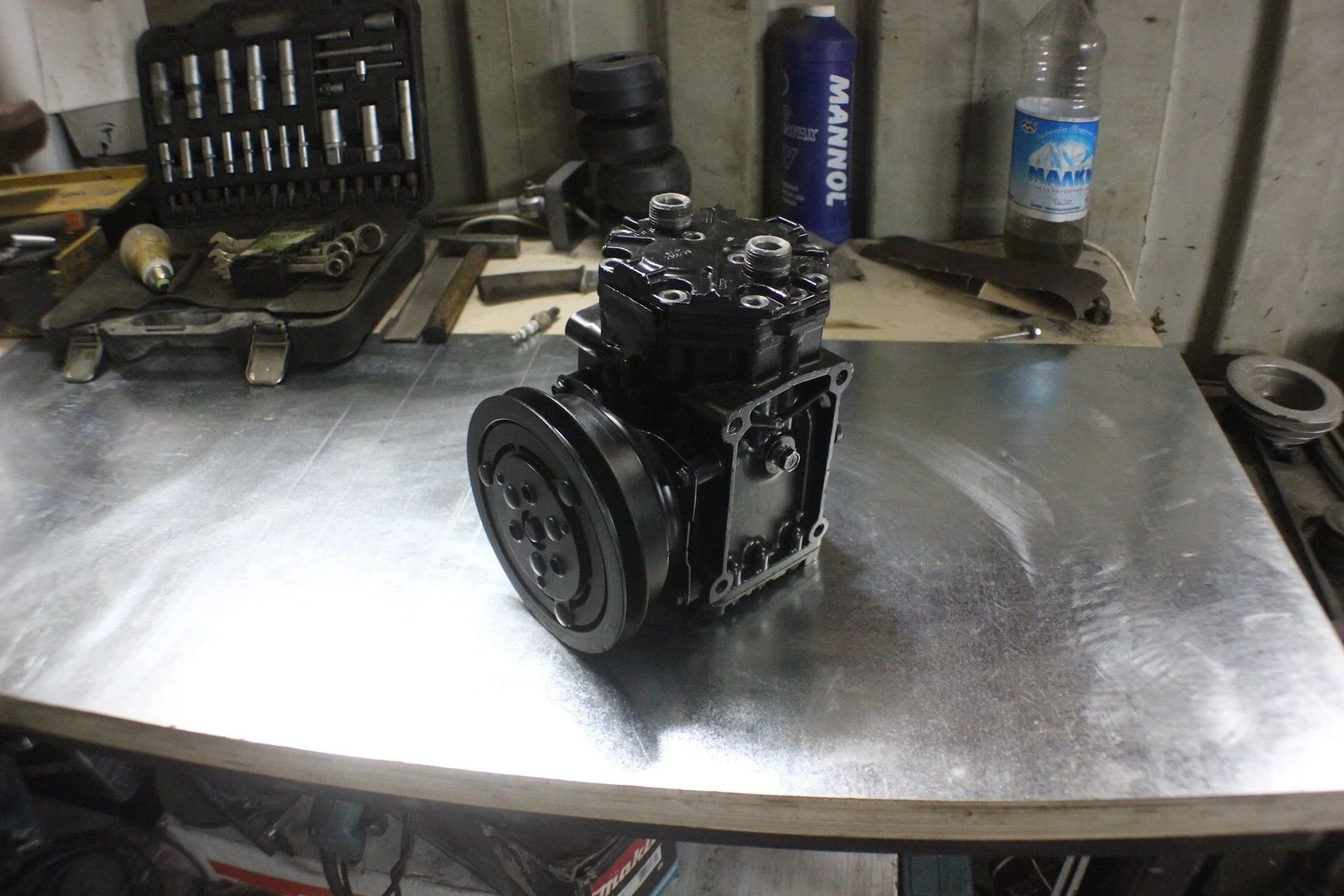

York 210 compressor OBA.
Compressor mount made from 5mm thickness metal plate. I haven’t 3/8 bolts and recut all threads to m10*1,5



[Obrokoff]

Compressor mount with stock a/c compressor



[Obrokoff]

Sleeping platform. It’s easy to build and comfortable platform.
Made from square tube 20*20*2mm and 25*25*2mm. 10mm plywood, 10mm foam rubber and leather substitute. Back panel lift up, gas lift holds in up. Size is 1,35*2.0 meters



[Obrokoff]

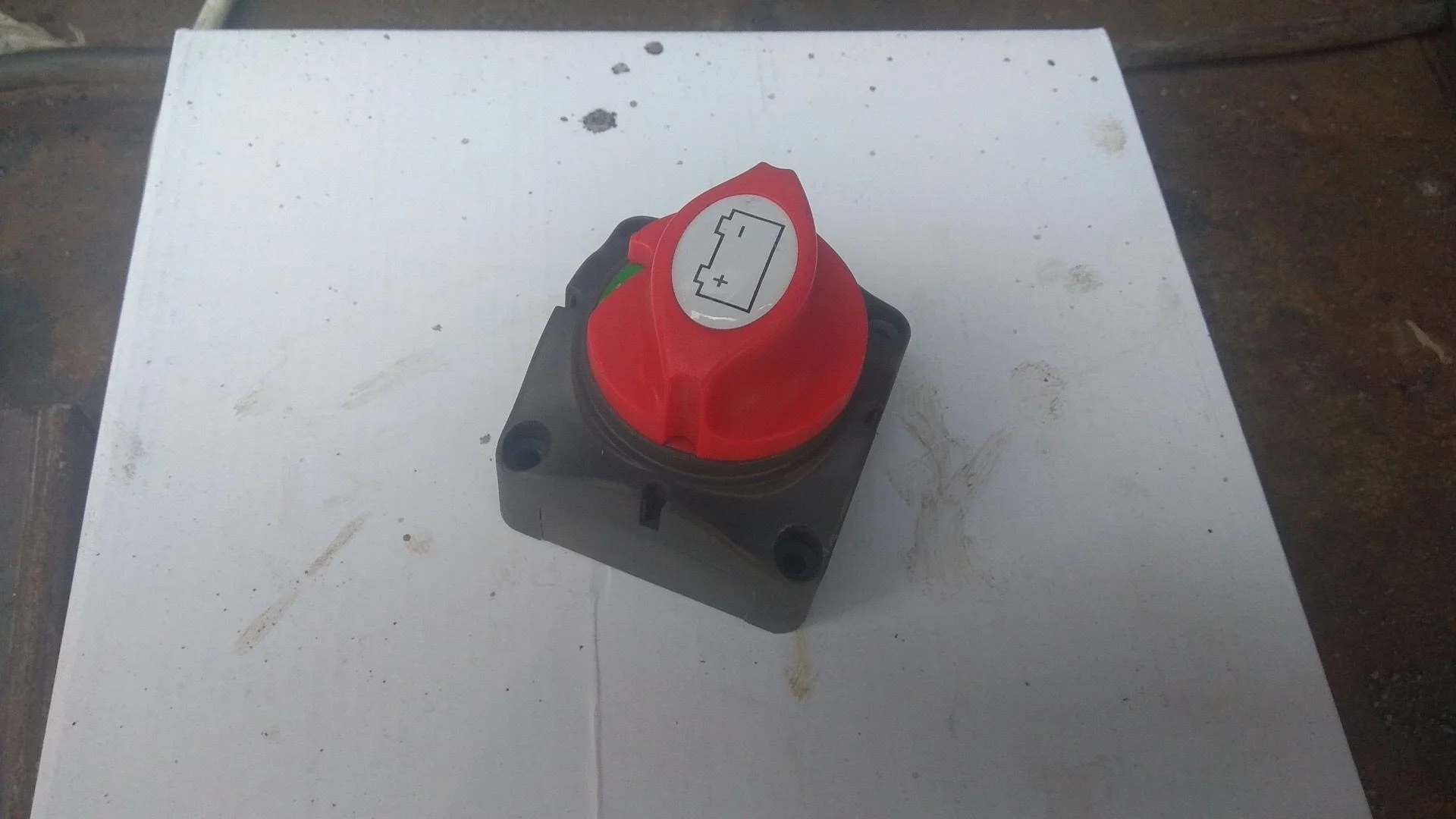

“Marine” battery kill switch. Mount on a battery tray. It used on a long parking for a battery saving



[Obrokoff]

Auxiliary relay and fuse box. Connected to a kill switch, MTA 150A fuse in holder. Five different MTA modules in one box.

From left. 2 holders for 4 mini fuses and 2 big 40A relays. 2 holders for 6 mini 30A relays, holder for 20 mini fuses.

Mount in engine bay near stock fuse box. All electric in one place.

Everything compare in one nice box



[GW Nugget]

This is becoming one of my top favorite builds...



[Obrokoff]

This is becoming one of my top favorite builds...

Thanks.



[Obrokoff]

Gauges.
On my car installed Chinese replica DEFI advance ZD. Good stuff. 2 pressure sensors, 2 temp sensors, egt and boost.

Stock Trans temp sensor replaced to Defi sensor. I use M16*1,5 to 1/8npt adaptor.

Water temp sensor plug in upper radiator pipe.

Pre turbo EGT sensor

Oil pressure sensor.



[Obrokoff]

Next step is music. I like quality sound. I like quality and loud music.
First is a 3-way front.
I Buy 8” mid bass, 3,5” mid range and 2” tweeter

Cut some rings for podiums



[Obrokoff]

Podium are directed to the center between the seats.

Some glue and Lycra



[Obrokoff]

Fiberglass, polyester resin



[Obrokoff]

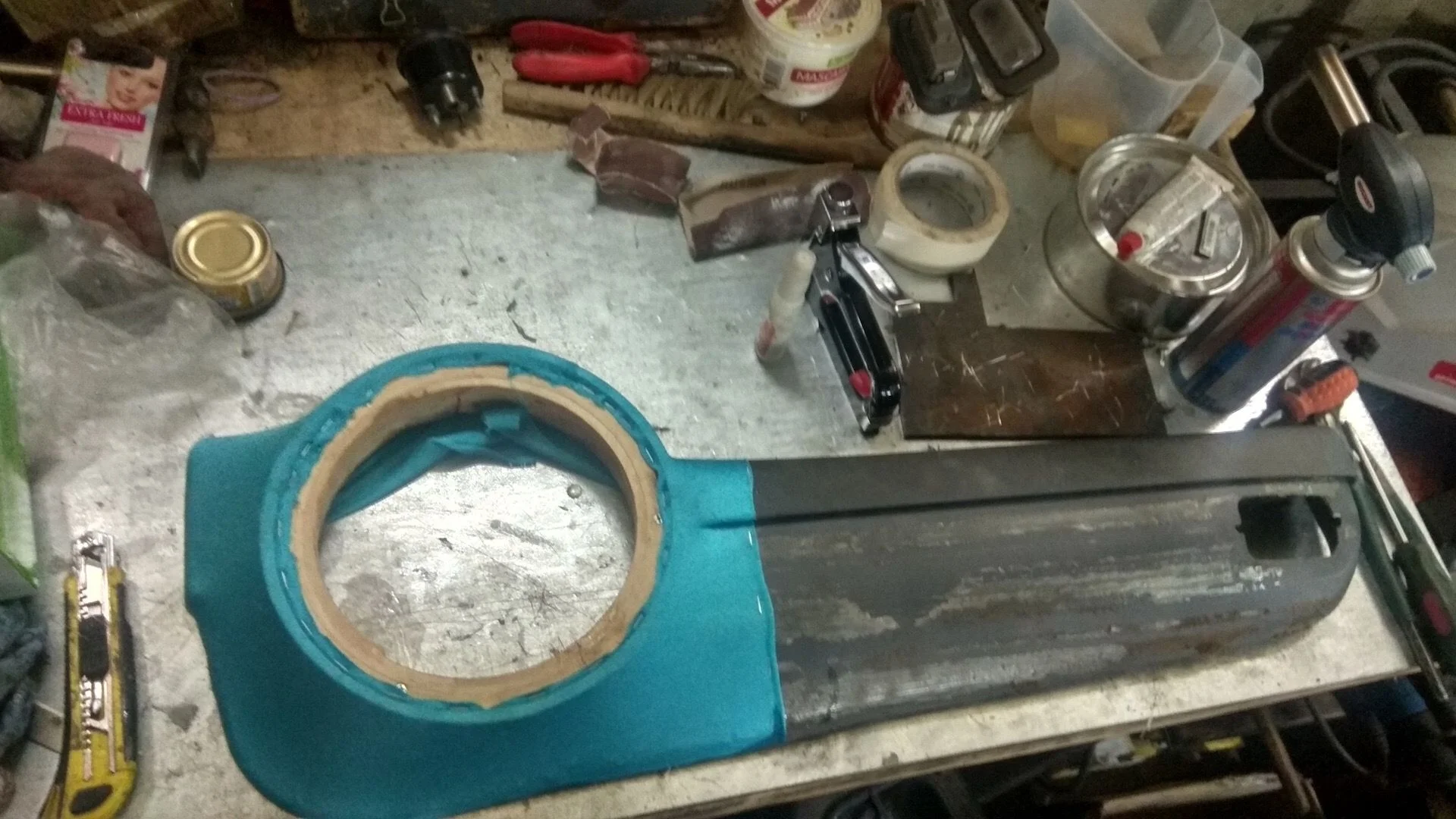

Mid bass podium.
Plywood rings, Lycra, glue, fiberglass.
Easy way to install big speakers
