Builds Airbagged 80 series on 42 inches. Low cost Russian build thread (1 Viewer)

Joined
Sep 20, 2013
Messages
355
Location
Kamchatka, Russia
Hi2all
It’s mine airbagged jdm hdj81 Land Cruiser ‘93

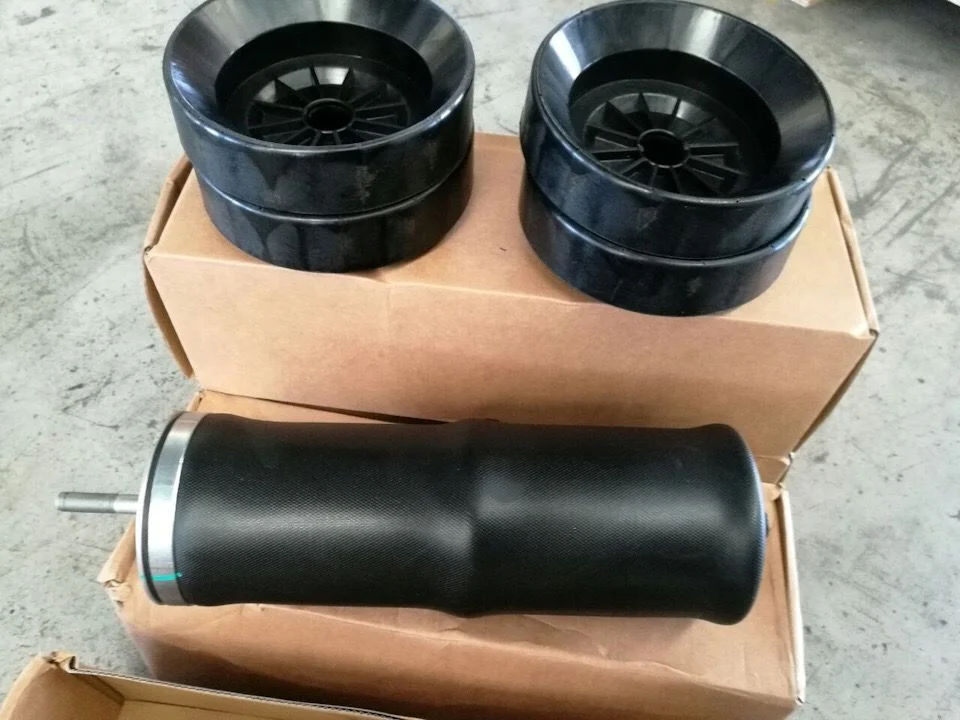

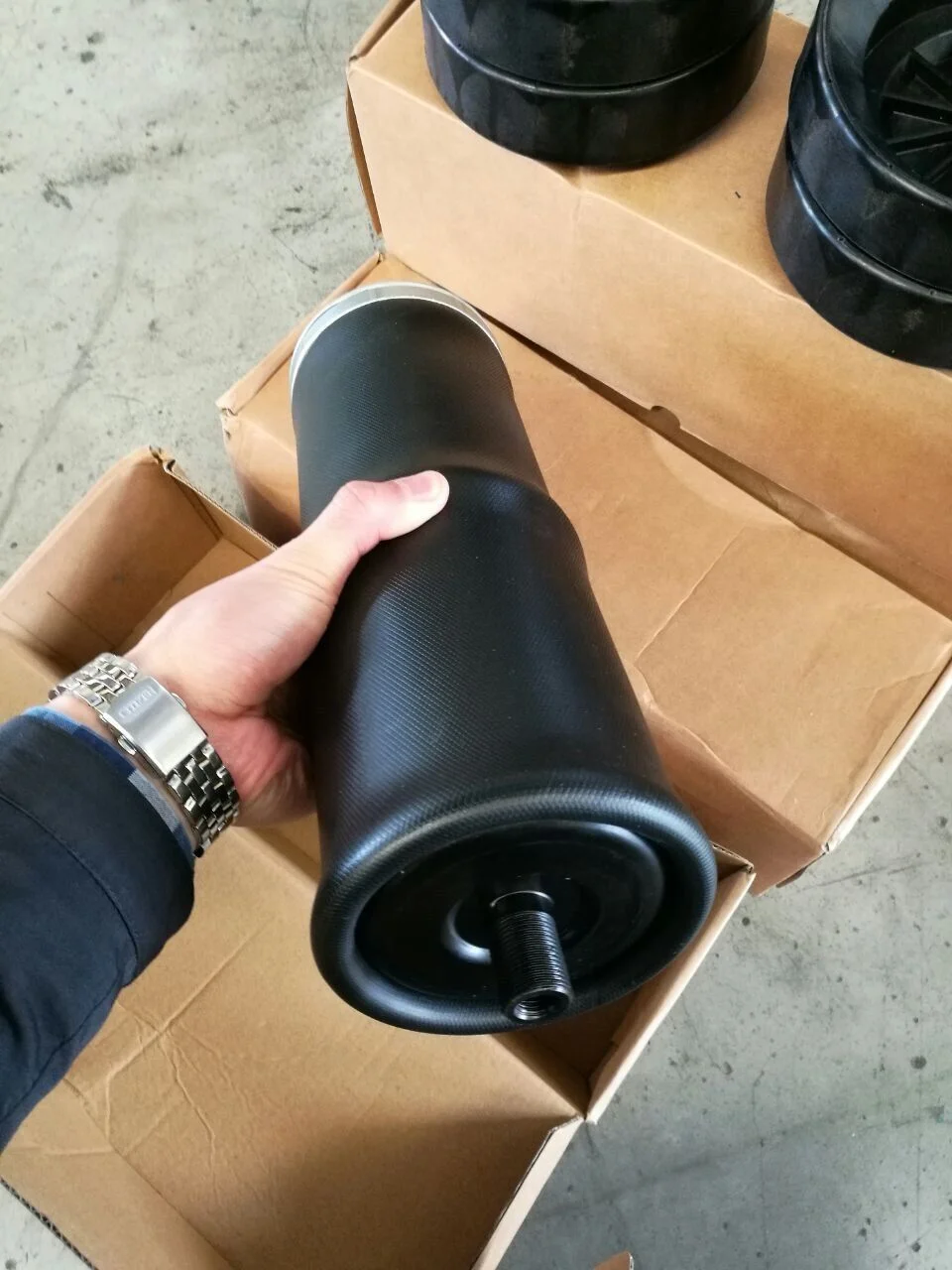

Airbags Contitech sz130-25p05

Low

High


Ready to ride


Last edited:
Joined
Aug 16, 2014
Messages
773
Location
Union, Ky
How much do you think the whole setup cost? I've always had airbags in the back of my head for down the road.

Joined
Nov 9, 2012
Messages
13,244
Location
Olathe, KS, USA
Can you create a parts list with brands and numbers?

I'm not going to go to that level, but seeing some of the places you've been and what you've done are pretty remarkable.

Joined
Feb 20, 2006
Messages
5,810
Location
calgary
I like the video.

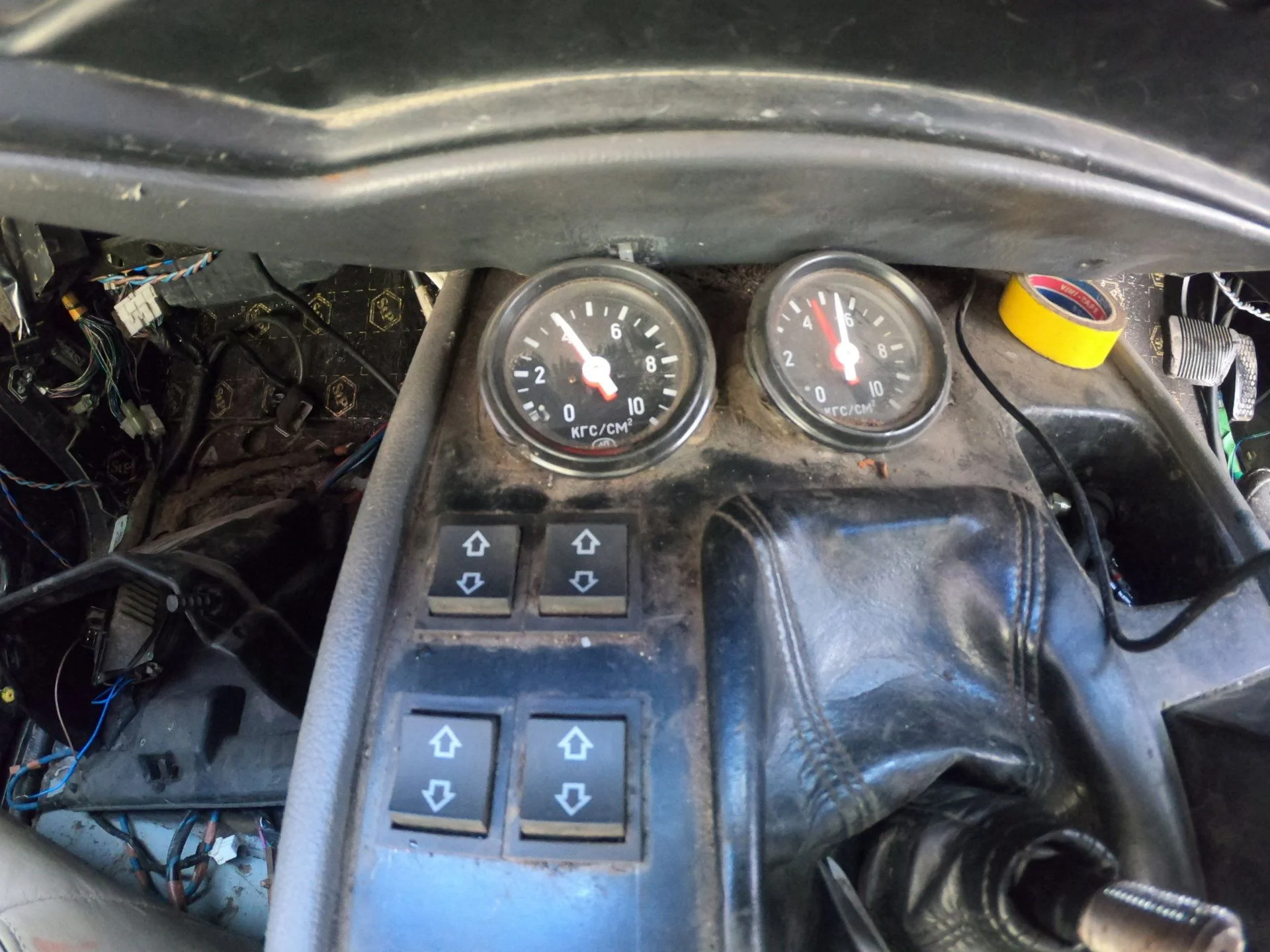

Got mine on bags too, paddle valves instead of electric control also mounted on the shifter base/console. I have dual needle gauges one for front and for rear. Im running the boss triple bags (2503's I think) about 10" travel by air, and then a bit more with the weight of the axle pulling down. How much travel you getting with those bags? They look good.

Last edited:
Joined
Nov 20, 2013
Messages
1,062
Location
PA
Very cool setup. How is the ride compared to coils?

Joined
Sep 20, 2013
Messages
355
Location
Kamchatka, Russia
I like the video.

Got mine on bags too, paddle valves instead of electric control also mounted on the shifter base/console. I have dual needle gauges one for front and for rear. Im running the boss triple bags (2503's I think) about 10" travel by air, and then a bit more with the weight of the axle pulling down. How much travel you getting with those bags? They look good.
Same travel, about 25-28 centimeters

Joined
Sep 20, 2013
Messages
355
Location
Kamchatka, Russia
How much do you think the whole setup cost? I've always had airbags in the back of my head for down the road.

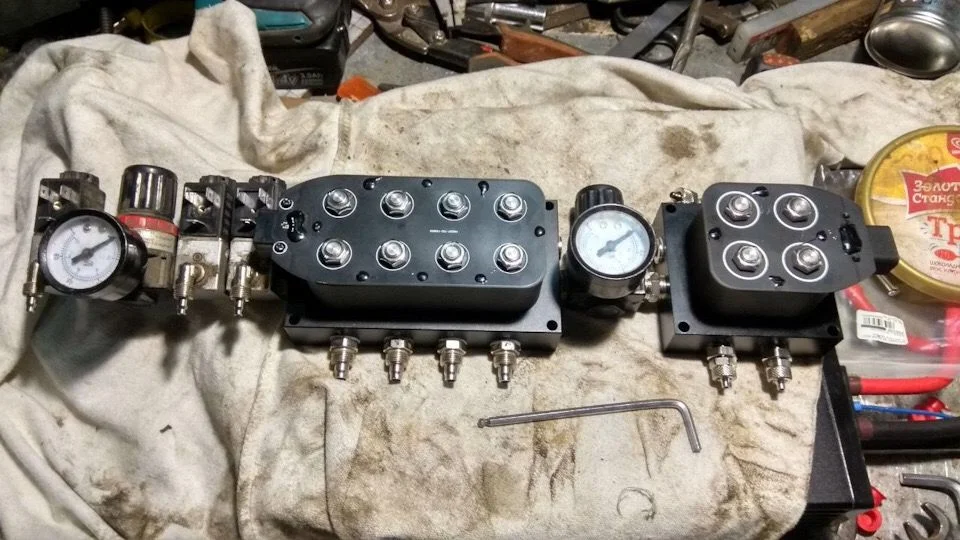

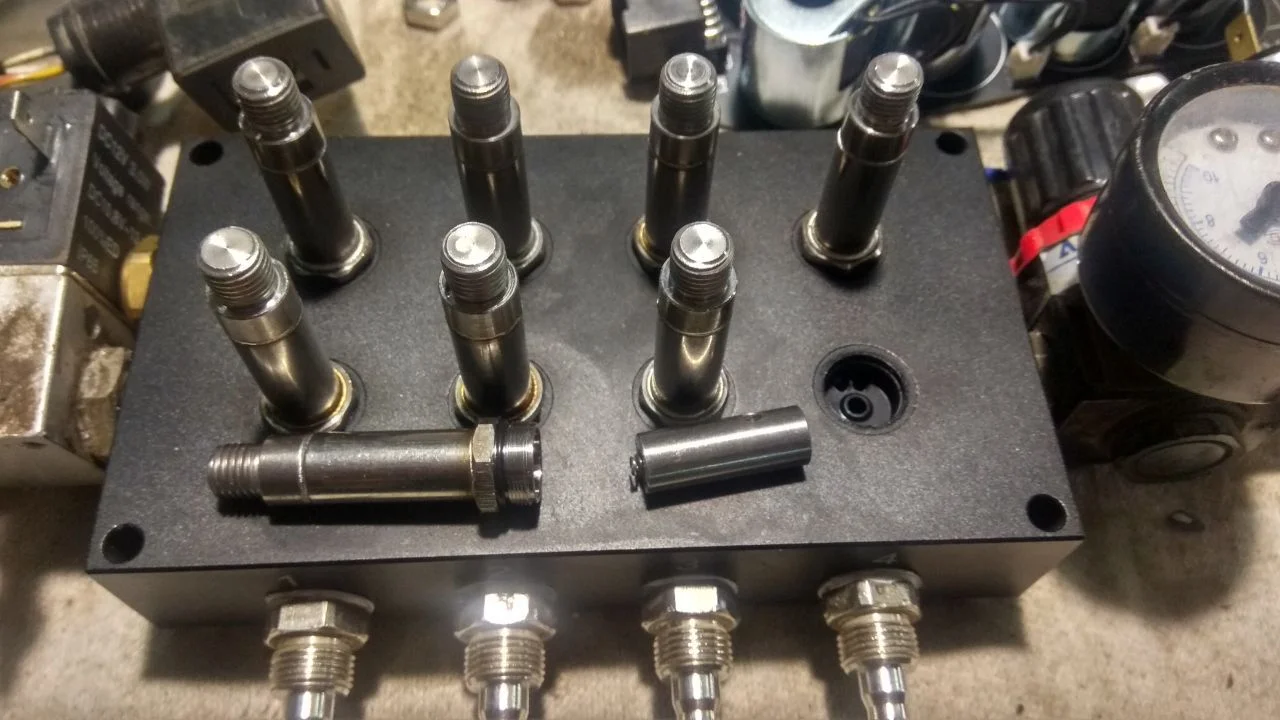

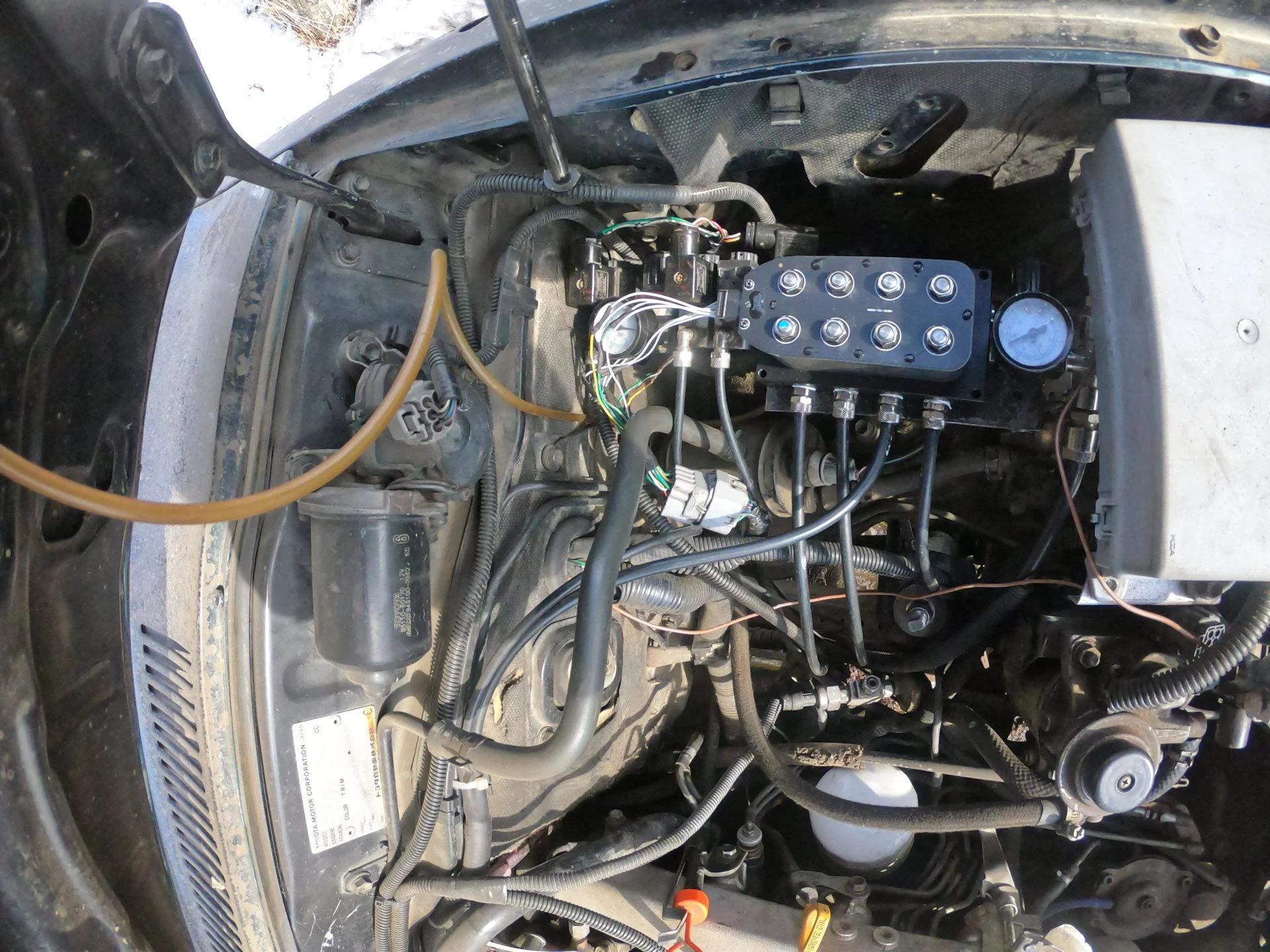

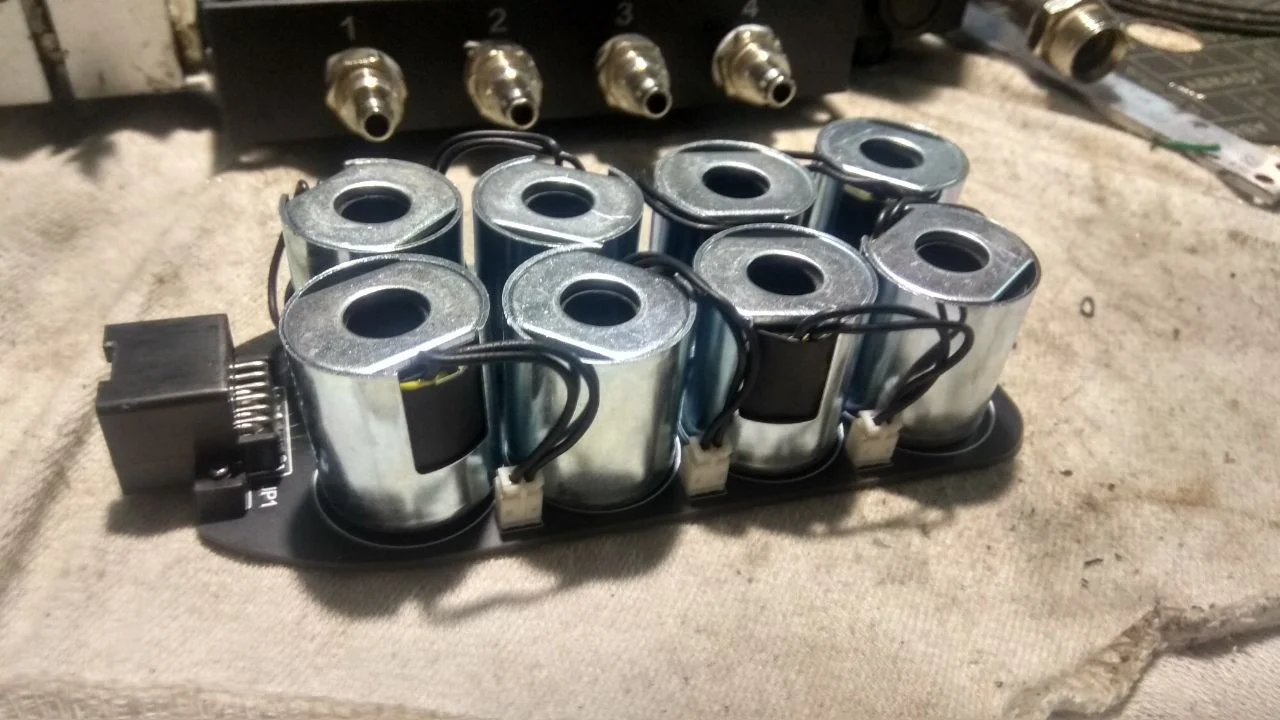

In Russia bags 80usd*4, manifold 100usd, air fittings about 50usd, air gauges 40usd, buttons, wires, bolts about 20 usd. Whole setup 530-550usd

Joined
Feb 20, 2006
Messages
5,810
Location
calgary
Same travel, about 25-28 centimeters
Cool, good to know of other options.

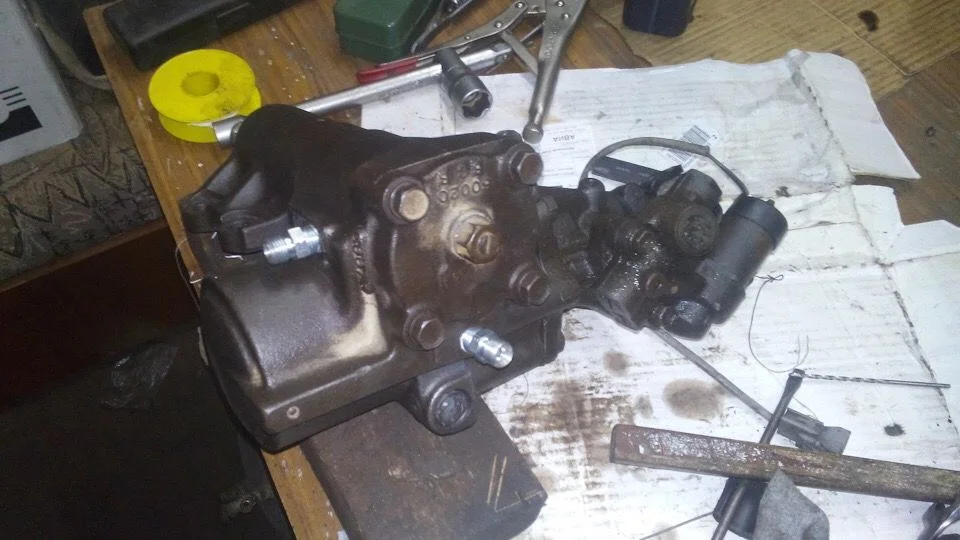

I realize you have a 9.5” front axle up front at that other fella brought it up, as well as 3 link and steering booster mounted up high. Some easy to miss details.

did you just move the front axle forward or did you cut a lot of metal out of the back of the fender for clearance? I assume you moved the rear axle back a few inches as well and cut out some body panels.

One thing I been thinking about doing on mine is adding a solenoid valve with 2 regulator and 4 check valves to a switch to auto fill to ride height. I drop mine to fit it in the garage and then am always adjusting it a bit for ride height after Ieave, so it would auto fill and then I can manually adjust later.

nice rig.

Last edited:
Joined
Sep 20, 2013
Messages
355
Location
Kamchatka, Russia

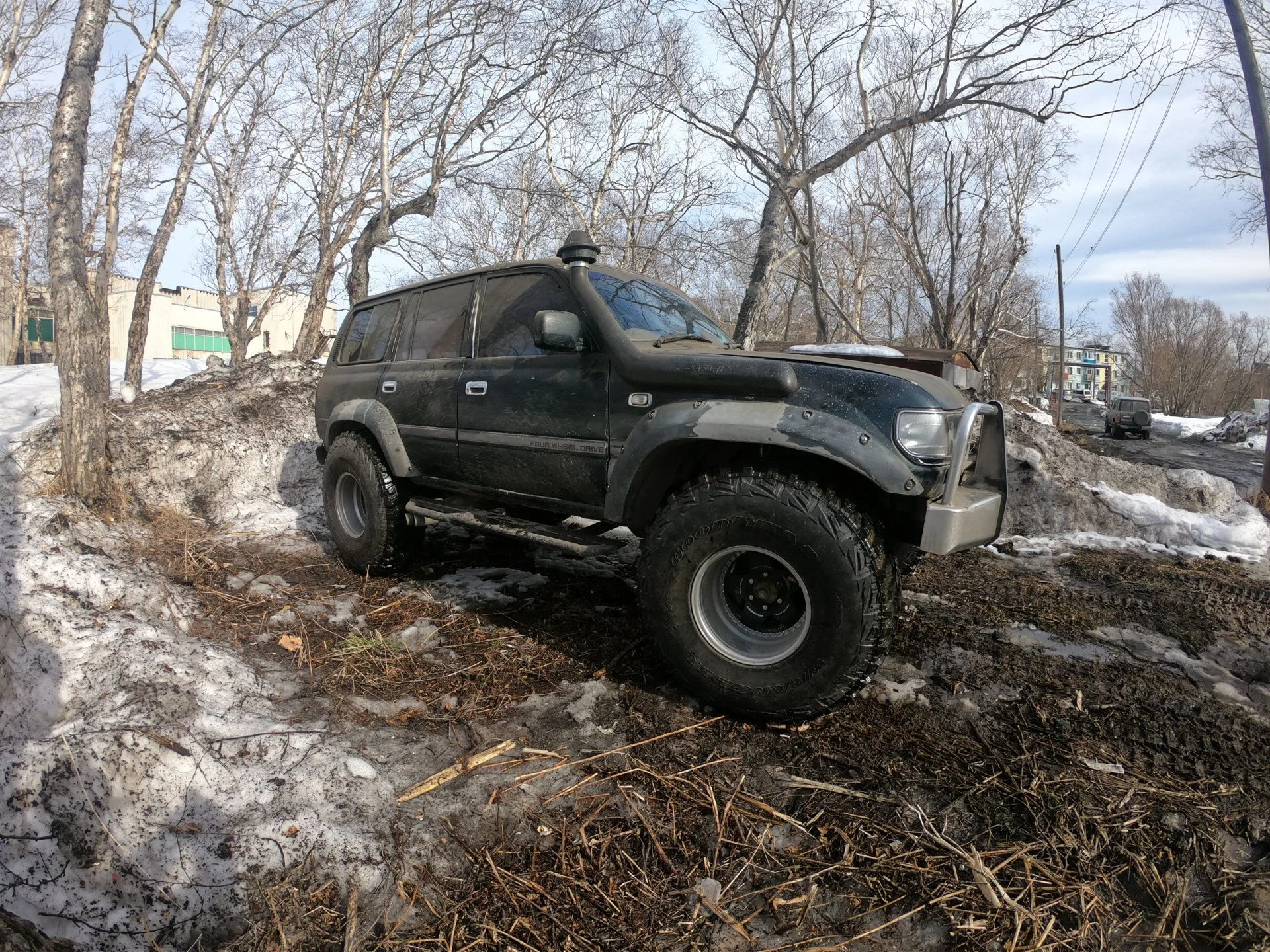

After few years I start to build my dream car. It names “extreme vacation”, comfortable off road car on 42 inches.

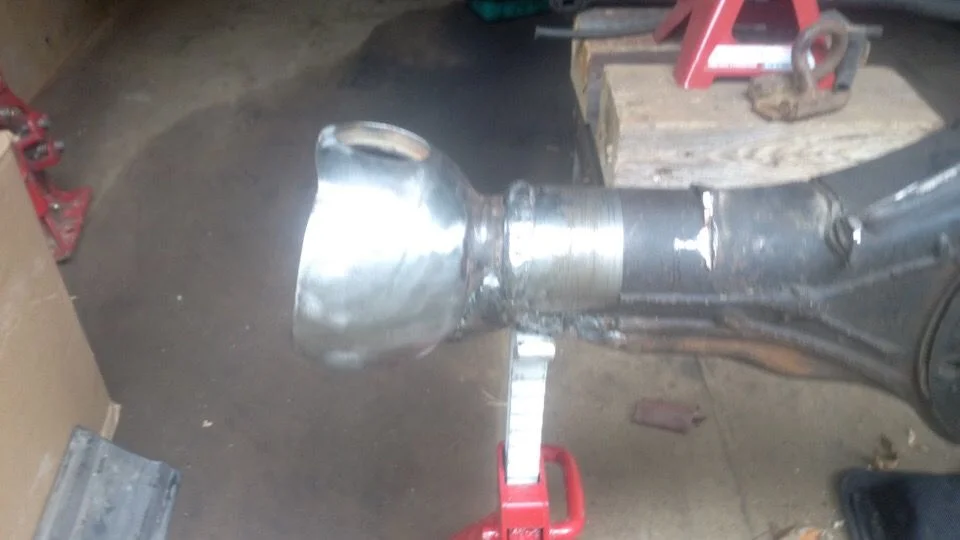

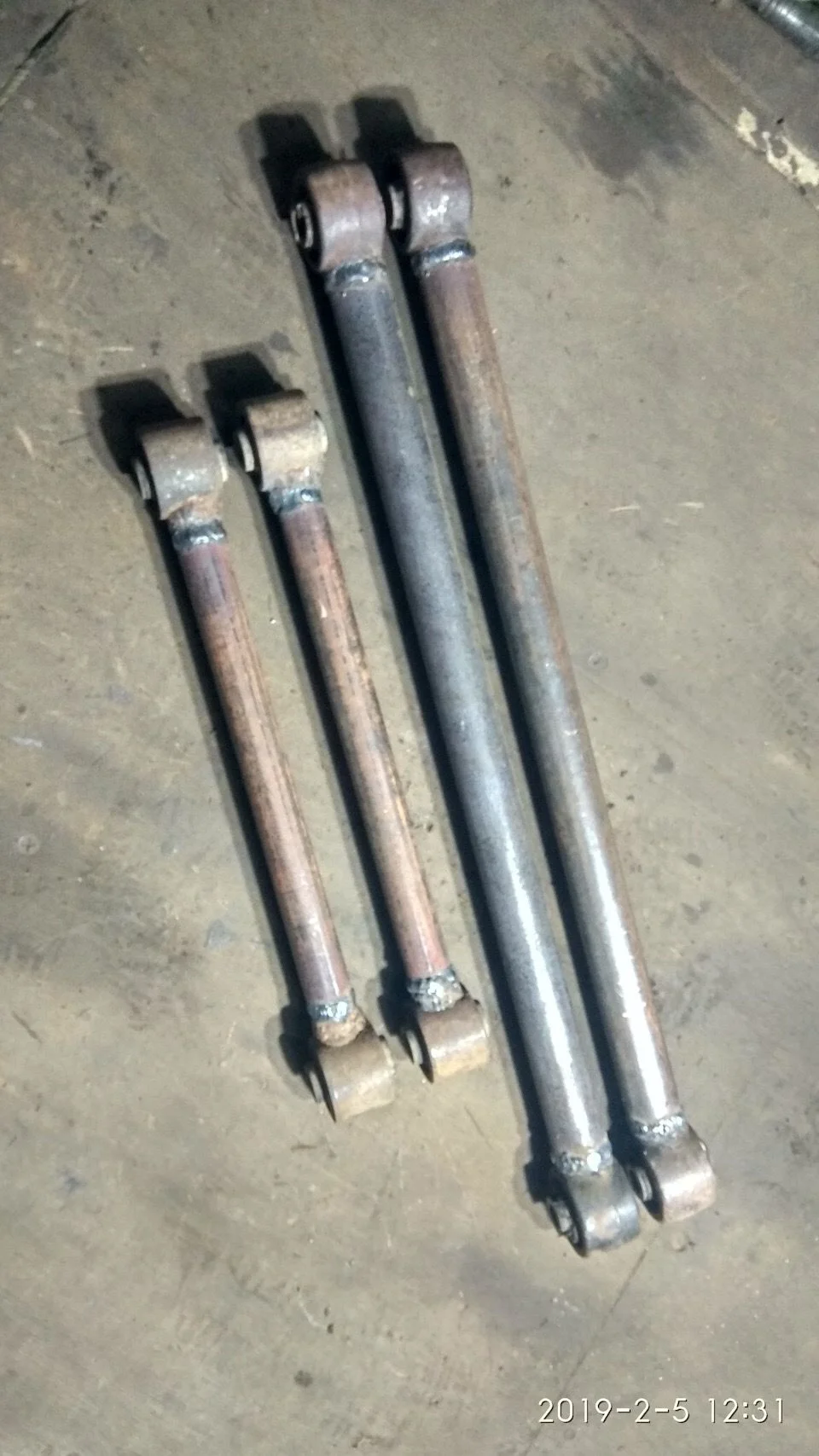

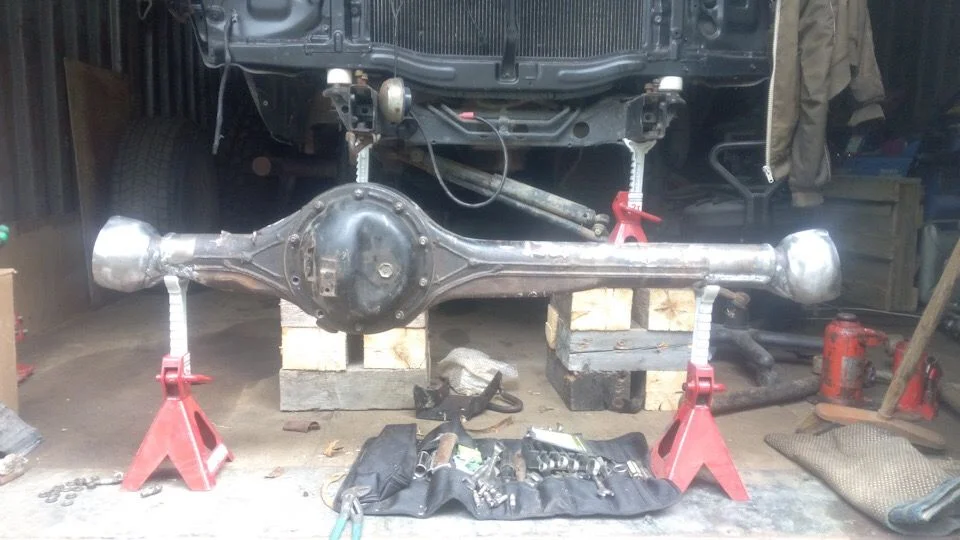

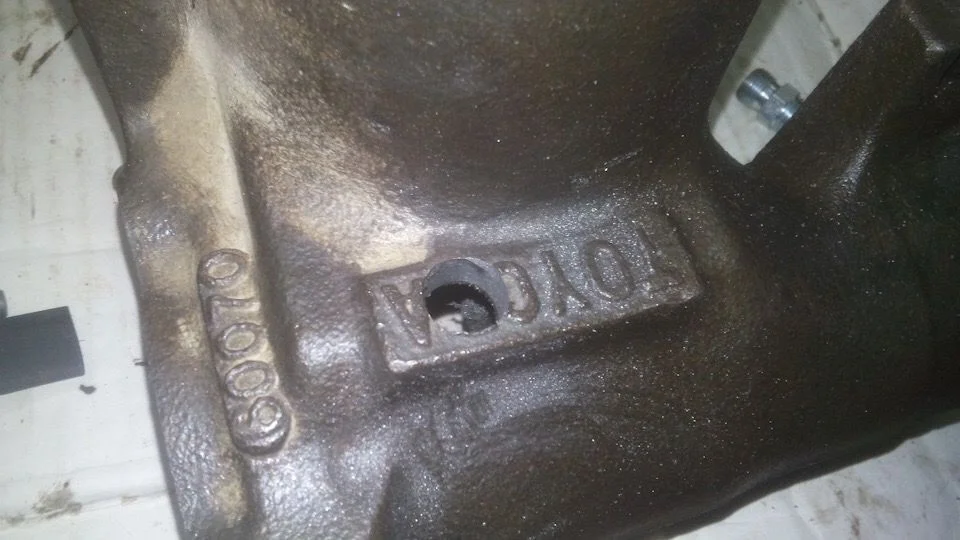

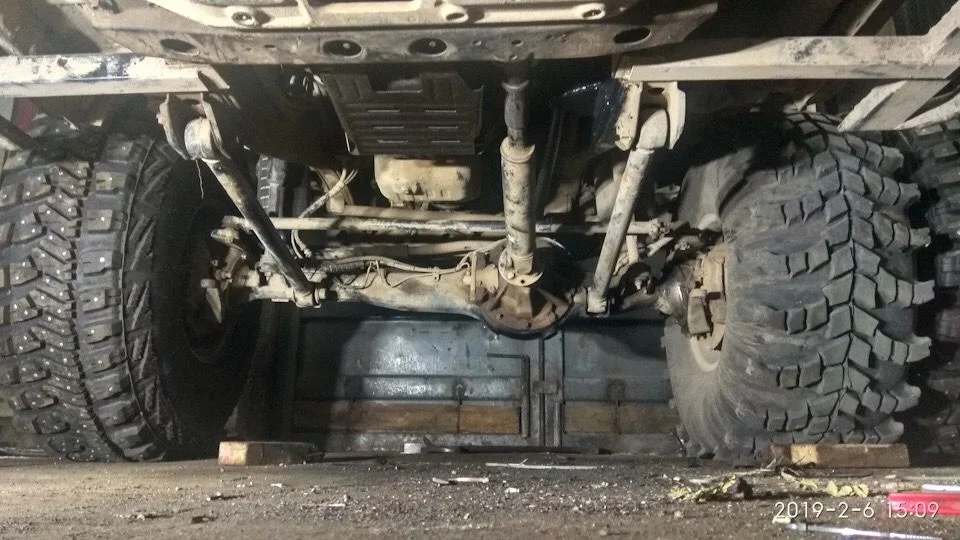

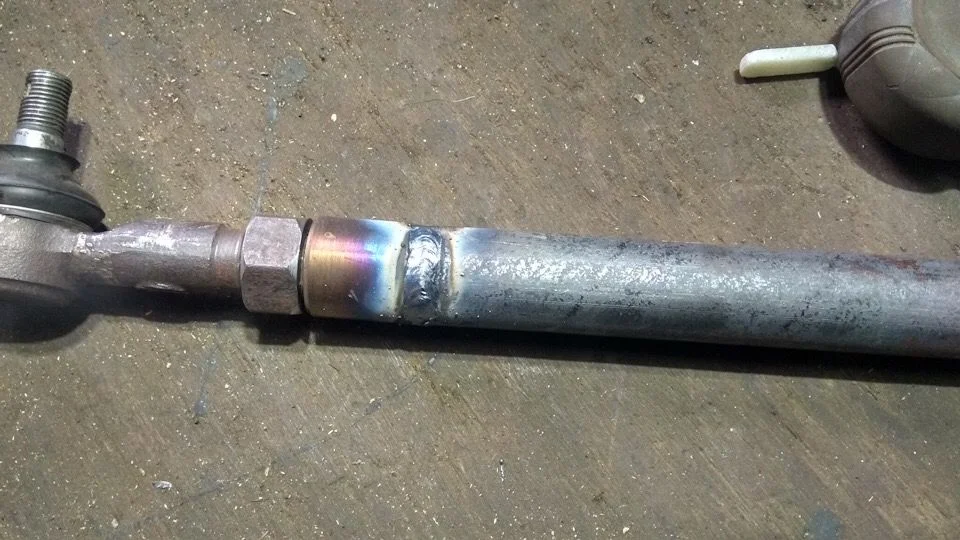

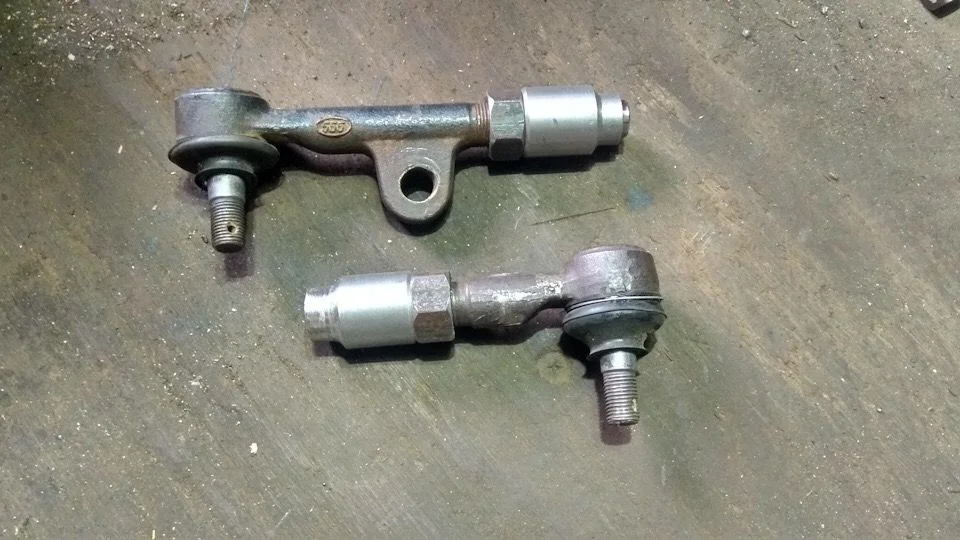

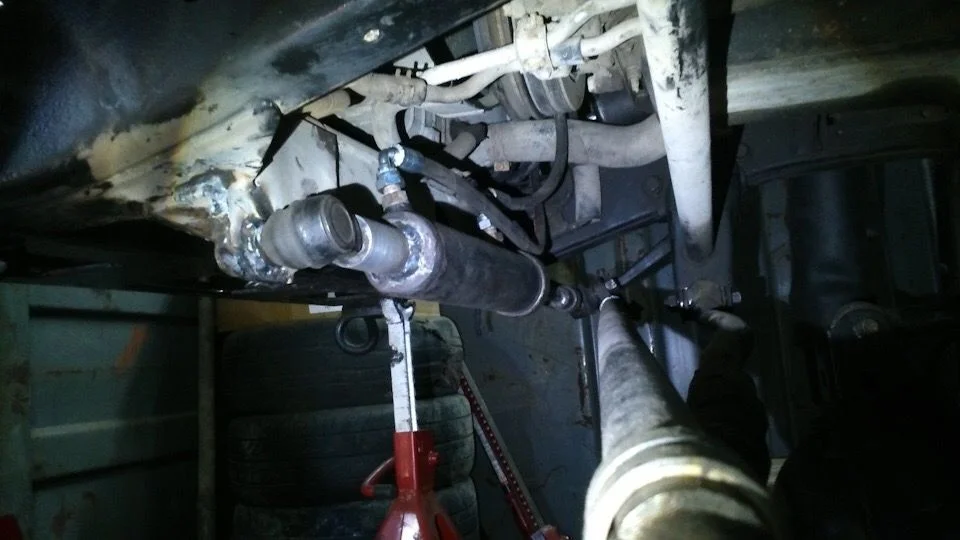

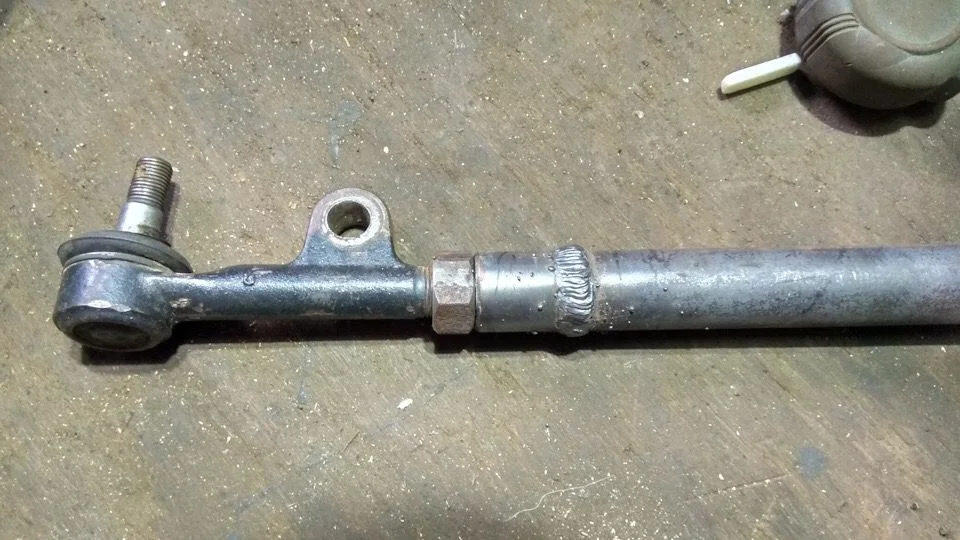

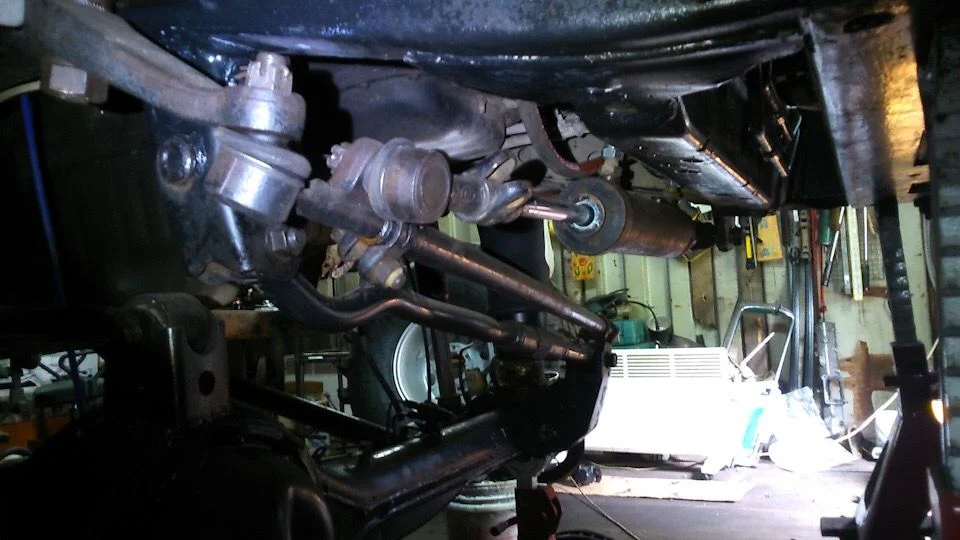

Front axle made from rear semi floated hzj81.

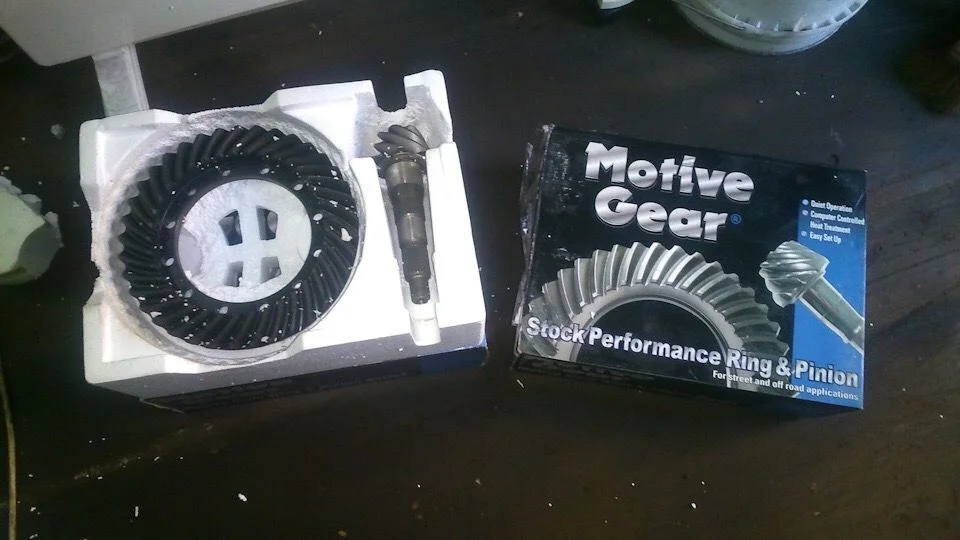

Ring and pinion changes to motive gear 5.29

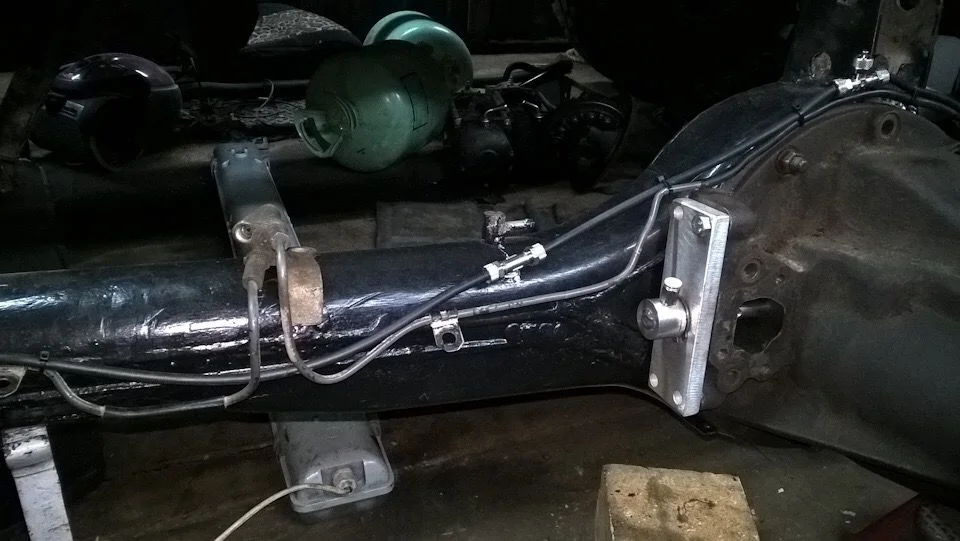

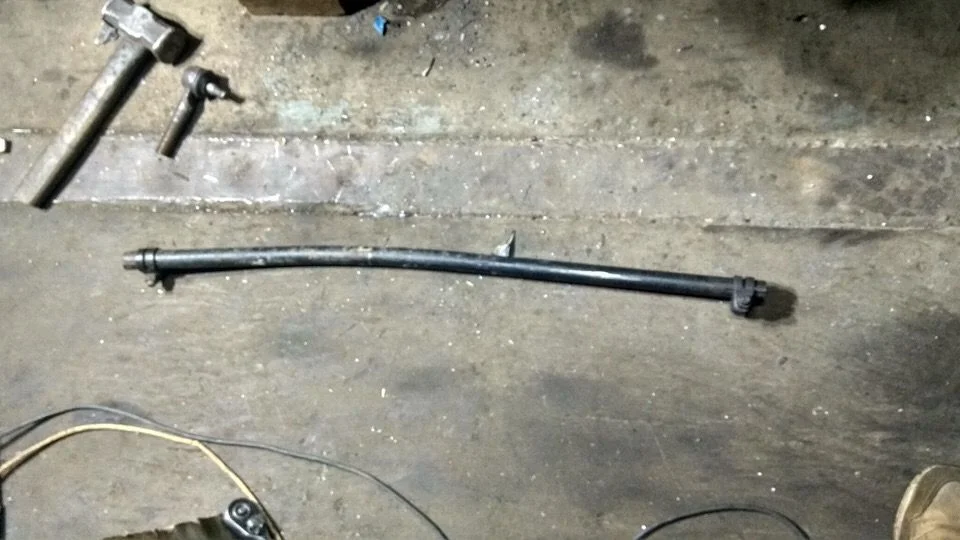

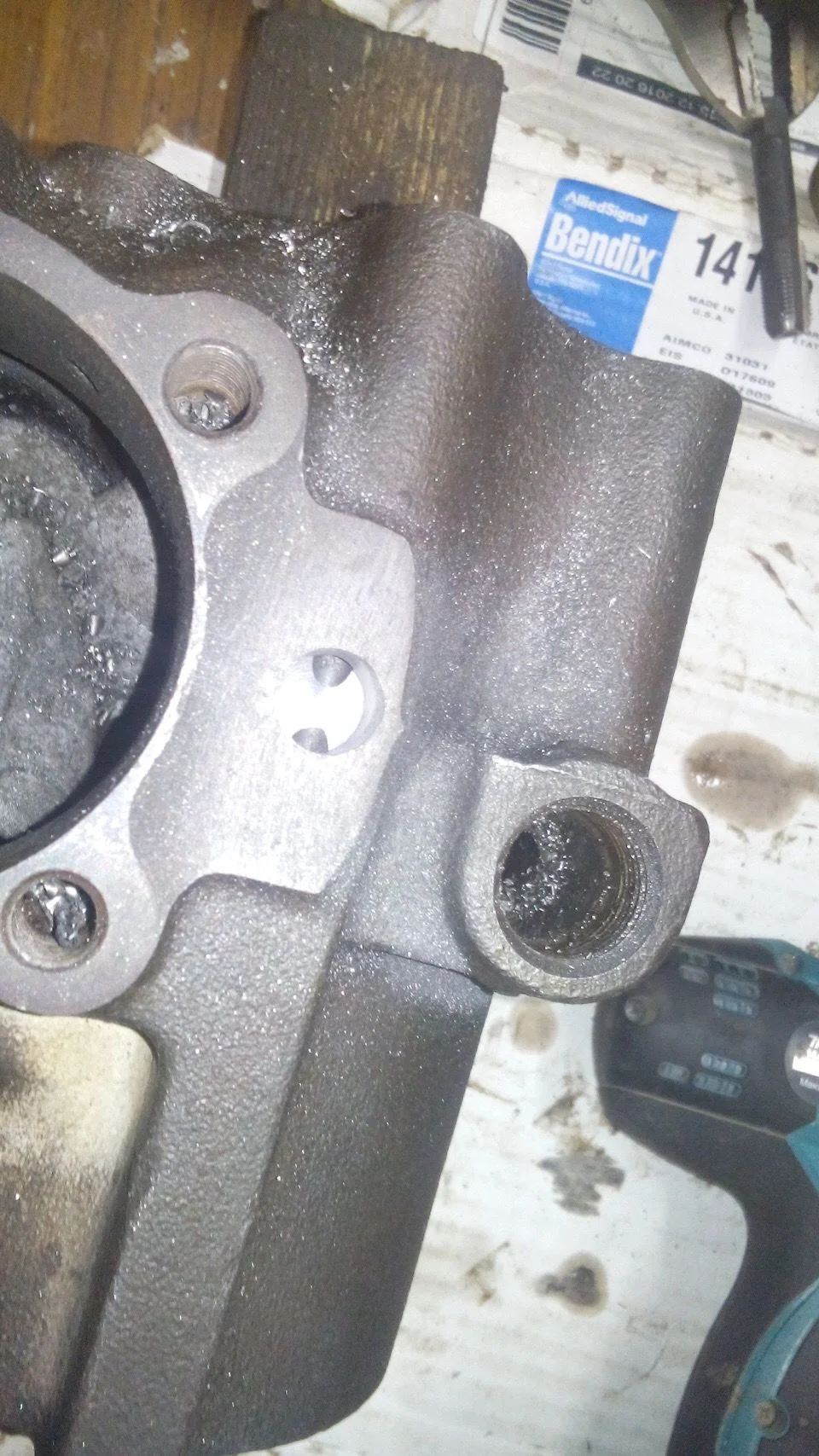

Front 9.5 differential has a stock diff lock with pneumatic actuator. It’s custom made. Rear also changed to pneumatic.
