A Coolant System Pressure Test (1 Viewer)

Bambusiero

SILVER Star
Joined
Apr 11, 2005
Messages
712
Location
Chandler, AZ
As a follow-on diagnostic to an ongoing engine coolant overheating problem, coolant system pressure has been a question.
So, I've finally gotten around to rigging up a radiator / coolant system pressure gauge that can be monitored while driving around at speed, rather than just guessing and interpreting other signs.

The suspicion is a head gasket combustion gas leak into the coolant system, causing load dependent overheating.
Or, maybe it's something else.

The radiator cap is rated at 85 kPa = 0.85 bar = 12.3 psi (but it says 0.9 bar, rounded up).
So, if I see pressure rise up to 12-13 psi and hold, that must mean it's being pressure regulated by the pressure relief cap, and coolant is in the process of overflowing into the tank, right?
If I see that, I'll pull over and check it!

Let's just see about that!

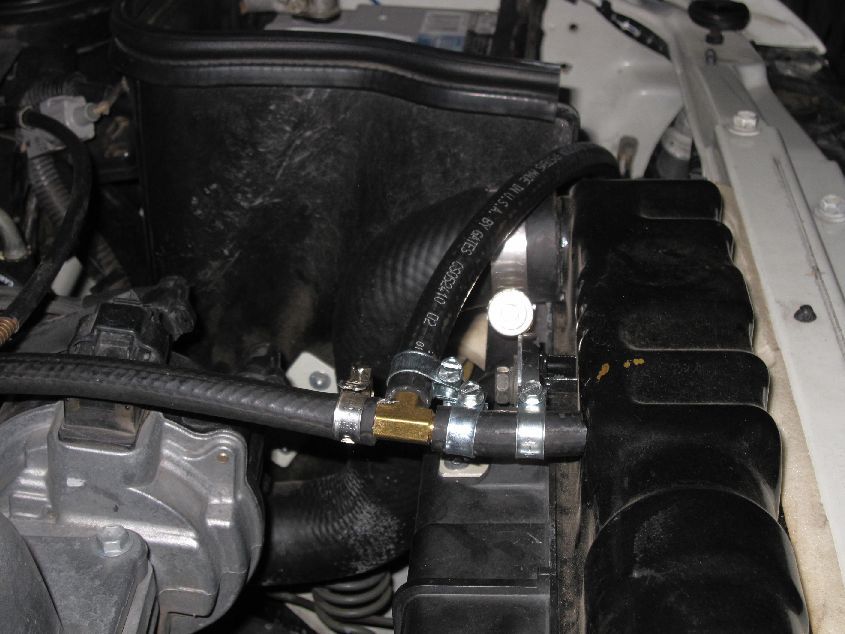

Tapped into the #3 coolant bypass tube at the radiator nipple.
It's easy to tap in there.

Coolant System Pressure Gauge - equipment list :

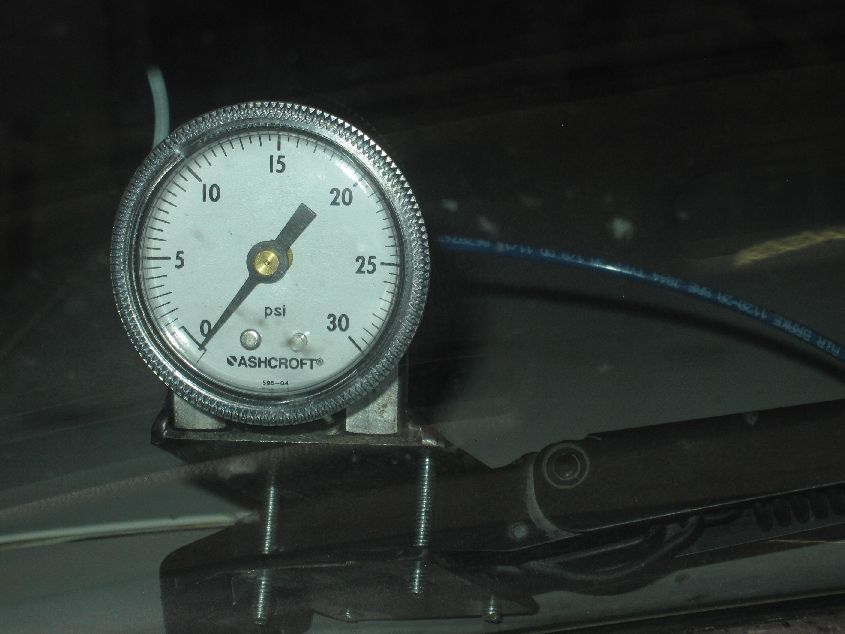

0-30psi multi-purpose gauge, steel case, 2" dial, panel mount back, 1/8 MPT - McMaster-Carr

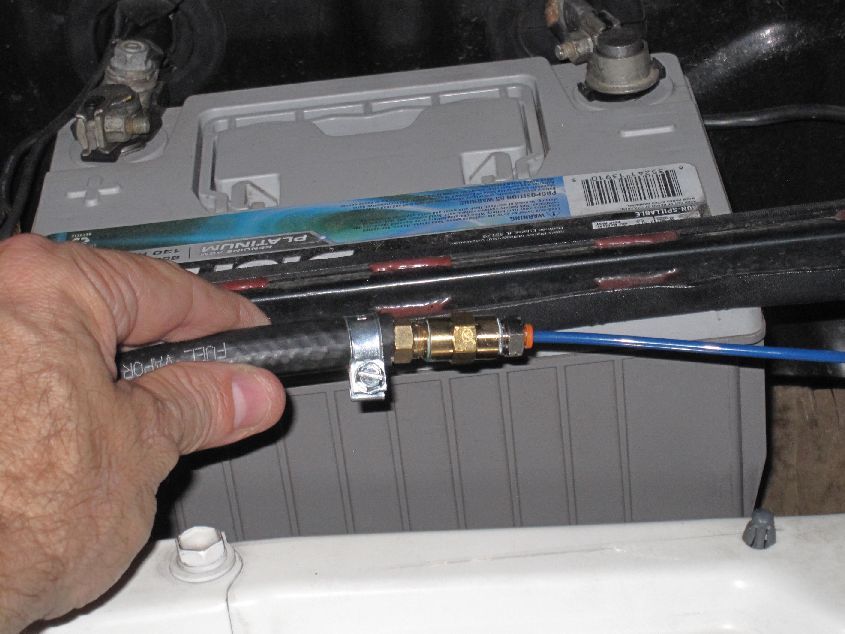

1/8" hose push fit to 1/8 MPT adapter - McMaster-Carr
1/8" nylon hose - McMaster-Carr
1/8 FPT-FPT coupler - Ace Hardware
5/16" barb Tee - Ace Hardware
5/16" barb to 1/8 MPT - O'Reilly Autoparts

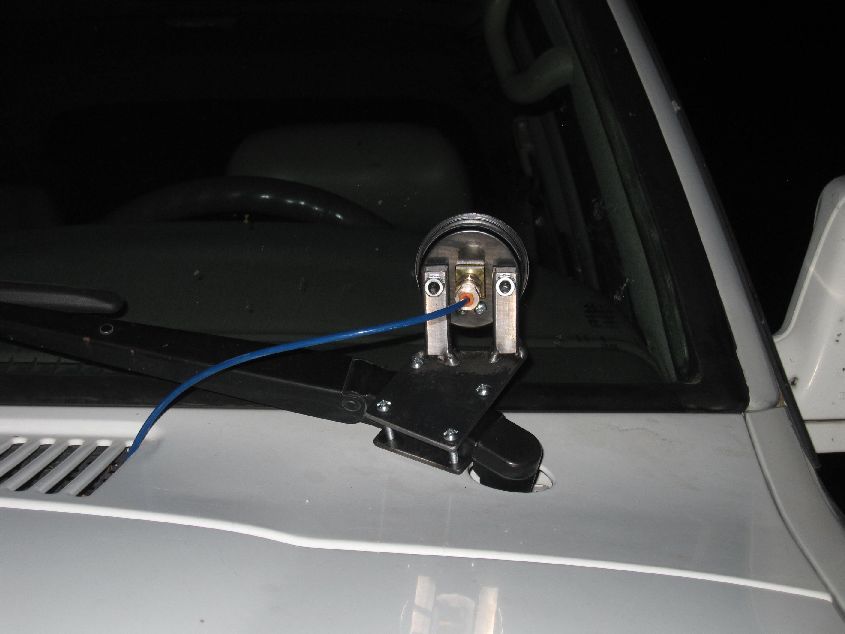

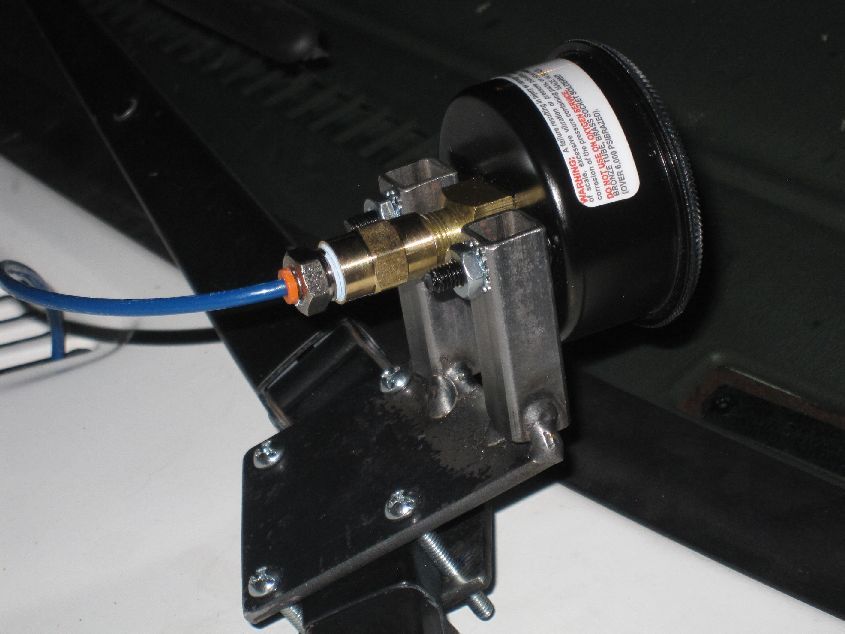

Custom fab gauge to windshield wiper mount bracket












No data yet - TBD.

Last edited:

Bambusiero

SILVER Star
Joined
Apr 11, 2005
Messages
712
Location
Chandler, AZ

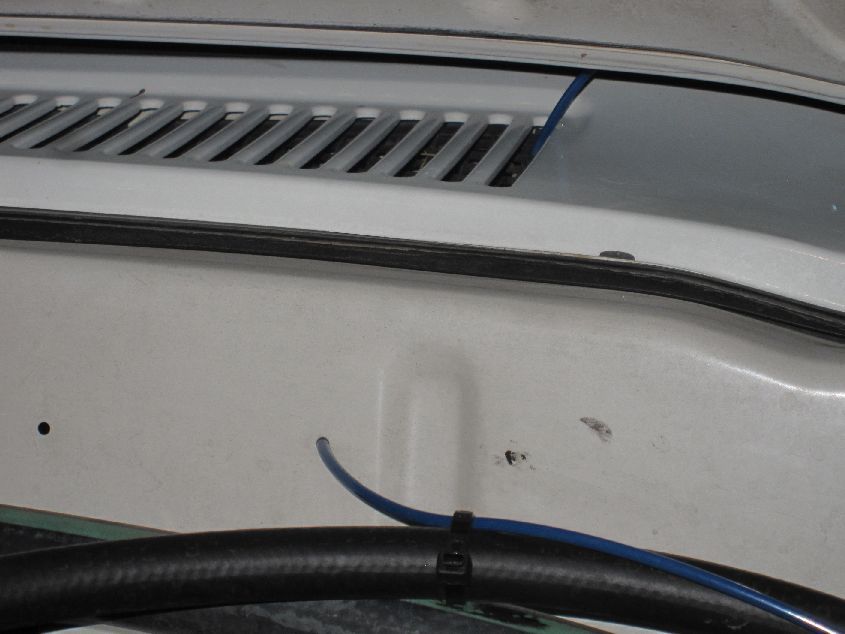

A convenient hole is available in the firewall.
1/8" line just makes it through, and snakes right through the vent.
Easy-peasy.



baldilocks

Battle Ground, WA
GOLD Star
Joined
Jan 29, 2014
Messages
6,468
Location
Battle Ground
A convenient hole is available in the firewall.
1/8" line just makes it through, and snakes right through the vent.
Easy-peasy.

View attachment 1288543
What happened with this experiment? What was the resolution to your original warm running engine?

I too installed a CSF 2517 a year ago and could report just about the same sort of temps/situations. I have no data previous to the new radiator and cooling system overhaul because that's also when I installed the secondary water temp indicator.


flintknapper

SILVER Star
Joined
May 22, 2004
Messages
8,574
Location
Deep East Texas
What happened with this experiment? What was the resolution to your original warm running engine?

I too installed a CSF 2517 a year ago and could report just about the same sort of temps/situations. I have no data previous to the new radiator and cooling system overhaul because that's also when I installed the secondary water temp indicator.

Same radiator as I put in my '97 several years ago. I've had a ScanGauge on my vehicle for quite awhile so I had readings on the OEM radiator (under various conditions) with which to compare. On average (MY vehicle) runs about 2° F. warmer with the CSF 2517 than with the original radiator (factory).

I'm not a big of 'plastic' and crimped seals. The peace of mind is worth the paltry exchange of efficiency (2 degrees) to me.

Used a CSF replacement radiator in my LX 470 too when that 'plastic' unit failed. Now to be fair...the OEM units DO last a long time so I am not disparaging that radiator, but anytime I can put something stronger on my vehicles....I will do so.
