80 rear wishbone suspension link (1 Viewer)

[jfmaillot]

Hi guys,
we started to talk about that on an other thread from nukegoat Double triangulated rear 80
Here's what I've been working on since 2012
After 3 designs and builds, this is what came out out my head.

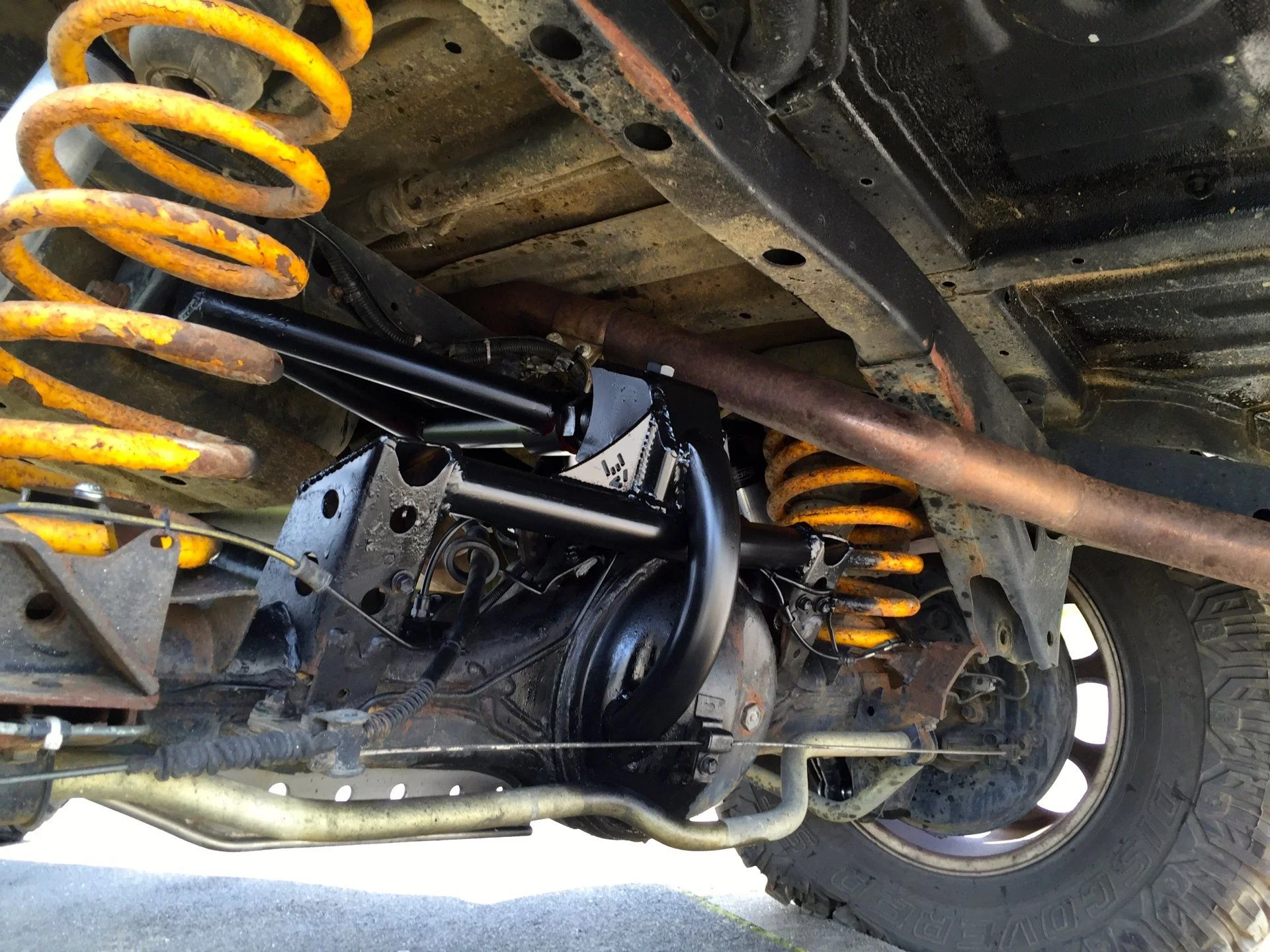

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016



[jfmaillot]

One of my first wishbone

Superman rear wishone

• jfmaillot
• Oct 4, 2016

my first build. but didn't work so well...

This one was very strong and did work but it didn't work so well. As you can see, the rod end seized when I flexed it too much...
Good thing was : totally bolt on



[jfmaillot]

the idea was to use as many OEM parts as possible (mainly the brackets and bushings).
so the list is quite small :
1 OEM upper link
1 TG rod end

http://www.trail-gear.com/product/4923/rod-end-kit-male#.V_OYQ7W3i3E

1 TG misalignment spacer

http://www.trail-gear.com/search?filter=&search=186013-KIT&type=q&keywordoption=ANY&cid=0&fltrdesc=

1 Ruffstuff horizontal wishbone bracket

http://www.ruffstuffspecialties.com/catalog/HORWB.html

tubing 42mm x 7mm
gussets
I had a beefy "tube adapter" machined by a local shop

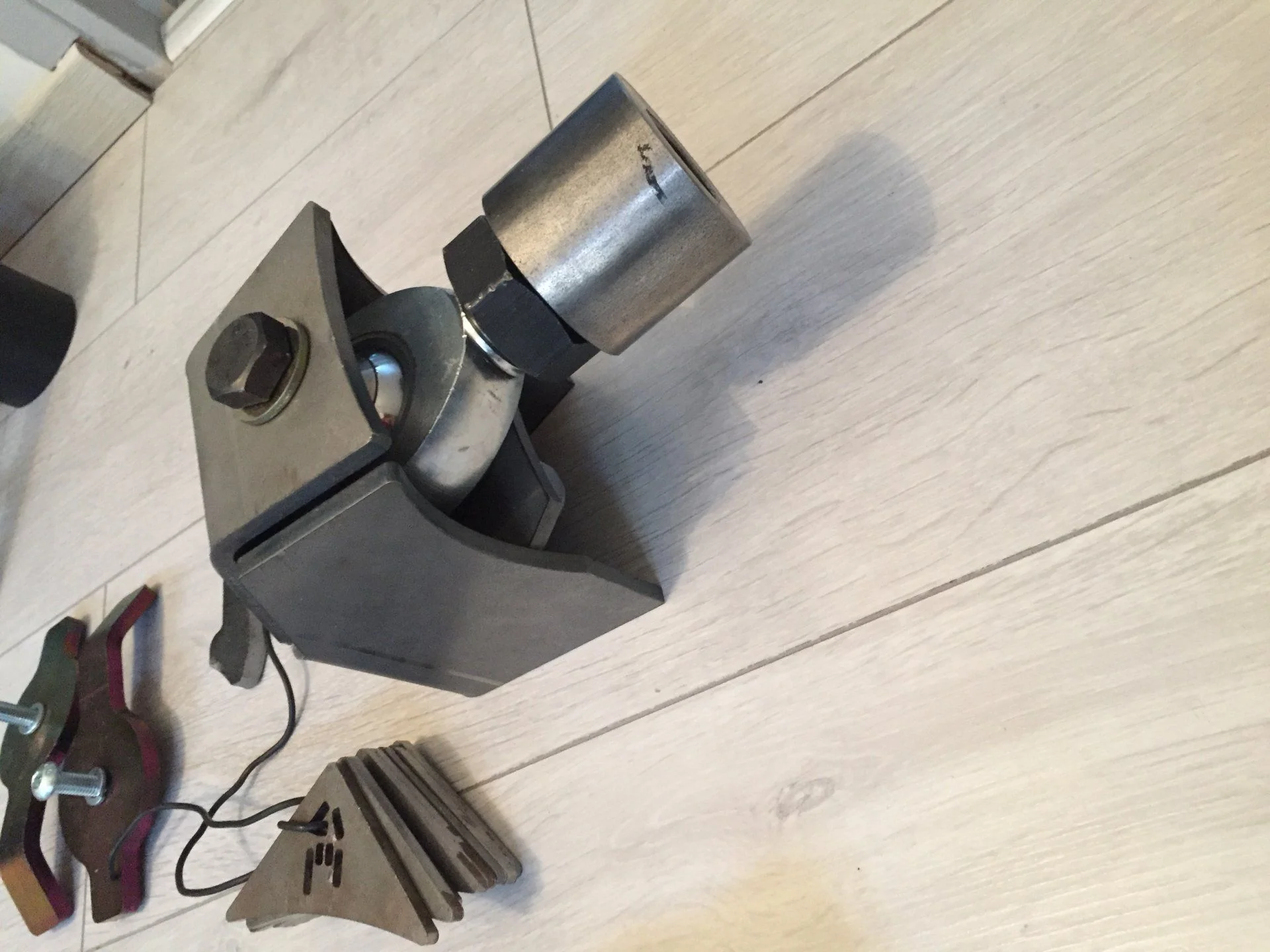

80 rear wishbone parts

• jfmaillot
• Oct 4, 2016

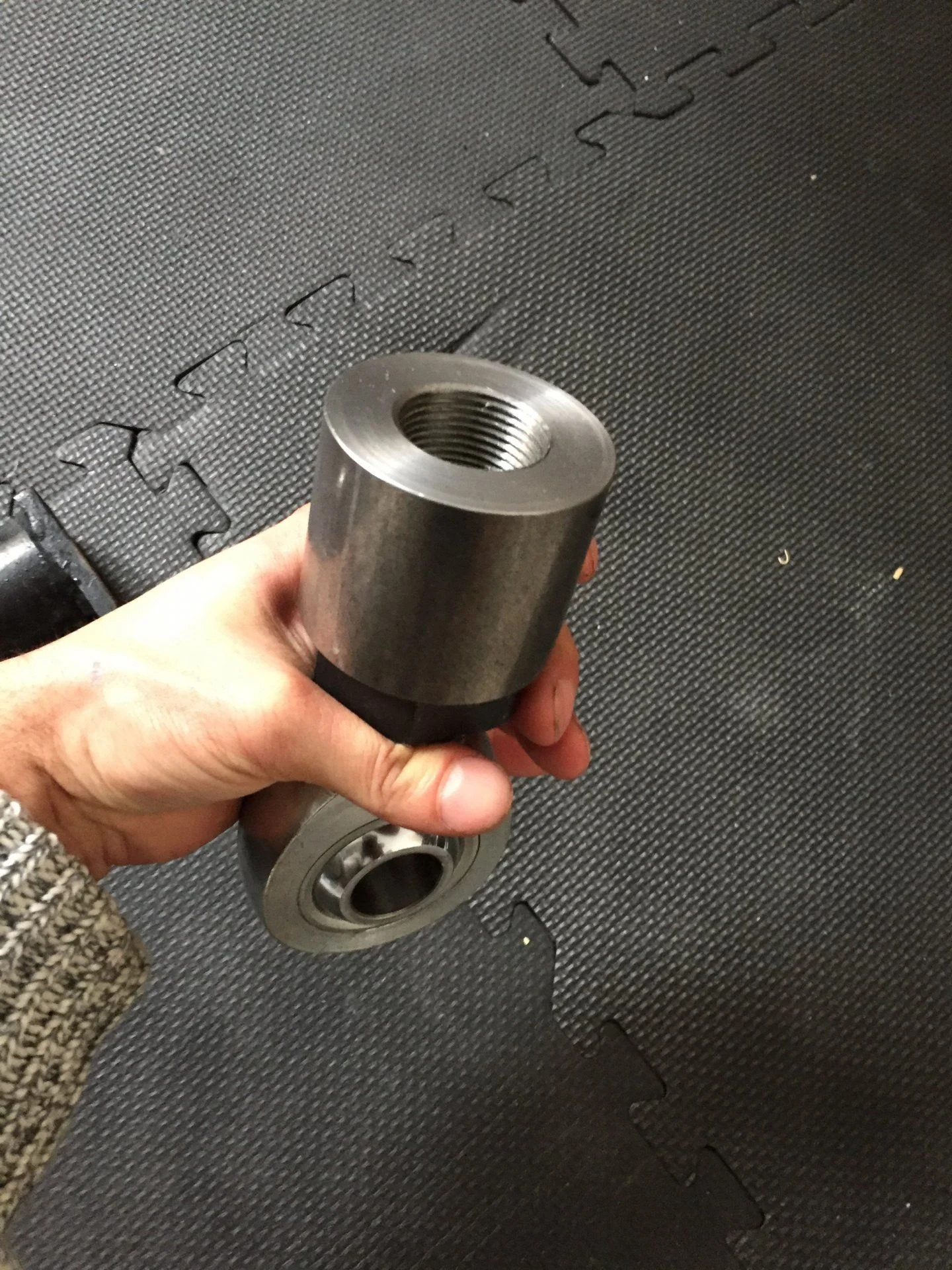

80 rear wishbone parts

• jfmaillot
• Oct 4, 2016



[Rivman1243]

Awesome! Keep the pictures coming!



[I Lean]

Subscribing, since this is interesting.



[jcardona1]

Thanks for the pics! Question - I was under the impression you could ditch the panhard when the upper and lower links were triangulated. Will wishbone upper links alone control lateral movement enough that you no longer need a panhard?



[LandCruisinMy93]

Seen this same design on an Australian 80, that thing had ridiculous flex. The upper tiangulation should prevent side to side movement of the axle, eliminating the need for a panhard. I have been trying to figure out the best way to accomplish this setup myself.



[LandCruiserPhil]

Thanks for the pics! Question - I was under the impression you could ditch the panhard when the upper and lower links were triangulated. Will wishbone upper links alone control lateral movement enough that you no longer need a panhard?

▲This▲

Wishbone ran both ways no panhards



[jfmaillot]

that's correct.
I just cut all panhard brackets. Also that means that your axle is always centered no matter the load you put in your rig



[jfmaillot]

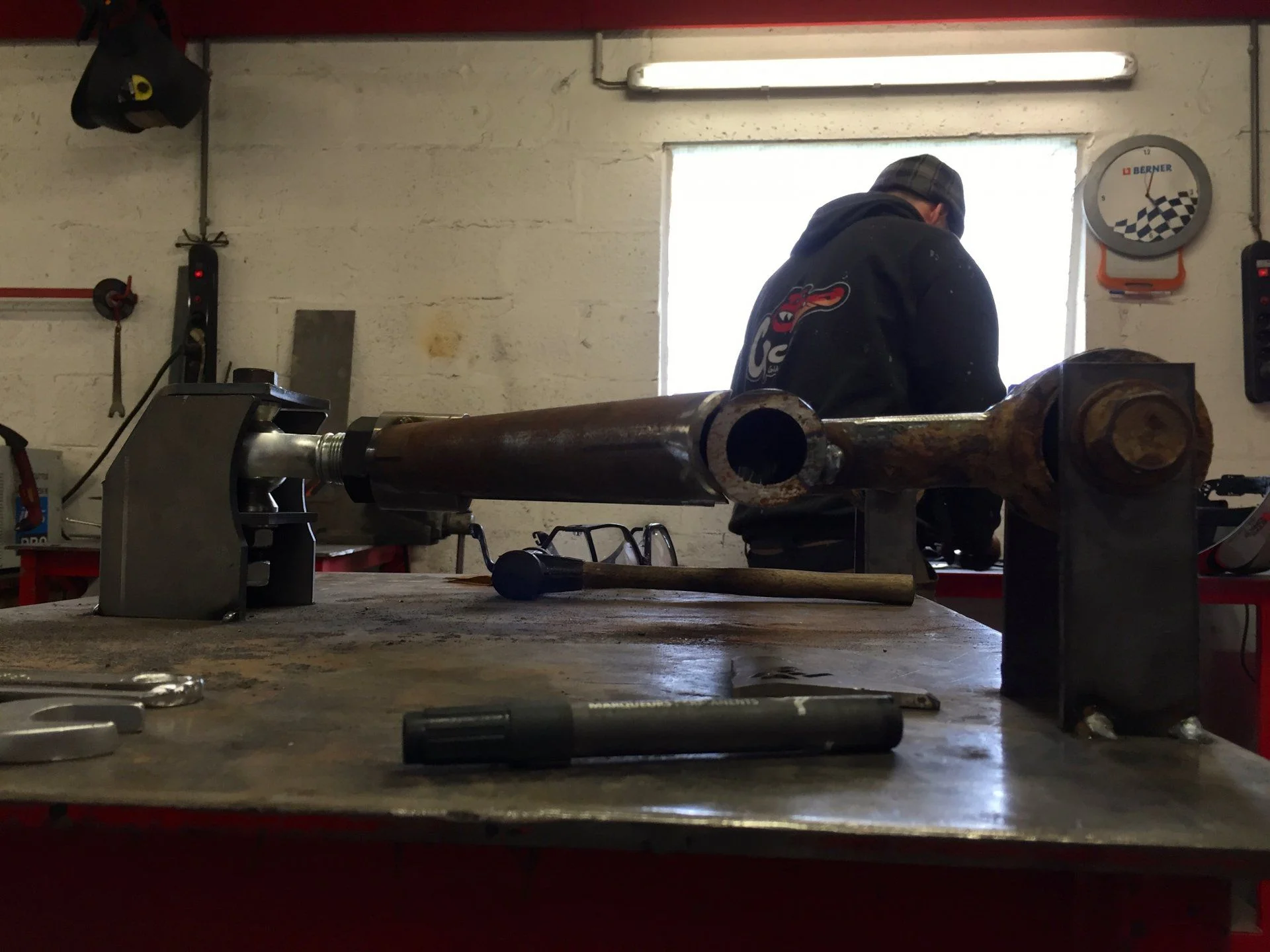

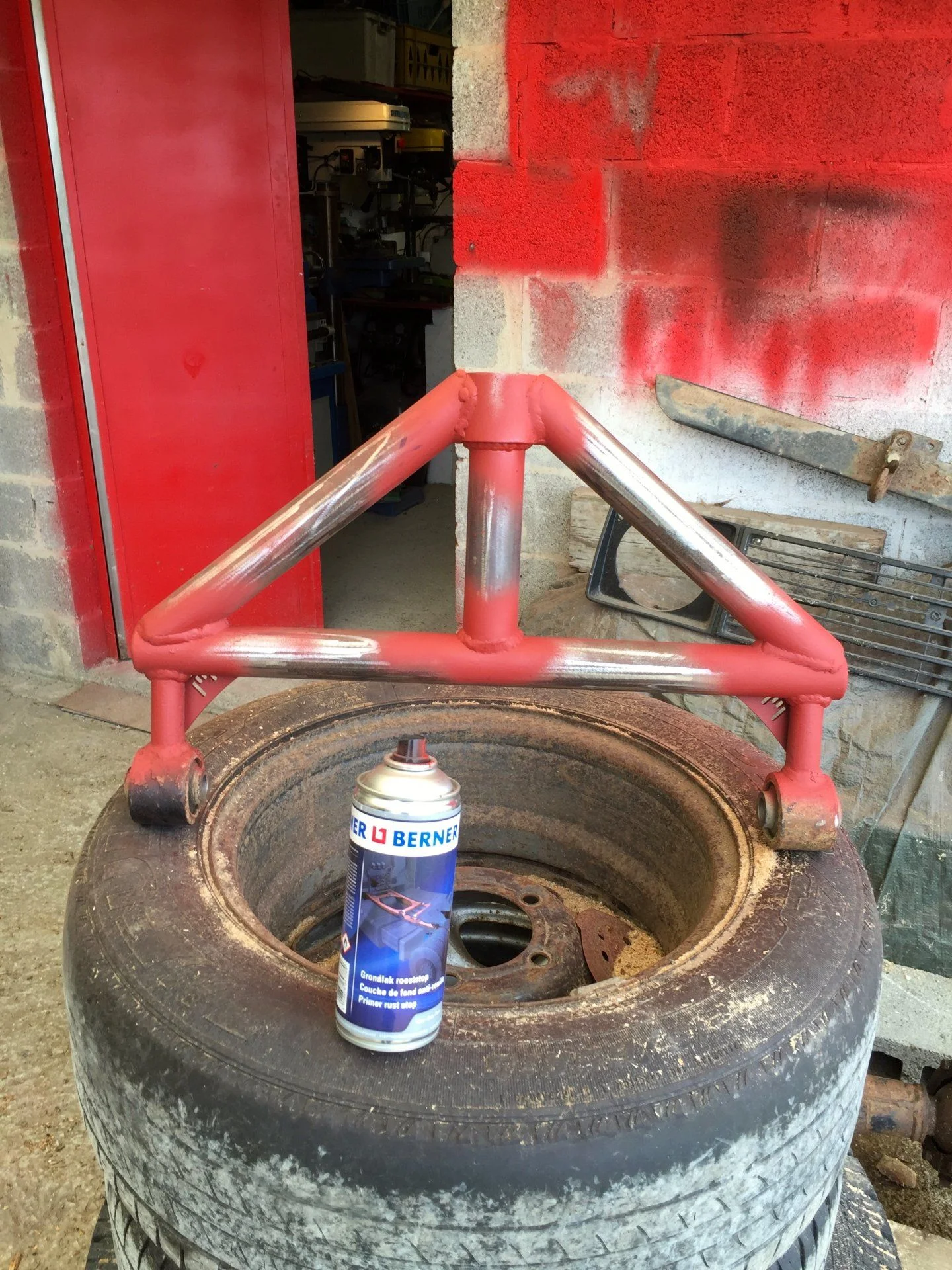

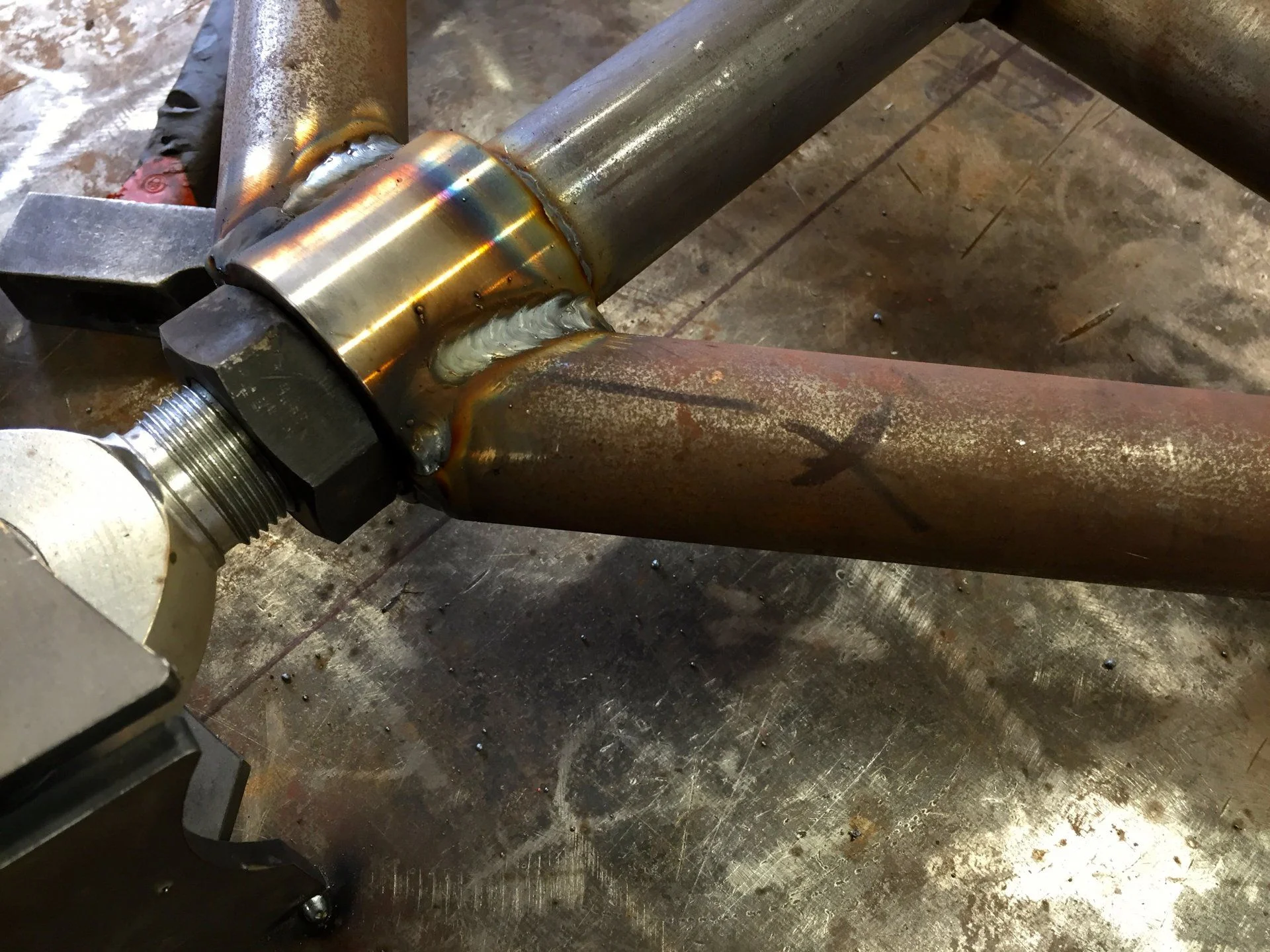

some pics of the build :

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

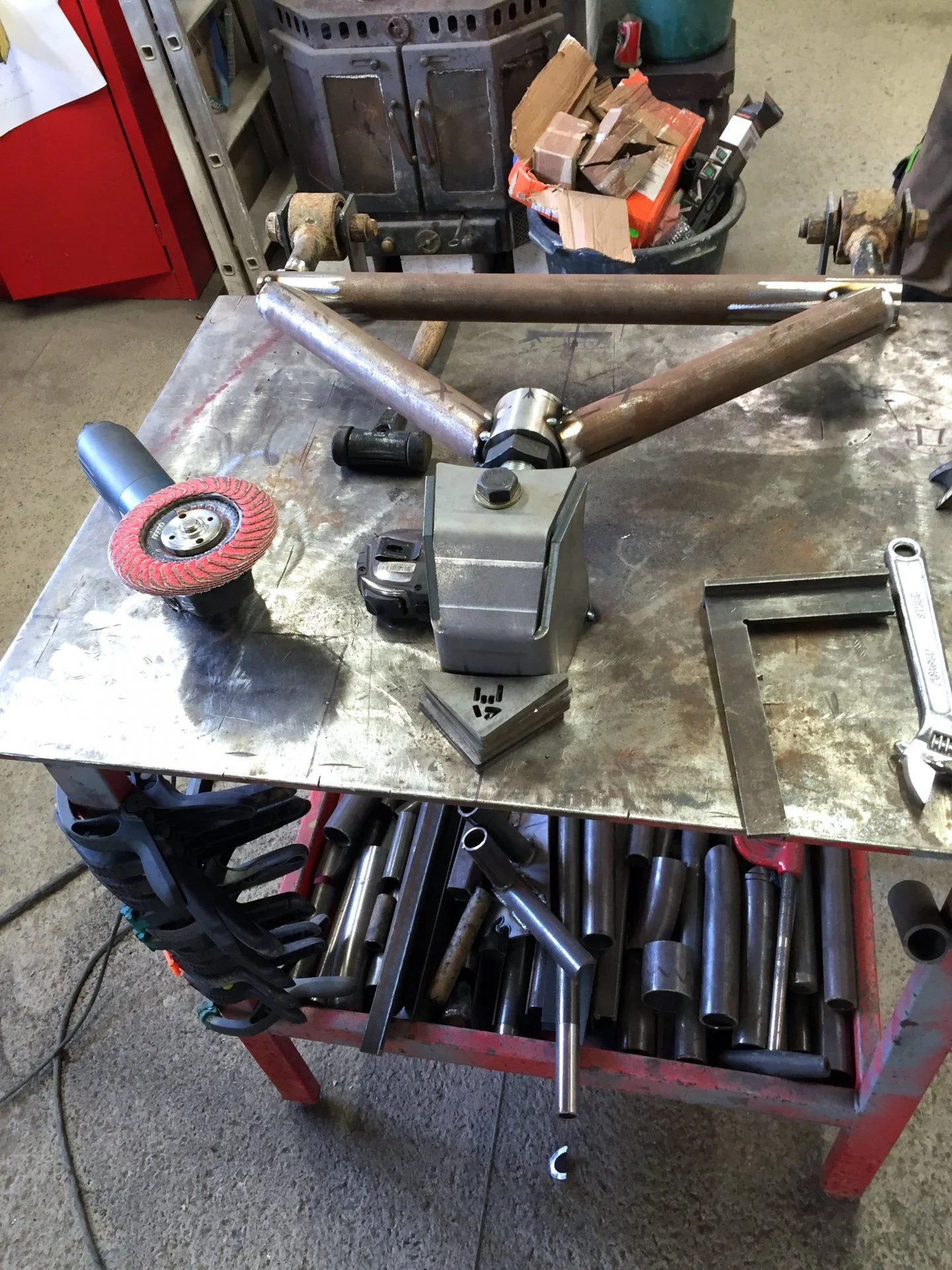

mock up...

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

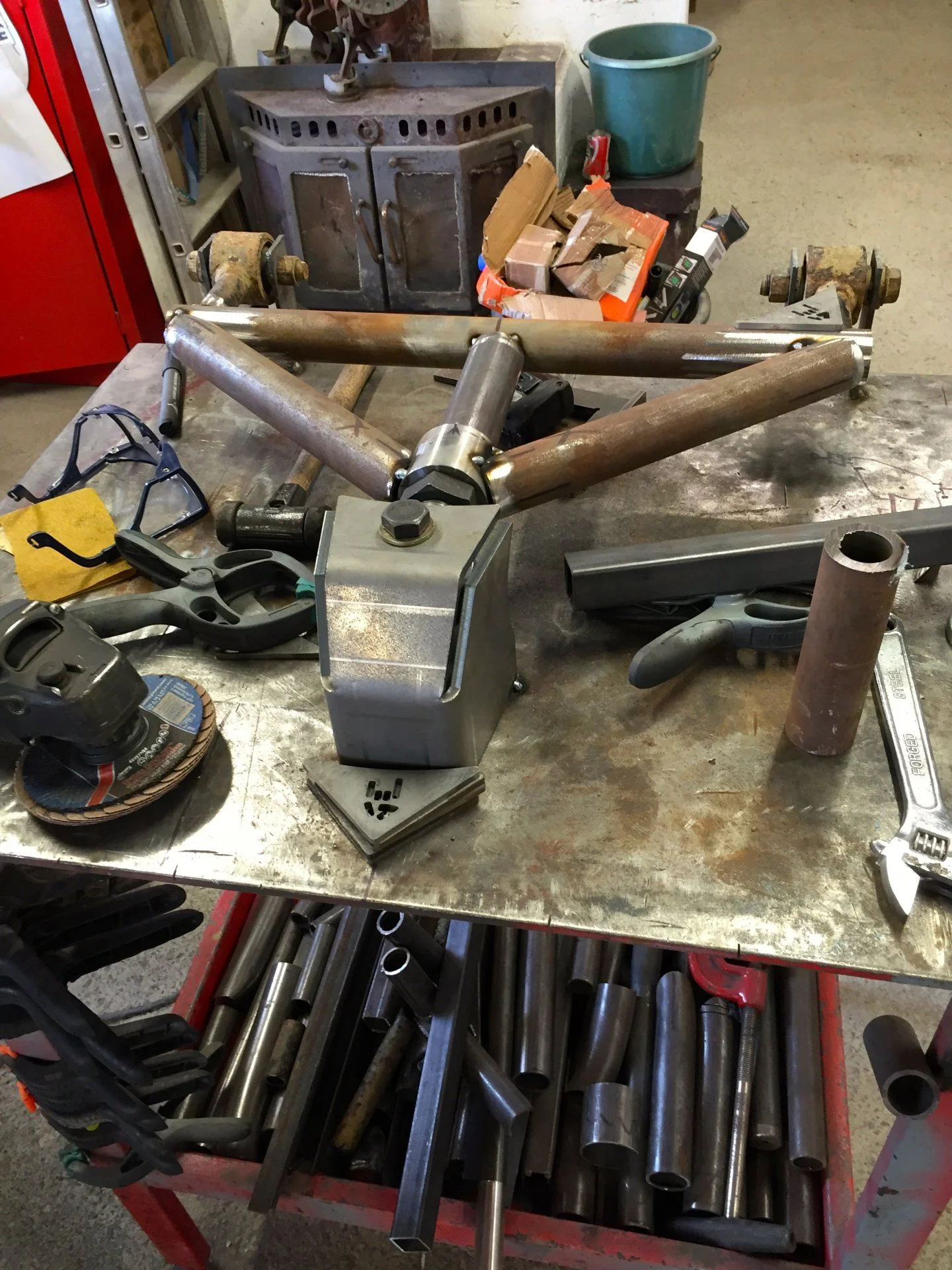

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

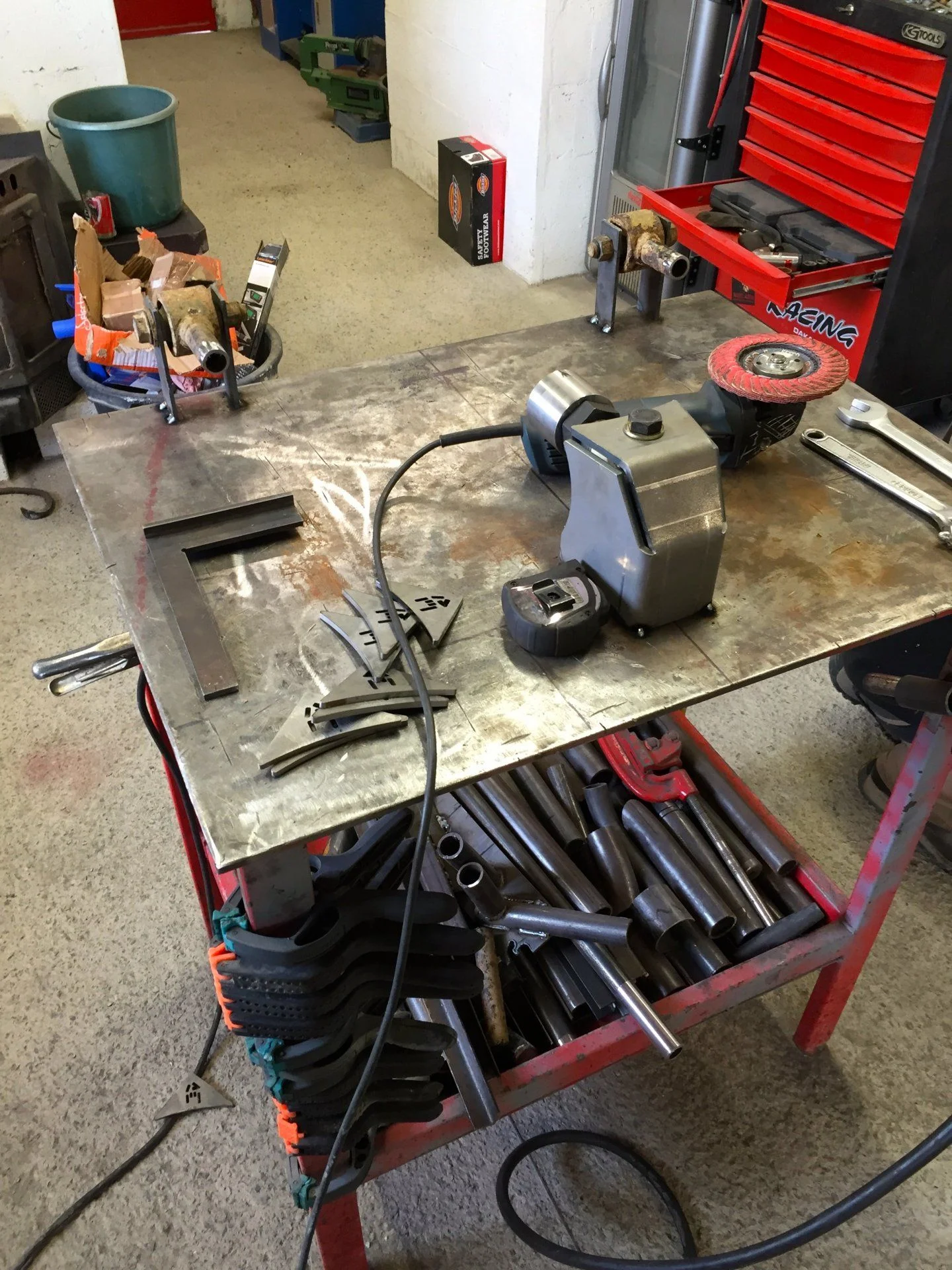

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

you can see how huge those tubes are

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

some gussets for strength

80 rear wishbone build

• jfmaillot
• Oct 4, 2016



[jfmaillot]

and now the brackets burned on the rear axle

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

80 rear wishbone build

• jfmaillot
• Oct 4, 2016

just for more strentgh and for the look too, I will weld some gussets. I love those

this setup has worked perfectly so far. Here in France, the 80 are mostly used for rally and desert assistance. Good manners on and off road, no body roll. I have a 3" lift (king spring + radflo 2.5 / fox 2.0). This thing has seen some abuse you just have to make sure it is level at ride height, grind the chassis brackets a little bit to make room for the gussets and tje most important : the axis of the rod end must be vertical (to prevent lateral play and to provide max articulation)

As long as I don't have coil overs installed, I don't see why I should use all the extreme articulation it can provides as nothing will push the axle to the ground.



[jfmaillot]

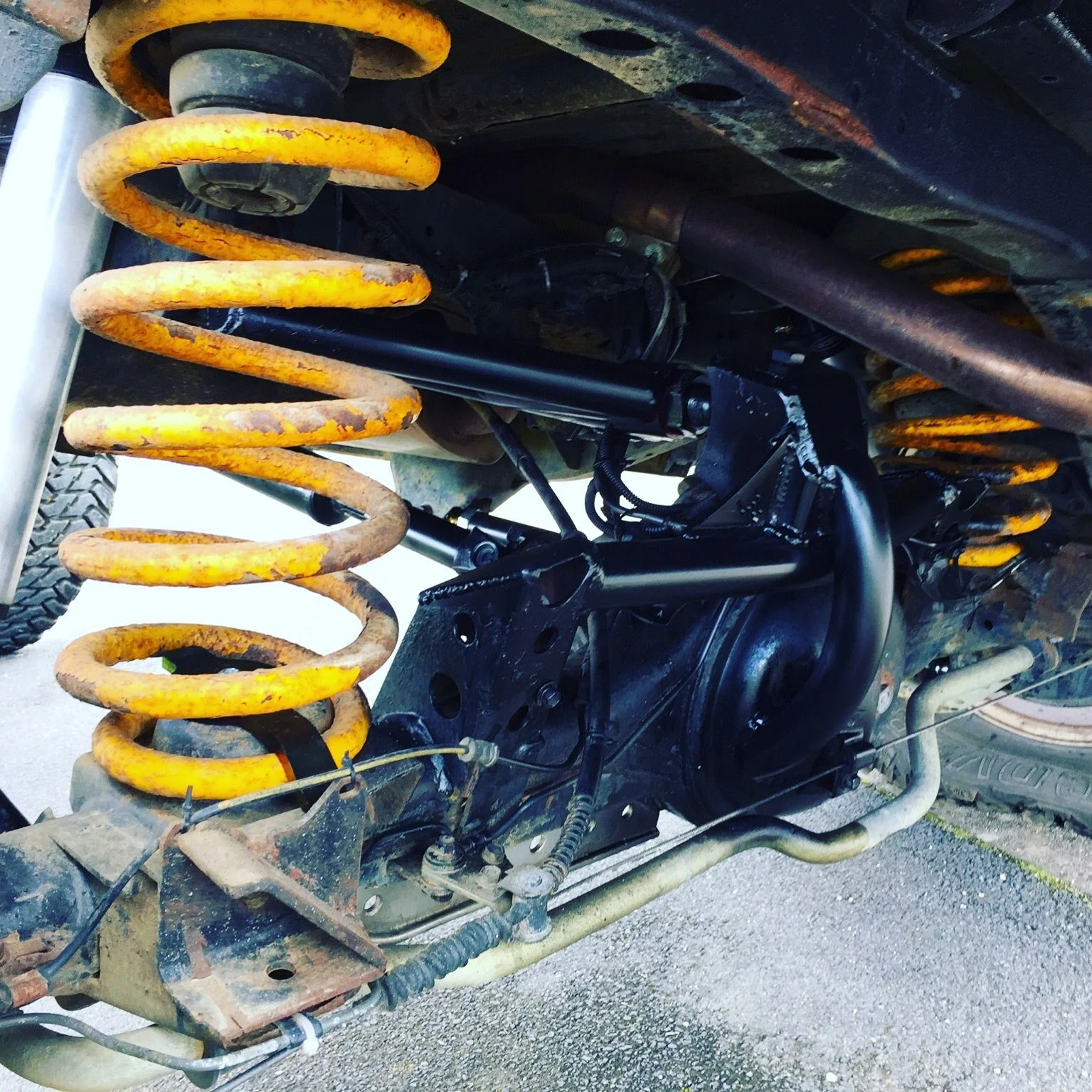

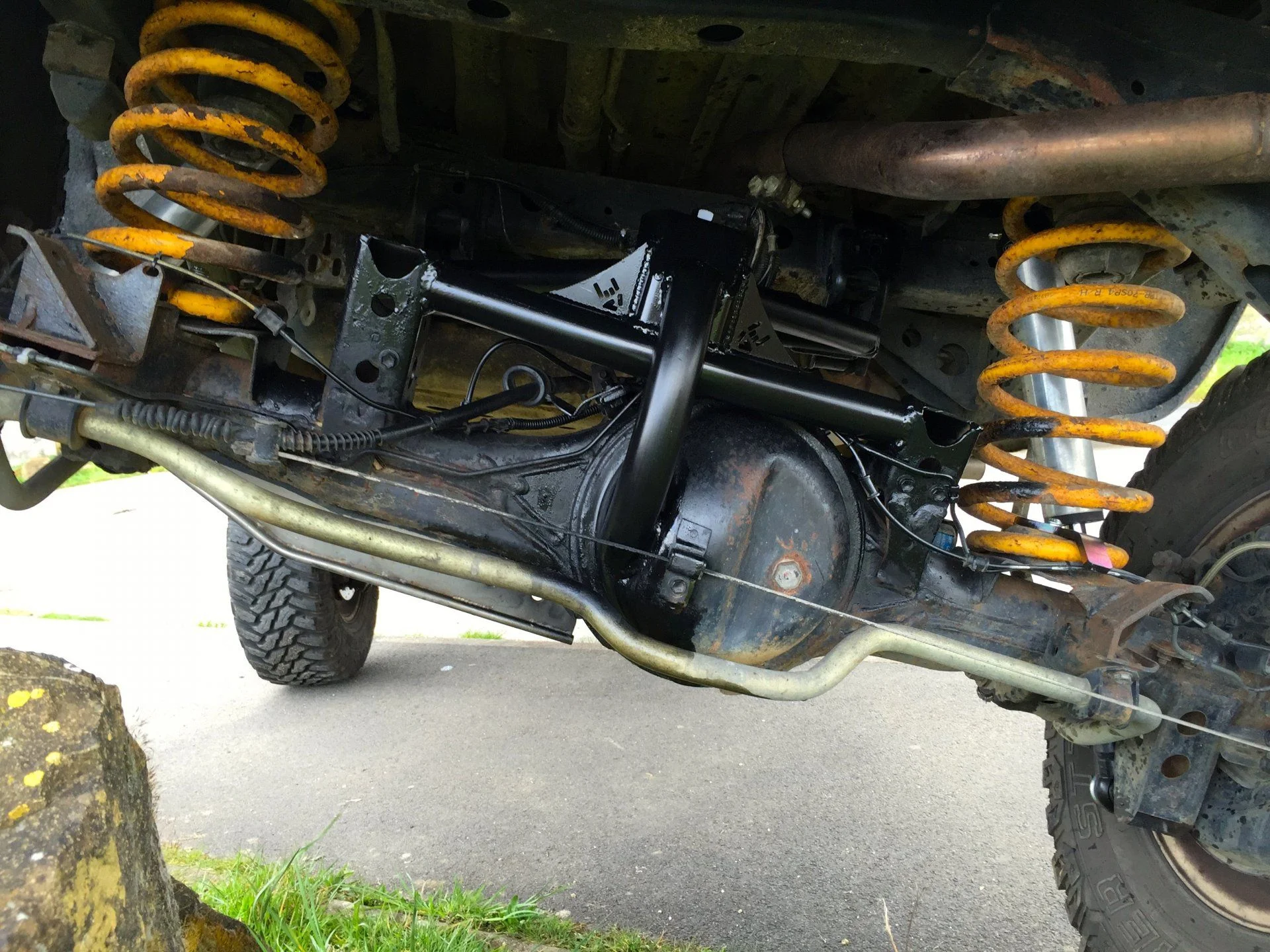

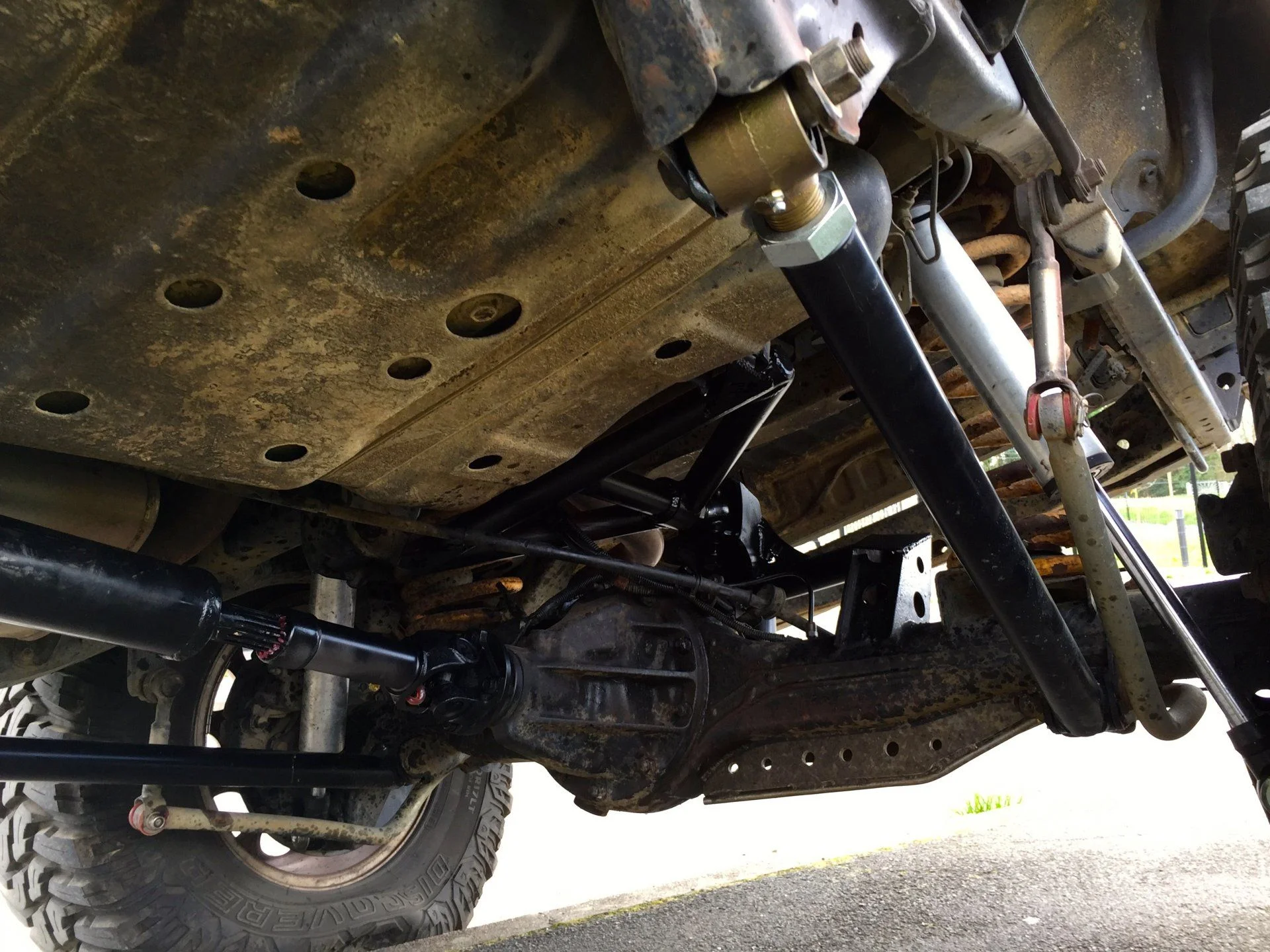

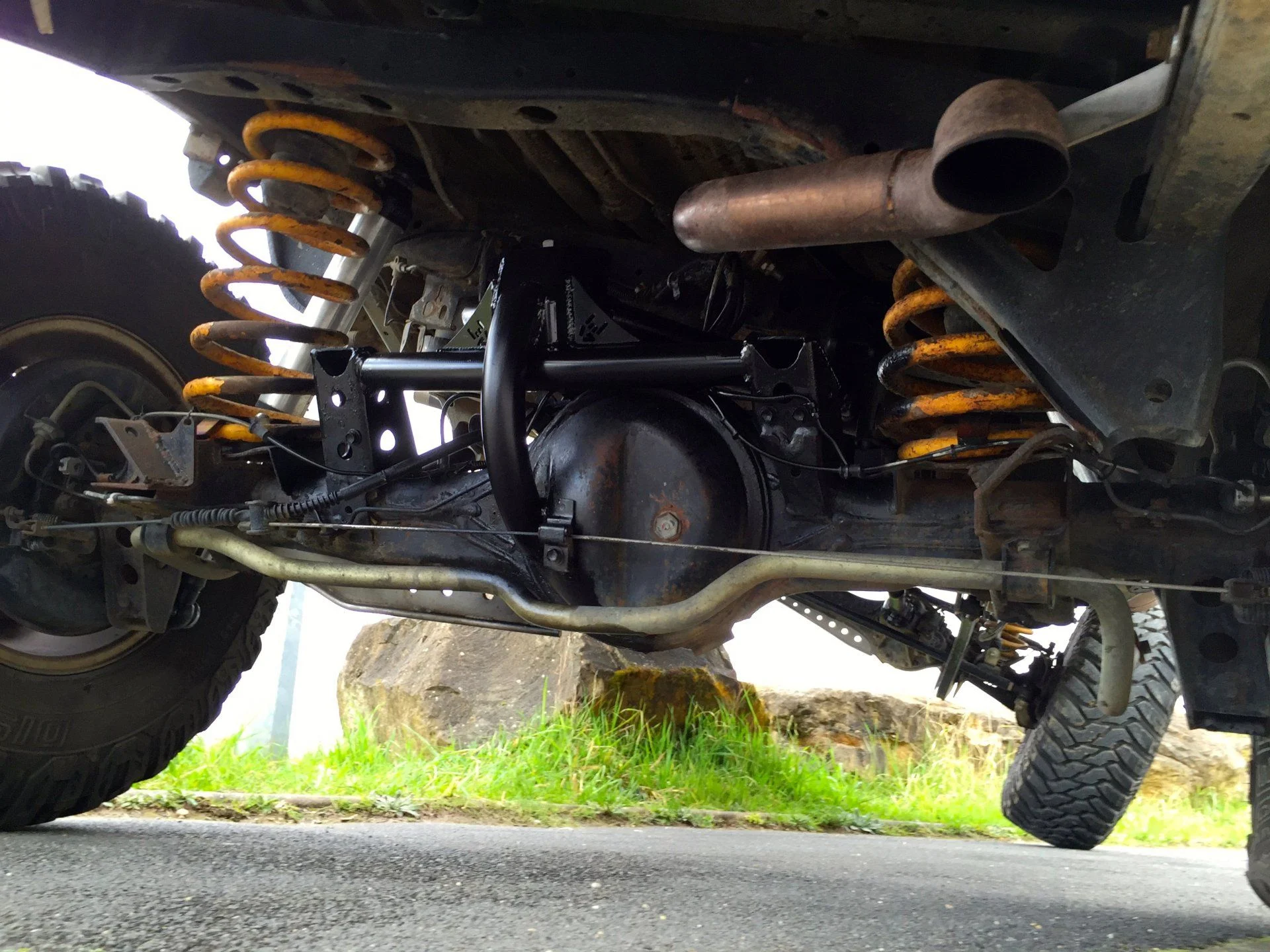

all cleaned up :

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

80 rear wishbone showing off

• jfmaillot
• Oct 4, 2016

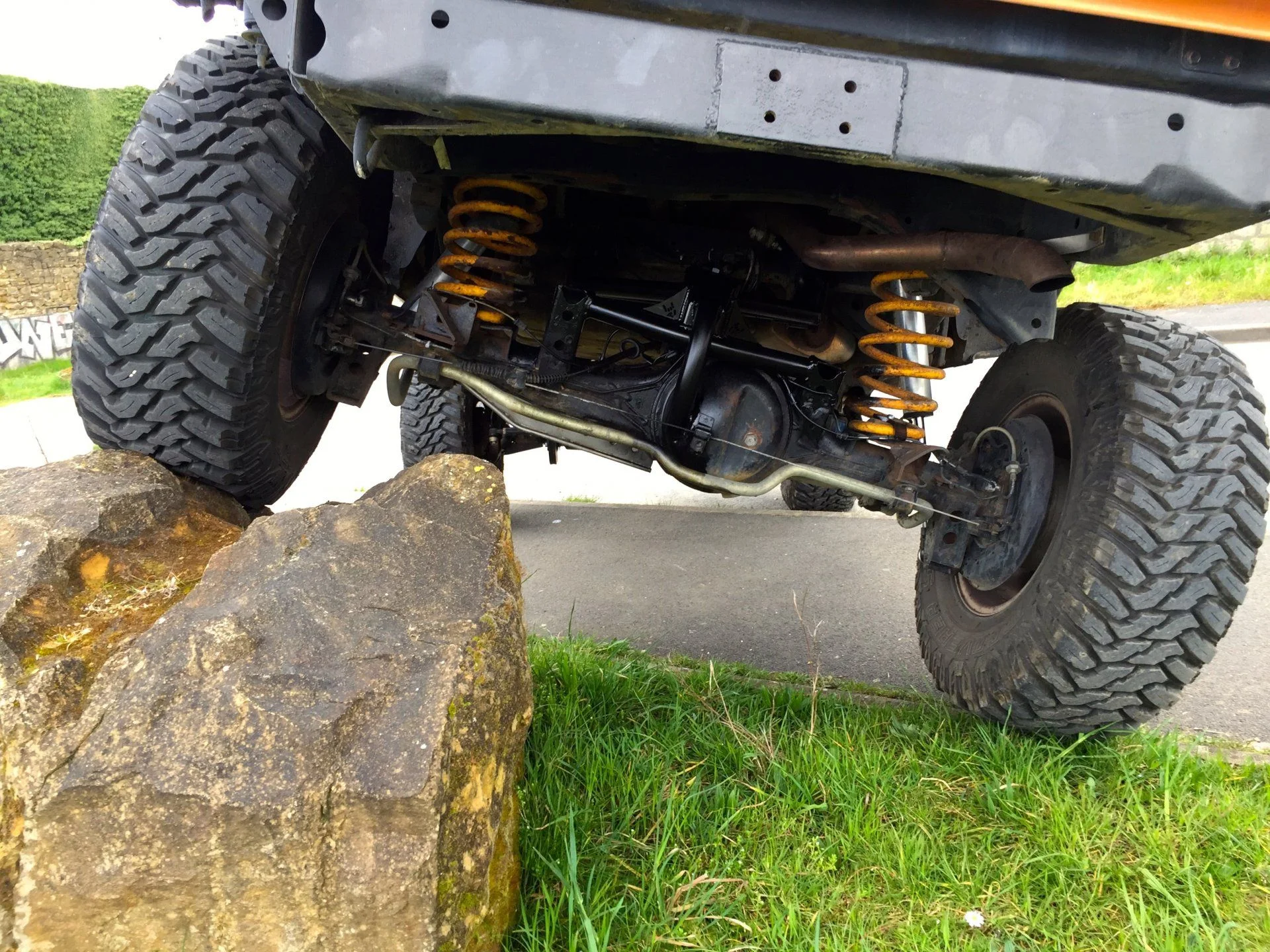

on soe pics we can see that, for now, at max articulation, the rod end can take some more angle.



[bugsnbikes]

This diff reminds me of the movie when the alien comes out of the guys stomach !



[Tapage]

awesome idea ... as I said bolt on material ..



[jfmaillot]

yay
the goal was to do it as simple as I can

This diff reminds me of the movie when the alien comes out of the guys stomach !

what movie ?



[Rivman1243]

▲This▲

Wishbone ran both ways no panhards

Is this a Land Cruiser frame



[LandCruiserPhil]

Is this a Land Cruiser frame

Frame is a Grand Cherokee posted to show the wishbone can run both ways without a panhard



[jfmaillot]

mine is a landcruiser frame



[LandCruiserPhil]

Why do you run the rear driveline reversed?



[dogfishlake]

Nice work. Thanks for sharing!
