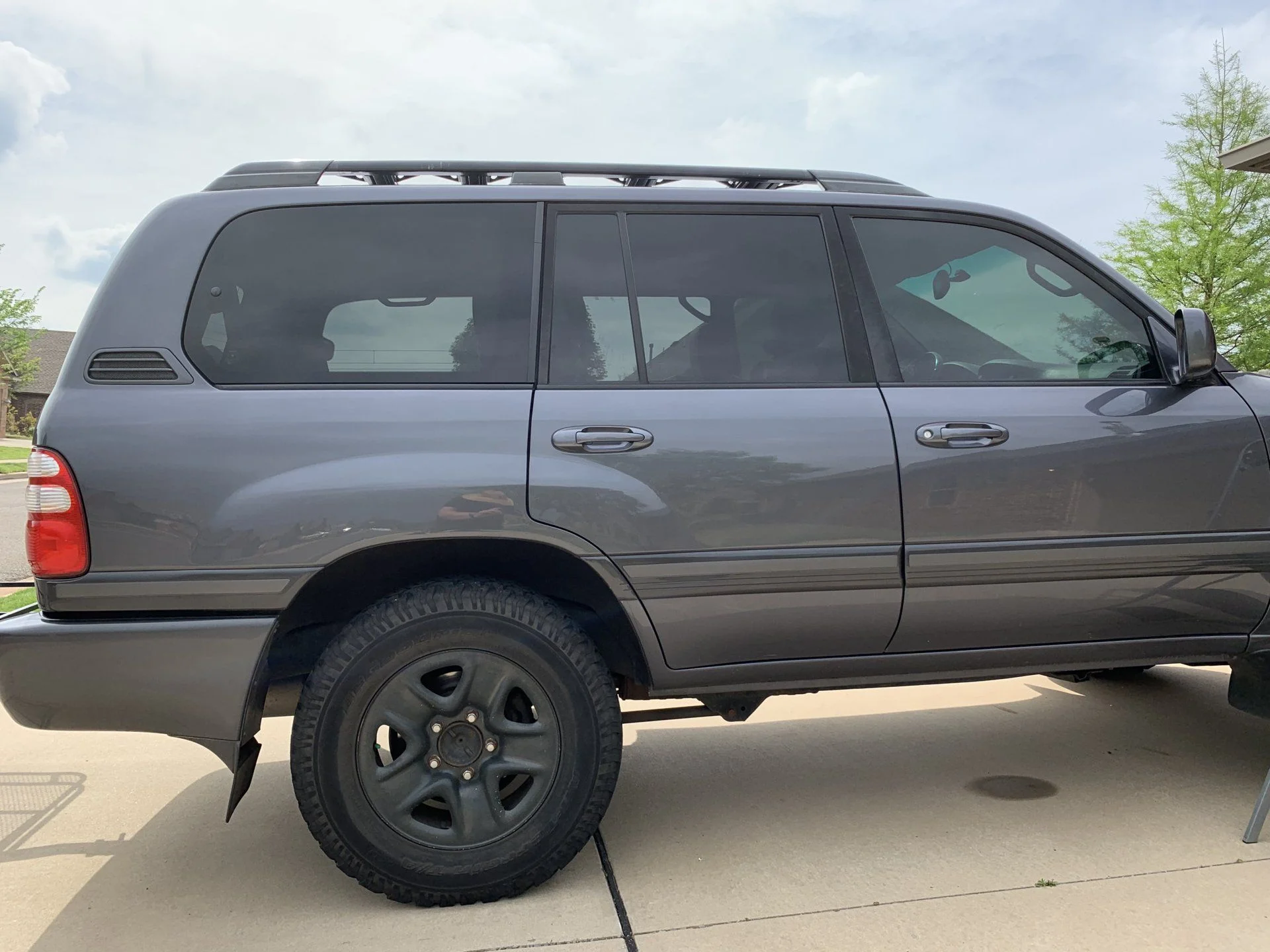

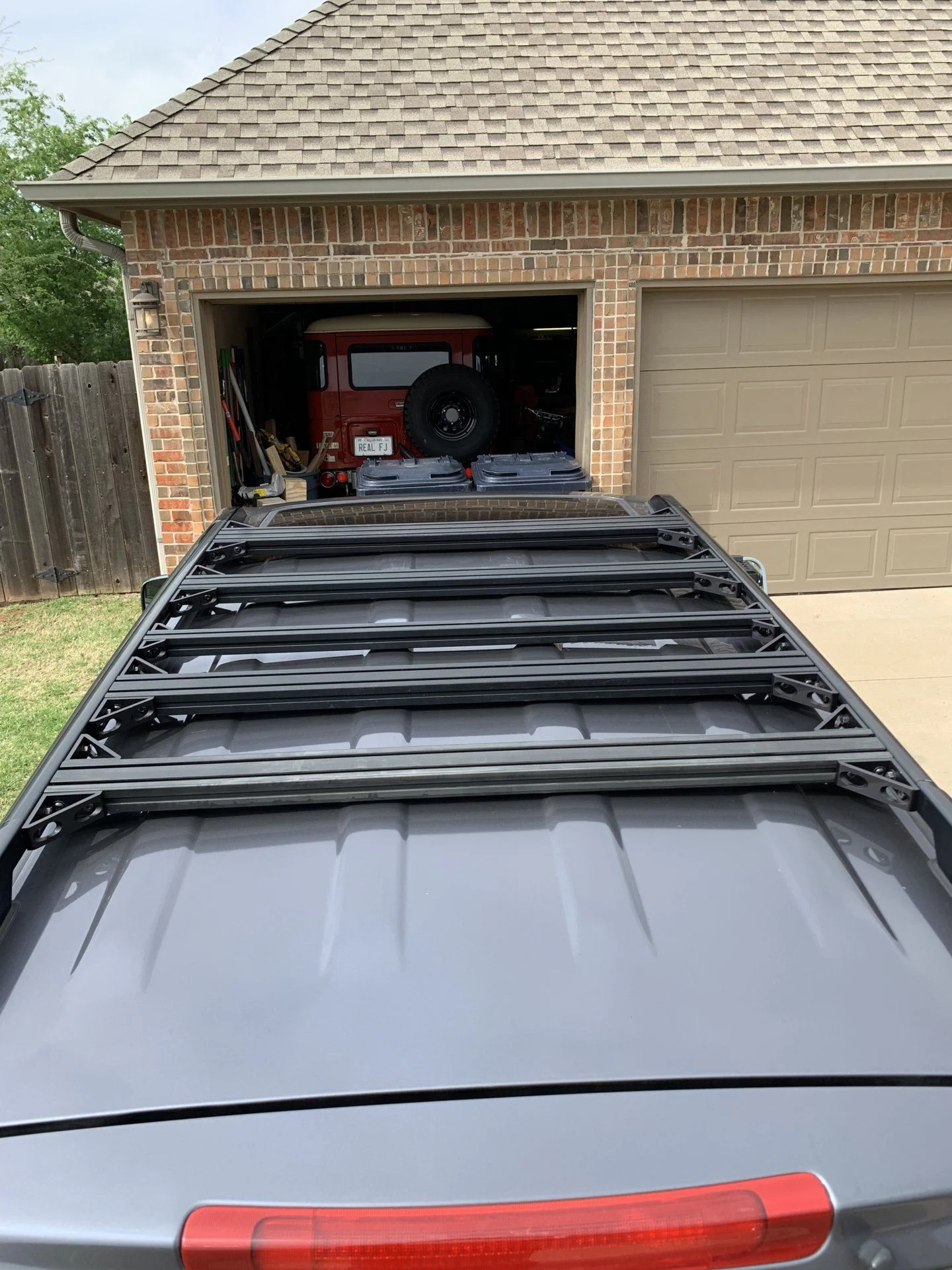

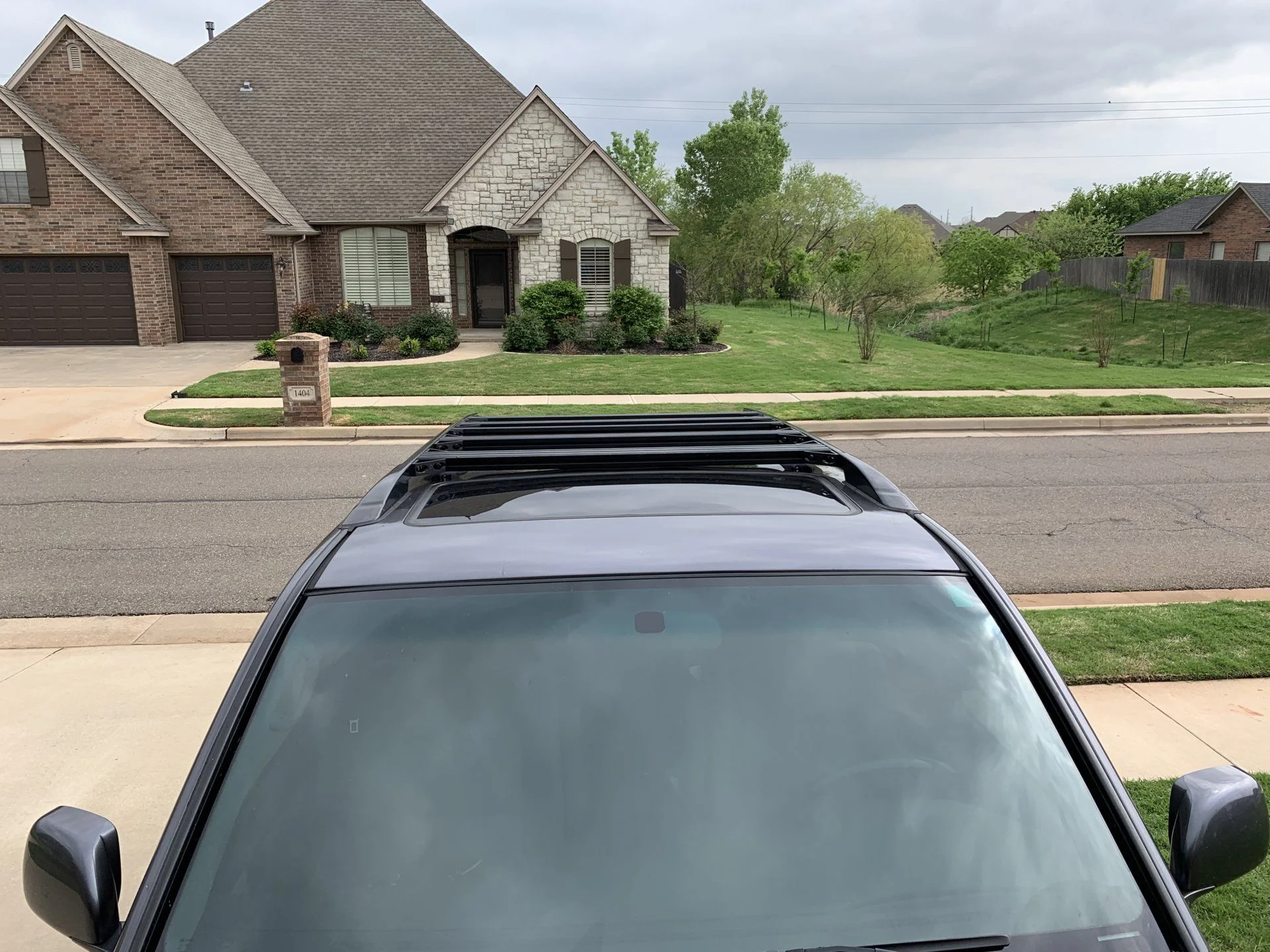

Something I have been playing with for a bit. Different sizes. Different spacing

. Mounts up pretty solid.



[Scrambled]

Looks great!



[leucadiacruiser]

Details! Did you fab those?



[bamabrock]

Gotta give us a parts list!



[implayaz9]

that looks perfect. In for the details.



[CanadianRockyCruiser]

Great idea!



[half k cruiser]

How's the wind noise ?



[Joagmon]

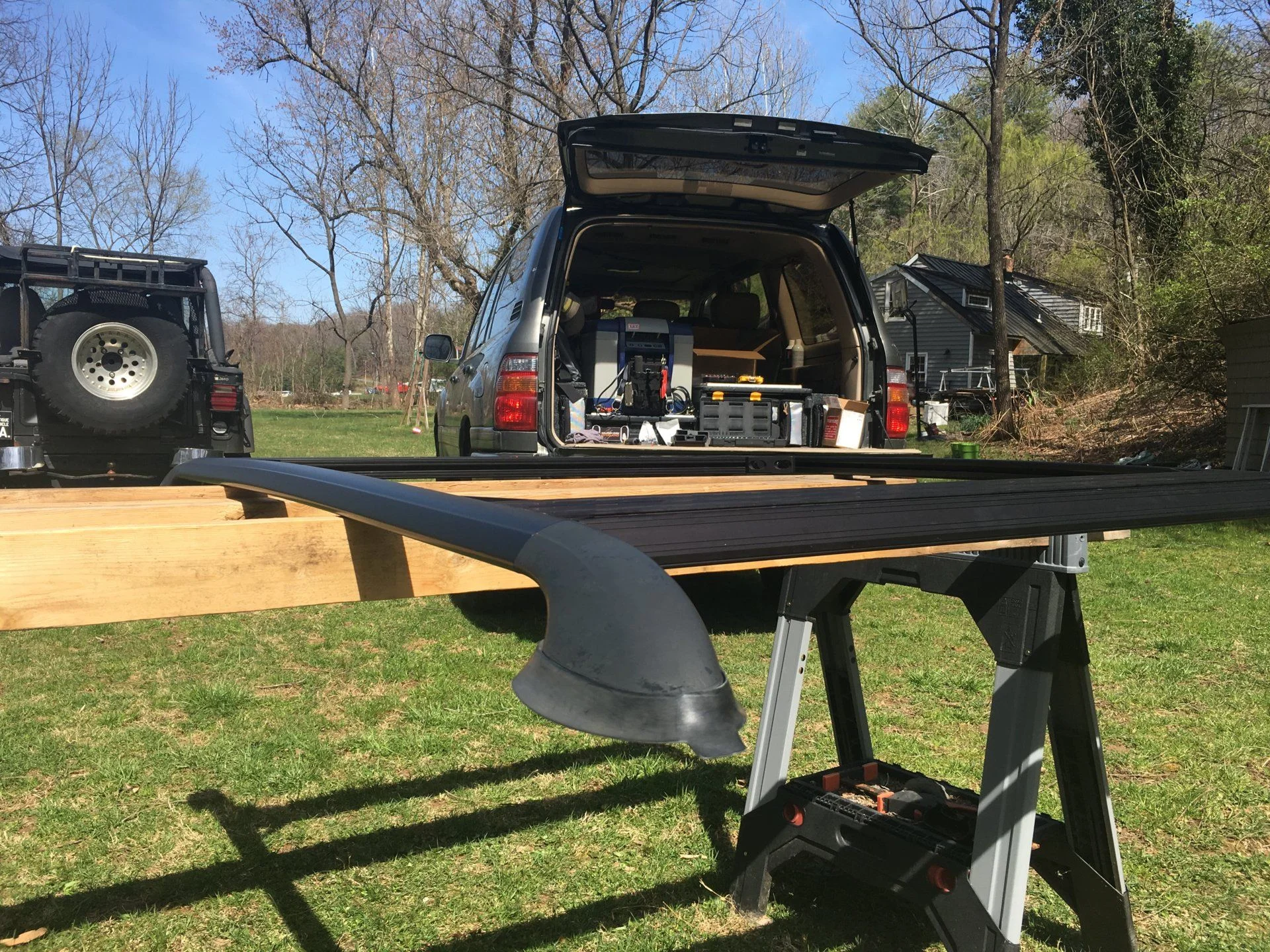

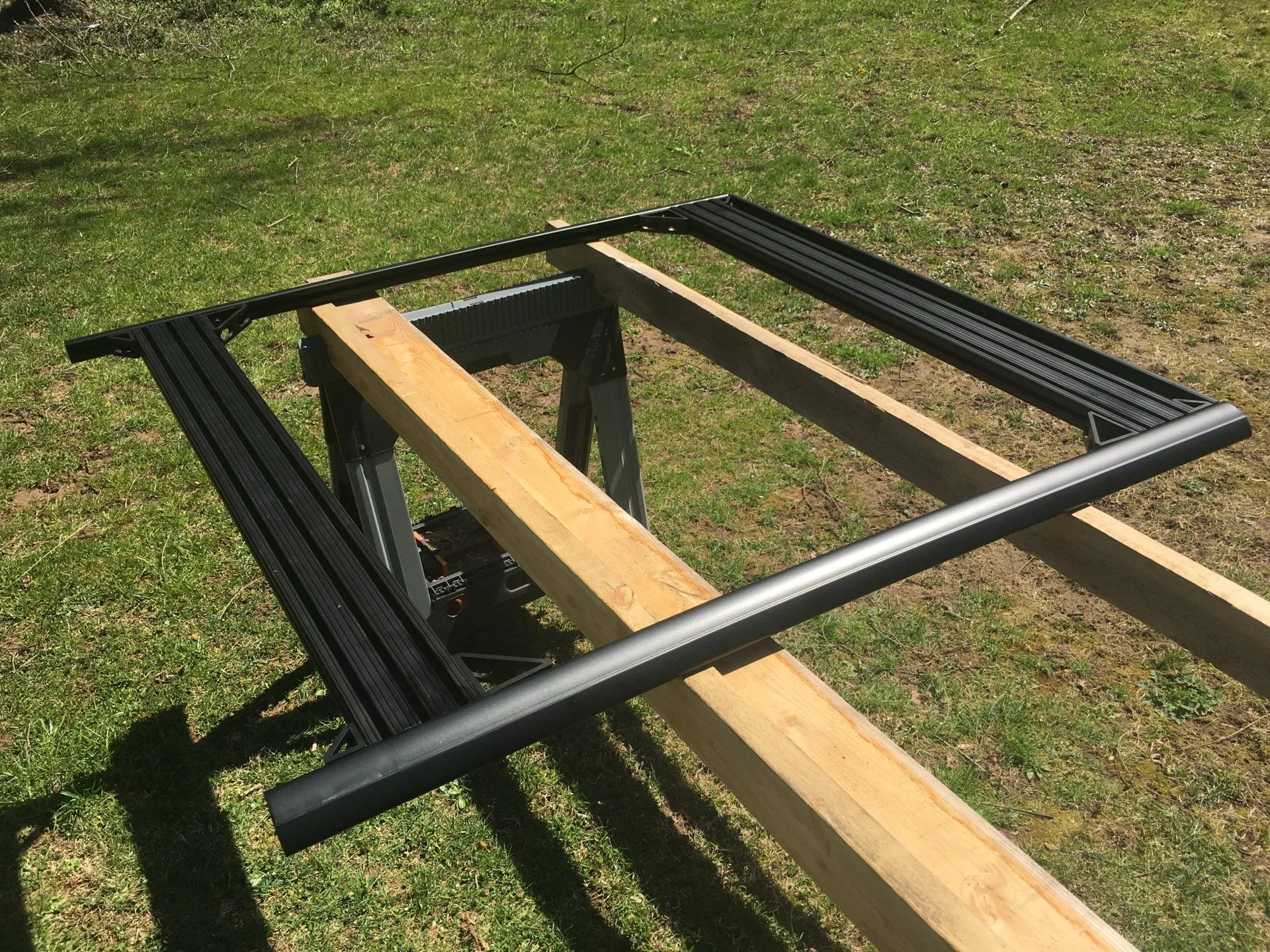

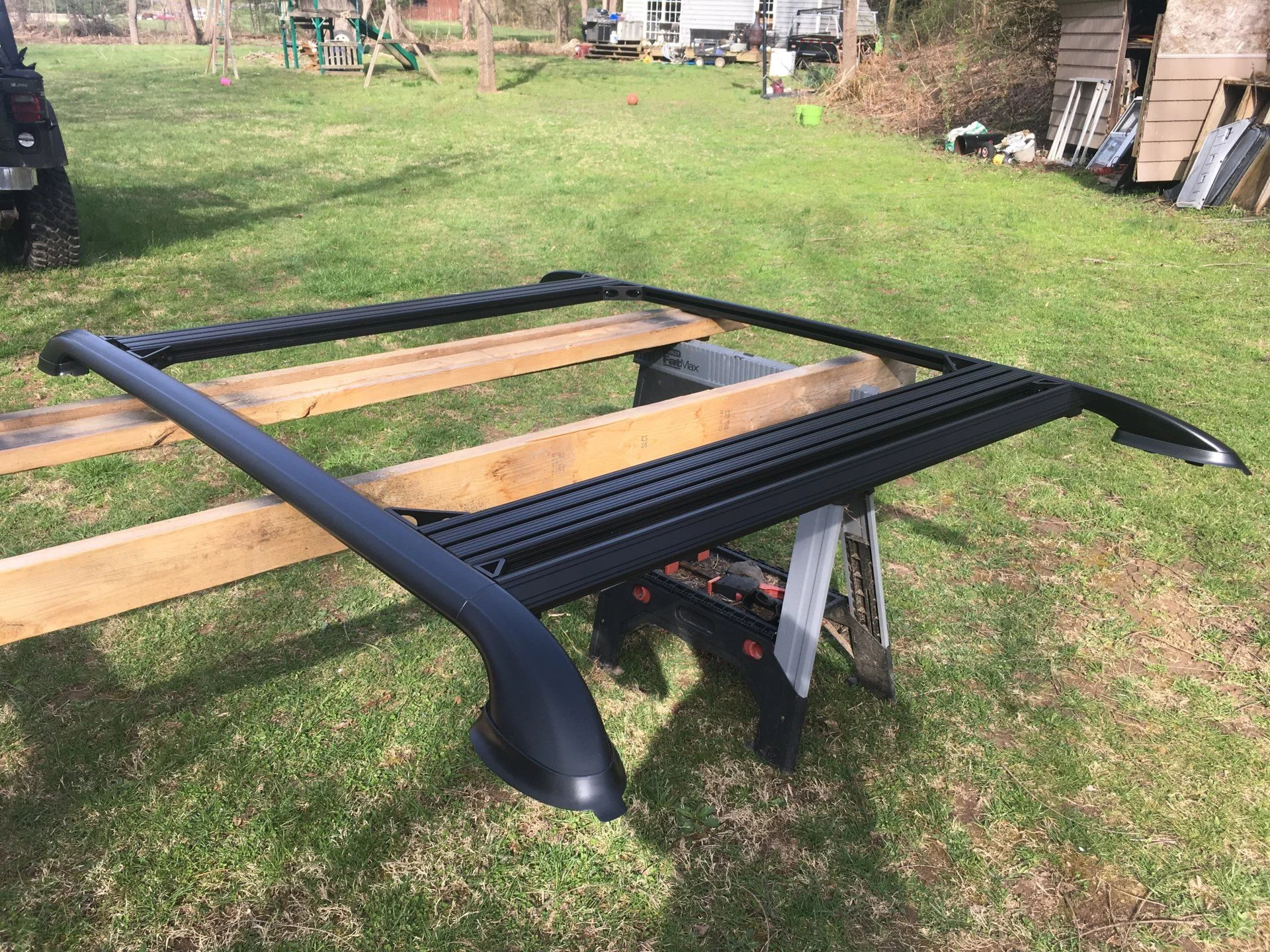

Been playing with the same idea for a while too. I left the center open for recessed solar panels. The tracks make it easy to mount or remove my awnings quickly. It’s pretty much as low of a profile you can get.



[Beams37]

Very cool. Did you cut the 8020 yourself? Where did you get the triangular pieces on each end?



[WoodyCreature]

Been playing with the same idea for a while too. I left the center open for recessed solar panels. The tracks make it easy to mount or remove my awnings quickly. It’s pretty much as low of a profile you can get.

View attachment 1961131

View attachment 1961133

View attachment 1961134

How exactly are you mounting your awning?



[WoodyCreature]

How's the wind noise ?

Zero wind noise. Zero.



[leucadiacruiser]

You guys are killing me WHERE DID YOU GET THE CROSS BARS



[WoodyCreature]

You guys are killing me WHERE DID YOU GET THE CROSS BARS

8020.net 15 series....go from there. They sky’s the limit. Keep us posted on your build.



[leucadiacruiser]

8020.net 15 series....go from there. They sky’s the limit. Keep us posted on your build.

Thanks man! Now I see - I was thinking 80/20 had to do with roof coverage. Looks great - now going into the rabbit hole.



[TXLX100]

What was your total cost? Does it look like enough room to bolt a tent to it? I've made some crossbars for my LX that are same profile but haven't tried mounting anything yet.



[Joagmon]

How exactly are you mounting your awning?

By utilizing 80/20 t nuts in the channels and the original awning brackets that came with my arb and foxwing. The t nuts stay in the channel year round, always there when I need them. Since the brackets stay on the awning and the nuts stay in the channel, it takes about 60 seconds to remove or install the awning.
Yours looks great btw. I like how you used different sizes.



[Beams37]

Found em!



[WoodyCreature]

What was your total cost? Does it look like enough room to bolt a tent to it? I've made some crossbars for my LX that are same profile but haven't tried mounting anything yet.

Depending on your options (number of slots/profile, mounting type, anodized specs, etc) each bar can run about $85-$165. Look closely at my pics and you can see 3 different examples of the 8020 profiles used. I’m probably most happy with the 6 slot (2 on top and bottom and 1 on each side). Those were ~$115 each with shipping, not anodized on the ends, I just shot a little black automotive spray paint on the cut to “seal” them.

As far as a RTT, I would imagine no problems with supporting or having enough room, guess it all depends on your RTT specs.



[higglesworth]

Thanks for this!

For people asking for details or part numbers I think these are correct on 80/20.net (just going off pics, might be wrong though):

Corner brackets: 4336-black
Crossbars: 1530-black
T-nuts: 3203
Fasteners for brackets to crossbars: 3320



[bamabrock]

Thanks for this!

For people asking for details or part numbers I think these are correct on 80/20.net (just going off pics, might be wrong though):

Corner brackets: 4336-black
Crossbars: 1530-black
T-nuts: 3203
Fasteners for brackets to crossbars: 3320

4336
T-Slotted Profiles - Framing Options
3320
