Our power distribution block.

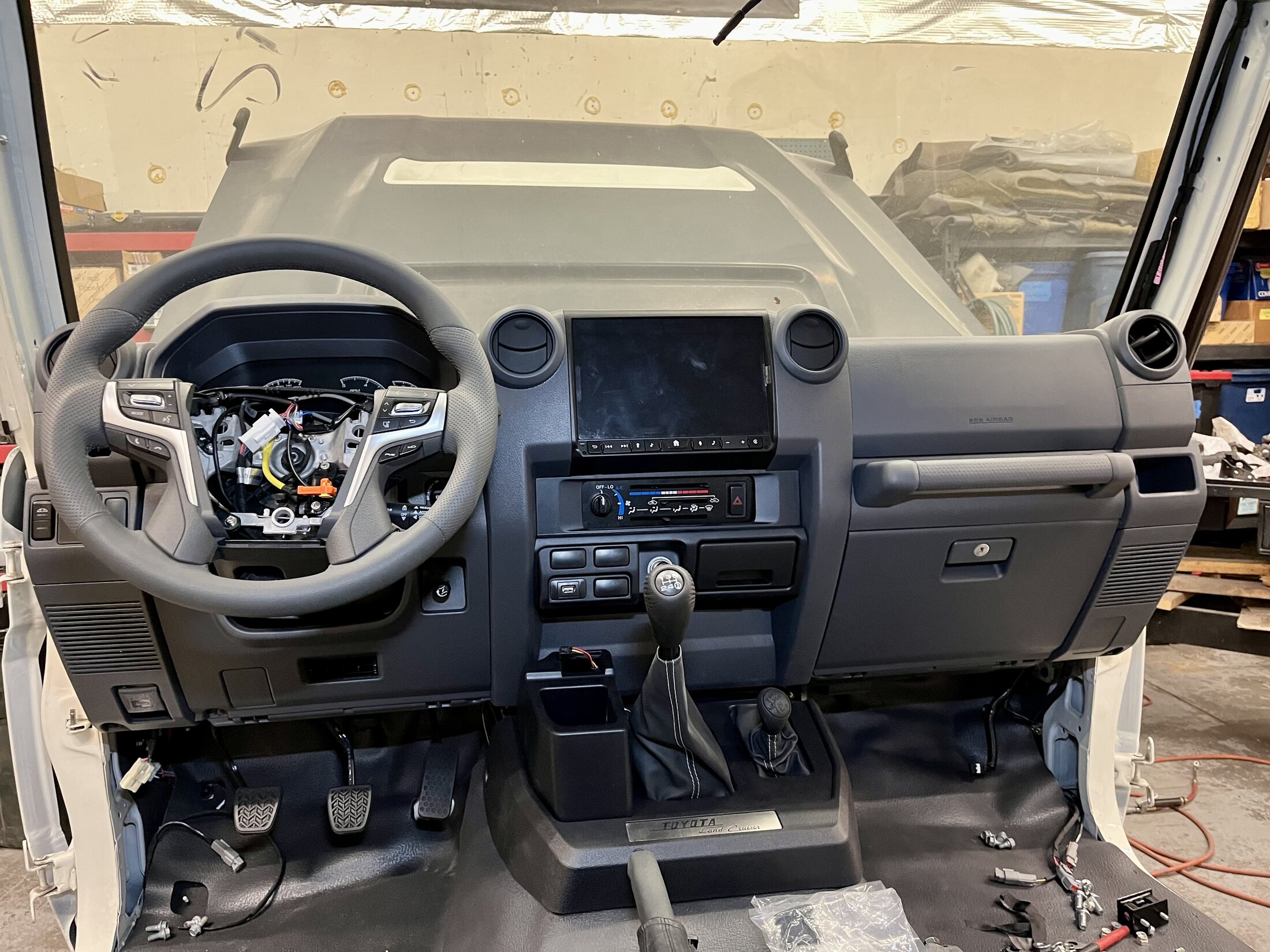

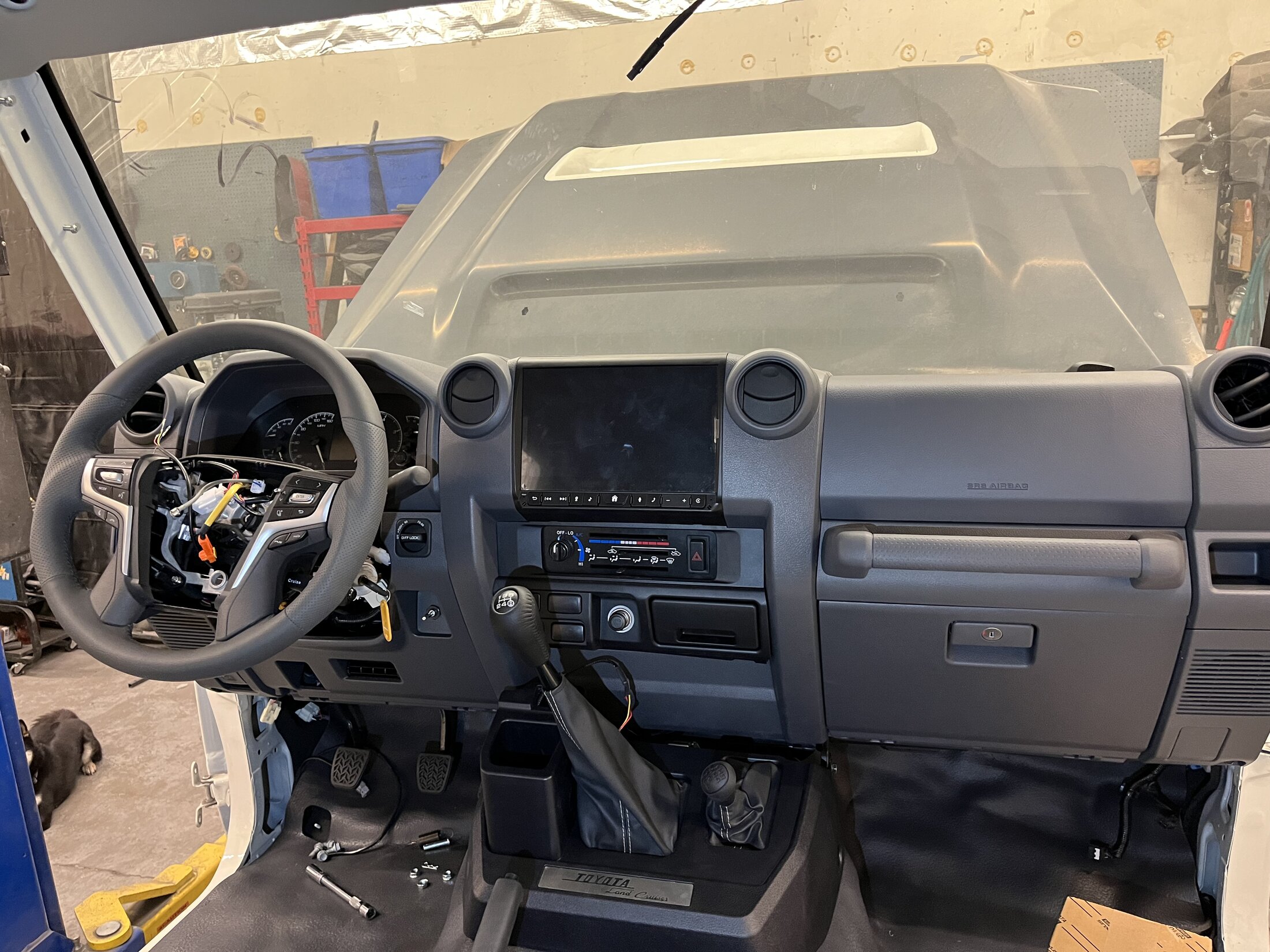

Dash just about wrapped up.

Cheers



[Gun Runner 5]

Will the airbags be active?



[SNLC]

Will the airbags be active?

If it wasn’t we would install the upper glove box for double glove boxes.

Cheers



[cruisermatt]

Nice PDM



[Gun Runner 5]

If it wasn’t we would install the upper glove box for double glove boxes.

Cheers

Thanks…
I was under the impression (obviously incorrectly) that the ones with airbags wouldn’t have the grab handle. Thanks for the clarification.



[SNLC]

Thanks…
I was under the impression (obviously incorrectly) that the ones with airbags wouldn’t have the grab handle. Thanks for the clarification.

Hundreds of configurations worldwide.

Cheers



[Climbingnut]

I love the power distribution block. Such a simple thing, yet so effective. I have fuses all over my engine bay from installers, who technically did the job, but didn’t think about the customer beyond that. I’m now having to hire a quality auto electrician to bring order to things. Great work as always Ian.



[thatcabledude]

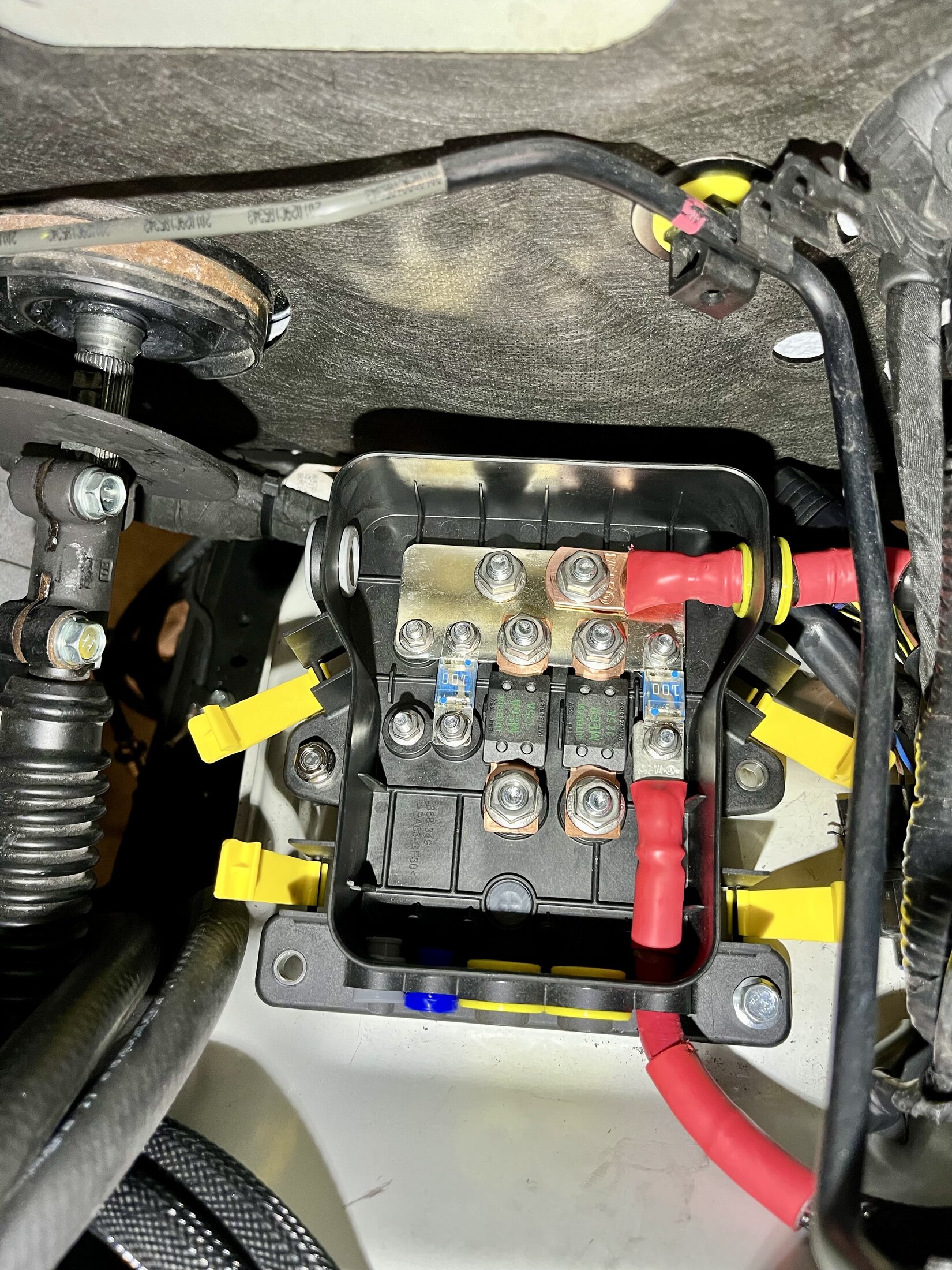

Our power distribution block.

View attachment 3756582

Cheers

That is very cool.



[SNLC]

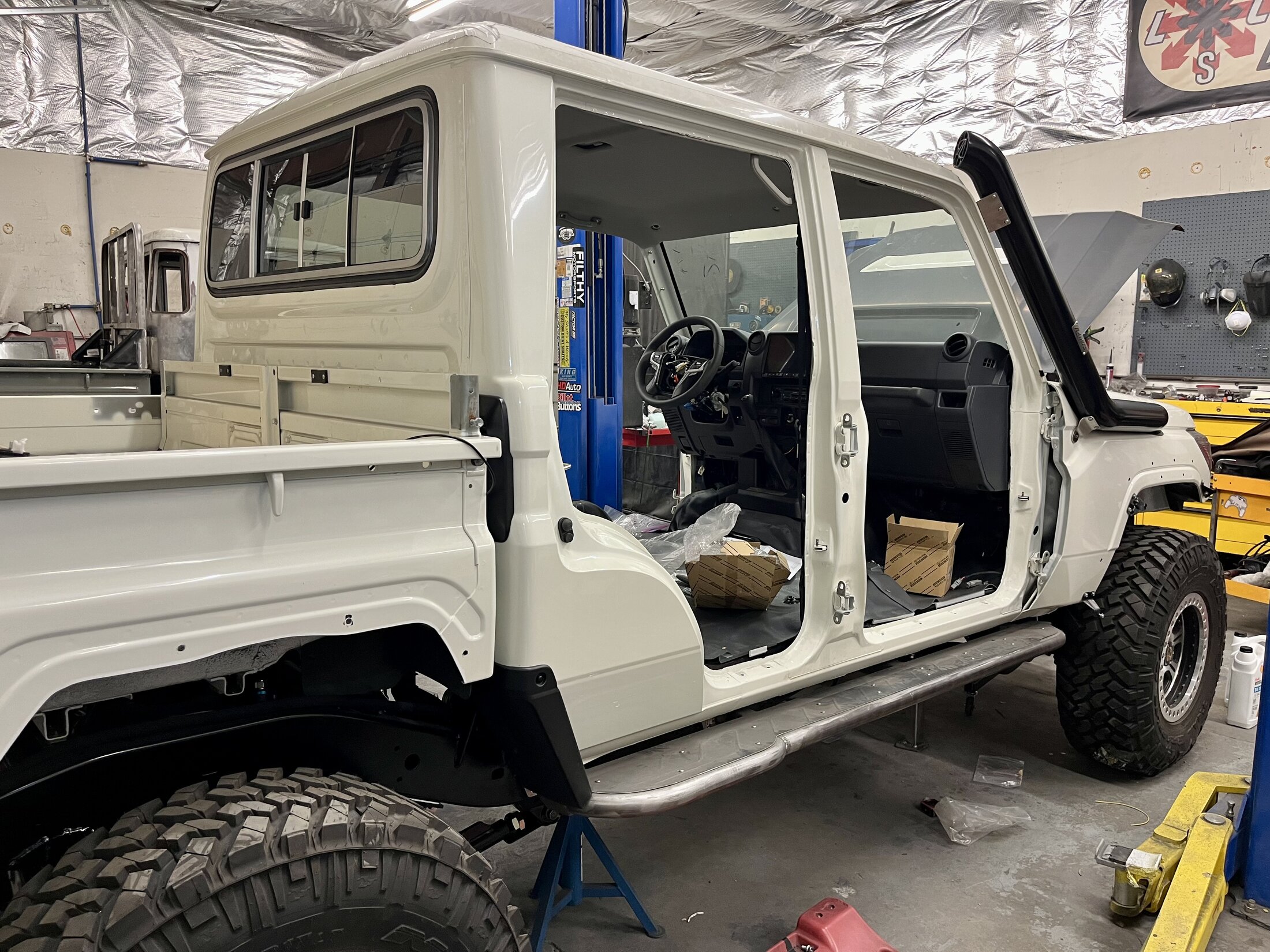

Doors and flares are out right now for some paint work.

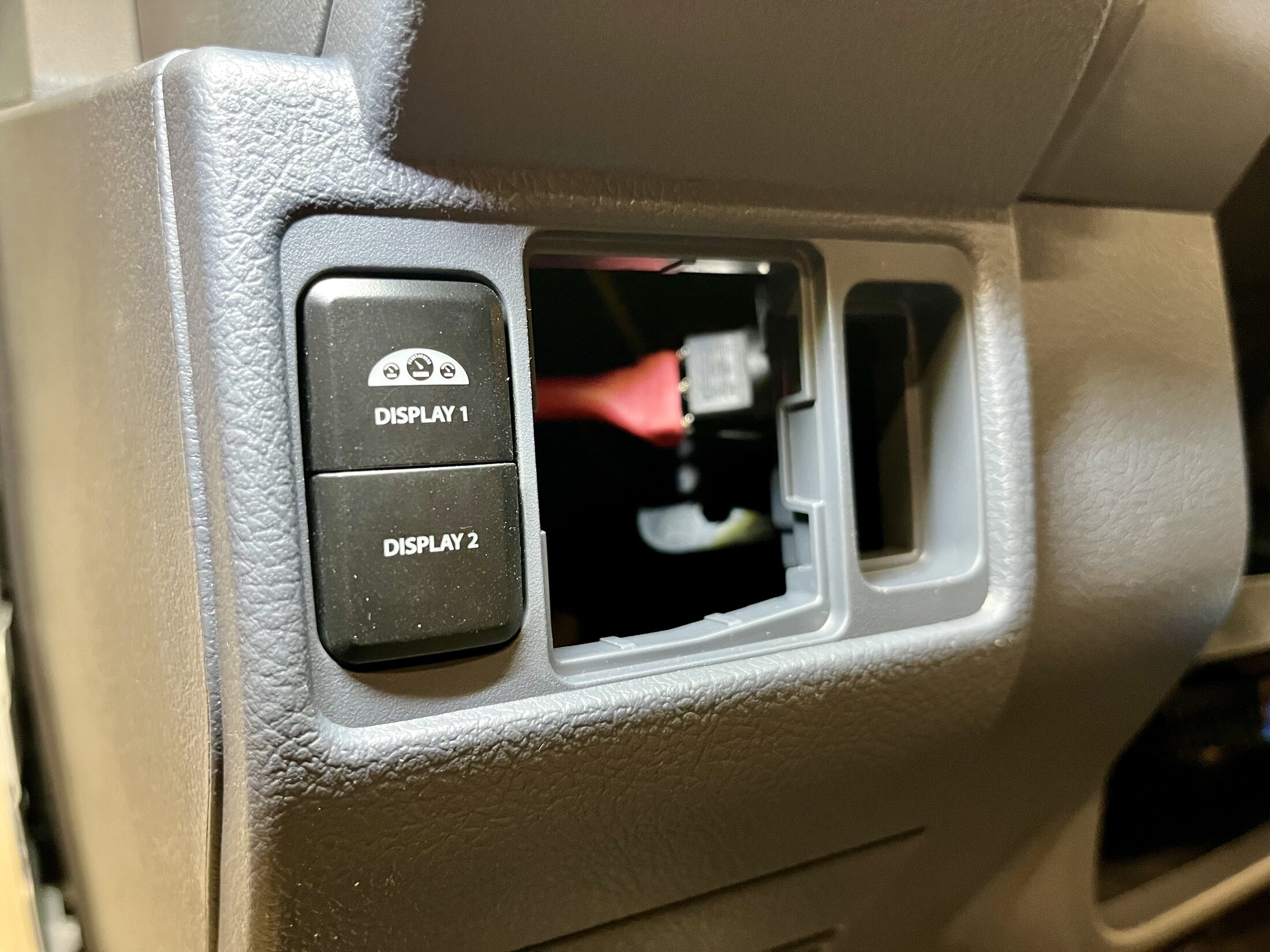

Switch to control the screen in the gauge cluster.

Power distribution block location, yes you can get at it and open it to change fuses.

Fuel filters.

Power steering cooler, didn’t feel the need for anything large but it needed something better than a paper clip.

Cheers



[SNLC]

Exhaust build happening as well.

Cheers



[SNLC]

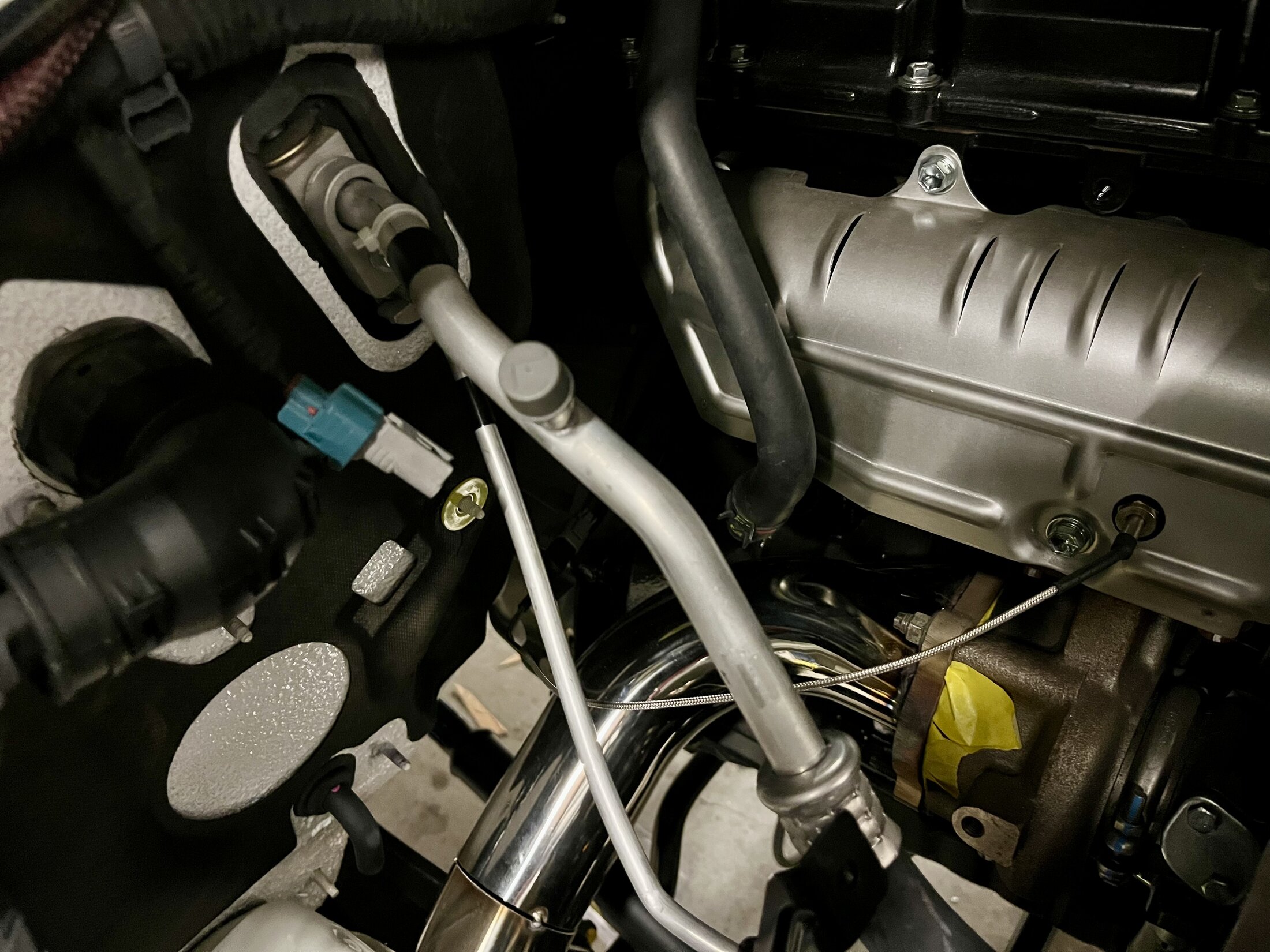

A/C lines and cap on the compressor finished up.

We will wrap the lines here near the turbo and exhaust to finish it off.

Cheers



[SNLC]

It’s funny, when we start these “wide nose” conversions and builds we are always like, “look at all that room in the engine bay”!

By builds end it’s all gone!

Catch can plumbing done.

We left room around the catch can to be able to reach in and pull the basin to dump.

HDJ79 (1HDFTE) OEM Toyota fuel filters fitted, primary and secondary, 12mm in and out on them as well to suit our fuel system plumbing upgrades. Mounting bracket we built.

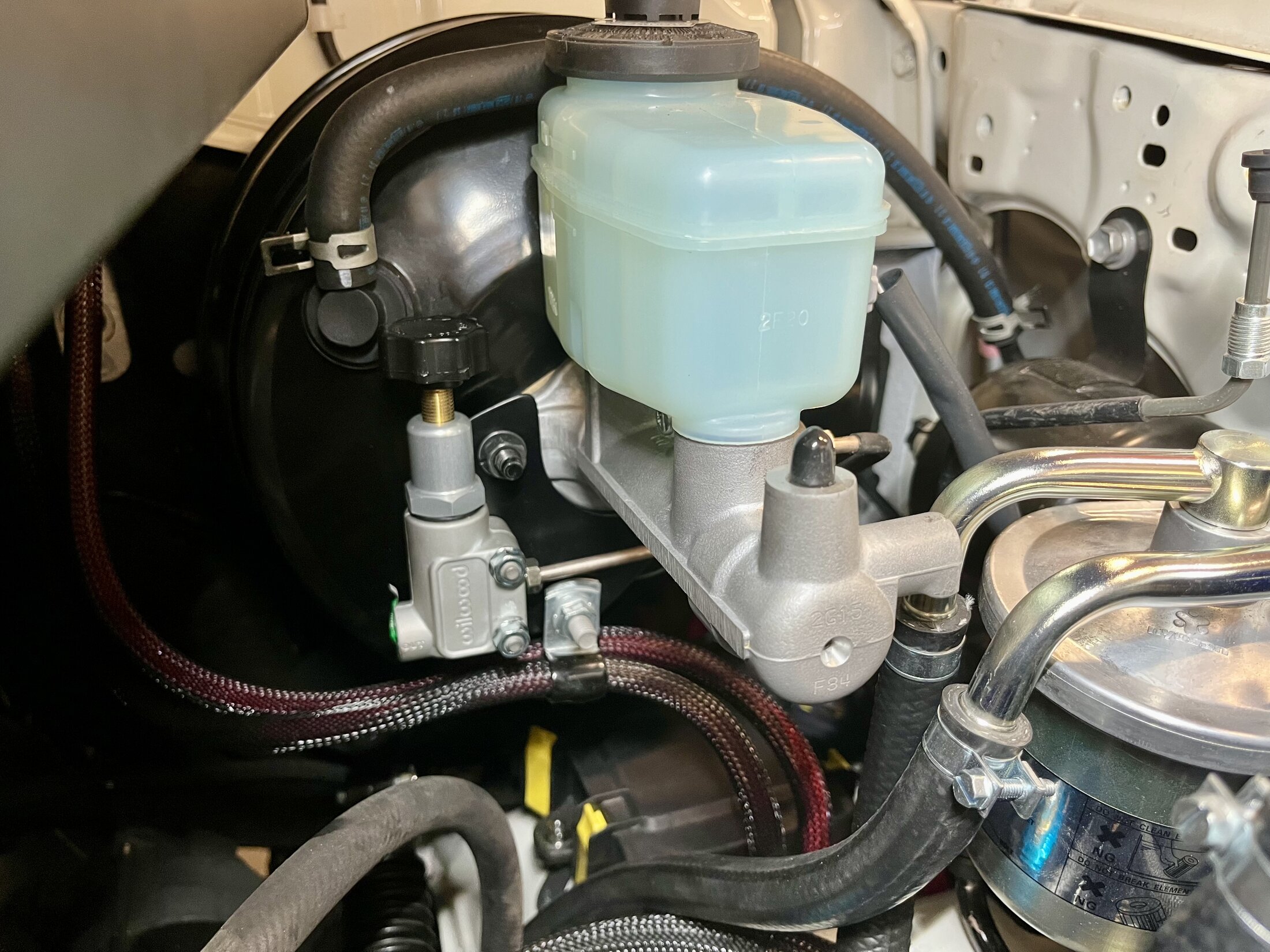

Wilwood brake proportioning valve since we are not running an LSPV. Booster is an upgraded dual diaphragm from PDI in Australia.

Got to find a spot in the engine bay for this! Care to guess what it is for?

Cheers



[SNLC]

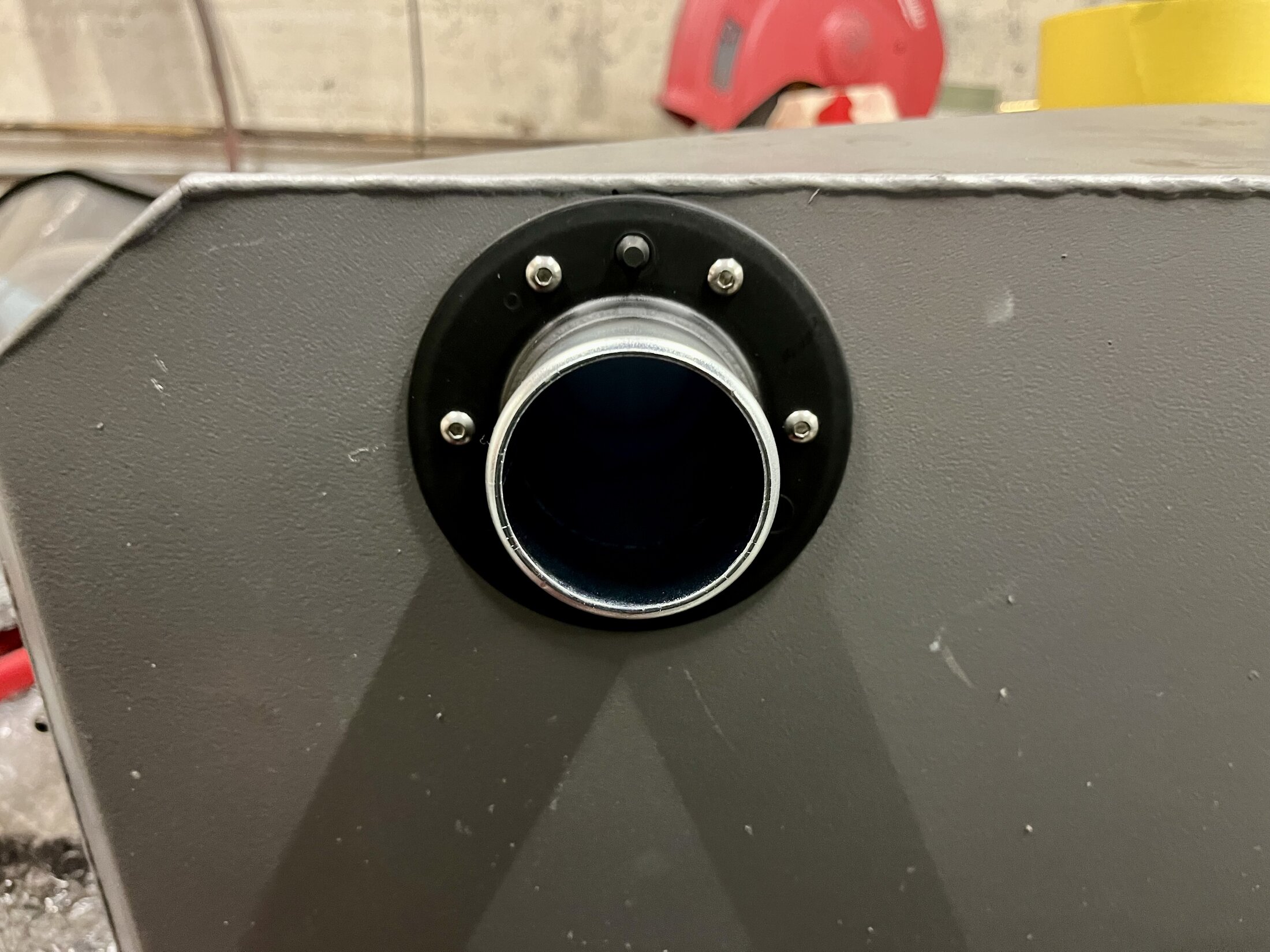

Fuel tank mods.

Cheers



[Rigster]

It’s funny, when we start these “wide nose” conversions and builds we are always like, “look at all that room in the engine bay”!

By builds end it’s all gone!

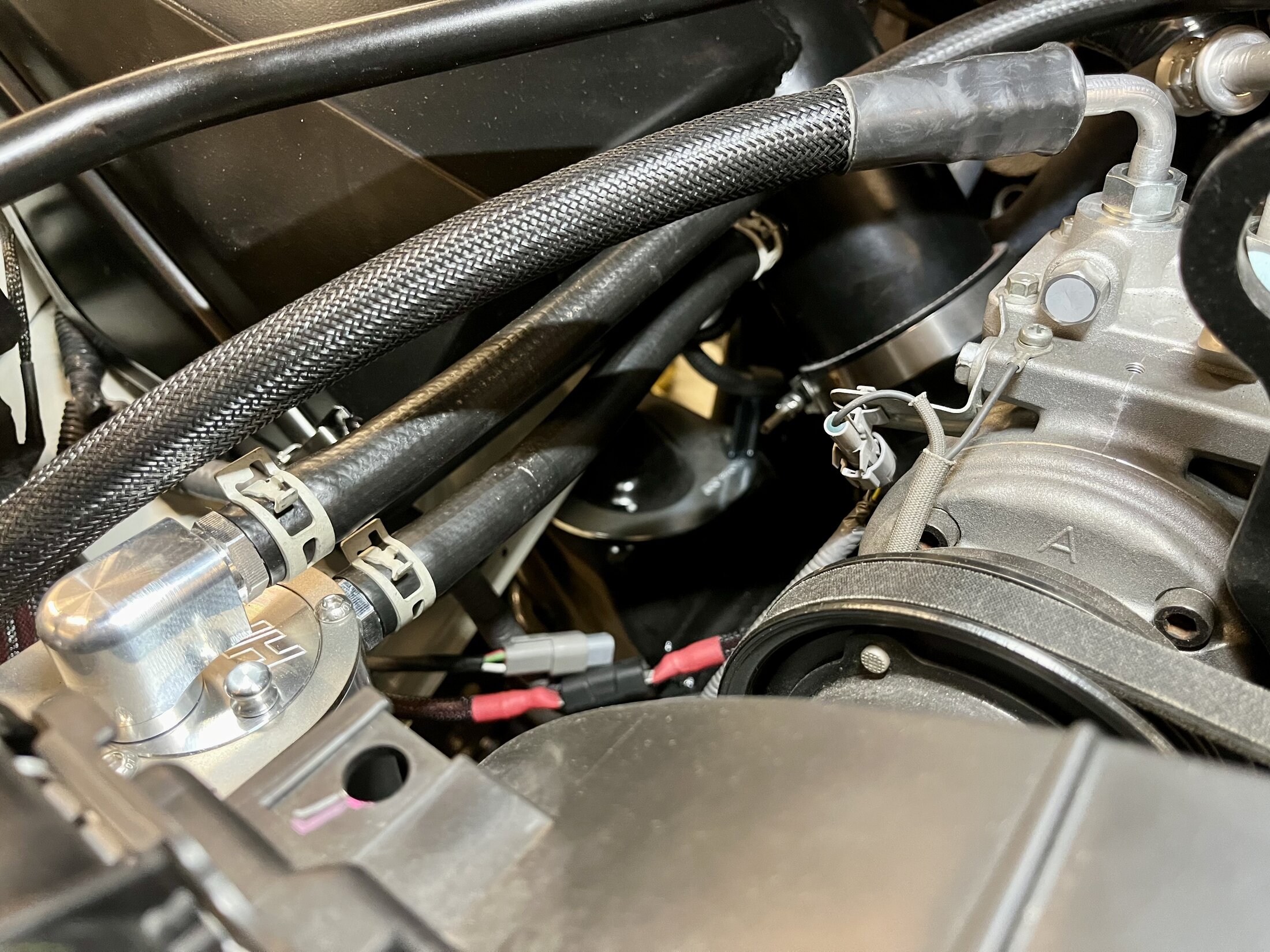

Catch can plumbing done.

View attachment 3765847

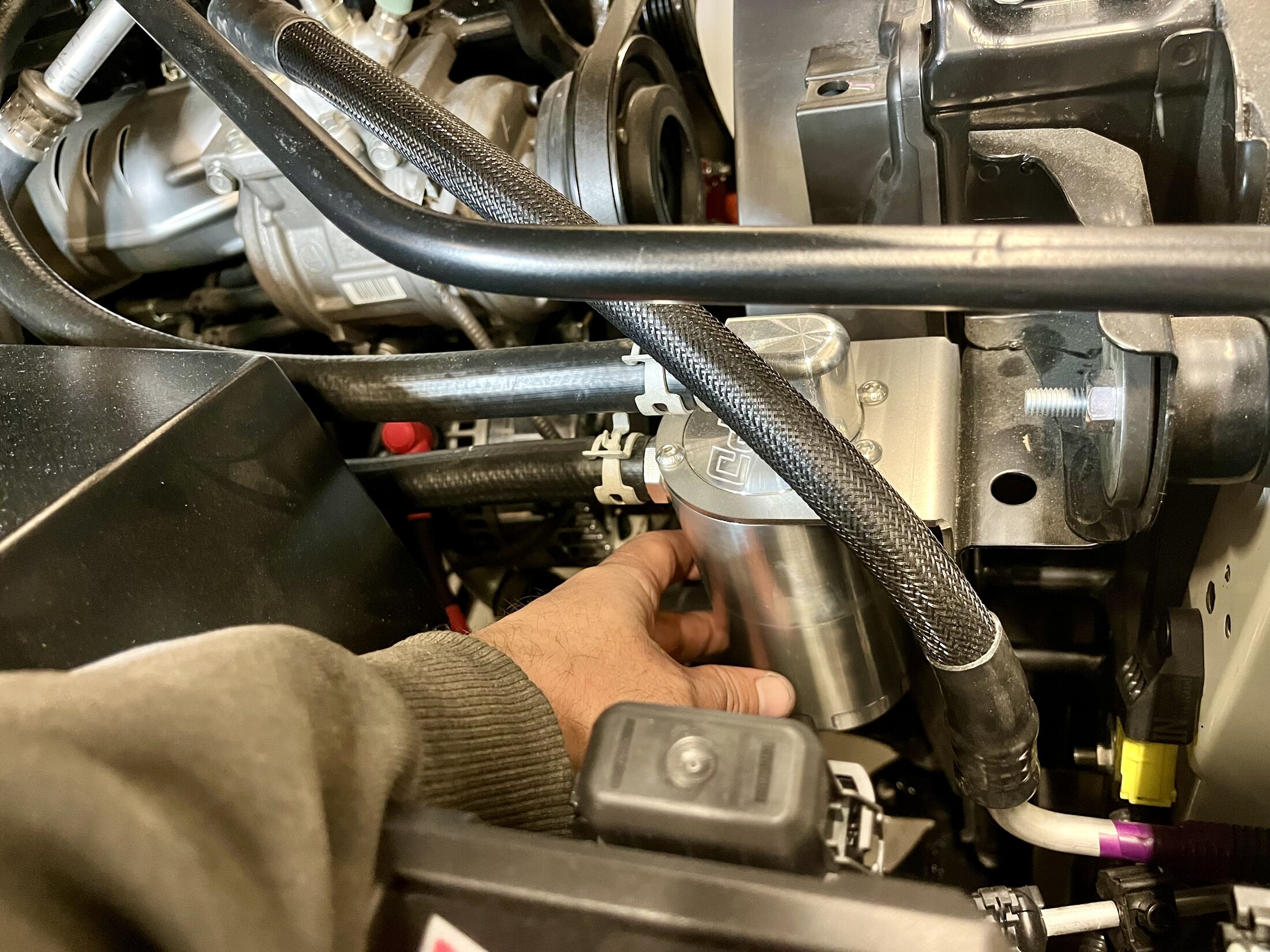

We left room around the catch can to be able to reach in and pull the basin to dump.

View attachment 3765848

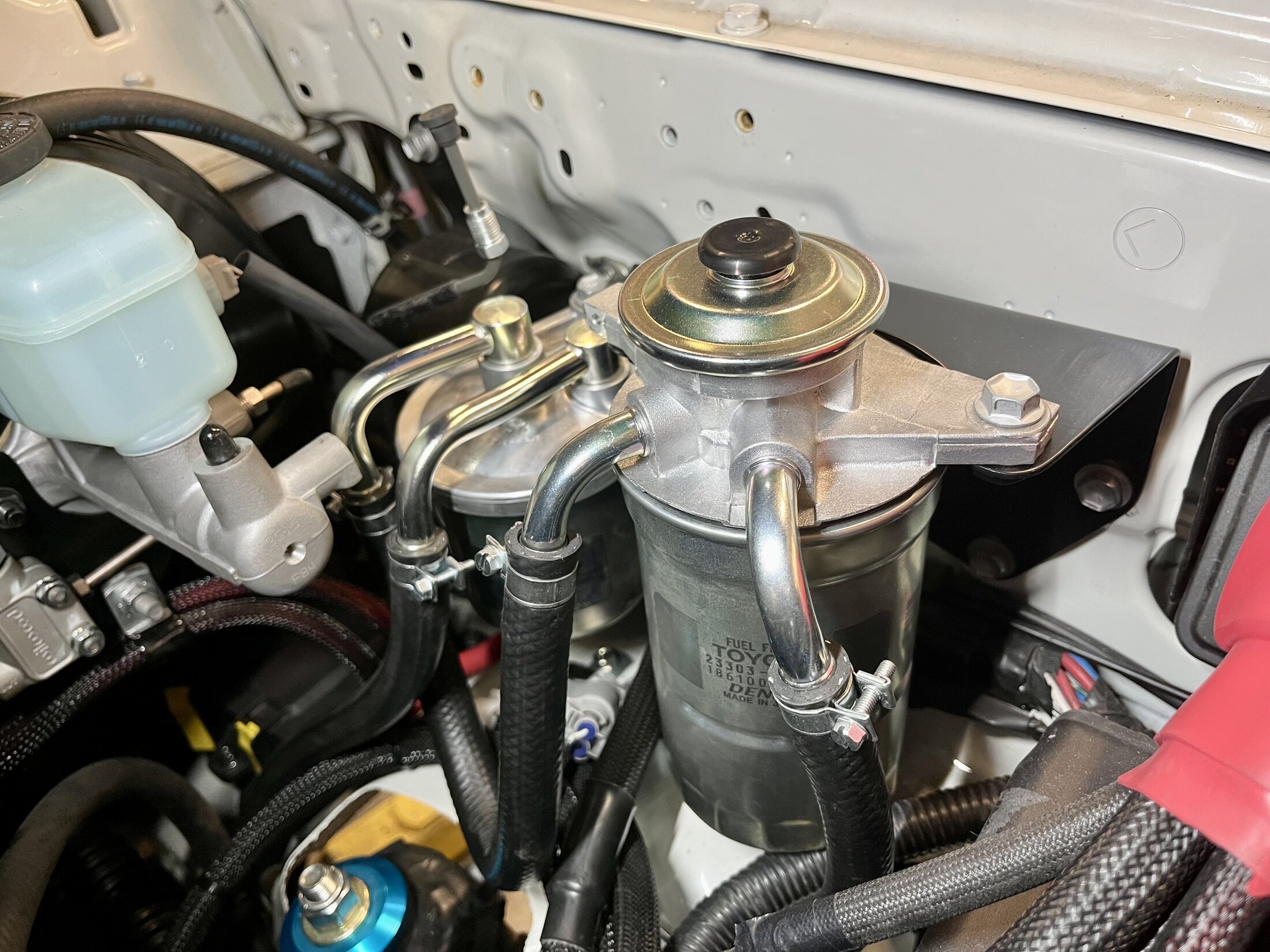

HDJ79 (1HDFTE) OEM Toyota fuel filters fitted, primary and secondary, 12mm in and out on them as well to suit our fuel system plumbing upgrades. Mounting bracket we built.

View attachment 3765849

Wilwood brake proportioning valve since we are not running an LSPV. Booster is an upgraded dual diaphragm from PDI in Australia.

View attachment 3765850

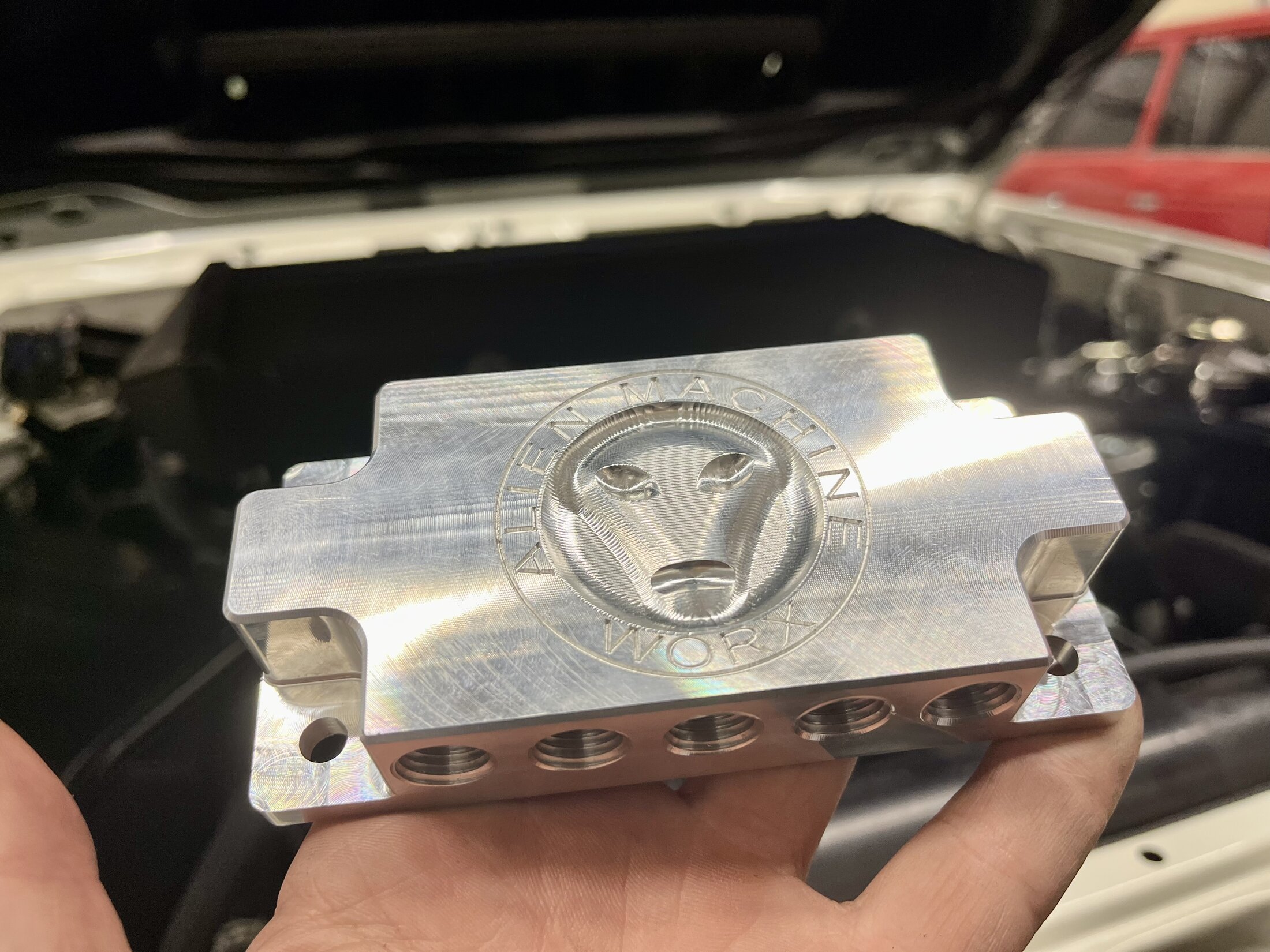

Got to find a spot in the engine bay for this! Care to guess what it is for?

View attachment 3765851

Cheers

Got to find a spot in the engine bay for this! Care to guess what it is for?

My first guess would be an "end point" for the breather lines? Very nice work Ian... as per yuge, love the attention to detail.



[SNLC]

My first guess would be an "end point" for the breather lines? Very nice work Ian... as per yuge, love the attention to detail.

That is it, breather manifold.

Cheers



[renago]

It’s funny, when we start these “wide nose” conversions and builds we are always like, “look at all that room in the engine bay”!

By builds end it’s all gone!

Catch can plumbing done.

View attachment 3765847

We left room around the catch can to be able to reach in and pull the basin to dump.

View attachment 3765848

HDJ79 (1HDFTE) OEM Toyota fuel filters fitted, primary and secondary, 12mm in and out on them as well to suit our fuel system plumbing upgrades. Mounting bracket we built.

View attachment 3765849

Wilwood brake proportioning valve since we are not running an LSPV. Booster is an upgraded dual diaphragm from PDI in Australia.

View attachment 3765850

Got to find a spot in the engine bay for this! Care to guess what it is for?

View attachment 3765851

Cheers

Breather for motor ,trans,axels ?



[SNLC]

Breather for motor ,trans,axels ?

Yes sir

Cheers



[lulo]

HDJ79 (1HDFTE) OEM Toyota fuel filters fitted, primary and secondary, 12mm in and out on them as well to suit our fuel system plumbing upgrades. Mounting bracket we built.

View attachment 3765849

.

Great Job!

Please could you tell me, if you have the Part# of this "HDJ79 (1HDFTE) OEM Toyota fuel filters fitted, primary and secondary"???

Thank you.



[SNLC]

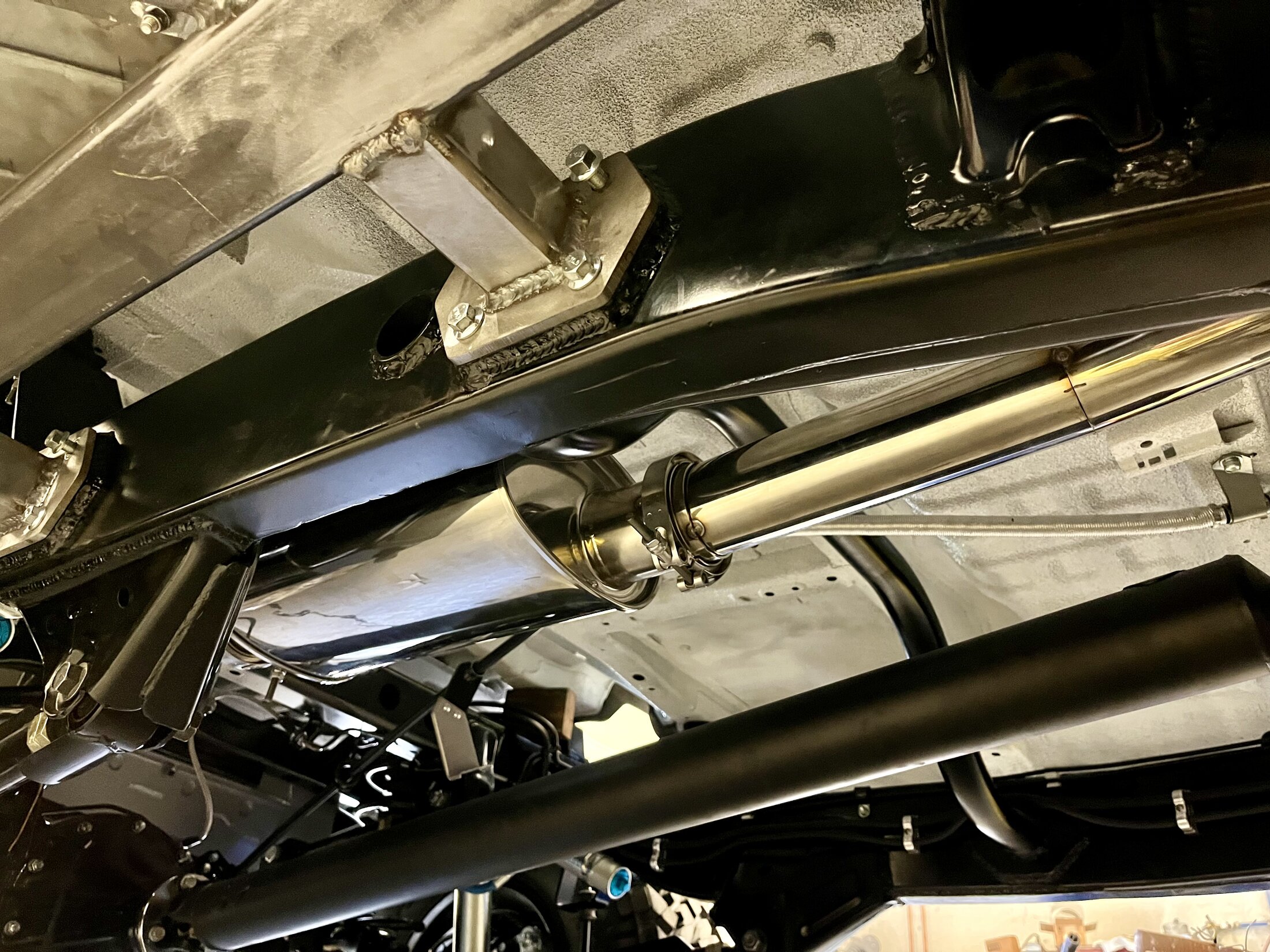

Exhaust mock up done, we got a v-band near the back for quick removal for any “serious” off-roading.

Cheers



[SNLC]

I got to say in all my years of chasing parts all over the world assembling this dash from scratch in LHD has been a monumental task!

We had pretty much nothing to start with besides the original LHD HZJ79 wiring harnesses which in itself was monumental because building-assembling one from scratch is task few could do.

Anyways we didn’t have to source the wiring, just every single other part! It all came from at least four different countries if not five, took more than a year to source it all new and import but it is a done deal!

Stoked

Cheers
