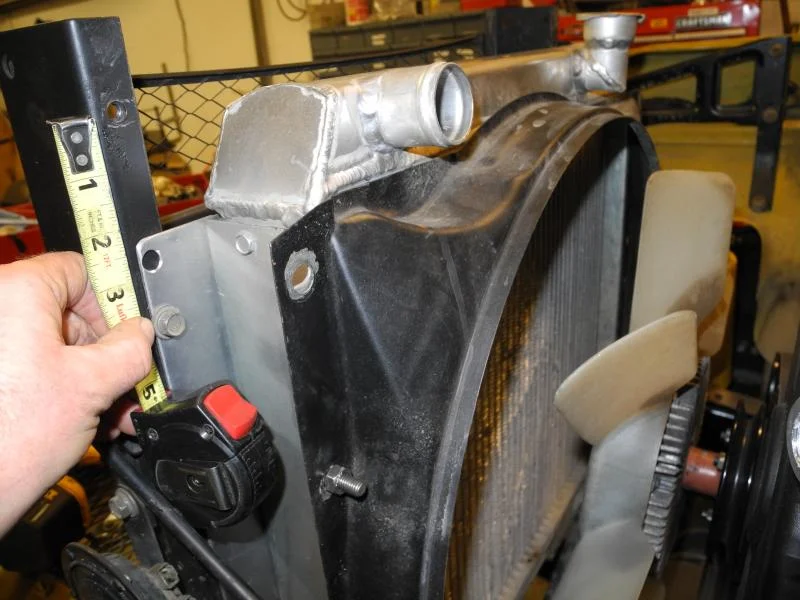

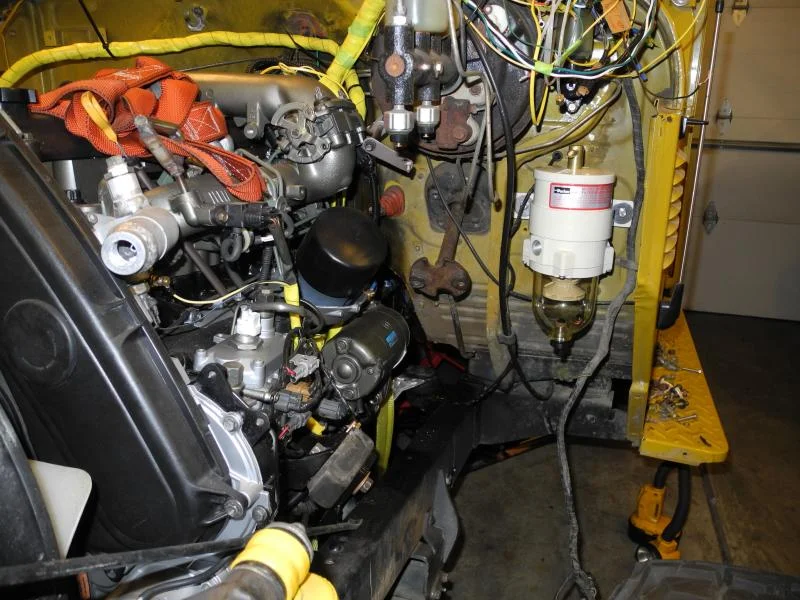

The radiator had to be moved back and down .
78 fj40 , 1kz-te , h55f , orion
- Thread starter beerfart
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #22

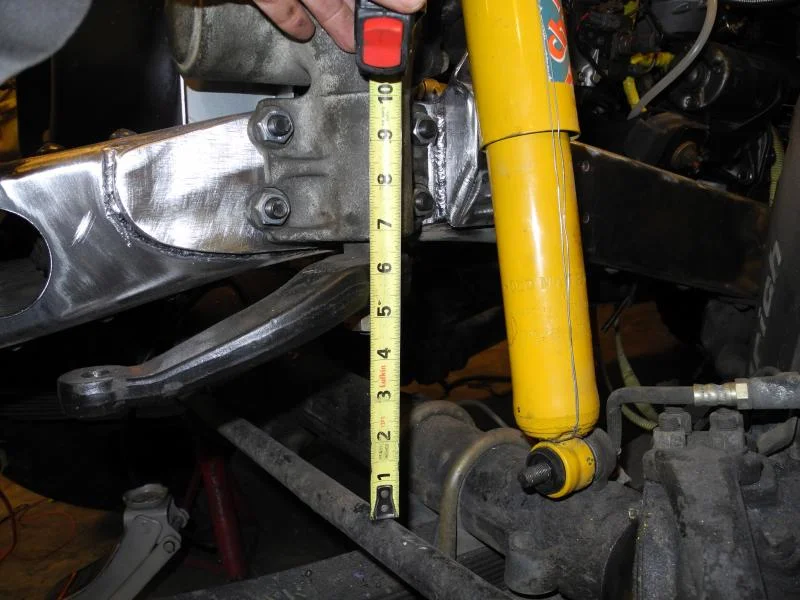

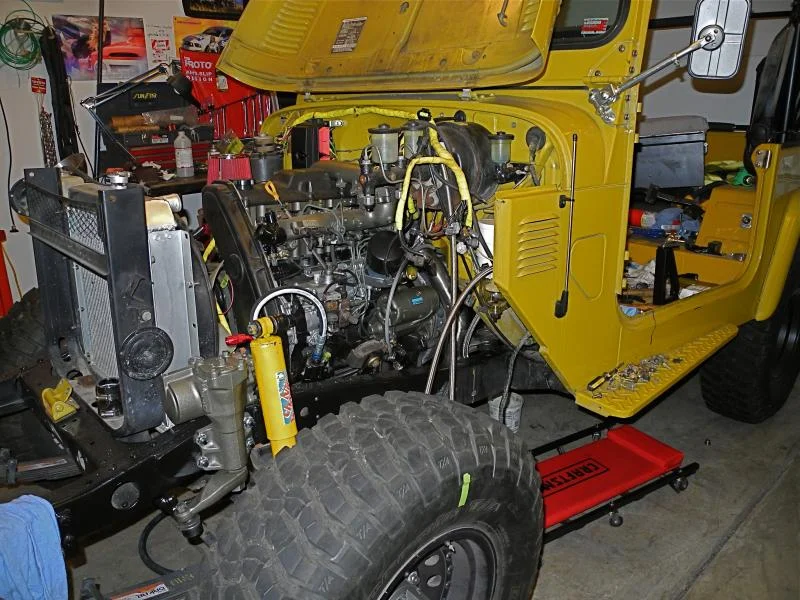

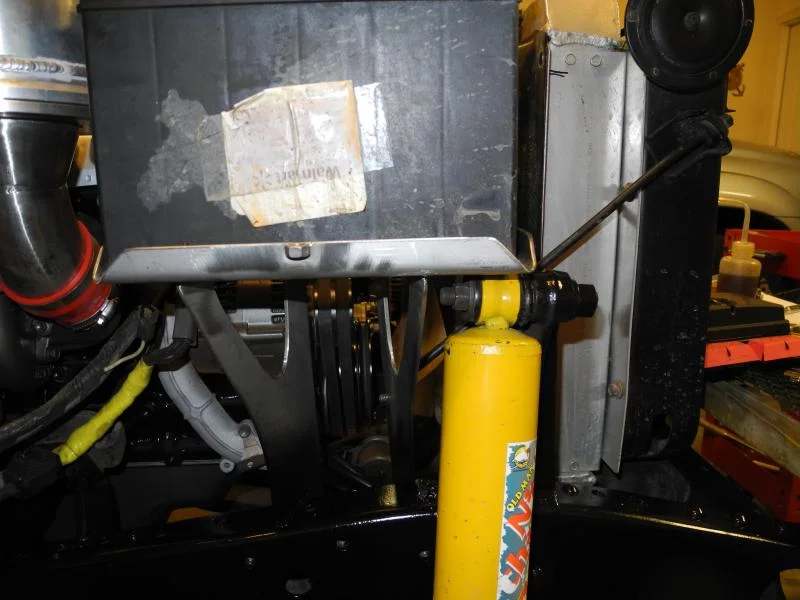

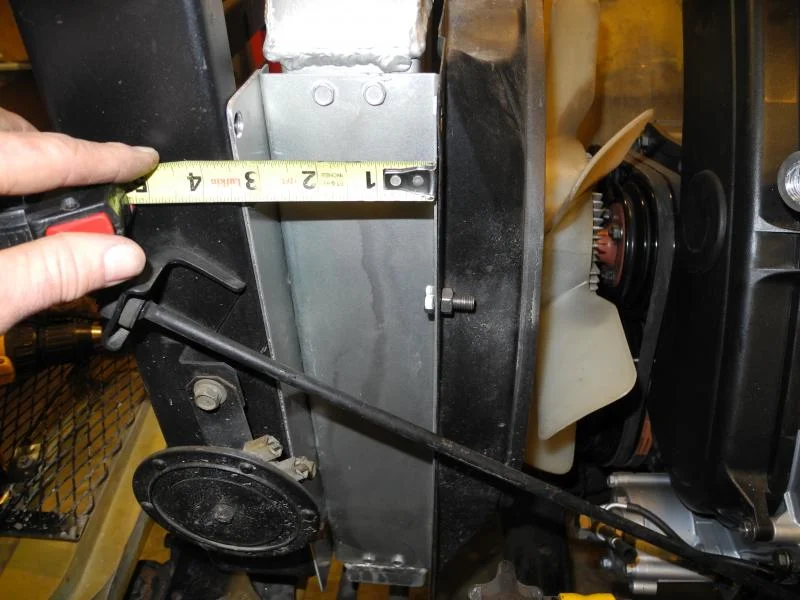

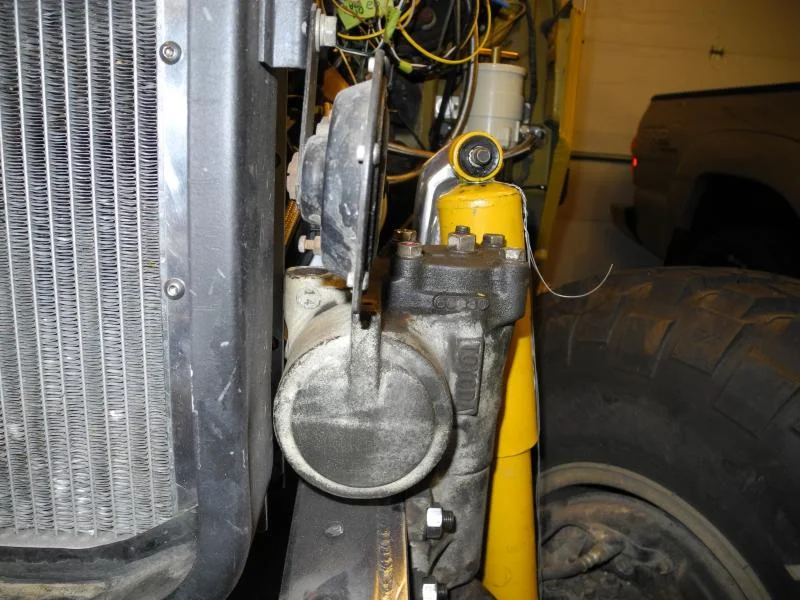

Down 2 3\4" , back 3 3\8" . Battery tray and radiator brace .
- Thread starter
- #23

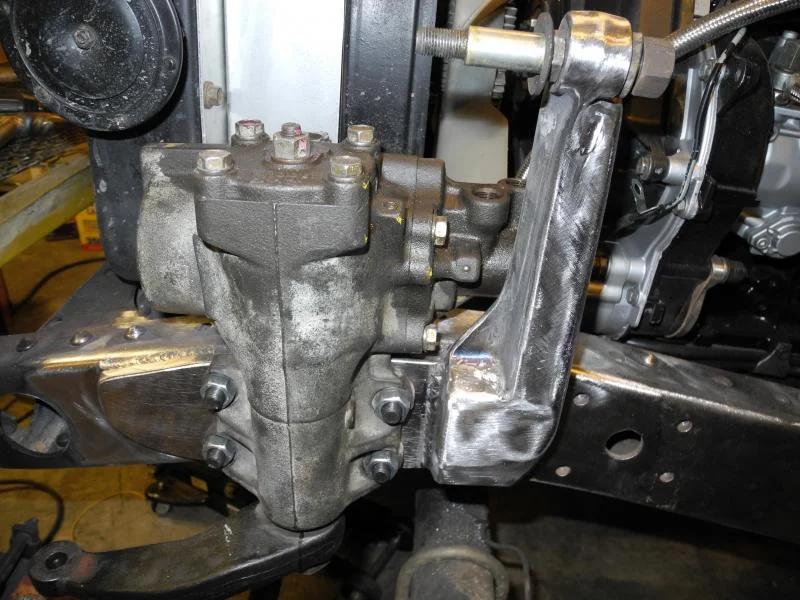

Steering box plate , shock tower and fuel filter .
- Thread starter
- #24

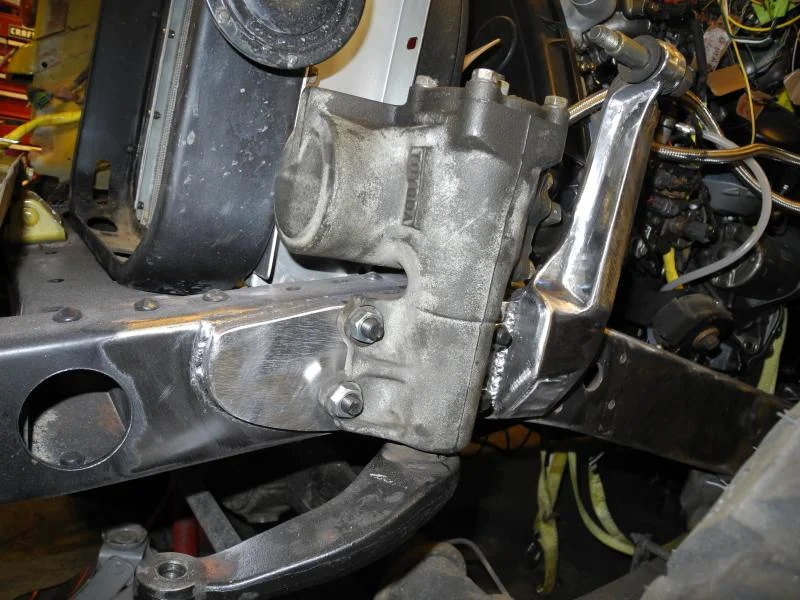

Steering box .
DanS HJ-45
SILVER Star
That's some very impressive work there!
While there are some questions I'd ask, like why a 1KZ-TE, and why not just stick with a split case instead of all that work to put on an orion, and then put on a disk parking brake, I've got to say that you are doing some really impressive work.
Is that a freshly rebuilt 1KZ-TE I see there? Very cool.
Dan
While there are some questions I'd ask, like why a 1KZ-TE, and why not just stick with a split case instead of all that work to put on an orion, and then put on a disk parking brake, I've got to say that you are doing some really impressive work.
Is that a freshly rebuilt 1KZ-TE I see there? Very cool.
Dan
- Thread starter
- #26

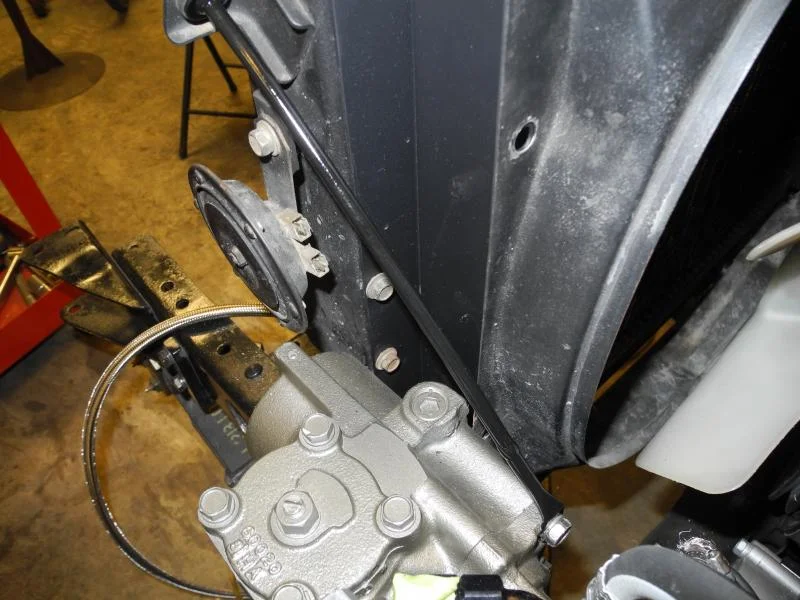

Steering box clearance .
- Thread starter
- #27

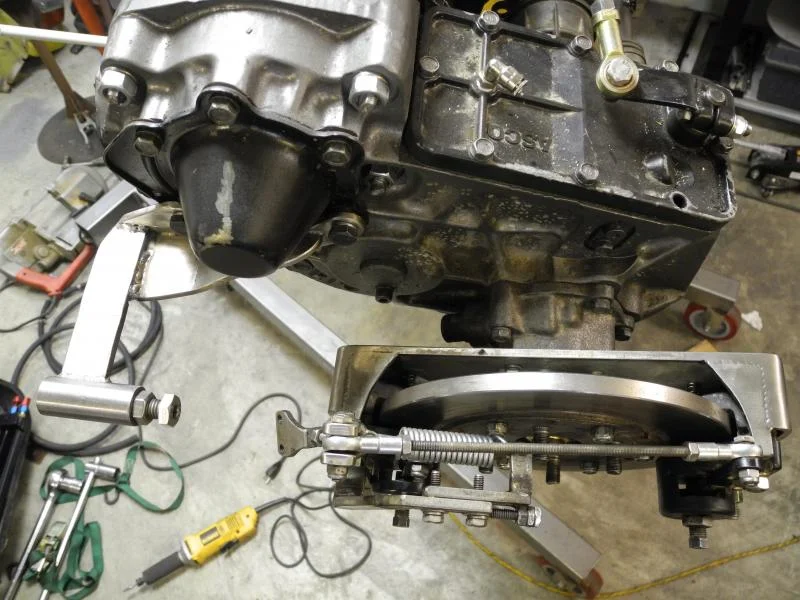

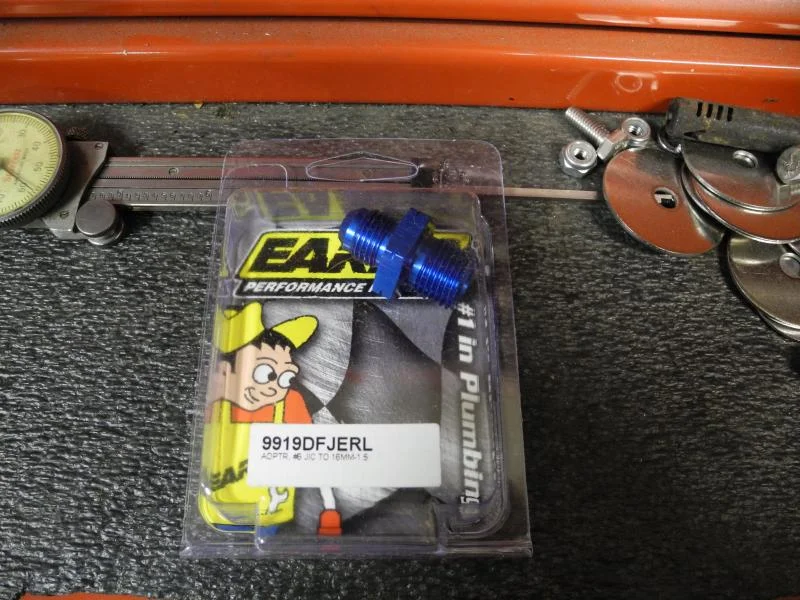

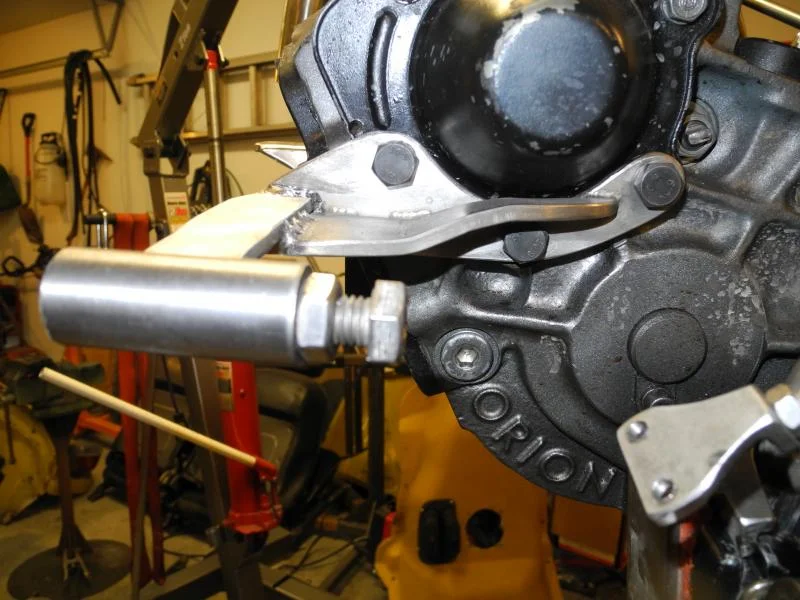

This is one of the steering hose adapters . I don't have a photo of the other . There are two sizes , earls only had one , I got the other from ebay . Parking brake I made .
- Thread starter
- #28

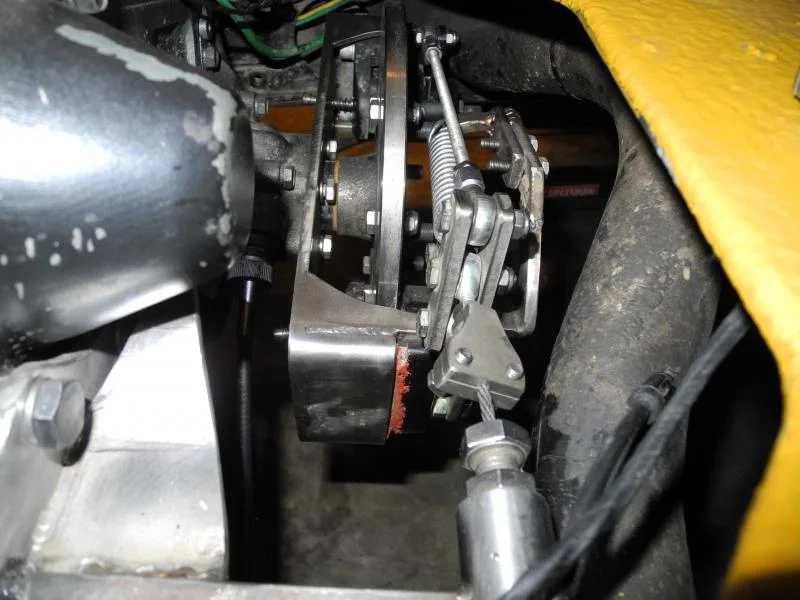

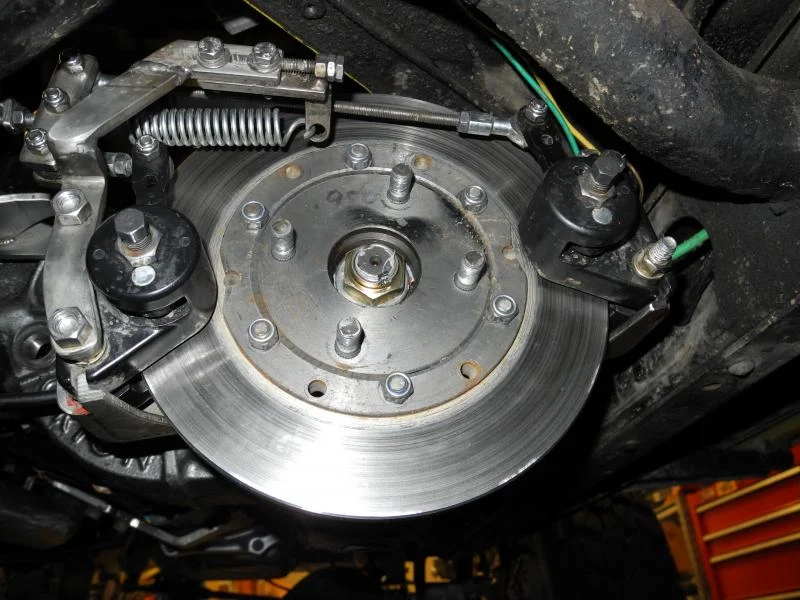

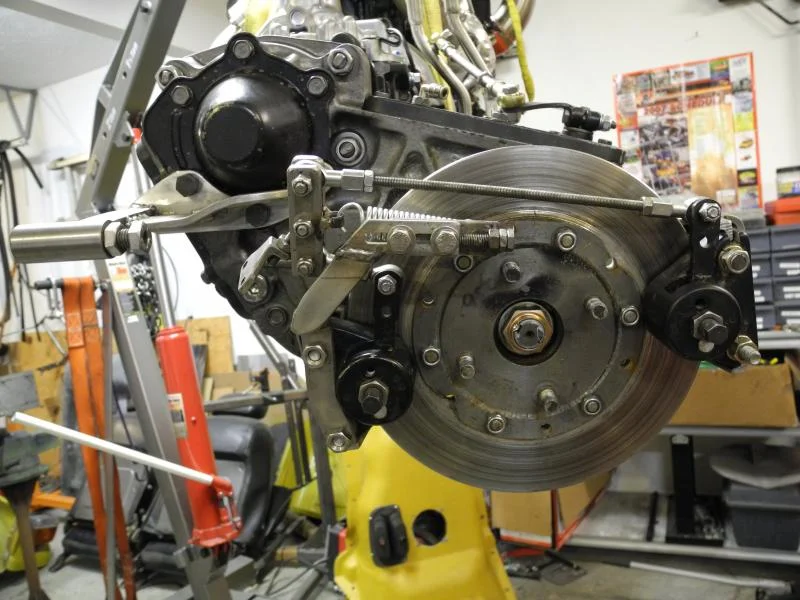

These are wilwood calipers . I destroyed my drum brake
and could not find a replacement for less than $900 . I really liked the drum brake but this was cheap and works great .
and could not find a replacement for less than $900 . I really liked the drum brake but this was cheap and works great .
Holy s*** that is some impressive fab skills you got there. Same questions as Dan here.
- Thread starter
- #30

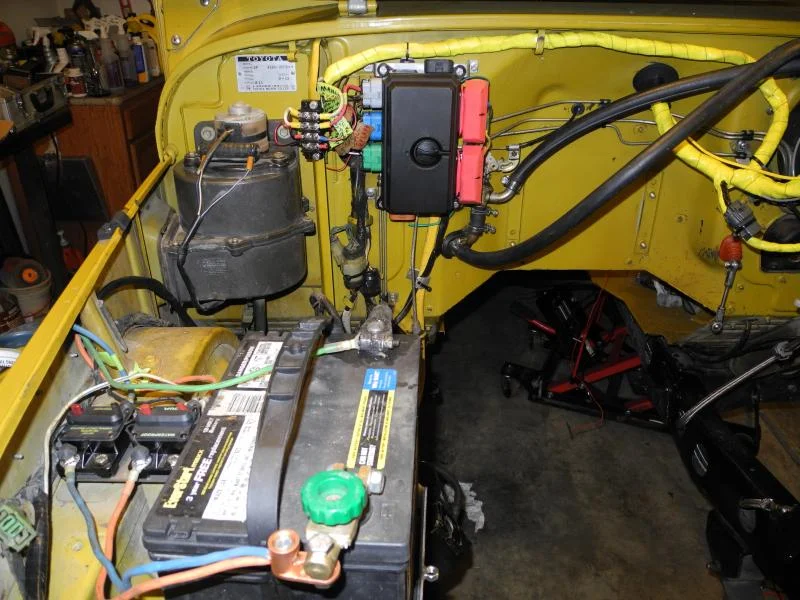

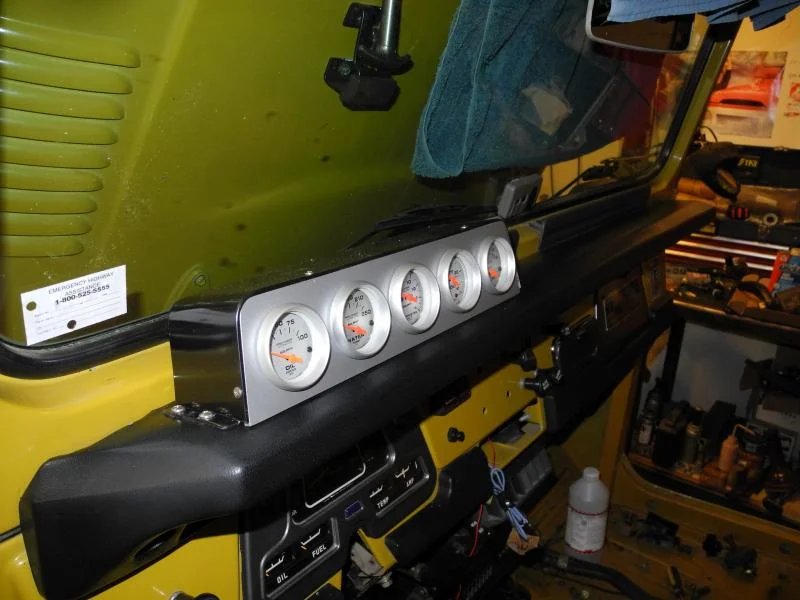

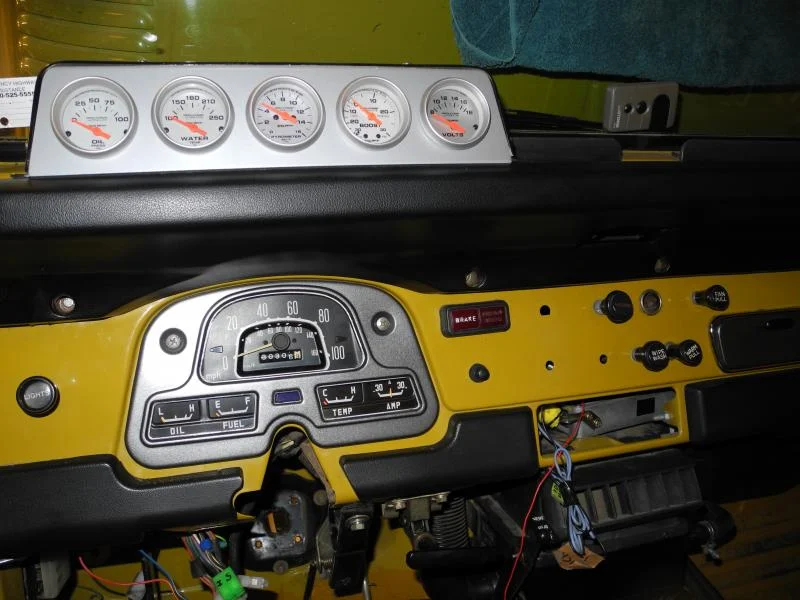

Found this relay-fuse box on ebay . It is out of a freightliner . It has 15 each 35 amp relays and a ton of fuses . The connectors were on ebay , too from a different source . My gauge pod .
- Thread starter
- #31

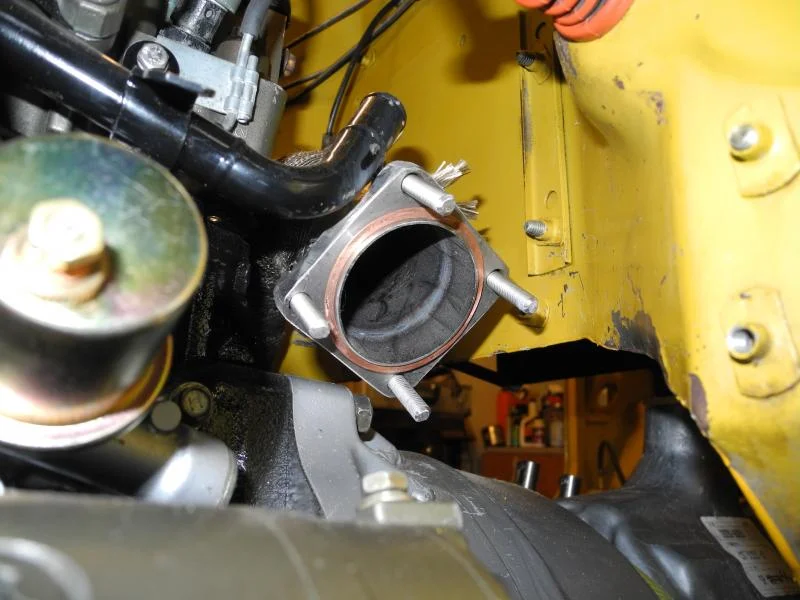

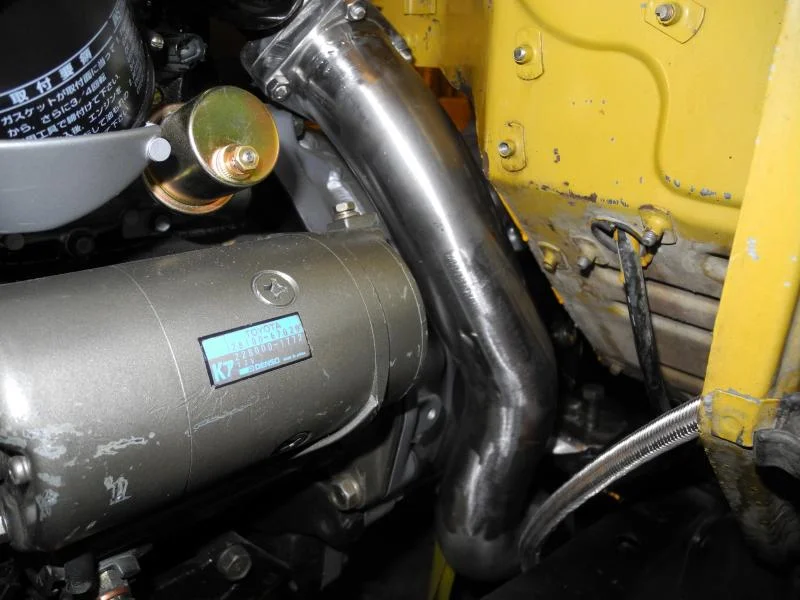

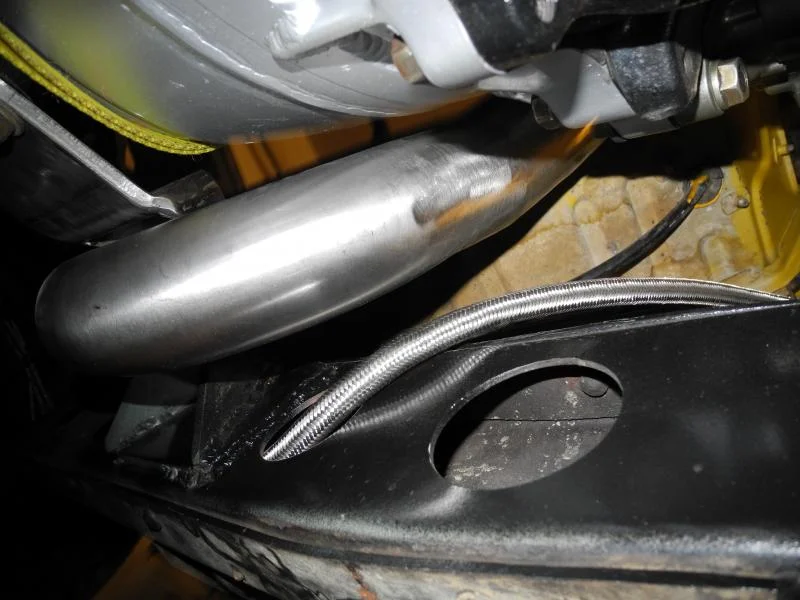

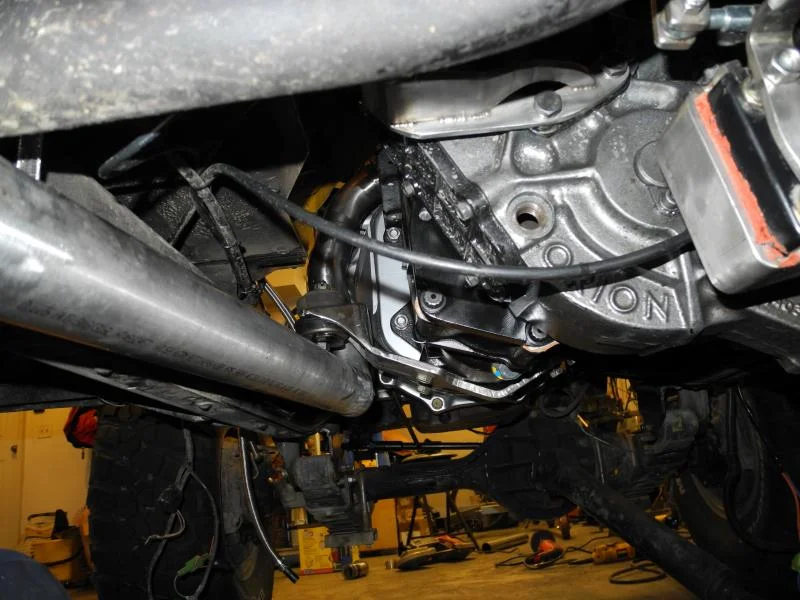

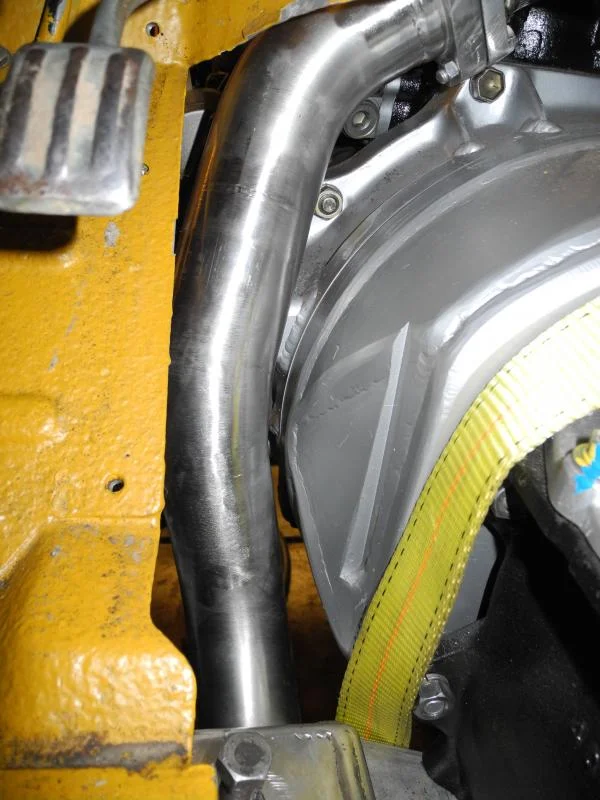

Exhaust routing .
Looks really good! Nice fab skills! I really liked my 1KZ-TE in my old Surf, the bigger exhaust should help with getting heat out of the head.
- Thread starter
- #33

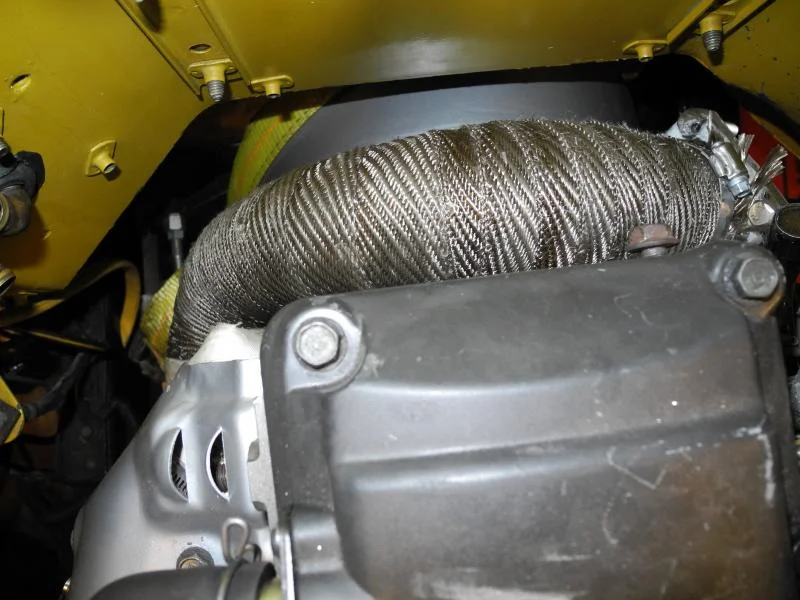

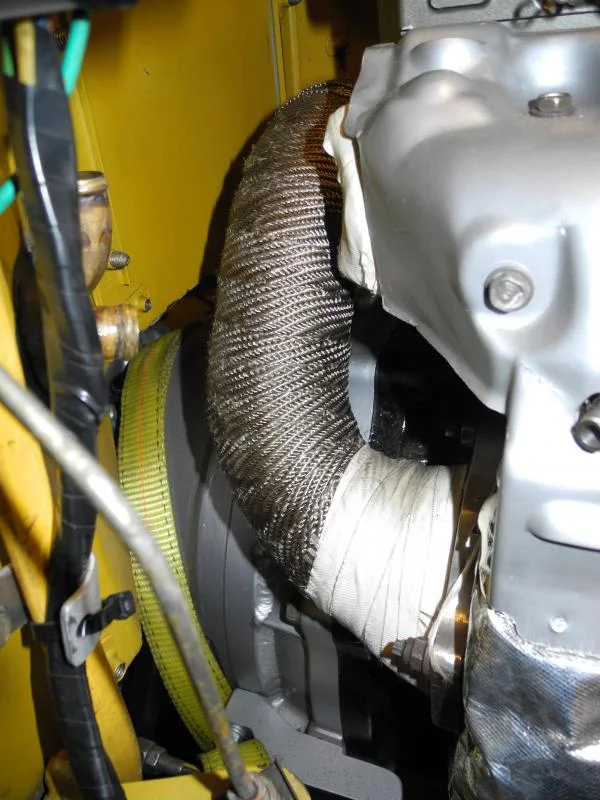

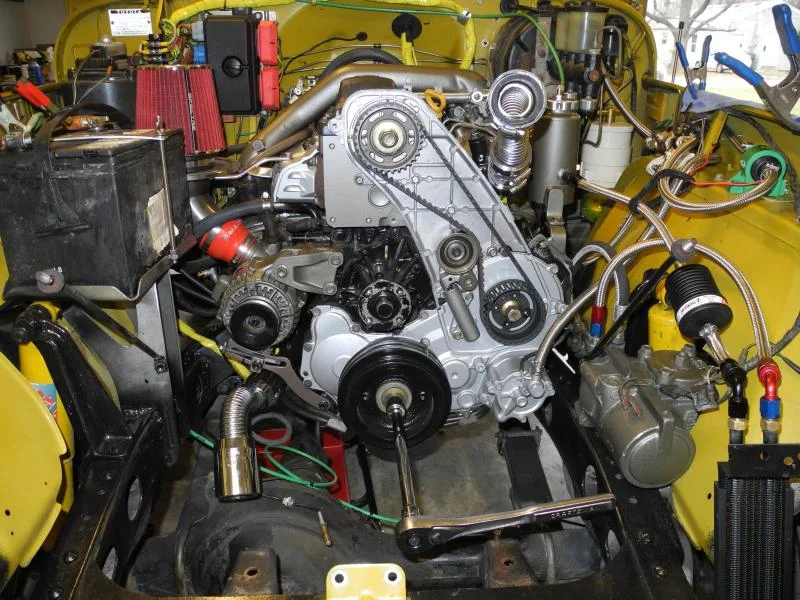

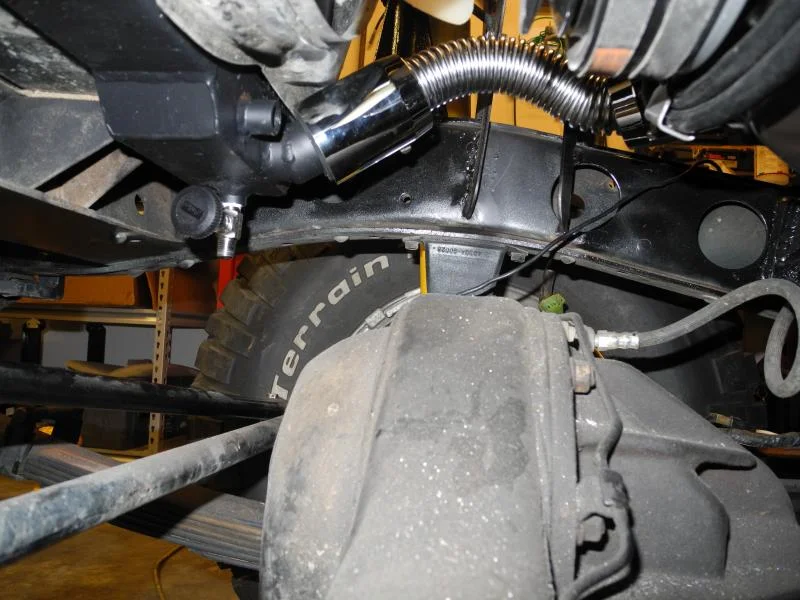

More exhaust .
- Thread starter
- #34

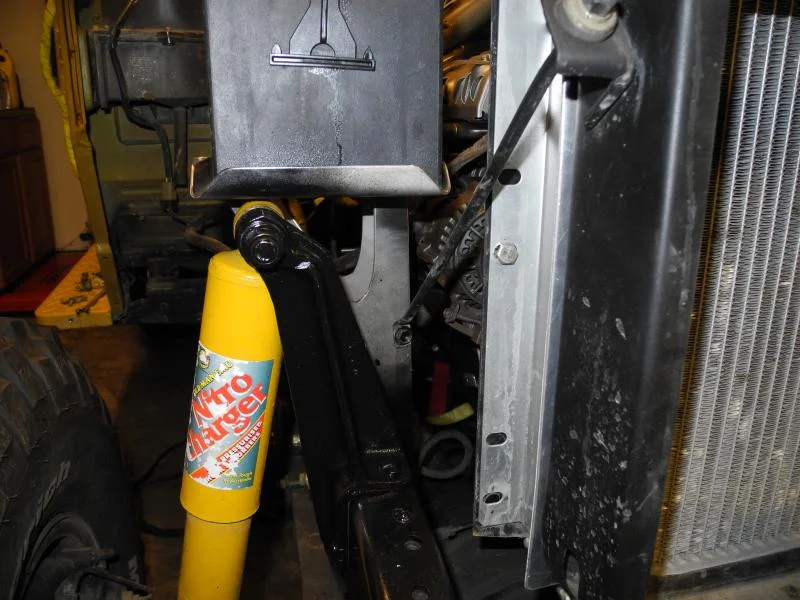

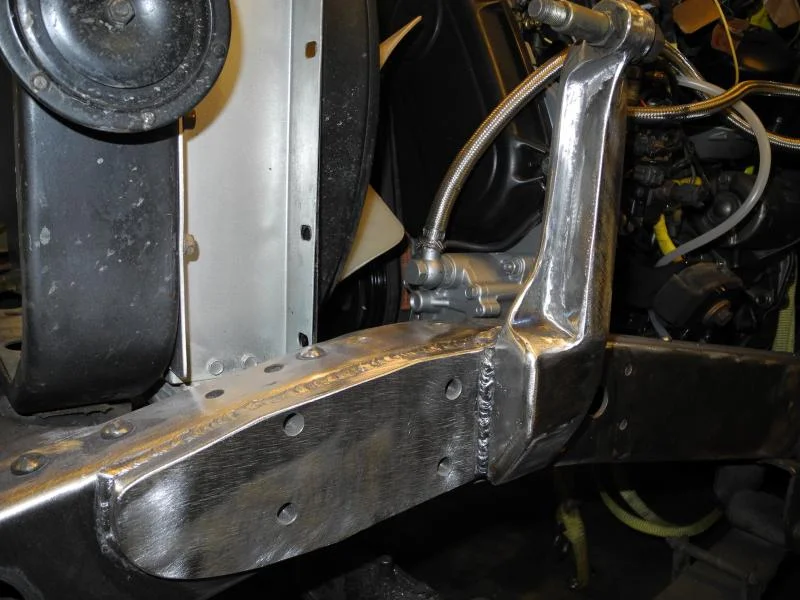

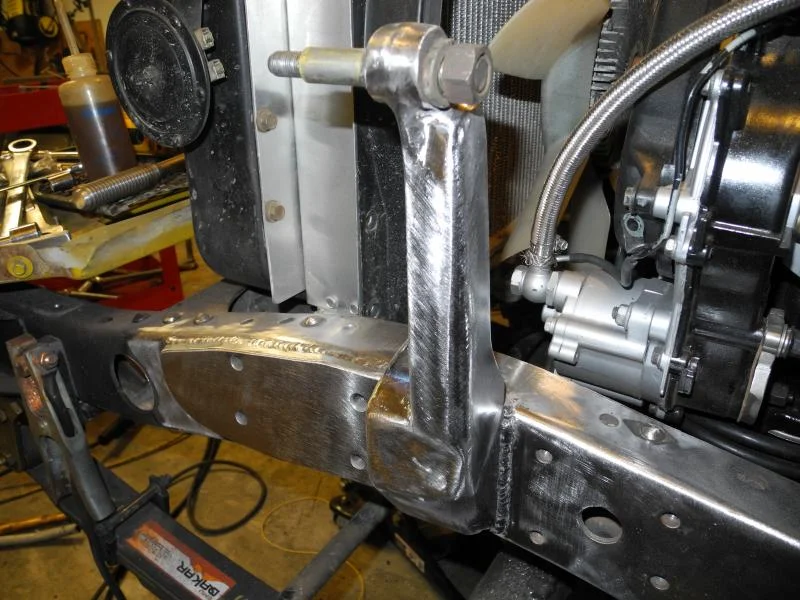

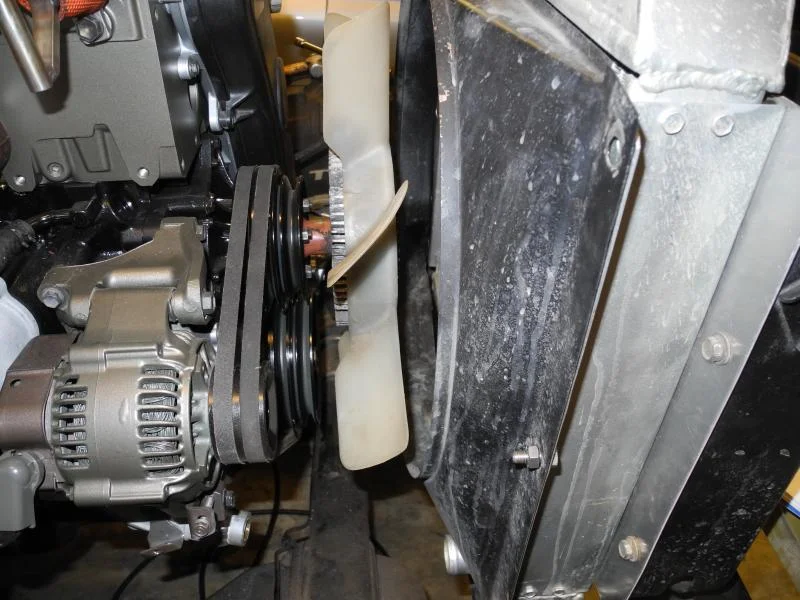

Radiator brace .
- Thread starter
- #35

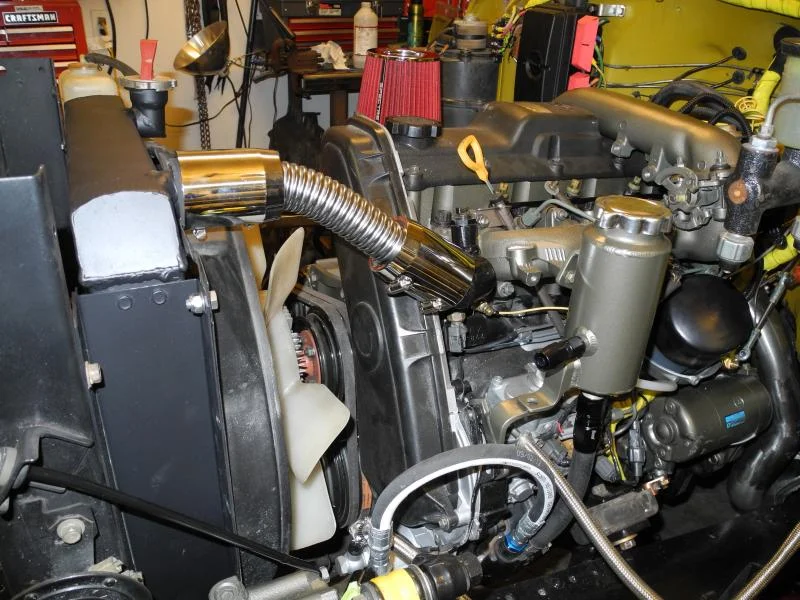

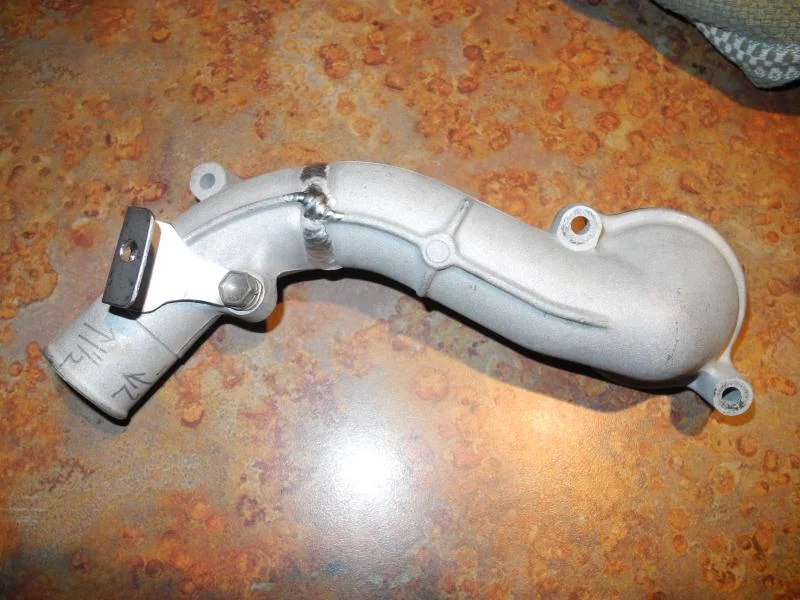

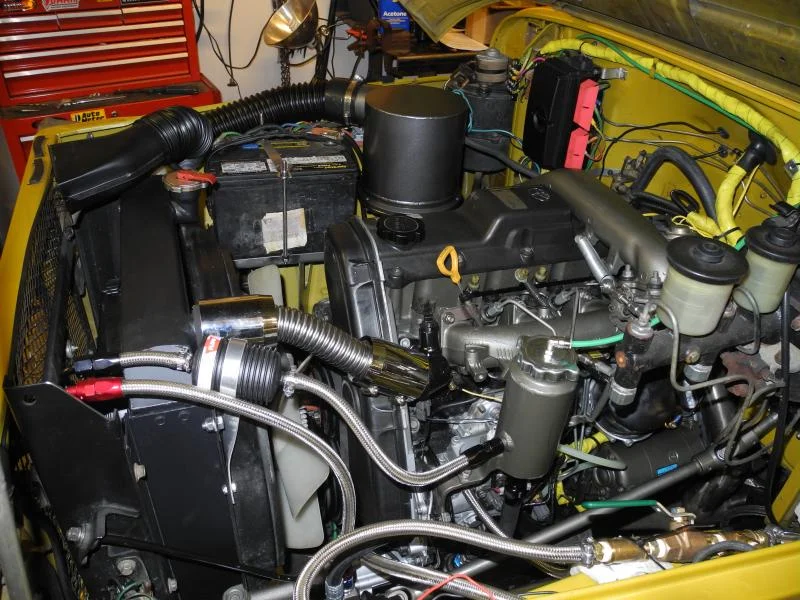

Had to shorten the thermo housing . Had clearance issues here , so I rewelded the radiator outlet angled up , and got a metal hose that can be formed .
- Thread starter
- #36
These woodward u joints are a work of art . I got the one that is splined for toyota on one side , and 3/4" woodward spline on the other , another one that is 3/4" spline on both ends , and they have weld on 3/4" splined ends to make a shaft and weld to steering collumn . You can't see it very good , but in order to keep the crankshaft center line exactly the same , the power steering pump is very close to the frame . I had to modify the suction port on the pump and point it straight up to the reservoir .
Last edited:
- Thread starter
- #37

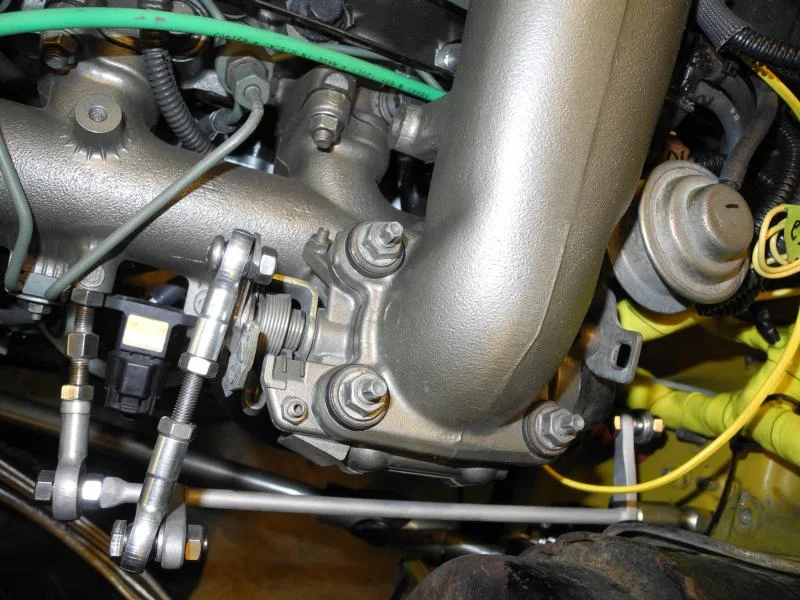

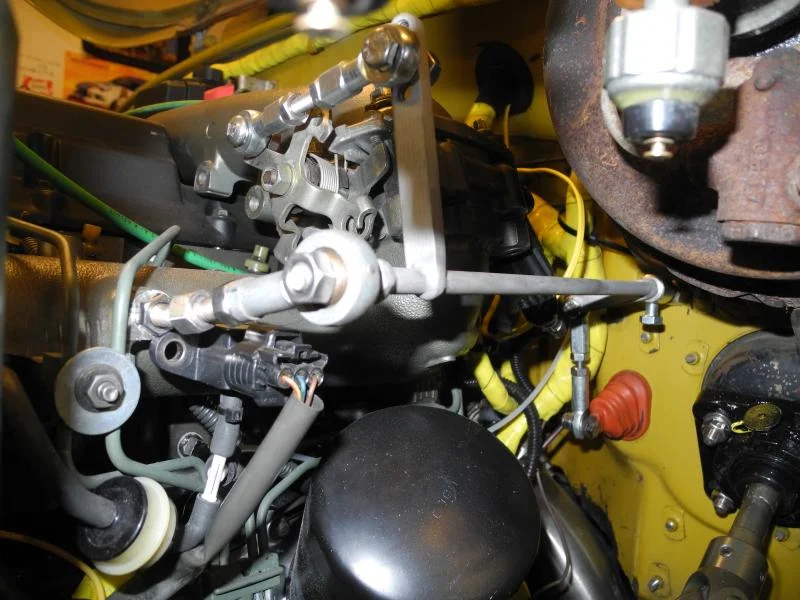

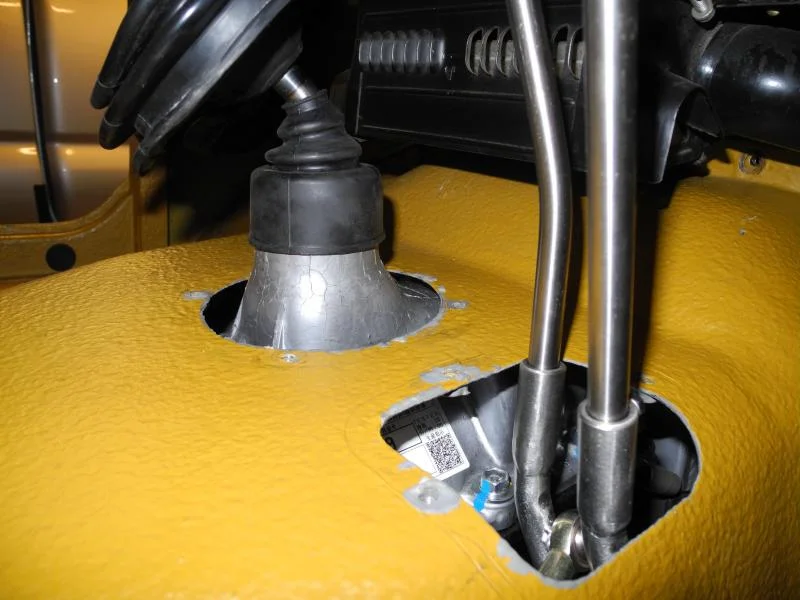

Throttle linkage . Steering shaft , power steering reservoir .
- Thread starter
- #38

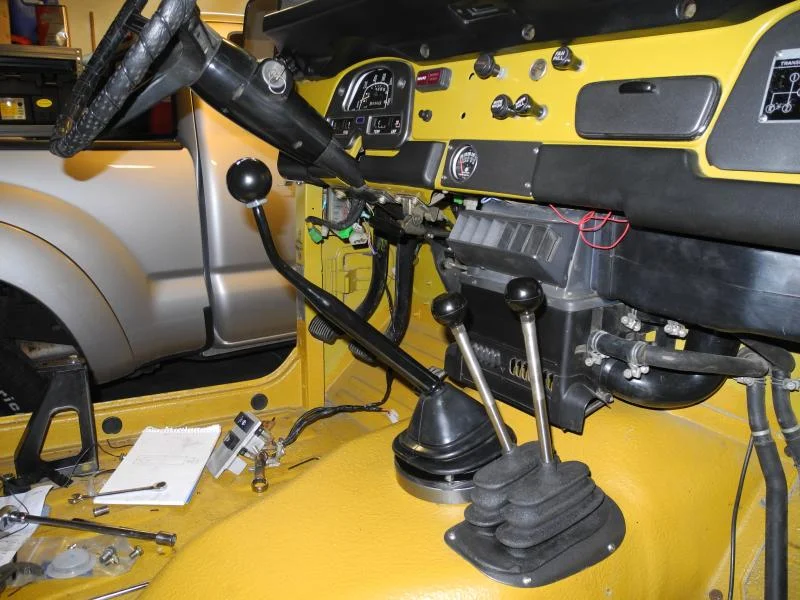

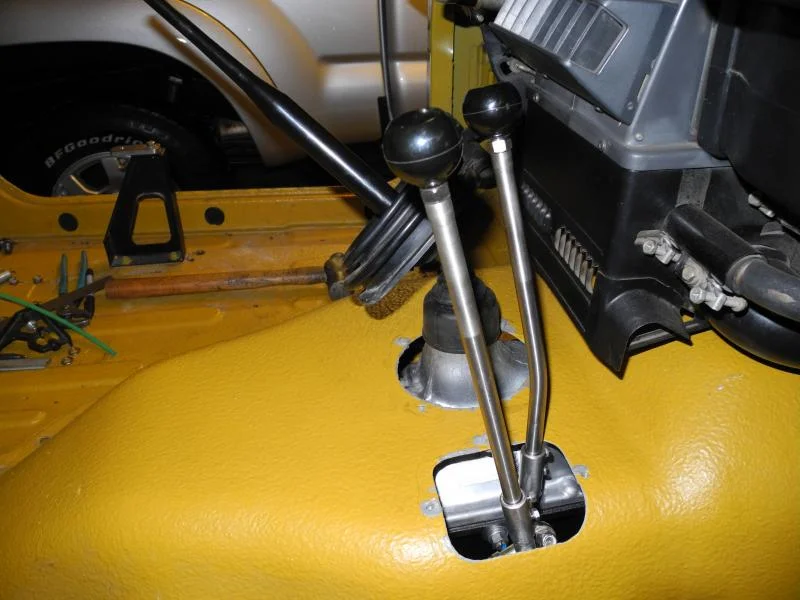

Had to make a spacer to raise the shifter boot to fit the h55 . Had to bend the shifter up .
- Thread starter
- #39

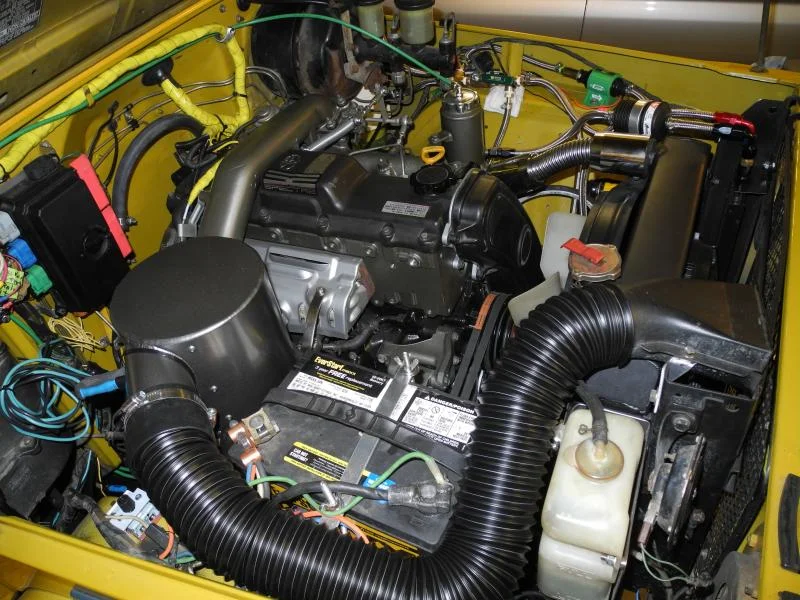

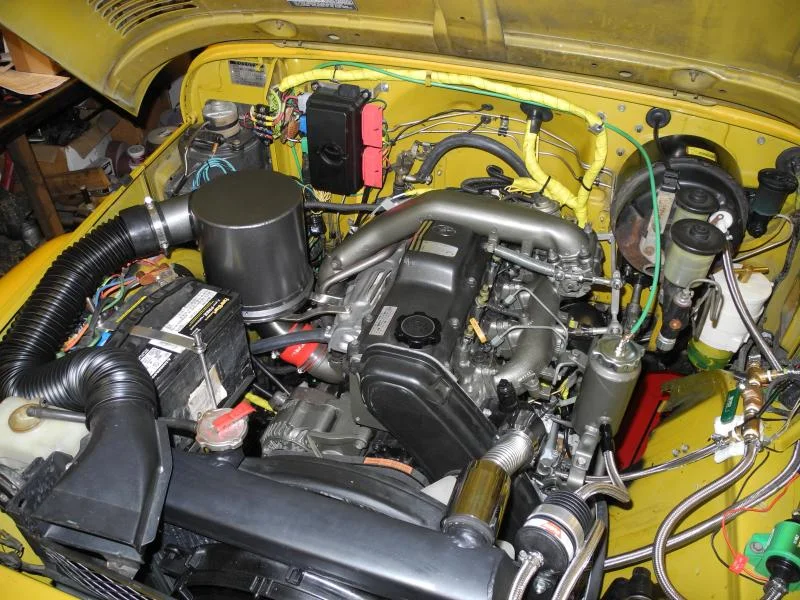

Almost finished .
- Thread starter
- #40

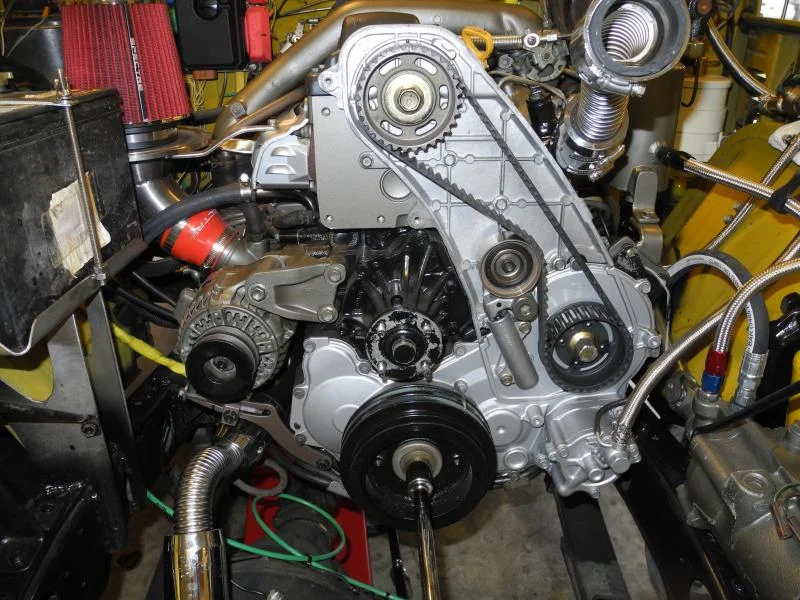

I couldn't find any other diesel engine to buy . I already had the orion , but I would rather have a split case , but after you buy a low gear set , it is very expensive . My labor is free on the machining . I destroyed my drum parking brake . Long story , but it worked very well . I wish I still had it . The 1kz is almost completely rebuilt . It is pretty much new condition now .
