73 series wheeler project

Discussion in 'HardCore Corner' started by joekatana, May 15, 2018.

  1. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    I finally started on a 73 series to build a wheeling rig for myself,after seeing all the awesome treads here like the 73's from the Eradicator,Alex Gee,Justdifferentials ..... just to name a few I decided to sacrifice a 73 to make it a 90% offroad wheeling rig and 10% use around town for fun.

    I bought a 1991 HZJ73 a while ago that was destined to be parted out because the drive train was in excellent condition but the po had done a horrible hack job on the body to repair the rust on it to pass inspections in Europe.

    Plan is to lengthen and widen the wheelbase so most of the sheetmetal will be modified so I don't really care about the current condition of that.

    It is gonna be riding on 80 series axles with 5.29 gears and elockers that came from @Delancy , ORI struts from @redstang410 ,I am gonna install a 1HDT out of an HDJ80 in it with either a R151 or H55 but that will be decided by wich one is available at the time more then preference. For the 80 axles I have bought some Nitro gear axle shafts and birfs from @just differentials and a set of hellfire knuckles from @Capra .I think I am gonna order the link kits from Rufstuff but have not done all my homework on that.

    Engine and transmission where already out of it for quit some time so now I need to start at stripping it down and removing the axles and all the assorted brackets that are no longer necessary.

    This will not be something done fast as I can only work on it between the jobs that keeps the business alive but I hope to have it at least out on the rocks for the southern cruiser crawl but it will definitely not be "done" by that time.

    Last edited: May 15, 2018
    Bydge likes this.
  2. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas

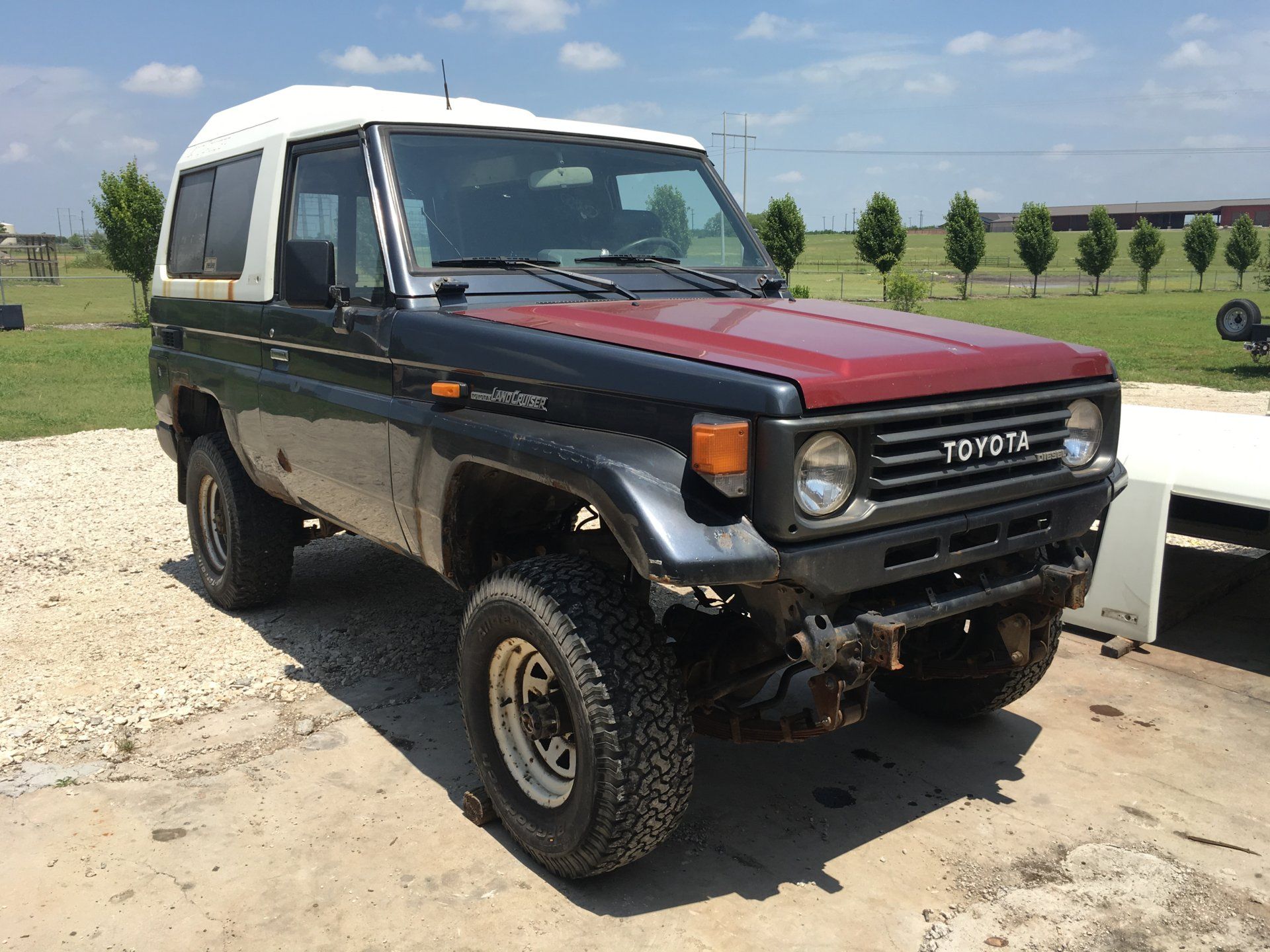

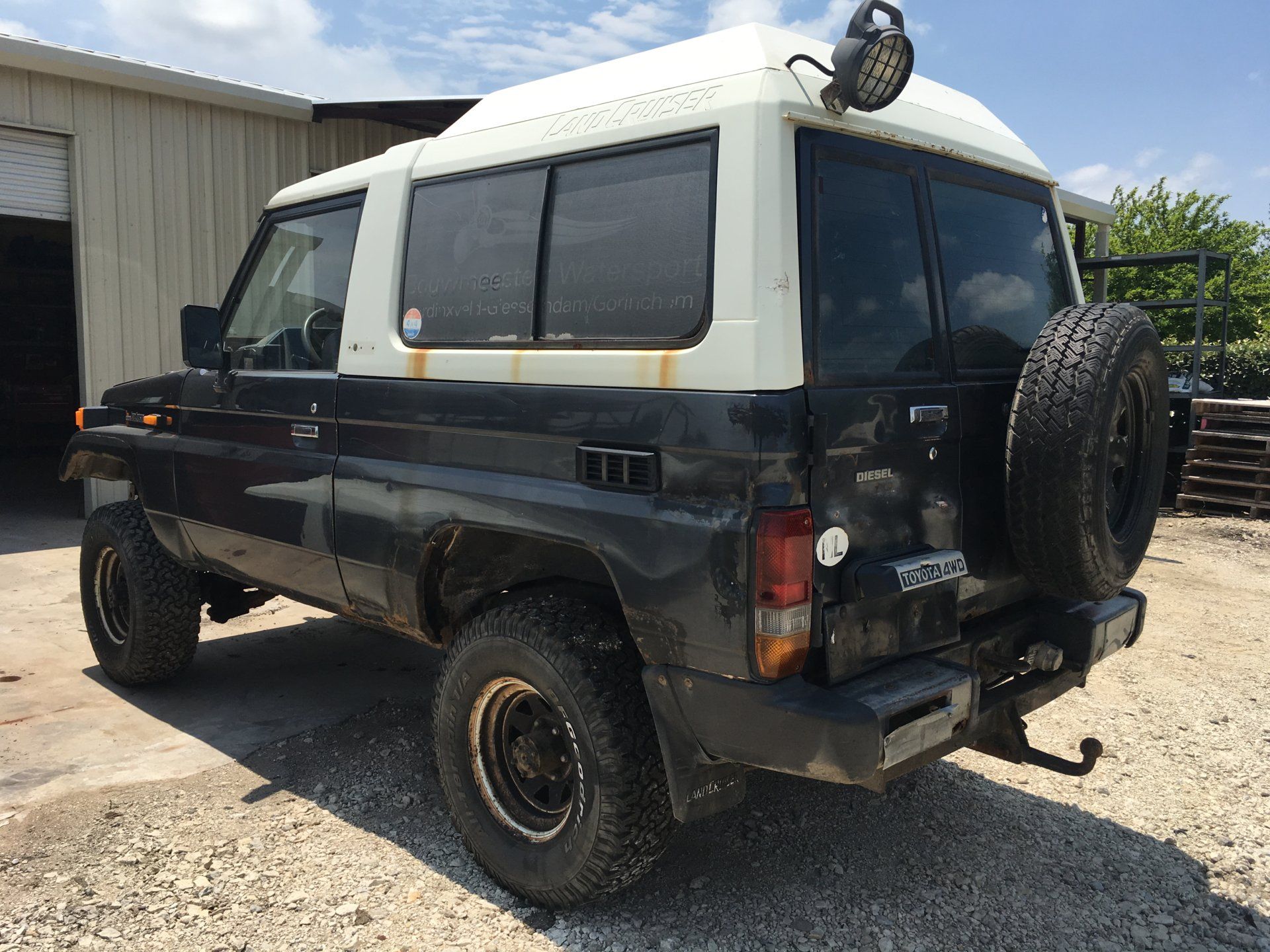

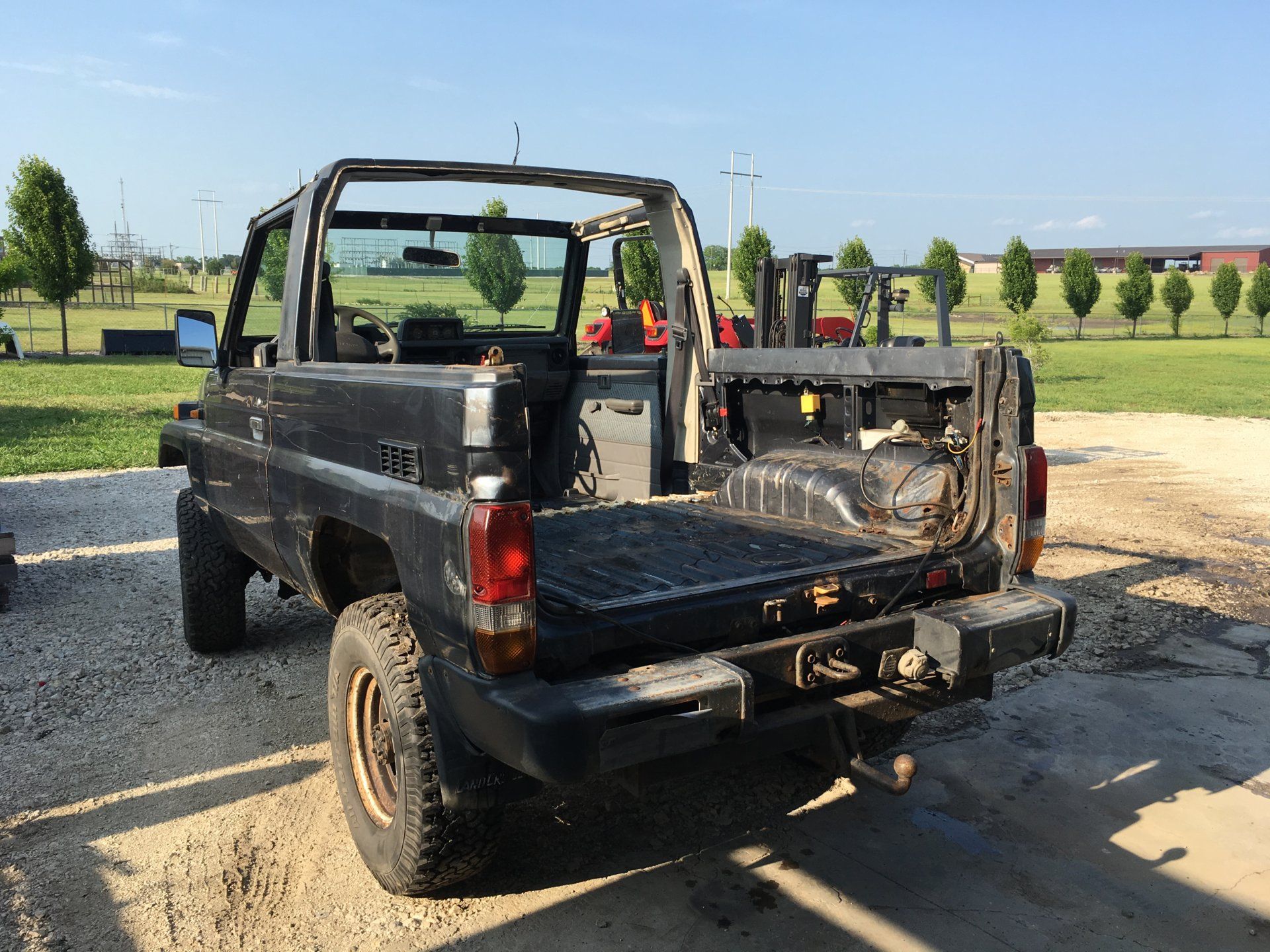

    This is my fugly donor as I pulled it in the shop .

    2BD63BFB-88C2-450C-B98A-1A5105CB0D8A.jpeg 753C7F60-15CB-4200-8FB1-DB98D9A445DD.jpeg

  3. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas

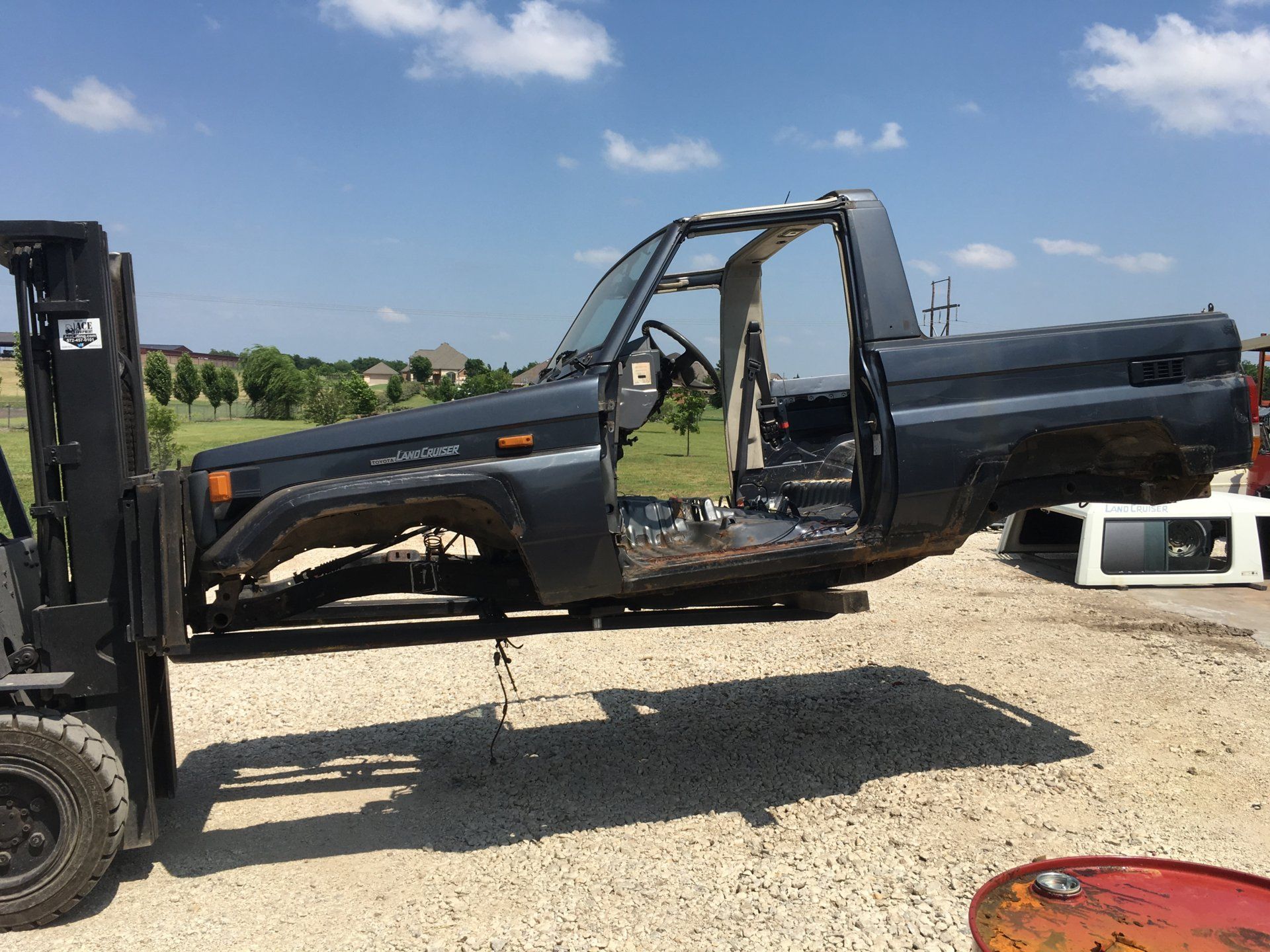

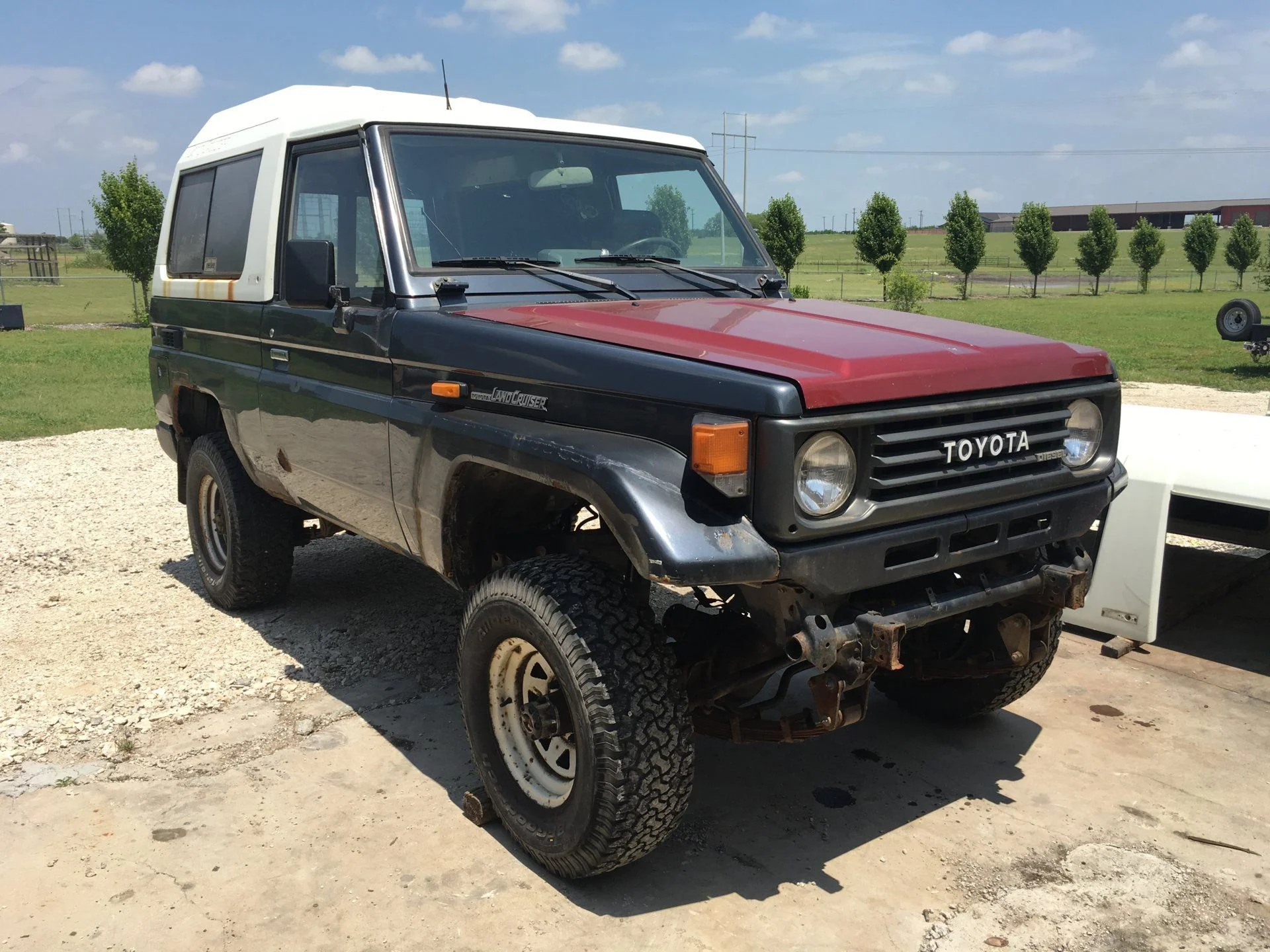

    Af few hours later it turned in to this



    GLTHFJ60, Mr Cimarron, Bydge and 3 others like this.
  4. FJ73Texas

    FJ73Texas

    Messages:
    1,066
    Media:
    9
    Albums:
    1
    Likes Received:
    915
    Joined:
    Aug 16, 2015
    Location:
    78229
    I remember the Alex Gee thread. I wonder what happened to his build?

    Can't wait to see what you come up with.

    Bydge, joekatana and beno like this.
  5. beno

    beno Gihee Arakawa Moderator Supporting Vendor GOLD Star

    Messages:
    24,975
    Media:
    382
    Albums:
    29
    Likes Received:
    22,348
    Joined:
    Aug 28, 2004
    Location:
    Woodstock, NY, USA
    Oh I like where this is going....

    Indeed....

    :)

    mattv94 and joekatana like this.
  6. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    Stripped the rest of the drivetrain and all the extra brackets on the frame.

    The way it sits now will be almost the ride height, the front will be dropped another 2 cm to level it out.

    Next step is to clean up the axles and strip all the brackets from them and then start reassembling.

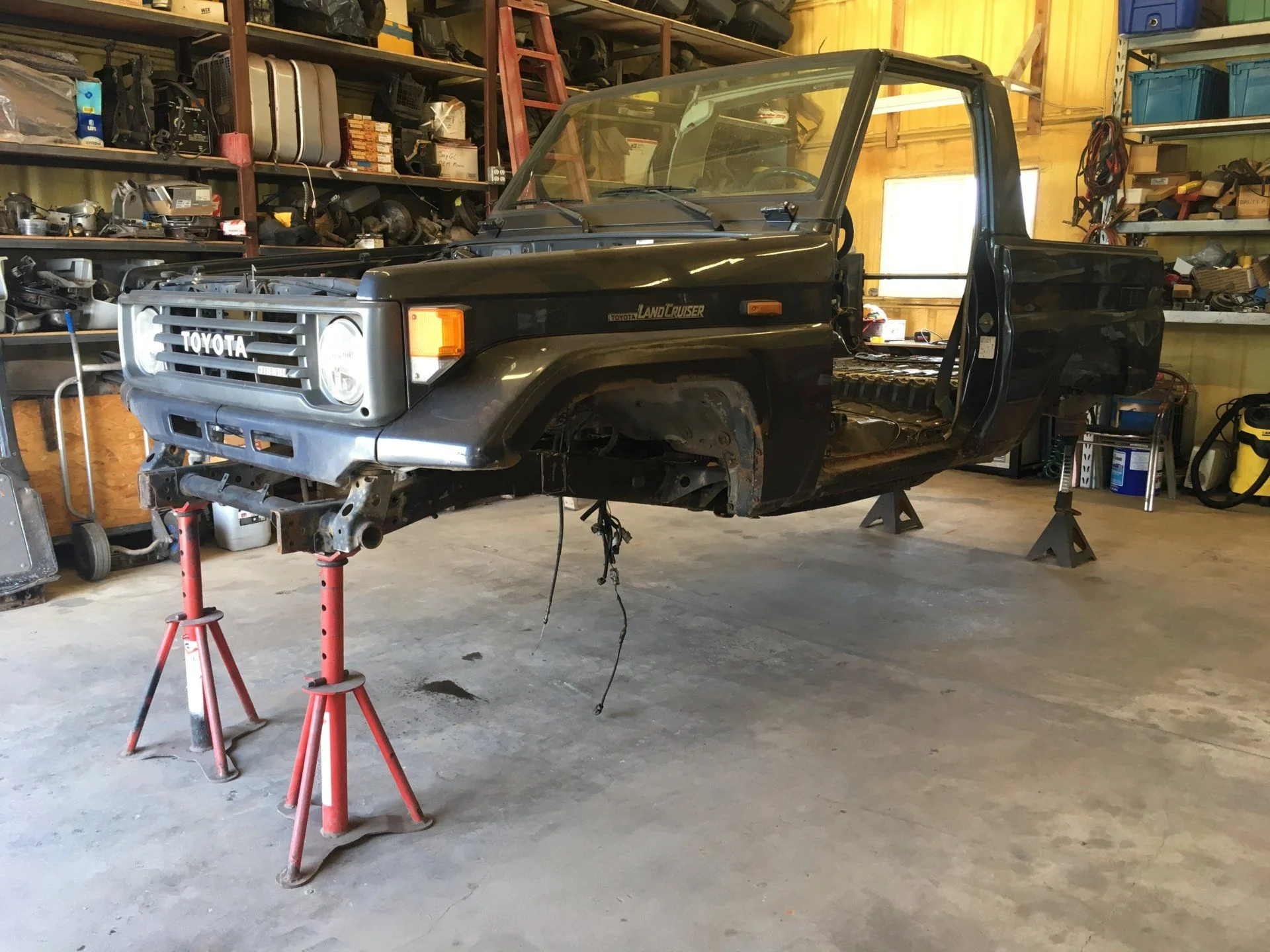

    2052AE45-B60F-4E78-8343-506B9CC210C1.jpeg 4546F26B-6122-46FF-AC61-994661F6D2DD.jpeg

  7. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas

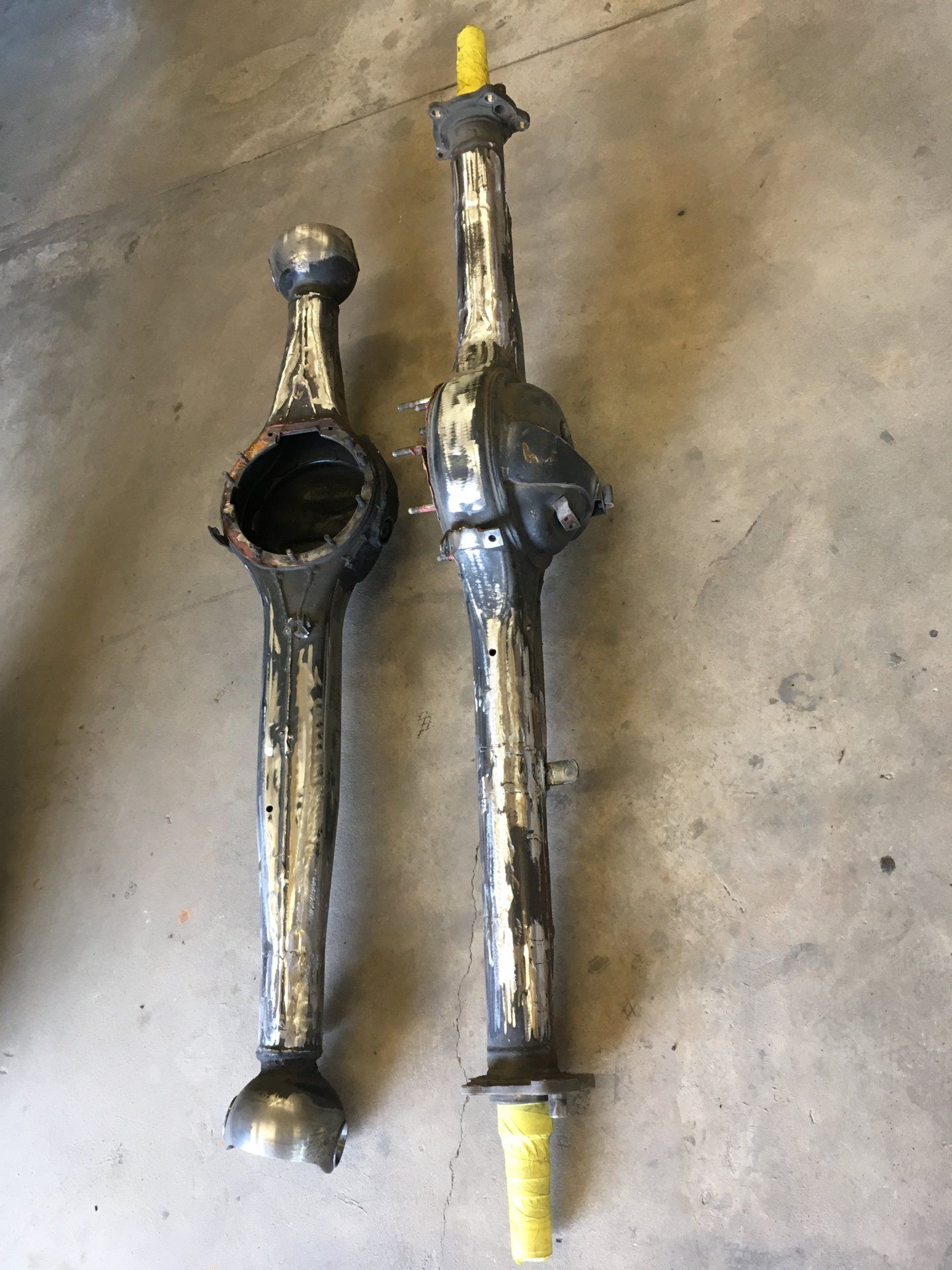

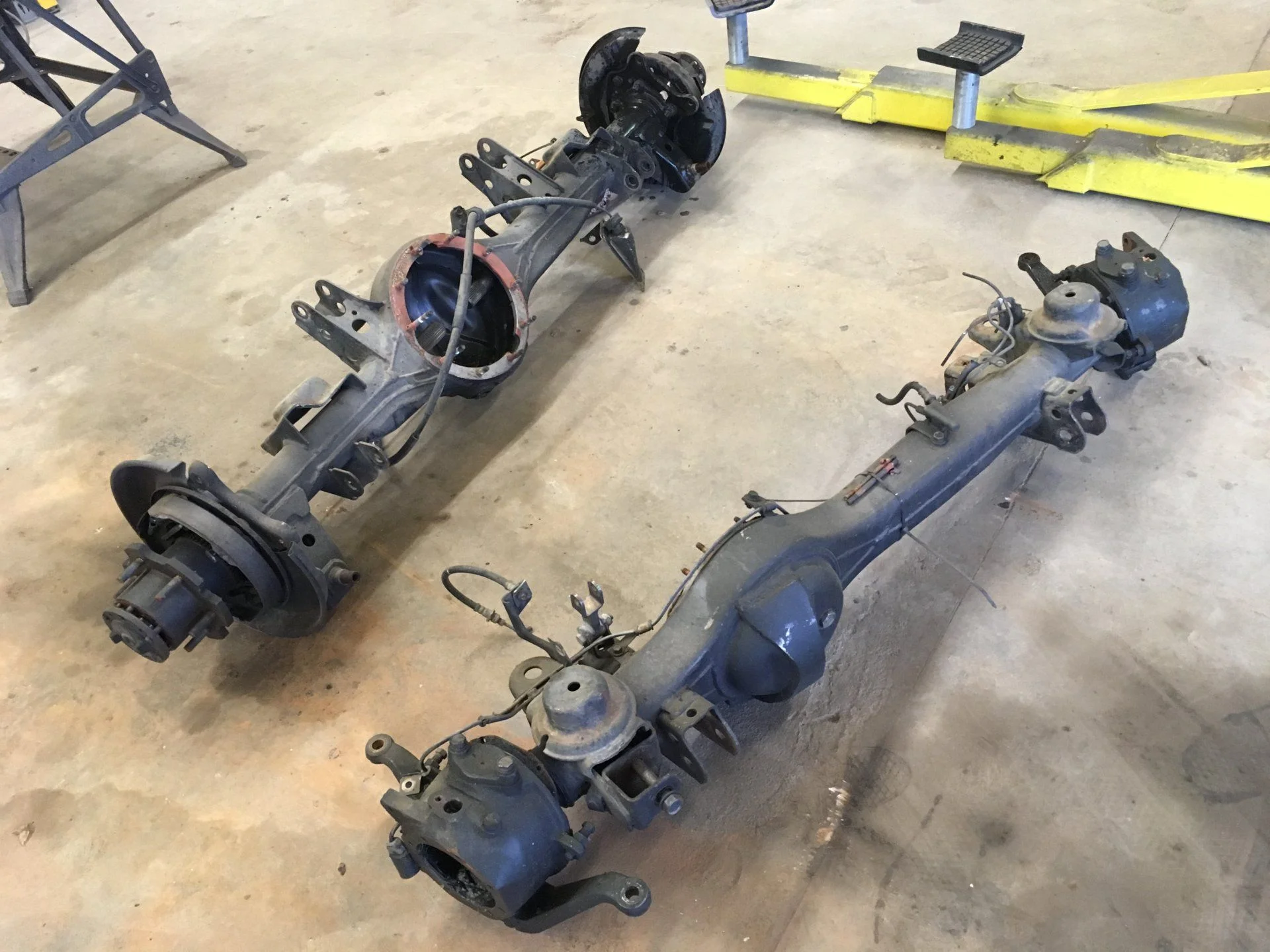

    Disassembled and stripped the 80 series axles today.

    74E8DB56-ACF5-40FC-A837-4D9771CA93C4.jpeg 566E6768-1258-4112-969F-D386935A311B.jpeg

    Ronny Grady and Mr Cimarron like this.
  8. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas

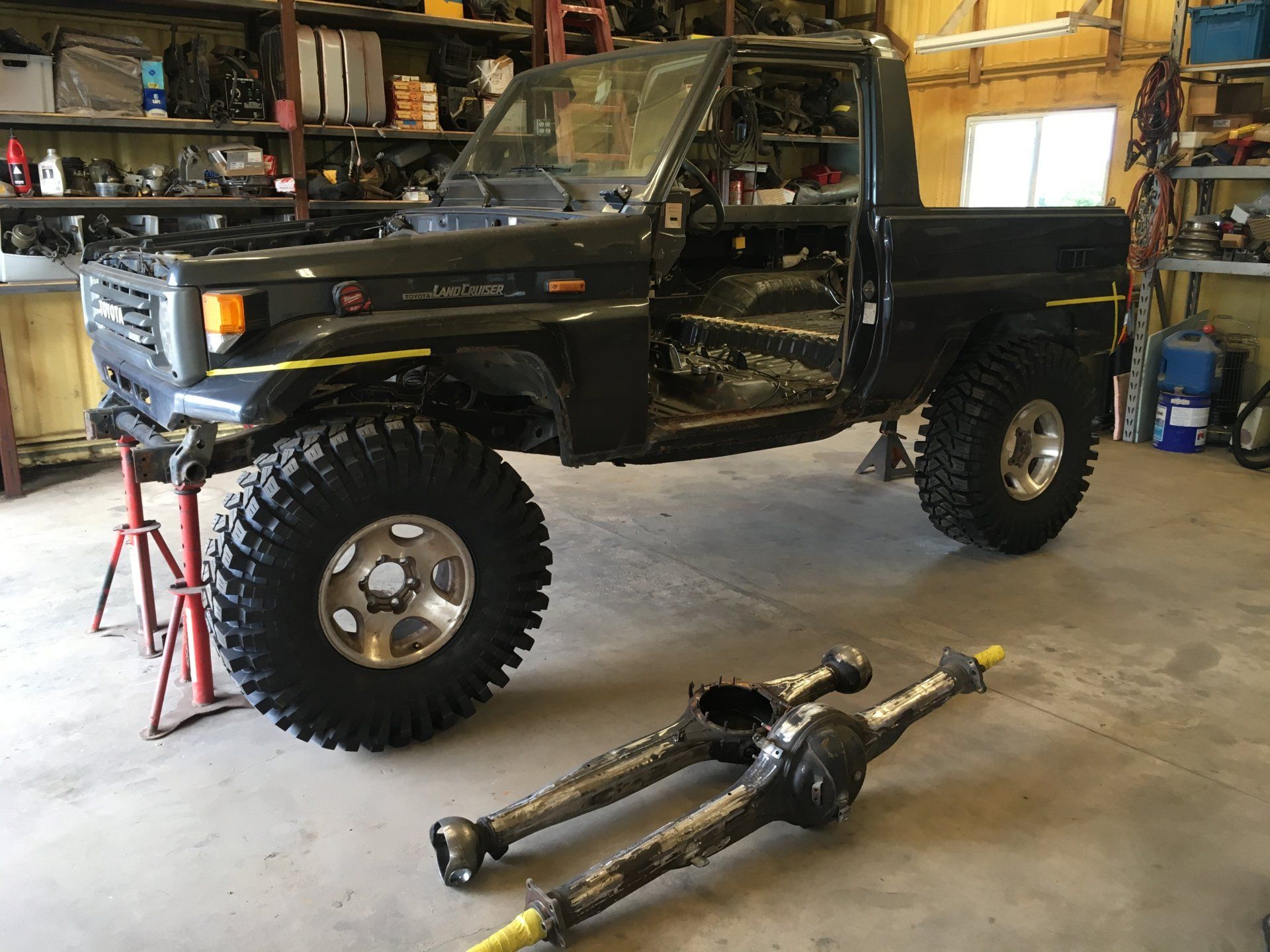

    I also rolled some 37’s under the body to see what that ride height would look like.

    I hope to be able to stretch the wheelbase up to 115” , wheeling HZJ73’s with a stock wheelbase I always had the feeling that on a steap ledge over 4ft deep on steep down hills they give you the feeling that they want to roll over nose down. Also with the stock wheelbase the rear bumper gets some nasty hits on that same stuff.
    E8890856-647F-45A5-B850-2AB6F8D536D0.jpeg E95BEFE1-A85B-4F03-B1A2-1CD6FEAB728E.jpeg

    Now I need to order the 3 and 4 link kit but it looks like Ruffstuf has all that stuff on backorder now :(

    Any suggestions for a different kit anyone ?

    mr jits, jfz80, Mr Cimarron and 4 others like this.
  9. The Eradicator

    The Eradicator

    Messages:
    120
    Likes Received:
    195
    Joined:
    Sep 29, 2014
    Location:
    Springfield, MO
    I used Barnes 4WD kits. Similar to Ruffstuff's but a bit cheaper and easier to convert to RHD. The trepadors look awesome under there. I wish they weren't backordered when I was tire shopping. What are your plans for the fuel filler, since the stock one is in the way of your trimming?

    Bydge and joekatana like this.
  10. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    Not sure yet what kind of fuel tank and the location of it yet, really want to make the wheelbase priority so after the suspension is in I will see wether I could use one of those 145 liter Stainless steel tanks that are arriving in my next container or if I should go with a smaller aluminim tank inside. I want to build a full rolcage and in the back a drawer system to secure spare parts and tools, picking up your junk after a roll get’s old pretty quick ;)

    Tapage likes this.
  11. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    No updates on the Cruiser but I did order the PSC ram from PolyPerformance with their memorial day 20% off , gonna wait and see what Ruffstuff is doing for discounts before ordering the suspension parts .

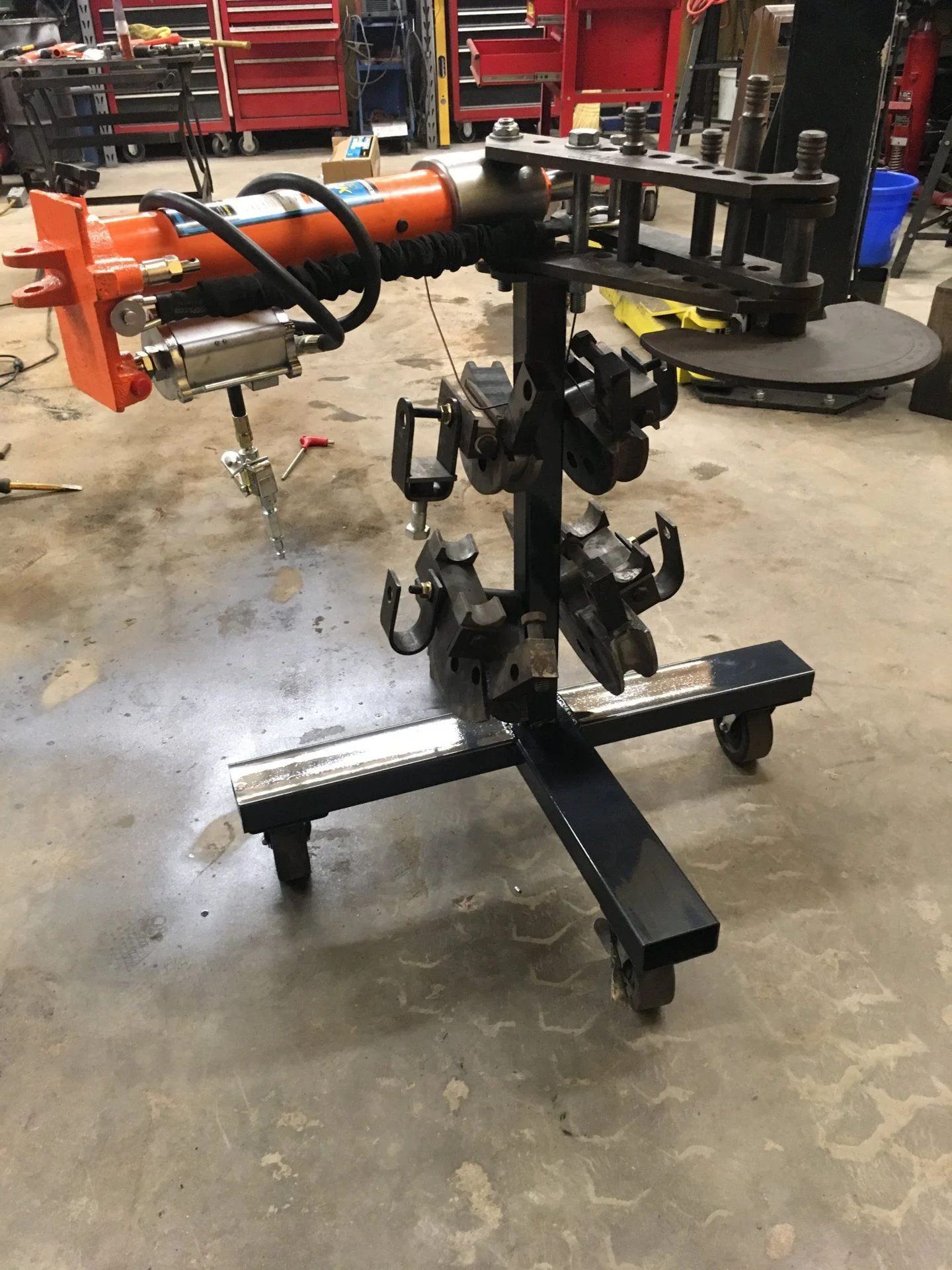

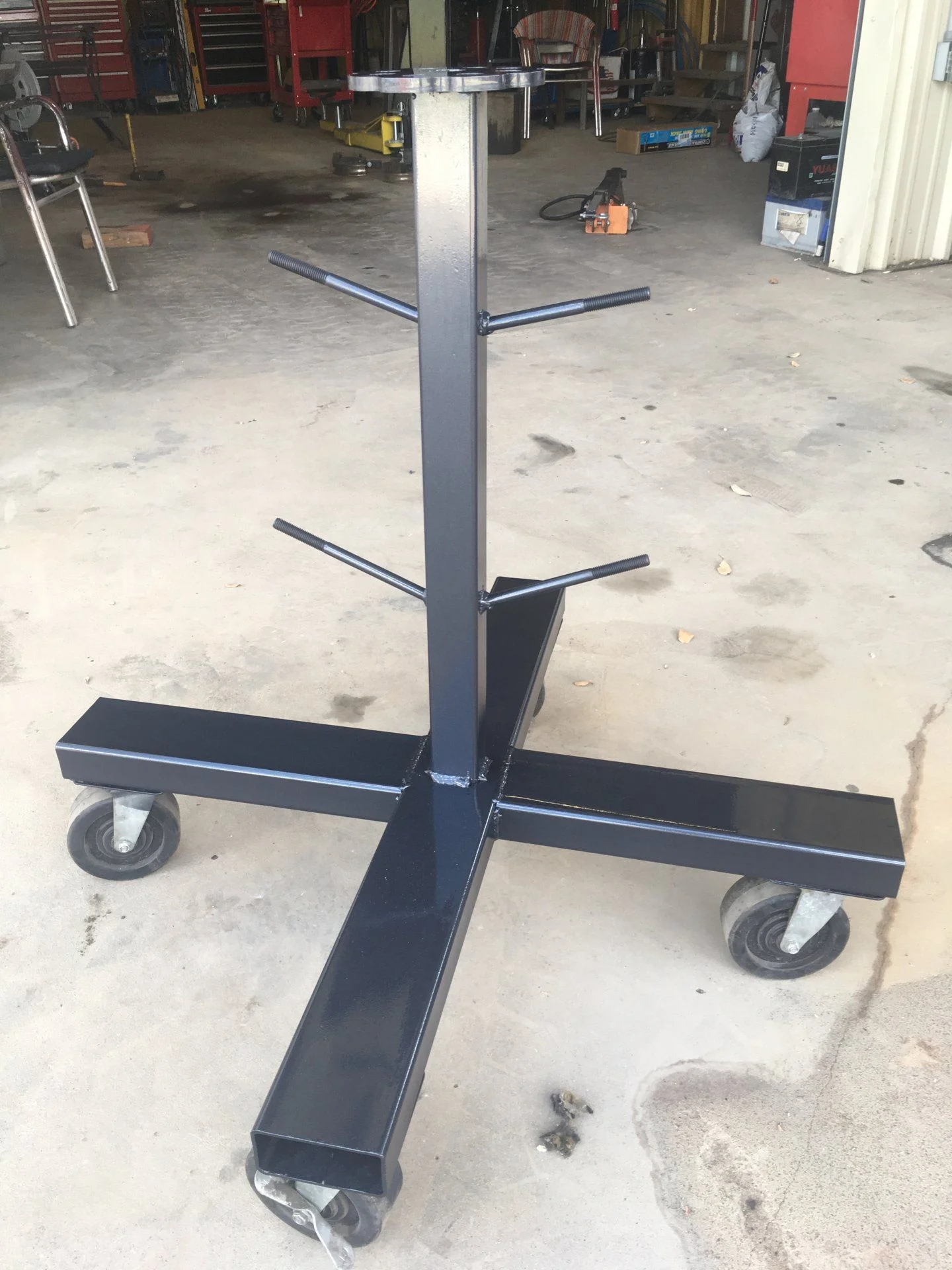

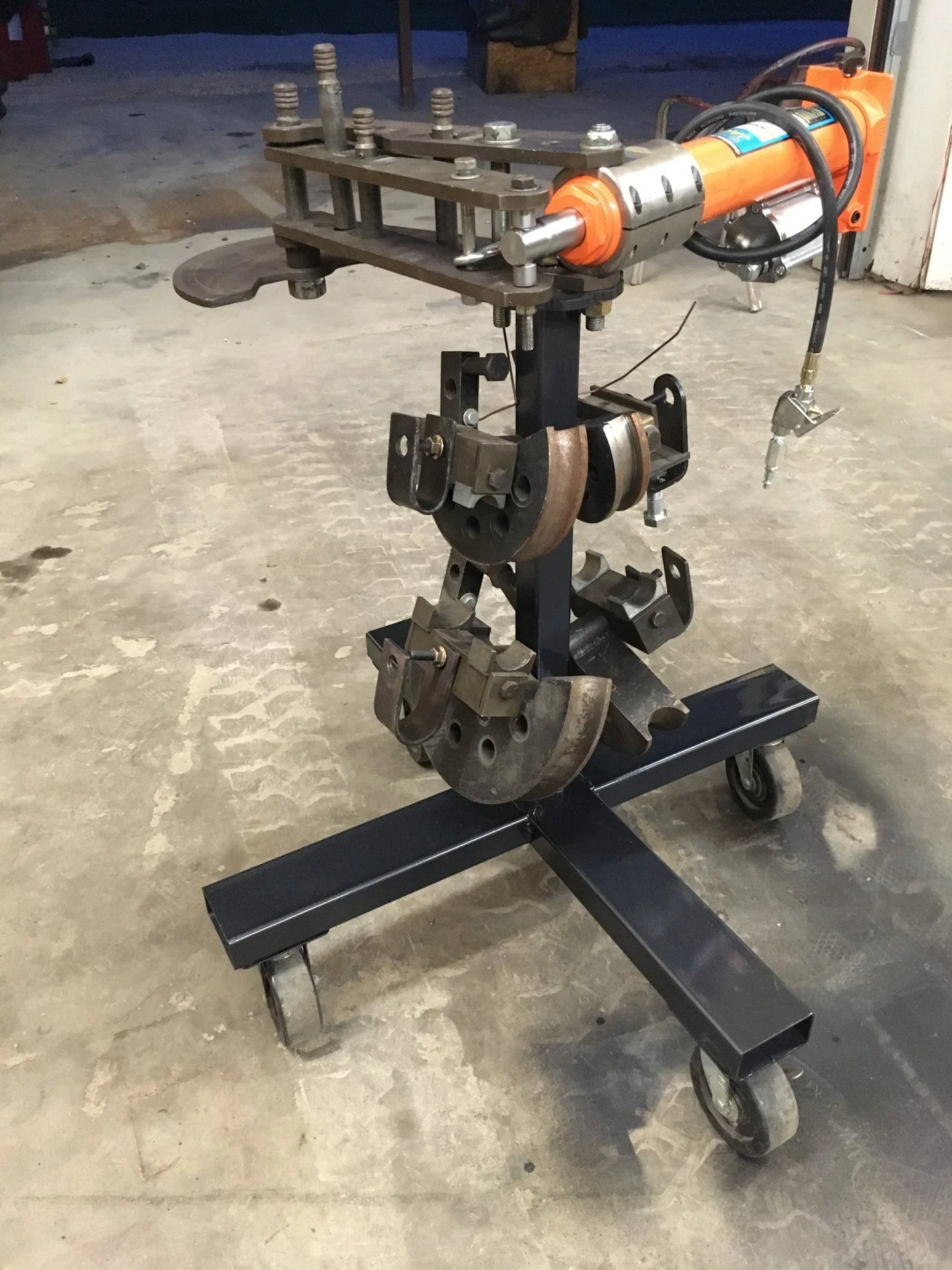

    I did build a stand for my tube bender and converted it to air/hydraulic. I used this bender manually on a big workbench that was always in the way somewhere, 3 years ago I dissasembled it and it stayed on a pallet untill today

    0DCC57C1-63C1-4779-921A-8D8B9CBA47CA.jpeg 4BC11EEF-D8EF-48A1-81D7-7F2AE4030E22.jpeg 2FF506F4-48F9-4E0B-9252-9088926771BC.jpeg

    Mr Cimarron and S4Cruiser like this.
  12. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas

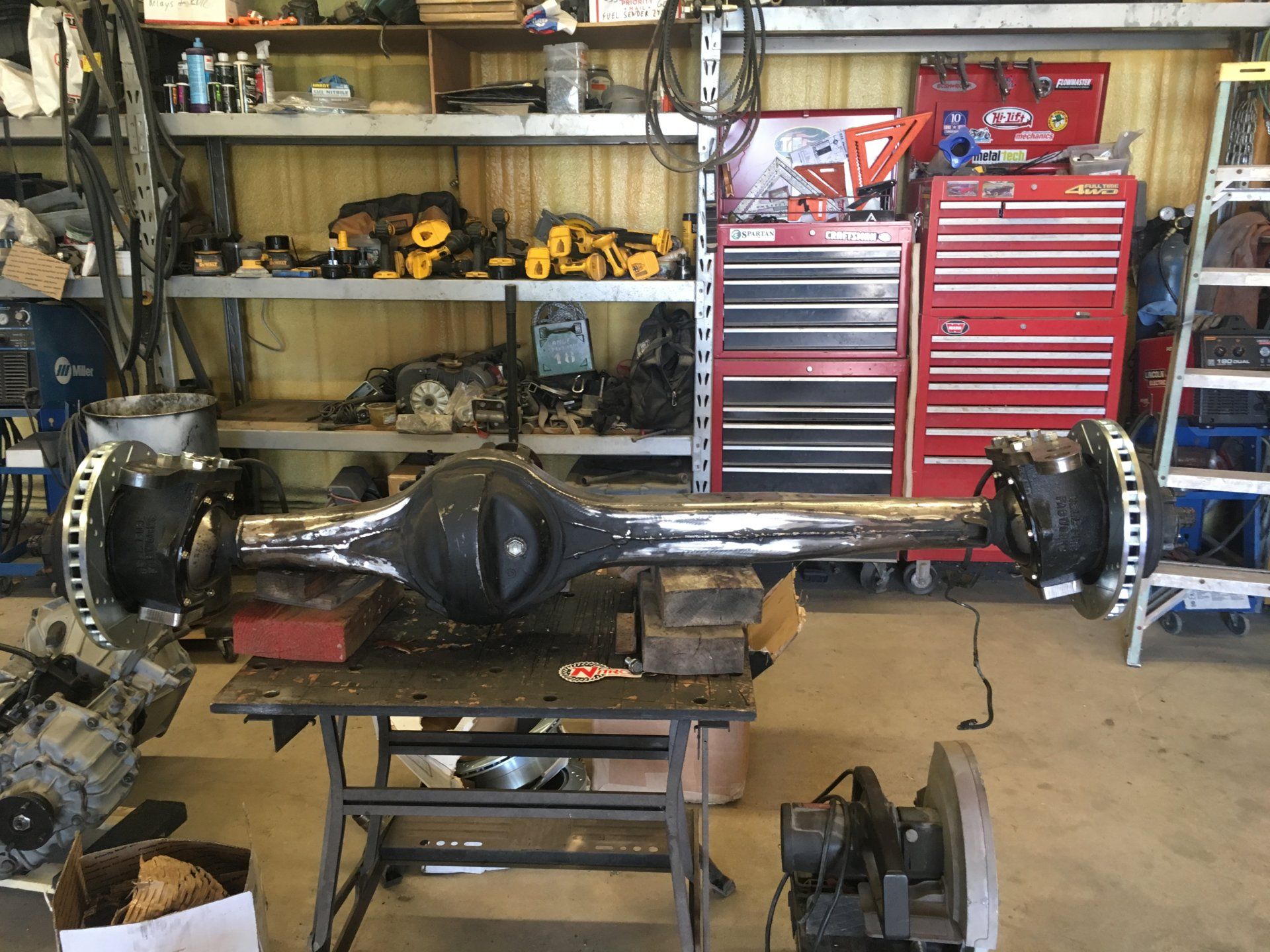

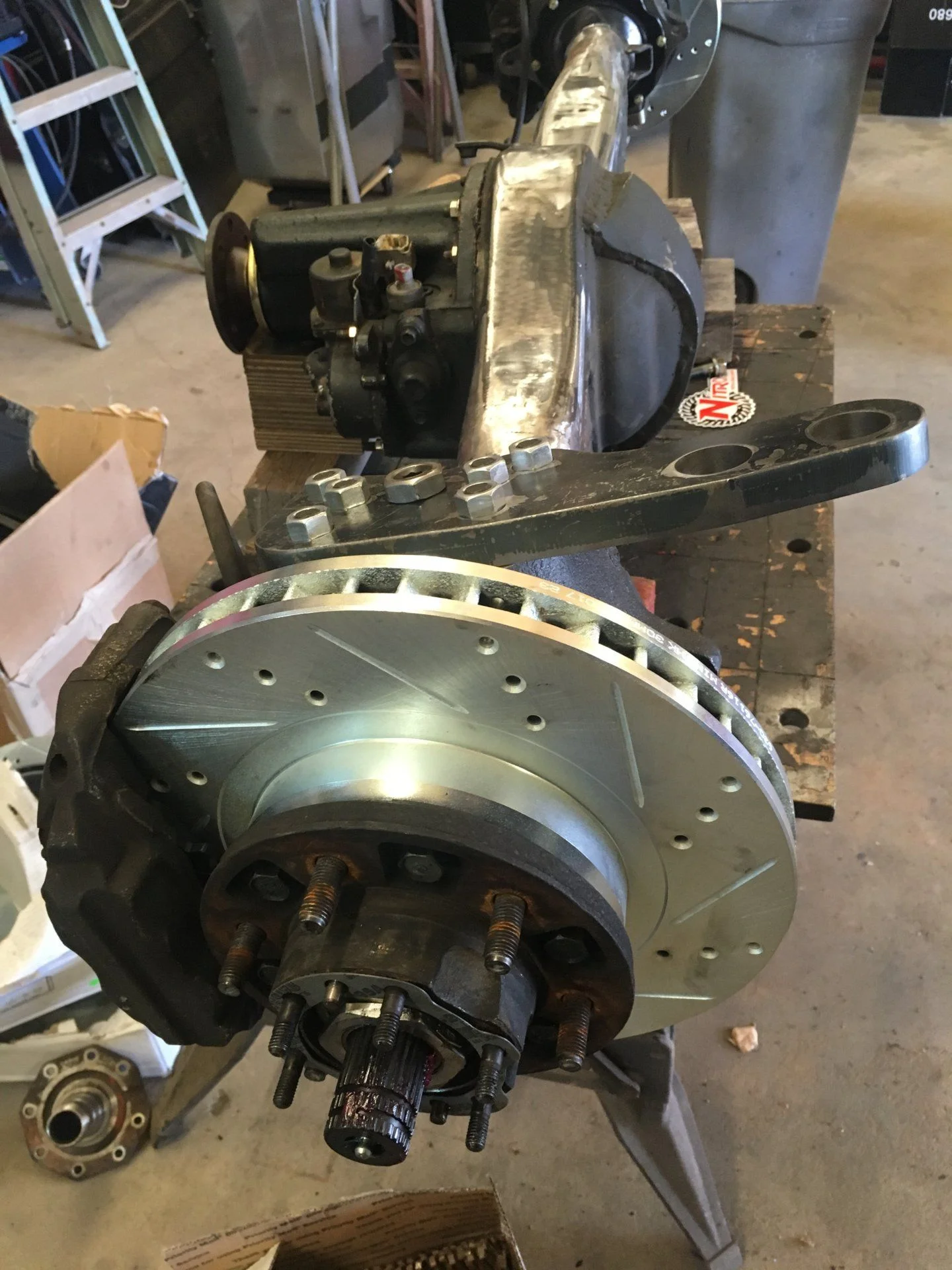

    It has been superbusy here at the shop with 2 containers of new inventory coming in so I was actually glad I had to move the front axle out of the way ...... best excuse ever to work on it so it can be moved under the truck. Rotors are slotted and drilled Ebay purchases since this will be primarily used as a wheeling rig I did not want to spend to much on those .

    17501F00-269B-442E-A795-F1657F41DAE1.jpeg 4BE3309F-A01B-46AE-B860-5E057FECF445.jpeg

    Mr Cimarron and Alex gee like this.
  13. Tapage

    Tapage Club 4X4 Panamá SILVER Star

    Messages:
    23,291
    Likes Received:
    1,337
    Joined:
    Apr 4, 2003
    Location:
    Panamá
    Your shop looks pretty much organized these days .. ! congrats ..

    Well that was good excuse to follow this thread ..

    joekatana likes this.
  14. GLTHFJ60

    GLTHFJ60 Rum Runnin' SILVER Star

    Messages:
    23,672
    Likes Received:
    8,304
    Joined:
    Apr 18, 2005
    Location:
    Durham, NC
    :popcorn:

    R151, you mean H151? R series went in minitrucks, H series went into cruisers AFAIK. Highly recommend the H151 over the H55, having driven and worked with both. H151 feels so much more modern.

  15. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    R151 came on most of the 70 series from 1999 and up if I am not mistaken,got a brand new R in the shop and a rebuild H55 but one of these will go to a customer and I will use the one that stays behind.

    The H150 and H151 where found in the 80 series but never in the 70's ,I have a H151 also but it is way to long to install in this.

    GLTHFJ60 likes this.
  16. 2fpower

    2fpower

    Messages:
    8,831
    Likes Received:
    4,748
    Joined:
    Sep 5, 2007
    Location:
    lenexa, ks
    Excited to see how this goes. I have been planning to talk to you about parts to do this and slap it on 80 frame someday. Probably 5 years from that project though.


    and....

    Fj73 Crawler build,

  17. Tapage

    Tapage Club 4X4 Panamá SILVER Star

    Messages:
    23,291
    Likes Received:
    1,337
    Joined:
    Apr 4, 2003
    Location:
    Panamá
    They did for us and in Australia AFAIK ..

    For us on HZJ70 ( after H55F was ruled out from 70 series for us in 99 the jump to H150 ) and in Aus for those HDJ79 with the FTE they got the H151 ..

    GLTHFJ60 likes this.
  18. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    Slowly making progress. This week I got some work on the 1HDT done

    Tapped and drilled the manifold for an egt gauge
    New rear main seal, waterpump, timing belt and some cleaning up.

    Need to go trough my stash to find the neccesary 24v sensors for the engine and the fuel cut off solenoid for the IP.

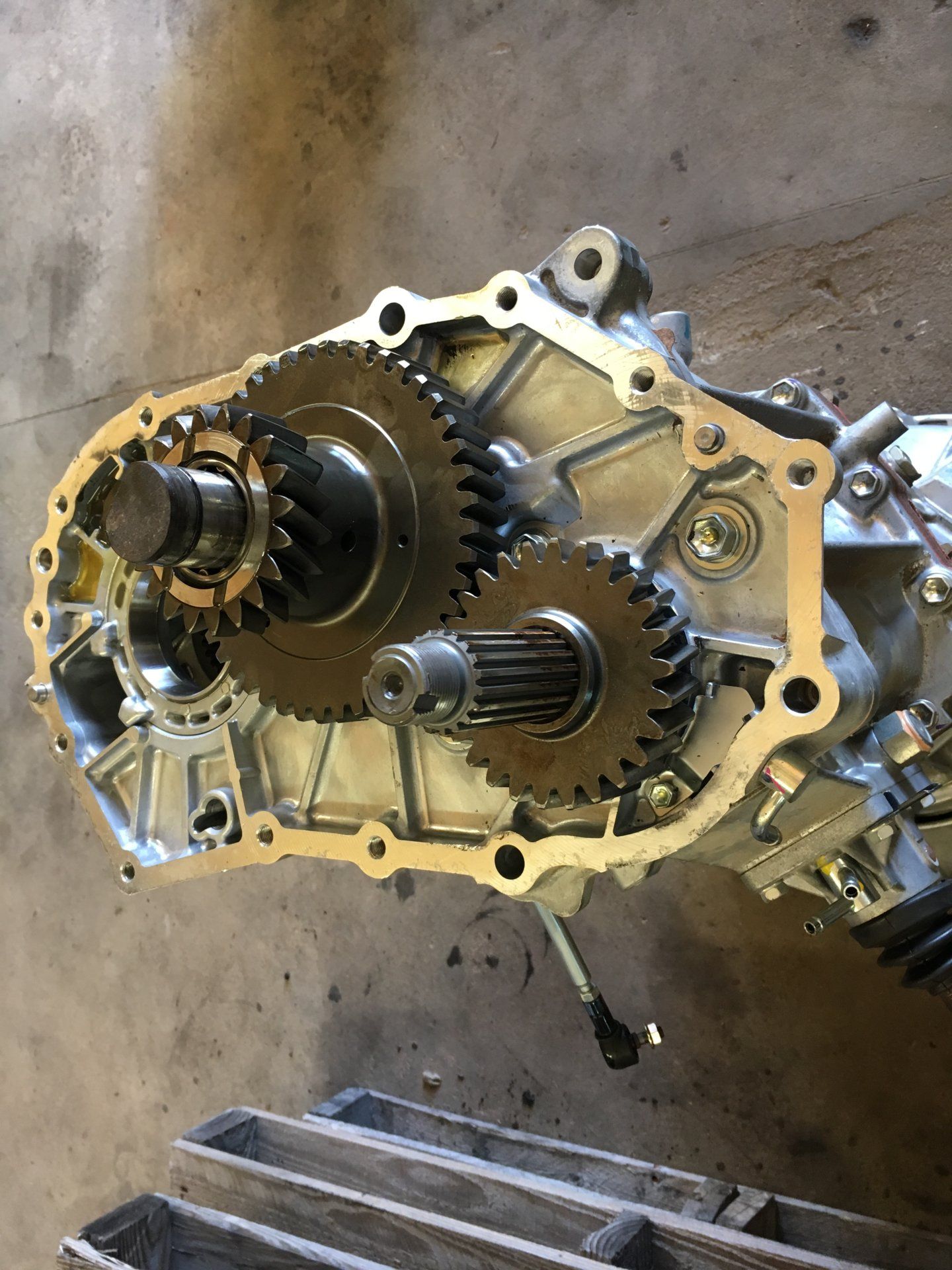

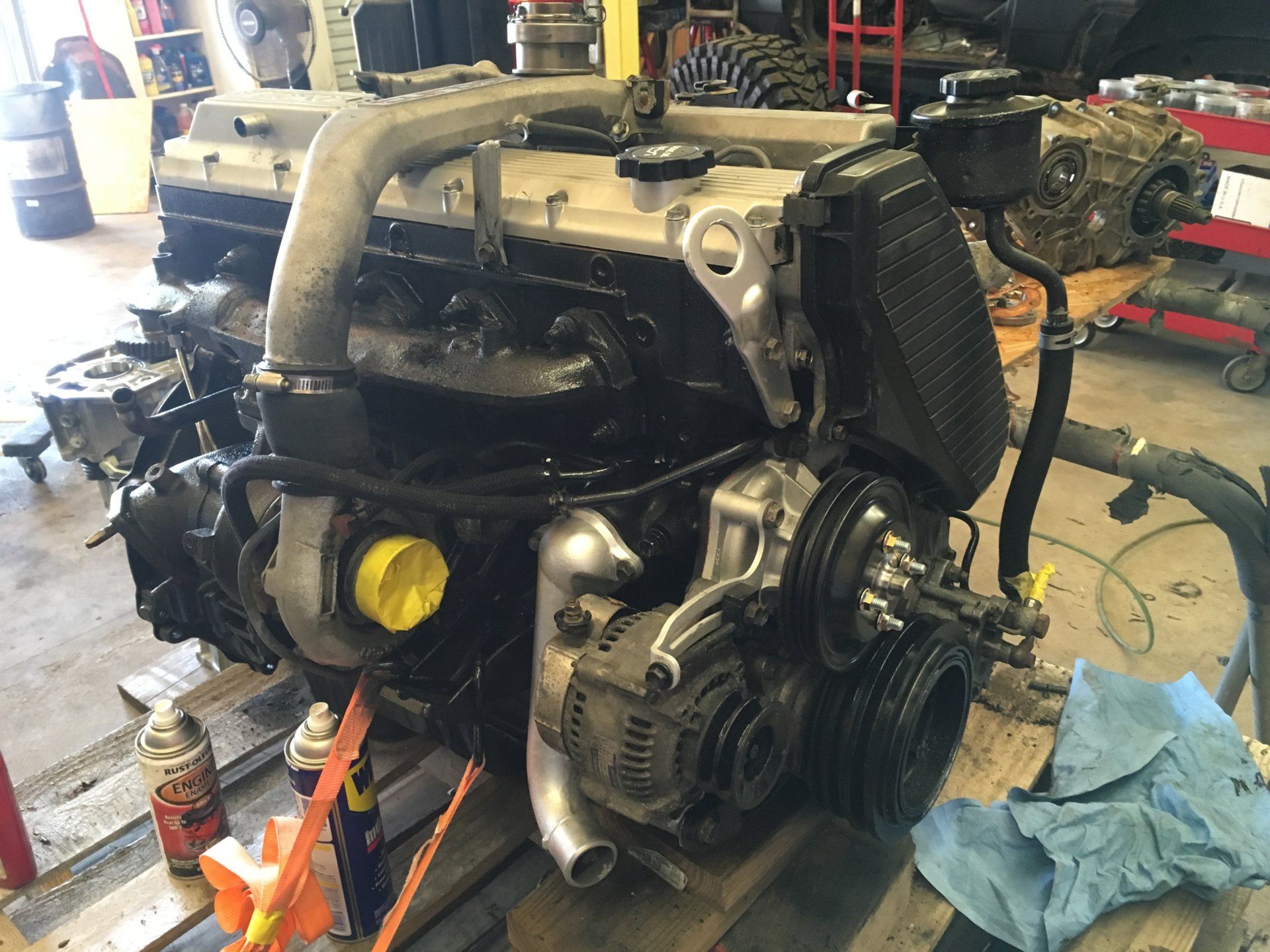

    Today I took the R151 and started to put the 4/1 crawler gears in the split case, with a little bit of luck it stays quiet today and I can get the engine and transmission mated together.

    559CCAD7-3DFC-4E4C-80F7-0D2BB4E07EDE.jpeg 9F450D7C-980F-41CC-A086-5974BB97BD8F.jpeg

    mr jits, Bama4door, Tapage and 2 others like this.
  19. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas

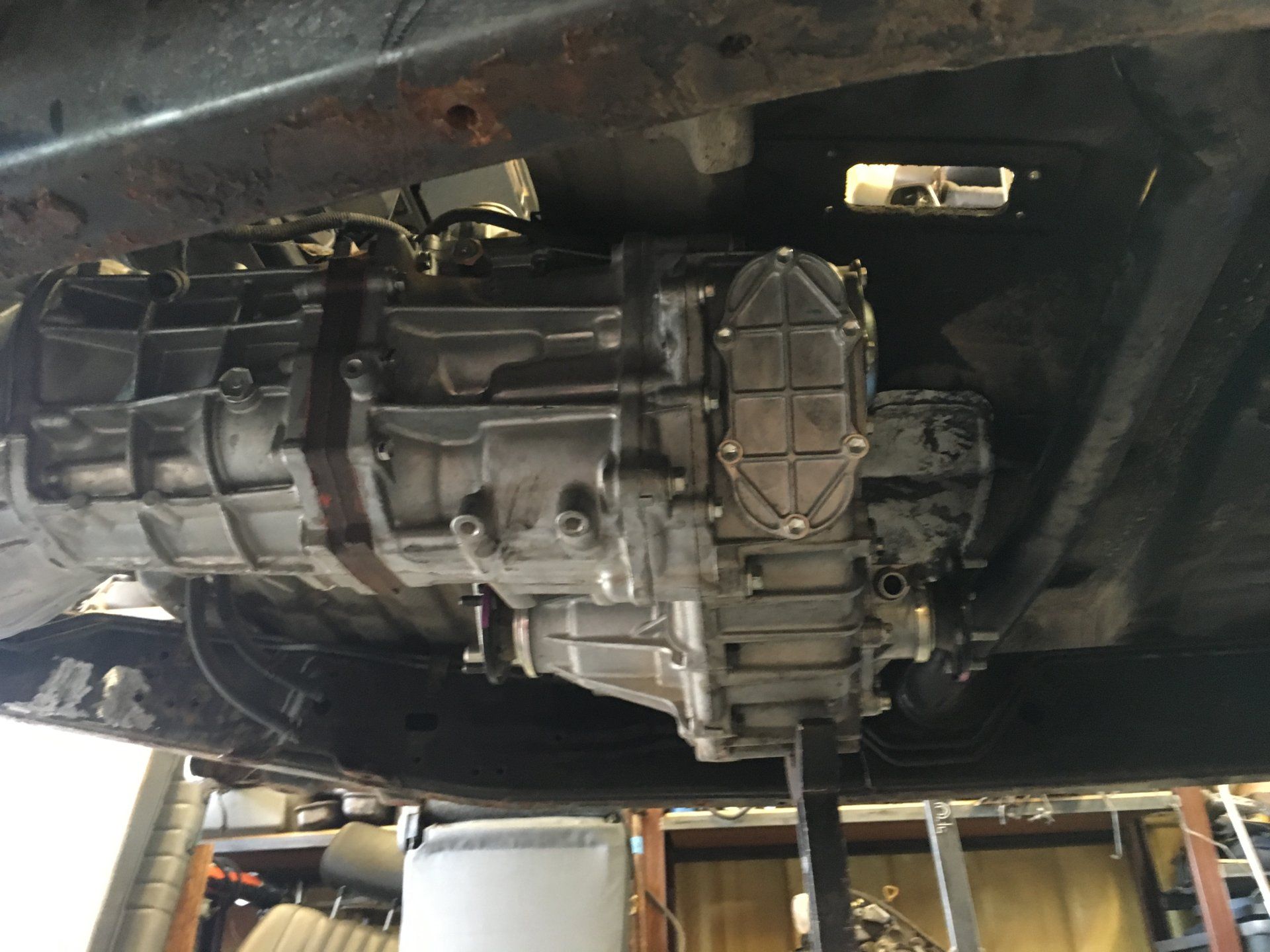

    1HDT with the R151 went in this morning. Funny how much further back the transmission mount for the R151 is compared to the H55 mount.

    I jacked the transfer case up about an inch to high but that will drop as soon as I either make a crossmember or maybe bring one from a late model 70 from Europe.

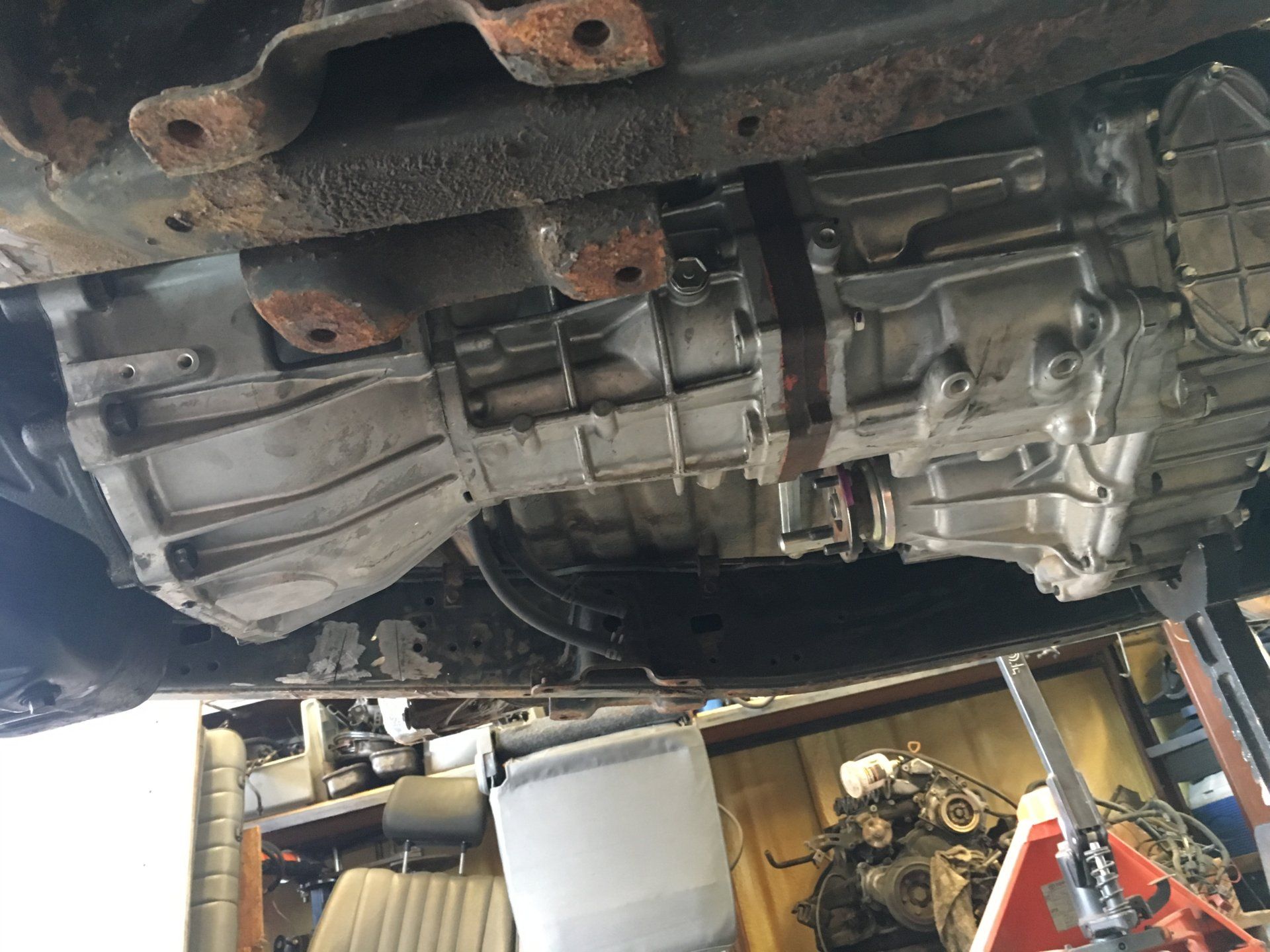

    0A086470-51A7-4499-8024-82C70A5D9646.jpeg C30E7210-5D3E-46ED-920A-9C616615BC03.jpeg 191AEC76-F2DF-4791-99B0-D60551268F2D.jpeg

  20. joekatana

    joekatana GOLD Star

    Messages:
    3,342
    Media:
    2
    Albums:
    1
    Likes Received:
    1,889
    Joined:
    May 30, 2008
    Location:
    Texas
    I also swapped the stock 73 brake master and booster with a HDJ80 one , you can definetly see that both the booster and the master are upgrades over the 70 series model.
