Wow mine is way different than that one, maybe it doesn't need a headgasket.
22RE Assistance Need / Live.
- Thread starter D'Animal
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #22
The smaller port on the fuel P.R. goes to this on mine.... I should say that my truck may not be stock... but it does run!
I have this connector but don't have the thing it plugs into that is bolted down.
- Thread starter
- #23
Mine in Post #7 does not have the third big nipple.
My Aluminum thing on the power steering pump a a #1 and #3 stamped into it.
My Aluminum thing on the power steering pump a a #1 and #3 stamped into it.
Last edited:
- Thread starter
- #24
I don't have the white bolted down connector at all. It is the one at the bottom left of the picture to the left of the red one. Not plug end or the thing it plugs into.
- Thread starter
- #25
LOL!
Check your vacuum lines and all the other hoses. You can easily gain 15hp. If you paint the valve cover blue you can get another 5hp out of it. LOL!
Check your vacuum lines and all the other hoses. You can easily gain 15hp. If you paint the valve cover blue you can get another 5hp out of it. LOL!
2ndGenToyotaFan
Moderator
- Joined
- Jan 8, 2006
- Threads
- 264
- Messages
- 9,805
- Location
- Ashland, OR
- Website
- www.jeffersonstatecruisers.com

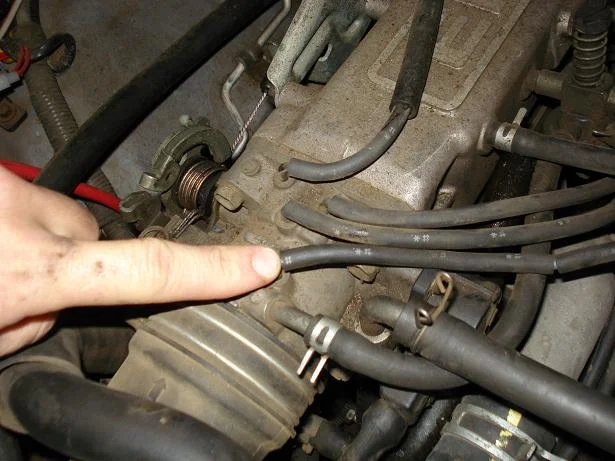

And a few more from the thing on the intake...
2ndGenToyotaFan
Moderator
- Joined
- Jan 8, 2006
- Threads
- 264
- Messages
- 9,805
- Location
- Ashland, OR
- Website
- www.jeffersonstatecruisers.com

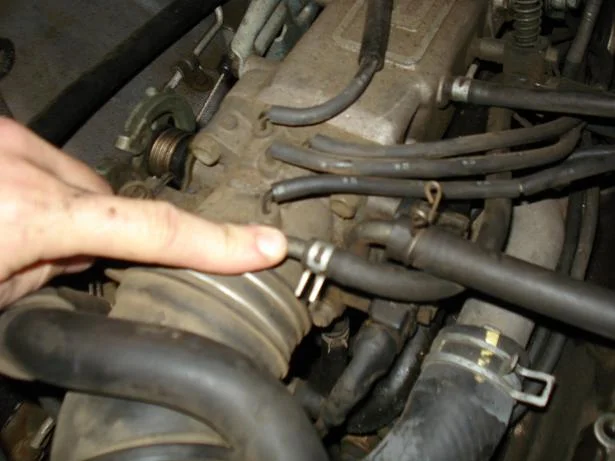

and the other larger hose...
2ndGenToyotaFan
Moderator
- Joined
- Jan 8, 2006
- Threads
- 264
- Messages
- 9,805
- Location
- Ashland, OR
- Website
- www.jeffersonstatecruisers.com

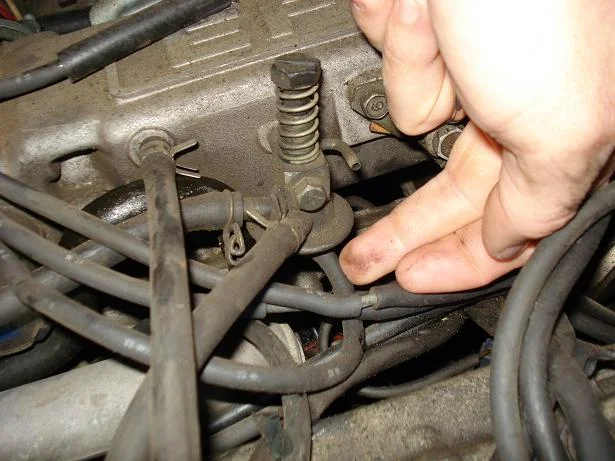

I don't have this hose on mine, it's probably just a vent for the dashpot... I'd hook it up to the intake somewhere if there's an open spot.
- Thread starter
- #29
Mine is completely different.
That must be why I cannot follow the service manuals.
That must be why I cannot follow the service manuals.
- Thread starter
- #30
Thanks anyway Jerod.
I'll take the VIN to the toyota dealer tomorrow and get them to print me the vacuum lines and the emmission diagram.
I'll take the VIN to the toyota dealer tomorrow and get them to print me the vacuum lines and the emmission diagram.
2ndGenToyotaFan
Moderator
- Joined
- Jan 8, 2006
- Threads
- 264
- Messages
- 9,805
- Location
- Ashland, OR
- Website
- www.jeffersonstatecruisers.com
And I did not see the 2 prong elec. connector you showed... Mine is an 89 though....
- Thread starter
- #32
The 87's are way different as well.
- Thread starter
- #33
Anybody on the morning shift want to take a stab at it?
Holy cow, I really thought some of you guys knew more about the venerable 22RE than this. OK, here's my input:
Pic 1: the distributor on the EFI engines does not have a vacuum advance. The ECU controls the ignition advance. That aluminum part you are referring to is NOT on the distributor, it is on the power steering pump. It's function is to increase the engine idle very slightly if you are at full-lock on the steering, so the engine has enough power to run the pump at maximum pressure.
Pic in post #7: that is the idle up controller, it is part of the AC system. Trucks without AC won't have this thing. When you turn the AC on, a VSV on the valve cover sends vacuum to this thing, which causes the engine idle to increase. Based on your pic #2 in post 3, your VSV is MISSING, so your AC system might not even work properly now. It's supposed to be in the middle if the valve cover, right behind the TOYOTA logo. I am also guessing that the wire connector you posted later on is supposed to attach to this missing VSV.
Tip: The little white knob is where you can set how much the engine idle increases with the AC on. Kinda handy, as I currently don't have the belt on my compressor (compressor is leaking), but if I push my AC switch on the dash, I still get the idle increase. Good for keeping the battery charged up while winching.
Comment: my FSM has never let me down with all this stuff. It's all in there, where each thing goes, where each hose connects, how to test each component, etc. You just have to be patient, read carefully. I find a MitiVac tool very handy to testing devices that work under vacuum.
Pic 1: the distributor on the EFI engines does not have a vacuum advance. The ECU controls the ignition advance. That aluminum part you are referring to is NOT on the distributor, it is on the power steering pump. It's function is to increase the engine idle very slightly if you are at full-lock on the steering, so the engine has enough power to run the pump at maximum pressure.
Pic in post #7: that is the idle up controller, it is part of the AC system. Trucks without AC won't have this thing. When you turn the AC on, a VSV on the valve cover sends vacuum to this thing, which causes the engine idle to increase. Based on your pic #2 in post 3, your VSV is MISSING, so your AC system might not even work properly now. It's supposed to be in the middle if the valve cover, right behind the TOYOTA logo. I am also guessing that the wire connector you posted later on is supposed to attach to this missing VSV.
Tip: The little white knob is where you can set how much the engine idle increases with the AC on. Kinda handy, as I currently don't have the belt on my compressor (compressor is leaking), but if I push my AC switch on the dash, I still get the idle increase. Good for keeping the battery charged up while winching.
Comment: my FSM has never let me down with all this stuff. It's all in there, where each thing goes, where each hose connects, how to test each component, etc. You just have to be patient, read carefully. I find a MitiVac tool very handy to testing devices that work under vacuum.
Last edited:
Ah, understood. Well, then your neighbor needs to suck it up and buy one. A 20 year old vehicle is going to have issues, and you really need the proper tool to fix it, in this case the best reference.
- Thread starter
- #37
LOL!
Here is the thread with a little more about the owner and the troubles I started with.
https://forum.ih8mud.com/showthread.php?t=189018
Here is the thread with a little more about the owner and the troubles I started with.
https://forum.ih8mud.com/showthread.php?t=189018
- Thread starter
- #38

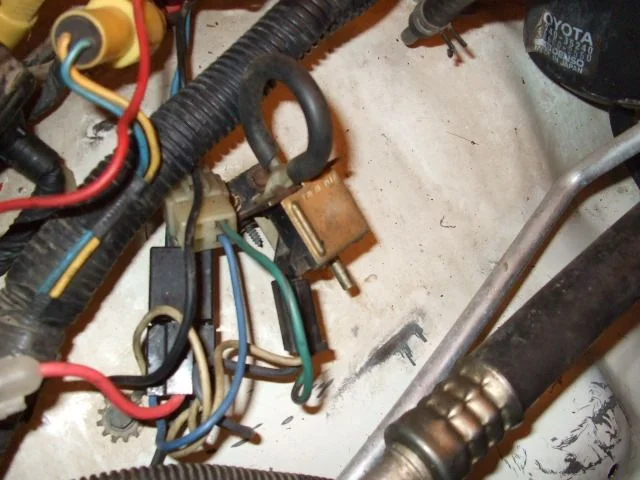

Anybody know what this is?
Some aftermarket crap. That is not OEM.
- Thread starter
- #40
I have almost everything figured out.
What connect the the bottom nipple on the EGR valve?
What connects to the two nipple on the AC idle adjuster on the engine side of the aluminum air intake. It is in the middle picture of post # 3.
In the bottom picture of post #3 you can see the hose that connects to a VSV valve. My manual shows the for M/T Trucks only and shows it going to a filter about 1" past the VSV. Right now it has a 2' long hose attached to it. Does it need a filter or where does it connect.
What connect the the bottom nipple on the EGR valve?
What connects to the two nipple on the AC idle adjuster on the engine side of the aluminum air intake. It is in the middle picture of post # 3.
In the bottom picture of post #3 you can see the hose that connects to a VSV valve. My manual shows the for M/T Trucks only and shows it going to a filter about 1" past the VSV. Right now it has a 2' long hose attached to it. Does it need a filter or where does it connect.
