1HZ install into a 1978 FJ40

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
first off this is a full frame off refurbishing. i do not call my work restorations since they are not and i have yet to see ANYONE do a true restoration (although there is one in the classifieds that comes pretty darn close).
unless every spot weld in in the factory location, every seam exactly like it was from factory, color is the same code then it is a refurbish. unless the engine, tranny, t/case, front end, rear end is completely rebuilt using ONLY FACTORY parts it is a refurbish NOT a true restoration.

hence the term "refurbish".

this build will have the 1HZ, H55F, 2 piece t/case, 7* series rear disc unit with elock, 78 40 front diff. it will have the 60 series power steering conversion and a full custom fiberglass body with enough goodies to tickle anyones fancy.

the goal is a unit that is practicle for an everyday driver, a medium duty off road truck, the ability to tow 3000 lbs comfortably and return high 20s for fuel milage but still be able to lug down to 400 rpm when needed. it needs to be quiet, reliable and yet powerfull.

so for the tear down and install of the drivetrain i will post this here. the body rebuild will be posted in the 40 section.

if anyone has any concerns with this arrangement then let me know.

if anyone has any questions, pointers, suggestions or comments feel free to post up. if they are worthy of a comment i will respond... this should be an interesting and informative thread to those thinking of such a swap, it will be relative to a HDT isntall, a PZ install or the 1HZ...

lets get started...

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
now then some back ground...
i had a custoemr contact me with a build that he recieved from another Land Cruiser restorer (is that a word?).
the recommended build was a turbo'd 3B with a H55F and a full steel body build. as many of you know i am not a big fan of installing a dated engine into a build for anyone that is looking at a unit they want to drive for the next 10-20 years. parts for the B series engines are already going obsolete faster than the Dodo bird went extinct. to invest $65K into a build that might just end up sitting in your driveway because of a part you can not find is just idioacracy.

i responded with the following suggestions:
galvanizing is for bridges.
steel will rust no matter what you do to it.
3B is a good engine but underpowered and dated.

so the build i suggested was the one above. an engine that is still in production today
a tranny that is perfect for this engine and that is reliable and smooth shifting
disc brakes all around for better stopping ability in the outback and on the streets and highways in California.
a body that can not rust and one that is quiet, strong and easily repaired at any quality boat shop.

the customer wants a 20 year truck and agreed this fits the bill...

first up, the donor rig, the engine, the turbo, the 60 series power steering install and the drive down to the new location:

<the first section is the build back in Calgary so it is a bit on the "quick" not detailed side... once the frame is sand blasted and painted i will take more time and more pics>

Last edited:
Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta

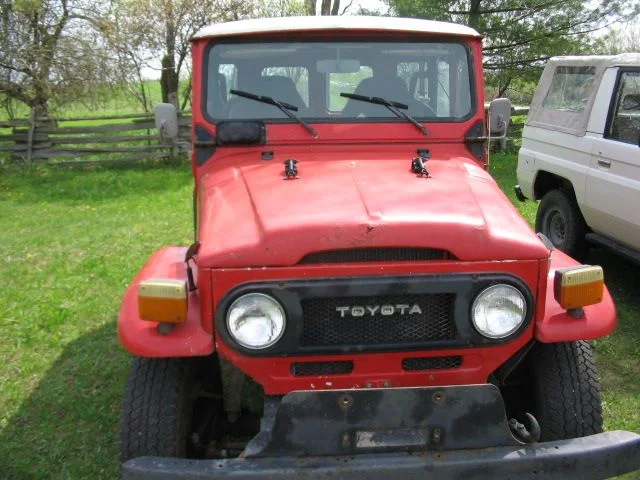

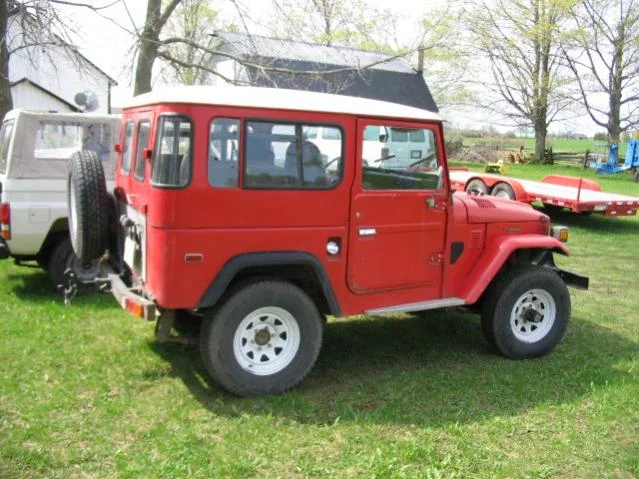

why this one?
for one reason, it has an excellent frame.
the decent parts can be sold to recoup some of the investment.
it is ugly to say the least, i knew the owner from new so there was a history i can call on.
HZJ40 fiberglass build 001.jpg
HZJ40 fiberglass build 004.jpg
HZJ40 fiberglass build 008.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta

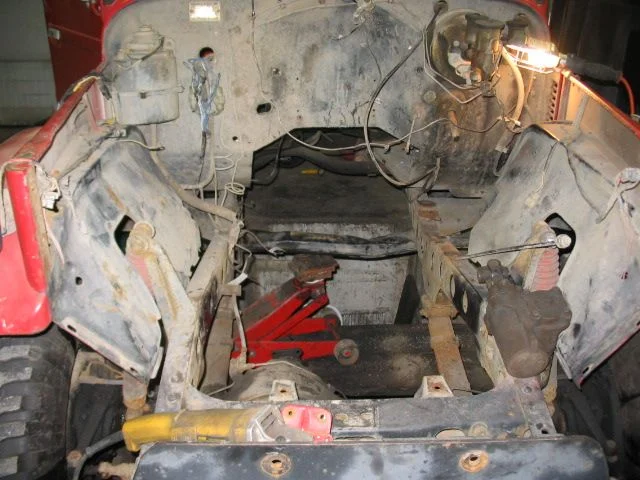

the 2F removed along with the H41 and once piece t/case. you can see the 60 series power steering box installed on the front frame just before the shock tower.

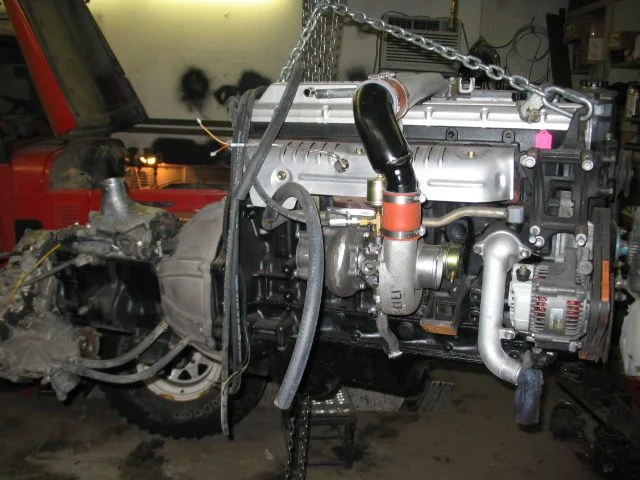

the "new" 1HZ with 80K on it.

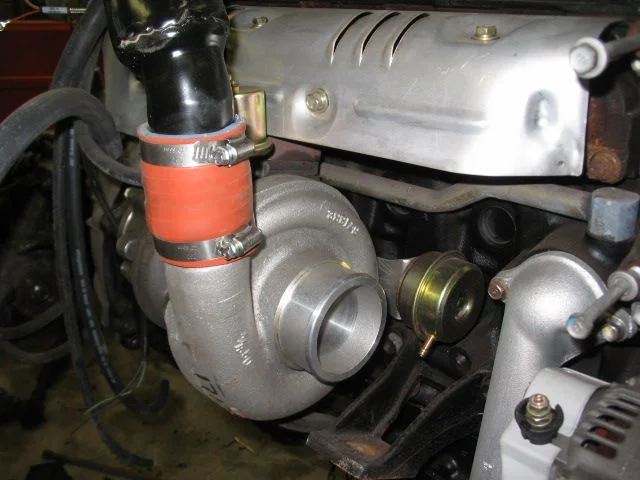

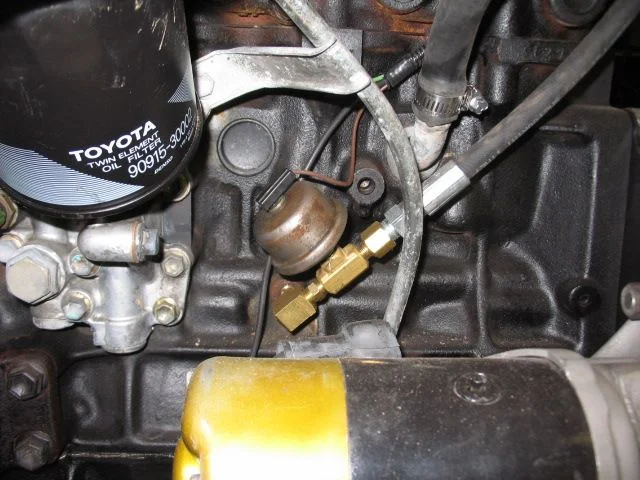

oil feed line from the oil sensor location to the turbo.
1978 HJZ40 build 001.jpg
1978 HJZ40 build 002.jpg
1978 HJZ40 build 003.jpg

Last edited:
Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
the missing factory steering tower and box.
the 60 series box installed

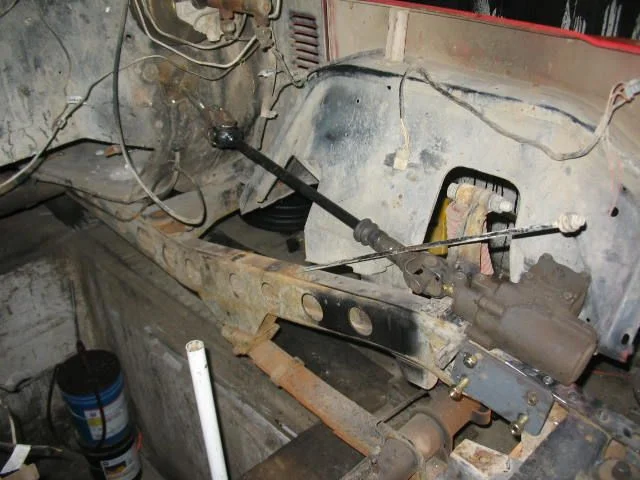

the linkage finished <on the new tub the pillow block will be installed>
1978 HJZ40 build 007.jpg
1978 HJZ40 build 008.jpg
1978 HJZ40 build 009.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta

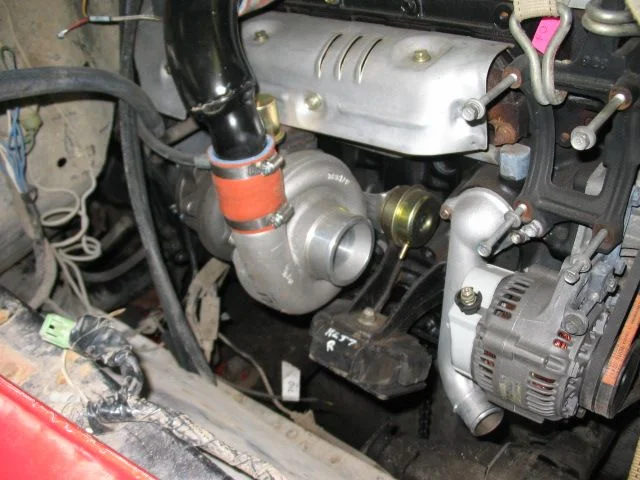

locating the engine

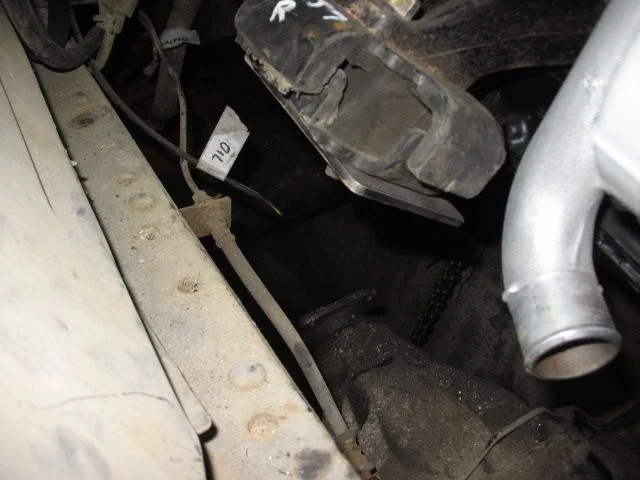

first step of the engine mount is to bolt the flat plate to the engine mount.
next run the pieces that go between the frame and the flat piece. tack into place and move on...
1978 HJZ40 build 010.jpg
1978 HJZ40 build 011.jpg
1978 HJZ40 build 027.jpg


Josie'sLandCruiser

Stop calling it a "FJ."
Joined
Feb 4, 2005
Messages
5,258
Location
Seattle, USA
Hi All:

Wayne, good to see that you are still busy fixing and building rigs! :beer:

This looks to be a great build thread! I've been interested in the 1HZ NA for the last 2 - 3 years as a replacement for the 2F.

Good luck!

Alan

Joined
Jul 22, 2003
Messages
19,045
Location
Perth Western Australia
Hope thats a 12V 1HZ?

Nice build up. This thing will fly;)

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
as you can see, fitting the 60 series power steering box into a 40 is TIGHT. one way is to cut off the factory tower and make a new one from scratch.
what i did was notch the factory tower, this gives a 1/8" (3mm) clearence for the PS housing. the HZ starter wants to exist in the same space that the factory steering box occupies. Bruce Lowen came over and took a look, suggested the 60 series box as a solution and ... well the rest is history. Thanks Bruce.

even with the 60 series box and linkage you can see the tight fit of the 1HZ on the left side of the 40 series engine bay. the blokes with RHD will have a much easier install.

once again, when the new fiberglass tub goes on i will add a pillow block to the steering shaft coming through the firewall.
1978 HJZ40 build 013.jpg
1978 HJZ40 build 014.jpg
1978 HJZ40 build 015.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta

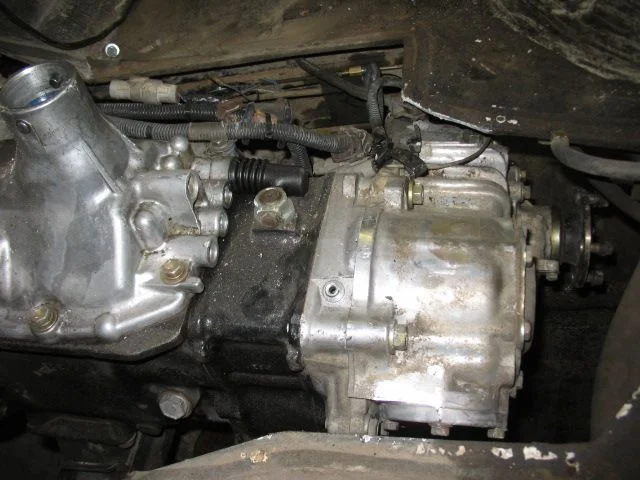

clearences are very crucial since the 2 piece case with vacumm shift has 1" clearence between the frame rails.

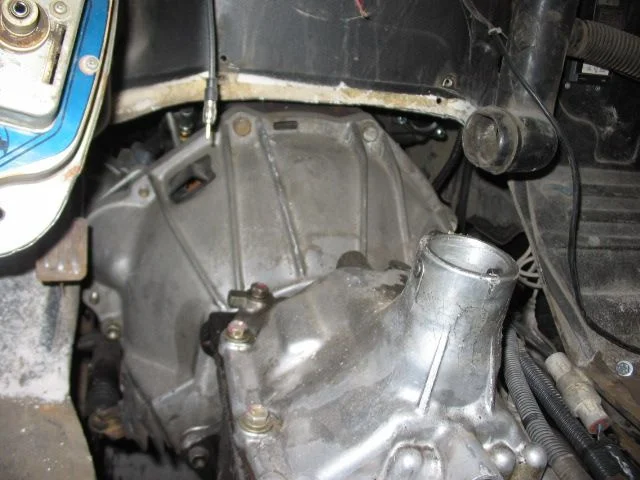

the bellhousing is sitting perfect.

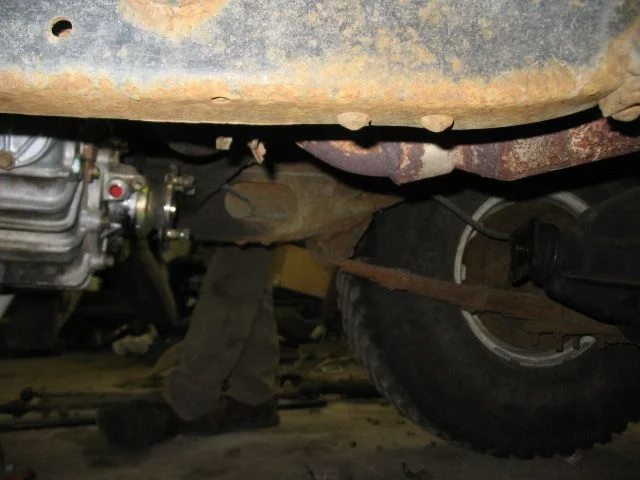

the rear driveshaft angle couldn't be better.
time to move on...
1978 HJZ40 build 016.jpg
1978 HJZ40 build 017.jpg
1978 HJZ40 build 018.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
more fittment shots.

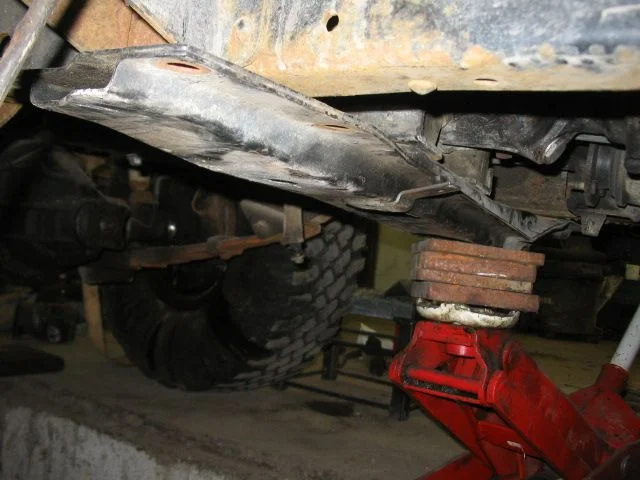

i am using a 7* series crosmember since i found the 40 series H55F member to have the wrong pitch. also since it is a 78 the rear engine/tranny mount was off the bell housing which wouldn't work with this setup.

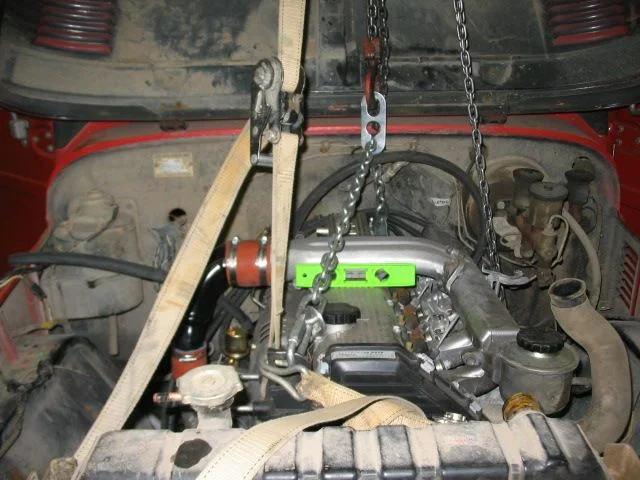

i used ratch tie downs for minor adjustments, they were perfect for moving a 1/4" (6mm) this way and that and for holding the engine perfectly level. once again the fitment is crucial so adjust, modify, adjust, modify...done.

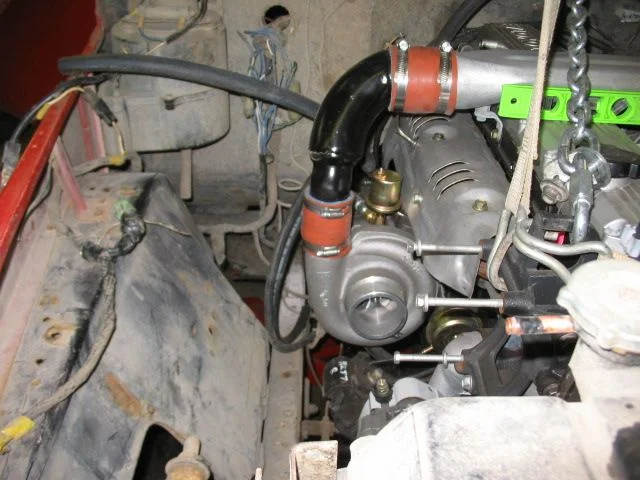

the Right hand side of the engine...looking good...
1978 HJZ40 build 019.jpg
1978 HJZ40 build 020.jpg
1978 HJZ40 build 021.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta

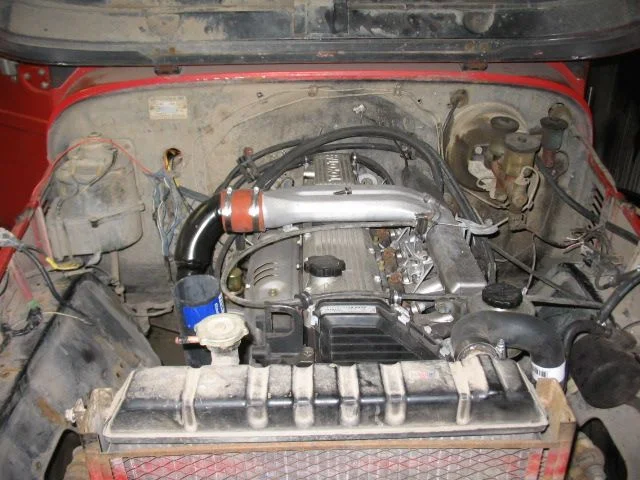

more fitment shots

looks damn near factory for position.

the left hand side is TIGHT

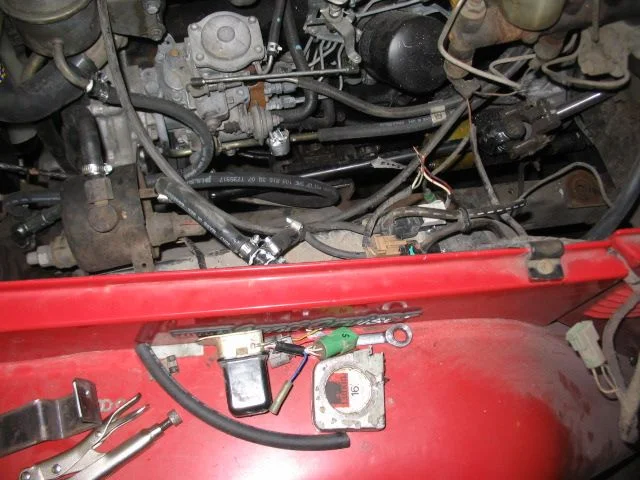

another shot of the left hand side. the power steering pump on the 1HZ is lower left corner and the 60 series PS box is the same location...SWEET. super short PS lines and the end product is a clean PS install...
1978 HJZ40 build 022.jpg
1978 HJZ40 build 023.jpg
1978 HJZ40 build 024.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
once again fitment... i cannot say this enough. if you are off 1/2" then it doesn't fit properly.

almost time to button it up.

now remember also this was a quicky install to get the truck ready for the drive to Ontario from Calgary, a trip of over 3500 km. the truck will be pulling 3000 lbs of trailer and carrying another 1000 in the back. i did not want any breakdowns or issues on the drive.

lets carry on...
1978 HJZ40 build 025.jpg
1978 HJZ40 build 026.jpg
1978 HJZ40 build 028.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta

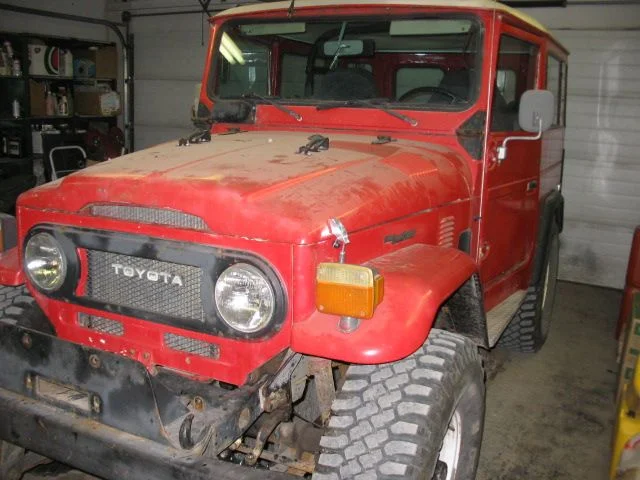

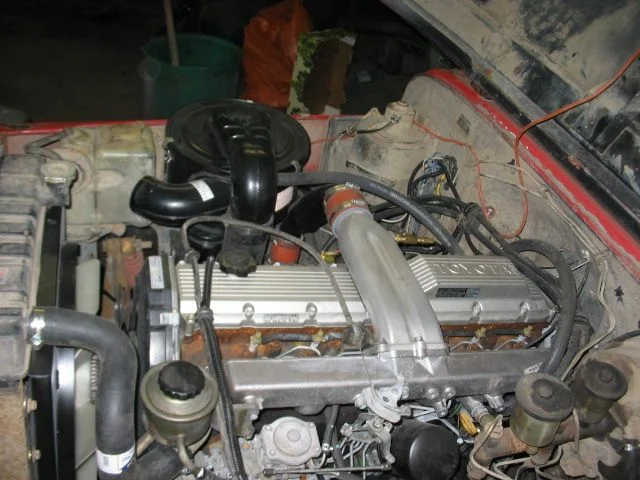

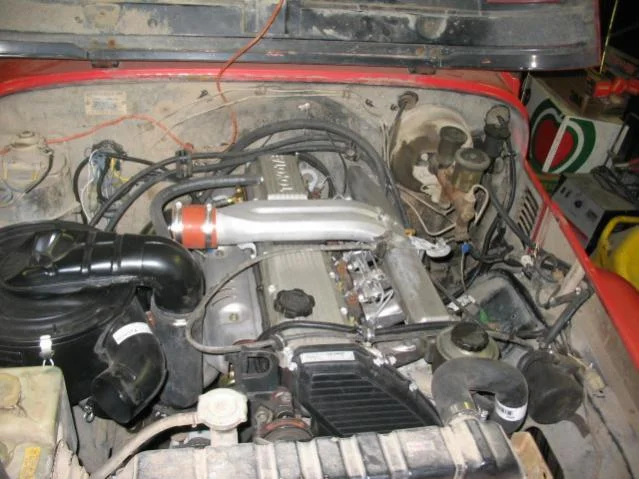

other than the 60 series PS box on the front left corner it looks like a stock 40...Wolf in Sheeps clothing!!
1978 HJZ40 build 029.jpg
1978 HJZ40 build 030.jpg
1978 HJZ40 build 032.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
the gauges, someone was asking about how they fit... here you go...

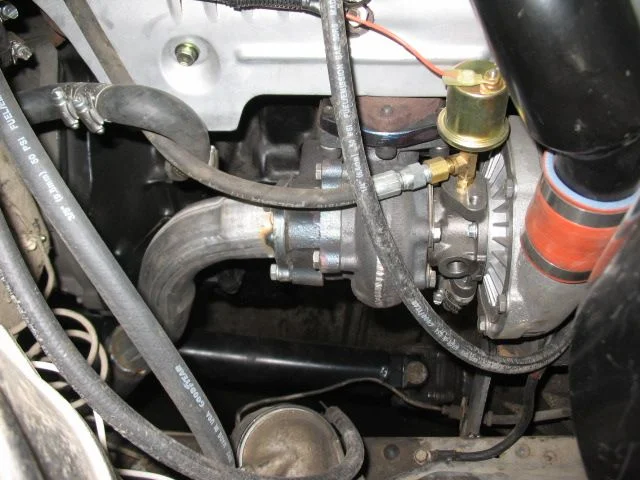

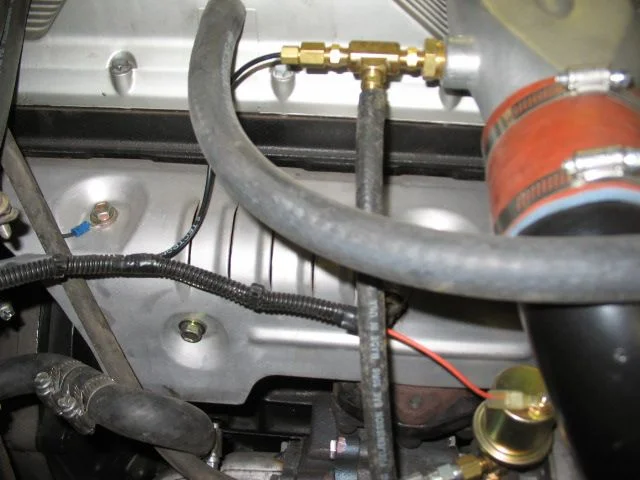

the senders

pretty simple so far and at this point i was about 24 working hours into the build...
1978 HJZ40 build 037.jpg
1978 HJZ40 build 038.jpg
1978 HJZ40 build 039.jpg

Joined
Feb 10, 2004
Messages
22,189
Location
Derwent Alberta
a final couple shots.

the PS lines to the box... SHORT!!

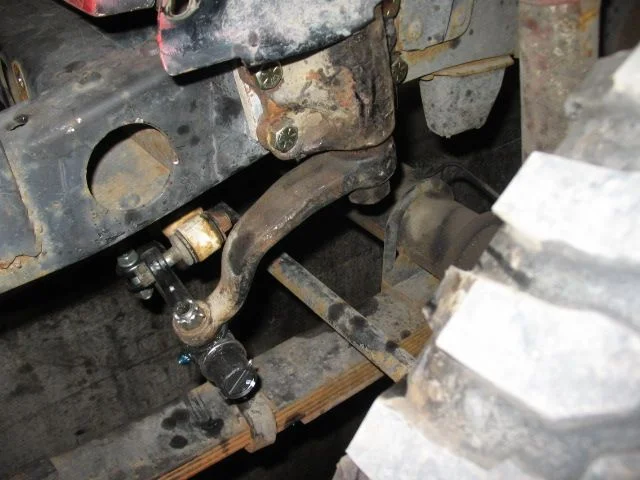

the 60 series looks like it belongs there. the drag link, tie rod ends are all factory new. no cutting, no welding involved at that end...

i beleive that might be it for now...
1978 HJZ40 build 041.jpg
1978 HJZ40 build 042.jpg
