1992 Hilux or pickup electronic speed sensor wiring diagram? (1 Viewer)

[withoutremorse42]

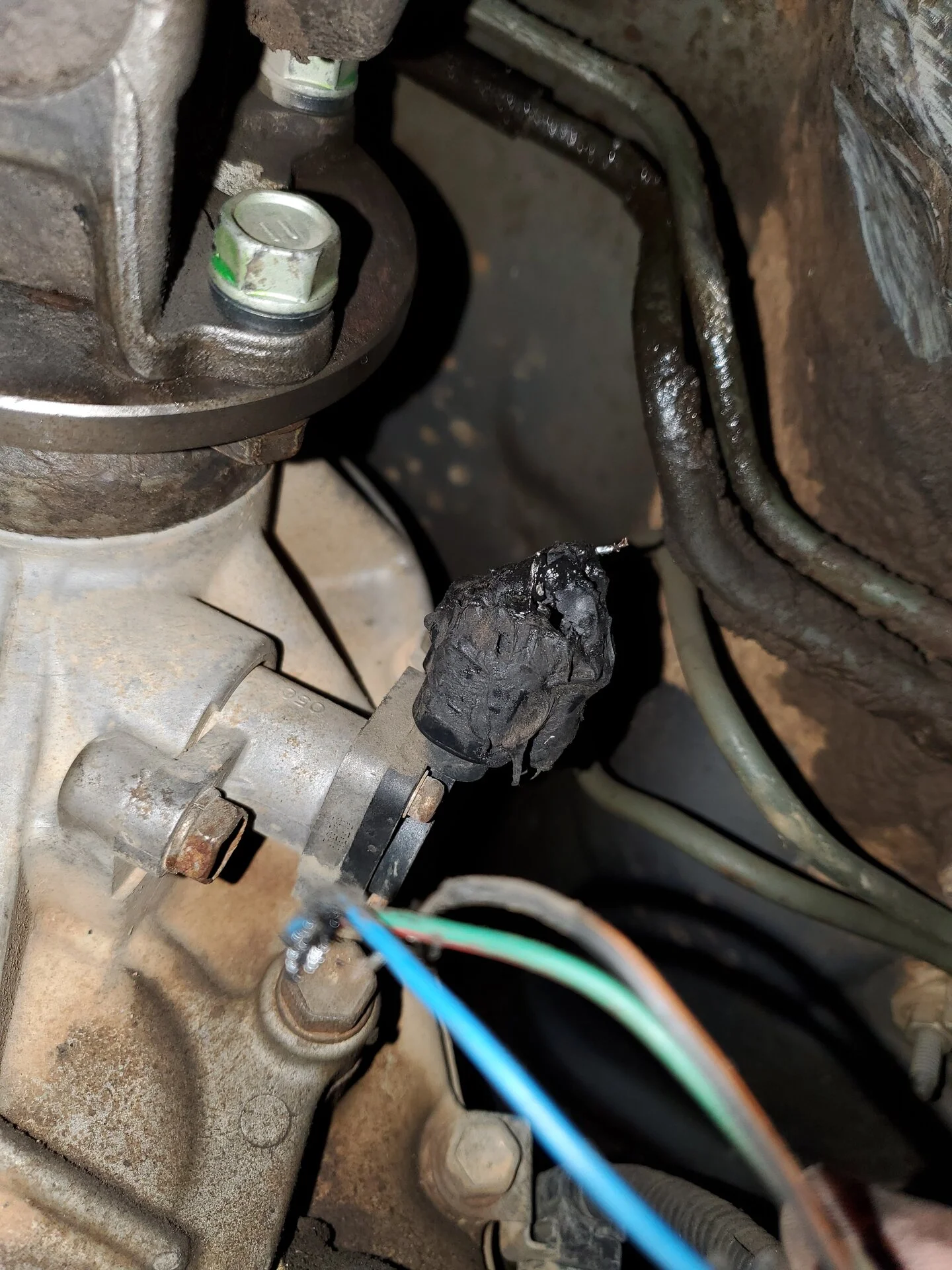

My 92 Hilux has an electronic speedometer. When the driveshaft came loose it obliterated the pigtail that attaches to the sending unit on the trans. The wires are there, but the colors don't match up with what my Aussie Haynes manual shows. I'm looking for a pigtail locally, but even once I find one to install, I need to figure out the order the wires connect to the pigtail.

Anyone have help on this?

I believe it's the same as any 92 pickup with electronic speedo



[gnob]

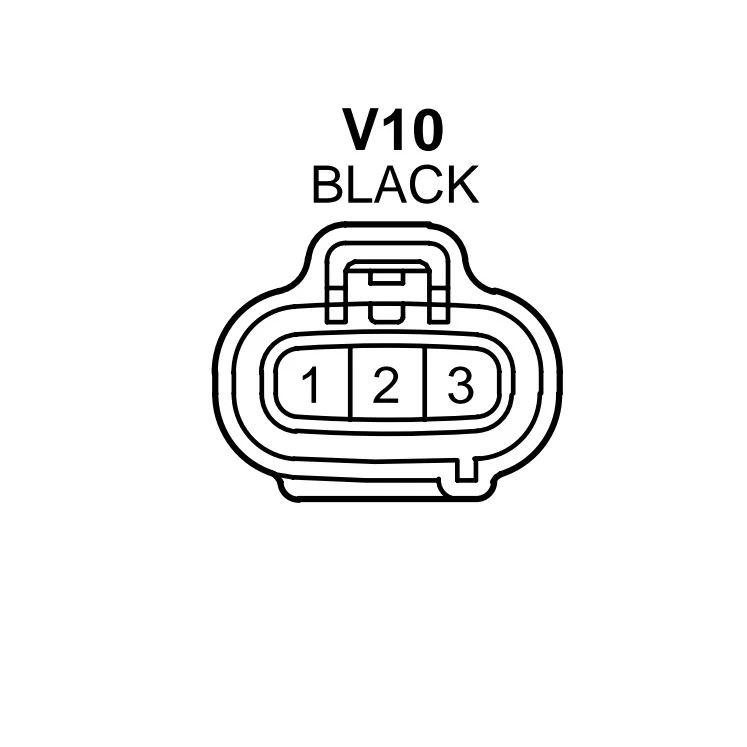

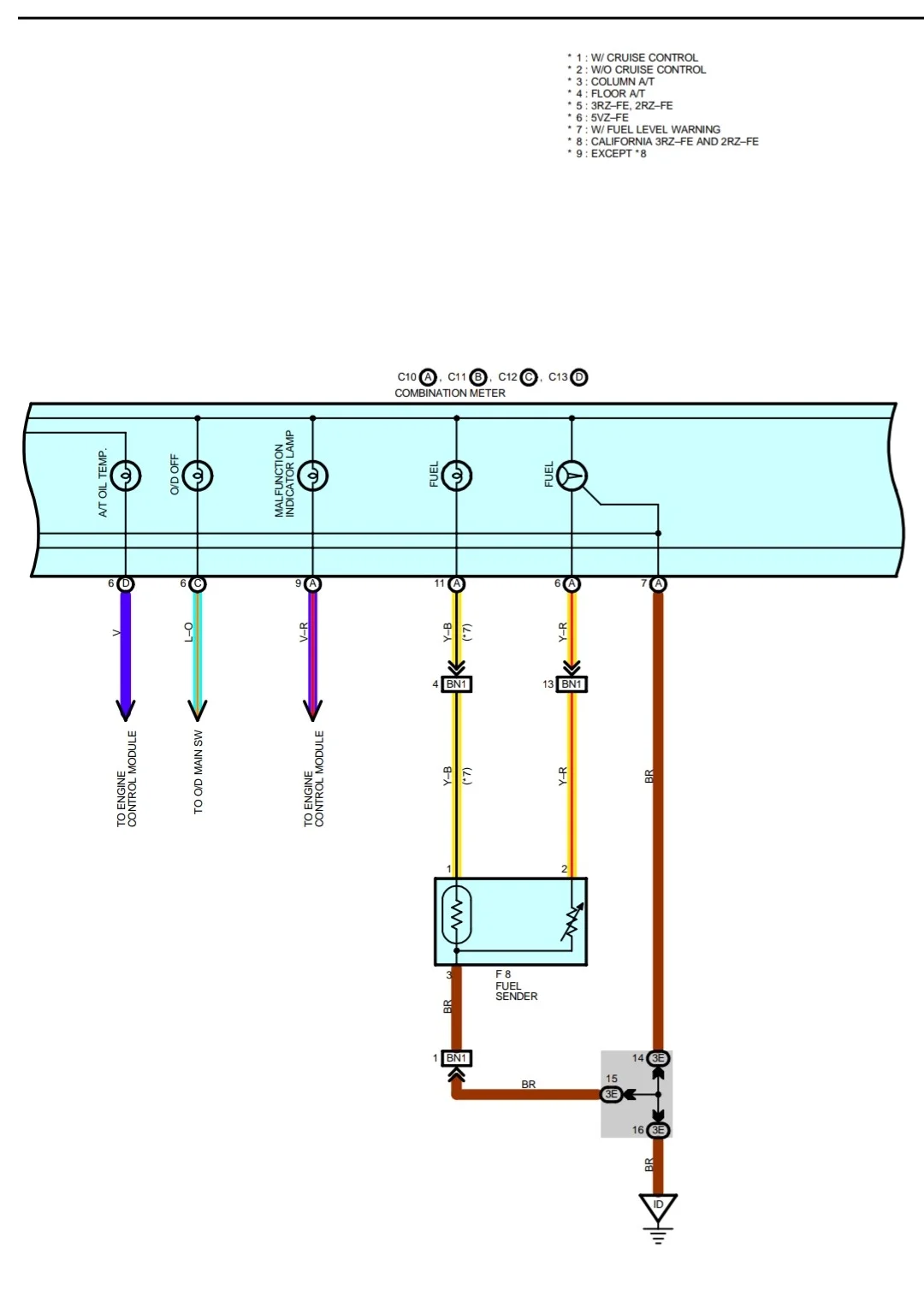

think this is it



[withoutremorse42]

Thanks!!



[withoutremorse42]

I'm not an expert electrician so I apologize if this is a dumb question, but looking at that top diagram, would a cut blue wire from the speed sensor disrupt the tach as well as the speedo?



[gnob]

if its grounding out on the case.
