This is a timeline of the HDJ81- From 2018 until present. Some items mentioned early in this document have been updated. Please read complete history.
Located in Clovis CA
Asking $48,000.00
Entertain reasonable offers or trade- let me know, you might be surprised!

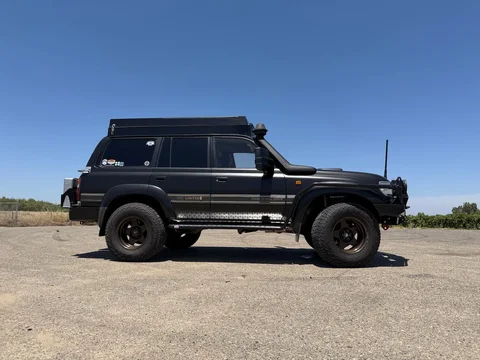

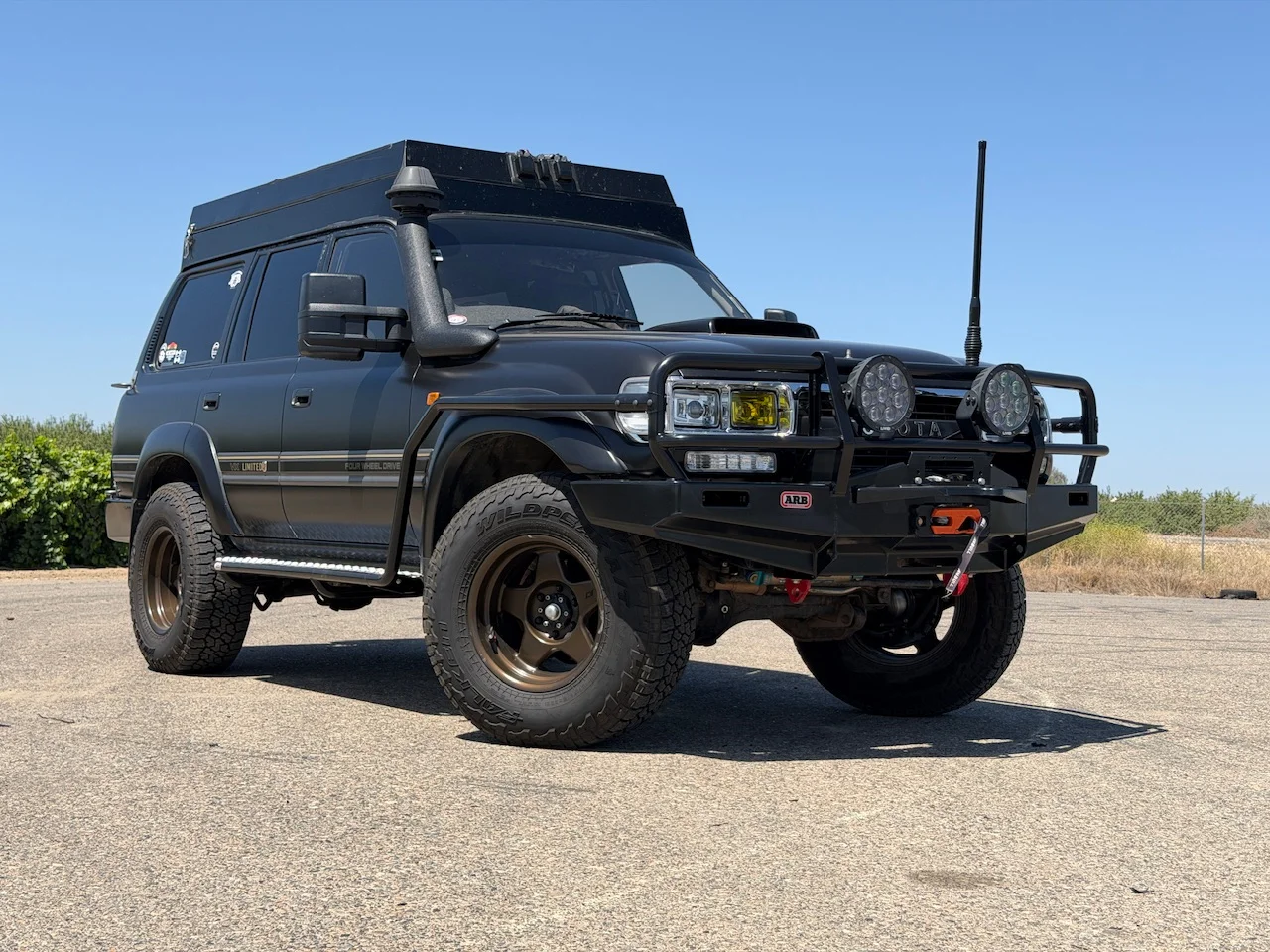

Japanese imported, Rust Free, Damage Free, 1991 Land Cruiser VX-Limited. This HDJ81 is equipped with a factory 1HDT turbo-diesel engine, factory TRIPLE locking differentials and an automatic transmission.
Highlights include:
G-Turbo,
HPD Intercooler and Aux Fan
Working intake on Hood
Turbo-back Beaudesert exhaust.
Kaymar dual swing-out bumper
24 gallon Long Range Automotive auxiliary tank
Webasto Diesel Coolant heater to ensure a warm engine at any time with no plug ins required.
Solid state management system and a Switch Pro 9100 for all accessory wiring.
The vehicle was imported from Japan by Land Cruisers Direct and comes with an odometer and crash history certification.
Highlights:
This vehicle was completely stock in August of 2018 when it was underwent significant preventative maintenance by Land Cruisers Direct, where the engine received a full service including a valve adjustment, timing belt, bottom end bearings, a full injector pump and injector rebuild, a new water pump, all new rubber coolant hoses (including to the secondary in-cab heater), a new OEM radiator, a new fan clutch, an US-spec transmission cooler. One of the last remaining OEM Toyota 80 Series Snorkels was installed at the same time.
The brakes were also upgraded to larger NA-spec units, with reman calipers and new rotors. The brake master cylinder was replaced along with all brake lines with extended stainless units, at the same time.
All wheel and axle bearings, axle seals, driveshaft u joints, tie rod ends were also replaced.
Knuckles also rebuilt with OEM parts. The engine bay is immaculate and there are no leaks on the vehicle, because nearly every seal that holds oil has been replaced with an OEM Genuine part.
It is equipped with Scheel-Mann Vario XXL seats with a two stage massage function, covered in a custom grey wool material to match the interior and give a nod to the Japanese who use wool over leather in luxury vehicles. These seats are heated, and wired into OEM heated seat switches in a factory location. This material also breathes well in the heat.
Adding to the comfort of the vehicle is are two-inch OME HD lift springs and compression adjustable 2.5-inch King Shocks, with remote reservoirs, which are valved specifically for heavier vehicles.
Summit 4X4 Company in Prescott AZ re-geared the vehicle with a 4.56 ratio and install upgraded chromoly birfield joints in the front axle, and heavy-duty rear axle shafts.
This pairs well with the 34-inch tires, while accounting for the diesel engine’s low torque and limited RPM range (which is why we didn’t go with 4.88s). This allows it to drive at modern vehicle speeds on the highway, without causing EGT issues.
The rebuilding and cleaning all four doors, including a rebuilding the window motors, regulators, and window runs to ensure the windows function without issue. While I did this, the glass was removed and cleaned (took years of grime off the vehicle), and all interior and exterior belt trim and interior window trims were replaced with brand new genuine units.
The vehicle was originally dark grey, and was painted black in Japan. The paint is fine and has good shine, but shows its age and I intended to eventually repaint it. It looks great until you get very close and start searching, where you will notice evidence of the respray.
Absolutely no expense was spared, with massive amounts of money spent on preventative maintenance with the intention of doing a full restoration on the vehicle. All work completed has been done within 15,000km of ownership over two years, it was fanatically serviced.
Factory Locking Differentials (Front, Rear, Center)
Factory Ice Box
Factory Sunroof
King Shocks - 2.5-inch remote reservoir with compression adjusters and internal bump stops ($3500)
Custom Scheel-Mann Seats with Massage, Heat - upholstered in custom camira wool ($6000)
OME 2-inch lift springs ($500)
Nitro 4.56 Gears
Nitro Chromoly Rear Axles
Nitro Birfields
5X 285/75-R17 Falken AT3W All Terrain Tires ($1500)
5X SCS F5 Bronze Wheels 17-inch ($1000)
Webasto Thermo-Top C Diesel Heater ($2000 with custom install)
MSA 4X4 Drawer System ($2500)
HPD Top Mount Intercooler With Fan ($1500)
G-Turbo Grunter Xtreme Turbocharger ($1500)
Beaudesert 3.5 Inch Dump Pipe ($500)
Beaudesert Turbo-back 3-inch exhaust ($1500)
Long Range Automotive 24 gallon sub tank with OEM dual filler neck ($2500 installed)
2X Optima Blue Top Group 31 Batteries ($450, still in warranty)
Rhino Rack Pioneer Platform Roof Rack ($100)
Eezi-Awn Swift Awning ($500)
100W Overland Solar Panel ($250)
Victron 75/15 Solar Regulator with Bluetooth ($100)

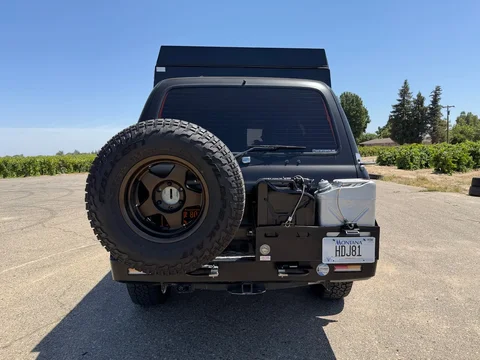

Kaymar Dual Swingout Rear Bumper ($3000 installed and shipped from AU)
TJM front bumper ($750)
Livid Hyperdrive MKII Driving Lights ($750)
Switch Pro SP-9100 ($250 plus install)
MAXTRAX MK2 with rear wheel harness ( $300)
Slee HD Tie Rod and Drag Link ($300)
Ironman 4x4 Adjustable Front Panhard Bar ($150)
Delta VS Panhard Relocation Bracket ($150)
Toyota OEM 80 Series Snorkel With 70 V8 Head ($1000 Installed)
Front Recovery Points ($100)
Services at 197000KM
Timing Belt Change
Front Knuckle Rebuild w/ New Bearings
34” Falken AT3W Tires Installed
SCS F5 17: Wheels Installed
Brand New Toyota Steering Wheel
Heater and Radiator Hoses Replaced and Heater Valve
OEM Tie Rod Ends Replaced
Aisin Fan Clutch and Water Pump
Upgraded Front Brakes from US Spec 80 with reman calipers and rotors
Turbo Drain Pipe
AC Pulley Replaced
Rear Wheel Bearings And Axle Seals
Slee Caster Plates installed
Front Control Arm Bushings replaced with OEM parts
Valve Adjustment
Aisin Brake Master Cylinder Installed
Slee Brake Lines (Frame to Axle and Axle To Caliper)
Injector Pump Rebuild (ACSD Delete, Up-tune 10%)
Injectors Rebuilt
OEM FZJ80 Trans Cooler Installed

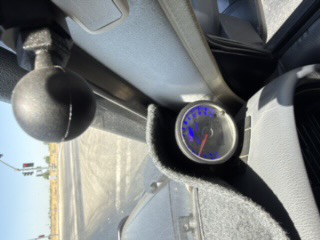

EGT Boost Temp Combo Gauge Installed
OEM Genuine Radiator Installed (all new Toyota coolant)
OEM Genuine Snorkel Installed
Webasto Diesel Coolant Engine Heater Installed
Ironman 4X4 adjustable Track bar with OEM type rubber bushings installed
Delta 4X4 Panhard Drop Bracked Installed
12V Starter Conversion, with brand-new uprated Bosch starter
All Driveshaft U Joints Replaced
CDL Wiring inspected and replaced
December 2018: Keith’s Garage Land Cruiser Specialists Performed:
G-Turbo Grunter installation

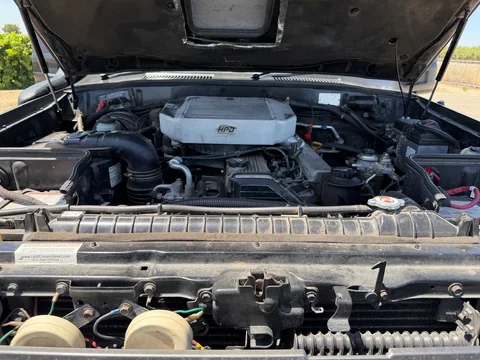

HPD Australia top mount intercooler with fan installed
Beaudesert Australia turbo back exhaust installed
Replaced all exhaust manifold studs, nuts, gaskets and exhaust bushings with genuine OEM
Replaced all intake seals, nuts, studs, gaskets with genuine OEM
March 2018: Keith’s Garage Land Cruiser Specialists Performed:
Crankshaft Oil Seal (Rear Main Seal) Replaced
Transmission Front Pump Seal Replaced
Transfer Case output and input seals replaced
Transmission Oil Pan Casket and Filter Replaced
30MM Coil Spring spacers installed in rear
OEM Seat Heater switches installed and wired to Scheel-MannHeated Seats
Mann Provent Diesel Oil Catch Can Installed
Front Sway Bar Bushings Replaced
OEM Genuine Fuel Filter Heater installed
Full Vehicle Alignment
Kaymar Bumper Installation and wired lights
Long Range Australia 24 gallon rear auxilary tank with in-cab controls installed
Toyota Genuine OEM Dual Tank Filler
ARB HD Rear Springs Installed
120A brand new Bosch alternator installed
AC System inspected and high pressure line replaced
December 2019: Summit 4X4 Company Performed:
Nitro 4.56 Regear with all new bearings
Chromoly Front Birfields
HD Rear Axle Shafts
POST 2019 Additions/Service

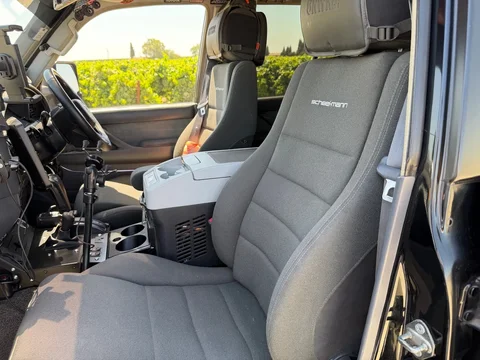

Custom Wool Scheel-Mann Seats with electronic lumbar and two massage settings and extended leg slider
Planted Seat Bracket
Switch Pros 9100
Toyota Genuine JDM Spec Auxiliary Fan
Livid Australia Driving Lights
TJM Bumper
Front Recovery Points
Toyota Genuine OEM Radiator Grill
Toyota Genuine OEM Lexus Corner Lights
Toyota Genuine OEM Front Turn Signal Covers
Toyota Genuine OEM Headlight Trim
Toyota Genuine OEM Side Turn Signals
Toyota Genuine OEM Wiper Blades
MSA 4X4 Australia Aluminum Drawer System
Toyota Genuine OEM Jerry Can
Rhino Rack 3/4 Platform
Eezi-Awn Swift Awning
Rebuilt and serviced all window motors, window regulators, and window runs (work like new, with OEM parts). Windows removed and restored to new.
Cleaned, Lubricated and adjusted door locks and hinges, applied rust protectant to inside of doors
Toyota Genuine OEM Black inner window seal on all windows
Toyota Genuine OEM Black outer window seal and belt moulding around entire vehicle
Toyota Genuine OEM Rear Vent Trim pieces replaced
Toyota Genuine OEM Vaccum Lines
Toyota Genuine OEM Air Filter Box Lid
Toyota Genuine OEM Leather Automatic Transmission Shift Knob
Dash Mat with MSA Organizer
Solid State Dual Battery System with Twin Optima Blue Top 34
Toyota Genuine OEM Airbox Lid Replaced

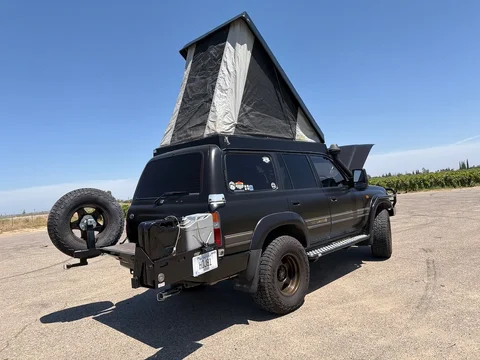

Mulgo Pop Top Tent by Expedition Centre in Australia
Dometic center console refrigerator
Delta metal center console
Factory Ice Box was removed but is included in spare parts
7 way/4 way trailer wiring installed
Airlift rear airbags

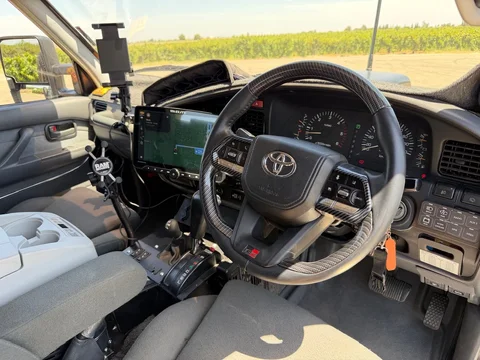

LC300 OEM steering wheel, Trail Teq hub adapter
Steering wheel controls – working
BOSS 12” Headunit with Sirius XM, Wireless CarPlay and Android auto compatible
JL Audio Speakers, Front, Rear and 3rd row
JBL Powered sub added
Delta QPM
Starlink constant power regulator
Renogy 150 watt x 2 panels
Cascadia 4x4 Bluetooth MPPT controller
Starlink wired and mount
ICECO refrigerator and Ironman Tilt
Midland MTX575 radio and bullbar antenna

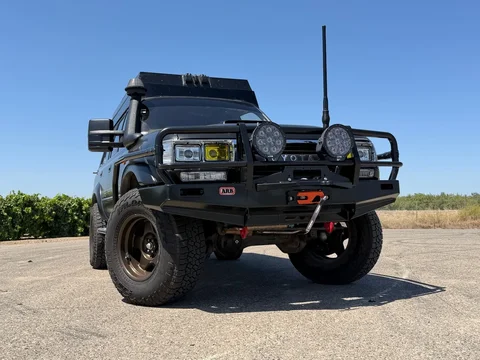

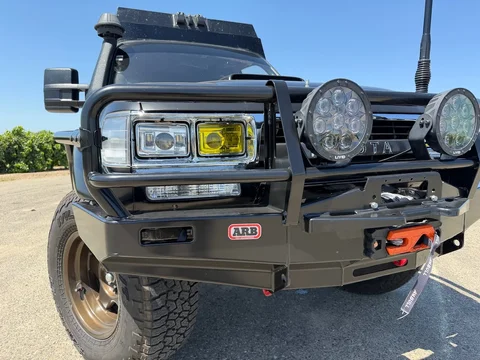

ARB Winch mount bumper
Open road 10,500 lb winch
Winch power lockout
Clear turn signals
ARB Sliders, diamond plate side steps
ARB Front fender protectors attached to bumper/sliders
Wolfbox G900 Pro
Ocam mirrors from Australia
Apex quick deflate valve stems
Complete Matte Black 3M wrap
Ceramic window tint
2026 Valley Hybrids – Georg – Stockton CA
Rebuilt Transfer Case- OEM CDL Serviced
Low Range Gears installed
HNL Shift collar replaced
Front Axel Serviced
Pinion replaced due to faulty bearing
Axle completely pulled
No damage from Bearing to axle or Differential
Rebuilt front end
Front Birfields rebuilt and installed
All axle fluids changed for front and rear at same time of Transfer Case rebuild
AC lines reroute to eliminate leaky center console fridge removed lines.
Extra AC compressor (NEW) present for possible Clutch replacement
Extra parts Galore!
Google Photos, might still be syncing:
iCloud Photo Link:
Walk around and Driving Video

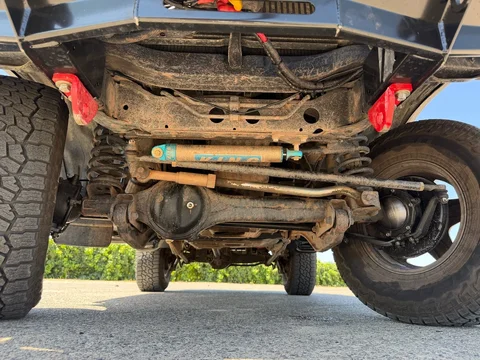

All underbody pics show residual red Moab trail dirt. Limited rust on typical areas. No rust on frame and panels
