The ultimate component location guide (1 Viewer)

[WristPin]

A/C Amplifier Connector: Behind RH Side Of Instrument Panel
A/C Cut Relay Connector: Behind RH Side Of Instrument Panel
A/C Idle-Up Vacuum Switching Valve (VSV) Connector: RH Side Of Engine Compartment
A/C Idle-Up Vacuum Switching Valve (VSV) Connector (22R-E & 22R-TE Engines): RH Side Of Engine Near Air Cleaner
A/C Low Pressure Switch Connector: Behind Center Of Instrument Panel
A/C Magnet Clutch Connector: RH Side Of Engine Compartment
A/C Magnet Clutch Connector (22R-E & 22R-TE Engines): RH Side Of Engine Compartment
A/C Thermistor Connector: Behind Lower RH Side Of Instrument Panel
A/C Thermo Switch Connector (22R-E & 22R-TE Engines): RH Side Of Engine
A/C Volume Switch Connector: Behind Center Of Instrument Panel
Air Flow Meter Connector (22R-E & 22R-TE Engines): LH Side Of Engine Compartment
Auto Antenna Switch Connector: In Console
Auto. Trans. Indicator & Overdrive Main Switch Connector: In Console
Auto. Trans. Oil Warning Computer Connector: Behind LH Side Of Instrument Panel
Auto. Trans. Overdrive Relay Connector: Behind LH Side Of Instrument Panel
Back Door Control Switch (4Runner) Connector: Center Of Back Door
Back Door Lock Detection Switch (4Runner) Connector: LH Side Of Rear Door
Back Door Unlock Warning Switch Connector (4Runner): LH Side Of Rear Door
Back Door Window Limit Switch Connector (4Runner): LH Side Of Rear Door
Blower Motor (Front) Connector: Behind RH Side Of Instrument Panel
Blower Motor Switch Connector: Behind Center Of Instrument Panel
Blower Resistor (Front) Connector: Behind RH Side Of Instrument Panel
Brake Level Fluid Switch Connector: LH Side Of Engine Compartment At Firewall
Brake Level Fluid Switch Connector (22R-E & 22R-TE Engines): LH Side Of Engine Compartment At Firewall
Cancel Switch Clutch Start Connector: Behind LH Side Of Instrument Panel
Check Connector (22R-E & 22R-TE Engines): RH Side Of Engine Compartment
Circuit Opening Relay Connector: Behind RH Side Of Instrument Panel
Clutch Start Switch Connector: Behind LH Side Of Instrument Panel
Cold Mixture Heater (CMH) Connector: RH Side Of Engine
Combination Meter Connector: Behind Upper LH Side Of Instrument Panel
Combination Switch Connector: Behind Lower LH Side Of Instrument Panel
Cover Top Switch (4Runner) Connector: Behind LH Side Panel Of Cargo Area
Cruise Control Actuator Connector (22R-E & 22R-TE Engines): LH Side Of Engine Compartment
Cruise Control Clutch Switch Connector: Behind LH Side Of Instrument Panel
Cruise Control Computer Connector: Behind LH Side Kick Panel
Cruise Control Main Switch Connector: Behind Center Of Instrument Panel
Cruise Control Stop Switch Connector: Behind LH Side Of Instrument Panel
Cruise Control Vacuum Pump Connector (22R-TE Engines): LH Side Of Engine
Compartment Cruise Control Vacuum Switch Connector (22R-TE Engines): LH Side Of Engine Compartment

Deck Light Connector: Rear Center Of Cab Roof
Dock Light Switch Connector: Behind LH Side Of Instrument Panel
Defogger Relay Connector (4Runner): Behind LH Side Panel Of Cargo Area
Defogger Switch Connector: Behind LH Side Of Instrument Panel
Diode Connector (interior Light): Behind Center Of Instrument Panel
Diode Rear Power Window & Rear Window Defogger Connector: Behind LH Side Panel Of Cargo Area
Door Control Relay Connector: Behind RH Kick Panel
Electronic Controlled Transmission Oil Temperature Sensor (ECT) Connector (22R-E & 22R-TE Engines & Auto. Trans.): RH Side Of Engine
Electronic Controlled Transmission Service (ECT) Connector (22R-E & 22R-TE Engines): LH Side Of Engine Compartment
Electronic Controlled Transmission Service (ECT) Connector (22R-E & 22R-TE Engines): RH Side Of Engine Compartment
Electronic Fuel Injection Connector: Behind RH Kick Panel
Electronic Fuel Injector Cold Start Injector Connector (22R-E & 22R-TE Engines): RH Side Of Engine Compartment
Electronic Fuel Injector Resistor Connector (22R-E & 22R-TE Engines): RH Of Engine Compartment
Electronic Fuel Injector Resistor Connector (22R-E & 22R-TE Engines): RH Side Of Engine Compartment
Electronic Fuel lnjector Throttle Position Sensor Connector (22R-E & 22R-TE Engines): RH Side Of Engine
Electronic Fuel Injector Time Switch Connector (22R-E & 22R-TE Engines): RH Side Of Engine
Electronic Fuel Injector Water Thermo Switch Connector (22R-E & 22R-TE Engines): RH Side Of Engine
Emission Control Computer Connector: Behind RH Kick Panel
Fuel Pump Connector: Under Center Of Vehicle Near Rear Axle
Fuel Sender Connector: At Fuel Tank
Glove Box Light Connector: Behind Glove Box
Glove Box Light Switch Connector: Behind Glove Box
Heater Control Light (Clinometer) Connector: Behind Center Of Instrument Panel
Heater Control Light Connector: Behind Center Of Instrument Panel
Ignition Coil & Igniter Connector: LH Side Of Engine Compartment
Ignition Coil & Igniter Connector (22R-E & 22R-TE Engines): LH Of Engine Compartment
Inspection Light Socket Connector: Lower LH Side Of Instrument Panel
Interior Light Connector: Under Front Roof Panel In Passenger Compartment
LH Door Control Courtesy Switch Connector: In Respective Door
LH Door Courtesy Light Connector: In LH Door
LH Door Lock Solenoid Connector: In LH Door
LH Front Speaker Connector: Behind Upper LH Side Of Instrument Panel
LH License Light Connector: LH Side Rear Of Vehicle
LH Power Window Motor Connector: Inside LH Door
LH Rear Combination Light Connector: At Rear LH Light
LH Rear Speaker Connector: At LH Rear Speaker
LH Remote Control Mirror Connector: At LH Mirror
Light Reminder Relay Connector: Behind RH Kick Panel

Map Light Connector: Under Front Roof Panel In Passenger Compartment
Mirror Switch: Behind LH Side Of Instrument Panel
Neutral Start Switch & Back Light Connector: RH Side Of Engine Near Air Cleaner
Neutral Start Switch & Back-Up Light Connector (22R-E & 22R-TE Engines): RH Side Of Engine Near Throttle Body
Noise Filter Connector (22R-E & 22R-TE Engines): LH Side Of Engine Compartment
Noise Filter Connector (22R-E & 22R-TE Engines): LH Side Of Engine Compartment
Oil Pressure Sender Connector: RH Side Of Engine
Oil Pressure Sender Connector (22R-E & 22R-TE Engines): RH Side Of Engine
Oxygen Sensor Connector (22R-E Engine w/Federal Emissions): LH Side Of Engine Compartment
Oxygen Sensor Connector (22R-TE Engines): LH Side Of Engine
Parking Brake Switch Connector: Behind Center Of Instrument Panel
Power Window Lock Switch Connector (4Runner): Center Of Vehicle Rear
Power Window Motor Connector (4Runner): At LH Side Of Rear Door Rear Power Window
Power Window Master Switch Connector: At LH Door
Power Window Switch Connector: Behind RH Door Panel
Radio Connector: Behind Center Of Instrument Panel
Rear Deck Light Connector (4Runner): Behind LH Side Rear Cargo Panel
Rear Heater Connector: In Console Rear
Relay Connector (4Runner): Behind LH Side Of Rear Cargo Panel
Rear Power Window Switch Connector (4Runner): Behind LH Side Of Rear Cargo Panel
Rear Washer Motor Connector (4Runner): Behind LH Side Rear Cargo Panel
Rear Window Defogger Connector: At Lower Rear Window
Rear Wiper Motor Connector: Top Of Rear Window Behind Roof Panel
Relay Box No. 1 Connector: LH Side Kick Panel
Relay Box No. 3 Connector: Behind Center Of Instrument Panel
Relay Box No. 4 Connector: Behind RH Side Of Console
Remote Control Switch Connector: Behind LH Side Of Instrument Panel
RH Door Control Courtesy Switch Connector: In Respective Door
RH Door Courtesy Light Connector: In RH Door
RH Door Lock Solenoid Connector: In RH Door
RH Front Speaker Connector: Behind Upper RH Side Of Instrument Panel
RH License Light Connector: RH Side Rear Of Vehicle
RH Power Window Motor Connector: Inside RH Door
RH Rear Combination Light Connector: At Rear RH Light
RH Rear Speaker Connector: At RH Rear Speaker
RH Remote Control Mirror Connector: At RH Mirror
Rheostat Connector: Behind LH Side Of Instrument Panel
Seat Belt Buckle Switch Connector: LH Side Of Vehicle Behind Panel
Seat Belt Warning Relay Connector: Behind LH Side Of Instrument Panel
Starter Relay Connector: RH Side Of Engine Compartment
Unlock Warning Switch Connector: Behind LH Side Of Instrument Panel

Vacuum Switching Valve Connector: RH Side Of Engine Compartment
Vacuum Switching Valve Connector (22R-E Engine, 4WD Fuel Pressure): RH Side Of Engine
Vacuum Switching Valve Connector (22R-TE Engine, 4WD Fuel Pressure): RH Side Of Engine Compartment
Washer Motor Connector: RH Side Of Engine Compartment Near Radiator Support
Water Temperature Sender Connector (22R-E & 22R-TE Engines): RH Side Of Engine
Water Temperature Sender Connector: RH Side Of Engine
Water Thermal Switch Connector (W/Calif. Emissions): RH Side Of Engine
Water Thermal Switch Connector: RH Side Of Engine
Wiper Motor Connector: RH Side Of Engine Compartment At Firewall
Wiper Motor Connector (22R-E & 22R-TE Engines): RH Side Of Engine Compartment At Firewall



[KLF]

Very cool, well done.

Here's one to add:

FSM and Electrical Manaul with diagrams that shows where all this stuff is: storage tub behind my seat



[2ndGenToyotaFan]

Wow..... that's... uh.... I didn't know I had halve of those things.... FAQ'd for sure Wristy!



[NorCalBorn]

Bump..umm, guys, I'm not sure what this thread was originally for aside from a listing of parts, but since it is one of the main ones that came up in my search for door lock solenoid/motor I thought I should add in my stuff from tonight, especially after having the joy of pulling out the door lock motor/solenoids from both of my rear doors as they're acting up here's the part#'s I found for a 2nd Gen (1995) 4Runner..all Toyota #'s

LF=85460
RF=87510A

LR=85720B
RR=85710B

**Sorry but I don't have the full 10 digit Toyota Code.

I'm thinking of trying to take 'em apart as I don't feel like spending $300-ish on one, let alone $600-ish on two. If I figure out the fix I'll post it up.

Worst case i can tell you how to remove them and just have the door lock manually operated

Shane



[PresaDad]

You are funny!!

Too funny!!

Very cool, well done.

Here's one to add:

FSM and Electrical Manaul with diagrams that shows where all this stuff is: storage tub behind my seat



[THE MAN]

should be a sticky topic



[22Rpickup]

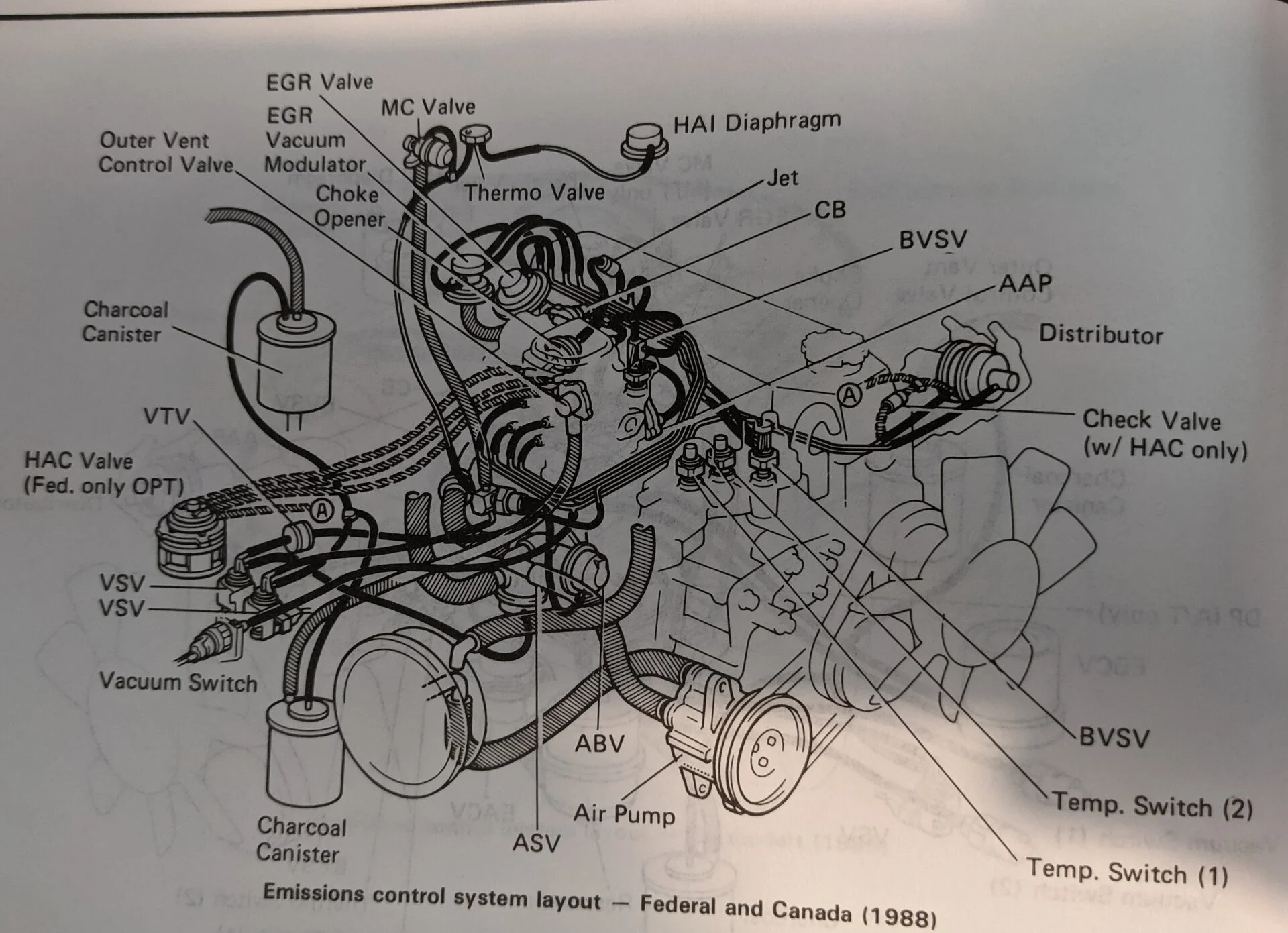

What is the valve like plug, which screws into right lower corner of carbeurator-intake joint, with six vacuum lines going into it. It is to the right of "CMH". Diagram attached. On both diagram and schematic it is the only device that has no name. 1988 Toyota pickup with 22R engine.



[WristPin]

What is the valve like plug, which screws into right lower corner of carbeurator-intake joint, with six vacuum lines going into it. It is to the right of "CMH". Diagram attached. On both diagram and schematic it is the only device that has no name. 1988 Toyota pickup with 22R engine.

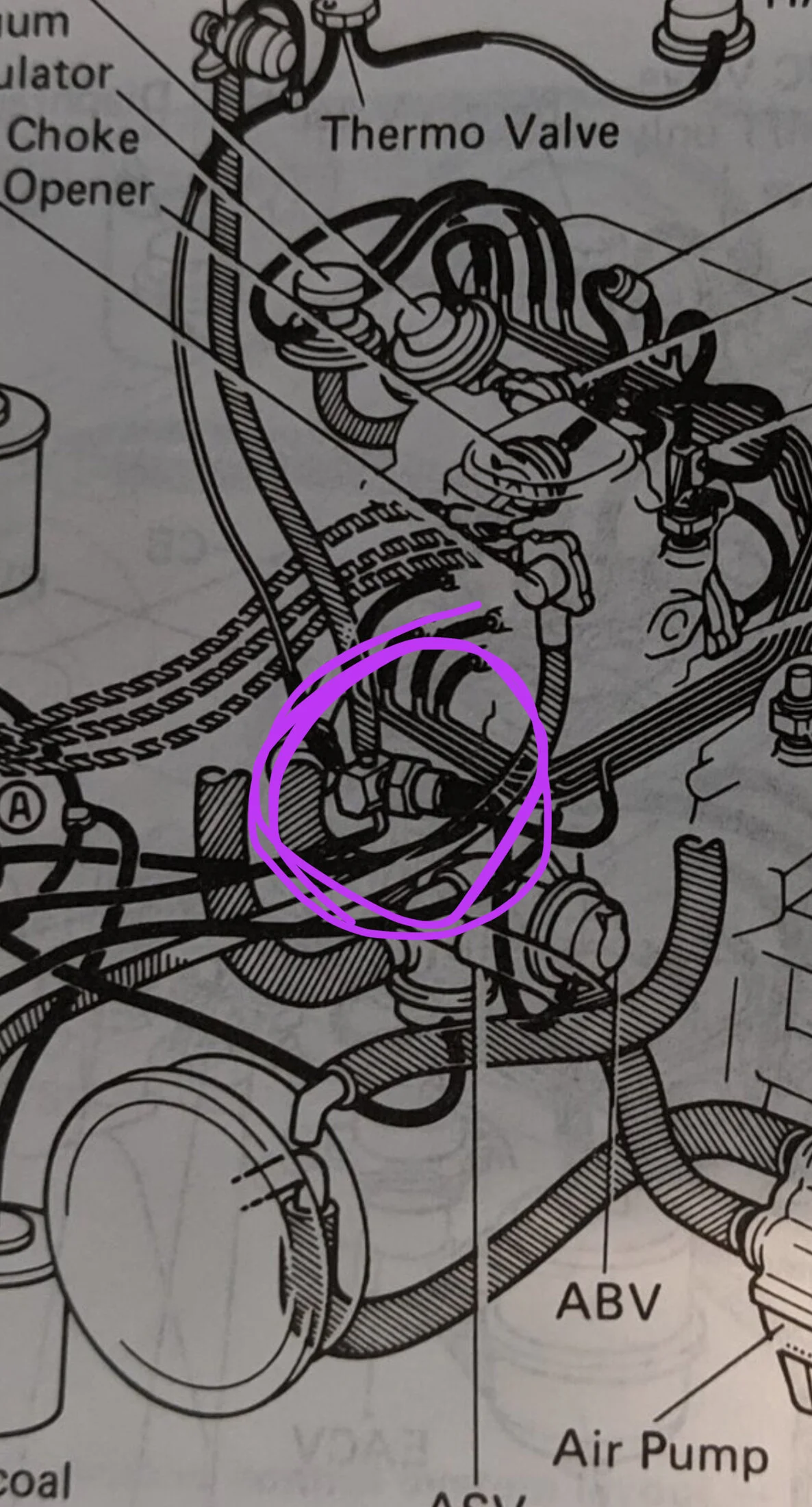

View attachment 3612255

Are you referring to this circled component? It’s called a vacuum manifold. It simply provides places to attach hoses. Nothing more, there are no internal parts. You could use anything with the correct thread pitch to achieve this purpose.
