Does any one have a wiring diagram for a 1984 bj42 24 volt Canadian cruiser?
1984 bj42 24volt wiring diagram (1 Viewer)
- Thread starter seventysixers
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
TCSTARK
Master Debater & Cunning Linguist
I don't have one but I do have a 24v harness that I have up for sale...
bj40green
Tssss, tssss

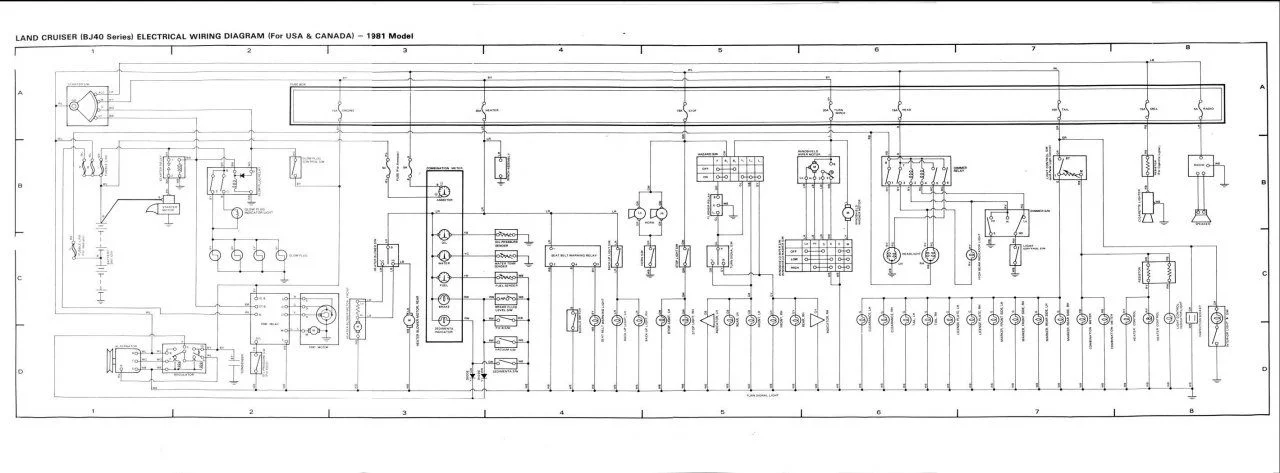

The best I have is a BJ40 series 1981 and later diagram for USA & Canada 24V. With the famous 12V evil tap for the headlights.
This forum "shrinks" the diagram so if you want the full size send me a pm with your email address.
Or you can download the full FSM from this link:
36044 Chassis & Body FJ BJ HJ 40 and 60 series ‘80 and later
https://docs.google.com/file/d/0BwGk8zcL34N4MVl5al9HbVdYVGs/edit?usp=sharing
Rudi
This forum "shrinks" the diagram so if you want the full size send me a pm with your email address.
Or you can download the full FSM from this link:
36044 Chassis & Body FJ BJ HJ 40 and 60 series ‘80 and later
https://docs.google.com/file/d/0BwGk8zcL34N4MVl5al9HbVdYVGs/edit?usp=sharing
Rudi
Last edited:
- Thread starter
- #4
Thank you Rudy I will pm you. Thanks for the offer on the harness mine is fine I'm just finishing my om617 swap and need to have a better diagram to trace as I am switching to 12 volt etc
bj40green
Tssss, tssss
I just edited my posting, have a look for the full FSM incl. wiring diagrams.
In the FSM you have 12V and 24V diagrams. Makes the conversion easier.
Rudi
I imagine that Wiring Harness is long gone. Or is it?
