Toyota Electric winch (1 Viewer)

[Malahki]

I am considering buying a factory Toyota 24V electric winch (8000 lbs I think), it has the motor mounted over the spool similar to the warn 8274 design. Are these Toyota winches any good? And are their parts available? Mounting it on a BJ74 to replace the factory PTO. Any thoughts or comments would be appreciated.



[Malahki]

My new to me Aisin 1000 arrived yesterday. A little dirty but seems to be in general good condition. I am still working on my bumper to mount it on. Cant wait to put it to the test.



[CruisinGA]

Need pictures!



[Tapage]

any update .. ?



[Malahki]

Should be finishing the final touches on the bumper tomorrow, before painting. About to start looking over winch, if everything checks out ok, it will get a coat of paint and be ready to mount. Although it didnt come with the factory remote so I still need to find a suitable substitute. Will have pictures up soon......



[Tapage]

pics .. ?



[1pz70]

24v winch

24v winch

[/IMG][/COLOR]



[lulo]

24v winch

[/IMG][/COLOR]

Thanks mate!!!


More Pics... (winch only if possible)



[Malahki]

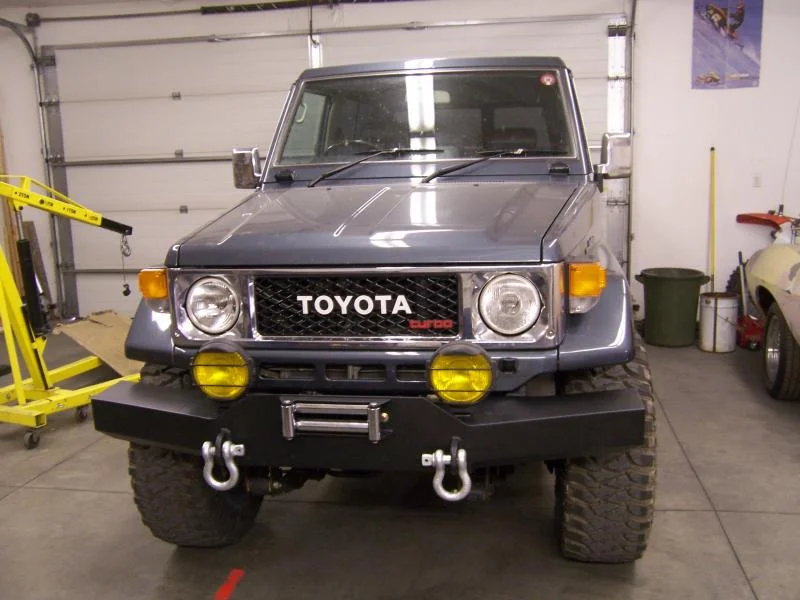

Finally finished the bumper, should be getting the winch motor back tomorrow from the electric shop.



[Malahki]

Auto electric shop dropped the ball, had motor and solenoids for a week and didnt do nothing. I took it there to have a warn remote wired in, in place of the factory original that I never got when I purchased the winch.

If anybody has done this and can offer some advise or wiring schematic I would be very grateful. Suppose to be leaving in the morning on Moab UT trip. Would suck not to have a working winch.



[Malahki]

Figured out winch remote wiring. Installed and ready to go!!



[Malahki]

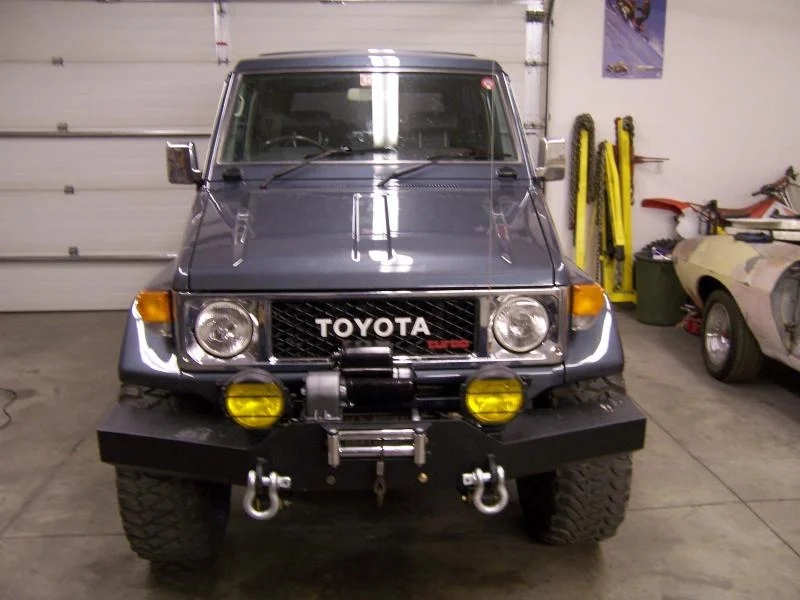

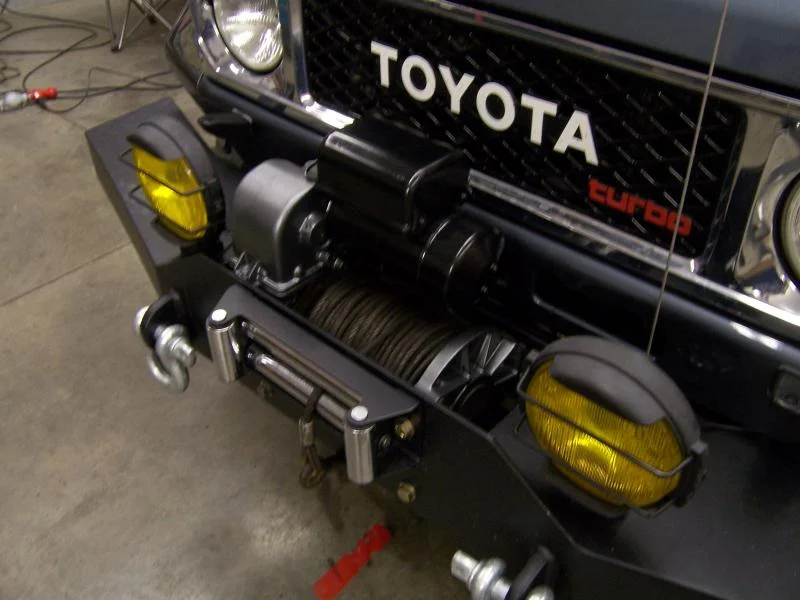

Ok, here it is.



[JohnnyC]

nice....thats looks great



[CruisinGA]

Very cool!

Have fun in Moab



[Malahki]

Thanks guys. It took a lot longer then I would have liked and is a touch heavy but I am pretty happy with the way it all turned out, especially considering it is the first time I have ever built anything out of metal. Cant wait to test out the winch.

Packed up and ready to go!! Just waiting for the girlfriend to get off work.....



[lulo]

Nice Bumper!

Great JOB!

Enjoy your Moab Trip



[Wile E Coyote]

Very nice rig. New bumper looks mucho better.



[Khorrassany]

nice rig, the bumper looks way better then the stock one.

can you send me the details of using the substitute remote ?

thx
ik



[Malahki]

nice rig, the bumper looks way better then the stock one.

can you send me the details of using the substitute remote ?

thx
ik

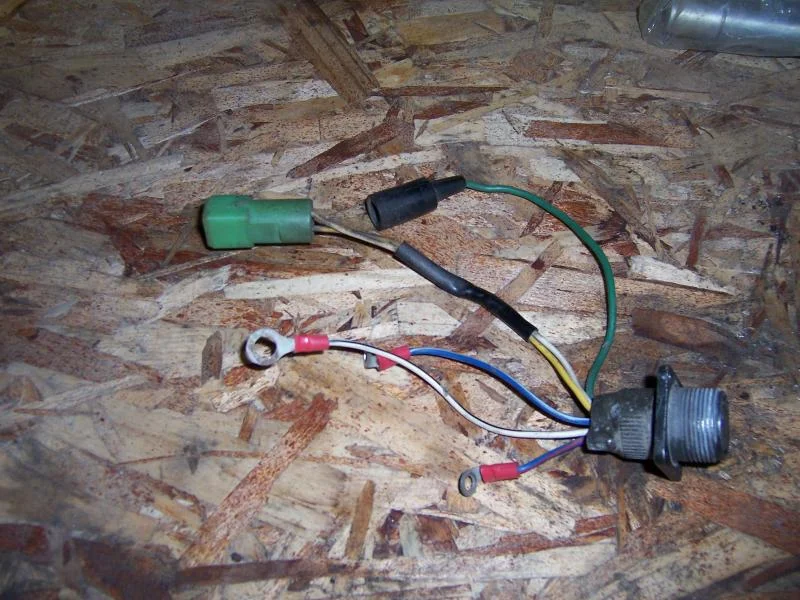

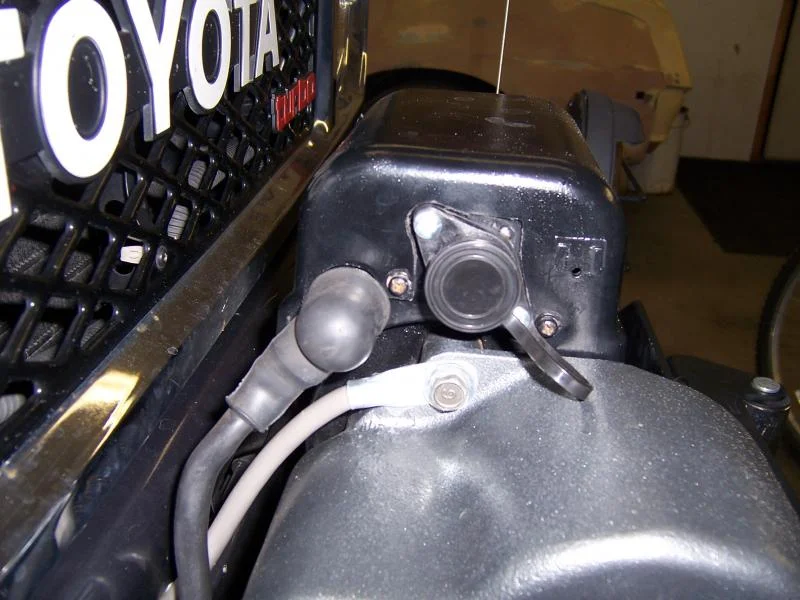

The remote I used was a warn and I purchased the connector on the solenoid end to go with it and to keep things looking neat and clean. The factory remote uses a separate solenoid and switch to supply power to the winch, I chose not do this. The stock remote also had a temp censor on the motor which isn't used. Here is what I had:

FACTORY wiring
White w/ black stripe - ground
Yellow and white - power supply from solenoid
Green - Motor temperature censor
Blue w/ red stripe - In solenoid
Blue w/ white stripe- out solenoid

WARN wiring
Red - ground
Brown - ground
White - power supply
Green - In solenoid
Black - Out solenoid

If your not sure which is the in and out solenoids its not a big deal, just guess you have a 50/50 chance and if your wrong it wont hurt anything your remote will just be labeled backwards. Switch around the wires to the solenoid and your good to go

Hope this helps



[Khorrassany]

thanks this is what i need to know....hope to work on it this weekend
