Tornado takes the top off 1964 SWB FJ-45
- Thread starter tornadoalleycruiser
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #162
Wired up turns and park to column wired rear turn and brake. Not dot legal but much easier to test when theyre sitting in the pass seat. Right turn is slow to flash but not everything is hooked up yet. Left turn flashes ok. Had to remember it needed a load/draw to flash. That would have saved me an hour or so. Next will be to wire brake switch in and connect it to computer. Special thanks to buddy Colin for the hand me down rear turns.
- Thread starter
- #163
The yellow wire coming out the old ignition hole is the charge indicator light for the alt. Will hook that to the old.left turn signal location in the dash. Then i can move to the center section or wiring and redo the rear harness which has been hacked by someone. Plan to add reverse lights and run a common ground for tails etc. Cant have enough good grounds.
- Thread starter
- #164

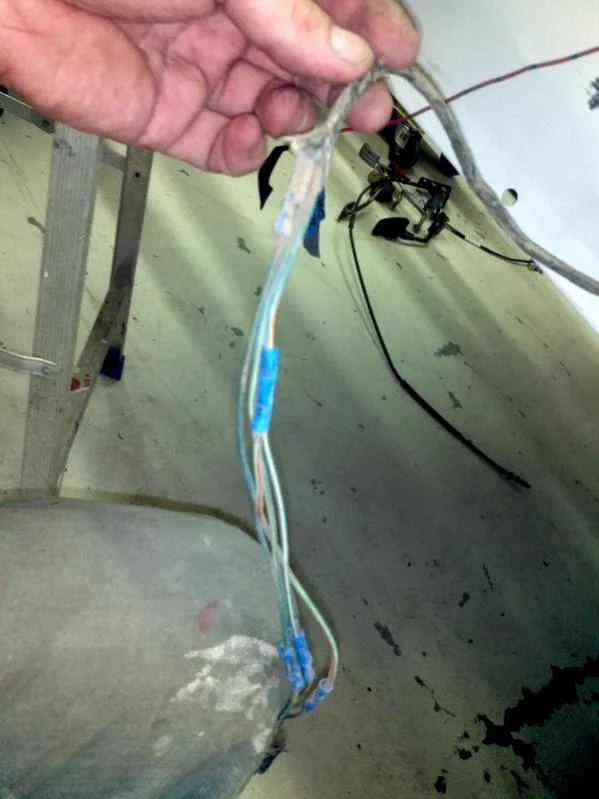

Working on taillights replugged them with weather pack connections added another ground. Working on harness to them now. Thanks to Colin was reminded to wire trailer lights. Doh. Its a slow process. I think ill order a spool of white with black stripe for safety sake. Want to keep toyota oem colors in harness.
I don't know how you do it! Great work!!
- Thread starter
- #166
Fj60 reverse and 4wd indicator wired in. The reverse plug is the same on the h55 on the shelf so good to go there. Now to wire a temp reverse light.
- Thread starter
- #167
Jamie its a looong slow process with lots of time staring at wiring diagrams. A butane soldering iron and shrink tube. Ill enclose the harness when i get it all test wired. Not much beer when working on wires.
- Thread starter
- #168
Check engine light and 4wd indicator lights both work properly and talk to computer. Added the batt indicator to the spot where im putting the alternator dummy light so it functions just like the fj62 dash. I did dork my 4wd symbol out of the wagon. So for now it will be stock 1964 Indicator instead.
- Thread starter
- #169
Well.. I have been Befuddled for a while.. Trying to figure out how to wire the Alternator charge indicator light. Most will just bypass the indicator light but I have the extra spot on the dash, want to try and utilize everything that was stock in 64 and 1988.. I did numerous searches here on mud. Some sort of explained what I was looking for, most said it's not needed to hook up the alternator.. While i know it is not needed to hook up the alternator it's something i wanted to hook up. SO.. Long story short I found this PDF which might help others diagnose their alternators. It's a toyota training manual..
And now i know to hook the power side of the charge indicator light to the ignition hot wire "IG" that tells the alternator to charge and ground the charge indicator light to the "L".
WHOO HOO for me.. This means that the Drivers side of the whole harness will be complete and I can start looming it.
THought i'd share a bit of info I have never seen before and answered my question.
And now i know to hook the power side of the charge indicator light to the ignition hot wire "IG" that tells the alternator to charge and ground the charge indicator light to the "L".
WHOO HOO for me.. This means that the Drivers side of the whole harness will be complete and I can start looming it.
THought i'd share a bit of info I have never seen before and answered my question.
Some alternators will be unhappy if you don't wire them through a light. Mostly what they do is back feed the ignition circuit and not let the vehicle shut off. Best to have it wired right
do you have a picture of how you wired the back side of the guages? I am trying to figure out why my fuel guage keeps zeroing out when the cluster body is grounded. works great if i hold the cluster in my hand.
- Thread starter
- #172
Fuel second from left. I didnt use the voltage regulator in the fuel gauge with new temp gauge. I have not tested fuel sender yet.
Did you isolate the fuel gauge from the metal? I had to add a couple small platic washers to space the terminals away from the metal. and i ran a seperate ground from gauge panel to truck thru the harness. For safety sake.
Did you isolate the fuel gauge from the metal? I had to add a couple small platic washers to space the terminals away from the metal. and i ran a seperate ground from gauge panel to truck thru the harness. For safety sake.
Last edited:
- Thread starter
- #173
Started cleaning up wiring. Can anyone guess which side still needs help? Need to reinstall and start on pass side.
- Thread starter
- #174
H55 went to a local cruiserhead that also runs a shop and builds trannys. He was making a housecall delivering wheels and a gas tank to another cruiserhead that was getting parts out of my garage. H55 WILL be getting new input and tailshaft installed. Once its back i can put the 62 splitcase behind it and hook up the vacuum 4wd like stock 1964. And finally instal clutch and hydraulics.
- Thread starter
- #175
THis is tech for riverrat who has my H55 right now.. But it might be good to know for others..
5th gear “bend to engage” Info from Crushers.. I had saved in my list of to do's From this thread..
https://forum.ih8mud.com/diesel-tec...ere-we-go-fj-40-getting-3b-turbo-h55f-25.html
"good time to heat and bend that shifting fork for full engagement, this helps prevent the notorious 5th gear pop-out later in life. disengage 5th, look at how much space is between the gear and the collar. now engage 5th and take a look at how much gear over lap has occured. you want to make sure the 5th overlaps completely since both the collar and the gear have tapered teeth and if they do not engage fully then eventually the tapped ends wear and 5th starts to pop out when the load is taken off the drivetrain. usually a heat and bend of 1/8 to 1/4 inch is sufficient."
and differences in the input shafts and bearings
https://forum.ih8mud.com/diesel-tec...632-question-input-shaft-h55f.html#post498245
"There is one change in H55's in I believe 1985. The early models have an open input bearing (behind the "figure 8" bearing retainer). The later models use an orange OEM style bearing or black aftermarket (front 1/2 facing "figure 8" is sealed). Split case H41's USE THE SAME INPUT. H42's do not match (I had the tooth count commited to memory in a past life)."
----------------------------
So.. after consultation with riverrat who has my h55 i am in need of a seal bearing input shaft for an h55. which should be 86 and newer. anyone have a dead h55 or an input from swapping to a diesel? if so please let me know..
5th gear “bend to engage” Info from Crushers.. I had saved in my list of to do's From this thread..
https://forum.ih8mud.com/diesel-tec...ere-we-go-fj-40-getting-3b-turbo-h55f-25.html
"good time to heat and bend that shifting fork for full engagement, this helps prevent the notorious 5th gear pop-out later in life. disengage 5th, look at how much space is between the gear and the collar. now engage 5th and take a look at how much gear over lap has occured. you want to make sure the 5th overlaps completely since both the collar and the gear have tapered teeth and if they do not engage fully then eventually the tapped ends wear and 5th starts to pop out when the load is taken off the drivetrain. usually a heat and bend of 1/8 to 1/4 inch is sufficient."
and differences in the input shafts and bearings
https://forum.ih8mud.com/diesel-tec...632-question-input-shaft-h55f.html#post498245
"There is one change in H55's in I believe 1985. The early models have an open input bearing (behind the "figure 8" bearing retainer). The later models use an orange OEM style bearing or black aftermarket (front 1/2 facing "figure 8" is sealed). Split case H41's USE THE SAME INPUT. H42's do not match (I had the tooth count commited to memory in a past life)."
----------------------------
So.. after consultation with riverrat who has my h55 i am in need of a seal bearing input shaft for an h55. which should be 86 and newer. anyone have a dead h55 or an input from swapping to a diesel? if so please let me know..
Last edited:
- Thread starter
- #176

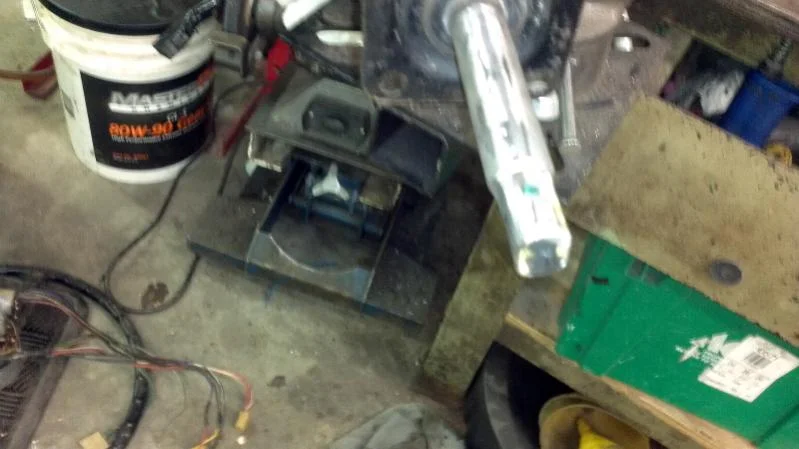

Since a clubmember is getting married today i thought id start out my day working on the 45. Pulled the steering column to prepare for the new ujoint. I did splurge and purchased the borgeson with the vibration dampner in it. Why not with mt's going on it.
- Thread starter
- #177
Shaft ground, slow and steady wins the race. Quality time with calipers and a grinder.
- Thread starter
- #178
It turns with a steering wheel. Now if i can slap a seat in there i could steer it and make vroom vroom noises till i finish wiring harness and o2 sensors.
- Thread starter
- #179
Collapsible shaft from tilt portion of wagon and steering wheel from wagon
tucker74
Moderator
tornadoalleycruiser said:
Find an early 80 wheel
Tucker
