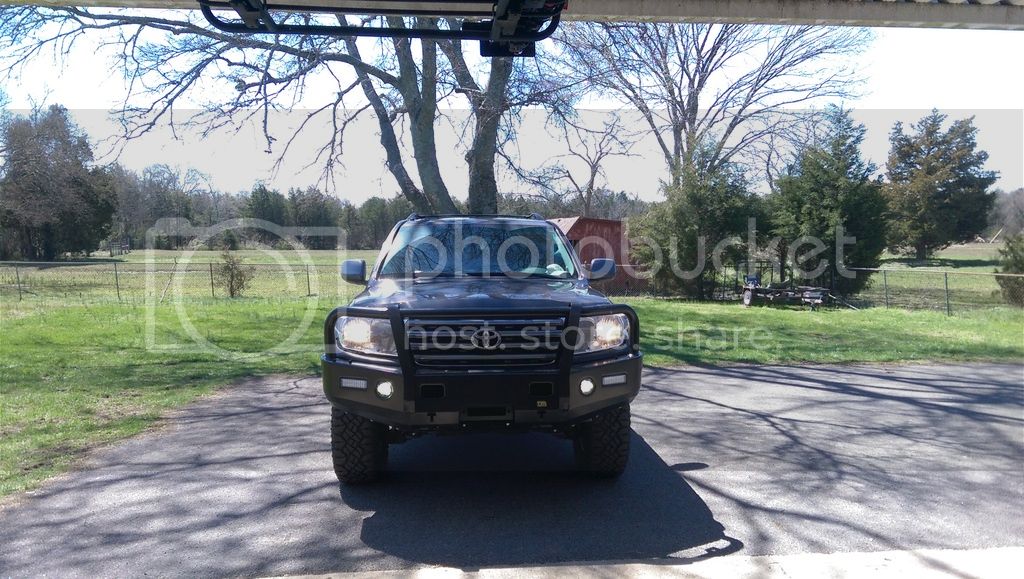

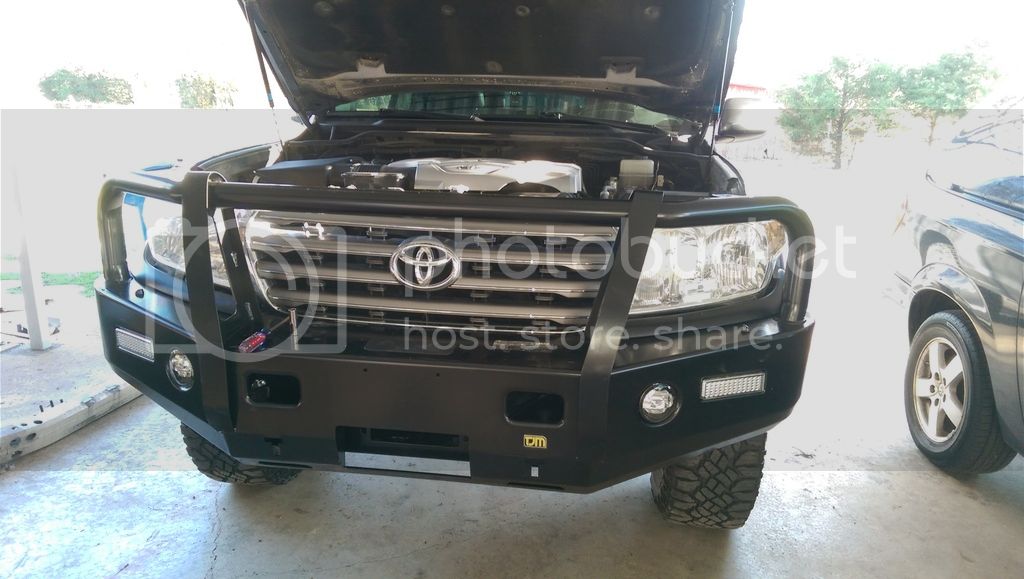

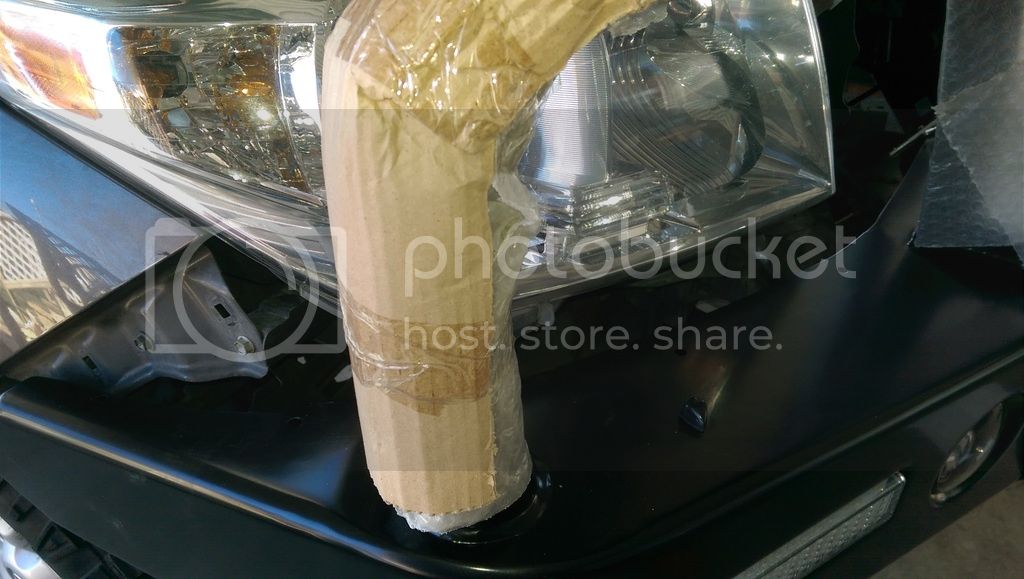

So got the TJM T13 bumper installed today, well 95% completed. More on that later. The bar and mounts weights 180 pounds. The removed and unused parts weighs 43 pounds so net gain is 137#’s (without a winch)


[/URL
]

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0974_zpslb62oehq.jpg.html] [/URL
]


[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0971_zpsspc5krwd.jpg.html] [/URL
]

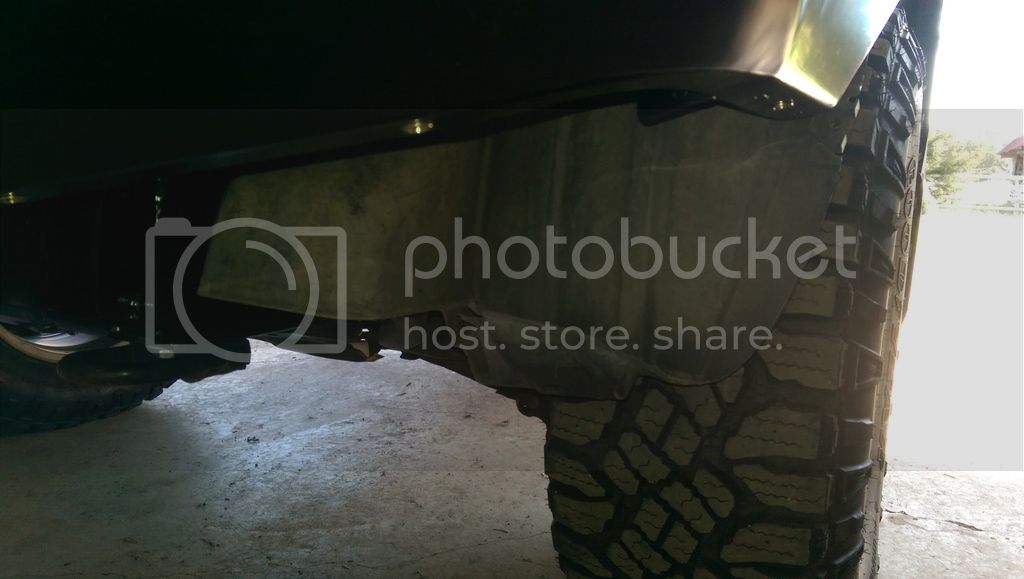

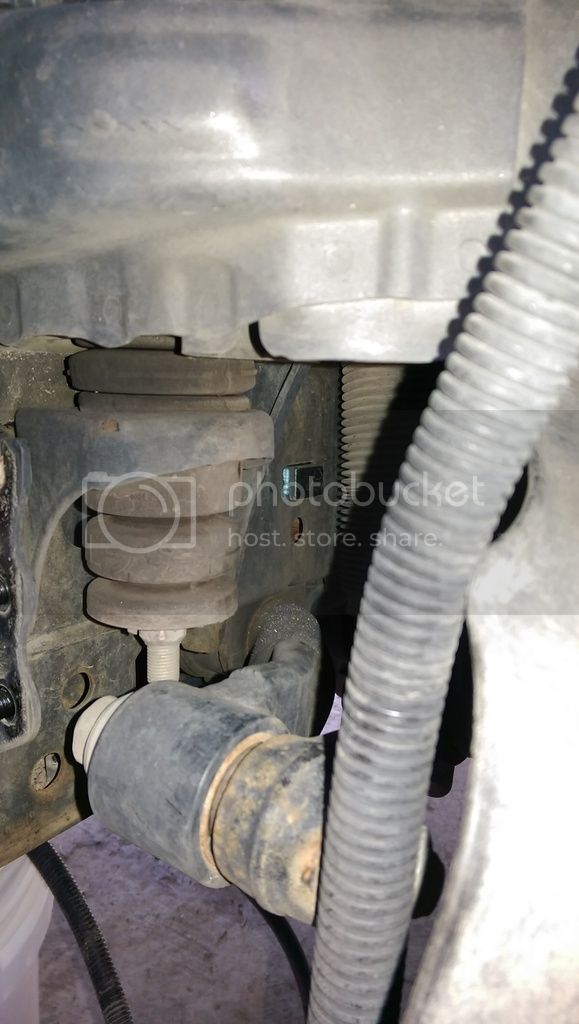

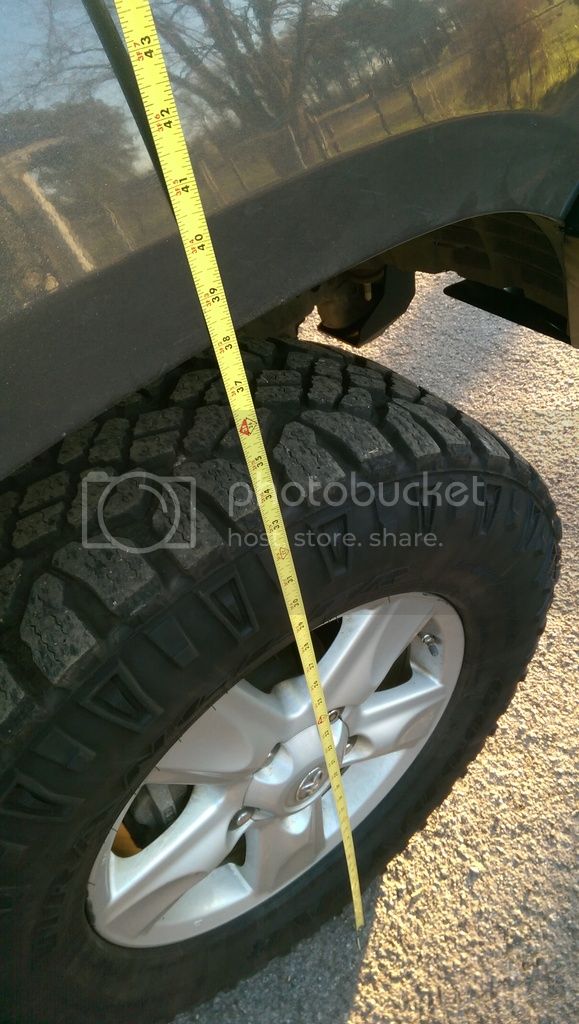

Still right at 38”. I am running the heavy front OME coils since I knew I was going with a winch bar. Didn’t lose any height.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0964_zpsdufldvkl.jpg.html] [/URL
]

Any how. Onto the install. Took me 10 hours.

Ready to start the fun

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0919_zps1jhwlrho.jpg.html] [/URL
]

The bumper is very well packaged. Lots of bubble wrap and cardboard.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0921_zps87rarhf9.jpg.html] [/URL
]

You have to remove the grill, upper rad cover, a ton of lower bumper bolts, the crash bar and mounting hardware, air guides on both sides and carefully disconnect the sensors, fog lights and headlight washers. You also need to remove the front two inner skid plate bolts.

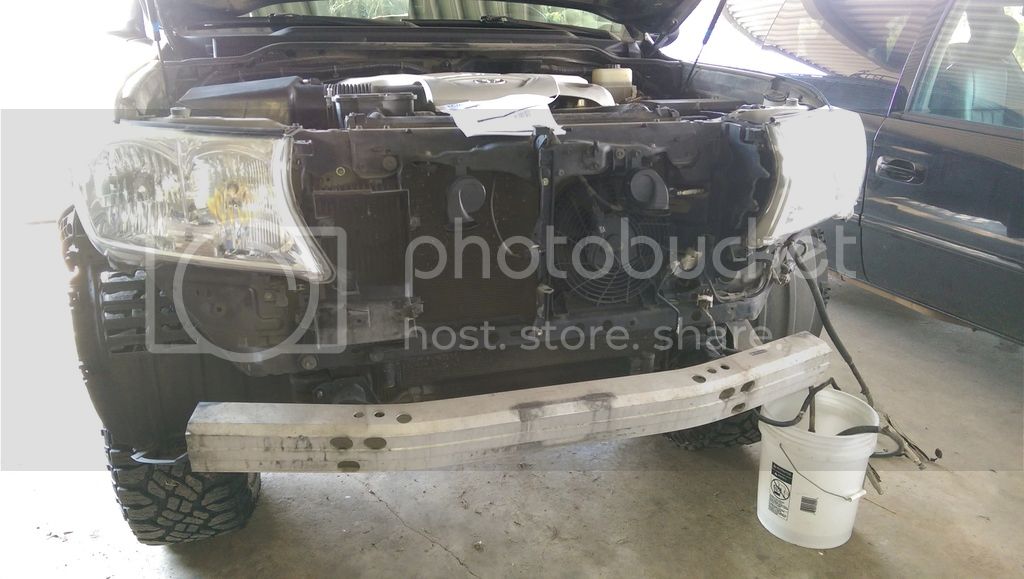

Here is what the crash bar looks like.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0929_zpsxk7kbcrl.jpg.html] [/URL
]

These crash bar mounts need to removed. Same with the tow hooks. The tow hooks will be reinstalled later with new hardware.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0928_zpsshf35vkc.jpg.html] [/URL
]

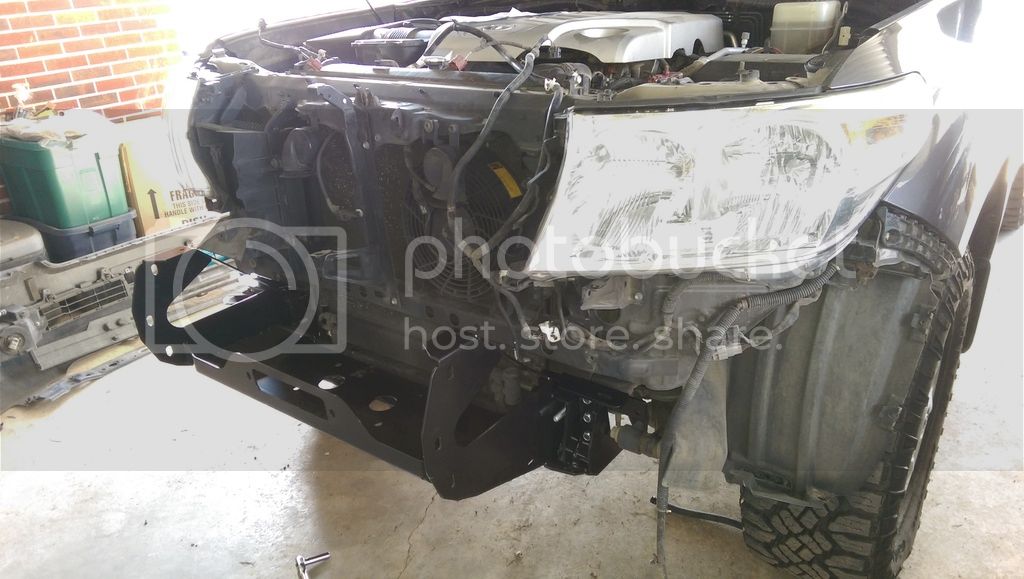

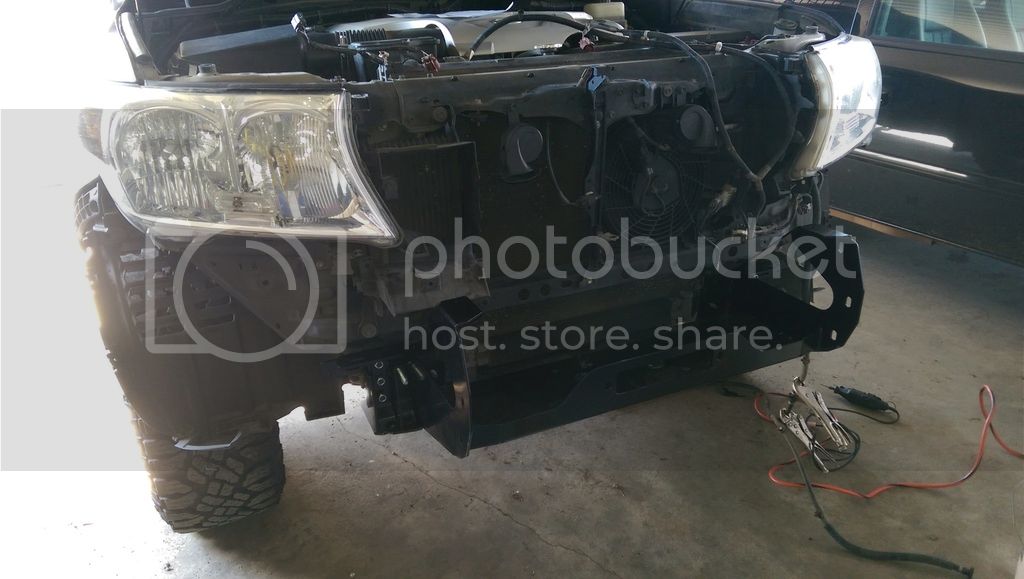

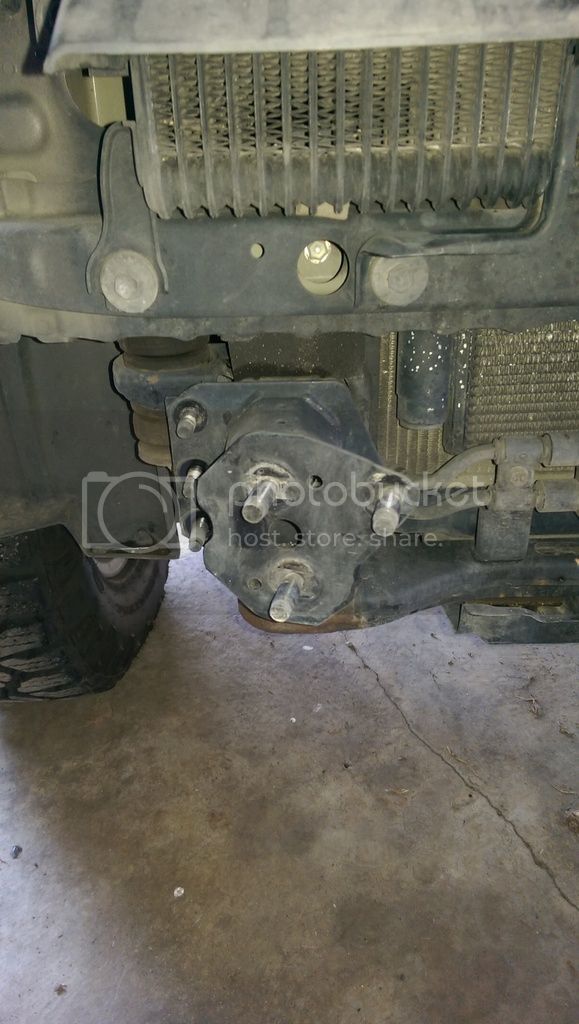

Stripped and ready to start installing. For the removal of the factory stuff, just go slow and be aware that there are more bolts and clips than listed in the instructions. Don’t go yanking and pulling, if it doenst come apart easily then you have missed something.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0925_zps8lnlz846.jpg.html] [/URL
]

Trim up these air guides. One on both sides. The lower portions get in the way of the bumper. 10mm bolts to remove. Once cutting you mount the back up.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0927_zpsz4xb5lfj.jpg.html] [/URL
]

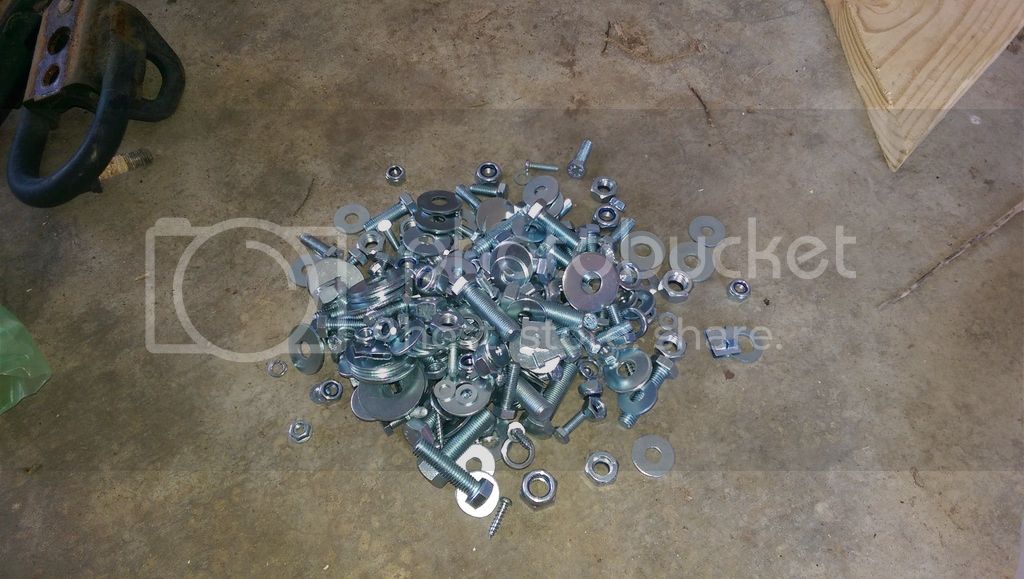

Got bolts?

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0940_zps7jbfrwto.jpg.html] [/URL
]

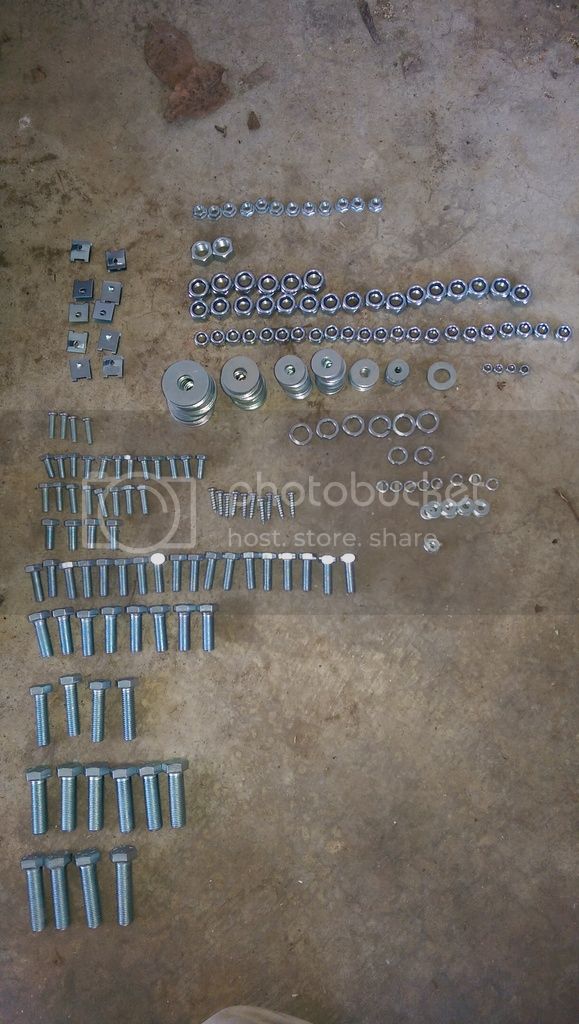

Be sure to get yourself organized. They are all metric. I used a dial caliper to figure out the lengths. They are mostly nylon nuts (I hate them) so you need multiple duplicate sockets and wrenches to tighten them up.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0941_zpsqn1e44py.jpg.html] [/URL
]

1st part of the install! The block fits in a factory frame slot and the threaded rod is used as an additional mounting point.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0930_zpsj6m0mbfb.jpg.html] [/URL
]

LOL, doesn’t fit in the factory slot. Square peg, oval hole.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0934_zpsdipek6i7.jpg.html] [/URL
]

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0931_zpsj3c2efnv.jpg.html] [/URL
]

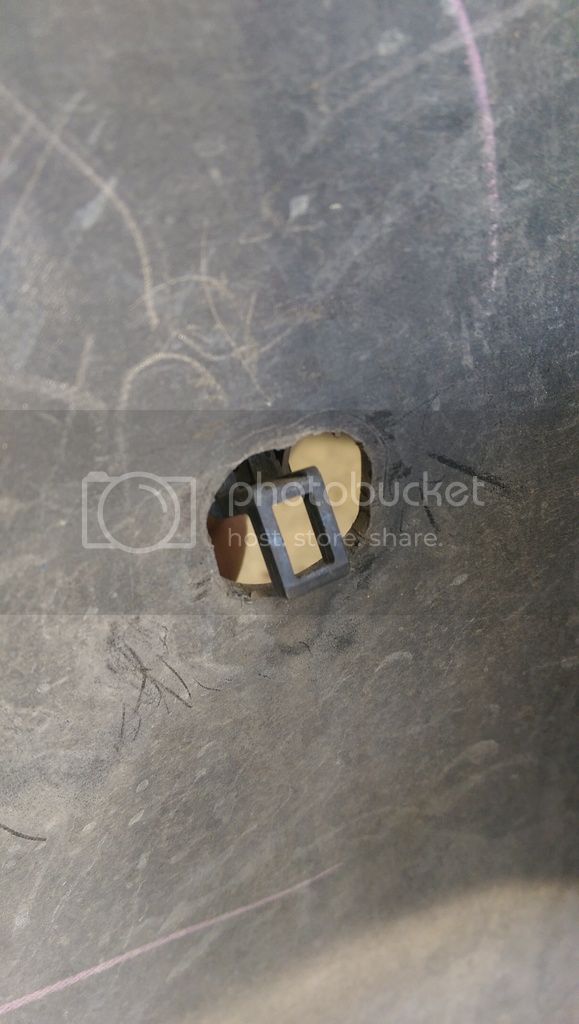

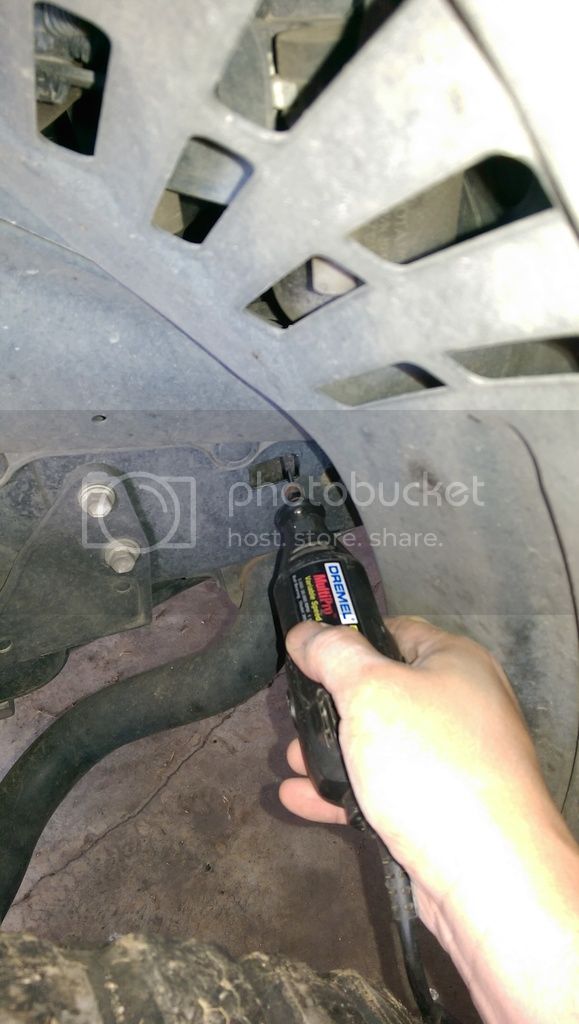

Dremel time. I used a tungsten carbide bit to enlarge and square the slot.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0933_zpslsyapsec.jpg.html] [/URL
]

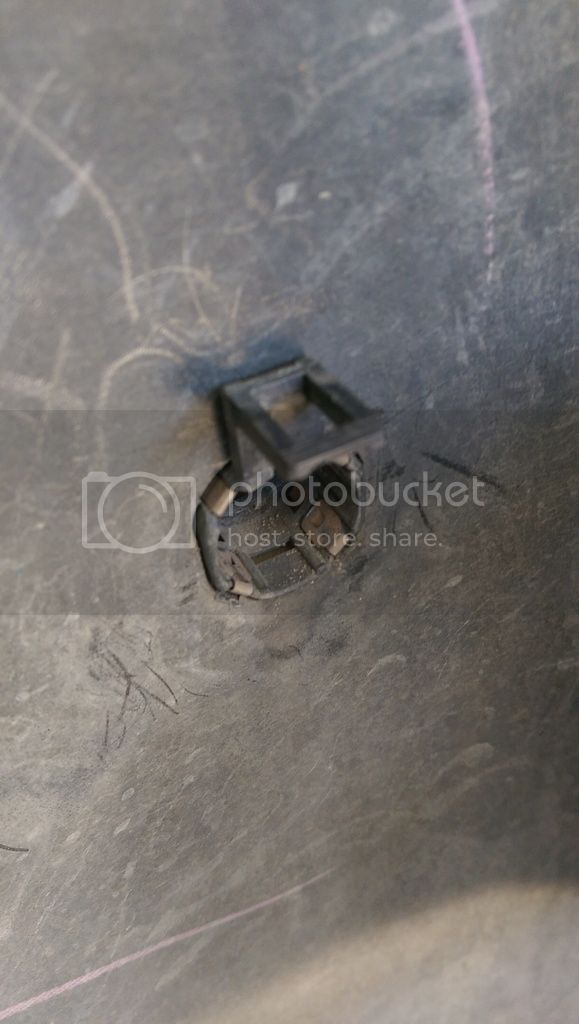

After much shaping, it fits. Debur the cuts and I used some touch up paint to protect the exposed metal after grinding.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0935_zpslzu9ghee.jpg.html] [/URL
]

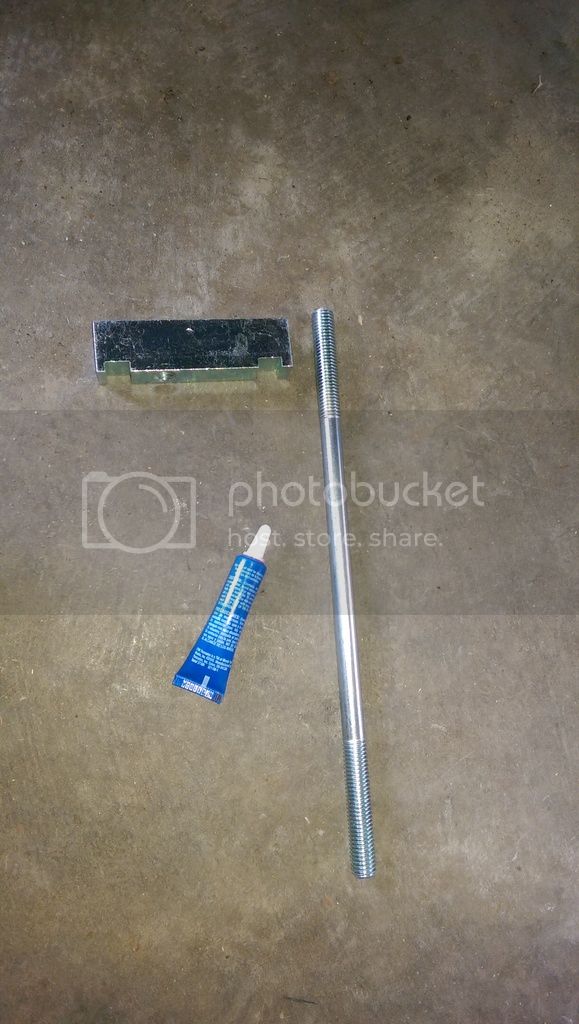

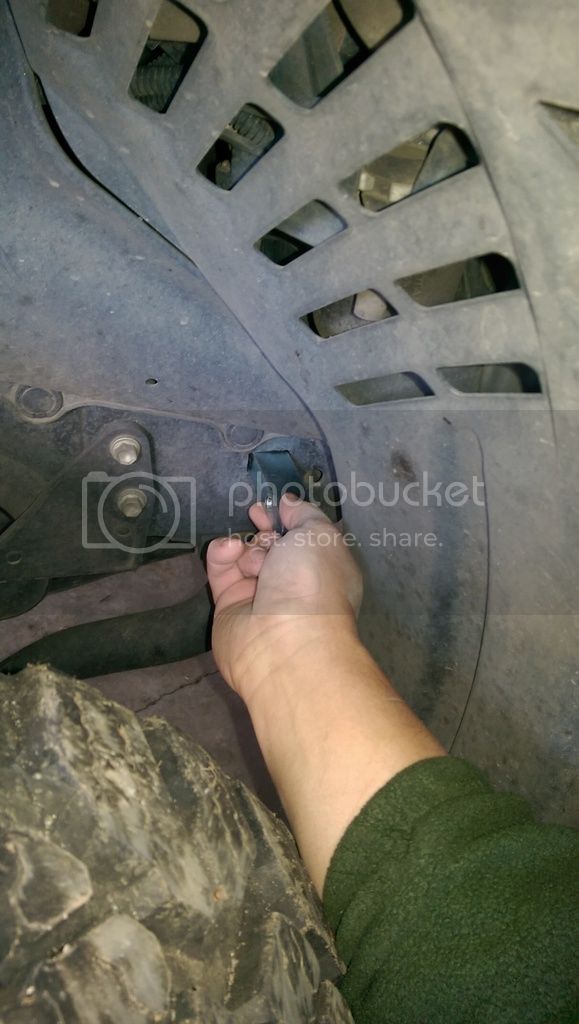

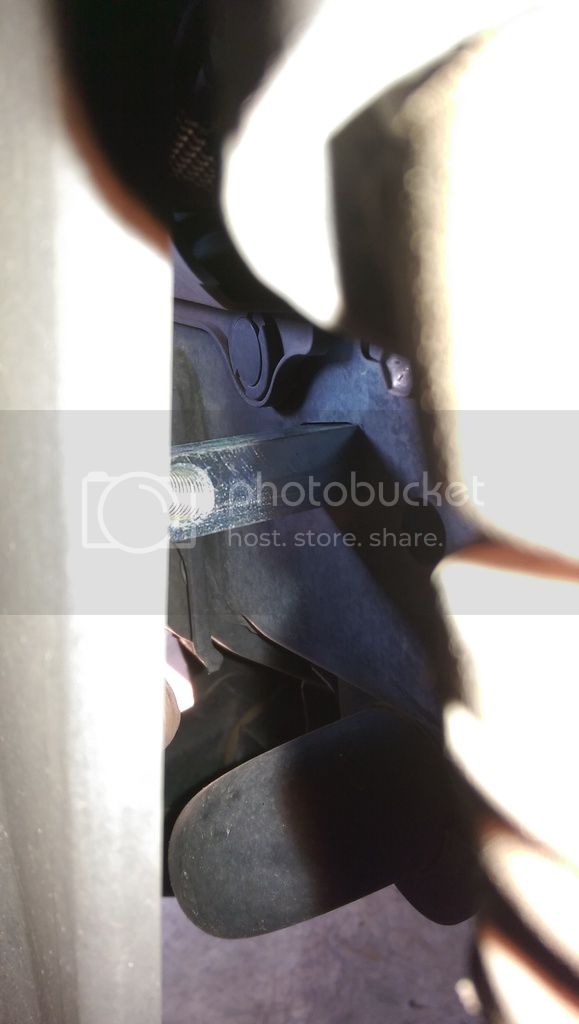

Slide the block in with the threaded hole outboard. Use Loctite and thread rod in. Do not drop the block. I don’t think you would be able to get it out if you did.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0936_zpsz4hbpdpo.jpg.html] [/URL
]

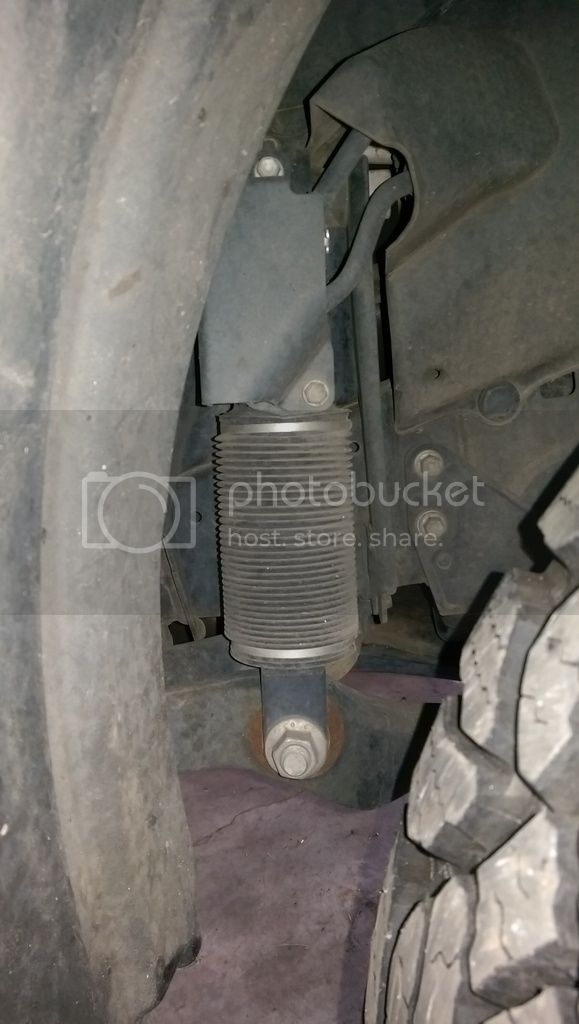

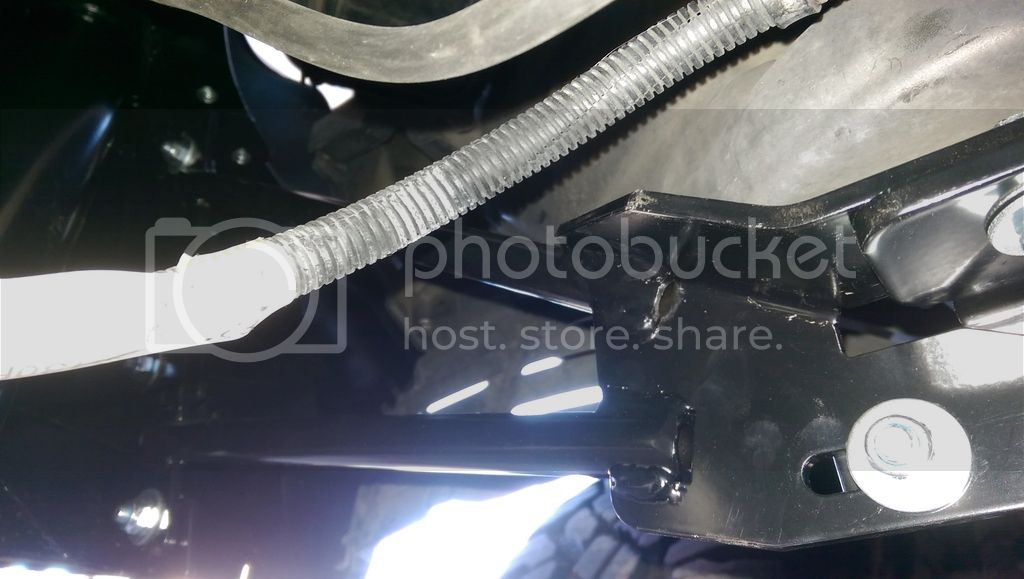

Guess where the drivers side one goes. Yup, behind the KDSS cylinder and it doesn’t fit either..

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0937_zpsq84d7bpp.jpg.html] [/URL
][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL]



[Archtaan]

You can kinda get in there with the dremel to star the cuts. I had to use a hand file to finish squaring off the corners since you cant get a straight shot with the dremel. If you have arms that can make 3 90* bends in opposite directions, you would be able to do it easier.

[/URL
]

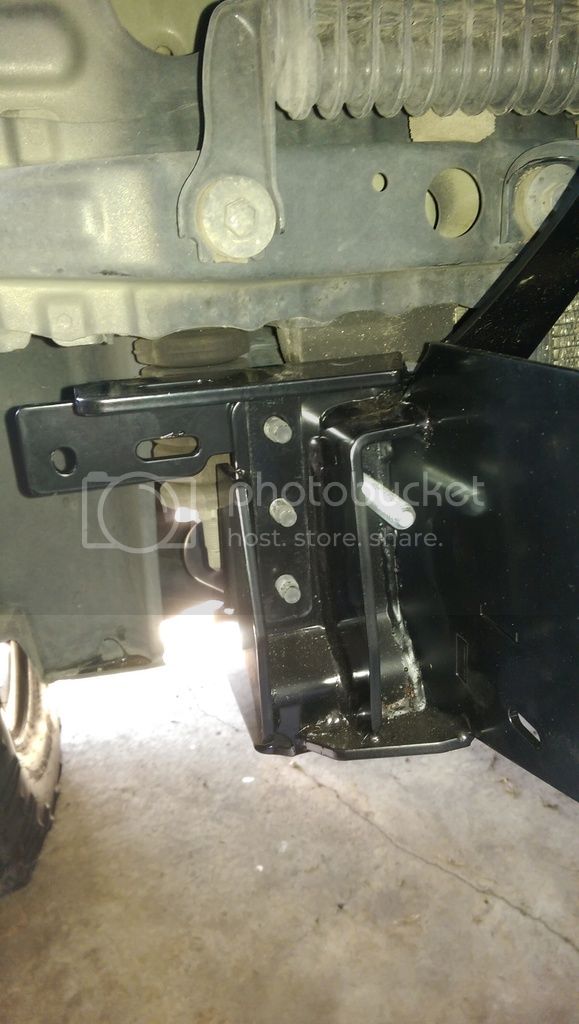

Provided mount on the factory captive studs after removing the factory crash bar mount. Note the supplied threaded rod. Torque to spec. Factory tow hooks remount underneath at this point.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0943_zpsyfj8a60v.jpg.html] [/URL
]

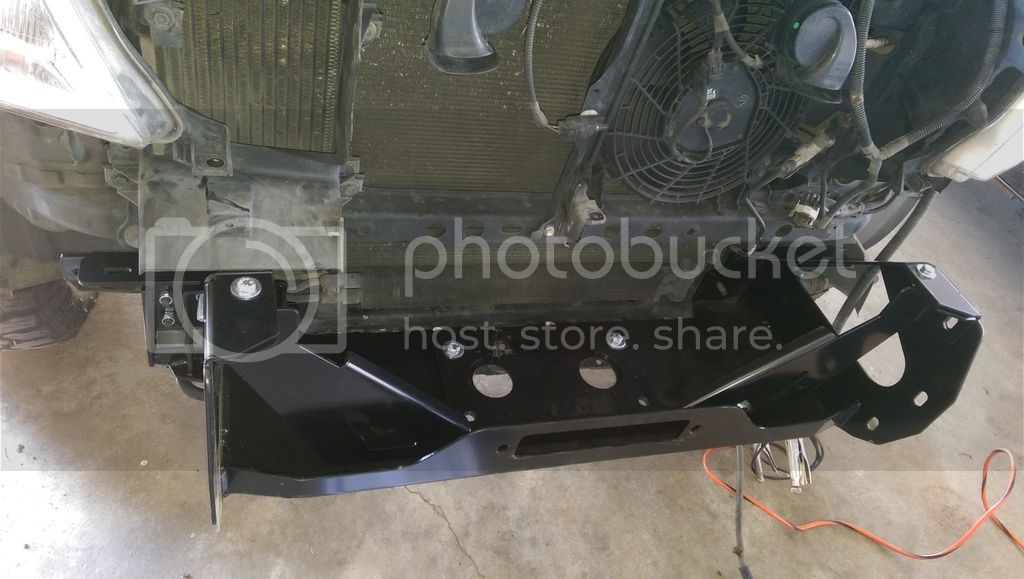

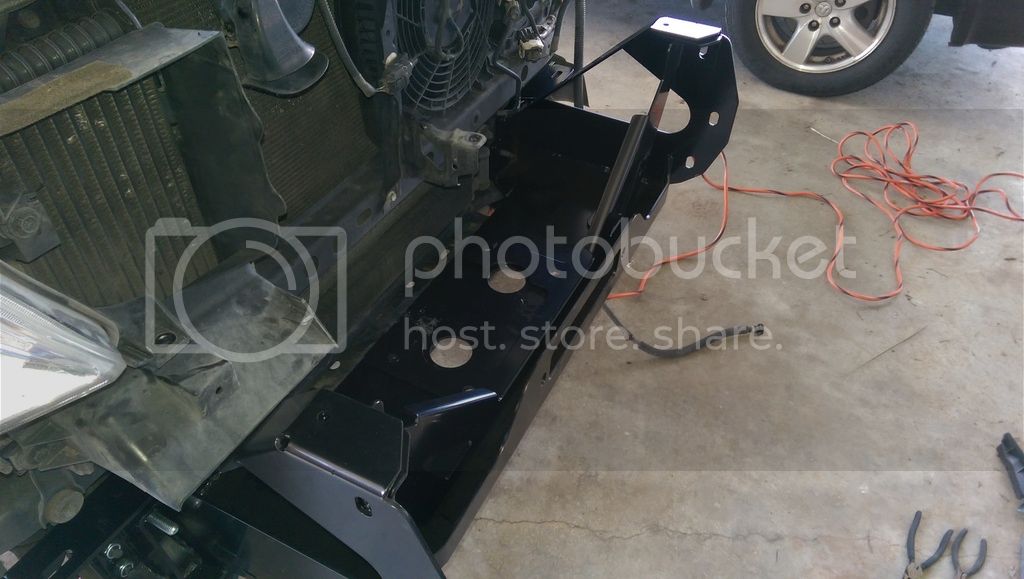

Here is the winch mounting plate. The bull mounts to this. Center it and torque to spec.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0947_zpsqoxg8yfq.jpg.html] [/URL
]

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0945_zpsososmczo.jpg.html] [/URL
]

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0944_zps7fk3qefy.jpg.html] [/URL
]

You have to mount the 45* uprights for stability. It’s a tight fit. I used a rubber mallet to persuade it into place.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0946_zpshrwvsgev.jpg.html] [/URL
]

Lift the bar onto the mount. It secures with 3 bolts on each side. Once you have it set where you want, you drill a hole using the existing hole in the bar and thread in an additional bolt on each side. I used a piece of wood to set the spacing. I was able to lift it and mount it by myself, but it would be easier with two friends.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0961_zpsj3kp6aht.jpg.html] [/URL
]

Mounting area for the trim covers. - The instructions don’t mention you have to remove some extra bracing under the headlights. These are secured with metal captive locks and screws from underneath. You need a 1”, 5” and 10” Phillips screwdriver to attach the 5 screws.

Also you can see the headlight washers. They plumb into the factory tubing with adapters. You wont be reusing the factory ones. They include 1 way check valves and plenty of mounts and zip ties.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0958_zpszsi4qjrs.jpg.html] [/URL
]

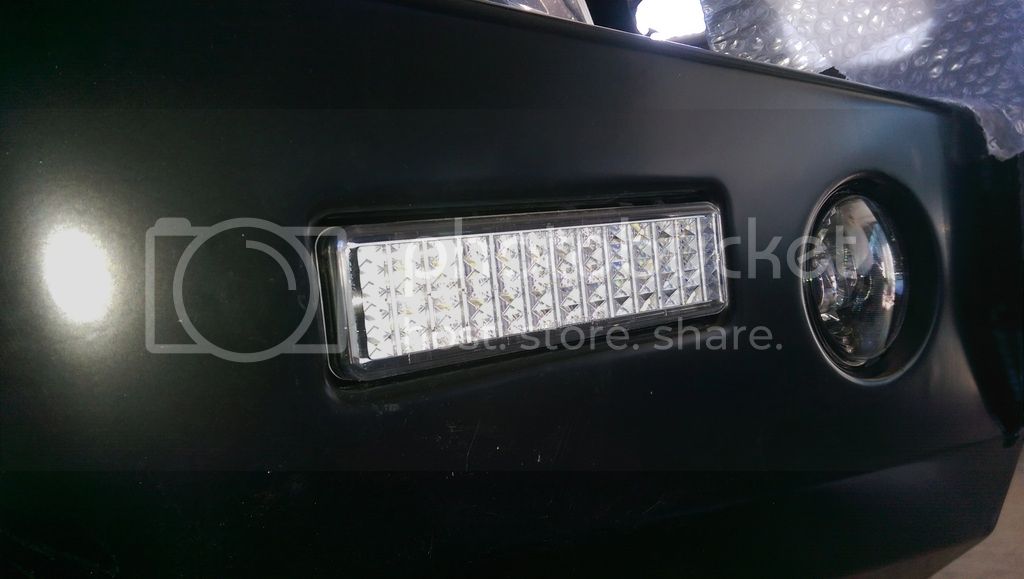

Here are the lights provided by TJM. Taiwan made. LED.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0948_zpskkdwyzhh.jpg.html] [/URL
]

Driving light installed. The provided hardware was too large to fit in the mounting holes so I used a drill to open them up.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0957_zpsl2brfoig.jpg.html] [/URL
]

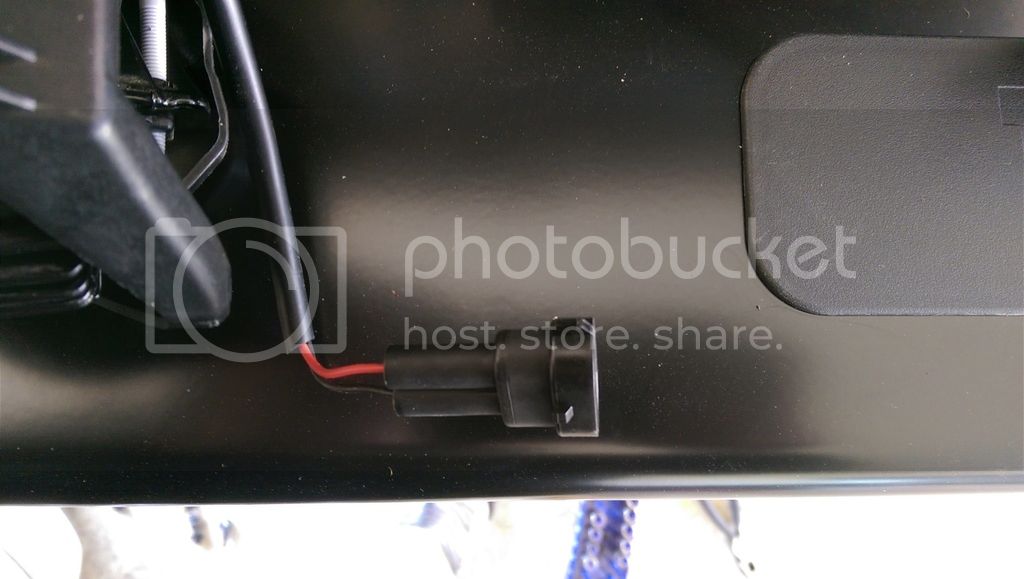

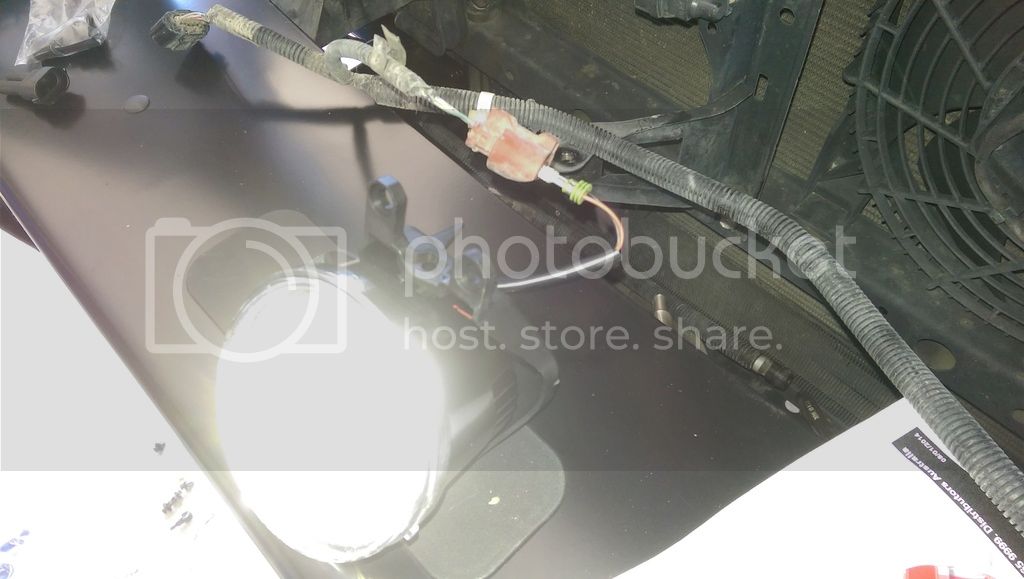

The wiring has to be spliced into the factory harness . I haven’t done that yet. Plenty of wire is provided.

The light snaps into the back plate.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0956_zpsowyjzbop.jpg.html] [/URL
]

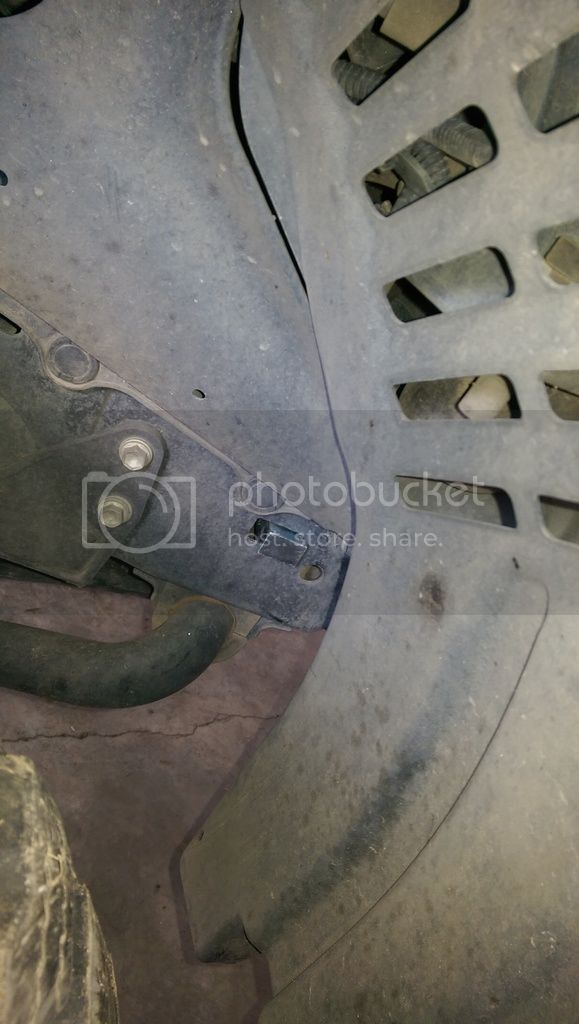

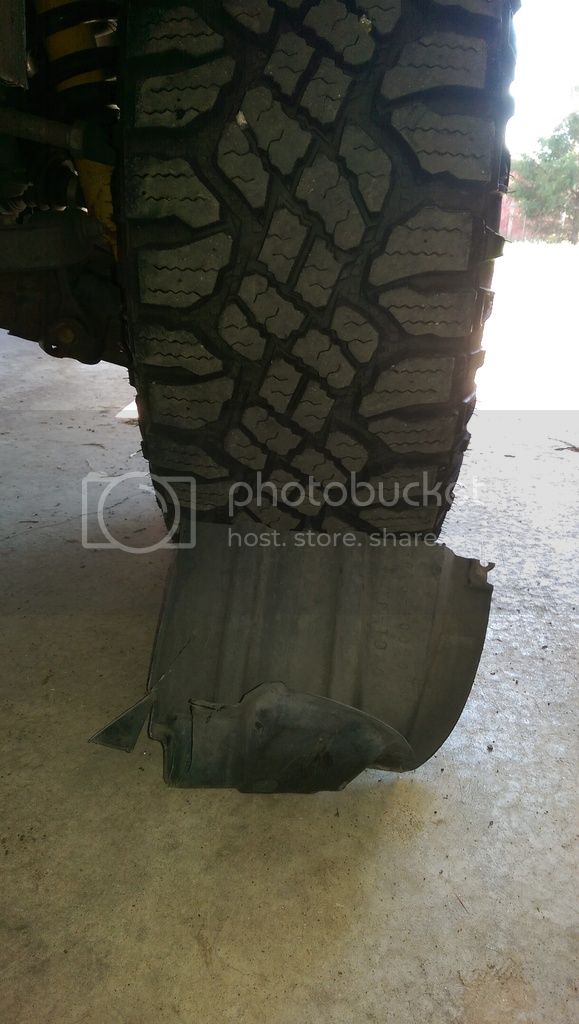

Factory splash guards need to be trimmed. About the same on both sides. I used a set of tin shears, but you could use a dremel or other cutting tool.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0954_zpsihjbbhzb.jpg.html] [/URL
]

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0955_zpshxwtqghv.jpg.html] [/URL
]

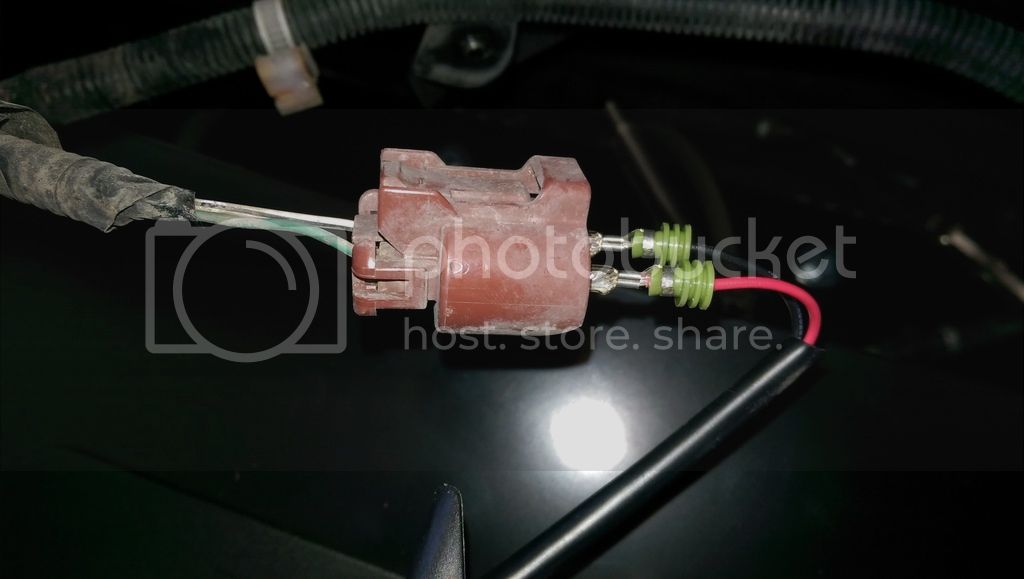

Red to green, black to white/blk stripe.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0950_zpsnflqtmq8.jpg.html] [/URL
]

They work with the factory switch.


[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0949_zpsbhn2zaie.jpg.html] [/URL
]

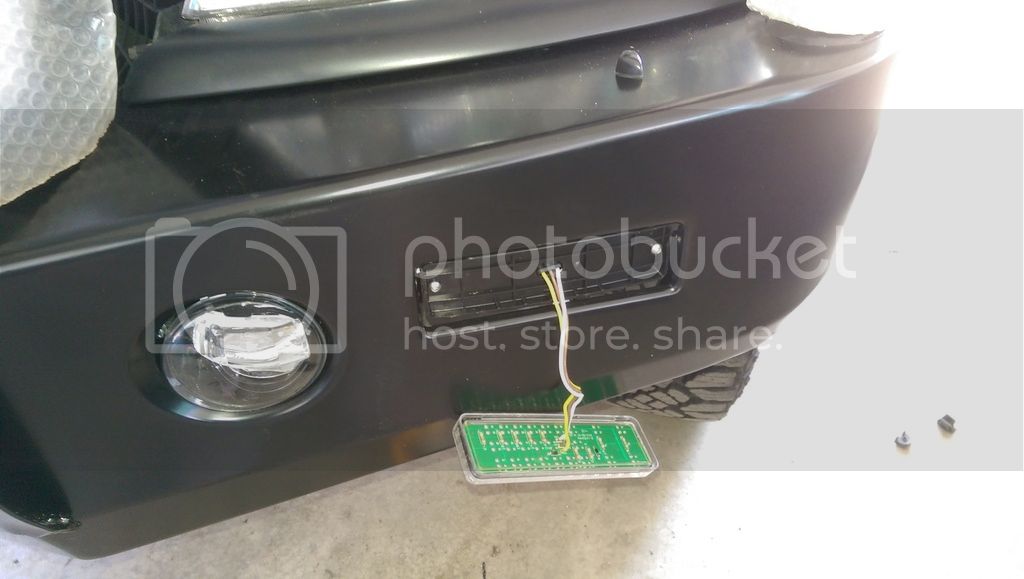

Fog light with provided weather connect plug (It doesn’t fit the oem plug I found out after so I had to pull the spades out. Ill order another weather pack later. The provided plug spaces the spades way to close together.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0952_zpsiwbizemx.jpg.html] [/URL
]

Mounting tab for the fog lights

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0953_zpspen17yds.jpg.html] [/URL
]

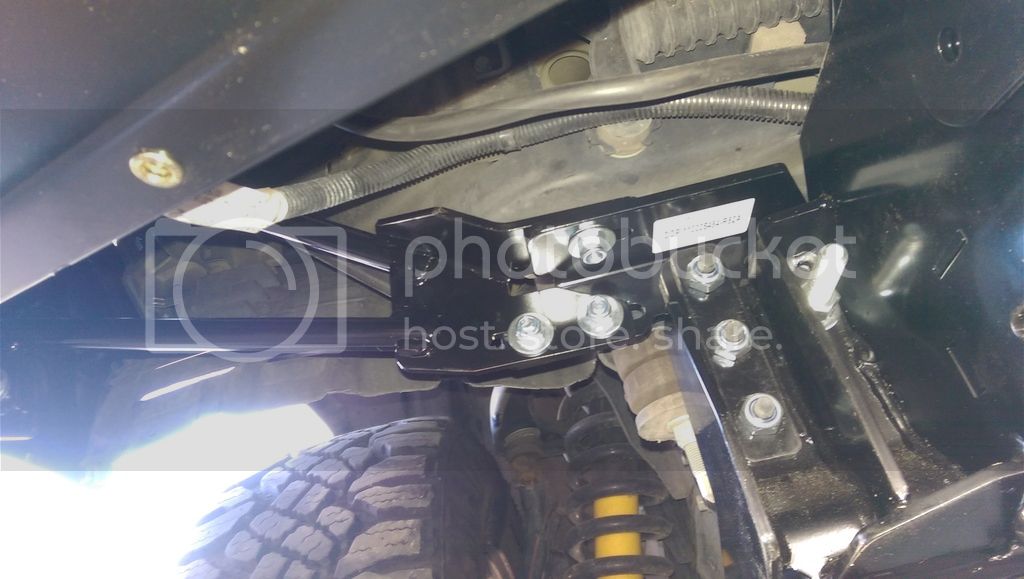

Side braces installed. These mount from the winch cradle to the outer edges of the bar using 6 supplied bolts and nylon lock nuts.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0960_zpszoirndnu.jpg.html] [/URL
]

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0959_zpsl59aze7t.jpg.html] [/URL
]

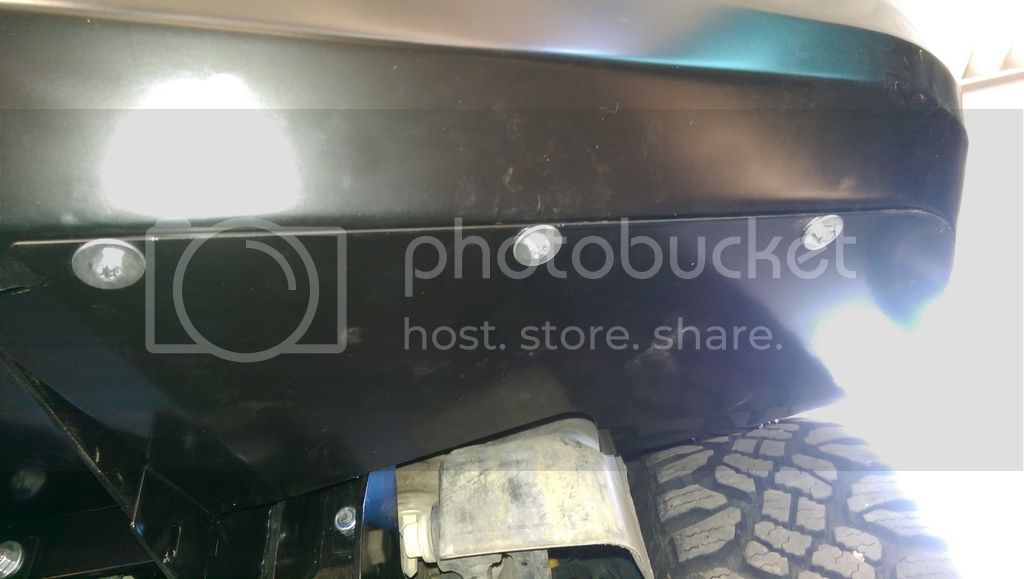

This plate is mounted underneath. It gives extra protection and seals up the wiring for the lights and washer.

Lower cover installed.

[URL=http://s1134.photobucket.com/user/archtaan/media/Trucks/Land%20Cruiser/IMAG0963_zpsizenzfu3.jpg.html] [/URL
][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL][/URL]



[Archtaan]

Lower cover installed.

[/URL
]

More to come.

Light wiring and sensor installation.

3/29-

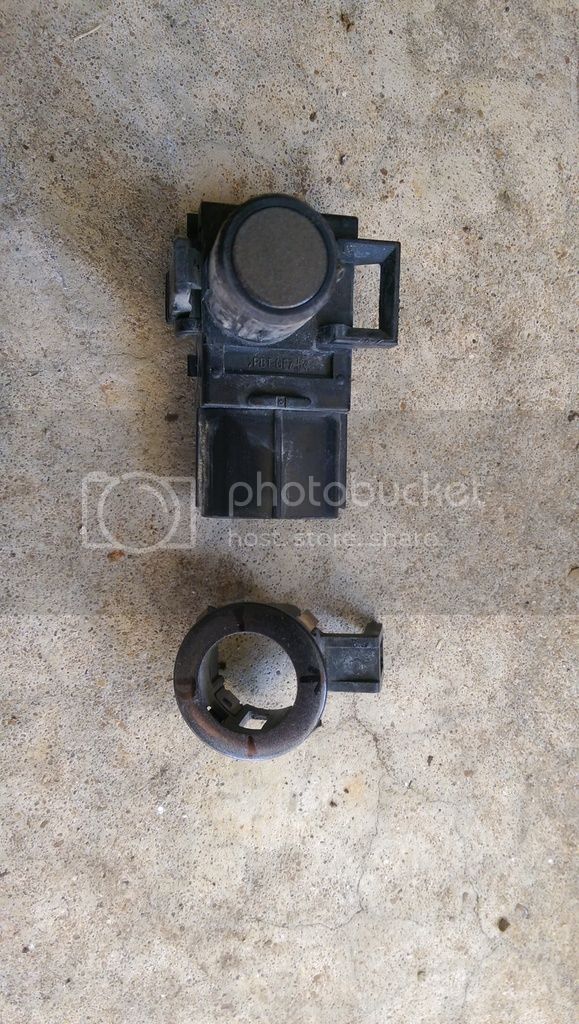

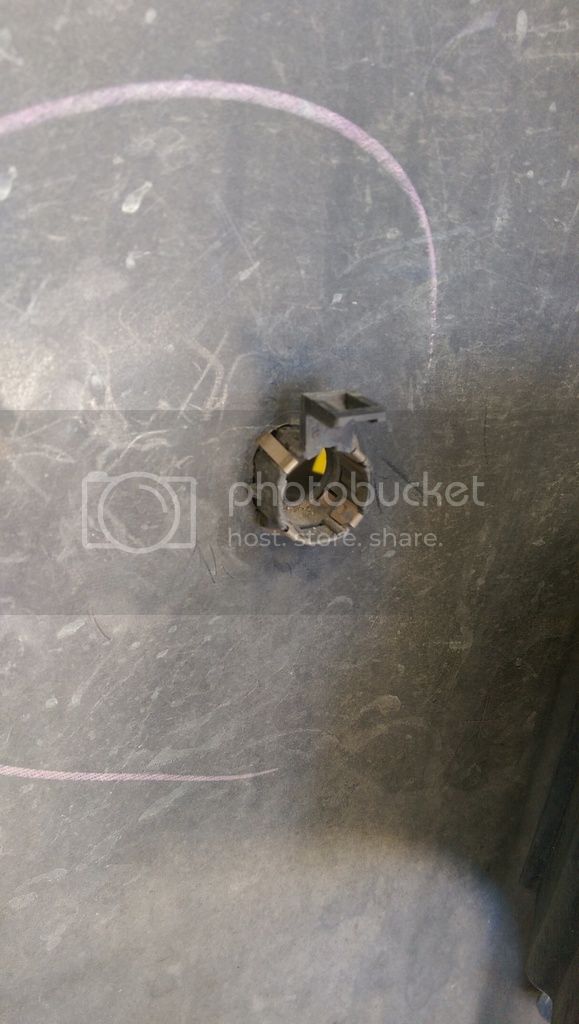

Got the senors pulled out of the factory bumper. Pretty easy. Unclip the main harness and using 4 hands, a pair of pliers and some small spade screwdrivers compress the springs and push through the hole.







Also got the fog lights wired and aimed. The lights come with screw type aiming adjusters. They are controlled with the factory switch, auto, on, off. No issues.
