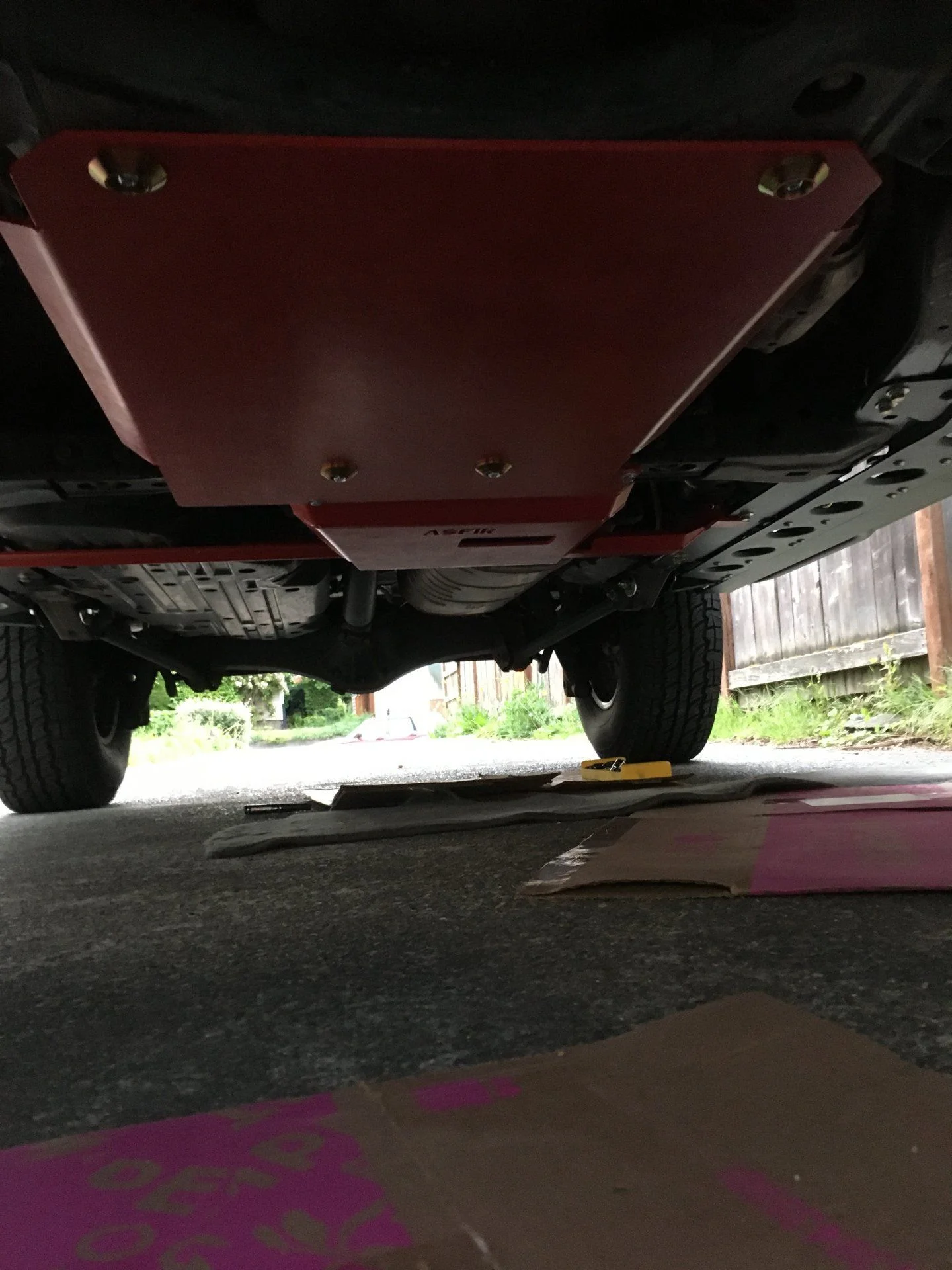

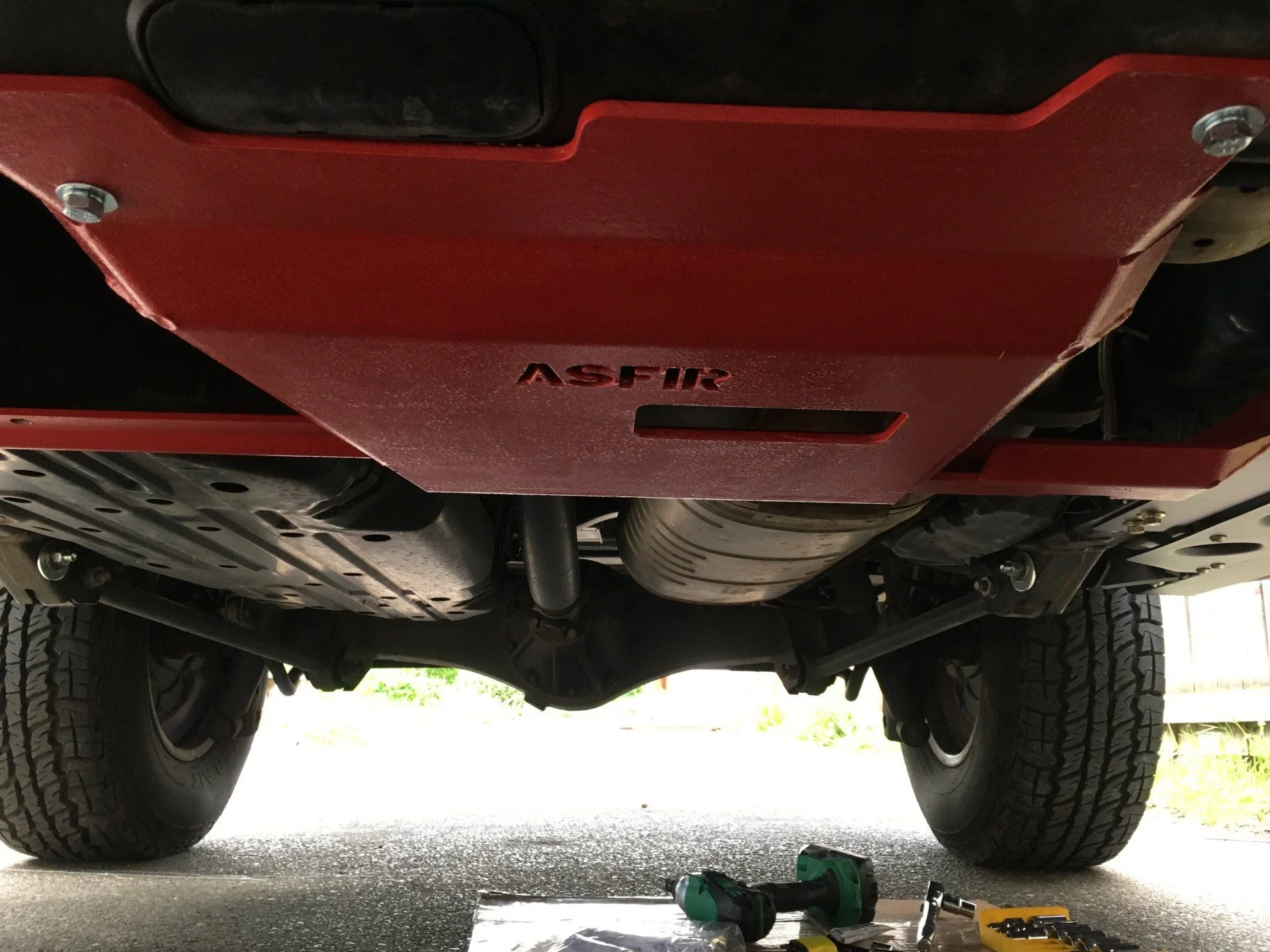

More transfer skid
Builds The Guzzler - 2009 LX570 (2 Viewers)
- Thread starter grinchy
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #482

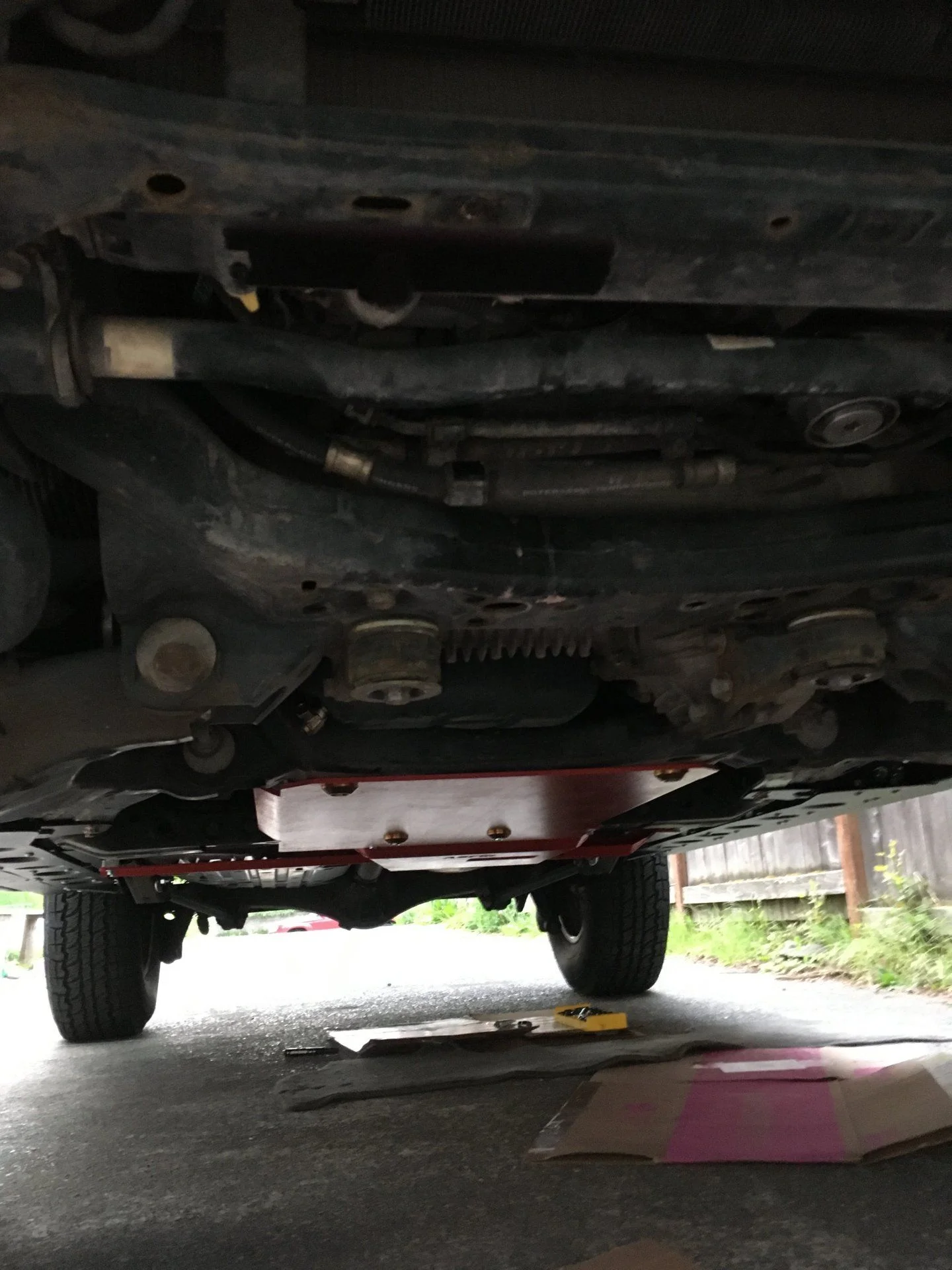

Belly pan
used the jack as a third hand.
had one fitment issue With one bolt on Transfer skid. It nearly cleared, but I had make a 1” by 1/2” notcnright at the back edge. Very easy hacksaw and a crescent wrench to bend it off.
with the Transfer skid under at The crossmember and the skid washers the bolts are too short. The larger of the two spacers is also a bit short due to the transfer skid thickness. When I get longer bolts I’ll use fender washers to fix this.
Otherwise apart from being awkward it bolts right up.
used the jack as a third hand.
had one fitment issue With one bolt on Transfer skid. It nearly cleared, but I had make a 1” by 1/2” notcnright at the back edge. Very easy hacksaw and a crescent wrench to bend it off.
with the Transfer skid under at The crossmember and the skid washers the bolts are too short. The larger of the two spacers is also a bit short due to the transfer skid thickness. When I get longer bolts I’ll use fender washers to fix this.
Otherwise apart from being awkward it bolts right up.
- Thread starter
- #483

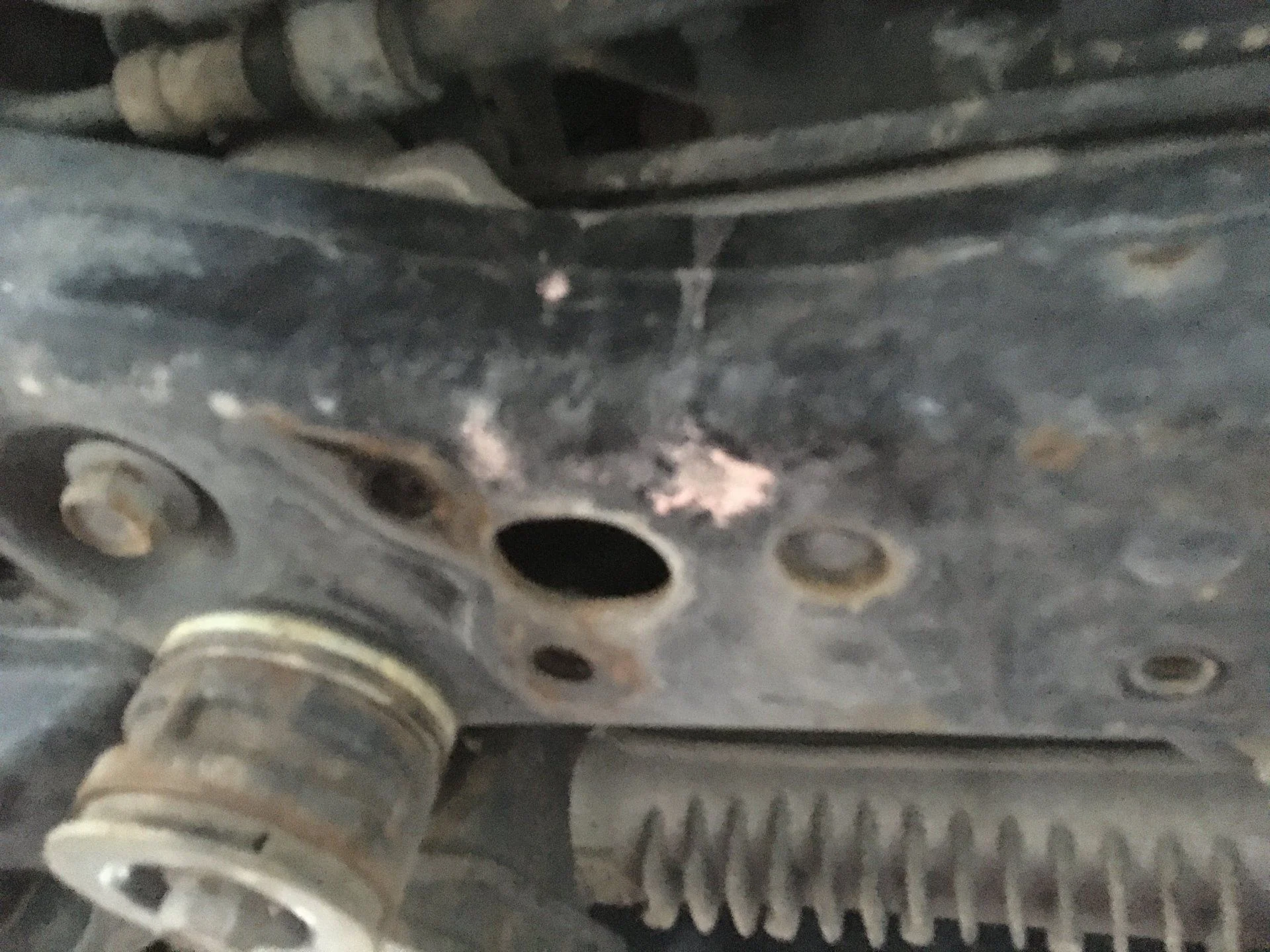

In other news I have coolant spatters under the engine. I suspect water pump is starting to go
- Thread starter
- #485
Thanks. I’ve gone back and forth on red vs something more practical like black or grey. it turns out that it’ll be mostly hidden unless I rollover, so red ftw! I eventually will have bronze rims, if I’d really been on it I would have used bronze for This and that would I think look pretty cool. Can always repaint after they get some scratches I guess.
I’m a little biased because black and red is one of my favorite color combinations. I think the only thing I like more is a certain shade of grey.
If my LX was black I’d go red too, but everyone has their own taste. As long as you like it that’s all that matters boss. To me it looks... just perfect. Absolutely love it!
If my LX was black I’d go red too, but everyone has their own taste. As long as you like it that’s all that matters boss. To me it looks... just perfect. Absolutely love it!
CharlieS
GOLD Star
Looks great. Any concerns about the location of that crossmember and compatibility with your new fuel tank skid?
I also discovered the pink crust when working on the suspension, and now have a water pump job teed up. It was small enough volume that the liquid vaporized and telltale pink water never made it's way to the ground. Having the front skid off and my head right there gave me an opportunity to see it before it becomes a larger issue. That's okay, my radiator has the typical crack forming too, so I'll fix it all in one fell swoop.
- Thread starter
- #488

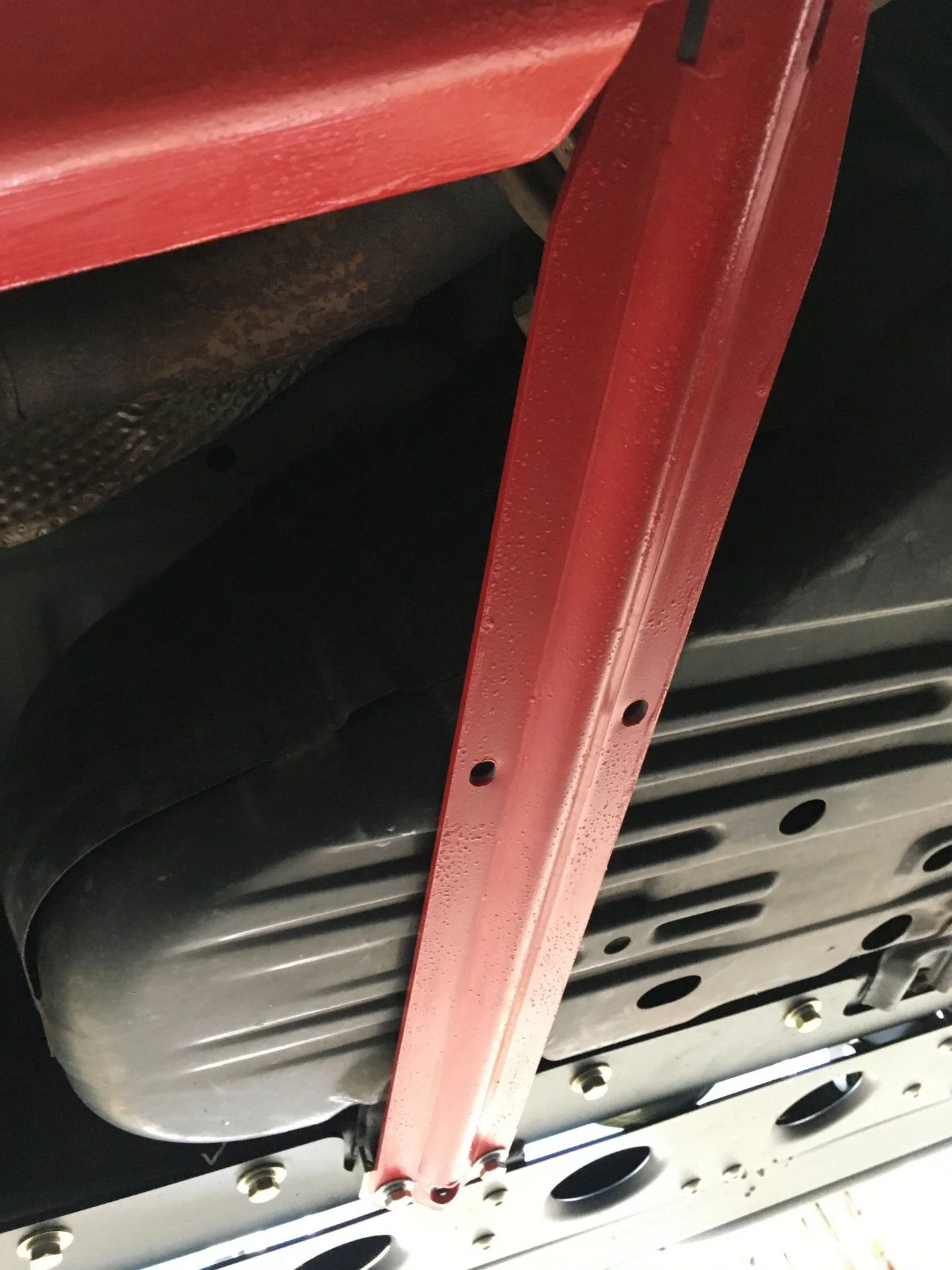

No. Asfir actually provided a different frame rail bracket for the right side that is flat in profile to go with an aftermarket fuel skid. It should bolt right up. I was interested to discover that the bottom of the stock fuel tank shield is below the level of my frame rails a 1/2" or so. I knew the transfer case was lower, but hadn't looked closely at the fuel tank.
It will all have to come off though to put the fuel skid on! I'll use that opportunity to drill out the left side of the brace for that new vertical hole to fit with the slider.
- Thread starter
- #489
Skid plate weights (measured on a non certified bathroom type scale using the subtraction method)
All are made of 1/4" aluminum, include coating but not fasteners
Asfir Transfer Case Skid - Bracket and skid total - 18.8 lb
Total Chaos Front Skid - 24.6 lb
Total Chaos Belly / Gear Skid - 18.8 lb
Total Front to back - 62.2 lb
All are made of 1/4" aluminum, include coating but not fasteners
Asfir Transfer Case Skid - Bracket and skid total - 18.8 lb
Total Chaos Front Skid - 24.6 lb
Total Chaos Belly / Gear Skid - 18.8 lb
Total Front to back - 62.2 lb
Dang, impressive.
Dumb question - but could you have left the aluminum unpainted?
Dumb question - but could you have left the aluminum unpainted?
That's an incredibly low weight for all those skids. Great stuff!
- Thread starter
- #493
Yeah, I sure could have. And it probably would have been fine. There were some minor marks from the presses used to shape them, and some welding beads on the Asfir skid that I worry about corroding, perfect, but they are skid plates after all . . . they won't look new for long I hope. I have a small piece of aluminum trim on my rear bumper that is nearing two years in the elements. I just polished and waxed it at install. It looks fine, if a bit dingy, so for the PNW not coating isn't a big deal.
I did consider just sanding/polishing/waxing and rolling with that. However it seemed about as much work (excluding paint dry time) as just painting it would be, and I wanted some color on the truck. So I went with some paint. The paint and primer I used was inexpensive (but time expensive).
- Thread starter
- #494
Was my number one priority! Well, weight followed very closely by cost.
Those would be my priorities, too.
I had skids on my Tacoma and I believe they were all all from 3/16" steel. Front, mid, transfer case and gas tank skids added up to around 200-250lbs. Wouldn't do that again.
- Thread starter
- #496
Stock 'protection' weights (quite a few bolts excluded from weight)
Transfer Case pipes and heat shields - 4.4 lb
Front Skid - 16.6 lb
Front Skid trim and lower support pieces - 4.4 lb
Belly Skid (composite) - 5.6 lb
Gear Skid - 5.8 lb
Total weight removed - 32.4 lb
Total weight added = 62.2 - 32.4 = 29.8 lb
Transfer Case pipes and heat shields - 4.4 lb
Front Skid - 16.6 lb
Front Skid trim and lower support pieces - 4.4 lb
Belly Skid (composite) - 5.6 lb
Gear Skid - 5.8 lb
Total weight removed - 32.4 lb
Total weight added = 62.2 - 32.4 = 29.8 lb
- Thread starter
- #497
The little piece I had to remove from the edge of the belly skid due to bolt on transfer skid.
- Thread starter
- #498
TC has provided instructions.
Note that the middle bolts will be too short and you should get some M8x1.25 35mm+ to replace. If you do a transfer skid and overlap at the back you'll need M10x1.25 60mm+ otherwise the provided will be ok.
Note that the middle bolts will be too short and you should get some M8x1.25 35mm+ to replace. If you do a transfer skid and overlap at the back you'll need M10x1.25 60mm+ otherwise the provided will be ok.
CharlieS
GOLD Star
Someone who knows more can correct me, but my understanding is that aluminum very quickly forms an oxidized surface (aluminum oxide?) that is very durable. I only know a little bit about it from welding because you need to mechanically remove it, if not the heat required to burn through it will vaporize the underlying material.
- Thread starter
- #500
I was just going off what I see with 10+ year old painted aluminum wheels vs polished. I agree that aluminum wouldn't need to be finished for the vast majority of undercar needs. It was a choice to get some color going. Broing it up!
