Rear Wiper Relay Info (2 Viewers)

[86aggie]

I've got two capacitors and one diode burned out on the board of my 62 rear wiper relay. They are burned to the point that I can't be sure of the color rings, to identify the respective specs of each. Does anyone have a clear pic of the board, or can direct me to a source with the approriate detail on the components?

Thanks



[86aggie]

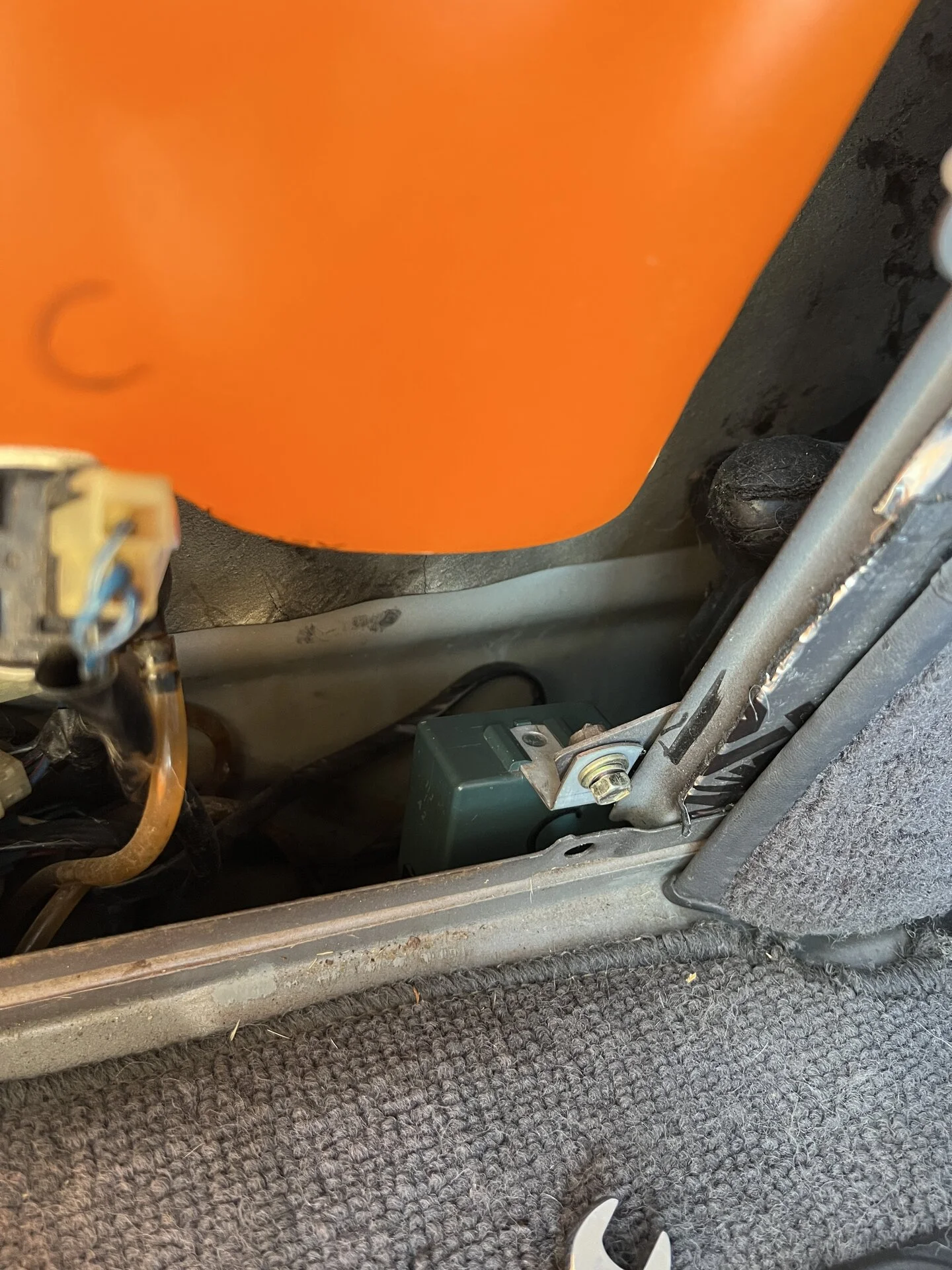

That didn't work. If you are working in the area where the rear washer fluid bag is and your intermittent wipers are working, I'd appreciate it if you could take a picture of the circuit board components.The relay is mounted in the bottom right corner of that bay. It's a box slightly smaller than a pack of cigarettes, usually blue or green. The cover comes off very easily, and the board slides out.

You'll save me close to $300, as that is what Rock Auto is charging for the Standard Parts replacement. As a reference, O'Reilly's wanted $700+...



[fjwagon]

Post a pic of your bag, maybe someone can ID the component in question.



[Spike Strip]

For Sale - FJ60, 62 / HJ61 / BJ60 Wiper Relay

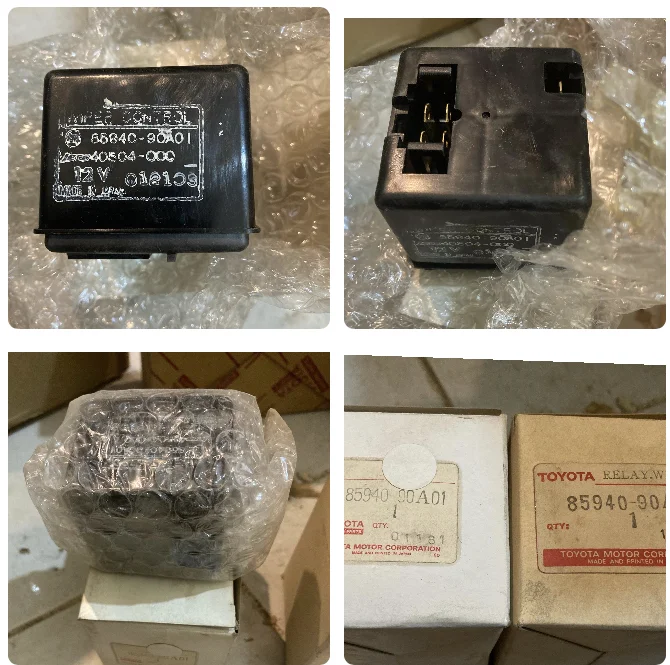

1. FJ60 & HJ60 Front wiper Relay P/N: 85940-90A01 12V Price: $120. —————————————————- 2. FJ62, HJ60 Front wiper Relay 85’-87’ P/N: 85940-90A10 12V Price: $120. ———————————————- 3. ❌Sold Out❌ FJ62 & HJ61 Front wiper Relay 88’& later P/N: 85940-90A04 12V Price: $120 —————————- Worldwide...

forum.ih8mud.com



[86aggie]

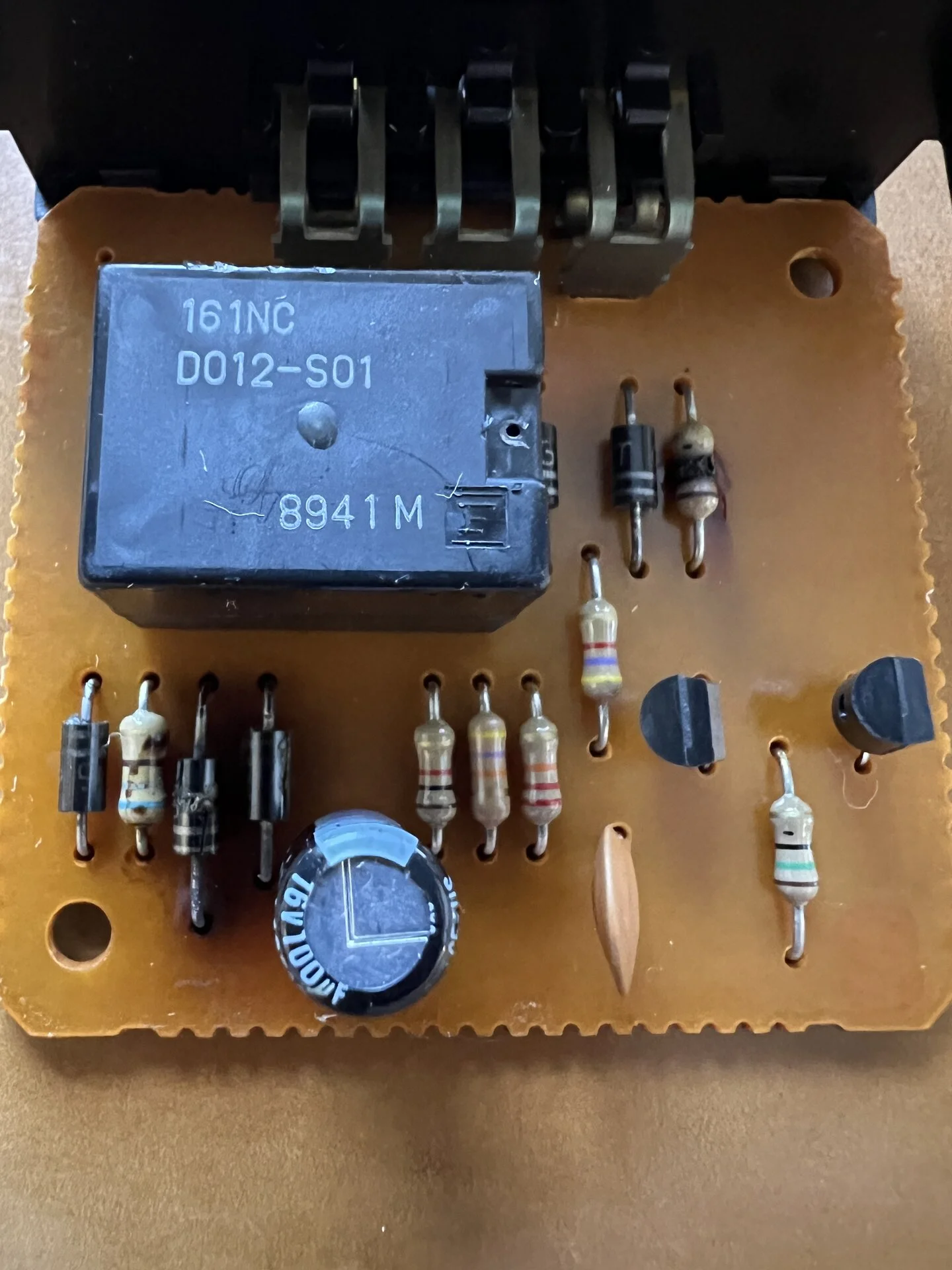

The three components that are burned are visible



[gummycarbs]

The three components that are burned are visible

View attachment 3507641

That looks almost identical to the 80-series rear wiper relay (85940-60020), and someone on that forum had nearly the same failure points as you:

FzJ80 rear wiper relay cross reference

Looking to replace my rear wiper relay...for 1994 Land Cruiser. Does anyone know if there is a non oem replacement if so could you pls provide a cross reference. Merci

forum.ih8mud.com
