Rear Heat- solid line replacement

MyTwoToys

SILVER Star
Joined
Nov 23, 2012
Messages
424
Location
Southern Maine
I have a 1997 Limited 40 Anniversary with a rear heater hose that is starting to leak. I did some research and wanted to confirm these part numbers are correct.

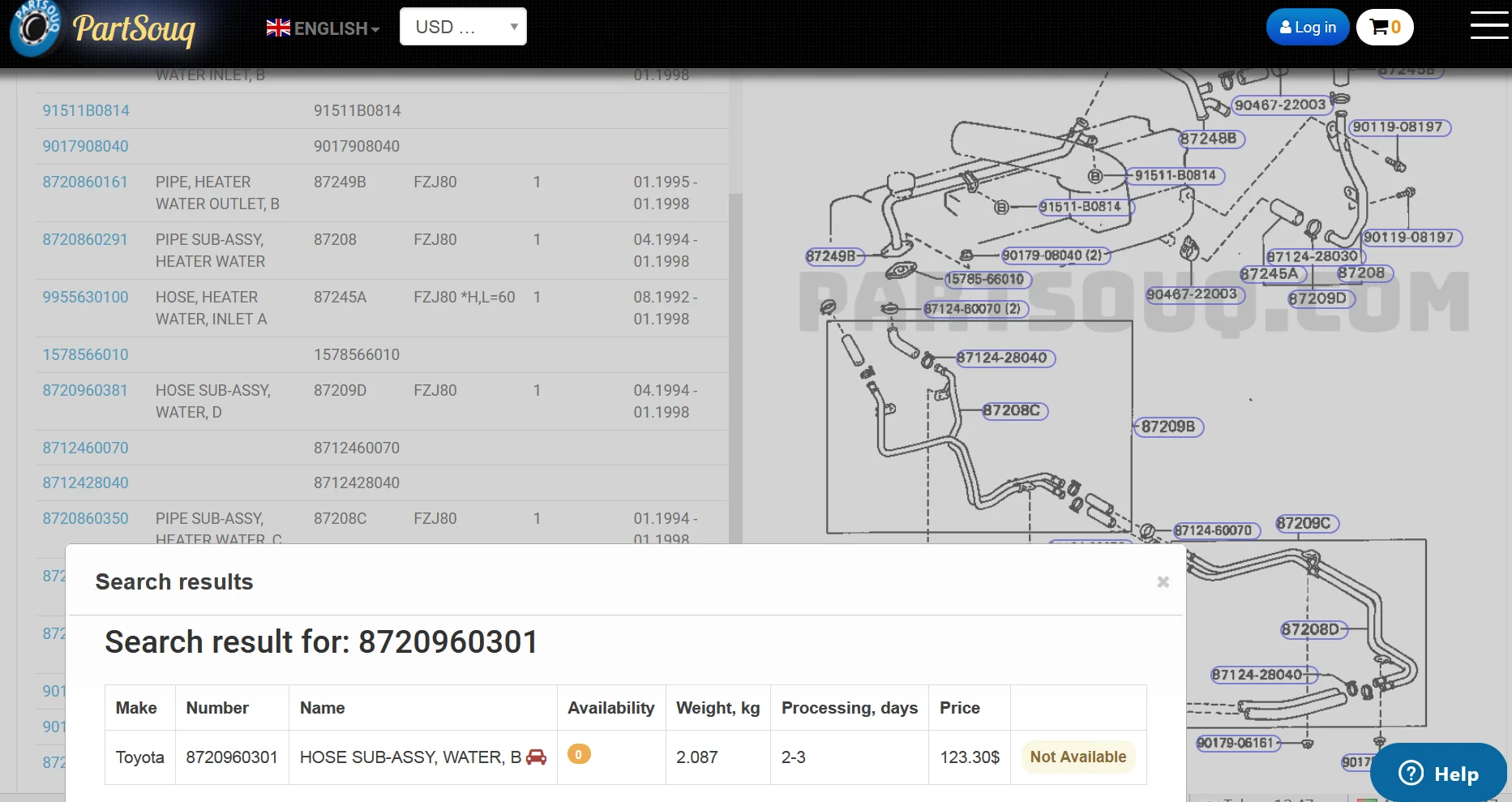

87248 and 87248Y. Are they even still available?

The lines are located at the rear of the engine bay on the firewall and go down along the transmission and and then connect to the rubber hose that connects to the heater unit located under the passenger seat.

As always, thanks for the assistance.

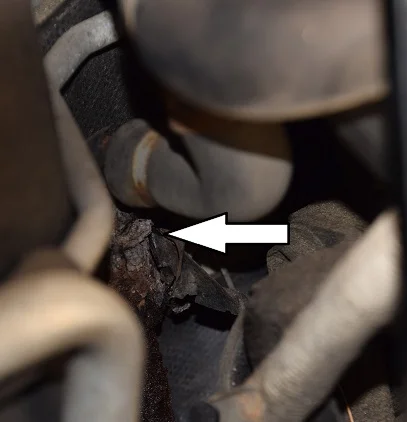

Rear Heater Hose Leak.jpg

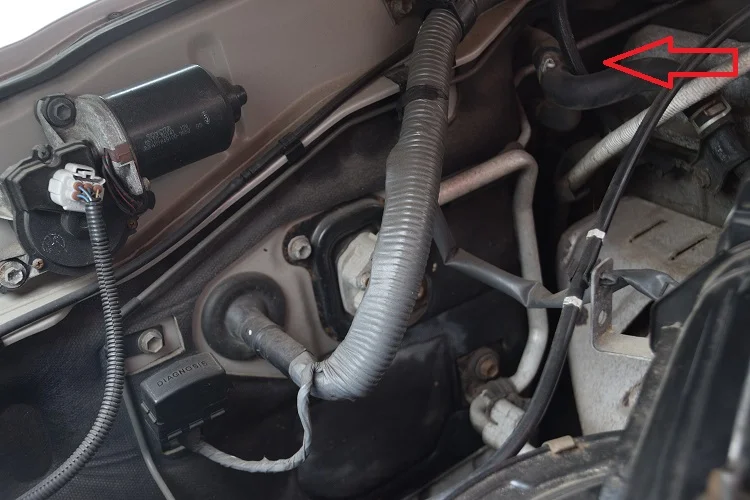

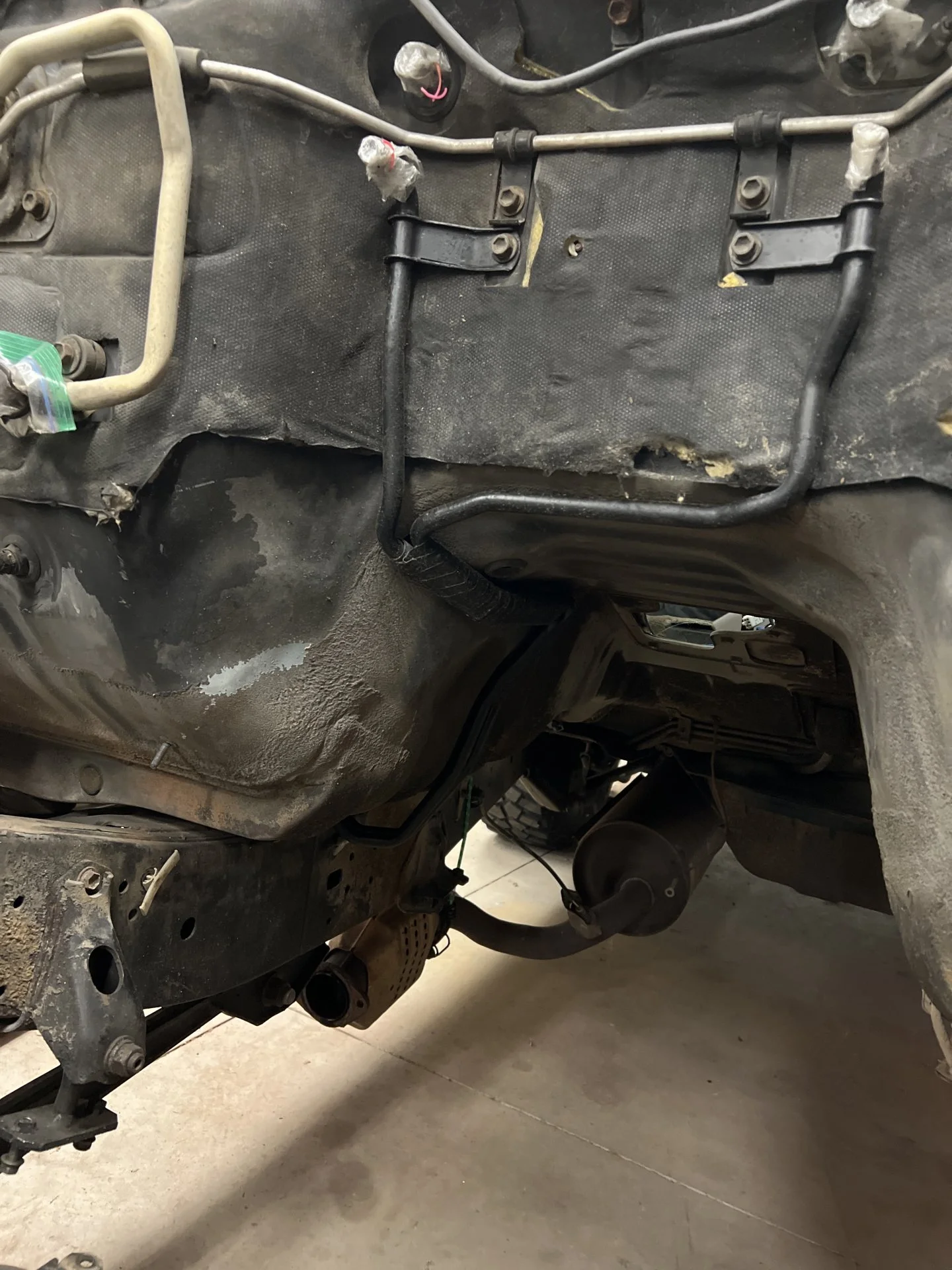

Rear Heat_Engine Bay Location.jpg

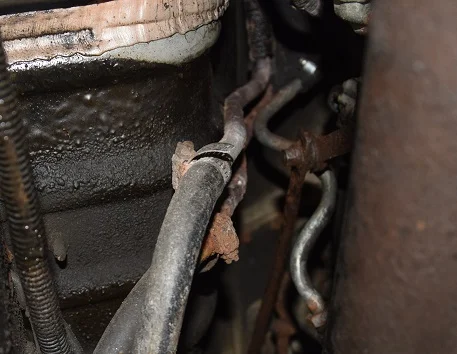

Rear Heat_Underside Connection by Transmission.jpg

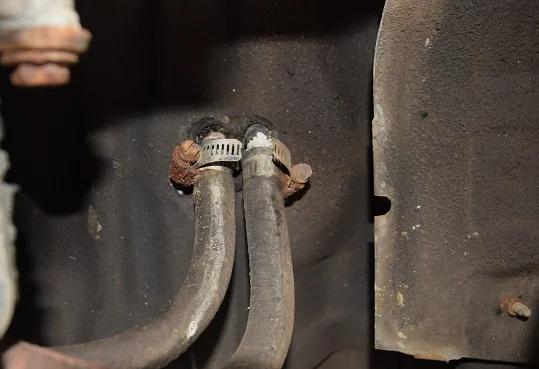

Rear Heat_Under Seat Connection.jpg

Joined
Jan 5, 2017
Messages
4,029
Location
Charlotte, NC & Alexandria, VA
Did you call your dealership? No one here sells parts. Seriously, that's faster than waiting for someone to look up parts for you...


MyTwoToys

SILVER Star
Joined
Nov 23, 2012
Messages
424
Location
Southern Maine
Thanks, Was just trying to see if the part numbers I had were correct.

Joined
Mar 6, 2009
Messages
2,114
Location
Between pixels
I’d like to know as well what the P/Ns are as well. Mine rusted out years ago, I would like to install some new ones. Will be heading to the local dealer this week to pick up some parts I ordered earlier this and will check with them as well.

Joined
Jan 5, 2017
Messages
4,029
Location
Charlotte, NC & Alexandria, VA
I’d like to know as well what the P/Ns are as well. Mine rusted out years ago, I would like to install some new ones. Will be heading to the local dealer this week to pick up some parts I ordered earlier this and will check with them as well.
The Toyota and Lexus parts are the same.

Joined
Jan 5, 2017
Messages
4,029
Location
Charlotte, NC & Alexandria, VA
Thanks, Was just trying to see if the part numbers I had were correct.
You can fabricate them yourself. All you need is tubing and a cheap tubing bender. The 80 series OEM hoses are not available, but there are OEM 100 series hoses of the same size, which are available.

Joined
Mar 6, 2009
Messages
2,114
Location
Between pixels
Was just at the dealer. Both parts (solid pipe pieces) are available, but the front set that runs down the firewall is on back order. I just got the P/N for rear set of pipes. P/N 87209C. It lists for CAN$335, and the front set lists for CAN$445. Ouch!


MyTwoToys

SILVER Star
Joined
Nov 23, 2012
Messages
424
Location
Southern Maine
Ouch is right, holy cow. Looks like I will be fabricating something myself or I may take the advice of Malleus and look at the 100 series ones and see if I can adapt them.


jfz80

Cruisin’
Joined
Jun 5, 2005
Messages
12,843
Location
Madison NC
Prepare to pull the motor or drop the transmission. Those won’t be wiggled into place without exercising one of those options. I believe Landtank or others have posted on a soft line replacement before.

Joined
Aug 13, 2015
Messages
730
Location
SF Bay Area, CA

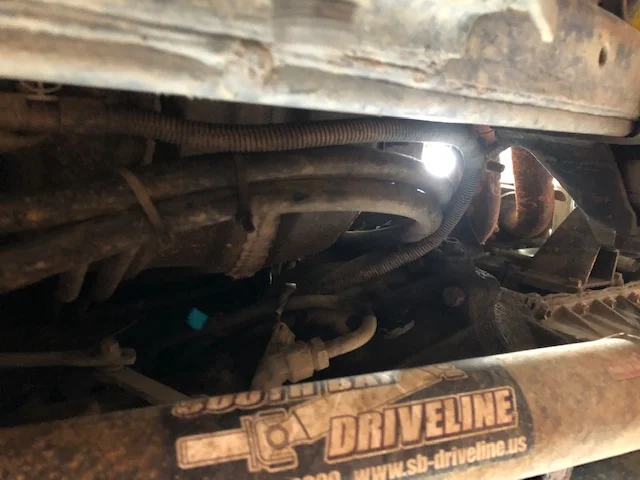

I replaced mine with heater hose, ran it along side the frame tucked up. Left the old rotting lines in place and simply bypassed them. It has held up this way for 6 years so far without issue.


MyTwoToys

SILVER Star
Joined
Nov 23, 2012
Messages
424
Location
Southern Maine
Sounds like the way to go for me

Joined
Dec 10, 2007
Messages
8,986
@b16

Do you have photos showing the routing of the rear heater hoses
you installed to bypass the original rear pipes?

Last edited:
Joined
Mar 6, 2009
Messages
2,114
Location
Between pixels
For sure you cannnot install the ones that run down the firewall with the engine/trans in the way. This is because they are joined together, but I thought if you separate them it could be done. I think I replaced the rear set already once with an OEM part back in the day, and it too rusted out after several years. I have a set a buddy gave me when we scrapped an HDJ81 he purchased for just the engine/trans. They were a bit rusty, but might be worth using if I can still find them. There is no way I’m paying those dealer prices for those pieces. If you still want to use solid tube, I’m sure one could easily just use copper tube and some fittings to replicate the OEM part.


JOFS

GOLD Star
Joined
Mar 6, 2004
Messages
414
Location
Maine
I used rubber heater hose for at least 10 years with no issue. In Maine I want to keep the rear heat and this has worked well for me.

John

Joined
Jan 5, 2017
Messages
4,029
Location
Charlotte, NC & Alexandria, VA
Ouch is right, holy cow. Looks like I will be fabricating something myself or I may take the advice of Malleus and look at the 100 series ones and see if I can adapt them.
To be clear, the 100 series parts I was referring to are the hoses at the ends of the tubing. You'd have to make the tubing to suit. I'd use steel, if it was me. Tubing that size will bend, with a bender, as easily as copper, and won't be subject to damage the way copper would. Also, the mounting tabs are brazed onto the tubing. You can remove and reuse them. All you need are a cheap bender and beading tool; you don't want to try to seal the hoses without a bead. The cooling system is pressurized.

IIRC, the tubing is 17-mm OD. I never measured the wall but I wouldn't get anything much larger than 1.3-mm.
