Rear Defrost Relay (1 Viewer)

[RayRay27]

So its getting pretty cold here in Colorado, this morning i pressed the rear defrost button on my 94 TLC. The light came on but the rear window did not defrost. Is it possible that the relay is bad and if it is, would the defrost light come on on the dash? Or could there be another issue?

Thanks

Sent from my MB886 using IH8MUD



[shibubba]

So its getting pretty cold here in Colorado, this morning i pressed the rear defrost button on my 94 TLC. The light came on but the rear window did not defrost. Is it possible that the relay is bad and if it is, would the defrost light come on on the dash? Or could there be another issue?

Thanks

Sent from my MB886 using IH8MUD

Im also wondering...Im plagued by this as well



[Squash]

There is a relay inside the kick panel, open your drivers door, pull up the plastic trim, go carefully as not to rip things apart.
Just fixed the same problem, mine fell out!



[none]

Hey! same problem here, too...



[RayRay27]

Will the rear defrost light come on even if the relay is bad?

Sent from my MB886 using IH8MUD



[ThreeEyedBandit]

Will the rear defrost light come on even if the relay is bad?

Sent from my MB886 using IH8MUD

Yes, the light logic is in the switch. Completely seperat from any load.



[RayRay27]

Thanks much for the help

Sent from my MB886 using IH8MUD



[Squash]

You should hear the relay click when you activate the defrost switch.
Once you are sure that the fuse and relay work...test for continuity of your rear window grid.
After that you decide if it works(clears the frost) or if the grid requires repair.

Use search, a strip of tin foil will help for the grid test. By running the foil along the grid you will be able to trace weak spots for repair.

There is a mention somewhere about full kits



[shibubba]

Well just got off my lazy ass and checked my rear window. Relay works as it should. Have battery voltage at the window. Have zero continuity from left to right.

Looks like ill order http://frostfighter.com/prt2600.htm or find a new window. Not a huge fan of how those look in the end. I like OEM look.

Chris



[raynyc]

mines doing the same thing !



[RayRay27]

Which relay is for the rear defogger?

Sent from my MB886 using IH8MUD



[RayRay27]

Sent from my MB886 using IH8MUD



[jagermeister]

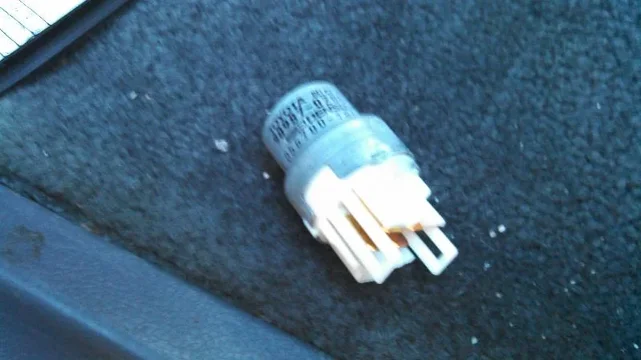

View attachment 696649

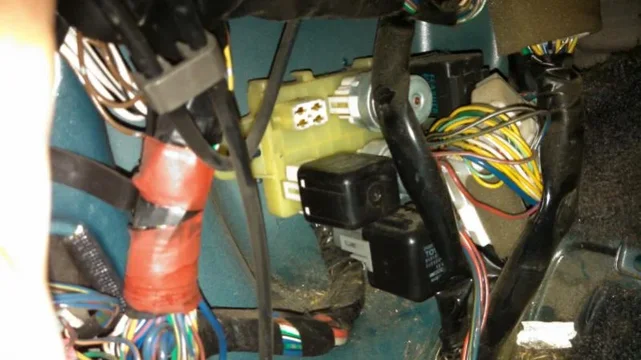

View attachment 696651

Sent from my MB886 using IH8MUD

where is that relay? is that under the steering wheel?



[RayRay27]

On the 93-94 FZJ, they are located inside the driver side kick panel.

Sent from my MB886 using IH8MUD



[shack]

Bringing back an old thread - Do you think the relay location would be the same on a 97?



[terra durus]

I'm wondering the same thing. i read 12v across the rear window leads though...



[shocktower]

Ok I have a 97 TLC and it has like 5 of similar looking relays which one is the rear window defroster



[surfpig]

Handy diagram stolen from SOR:

No. Part Name Code
1 Cooling Fan Relay
2 Heater Relay
3 Defogger Relay
4 Main Relay
5 Turn Signal Flasher
6 Heater Relay
7 Tail Lamp Relay
8 EFI Relay



[Cruzerman]

Question: If you have power at the back window but the rear defroster doesn't work at all, does this mean that all the "lines" across the window are bad?



[jmphilion]

Working on mine right now, found this being a great troubleshooting guide, see near bottom.
Defroster Troubleshooting and Repair Resource
