Hi:

Need a bit of assistance if anyone has any time.

Looking for a picture of an OEM, non-molested fusible link preferably from a 24v 7x series truck.

It would be on the positive terminal of the "positive" battery-- one closest to the firewall on the LH side. You would need to pull up the red plastic cover to see it.

It would have green circular connectors. It would have two wires in, two wires out on both the harness side as well as the battery side. There is a third wire on both sides that bolts to a plastic link connector with an M6 nut.

Would love to see wire colors coming into the connectors on both sides.

Feel free to post up here or PM me directly.

Thank you much.
-onur


Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA

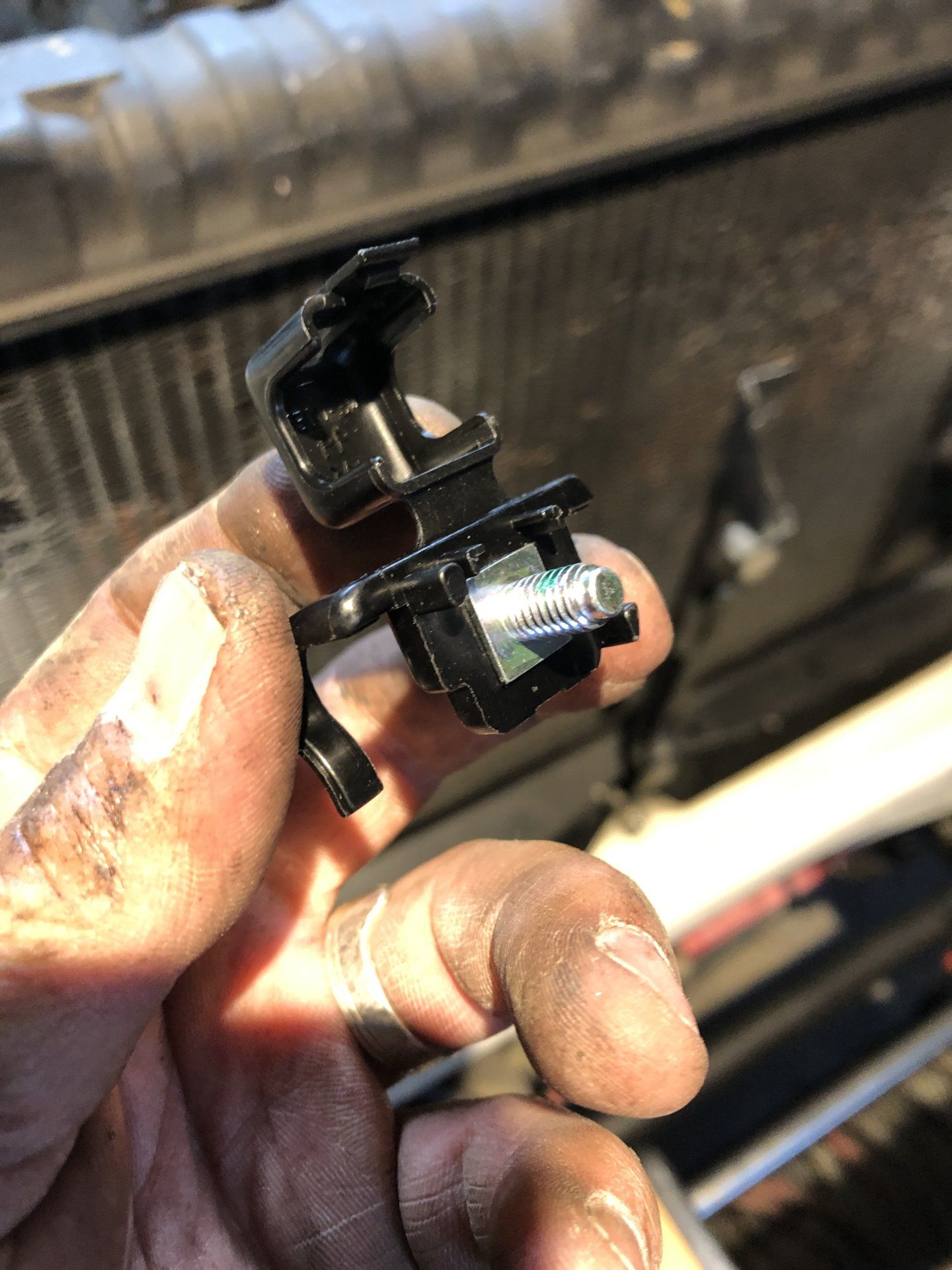

The link connector would look like this...

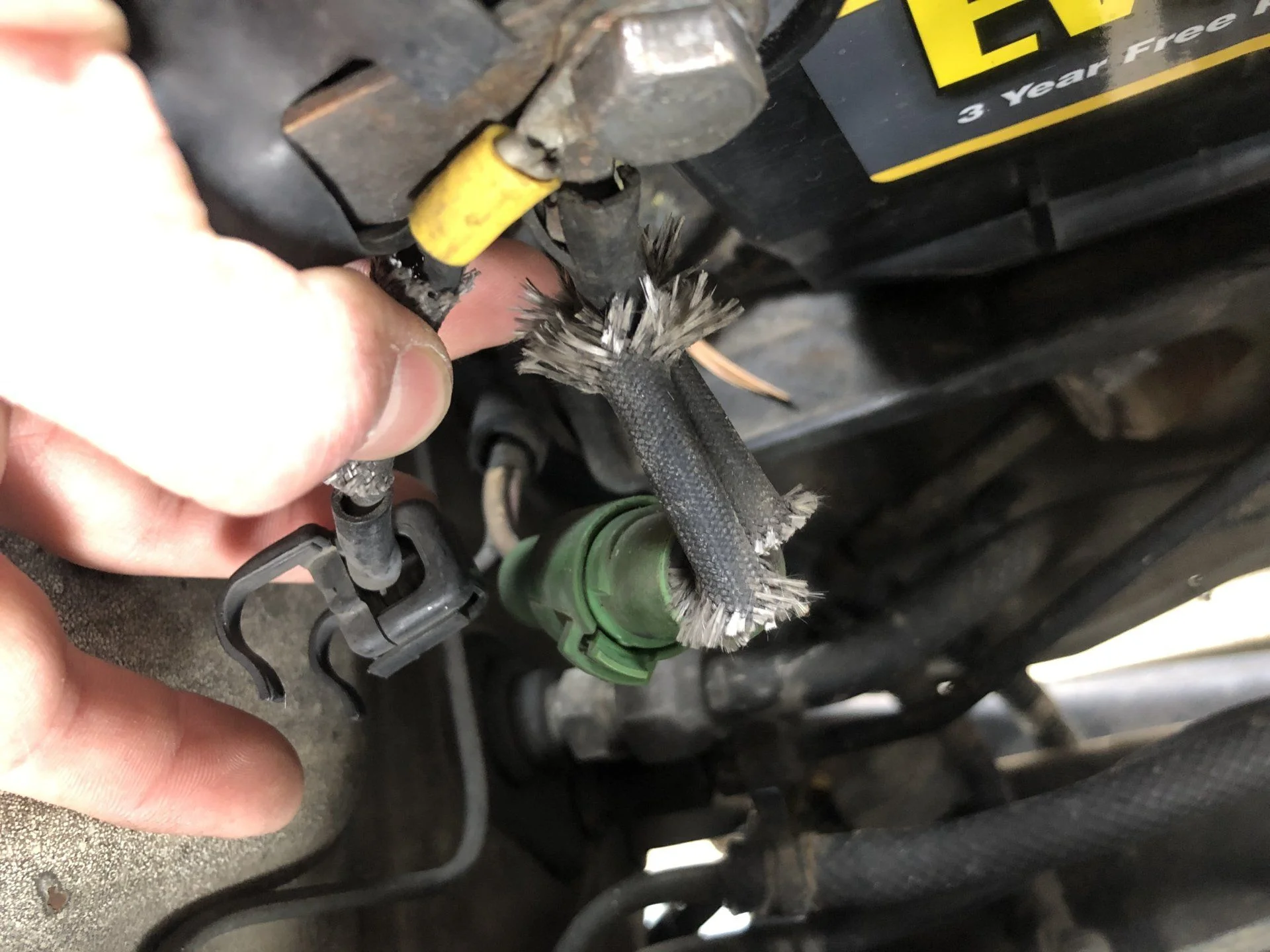

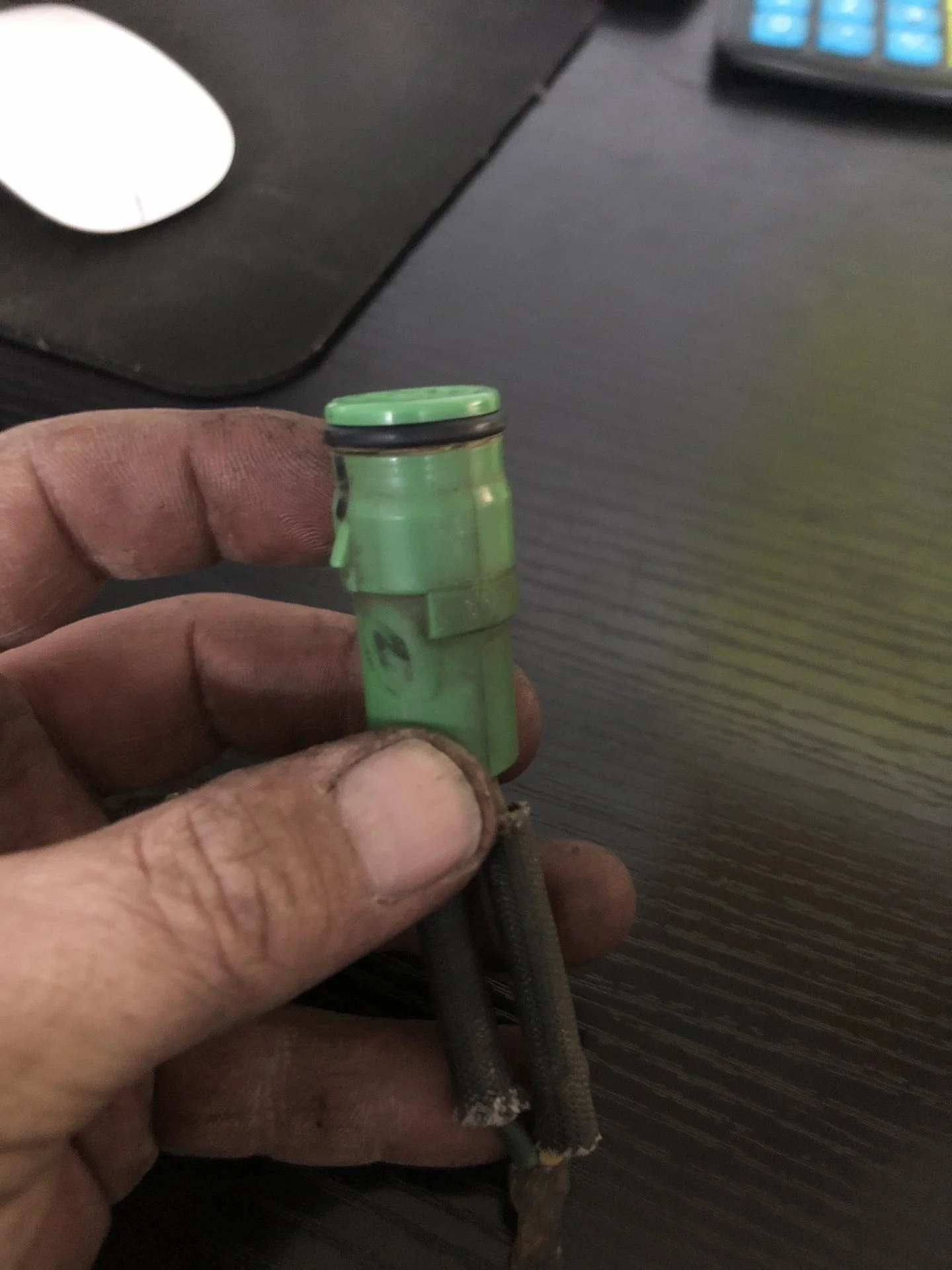

One side of the fusible link looks like this:



Joined
May 16, 2008
Messages
1,310


Hello,

A couple years ago I changed mine. The PO tried to hook up spotlights and blew the fusible link.

Since the part for the 1FZ engine is discontinued, I used a 1HZ fusible link.

No green wire on this part but there is a round connector.

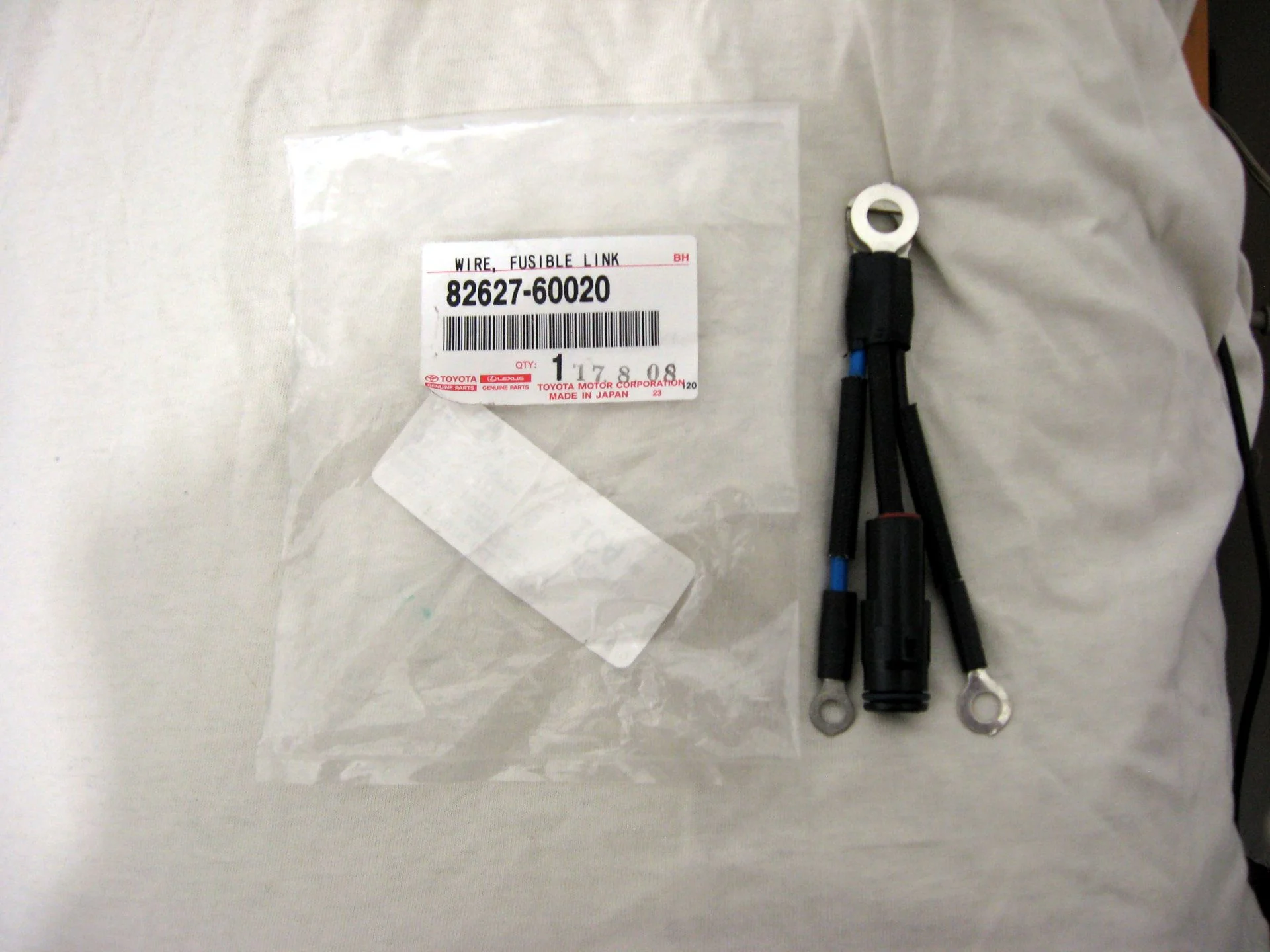

Part photo.

FZJ73 9.11.17 2.JPG

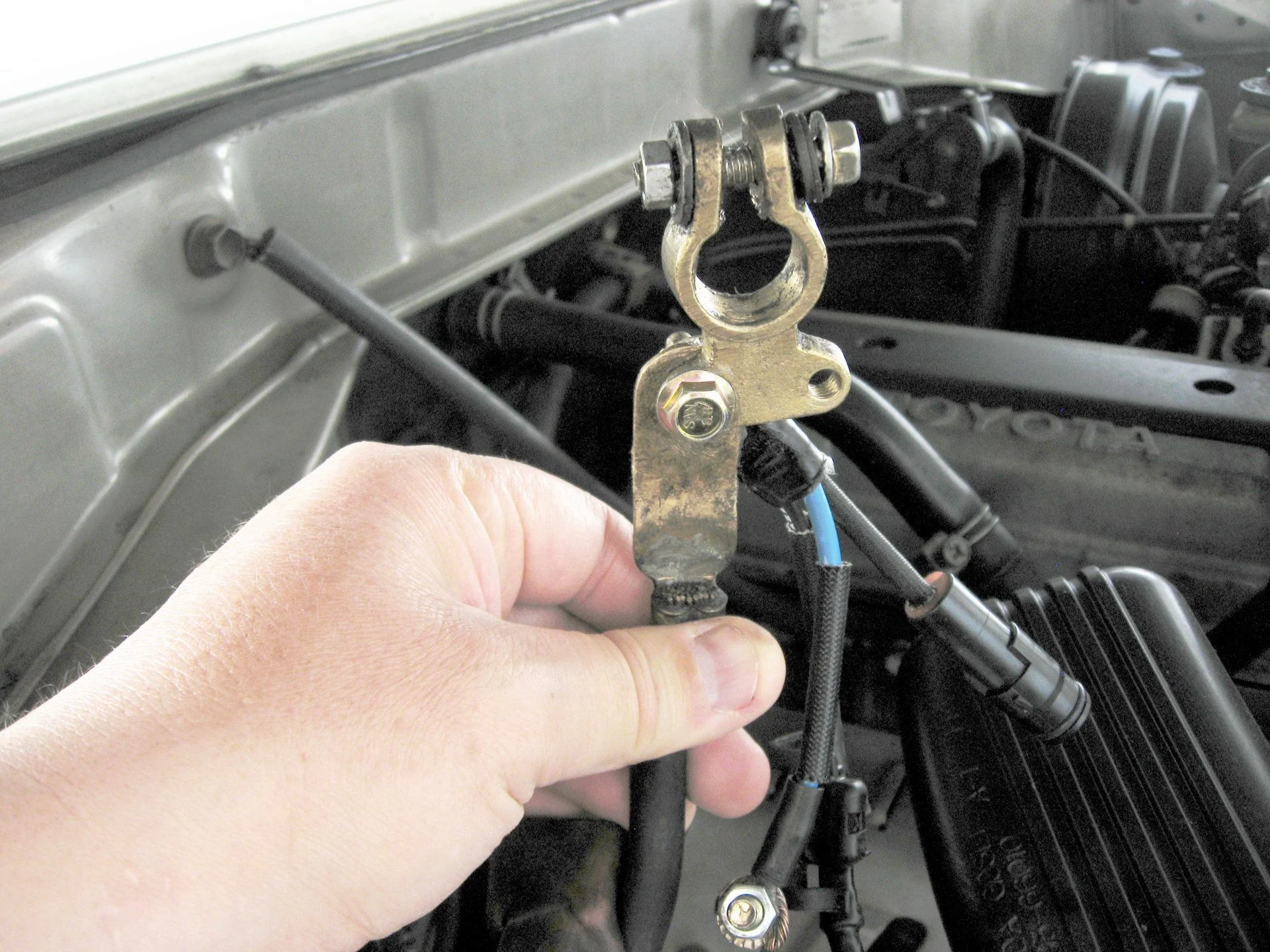

Installed fusible link.

FZJ73 9.11.17 5a.JPG


There is no connection for the round connector in gasoline engines.

Hope this helps.





Juan

Last edited:

Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA



Hello,

A couple years ago I changed mine. The PO tried to hook up spotlights and blew the fusible link.

Since the part for the 1FZ engine is discontinued, I used a 1HZ fusible link.

No green wire on this part but there is a round connector.

Part photo.

View attachment 2246299

Installed fusible link.

View attachment 2246300

There is no connection for the round connector in gasoline engine.

Hope this helps.





Juan
It kind of helps Juan. It’s a good lead. Thank you much.

Still need one from a 24v truck from Japan if possible.

Thank you!


Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA



@JuanJ : on the round connector: how many wires going into? Photo does not make it clear.

Joined
May 16, 2008
Messages
1,310


@JuanJ : on the round connector: how many wires going into? Photo does not make it clear.
Hello Onur,

One green cable goes into the connector.

Connector type/shape seems to be the same you have on your truck.





Juan


Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA



Hello Onur,

One green cable goes into the connector.

Connector type/shape seems to be the same you have on your truck.





Juan
Figured. Thank you. Won’t work for my application. Mine has two wires into round connector.

Thank you again Juan.


Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA

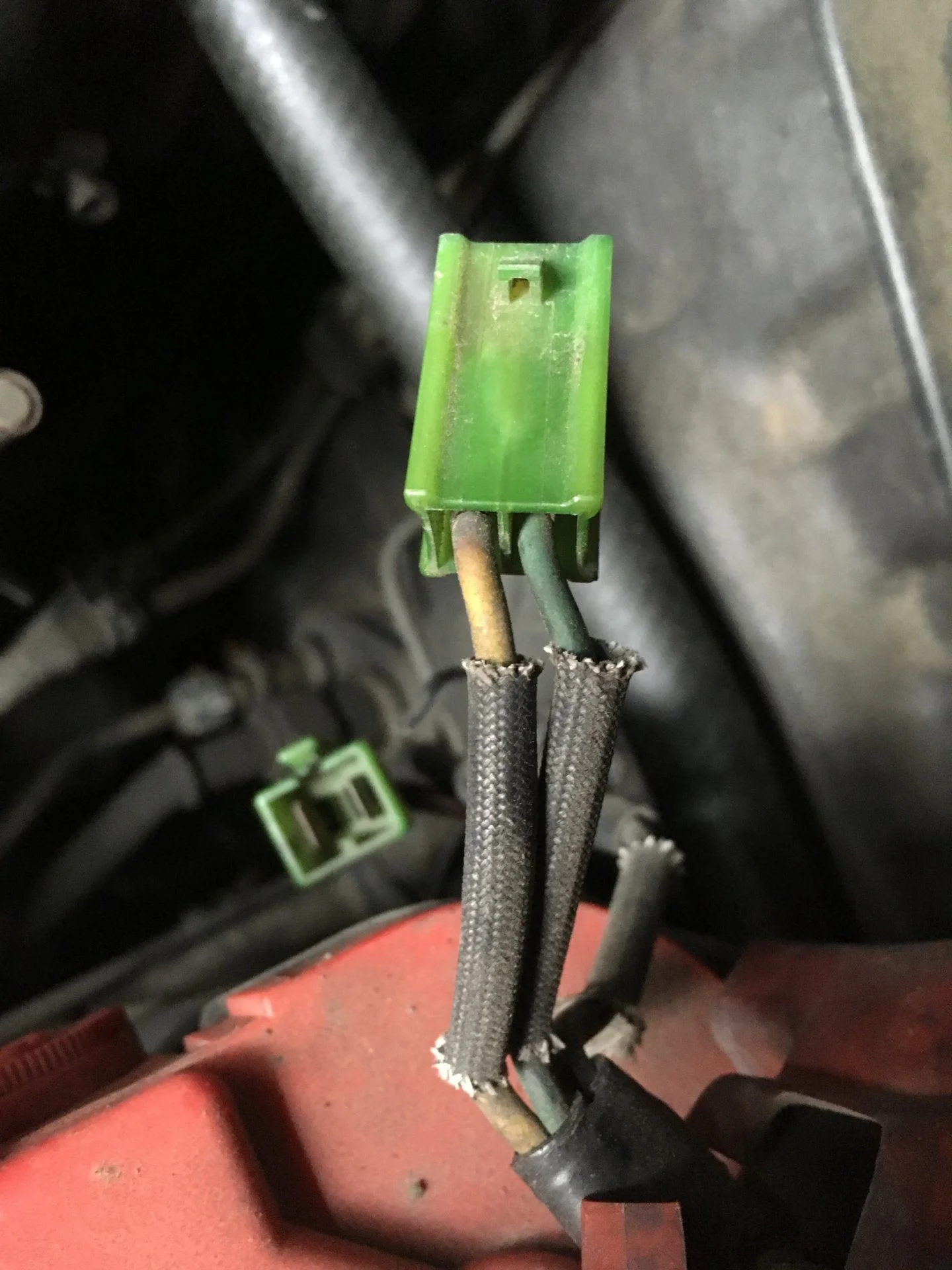

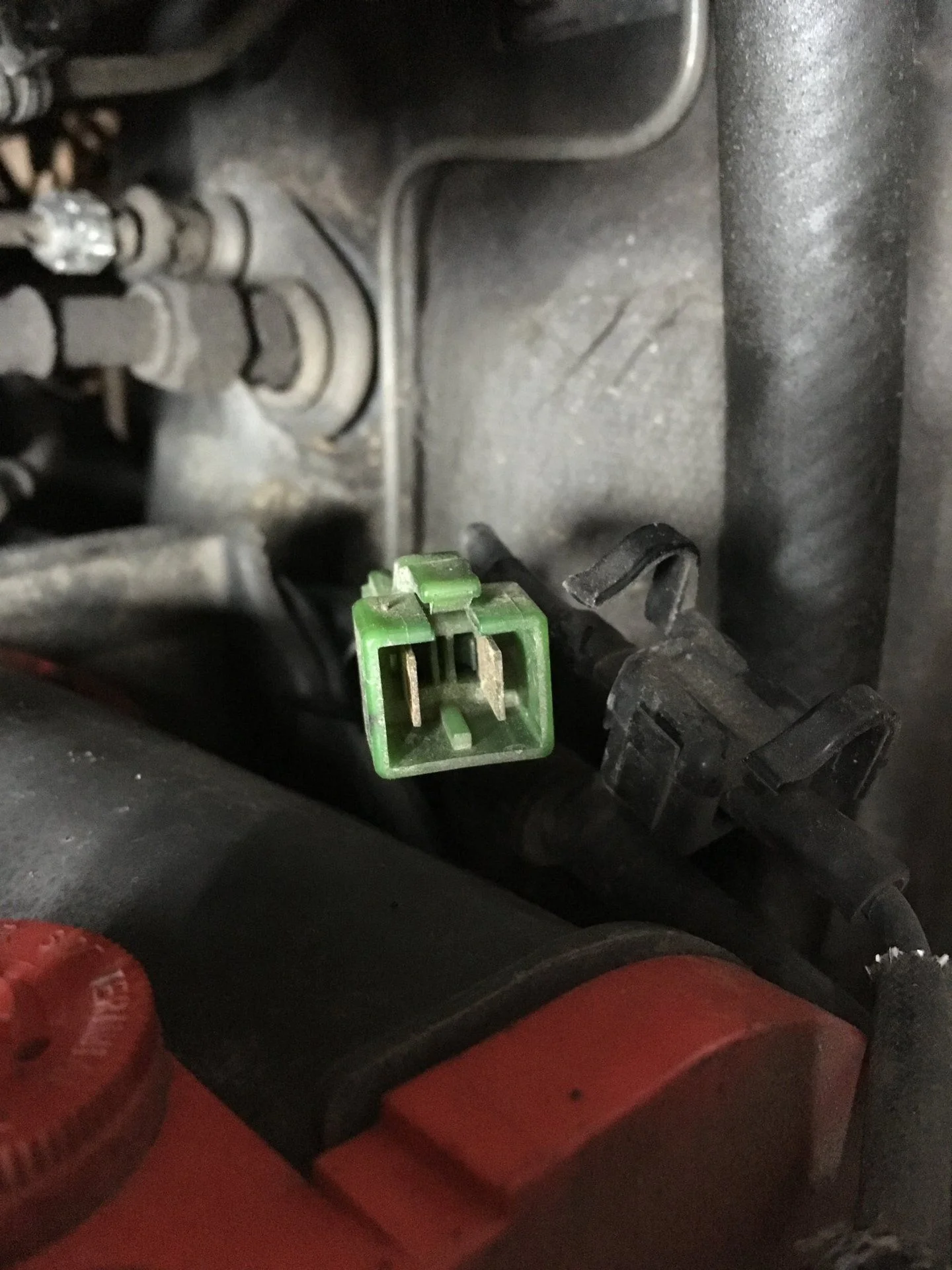

Received some pics from @Collin80 from his BJ74. 24v JDM. You can see the differences in connector in just a few years time in terms of connector change.

For reference purposes-- in terms of an unmolested OEM set-up.



loeky

SILVER Star
Joined
Mar 24, 2005
Messages
809
Location
Boulder / Frisco, CO

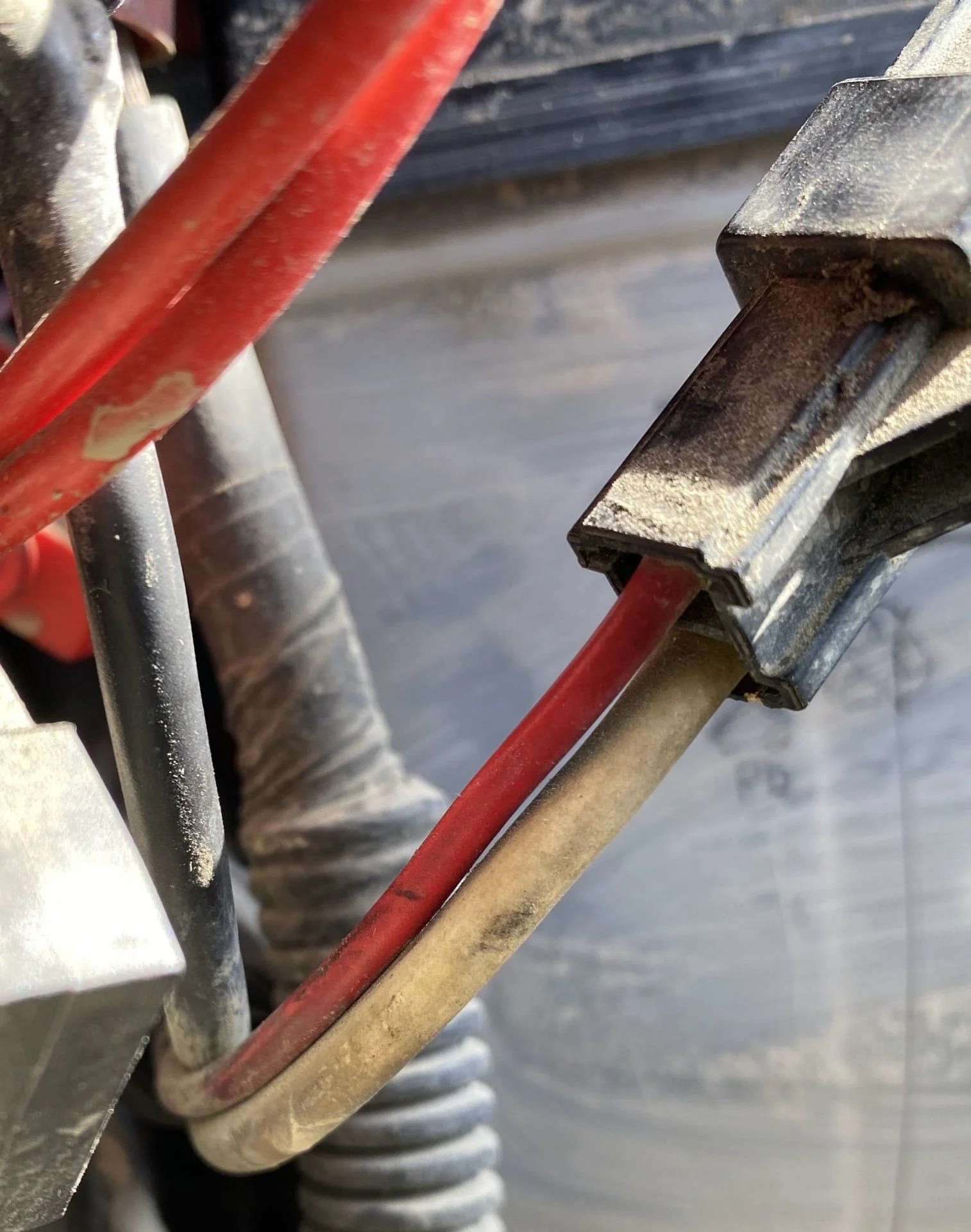

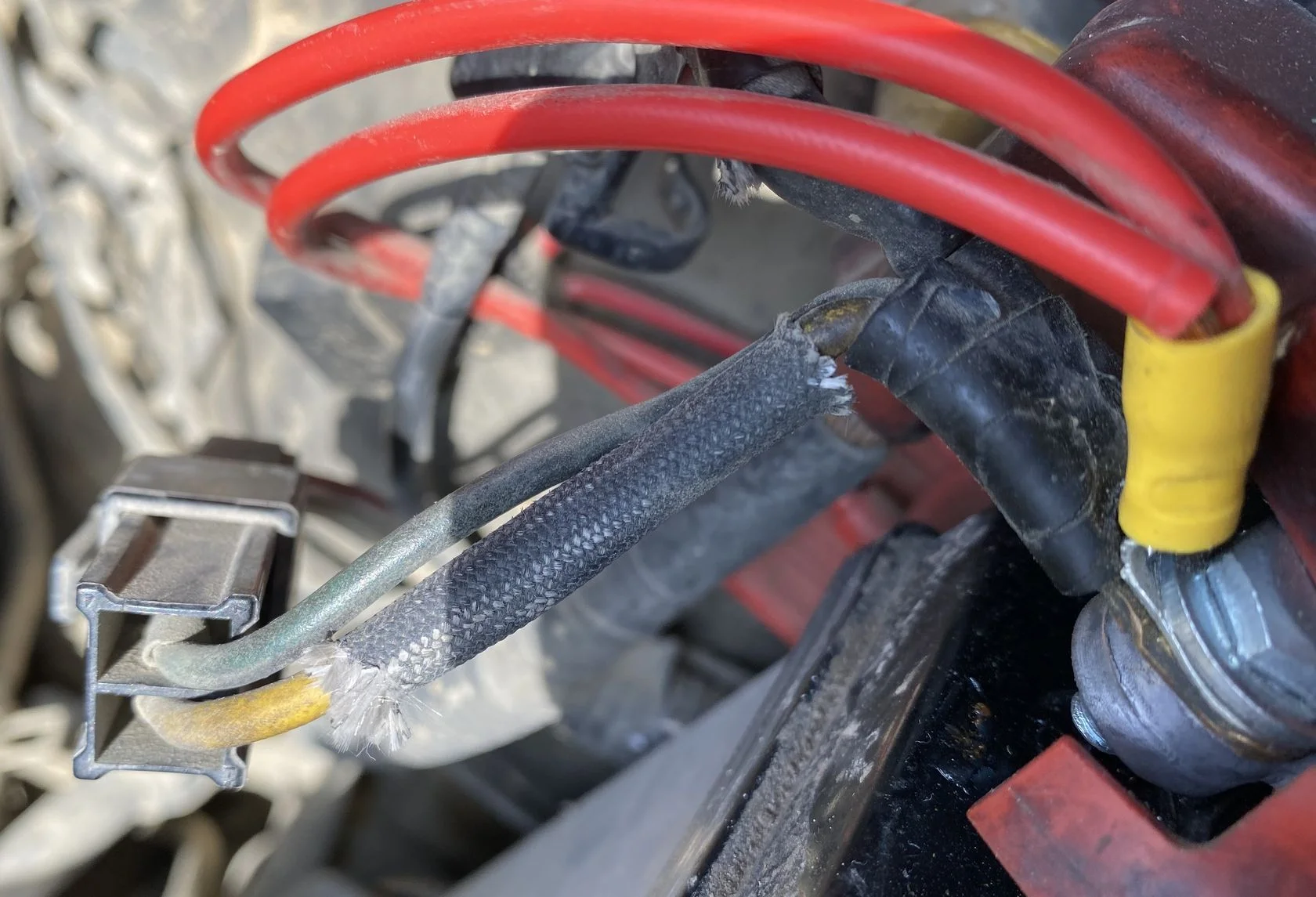

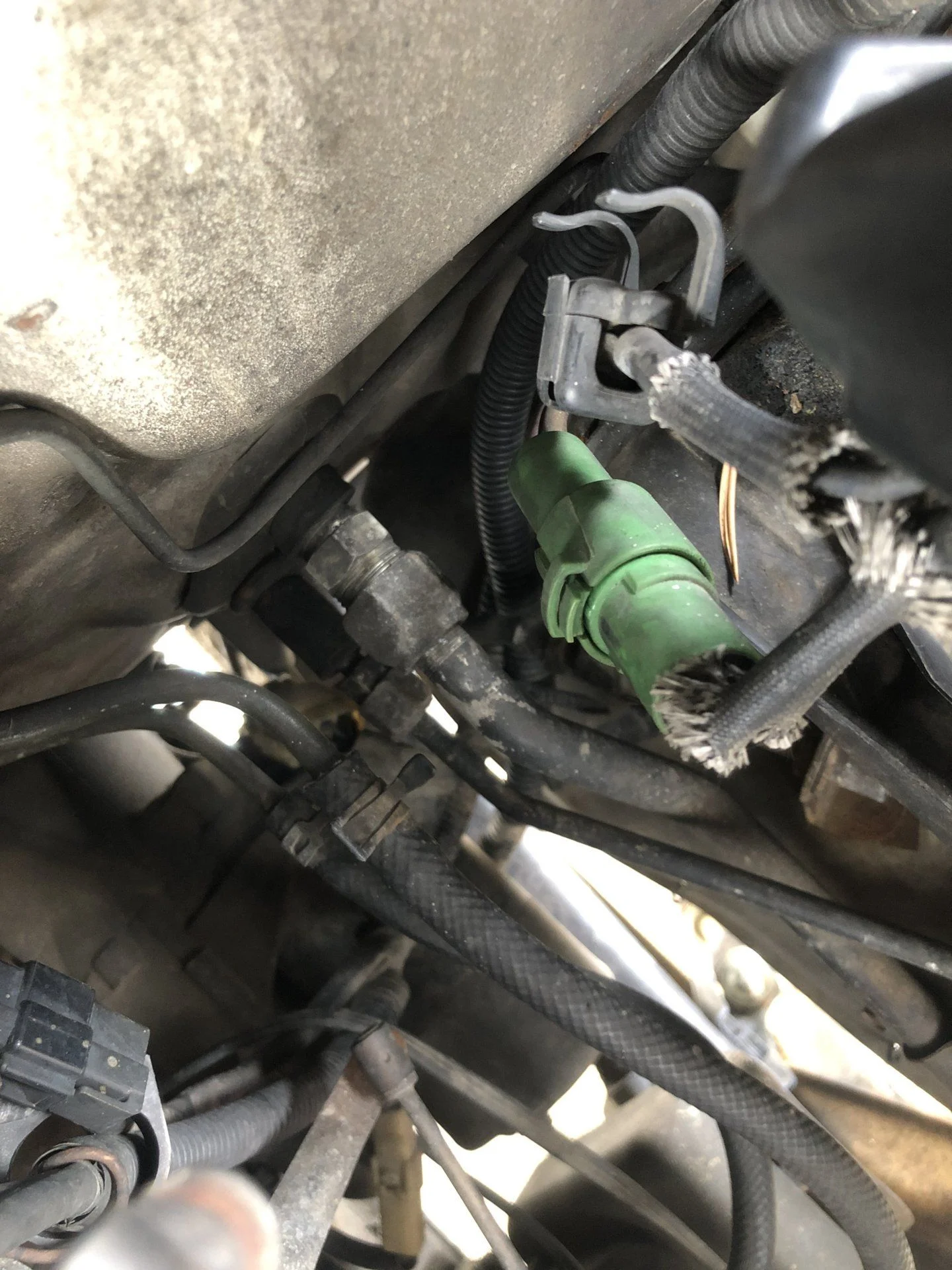

Here it is with a round connector - showing the connection of the original piece you're holding, wired directly to the positive battery terminal. Reply if you need something more/different.





Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA



Thanks Matt.

Would love to see the colors of the wires going into the connector on the body-harness side.


Onur

Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
27,185
Location
NY, USA



@Bronevichok Thank you so much sir. Confirms that BJ74 fusible links are different than the base model BJ70 in terms of connectors (square connector vs. round)

Awesome buddy. Thanks. :cheers:
