Operation SOA 75 (2 Viewers)

[Tapage]

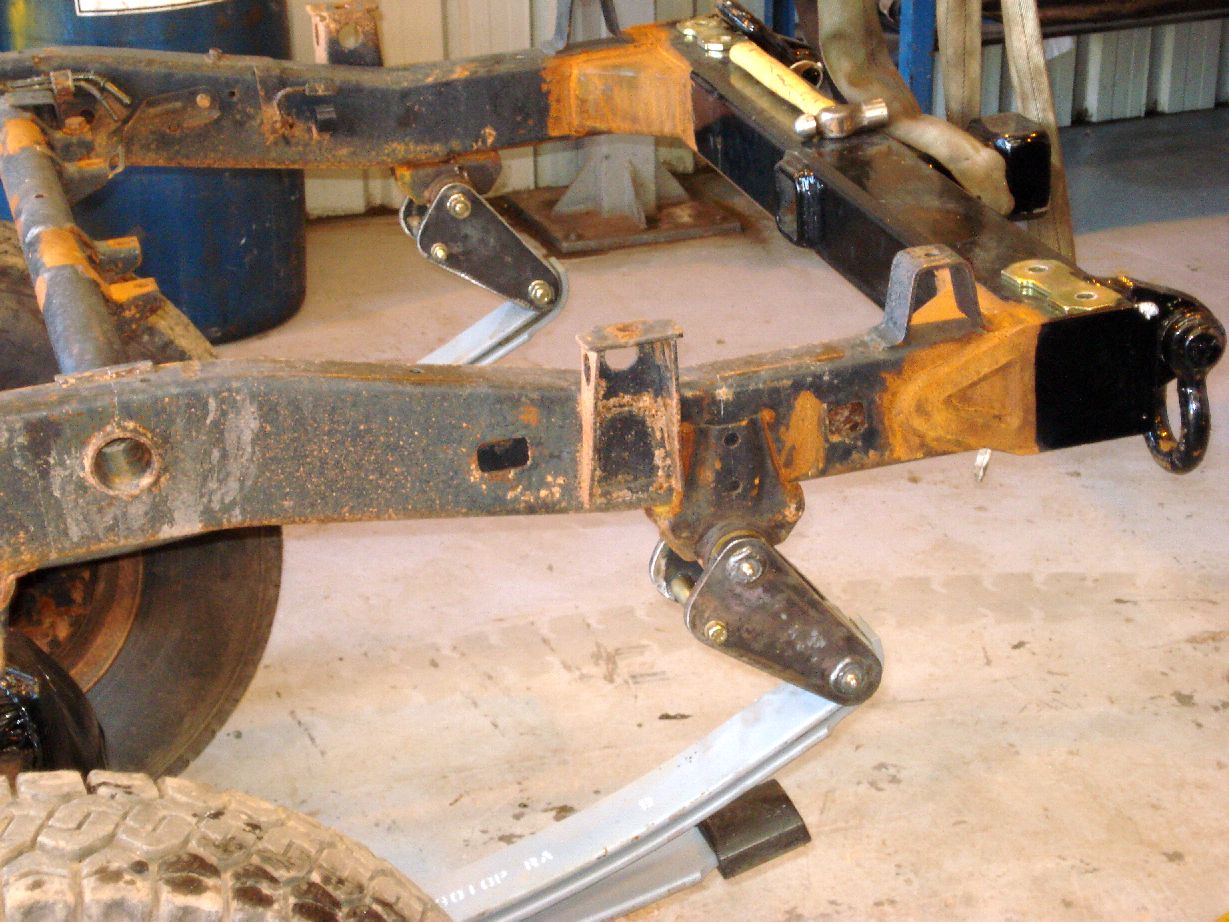

Are you happy with that shackle angle? Looks like it should be more vertical to me and when you load some weight on it ,it will be worse.

With the hi steer,can you still use the old pitman arm?

Ditto ... I thought ou need to move it 2" backward..



[Z()LTAN]

im changing all the shackle angles when i weight the chassis



[Z()LTAN]

Not a big update but an update never the less...

I got the Front and Rear diffs in their perfect positions.
Ive taken the centers out to be rebuilt with 4.88s and detroit lockers

Next i have to laminate and truss the housings, make new ubolt flip plates, try and sort out the front and rear shock positions, clean everything up for painting and then squirt some paint on her...

Im sure there is alot more i have forgotten to do but eh....



[Z()LTAN]

my new $10 shock hoops



[Z()LTAN]

Its Saturday so another update is due.

Ive made some new longer anti inversion shackles, they look very similar to a certain superior shackle

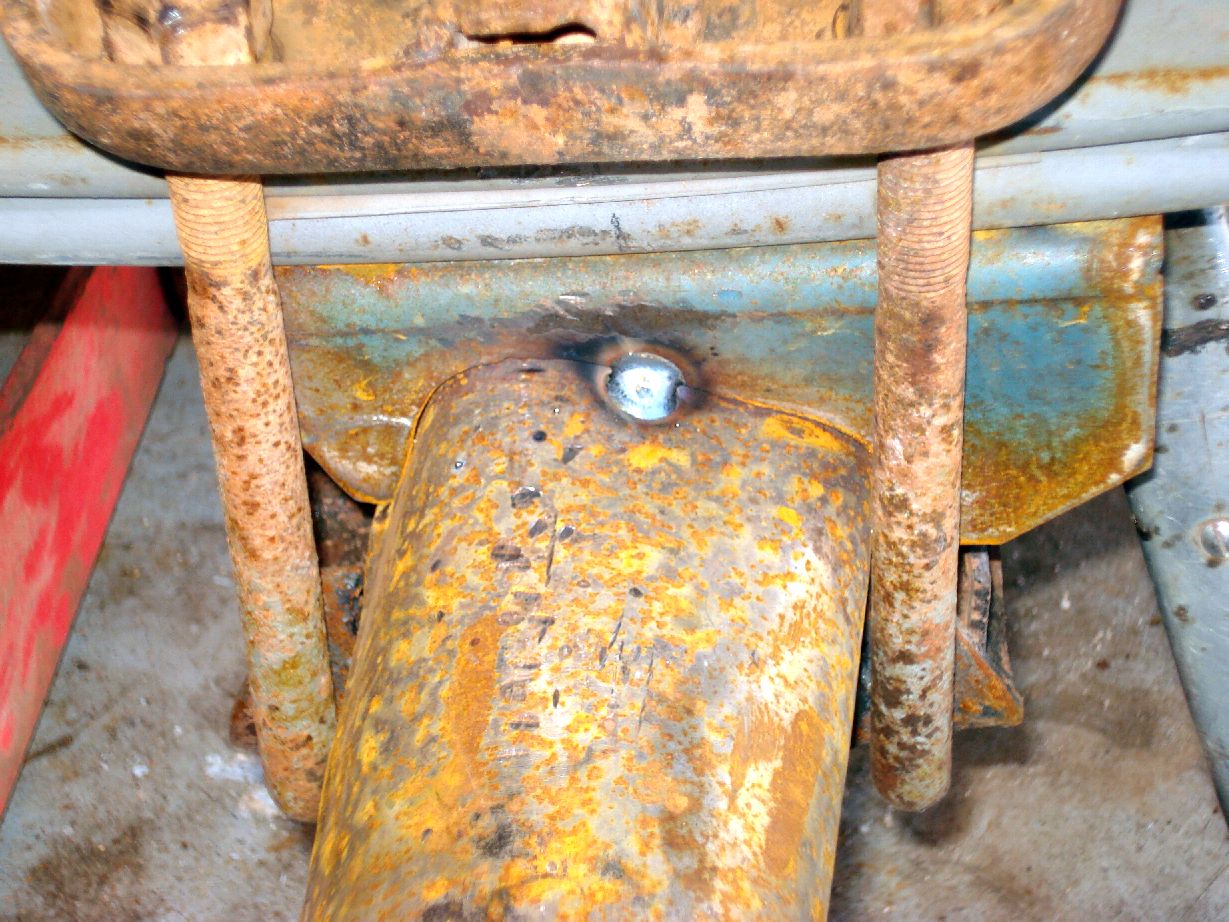

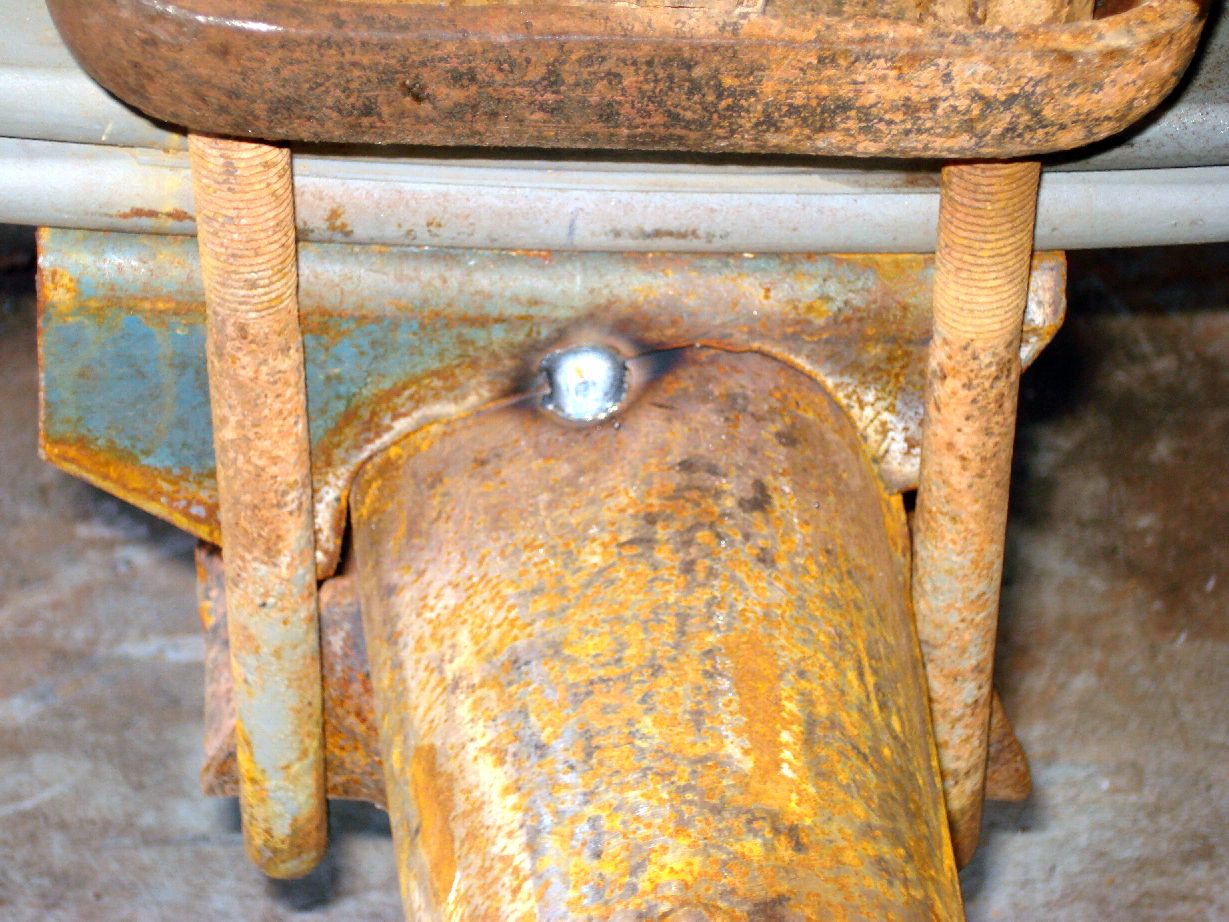

Welded the perches on
I trussed the front diff and cut the knuckles for the C&T later on

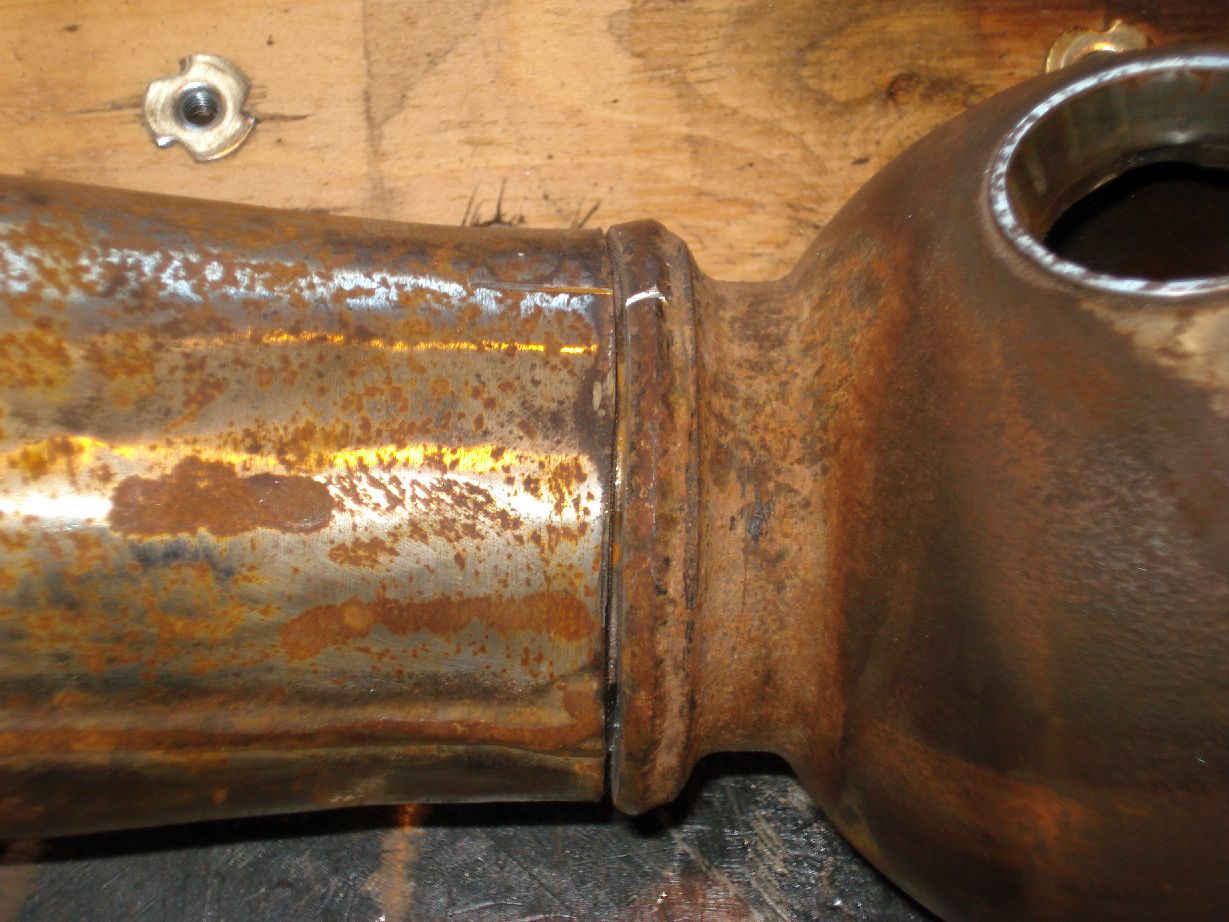

Extended the breather through the truss (ill cut it flush and tap a fitting into it later)

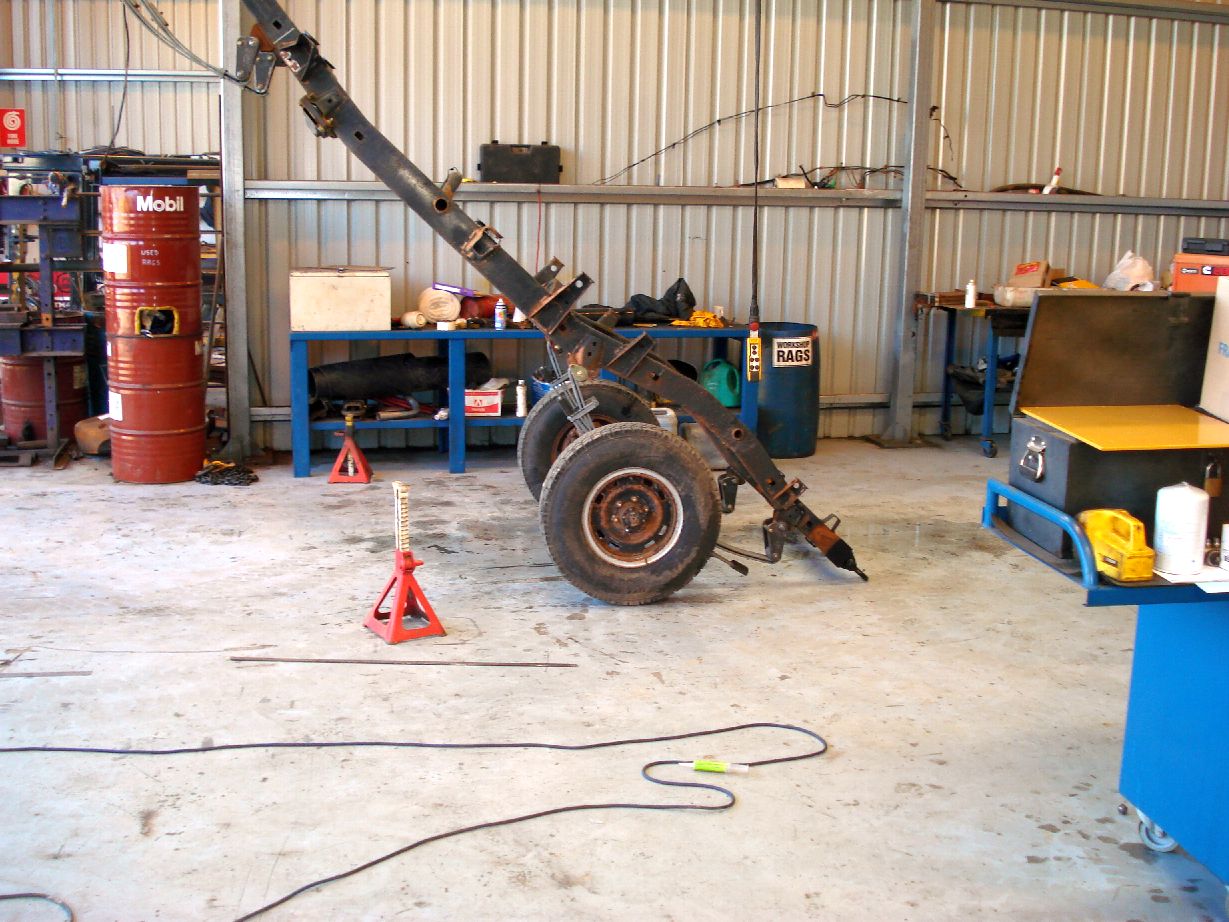

Tested my departure angle (with small tires mind you...)

Removed the tranni and transfer and sent out for exchange.



[Z()LTAN]



[Z()LTAN]

Alrighty then another update.
I don't have a Digital camera at the moment so i have no pix but this is what ive done.

I stripped the chassis bare
Spent hours prepping to paint
Painted 2 coats of 2 pack etching primer
Waited a day and painted 2 coats of High gloss 2 pack black
Painted all the odd bits like the shackles and fuel tank and brackets ive made.
Trussed the rear diff housing
Made u bolt flip plates
Started making sliders/sidesteps
Bought and picked up my new gearbox and transfer with chrome molly idler shafts

Somewhere in amongst all that i fitted a 2" body lift and 3" coil lift to my mates shorty patrol.

Hopefully get pix later this week

Cheers



[Z()LTAN]

As Promised i have the pix...

They are super ghey res but you will get the drift

It only shows the undercoat, i have no pix of the top coat



[Z()LTAN]

This is my rear diff truss and the start of my sliders



[Tapage]

Hey dude .. thanks for re size the pics before posting here !



[Z()LTAN]

too small are they ?



[Z()LTAN]

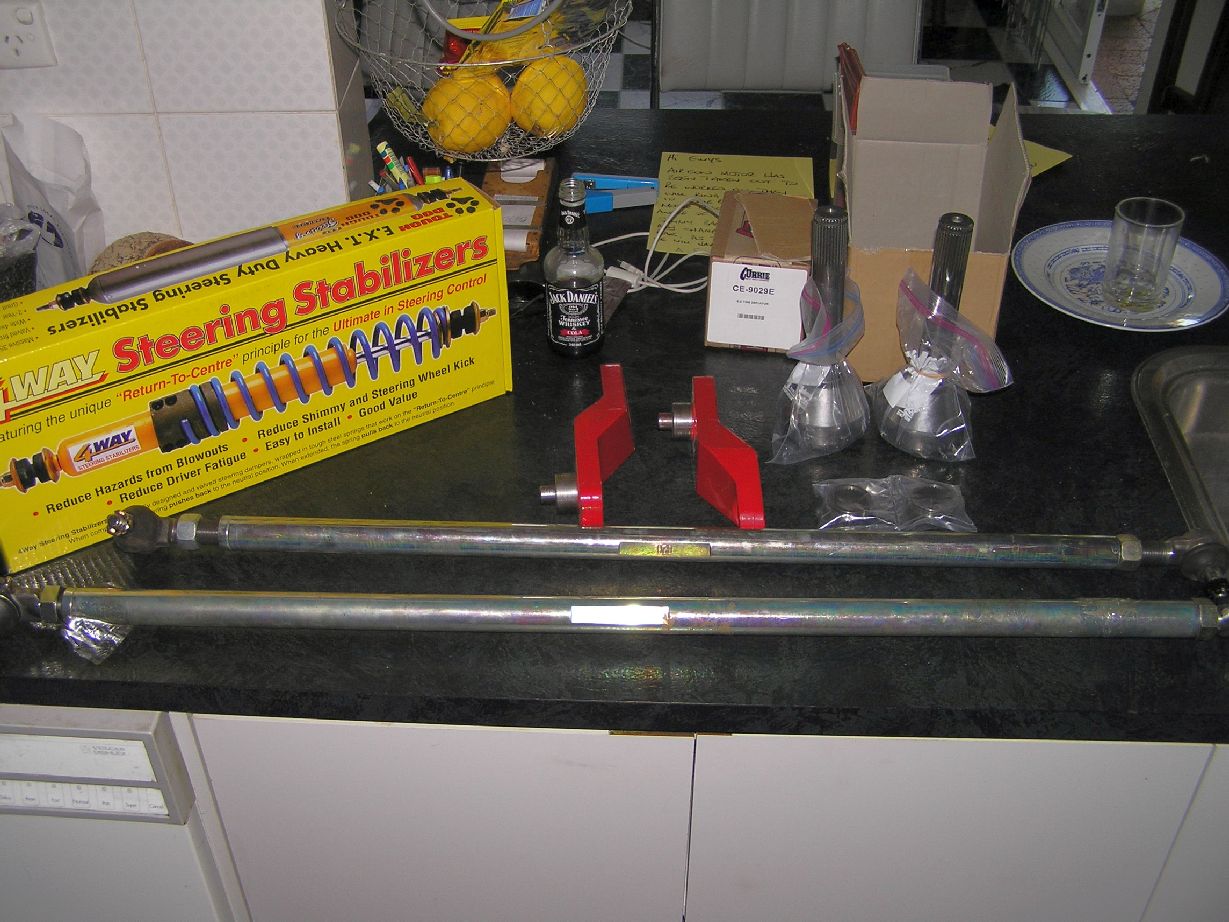

I just spent another $3500

I have
Histeer
4140 cryo treated 30 spline lonfeilds
4140 cryo treated 30 spline hub gears
Solid Chrome molly drag link and tierod
Heavy duty RTC
....

I also gots PIX!
Let the pic bashing begin!

My new chassis

My new gearbox, transfer and bell housing



[Z()LTAN]



[Z()LTAN]

ahh the cvs are actually 300mm bell 4340 cvs

Even better



[Z()LTAN]

small update..

I got a new gearstick and low range stick with linkages from a wrecker coz mine were all bent when the old box nose dived off the pallet it was on.

I stripped them all down, sand blasted it all, got it all painted 2pack gloss black

Got new bushes pins and cups from Toyota (grand total of $14 for the lot)

Now shes gonna feel totally new!



[Z()LTAN]

Hey all its been a while and ive done very little...

But i have bought alot of stuff to start my new workshop up

I have finished my gearsticks though, they are lengthened and distorted to suit the 2" body lift.

Cheers fellas



[Josie'sLandCruiser]

Hi All:

"Zoltan," incredible thread! Thanks for sharing so much of your HZJ75 SOA build with us!

Good luck with the project!

Regards,

Alan



[Z()LTAN]

Thanx mate!

Im glad you like it



[Z()LTAN]

Small but expensive update:

I have my centers back complete with cryo 4.88 ratios, full cam'd Detroits with solid machined spacers and fully rebuilt with HD bearings and seals.

Dont ask how much.....



[roscoFJ73]

Very nice I wondered what happened to this build up. Glad to see its still on target
