Oem capstan winch in J4/J5 series

Joined
Feb 5, 2005
Messages
2
Location
Ingolstadt, Bavaria
Hi Boys,

I'm Markus from Germany and owner of several BJ45 and one FJ55 which I'm currently about to restore.

Today I got a PTO - driven capstan winch on Ebay - which, according to its owner was home - made:



(Shafts - which are not in the picture - come with the winch)

As a Landcruiser - maniac for more than two decades I've never heard of such a thing on a J4.

But to my surprise this afternoon I found a few lines of the great Willem Jan Markerink telling that there should have been one by Toyota. He says that they had been mounted on the right frame rail - just like the one on Ebay.

I'd be very pleased if you had any further piece of information.

Just in case - here a working capstan winch (or 'spill' ) in a Landrover:

http://www.youtube.com/watch?v=s9hQYn7EF3c
http://www.youtube.com/watch?v=m6pClC1cgRg

thank you very much in advance

Markus

Last edited:
Joined
Feb 5, 2005
Messages
2
Location
Ingolstadt, Bavaria
Hi Folks,

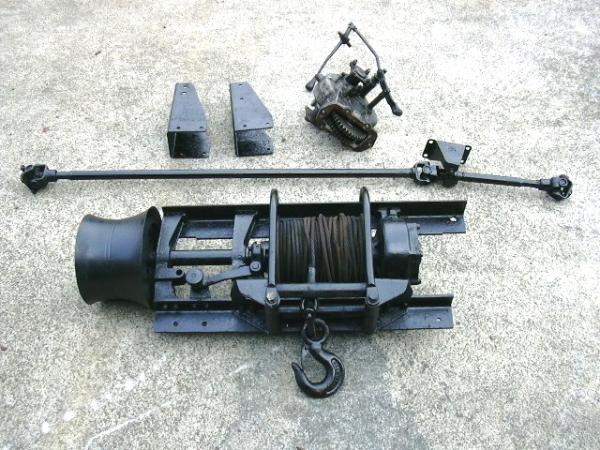

Willem Jan was so kind to send me a picture of the Toyota OEM Capstan winch:



As soon as I receive the one from Ebay I'll take some detailed pictures of mine.

bye

Markus


Coolerman

SILVER Star


Joined
Jan 5, 2004
Messages
6,434
Location
Paint Lick, KY
Welcome to MUD!

That is cool information on the capstan winch. WJM knows the oddball stuff for sure.

Looking forward to the detailed pics....

Joined
Oct 25, 2005
Messages
1,774
Location
Hagerstown MD
Very cool. Makes me want one for mine now damnit! I enjoyed the Rover videos interesting way of winching, much like winches on boats. I've never seen a oem toyota winch like shown above with cable and capstan drum together on the same unit. Very neat.


amaurer


Joined
Sep 3, 2007
Messages
4,458
Location
Longmont, CO
I think these are cool for the novelty, but why someone would want to have to stand right next to the winch cable and tug on the free end is beyond me. I don't like cables under tension at knee-level, I'm picky like that.

:confused:


Coolerman

SILVER Star


Joined
Jan 5, 2004
Messages
6,434
Location
Paint Lick, KY
Well, you do have a cleaner looking front end, you are not limited on cable/rope length and the winch never gets beyond one wrap of cable on the drum so it always has full power. ;)

Other than that I agree! :D

Joined
Jan 14, 2007
Messages
577
Location
Stafford - UK
I think these are cool for the novelty, but why someone would want to have to stand right next to the winch cable and tug on the free end is beyond me. I don't like cables under tension at knee-level, I'm picky like that.

:confused:
X2 on standing next to it, particularly with a modern rope, I suppose with the older type ropes were heavier, broke earlier and wouldn't whip as much.

You could put some eyes on the fender to carry the rope around and into the cab so the passanger could look after the slack?

I think the LR winch operated with a dog directly of the crank pulley, they had a hand crank the same as some 2F's but that wouldn't be any good to take drive off as it rejects the starting handle when the crank is spinning faster than the handle.

EDIT: Also means you have to operate that lever on the winch to engage / disengage drive.



This rope is on ebay in the UK and states breaking strain of 3250KG when new so only good for something like 1500KG, 3000 lbs?


Living in the Past

SILVER Star

Joined
Apr 21, 2005
Messages
16,980
The third picture in Post 6 resembles MarkusZ picture in post #2 here. Resembles meaning it has the lever on the side of the opposite the gearbox.

https://forum.ih8mud.com/fj55-classifieds-corner/252932-1971-fj55-w-pto-winch.html


Was the capstain drum an accessorie for the standard PTO winch?
If Toyota did a captain drum on a PTO winch I doubt if was ever available as a option. The second brace that next to the drum is the same as the other one. There's no need for the extra piece welded on. If Totoa did this it was probably a one or two off that they tried and then dropped the idea. Just like the FUll time 4WD they tried with the 76 FJ40.

That FJ55 PTO winch just looks like it has a couple little plates with hole welded to the front other than that nothing looks special for an FJ55 PTO winch. If I ever thought I would have time to restore a FJ55 that one doen't look to bad. With an FJ55 it's about the rust and this one looks to have very little:cheers:

Joined
Feb 15, 2006
Messages
2,974
Location
Tucson
Hi Folks,

Willem Jan was so kind to send me a picture of the Toyota OEM Capstan winch:



As soon as I receive the one from Ebay I'll take some detailed pictures of mine.

bye

Markus


Would be kind of cool for light duty stuff if there was a way of operating the outer drum while the inner drum stayed stationary. Don't see that happening in the picture shown though:meh:.

Joined
Feb 15, 2006
Messages
2,974
Location
Tucson
[
quote=MarkusZ;4161924]Hi Boys,

I'm Markus from Germany and owner of several BJ45 and one FJ55 which I'm currently about to restore.

Today I got a PTO - driven capstan winch on Ebay - which, according to its owner was home - made:



(Shafts - which are not in the picture - come with the winch)

As a Landcruiser - maniac for more than two decades I've never heard of such a thing on a J4.

But to my surprise this afternoon I found a few lines of the great Willem Jan Markerink telling that there should have been one by Toyota. He says that they had been mounted on the right frame rail - just like the one on Ebay.

I'd be very pleased if you had any further piece of information.

Just in case - here a working capstan winch (or 'spill' ) in a Landrover:

YouTube - Fairey Capstan Mechanical Winch
YouTube - Severn valley leafers fun day Gregg axle deep

thank you very much in advance

Markus
[/QUOTE]


Looks like a mechanical version of a "Hickey Sidewinder".


D'Animal

Rescuer of Beagles & Landcruisers
Moderator

Joined
Mar 31, 2006
Messages
21,114
Location
Central California
I thought that is what the lever on the left is for?

Engage/Disengage the capstain.

Would be kind of cool for light duty stuff if there was a way of operating the outer drum while the inner drum stayed stationary. Don't see that happening in the picture shown though:meh:.


Living in the Past

SILVER Star

Joined
Apr 21, 2005
Messages
16,980
it is.

but not without engaging the inner drum also.

I'm saying that it would be better if they could be operated independently
This set would work fine. Capstain drum would turn anytime the PTO is engaged. Wouldn't hurt anything if there's no rope around it. The winch spool only turns when engaged with the lever. So they could each be worked independently. The capstain drum is mounted to the end of the main shaft of the winch that turns all the time. that lever engages and disengages the spool so it can be free wheel out. So if you disengage it you can use the capstain by itself or use the winch and with nothing around the captain drum it not going to be doing anything except turning around.

Last edited:

D'Animal

Rescuer of Beagles & Landcruisers
Moderator

Joined
Mar 31, 2006
Messages
21,114
Location
Central California

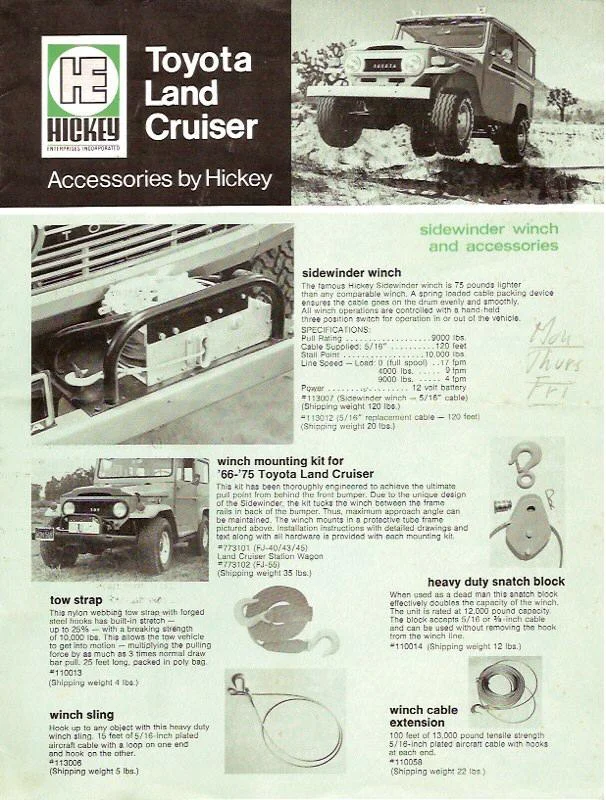

I have searched posts and threads. I think one of the guys listed below scanned and posted up an old accessories sheet. On the sheet was a PTO winch, sidewinder (Hickey) winch, seat belts and some other things that could be ordered on the FJ 40's back in the day.

Living in the Past
Cruiser Nerd
Information Junky
LandPimp
Coolerman

I searched the birfield site as well as mud and could not find the post. I'm thinking the Capstain was one of the accessories, but I may be wrong.

Joined
Feb 15, 2006
Messages
2,974
Location
Tucson
This set would work fine. Capstain drum would turn anytime the PTO is engaged. Wouldn't hurt anything if there's no rope around it. The winch spool only turns when engaged with the lever. So they could each be worked independently. The capstain drum is mounted to the end of the main shaft of the winch that turns all the time. that lever engages and disengages the spool so it can be free wheel out. So if you disengage it you can use the capstain by itself or use the winch and with nothing around the captain drum it not going to be doing anything except turning around.


I must be missing something here:bang:.

This is operating procedure for a capstan winch, "A capstan winch is operated by taking a couple of turns around the capstan with the winch cable, and setting the capstan turning continuously. By varying the amount of tension on the tail of the rope, frictional forces can be controlled quite easily to generate the desired pull", I have actually operated one of these and what I'm saying is, what the hell are you going to do with the "inner/drum" and lead while the capstan is running continuously?

The only way I see operating the capstan on this unit would be without a line/lead on the drum, in which case you might as well just use the inner drum like you would a Capstan.



Either this unit had a unique application or it simple did not work, leaving me to conclude "this is why you don't see this set-ups".

Last edited:
Joined
Feb 15, 2006
Messages
2,974
Location
Tucson
I must be missing something here:bang:.

This is operating procedure for a capstan winch, "A capstan winch is operated by taking a couple of turns around the capstan with the winch cable, and setting the capstan turning continuously. By varying the amount of tension on the tail of the rope, frictional forces can be controlled quite easily to generate the desired pull", I have actually operated one of these and what I'm saying is, what the hell are you going to do with the "inner/drum" and lead while the capstan is running continuously?

The only way I see operating the capstan on this unit would be without a line/lead on the drum, in which case you might as well just use the inner drum like you would a Capstan.



Either this unit had a unique application or it simple did not work, leaving me to conclude "this is why you don't see this set-ups".


I failed to recognize the shaft and the capstan drum operate continually whlie the PTO is engaged, while the inner drum is controlled by the lever.:confused:

Those helmet-less injuries are beginning to catch up with me
