NV4500 to HF2AV Open Source Adapter Plans

[Will Van]

I have a bunch of plates ready to go. I just moved a couple weeks ago and haven’t unboxed everything yet but for sure I have em.

I tried to reach out about buying a plate but haven't heard back. Best way to get ahold of you?



[NLXTACY]

I tried to reach out about buying a plate but haven't heard back. Best way to get ahold of you?

Got your message. Gotta find and unpack those boxes first.



[FJsapper]

@NLXTACY how about responding to my numerous requests for a refund?

Paid $560 about three weeks ago and have had no contact or parts. I have been a customer for over 6 years and spent thousands, not anymore!



[Will Van]

There are low range gear sets available for the 7x Series manual shift (HF1A) tcase.

The late model HF1A series. 3.26:1 low range for the late model 7X HF1A case.

Are these low range gear sets available through Cruiser Outfitters? I am rebuilding my manual shift HF1A soon and would like to do 3.26:1 low range gears while I have it apart.



[cruiseroutfit]

Are these available? I am rebuilding my manual shift HF1A soon and would like to do 3.26:1 low range gears while I have it apart.

Not one we currently stock. Have about 2 ppl in the US ever asking for them



[Will Van]

Not one we currently stock. Have about 2 ppl in the US ever asking for them

Actually, that’s just me asking the same question twice.

I’ll reach out Monday and see if you’re interested in special ordering them (or sharing the part number). Thx!



[TUNEUP]

Does anyone still have the cad file for the adapter?



[Major Tom]

Does anyone still have the cad file for the adapter?

I also have a DWG file for the plate but the mud platform won't allow it to upload. Send me your email and I'll send it as well.



[TUNEUP]

I also have a DWG file for the plate but the mud platform won't allow it to upload. Send me your email and I'll send it as well.

PM sent. Thank you so much



[Major Tom]

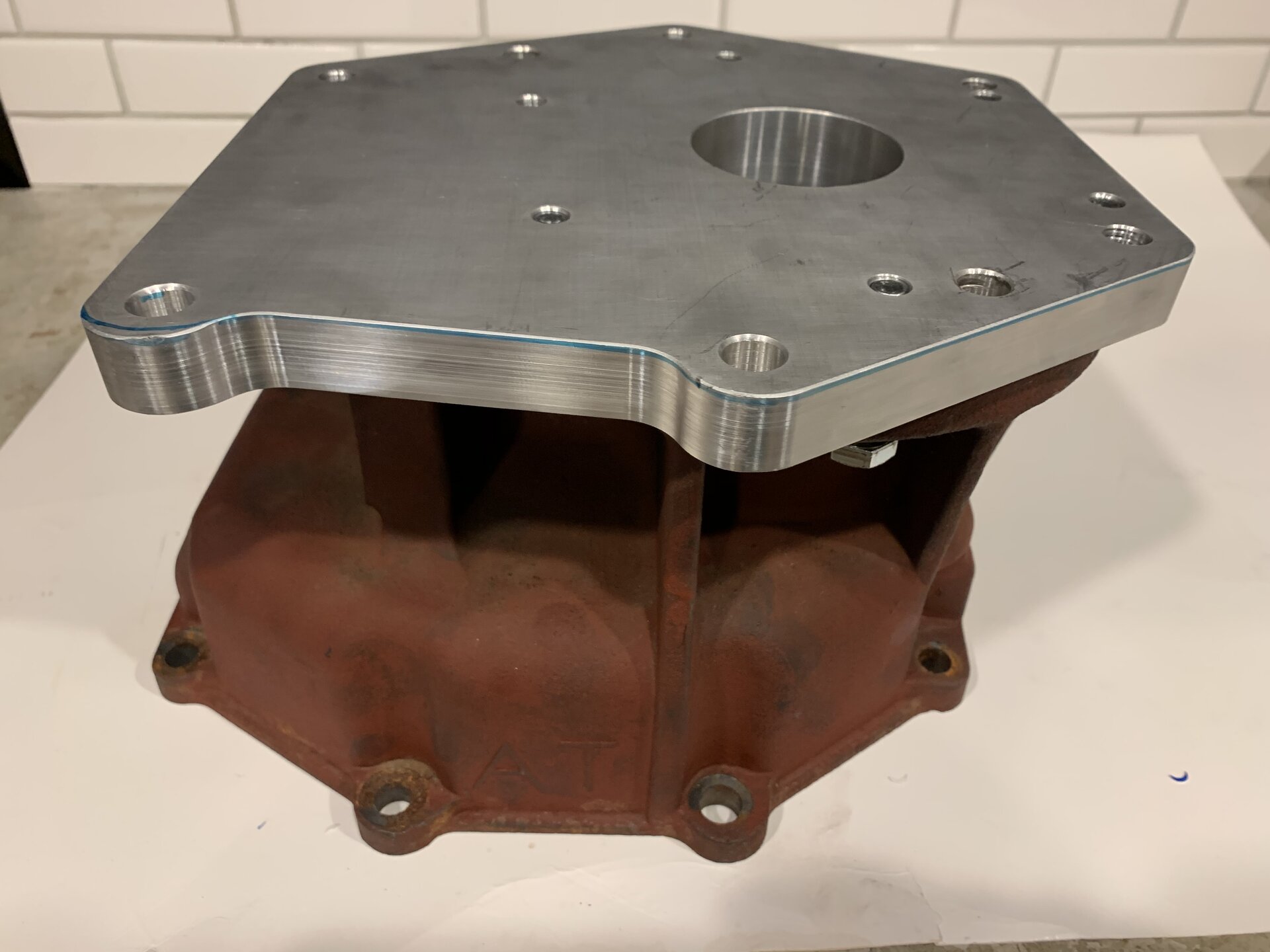

I had a local shop build this one for me. They may still have it if you need one.



[TUNEUP]

I had a local shop build this one for me. They may still have it if you need one.View attachment 3535982

I think Ive got the adapter handled. Just need to get a shaft and get it modified



[TUNEUP]

Long shot here but does anyone have an nv4500 shaft that has been machined they would like to sell?



[Major Tom]

Long shot here but does anyone have an nv4500 shaft that has been machined they would like to sell?

Good luck finding one. You may have to find an axle shop that has experience cutting splines and send them your mainshaft.



[Alexh85]

Legends!



[PeterTheBeater]

Has anyone tried to adapt this to jeep 23 spline for an auto tranny? The output should theoretically be the same right?



[PeterTheBeater]

Using the pdf HF2A dimension drawing, I've made this adapter for 47RH. using 6207-2RS bearing. Gonna see if I can get this machined overseas for couple hunded bucks and see how it fits.



[PeterTheBeater]

Had to make some mods, like increasing total width by 10mm to 50mm to have room for transition of dodge 23spline 1.938"OD to 37MM for the 6207. Gives about 8-10mil to make the chamfer. Current issue is getting the technical info on toyota 19 spline threads to get a custom spline shaft made.

Dodge is pretty straightforward ASE, toyota is little harder. I've tried to send some feelers to manufacturers who make adapters and know the spline tech info, but no luck so far.

If anyone has info on that, plz let me know. Maybe @cruiseroutfit

This is how it sits right now
