Need Help. What is the Factory Dimensions for Location of the Vader Light & Switch to the right of the Pocket (Glove Compartment)? (1 Viewer)

[Green Bean]

I sure would appreciate it if someone with a factory original Vader light could tell me the dimensions for locating correctly locating the holes. Thank you.



[charliemeyer007]

My 72 rag top is different. Darth ( looks just like mine) is about where the switch is, and the switch (also looks like mine) is more over in the optional heater control switch zone. I don't they were ever moved from the factory location. Been my rig since 82.



[jbee]

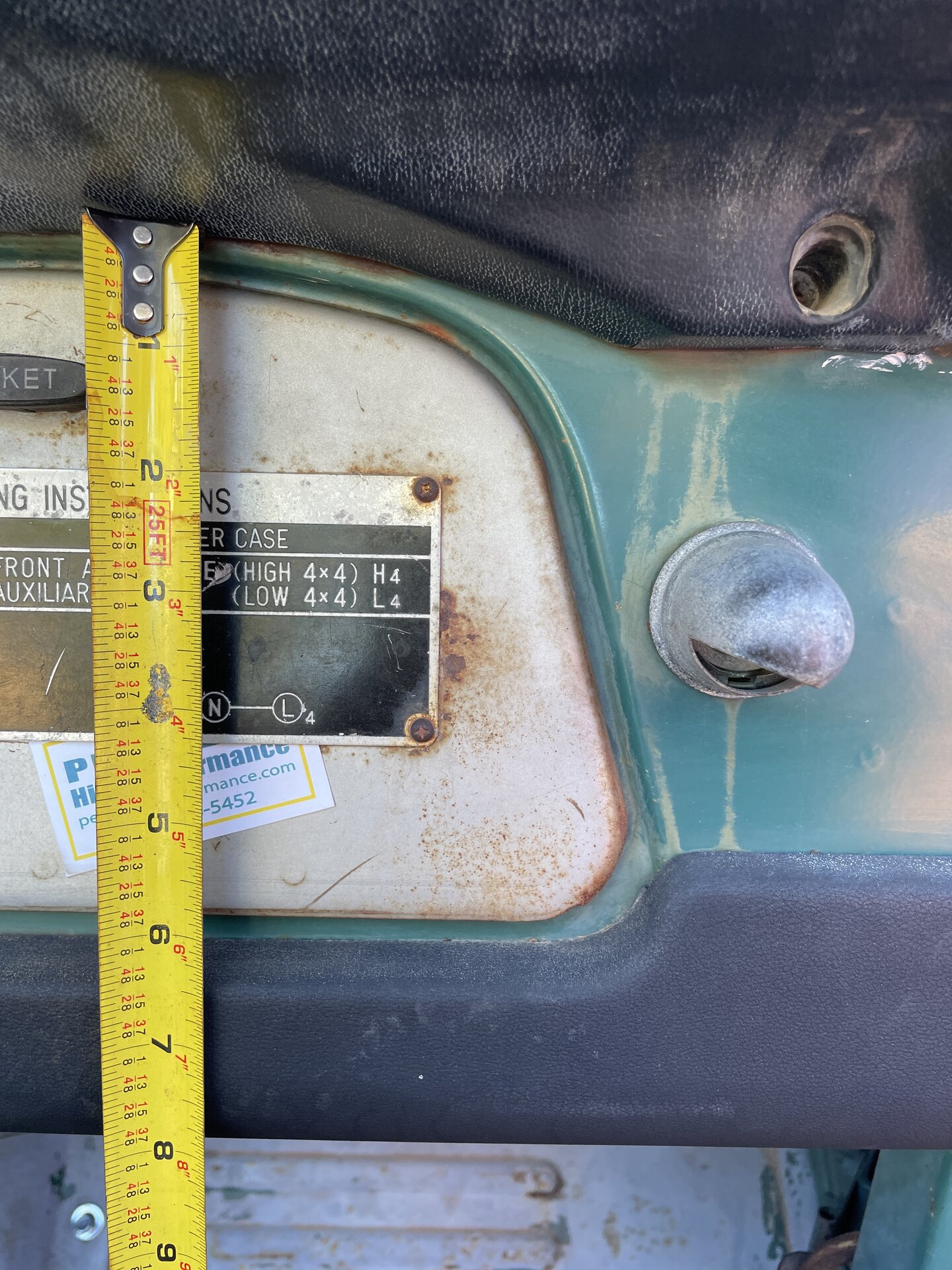

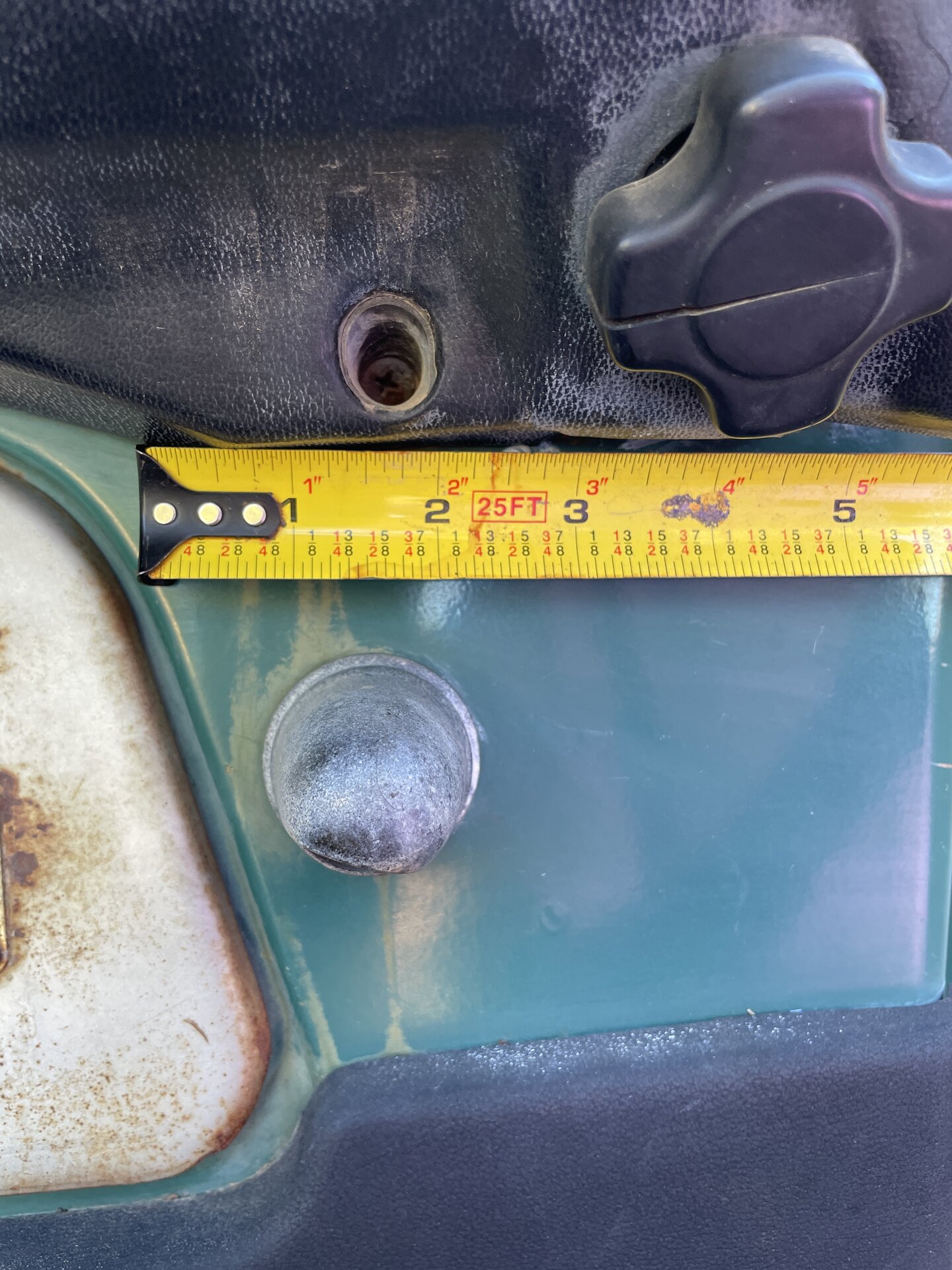

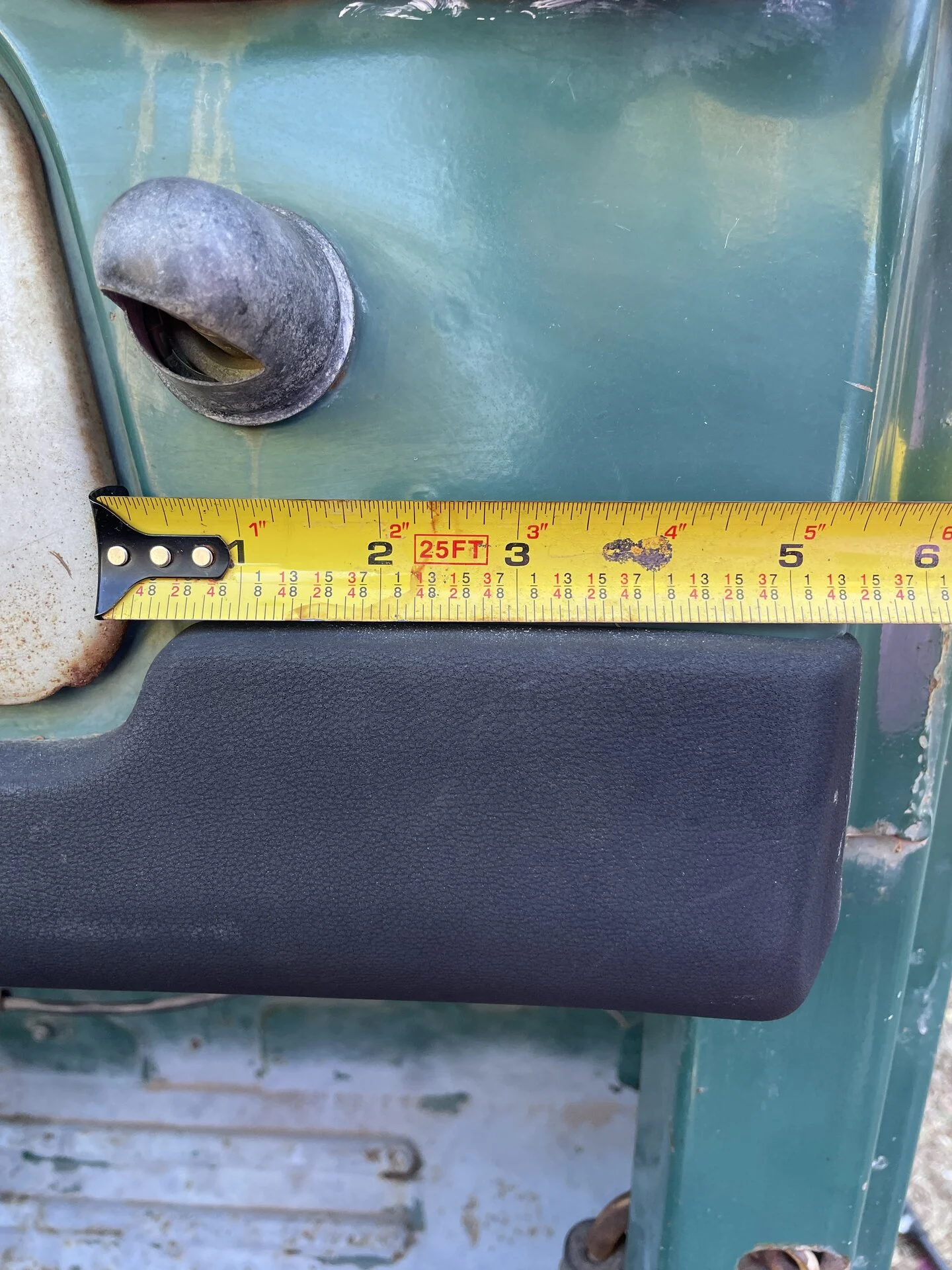

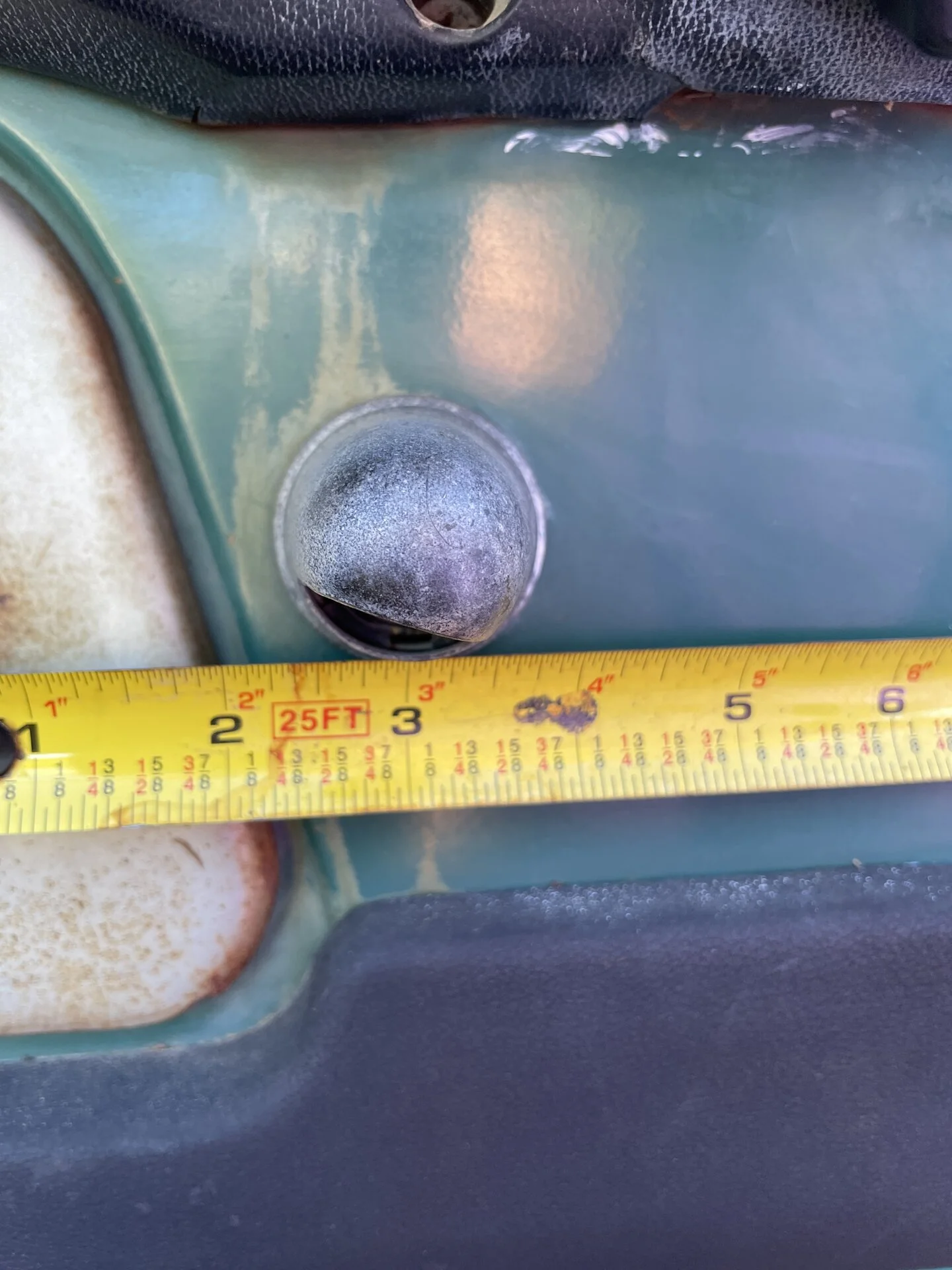

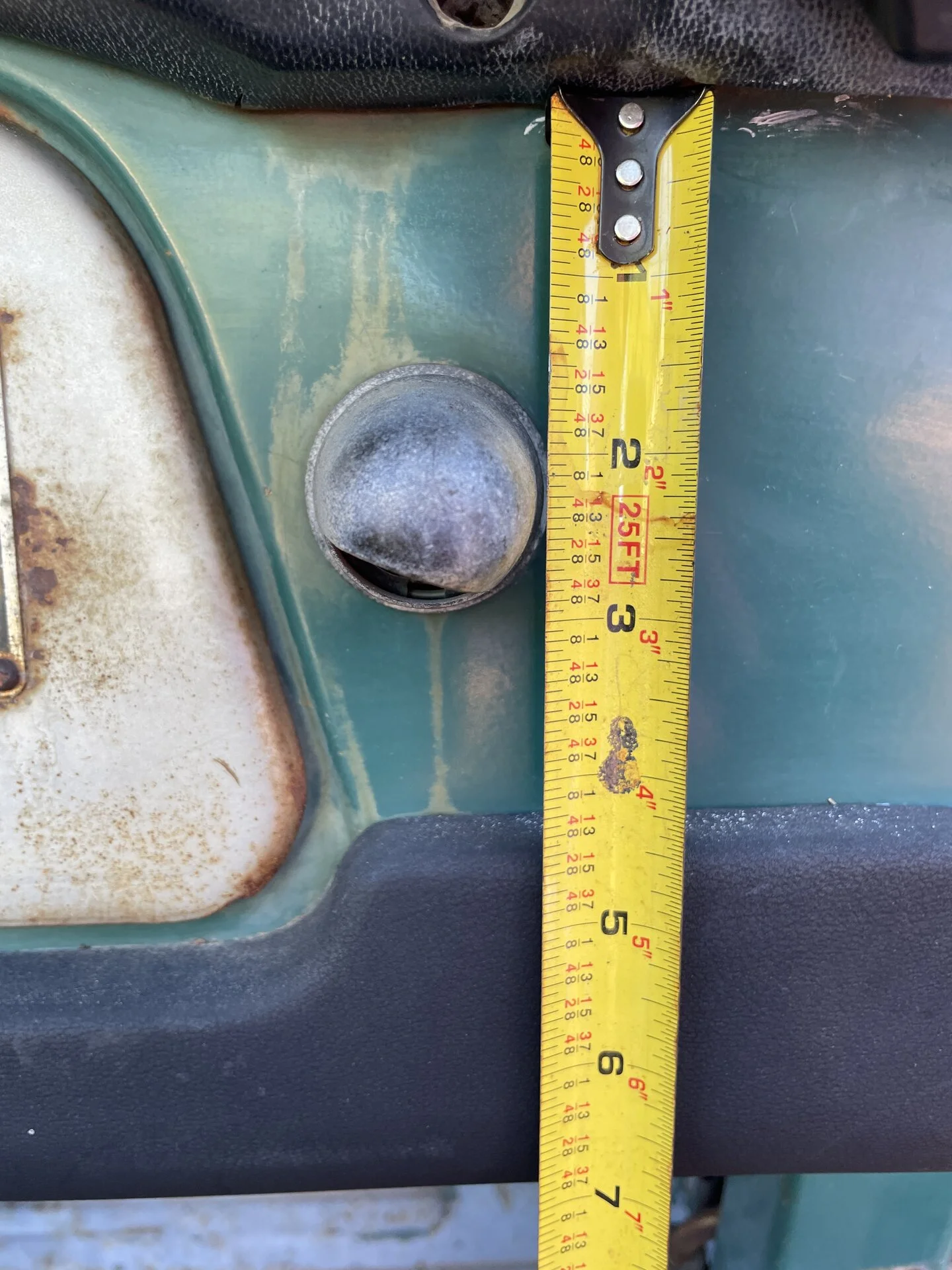

4/72 factory soft top here. Hope this helps.



[Green Bean]

4/72 factory soft top here. Hope this helps.

View attachment 3503459View attachment 3503461View attachment 3503460View attachment 3503462View attachment 3503463

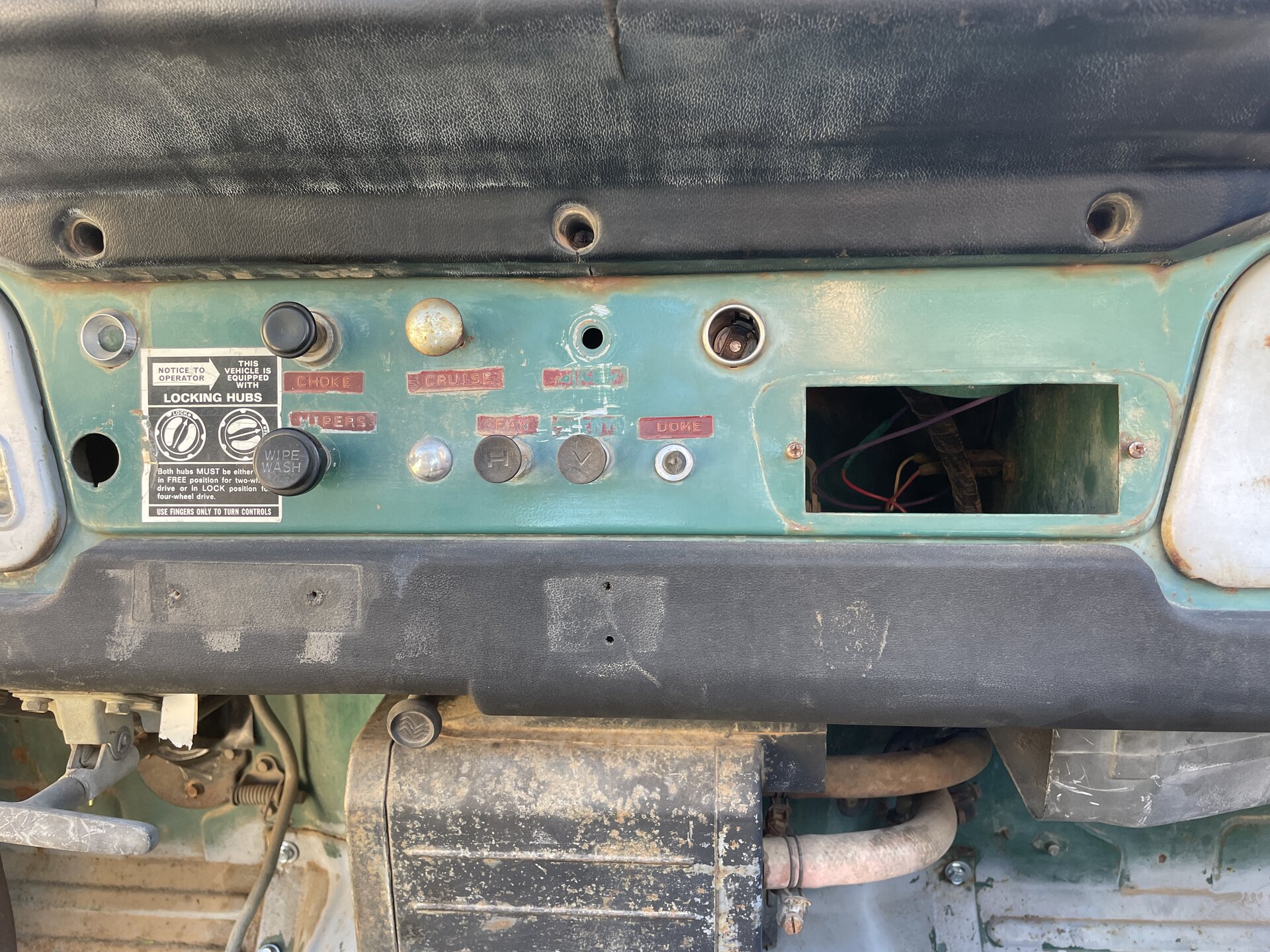

Thanks. Hmm. I'm guessing here, but is the switch for your light located in the center part of your dash?



[jbee]

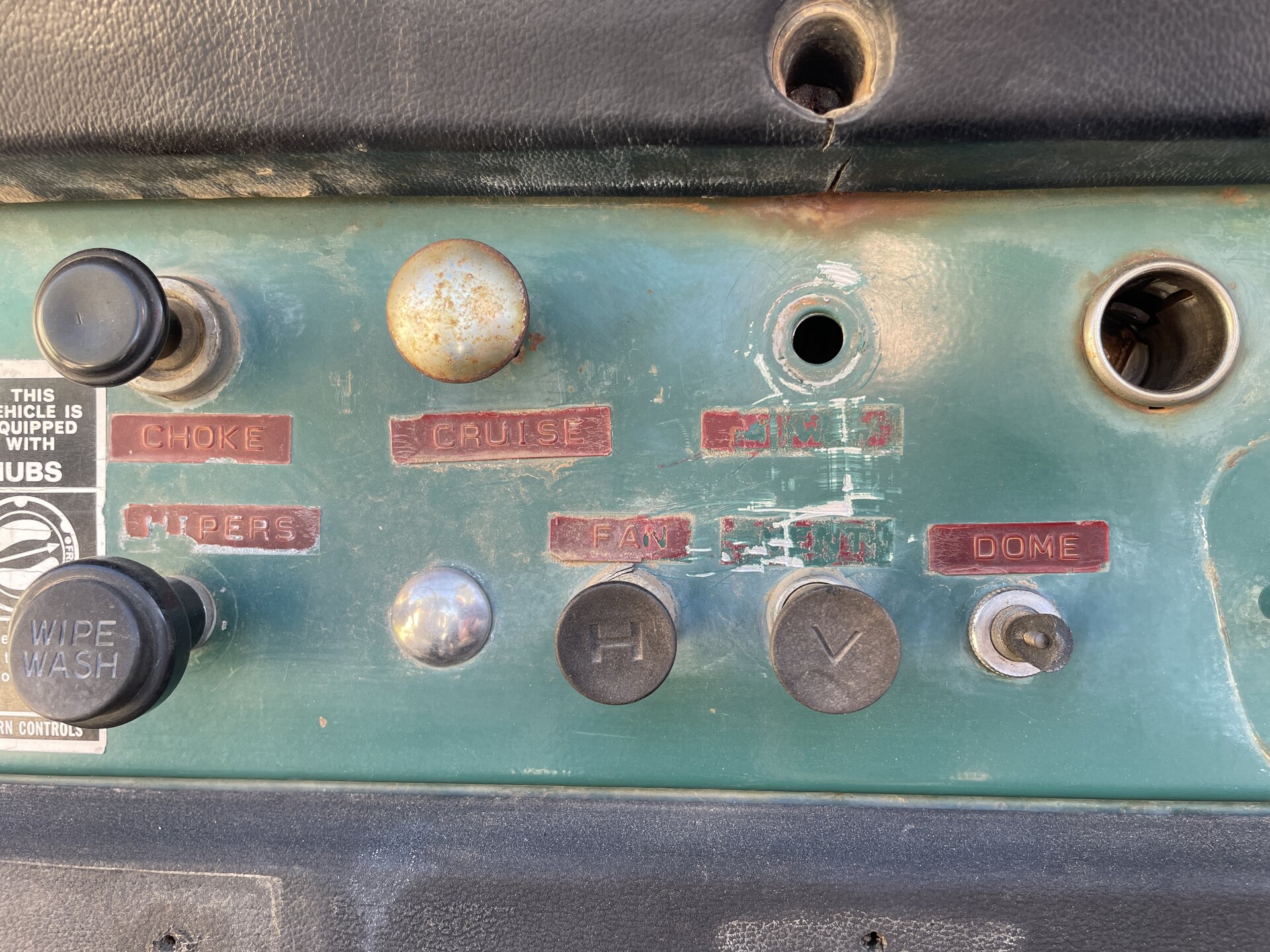

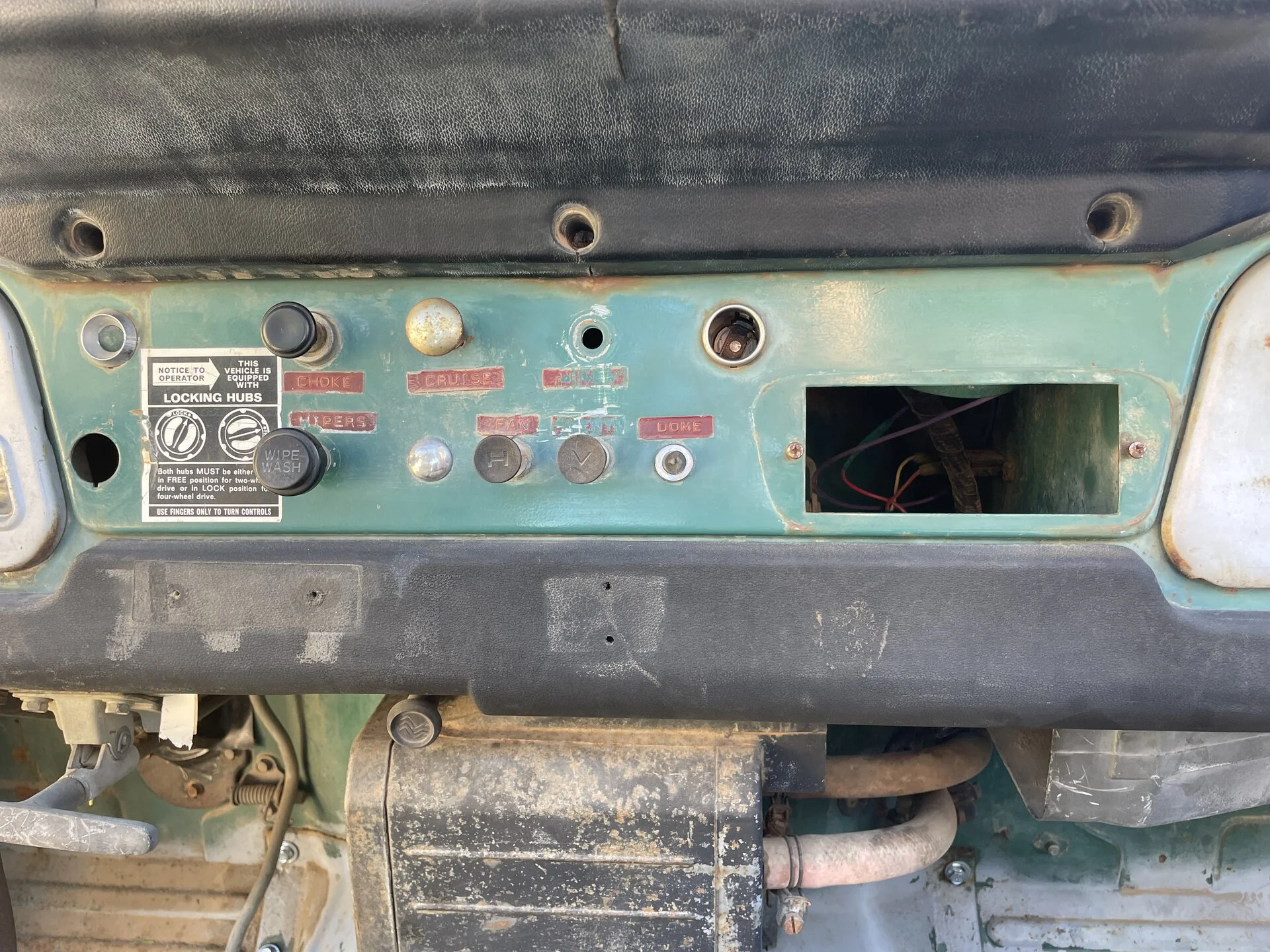

Here’s where mine is, it’s marked ‘dome’ with a red label. It does work. I’m not sure if this is the original position of the switch or if I have the correct switch.
The switch is a long reach for the driver, but it is near the light.



[Green Bean]

Thanks. That’s where the switch for our dome light located on the B-pillar on our 1970.



[FJ40Savvy]

I sure would appreciate it if someone with a factory original Vader light could tell me the dimensions for locating correctly locating the holes. Thank you.

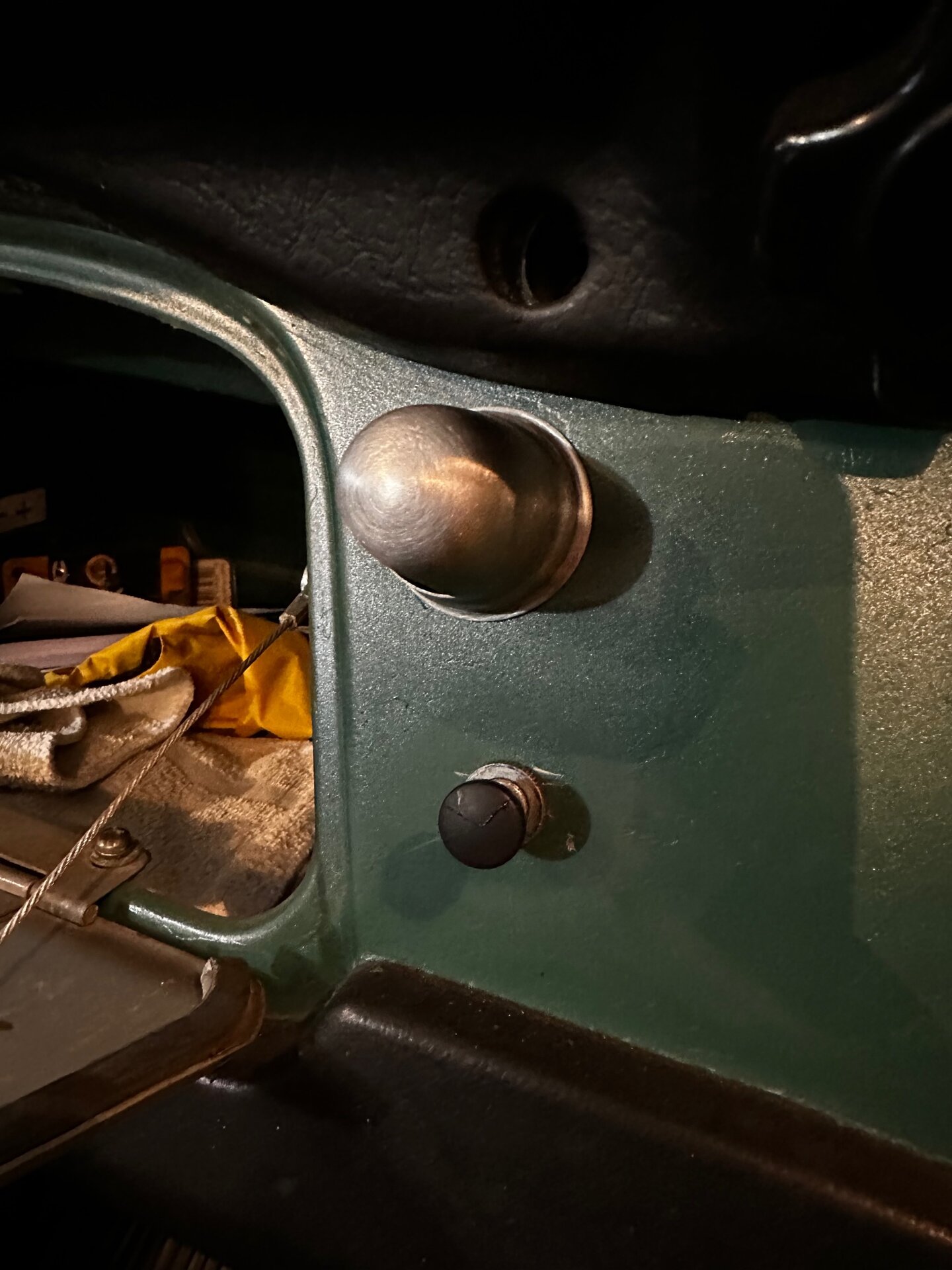

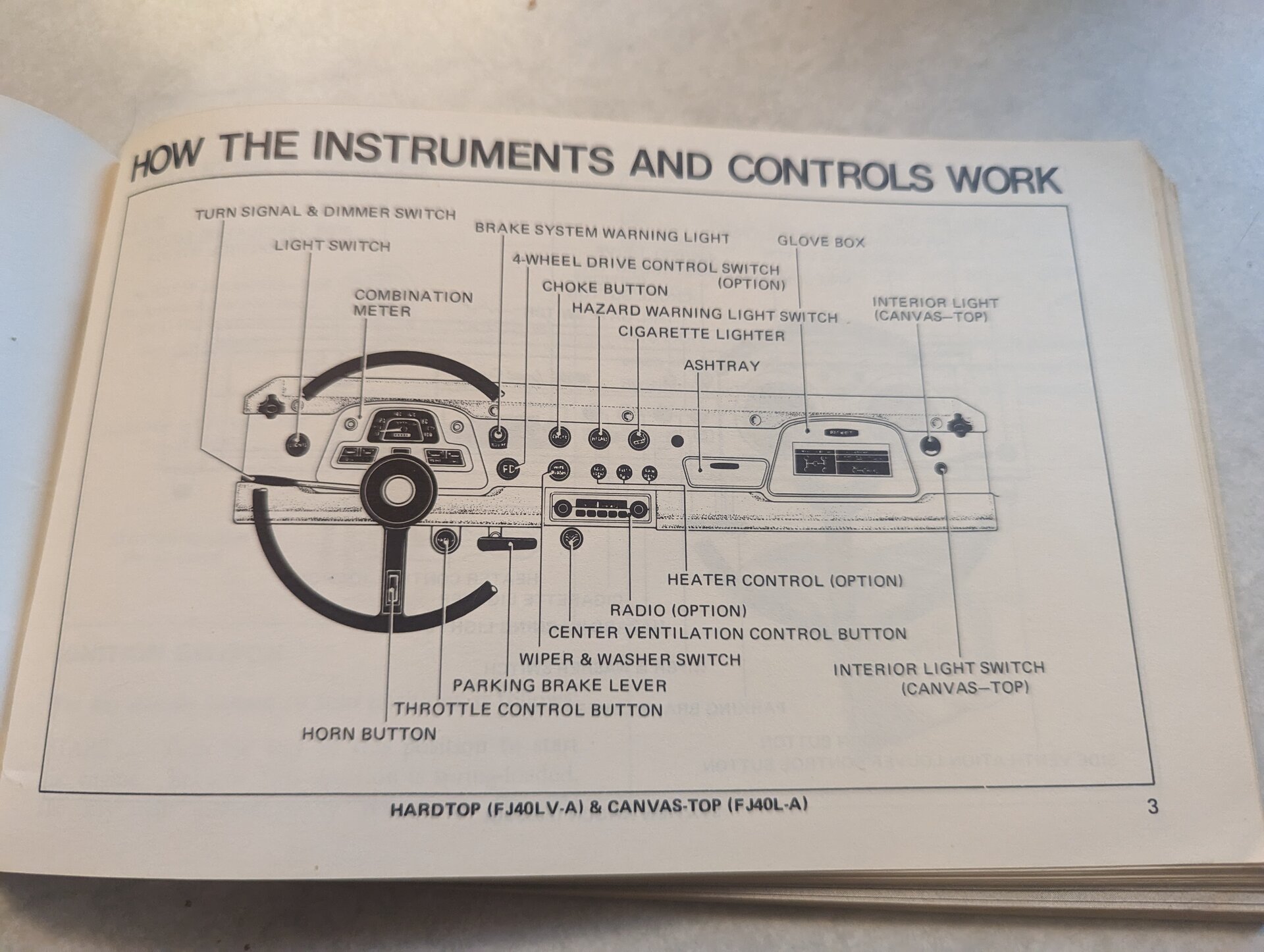

View attachment 3503354

View attachment 3503355

This picture looks familiar. I'm out tonight however will provide dimension information tomorrow. I used the holes that were already in the dash. Manufacturing date is 10/72.



[Green Bean]

This picture looks familiar. I'm out tonight however will provide dimension information tomorrow. I used the holes that were already in the dash. Manufacturing date is 10/72.

Thank you!



[Chungas Revenge]

@jbee


Instant classic…



[jbee]

@jbee


Instant classic…

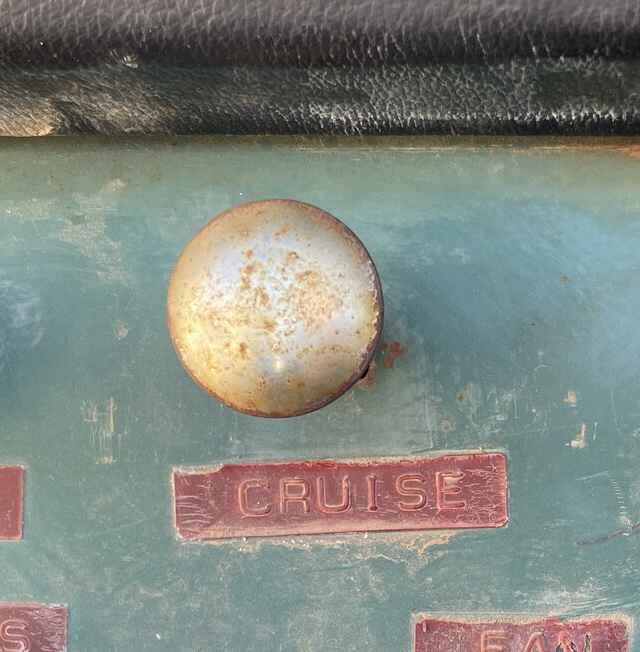

View attachment 3503971

I know! its just a wire, like a choke cable, that ran directly to the throttle.
NOT the OEM hand throttle, just a cable to the throttle bell crank on the carburetor so you could just pull it out and leave it. Safety first!!!



[Living in the Past]

I sure would appreciate it if someone with a factory original Vader light could tell me the dimensions for locating correctly locating the holes. Thank you.

View attachment 3503354

View attachment 3503355

Believe 72-74 models in the US most had the holes. FST had the light and FHT had a plug. These year also had footman loops on the back corners even FHT models.

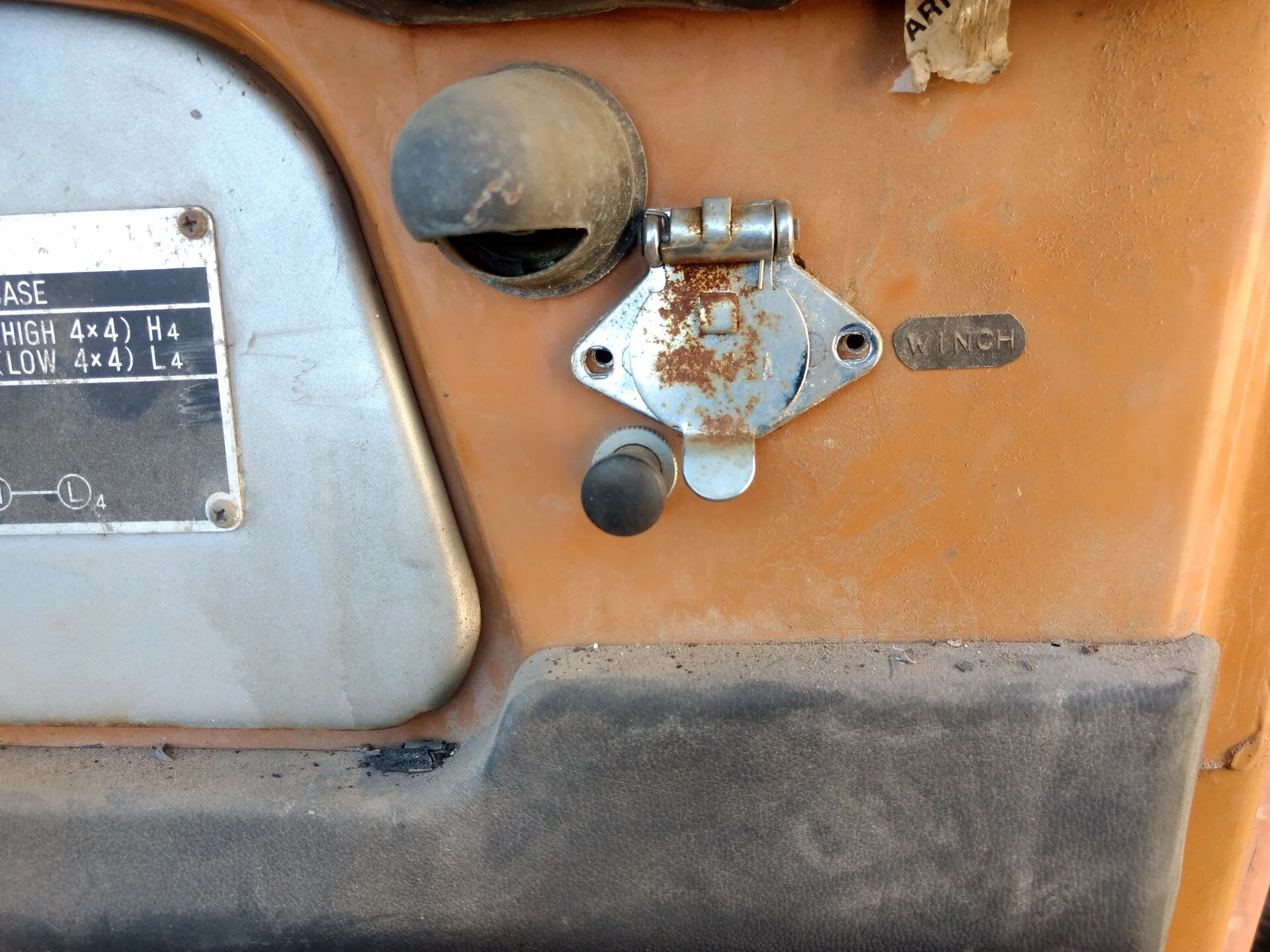

Orange is my 73 FST. Blue dash is also a 73 unknown month. It's a FHT.



[Racer65]

Believe 72-74 models in the US most had the holes. FST had the light and FHT had a plug.

What was the reason for having the holes without the light? Was it because the light was an option?



[Engineer8000]

The switch moved over to the light in 73. I can measure mine this evening if you still need it.



[Green Bean]

The switch moved over to the light in 73. I can measure mine this evening if you still need it.

@Engineer8000 I would really appreciate it. I'm looking for vertical and horizontal center-to-center dimensions for both the switch and the lamp assemblies.
Thank you very much!



[Engineer8000]

I have my old dash in the storage building, I can get those tonight.



[FJ40Savvy]

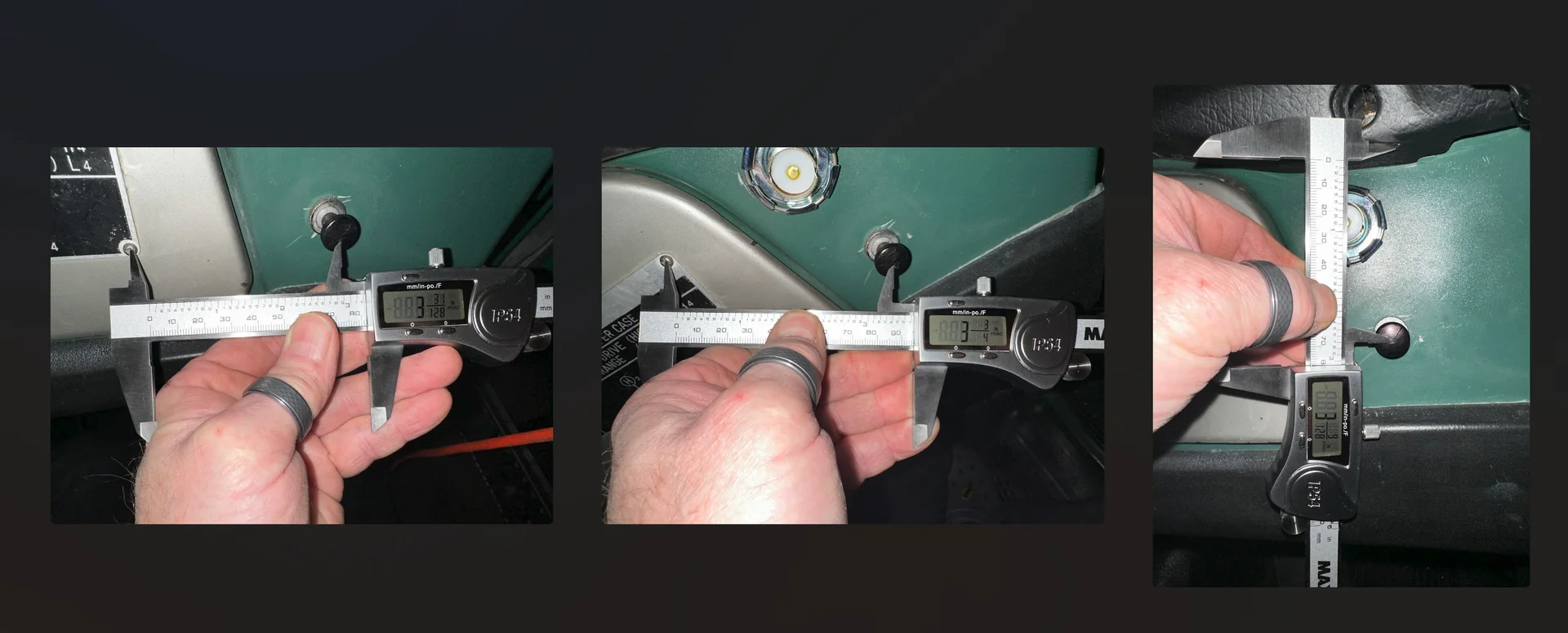

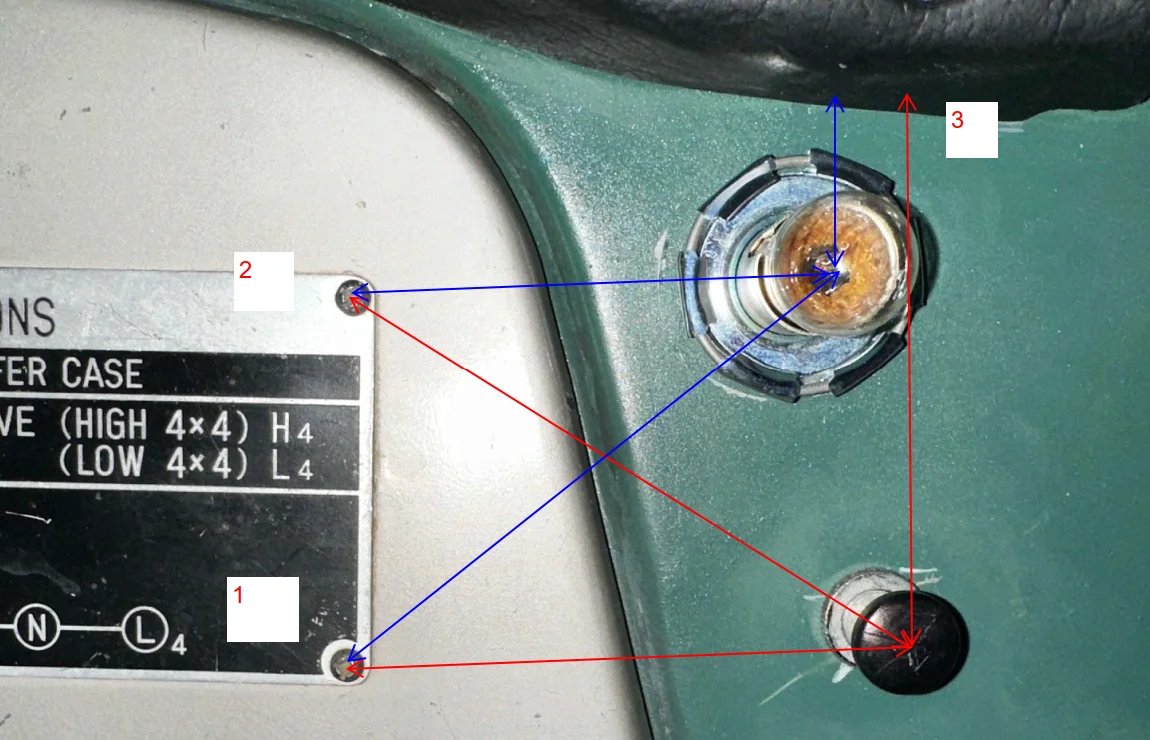

Here are the dimensions. Build Date 10/72. Truck was an original Hardtop. No hard points to measure from so I used the locations shown below as reference points. The vertical dimension (3) will vary slightly. Let me know if you need more information.

Lamp

Switch



[Green Bean]

You are amazing! That is exactly what I need.
Thank you so much.



[Green Bean]

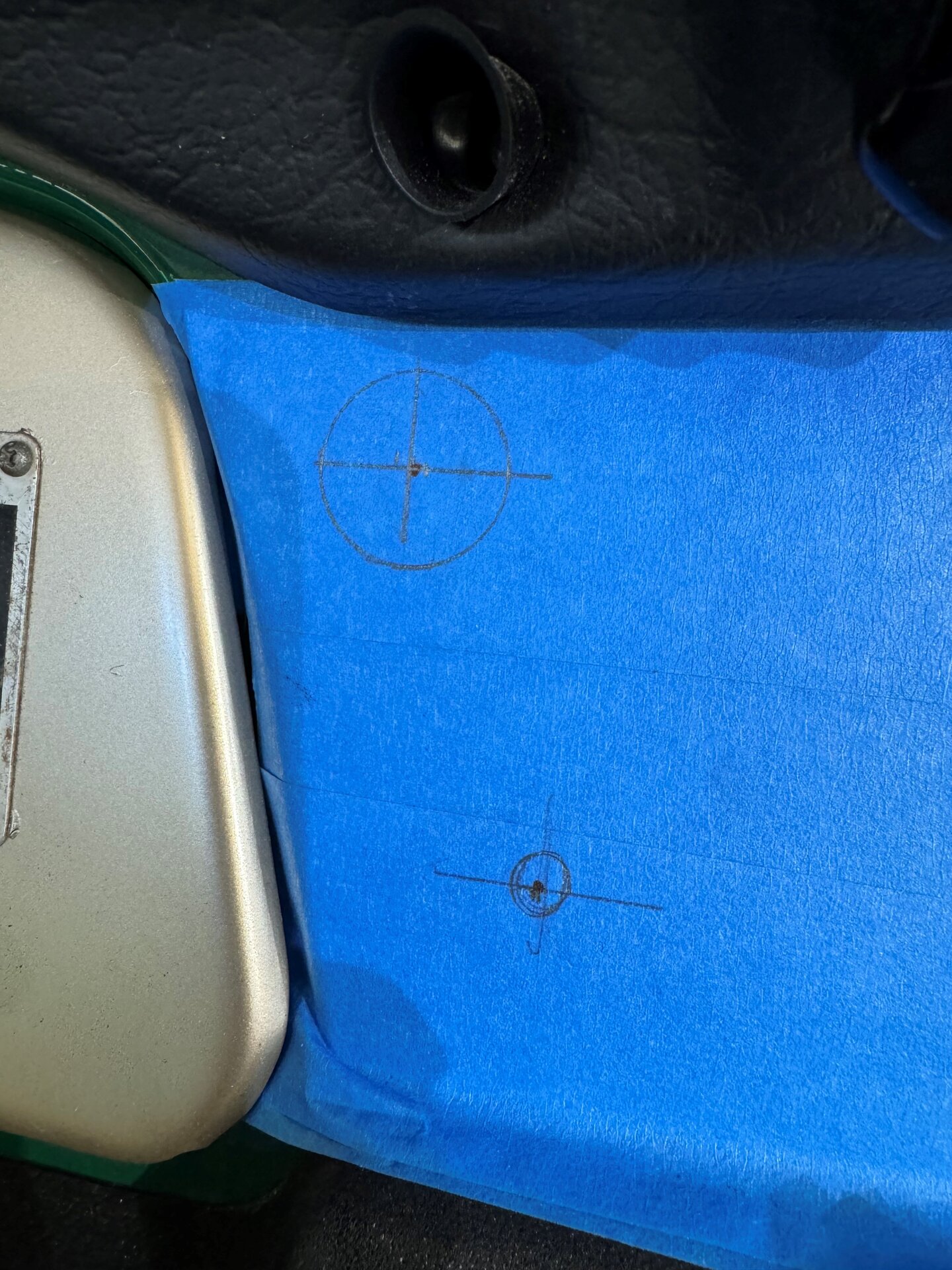

Below is a mockup using the revised dimensions from post #18. The pencil roughly approximates the hole size which is 22mm. The base of the fixture is approximately 45.21mm. I think that I will probably scooch the light down just a bit as it appears that the base would be tight up against the dash pad.



[FJ40Savvy]

Below is a mockup using the revised dimensions from post #18. The pencil roughly approximates the hole size which is 22mm. The base of the fixture is approximately 45.21mm. I think that I will probably scooch the light down just a bit as it appears that the base would be tight up against the dash pad.

View attachment 3504526

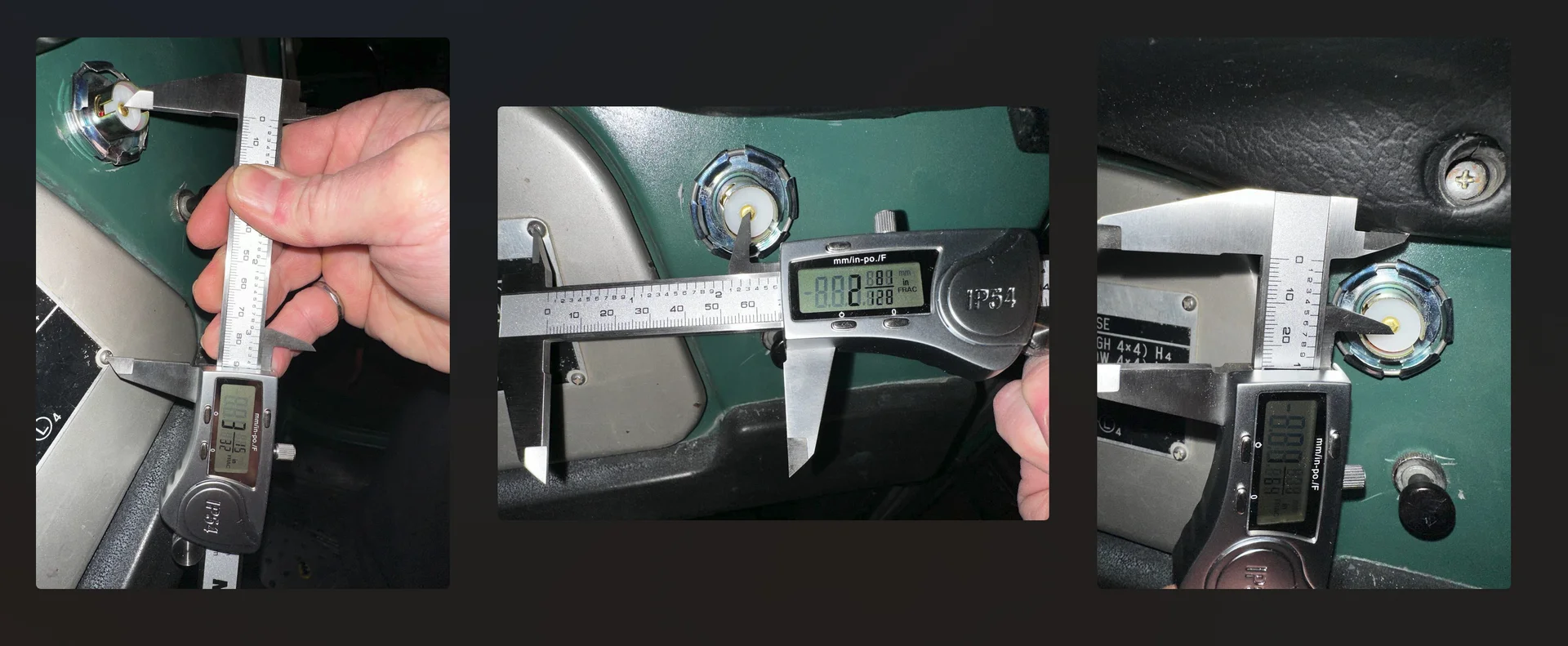

Here are a couple more pictures.

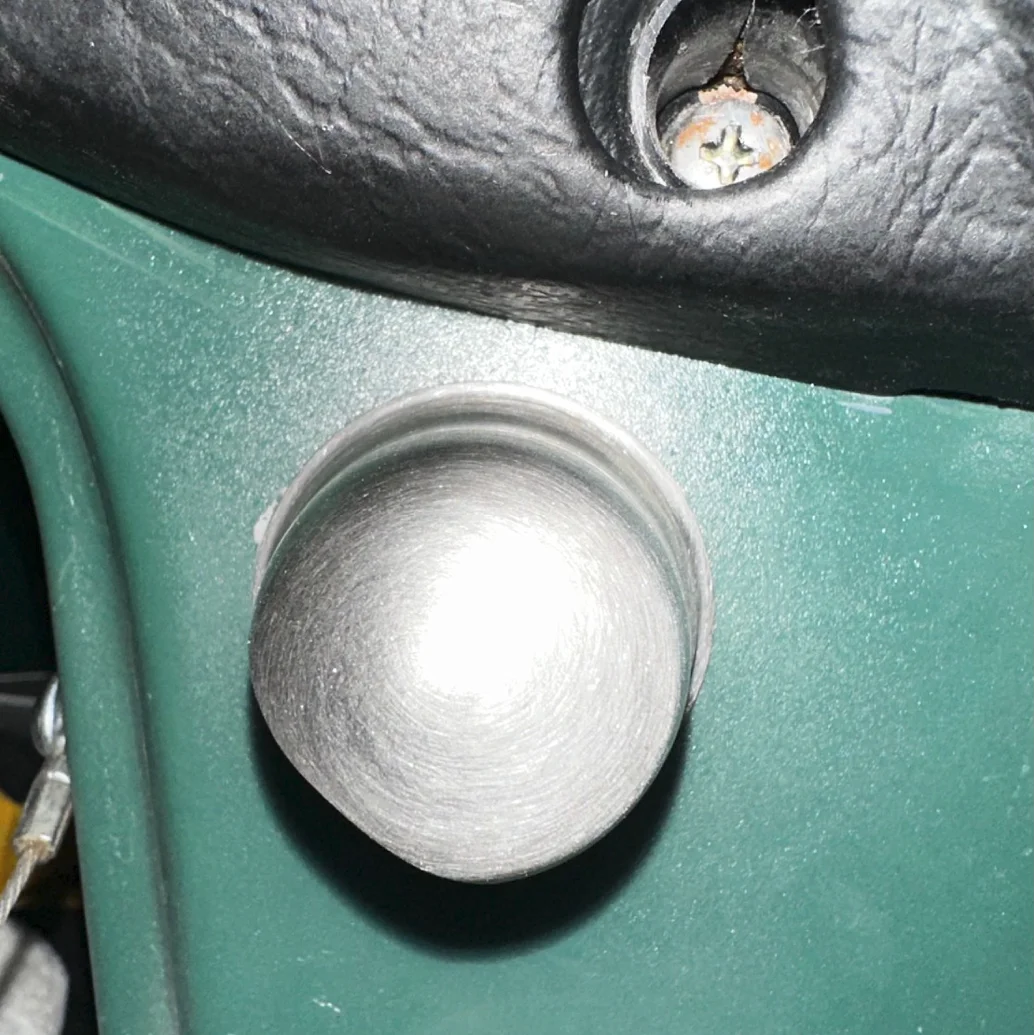

The housing is close to the dash pad on Louie.

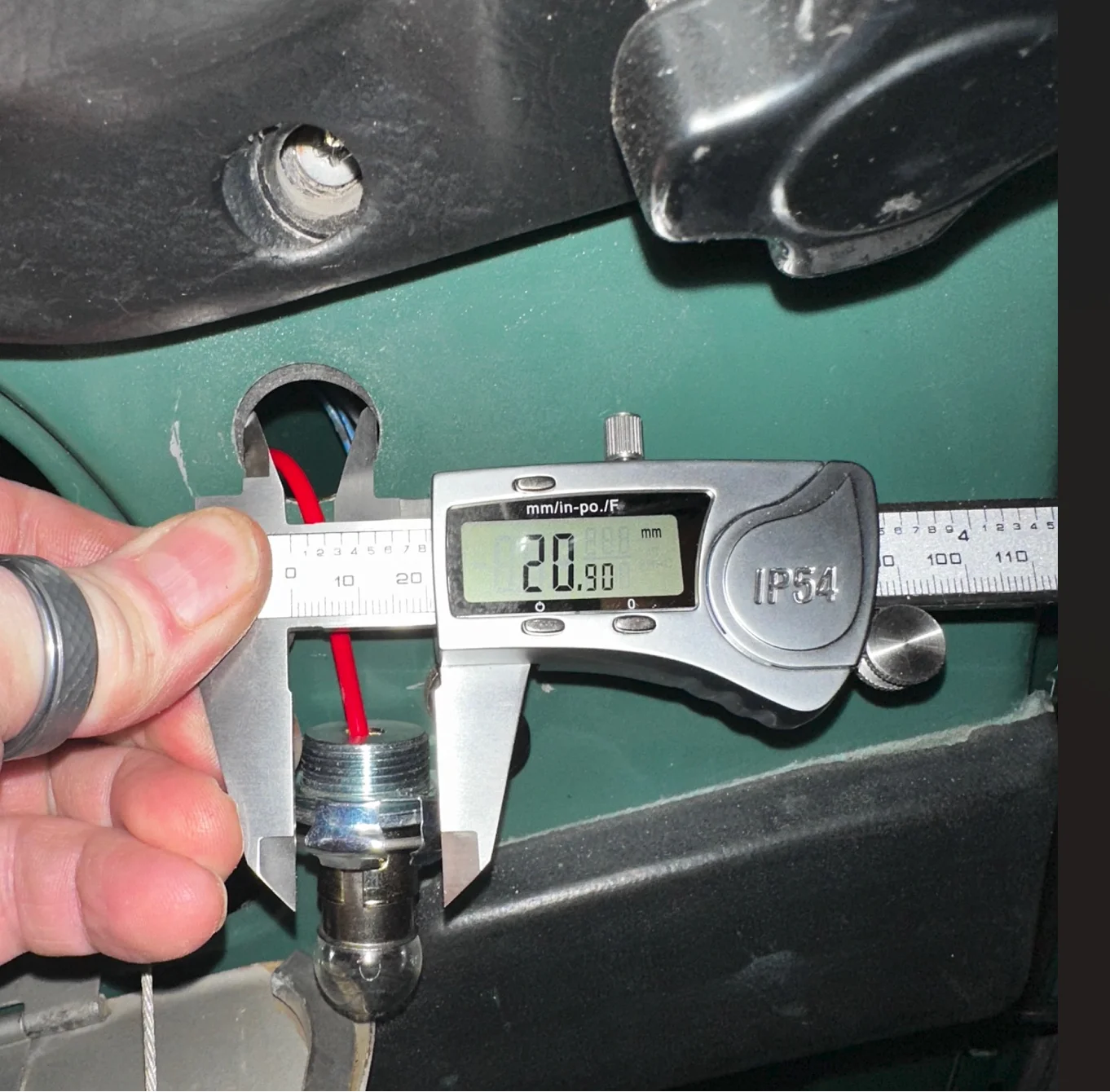

Caliper is not positioned correctly. Hole size is 22 mm.



[Green Bean]

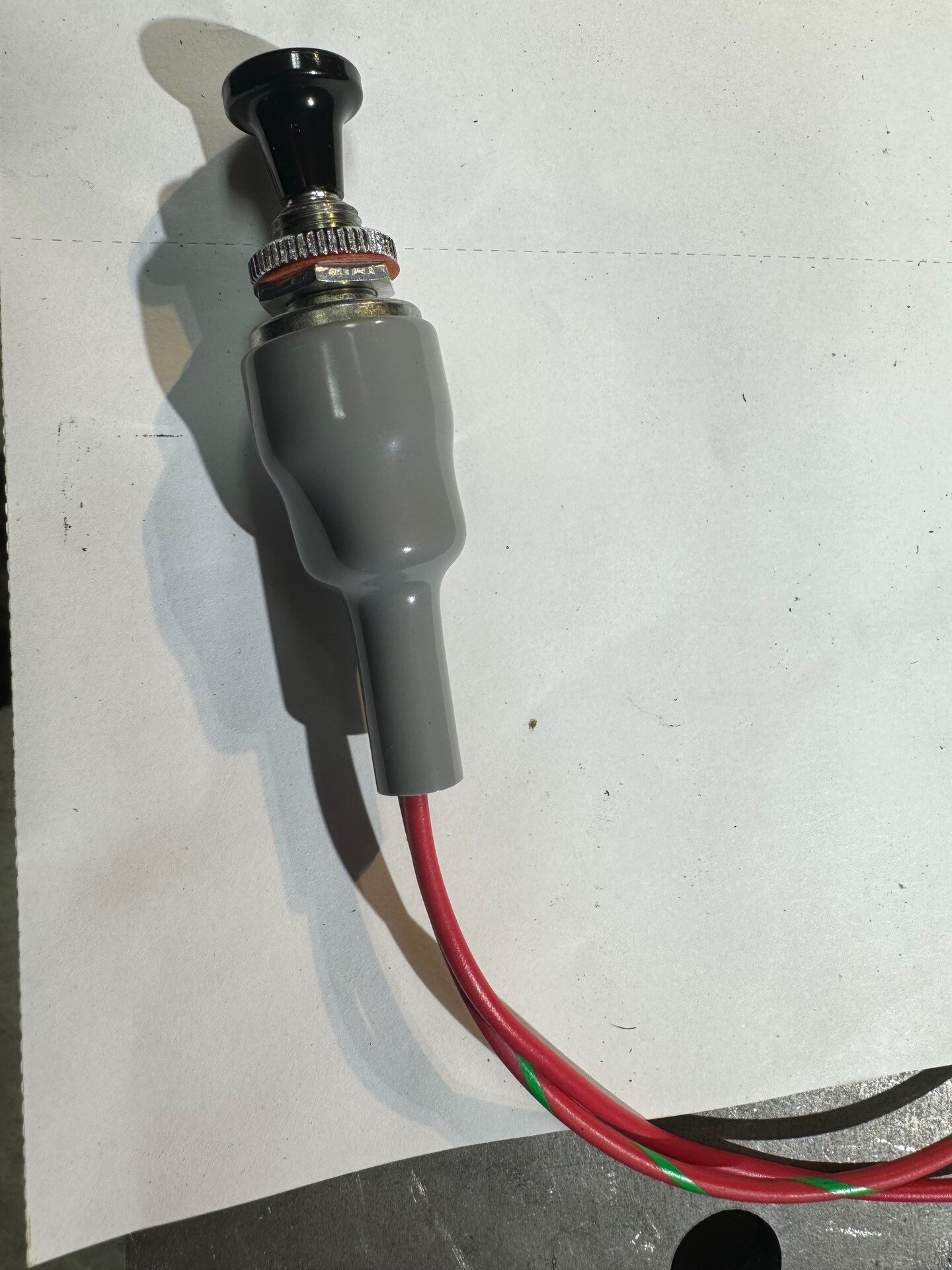

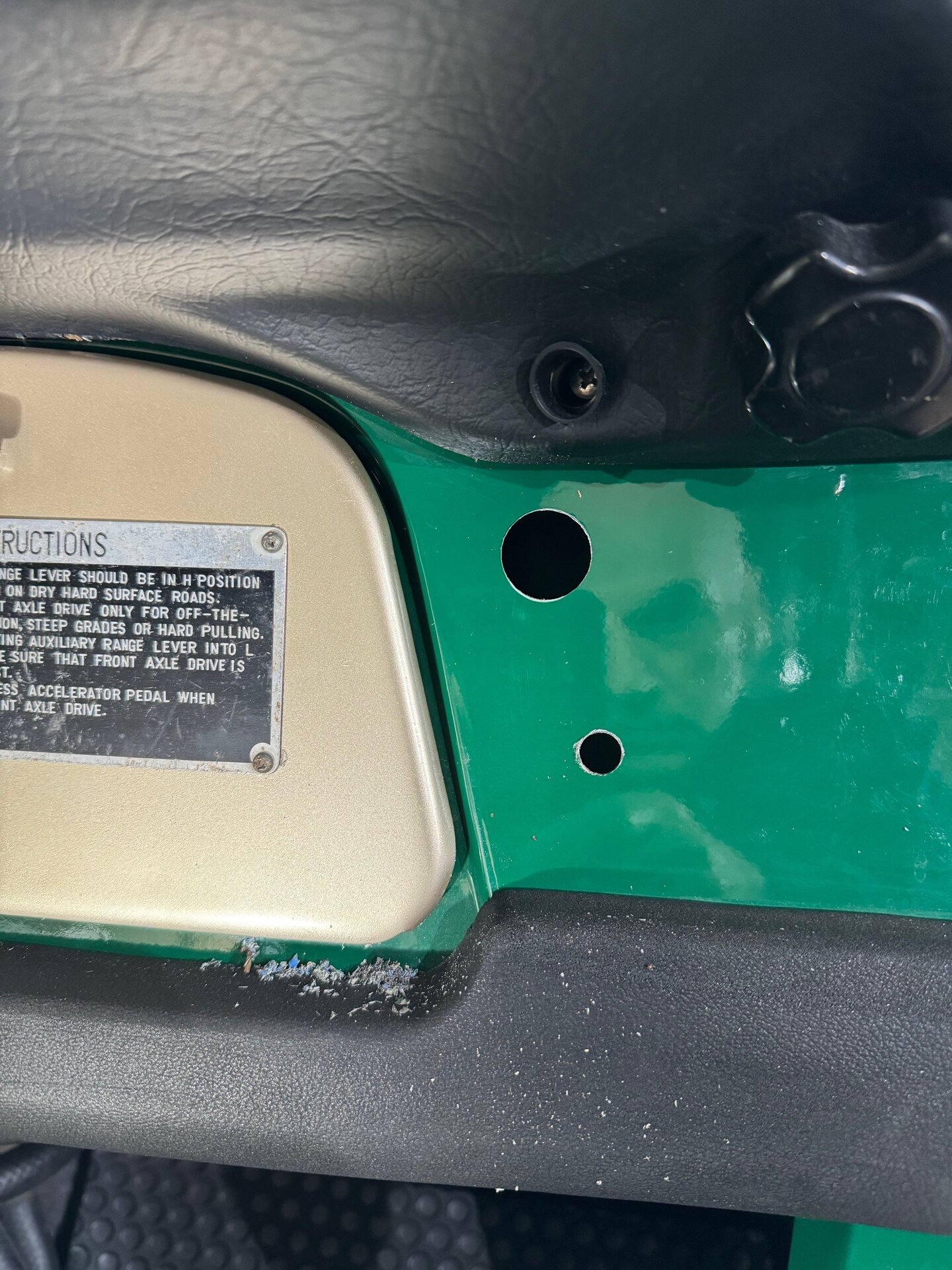

Completion of the Vader Light Installation. It was a bit painful to drill two holes in the dash. 22mm and 13/32":

Wiring was pretty straight-forward. I tapped into the 12v constant from the dome light switch.

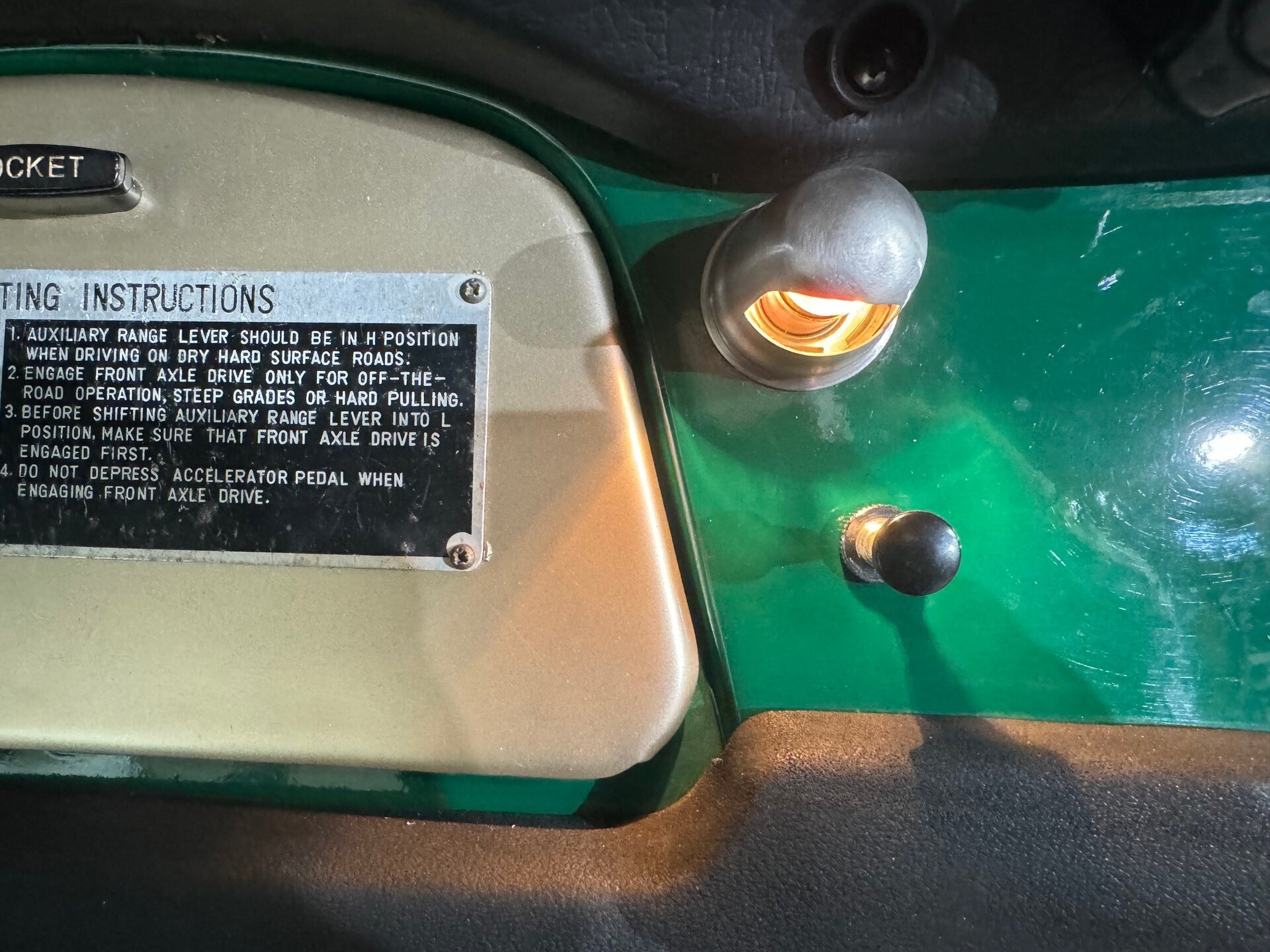

Finished result.

Thank you to everyone who helped out, especially @FJ40Savvy ; @Racer65 (light); @ToyotaMatt (switch).
