SOLD NAV DELETE 03-07 100 series LHD OEM UNOBTAINIUM (1 Viewer)

[GOTLOCKED96]

Vehicle Model

1. 100 Series

Location

New Braunfels, Texas United States

Hello MUD,

While collecting Navigation Delete parts over the last 6 months, I came across this rare unobtanium complete LHD unit.

I wound up with two units, thus this one is for sale. Boards listed are for 2003-2005 LC, however it will work for 2006 & 2007 with Jerry B's harness.

This was tested in my 2006 LC before posting for sale. It is a true LHD unit unlike the partial kits popping up from India.

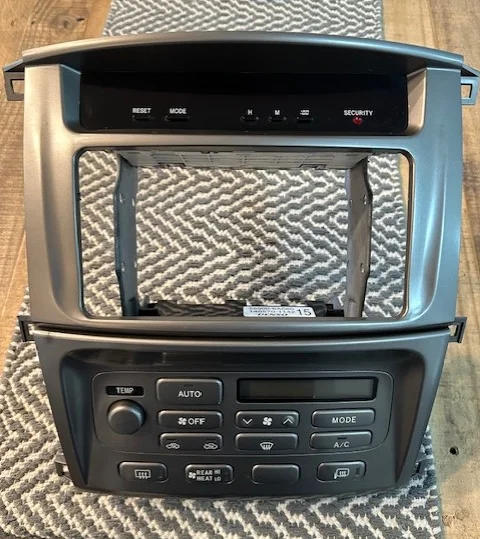

There is a small crack on the control panel where it meets the double din facia. If it bothers you, you can use your original plastic cover or buy a replica from Asia.

$old!!

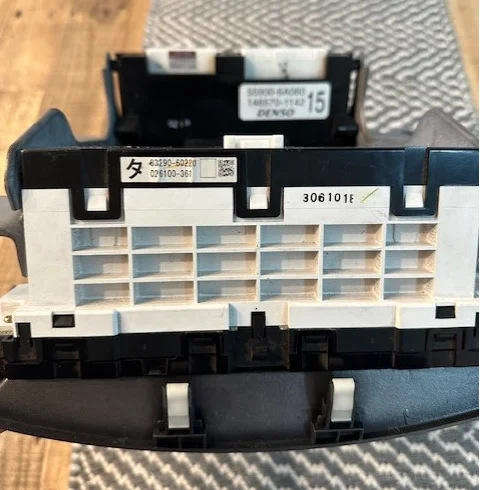

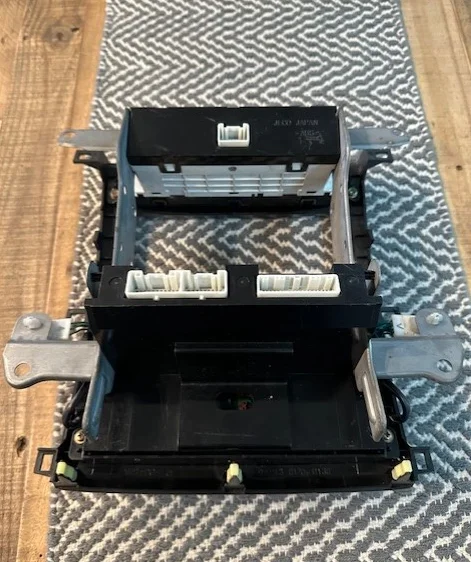

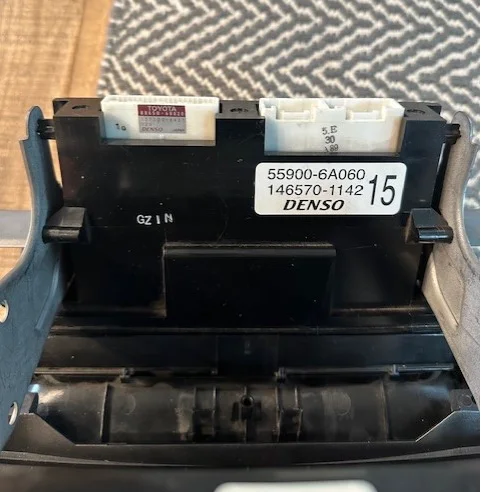

OEM PARTS NUMBERS THAT MAKE UP UNIT
55902-60110 PANEL SUB ASSY, A/C
55912-60150 HOUSING, HEATER CONTROL
84014-60190 BOARD SUB-ASSY, PRINTED WIRE INTEGRATION -NLA
88650-60820- AC AMP -NLA
55905-60780 KNOB, HEATER CONTROL
83240-60220 CASE ASSY
83265-60220 COMPUTER
86208-60030 BRACKET L -NLA
86207-60030 BRACKET R -NLA
90153-50012 SCREW CROSSRECESS
90159-50098 MOUNT SCREW
90167-30010 LOCK SCREW
90072-02004 BOLT -NLA
84875-60030 MIRROR HEATER
84656-60070 BLANK
84791-60040 DEFROST
Unknown rear heater button, USA version is 74661-60080



[ceylonfj40nut]

PM incoming
