SOLD Meridian, Idaho - Looking for a spare tire carrier for a 1978 FJ40 (3 Viewers)

[GrayJ]

Vehicle Model

1. 40 Series

Location

Meridian, Idaho United States

In search of a spare tire carrier for a '78 fj40. Shipping would be to the 83646 zip code.



[kevos37]

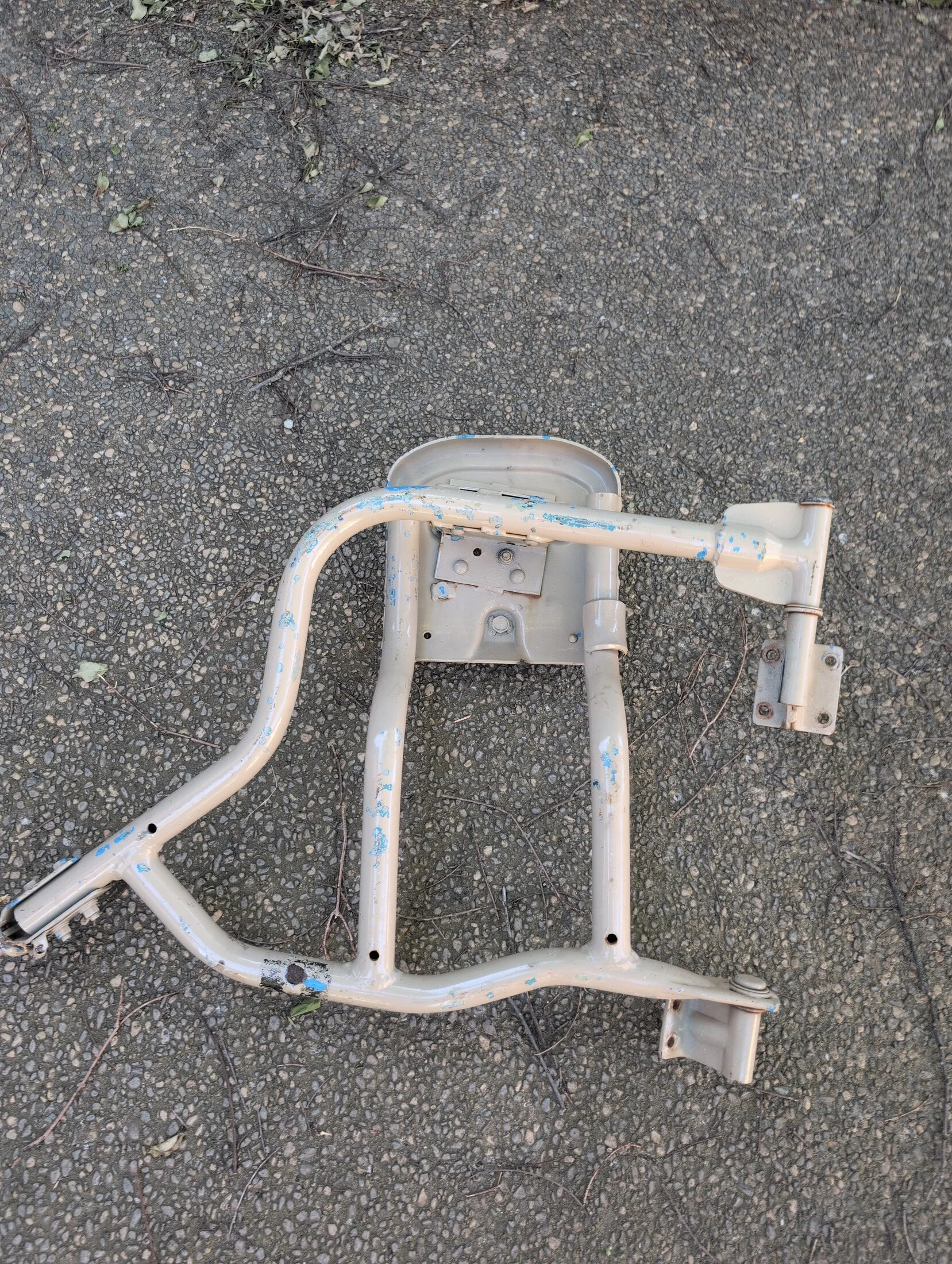

Here's the one I have. $300 shipped.

KevO



[kevos37]

Wrong entry



[3_puppies]

I've got one in Helena if needed.



[3_puppies]

I was told this is too early for yours.

Why? it doesn't look to have the other vertical bar the later versions have. later ones also have different spacing and size for the hinges



[kevos37]

I stand corrected then.



[3_puppies]

the later ones, I sold a 82? and it had a vertical pipe between the upper and lower, close to the hinges. The upper hinge footprint was larger and had different bolt spacing than the earlier version.



[pardion]

The one Kevin showed is correct for LHD. He might also need the rubber catch and loop latch that attach to the body.



[hyhpe]

@pardion educate me please. What year is in the pic?



[kevos37]

The one Kevin showed is correct for LHD. He might also need the rubber catch and loop latch that attach to the body.

I plan to include them.



[pardion]

@pardion educate me please. What year is in the pic?

Late 1979 and newer that horizontal pipe was added and the hinge holes are different. I add a horizontal pipe to early racks that carry a larger spare tire and move the tire mount inboard when using larger/ heavier spare tires . Mine are 18”x 14.5x. 38 and heavy. The rack works well.



[pardion]

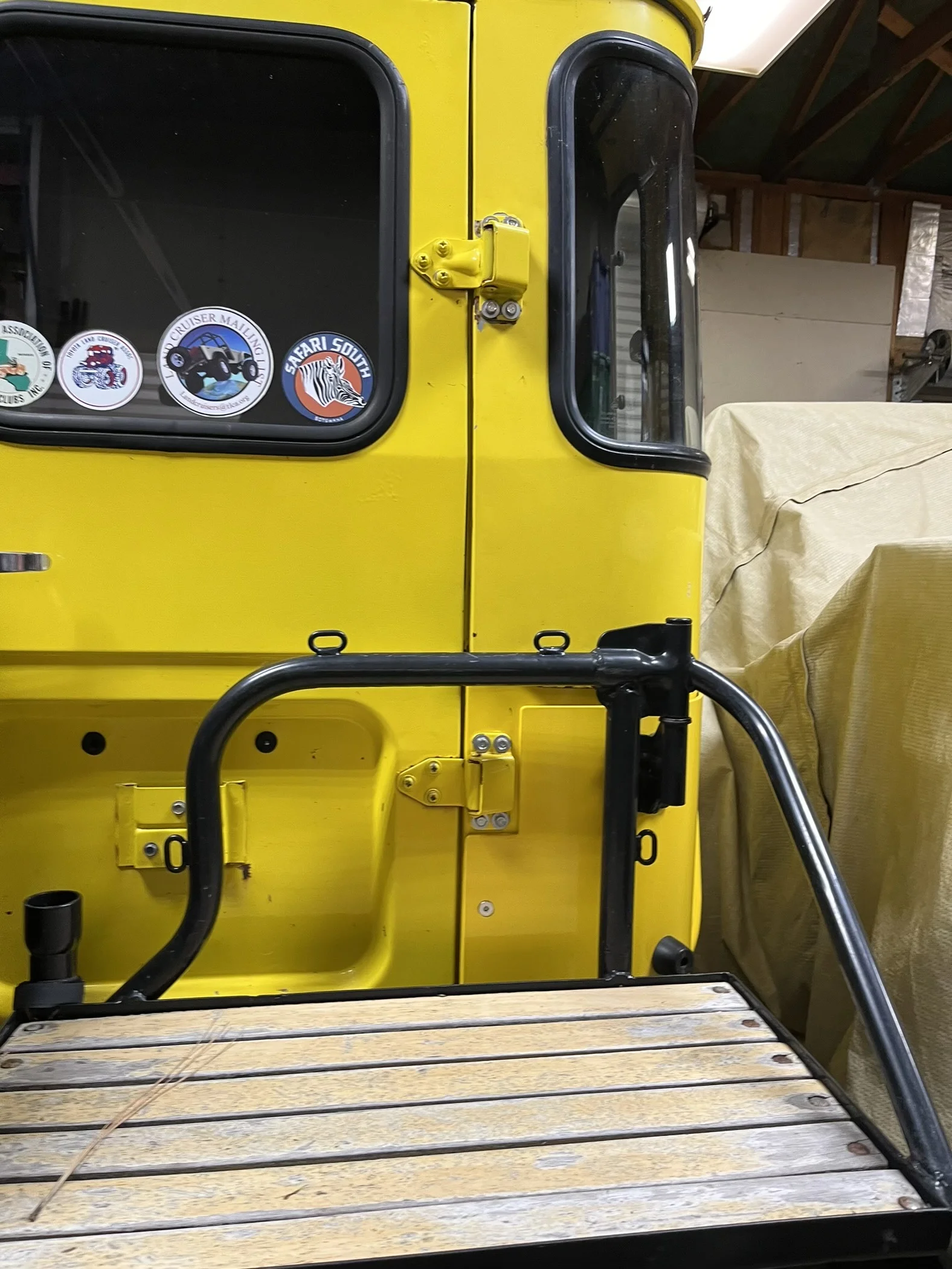

Here’s the right side rack.



[3_puppies]

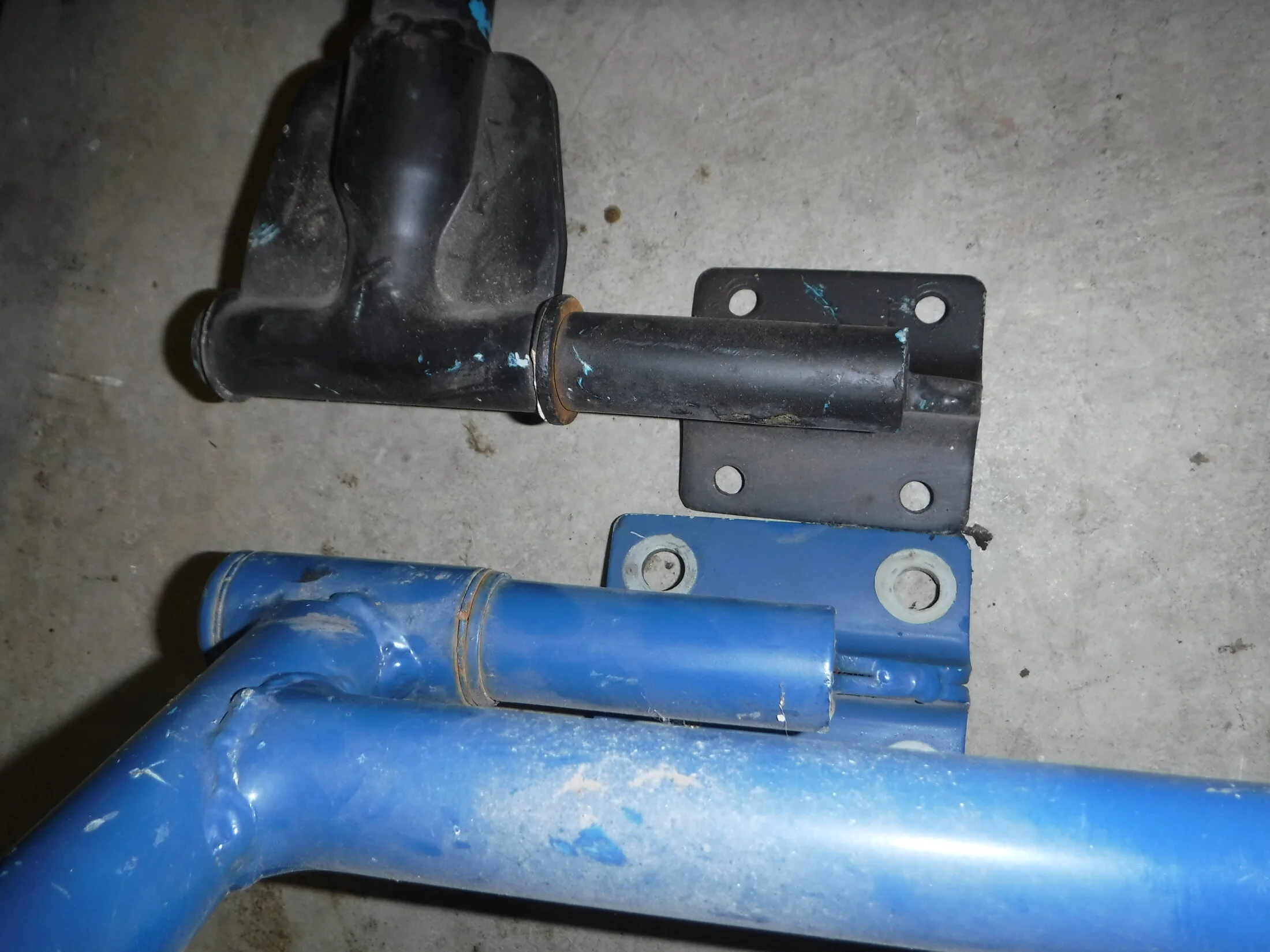

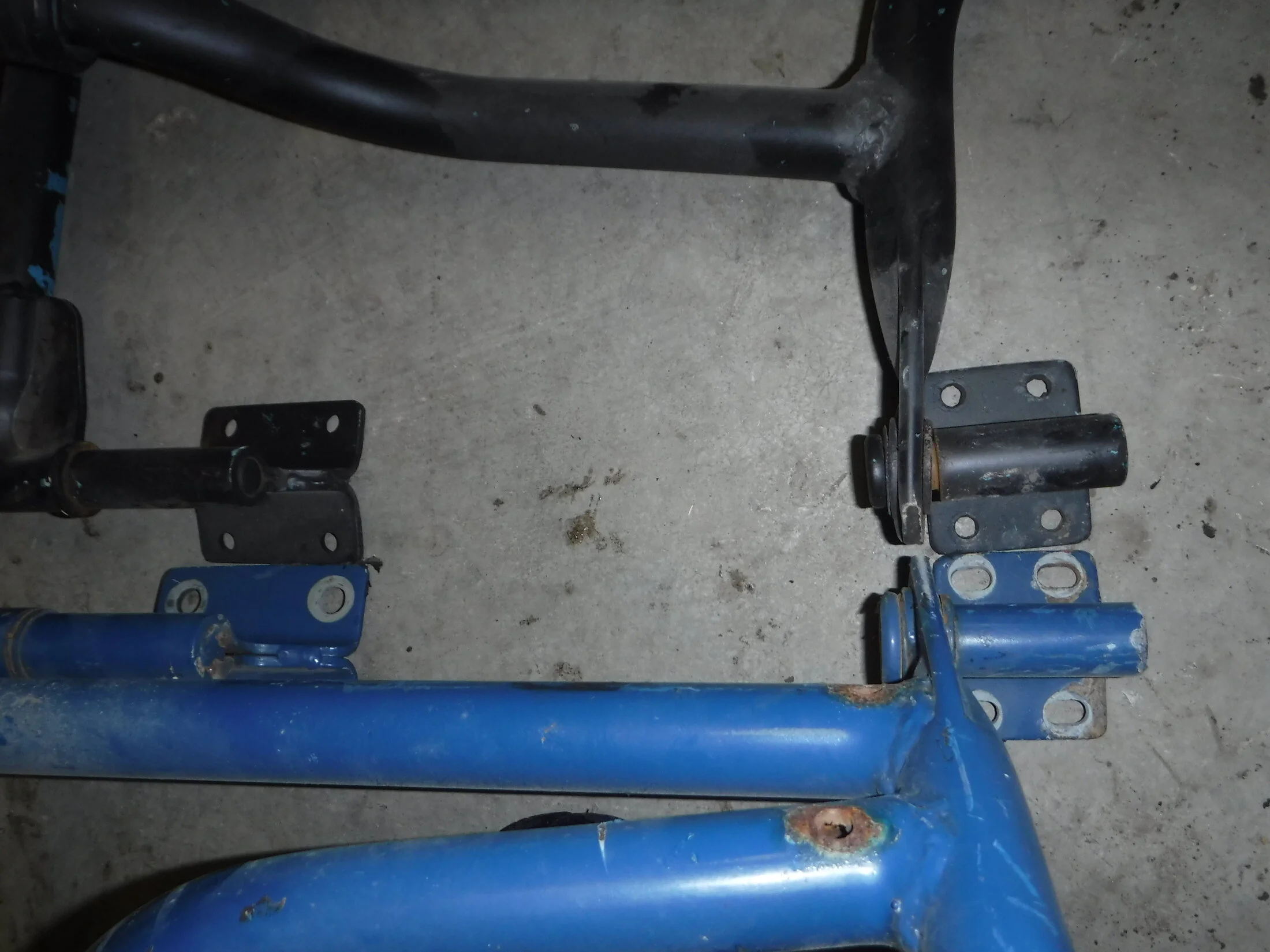

here are some pics from years ago

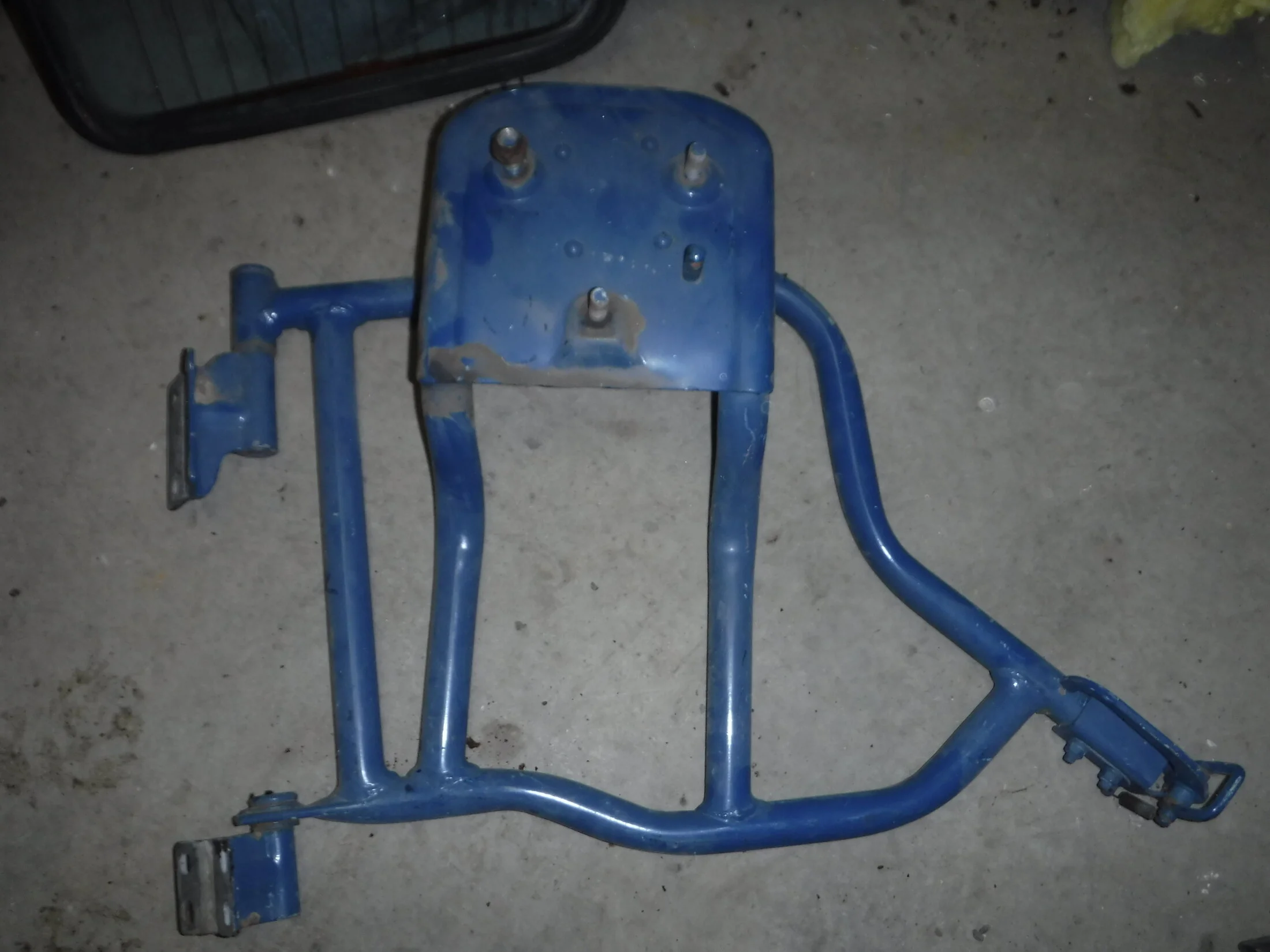

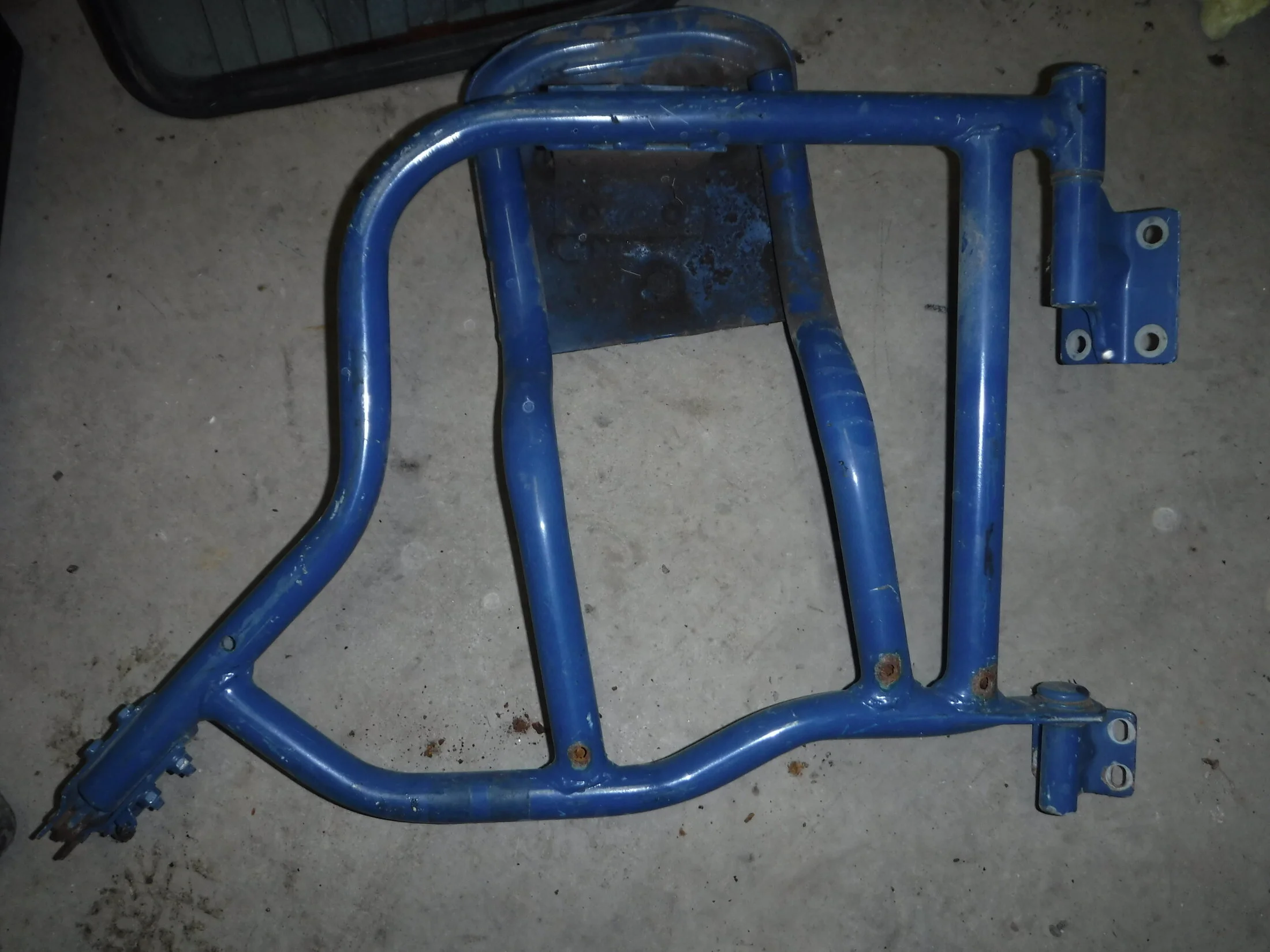

the blue one is a later carrier, has the bigger upper hinge foot and the extra bar between the hinges
black one is earlier

just for referrance, the blue one was sold several years ago



[kevos37]

What happened to op?



[GrayJ]

What happened to op?

Still here. I have removed the example photos. I was relying on the SOR photos which show the later version with the additional vertical bar.



[kevos37]

In search of a spare tire carrier for a '78 fj40. Shipping would be to the 83646 zip code.

I sold the tire carrier that I offered to you.



[GrayJ]

No problem. Thanks.



[3_puppies]

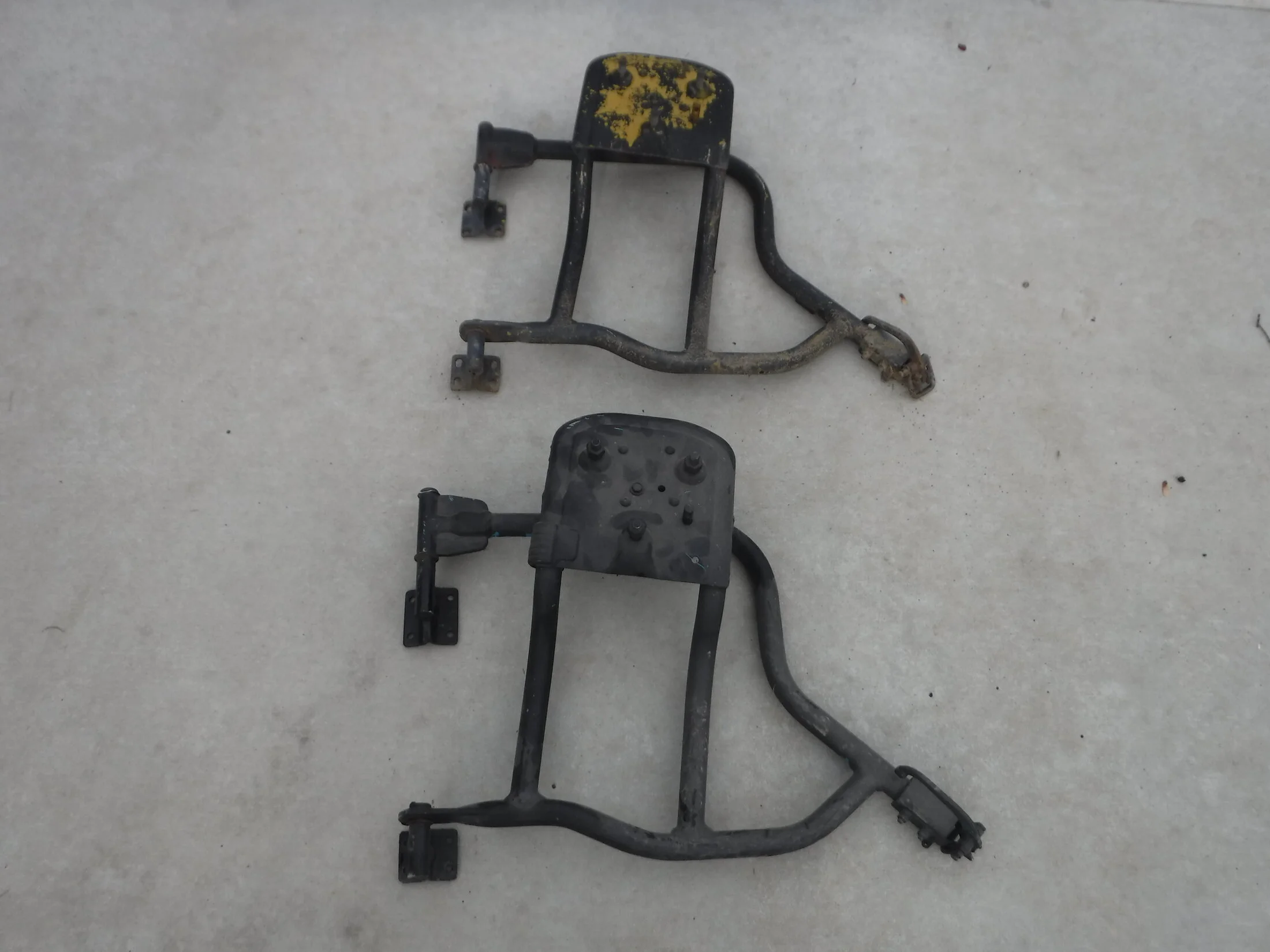

pics of the 2 I have
both need bushings in the hinges as they are wobbly
