So both of the LVs that I have owned, had the exhaust run under the frame and a muffler under the driver side rocker with the exhaust exiting in front of the driver rear tire.

Does anyone know if that would have been the factory placement for an LV?

Thanks

Joined
May 15, 2008
Messages
3,118
Location
Phoenix
It routes pretty much the same as a FJ55 did. From the motor to under the driver side rocker then out behind the rear tire. There is room. Looking at my parts catalog, it may have been done both ways.

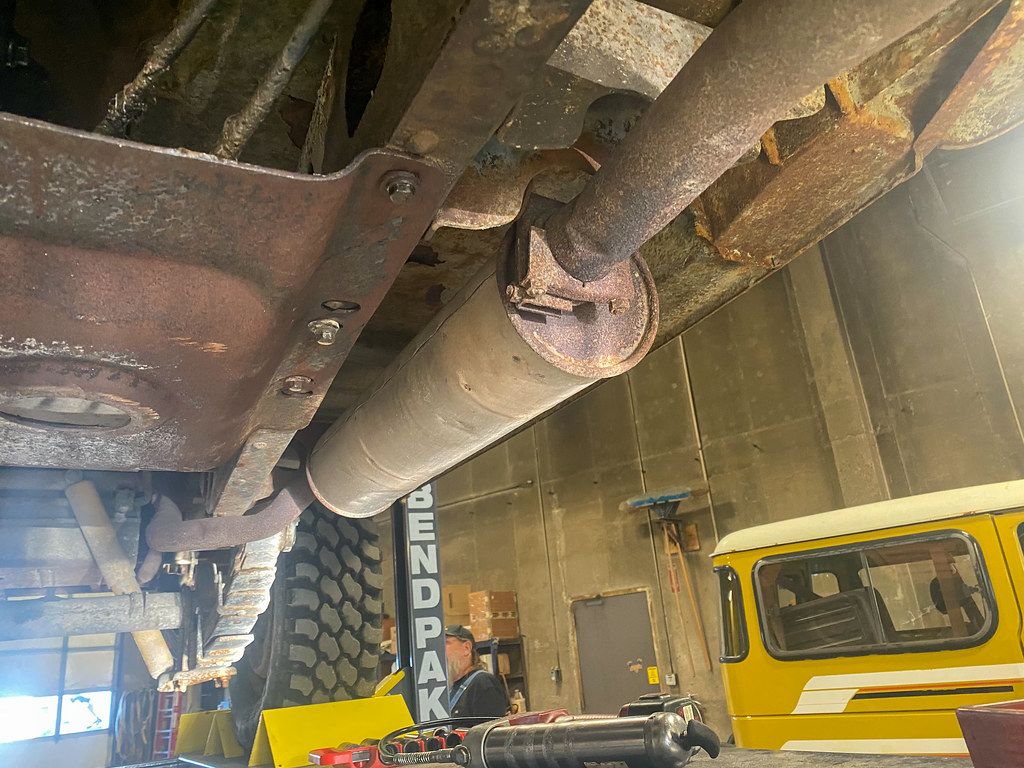

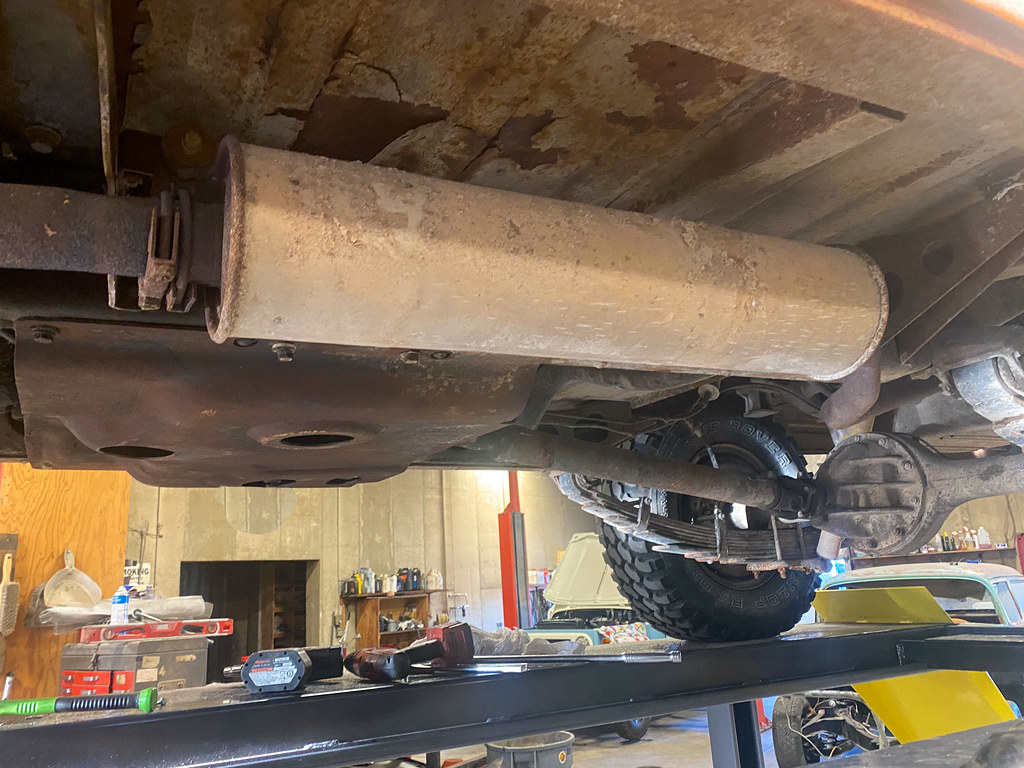

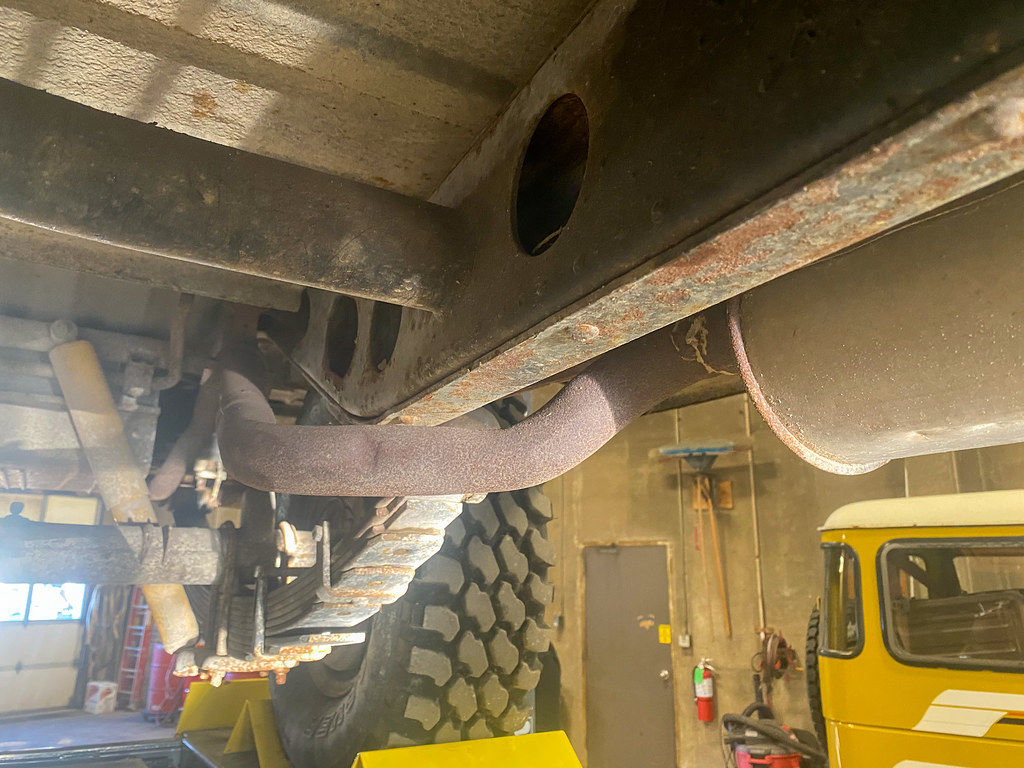

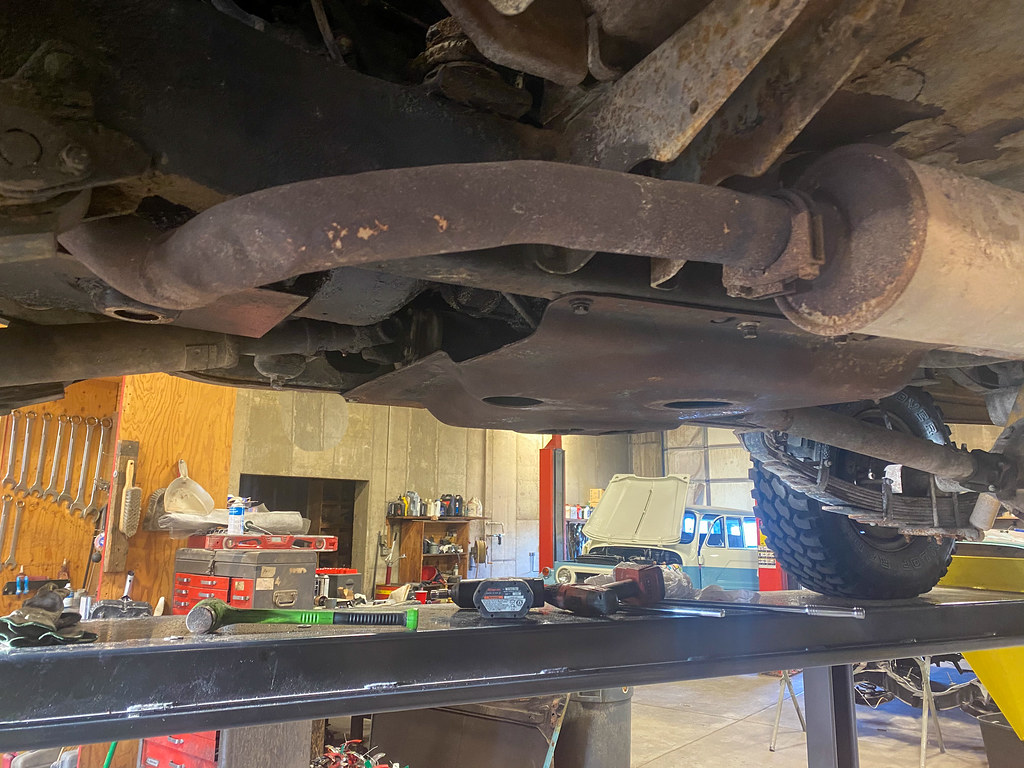

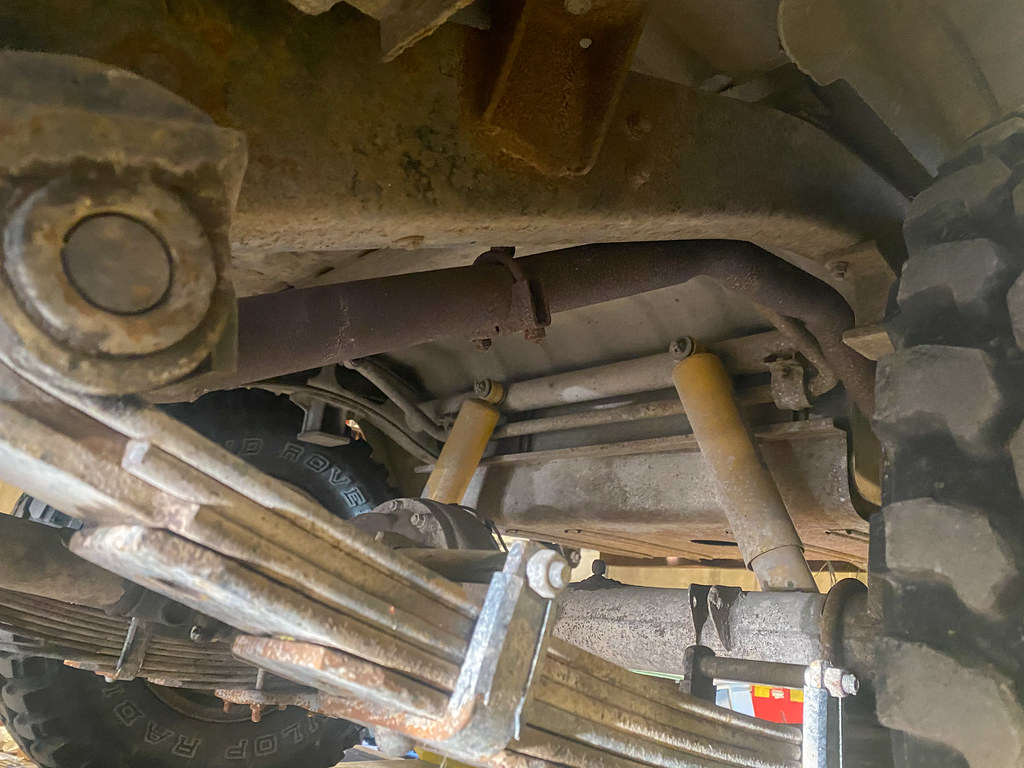

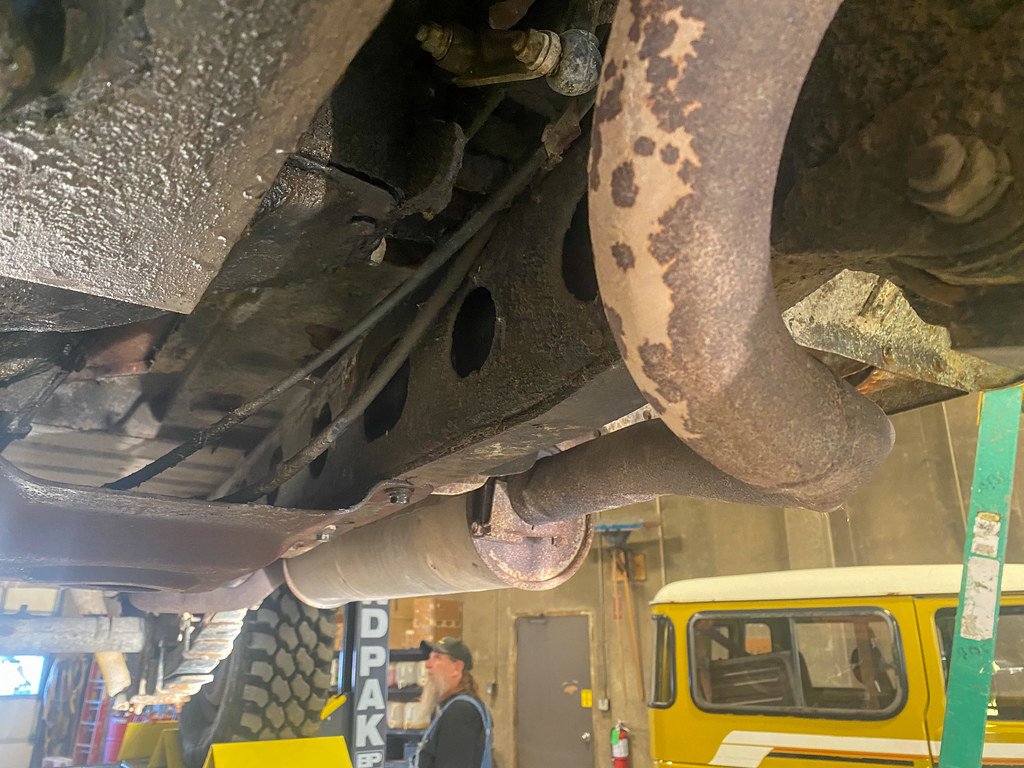

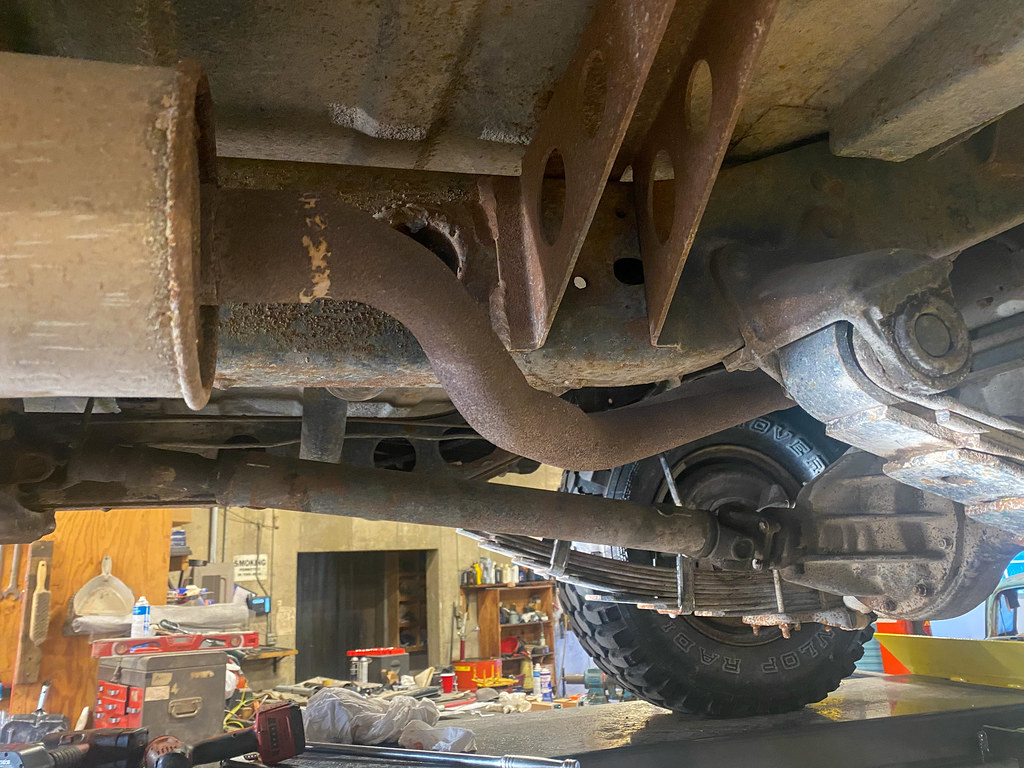

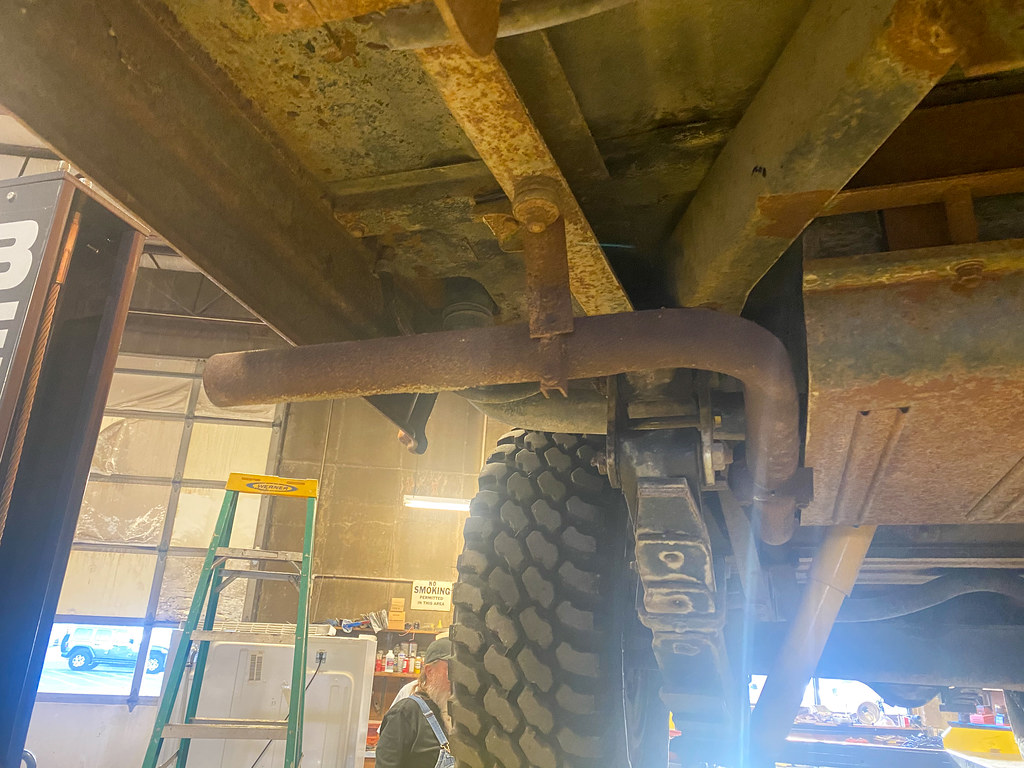

My set up is under the truck then routes out behind the rear tire.


ClemsonCruiser

Supporting Vendor
Joined
Feb 17, 2004
Messages
9,149
Location
Clemson, South Carolina

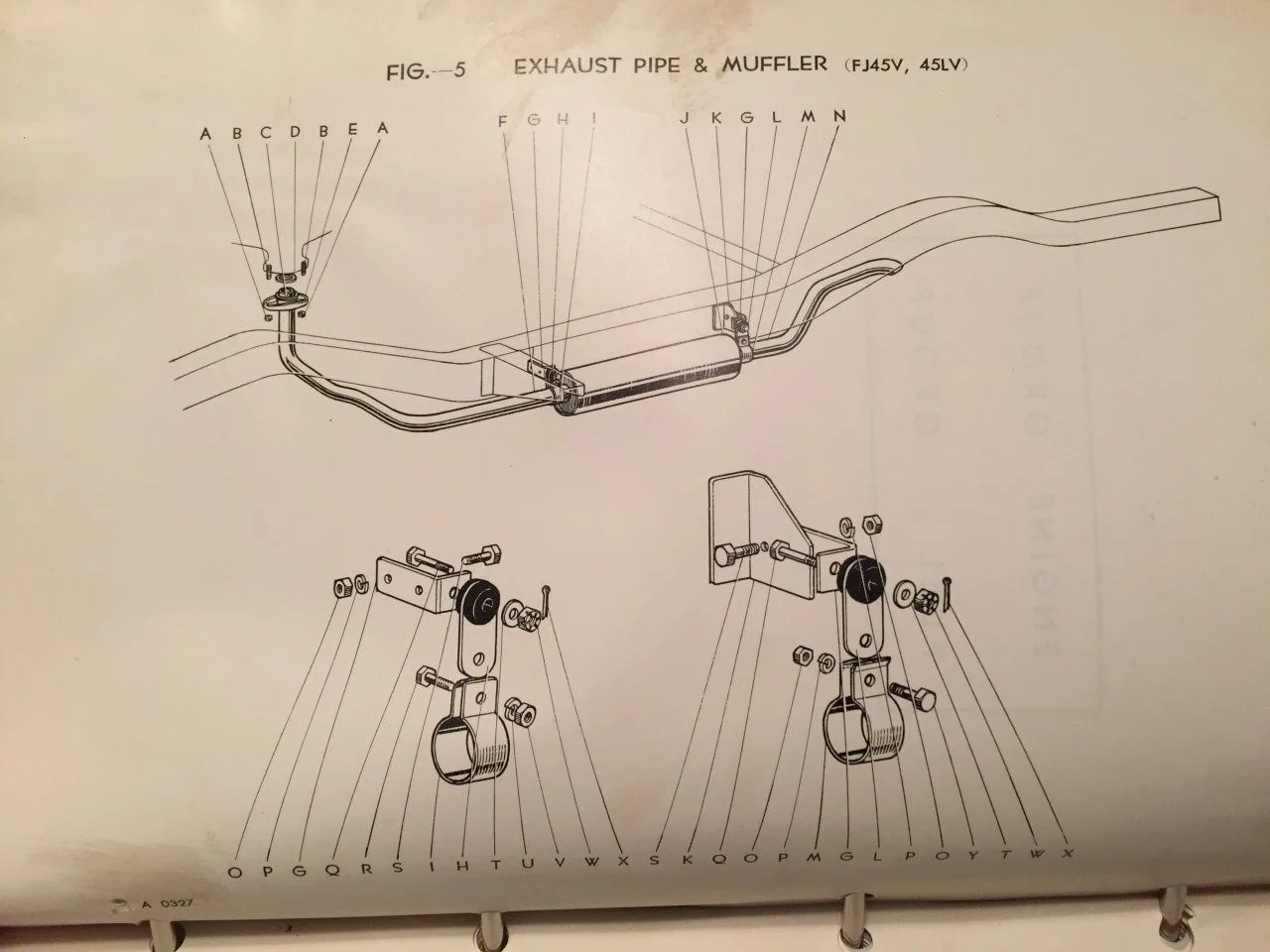

Not sure if this helps or muddies the waters but the parts schematic makes it look like it dumps out on top of the rear axle??


These factory sales brochure might hint at the same thing since I can't make out an exhaust pipe exiting in front or behind the rear wheel
