LS Swap motor mounts (1 Viewer)

[cruisermatt]

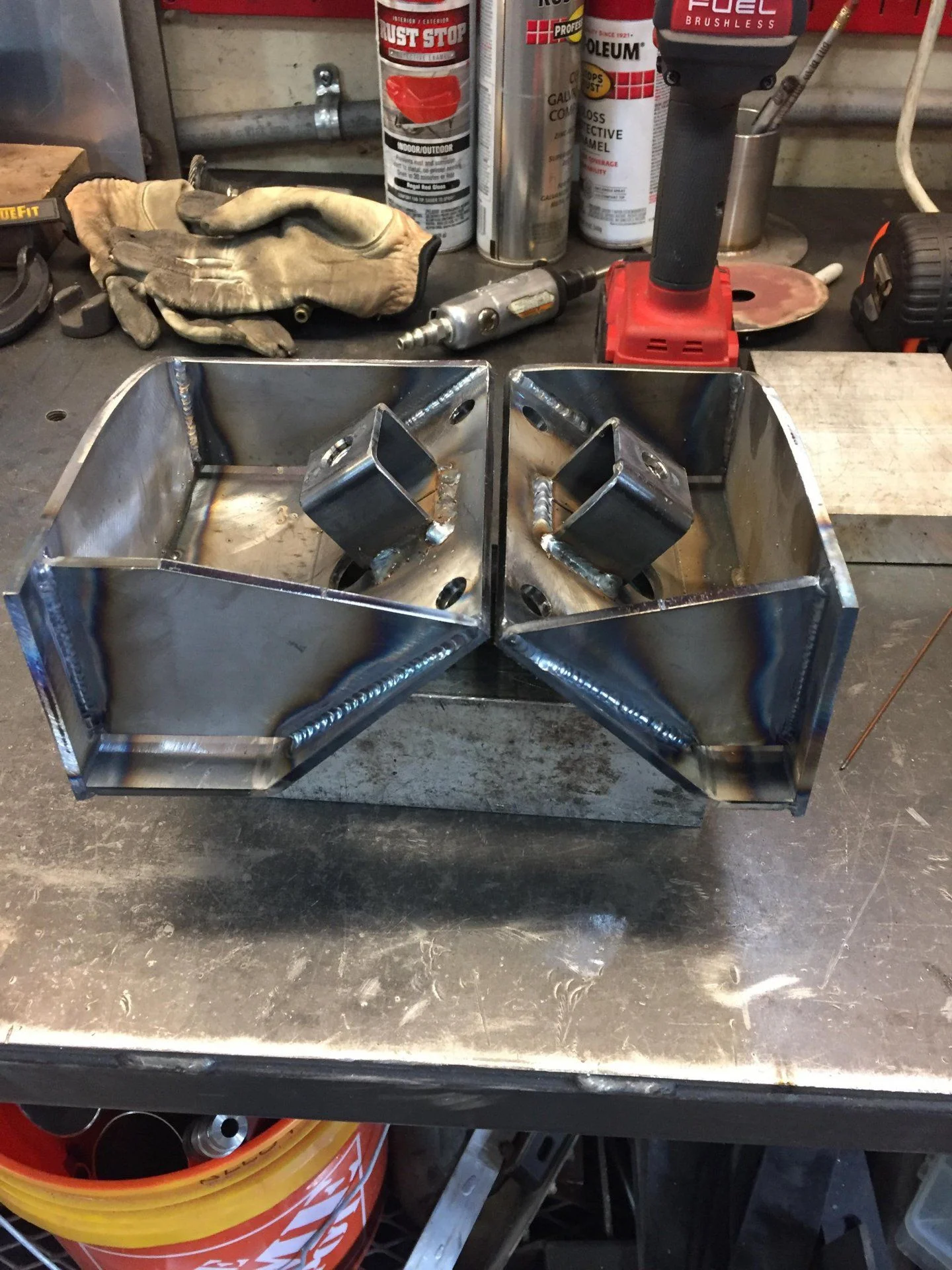

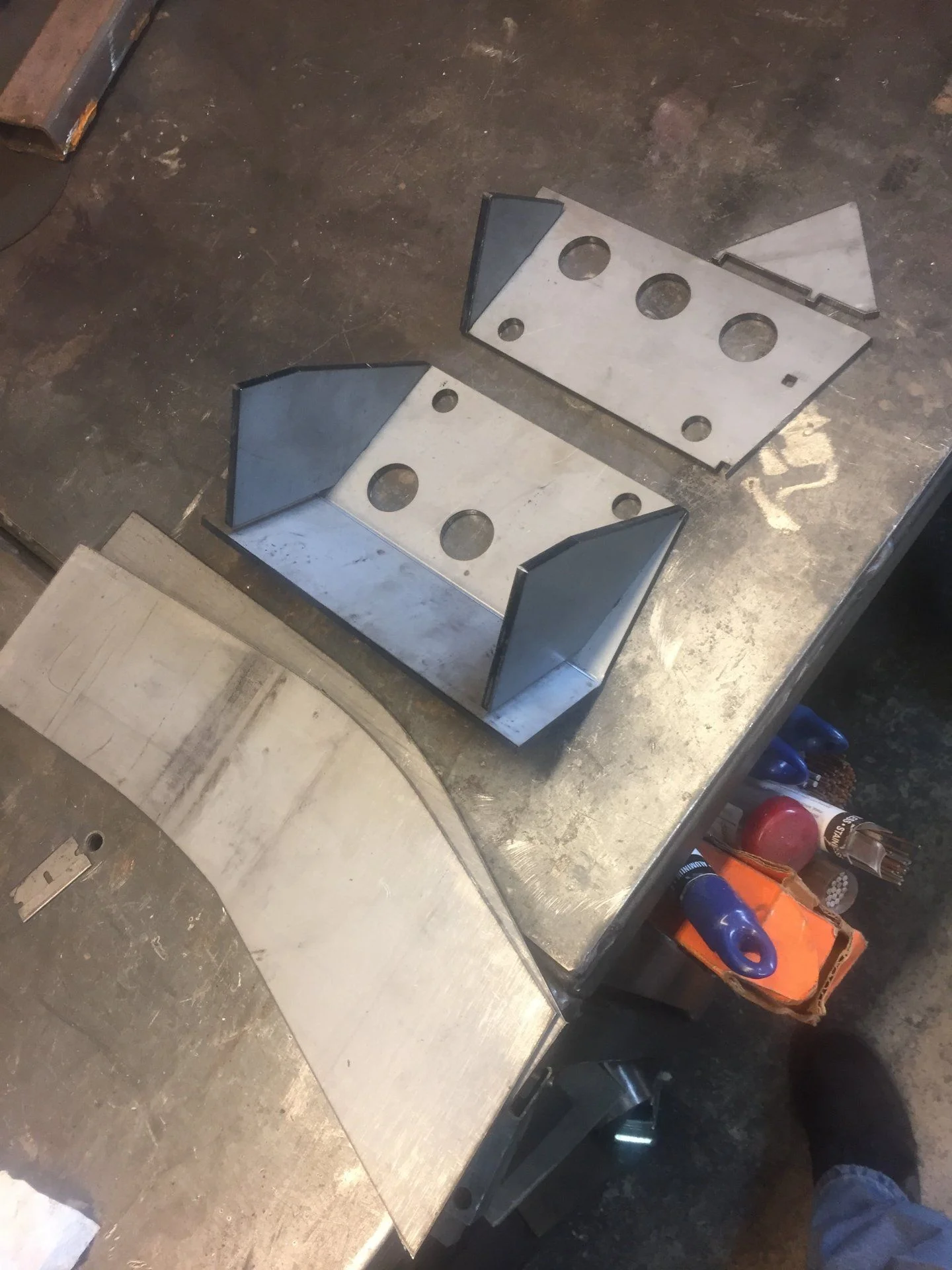

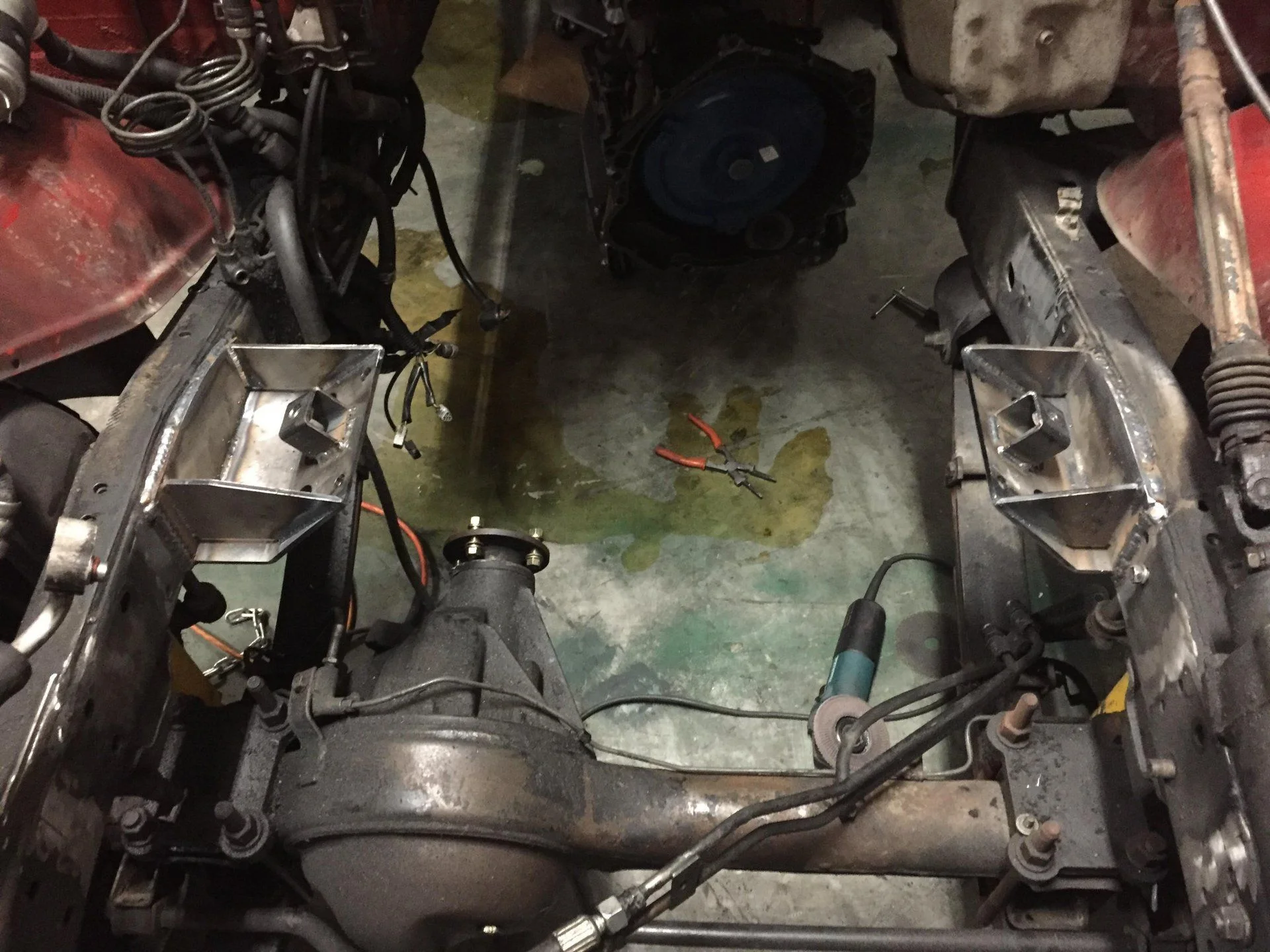

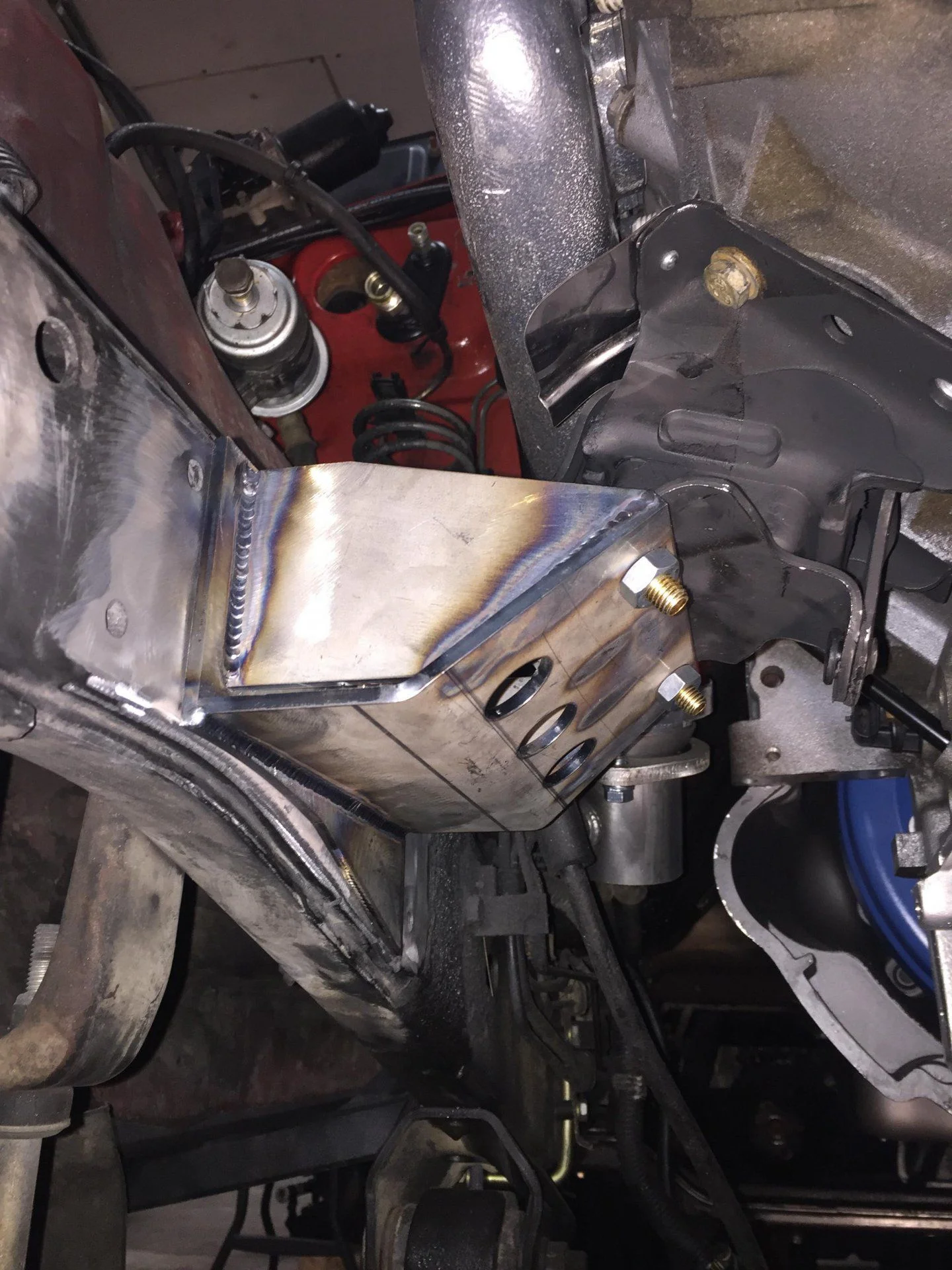

This is a setup I came up with to use GM-style engine mount, Anchor part # 2909, found on virtually all GM trucks and SUV's equipped with LS-style engines from 1998 to about 2013. These are commonly found and a great mount to use for your swap. However, they can be tricky to use for your project because of their odd angles, so I made this kit to help with that. The sheet-metal components are laser-cut and press-brake bent from 3/16" steel. The middle raised section has the M10 nut welded for easy installation.
This kit provides the correct 1.5" engine offset to the driver's side of the vehicle so the transfer case stays in the correct left-to-right plane.

The next ones that are being made now have the frame stiffening plate extended 4" forwards to provide space for conversions using the NV4500 transmission or Ranger overdrive which require the engine to be located farther forwards in the engine bay.

I'm going to start these out at $200 shipped in the lower 48. Components will be shipped unwelded.

Let me know if you have any questions!
Matt



[Bama4door]

Nice job Matt, these look great



[cruisermatt]

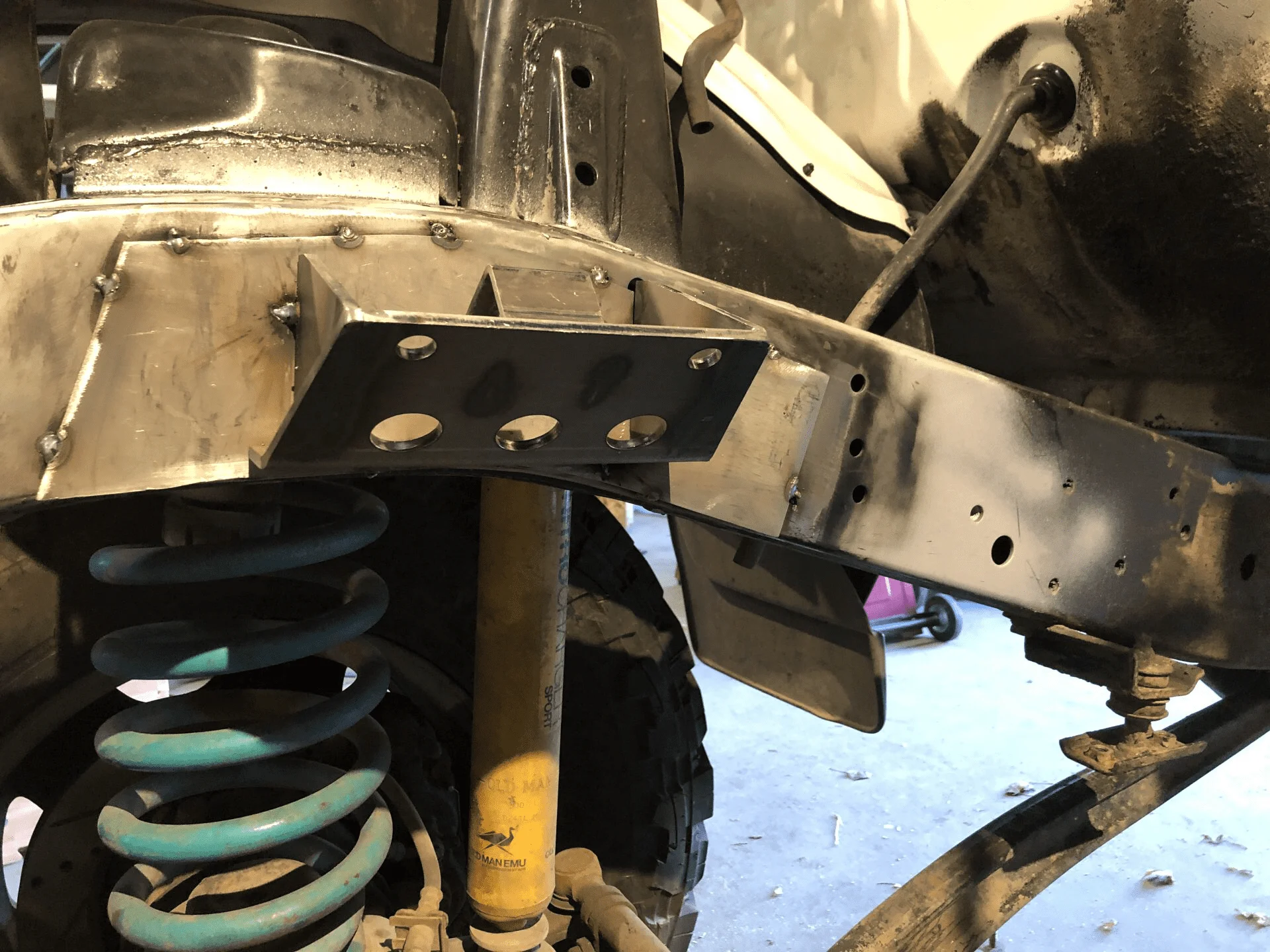

80 series kit in progress



[cruisermatt]

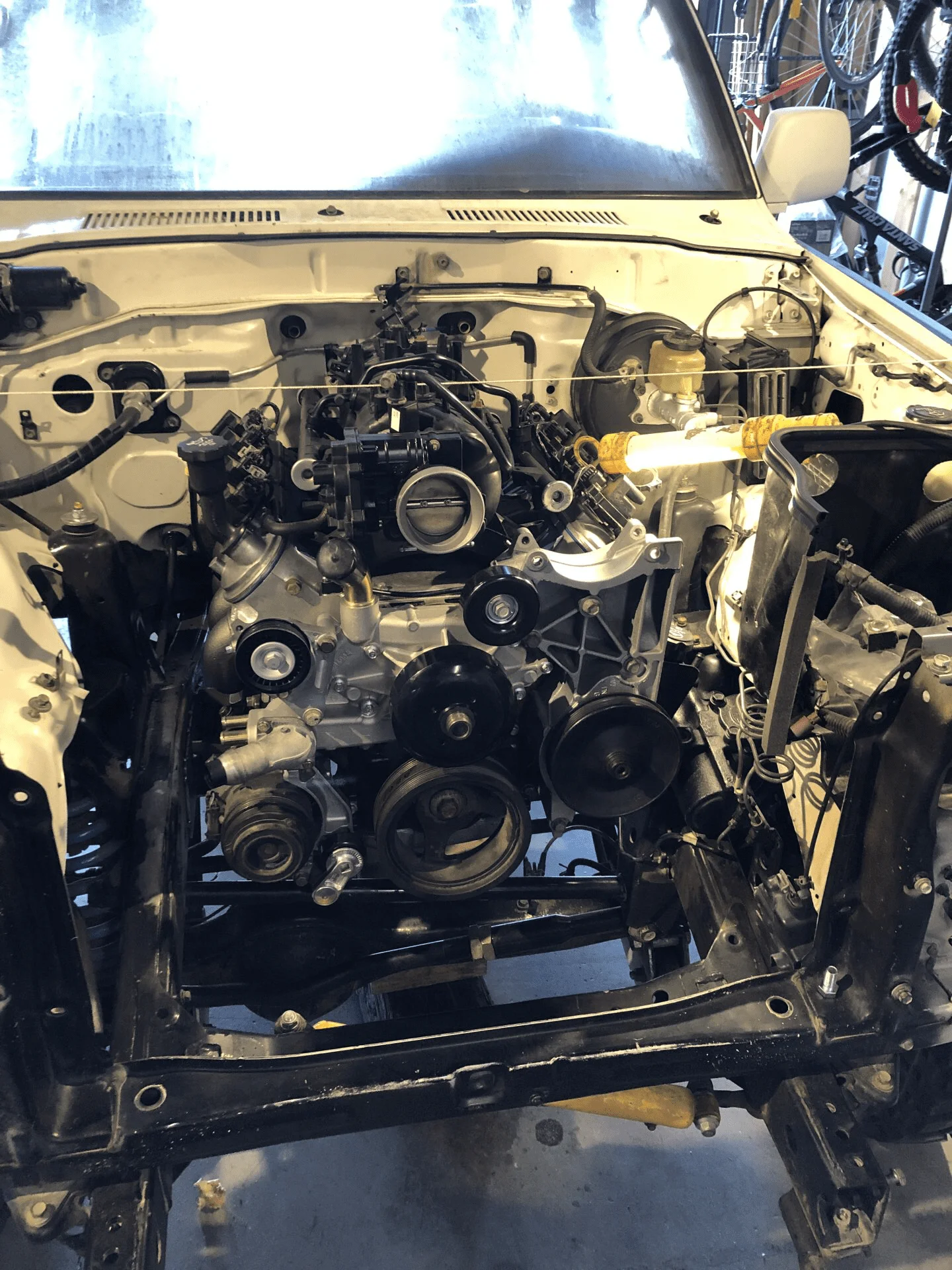

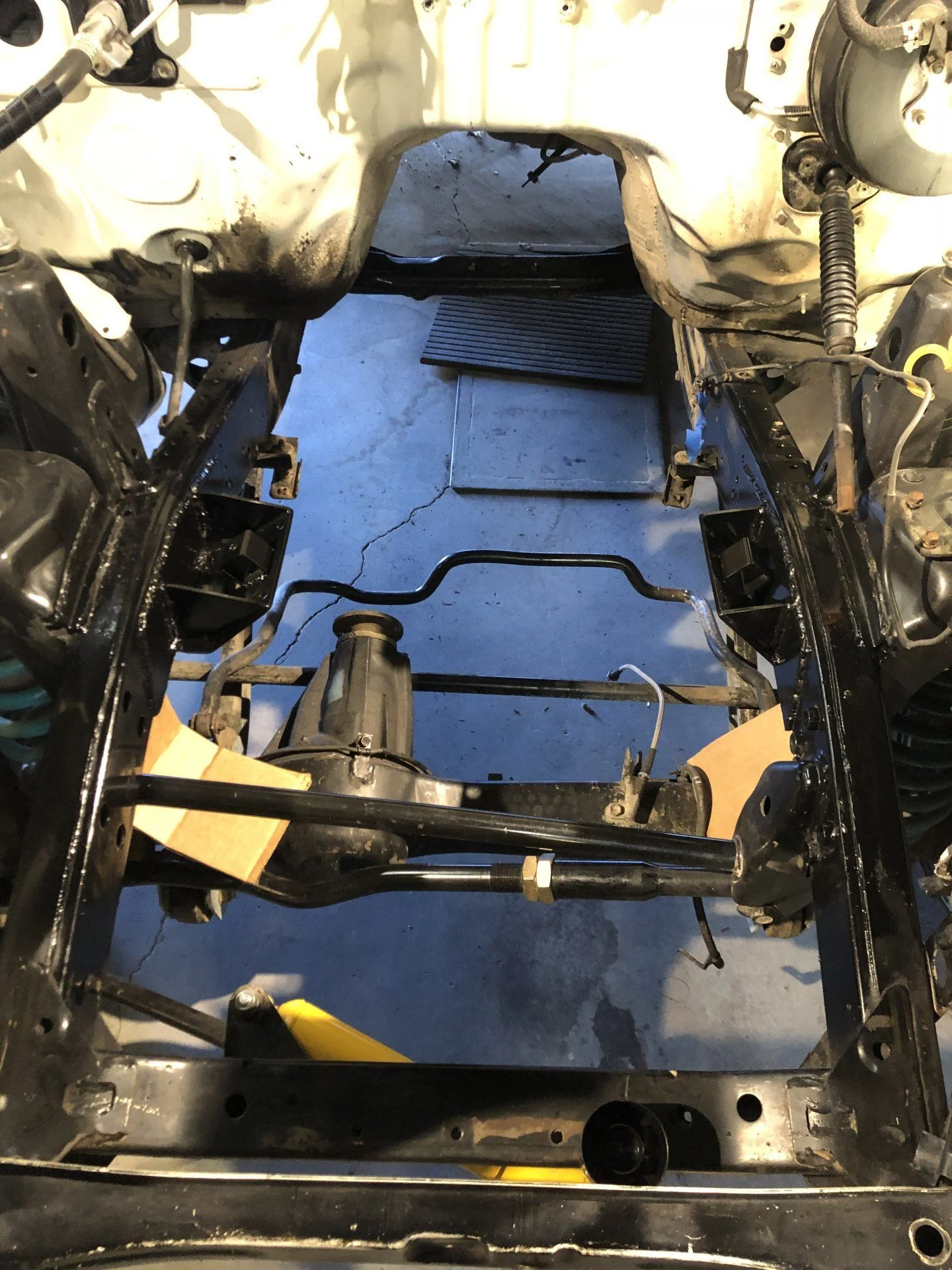

These are going to @masong for test fitment in 80 series swap project



[cruisermatt]

3 sets of 60 mounts sold already, about to place an order for another five sets, who wants in?



[masong]

Oh boy oh boy oh boy!



[xcb5]

i'm interested!



[cruisermatt]

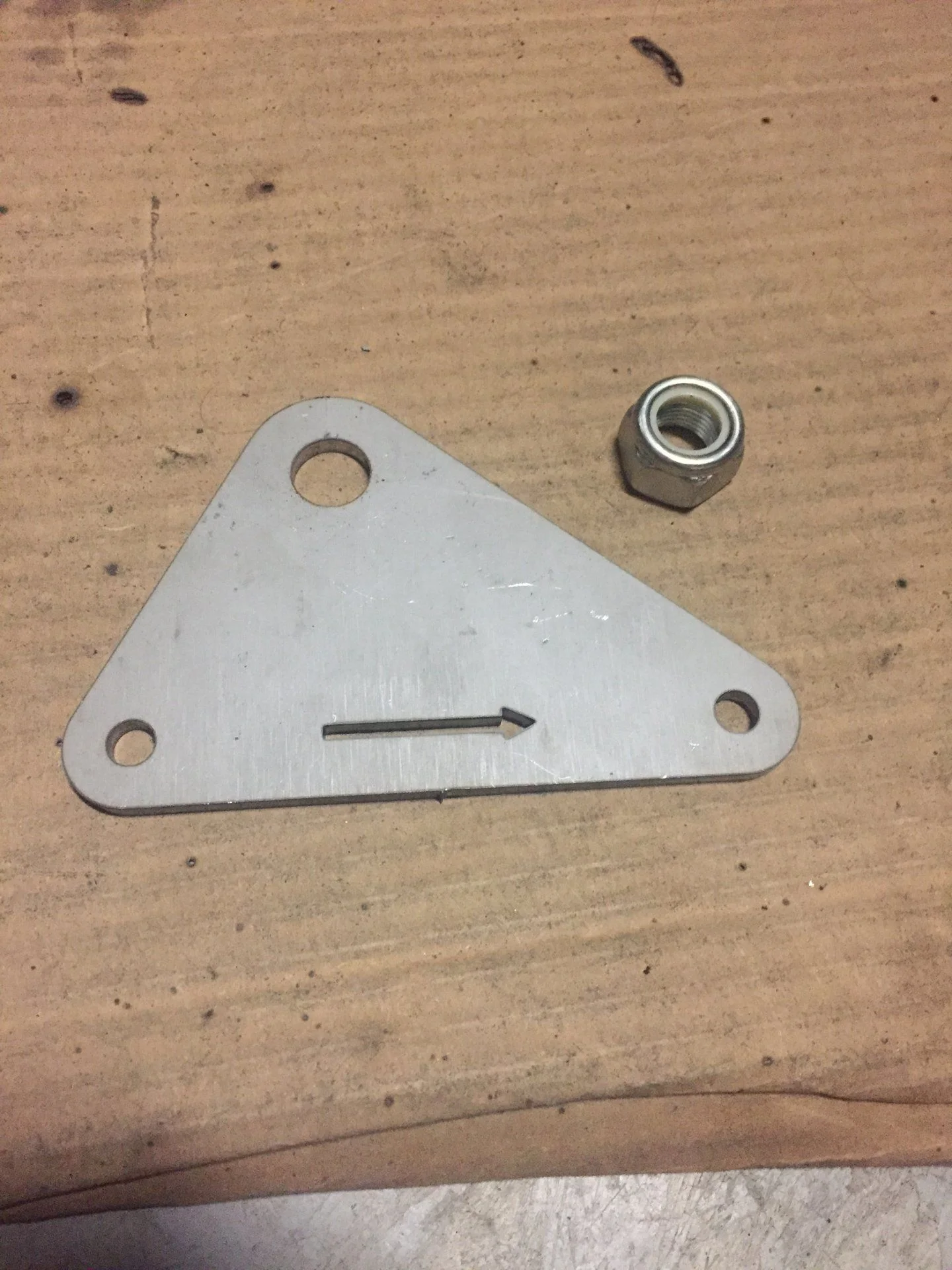

I designed a simple bracket for mounting the FJ62 T-case shifter to the 4l60 transmission. It keeps the original linkage in it’s place without modification. 5 minute install!
$40 shipped in US, includes 16mm nylock for shifter pivot stub.



[cruisermatt]

One more set in stock, five more on the way



[LSULX]

Looks great matt. Let me know if you've got anything in the works for 40/LS swaps. Thinking about running LS/NV4500 with the original 3speed transfer case (not 100% sure that it will hold up to the LS though. THanks.



[cruisermatt]

Looks great matt. Let me know if you've got anything in the works for 40/LS swaps. Thinking about running LS/NV4500 with the original 3speed transfer case (not 100% sure that it will hold up to the LS though. THanks.

I have two 40 swaps scheduled, haven’t decided what I will be doing yet. Going to take some creativity as the 40 frame rails are a lot narrower.



[thatcabledude]

Damn. If I ever pull my engine I’d swap to these in a heartbeat.



[cruisermatt]

Damn. If I ever pull my engine I’d swap to these in a heartbeat.

80 series prototyping in progress via @masong who is doing a great job



[Realst8]

I'm very interested in the 80 series mounts. Are they available yet?



[tornadoalleycruiser]

Prepping for a spring project. Any progress on FJ40 LS frame motor mounts?



[cruisermatt]

Prepping for a spring project. Any progress on FJ40 LS frame motor mounts?

In the middle of that right now. Stay tuned.

I should also have 80 stuff finalized soon



[Joe Link]

I should also have 80 stuff finalized soon

Great!



[cruisermatt]

Unfortunately due to the current ridiculous material pricing I have to raise the pricing on the 60 series sets to $260, plus shipping. Sorry about that.

These have been pretty popular and I have sold almost 30 pairs now I think. I look forwards to getting my 40 and 80 kits done, hopefully ricing can come back down to sane numbers.



[NeverFinis]

Following for FJ80 mounts



[cruisermatt]

We are doing a 80 in the shop late February/march and will be installing the final revision of the 80 mount kit on that project. Hopefully I have the online store set up around that time as well for those as well as my other products like wire harness adapters, shifter brackets, etc. Im sure I will find plenty of other parts to market for 80 conversions on that one as it is the very popular Gen 3/auto setup.
