Lou's [it only needs a clutch] 1976 FJ40

under_psi

SILVER Star

Joined
Oct 15, 2006
Messages
990
Location
Madison
I am going to start laying out parts.....sunday. prolly toss tire carrier on.....waiting to get a couple brackets for the air.....


under_psi

SILVER Star

Joined
Oct 15, 2006
Messages
990
Location
Madison

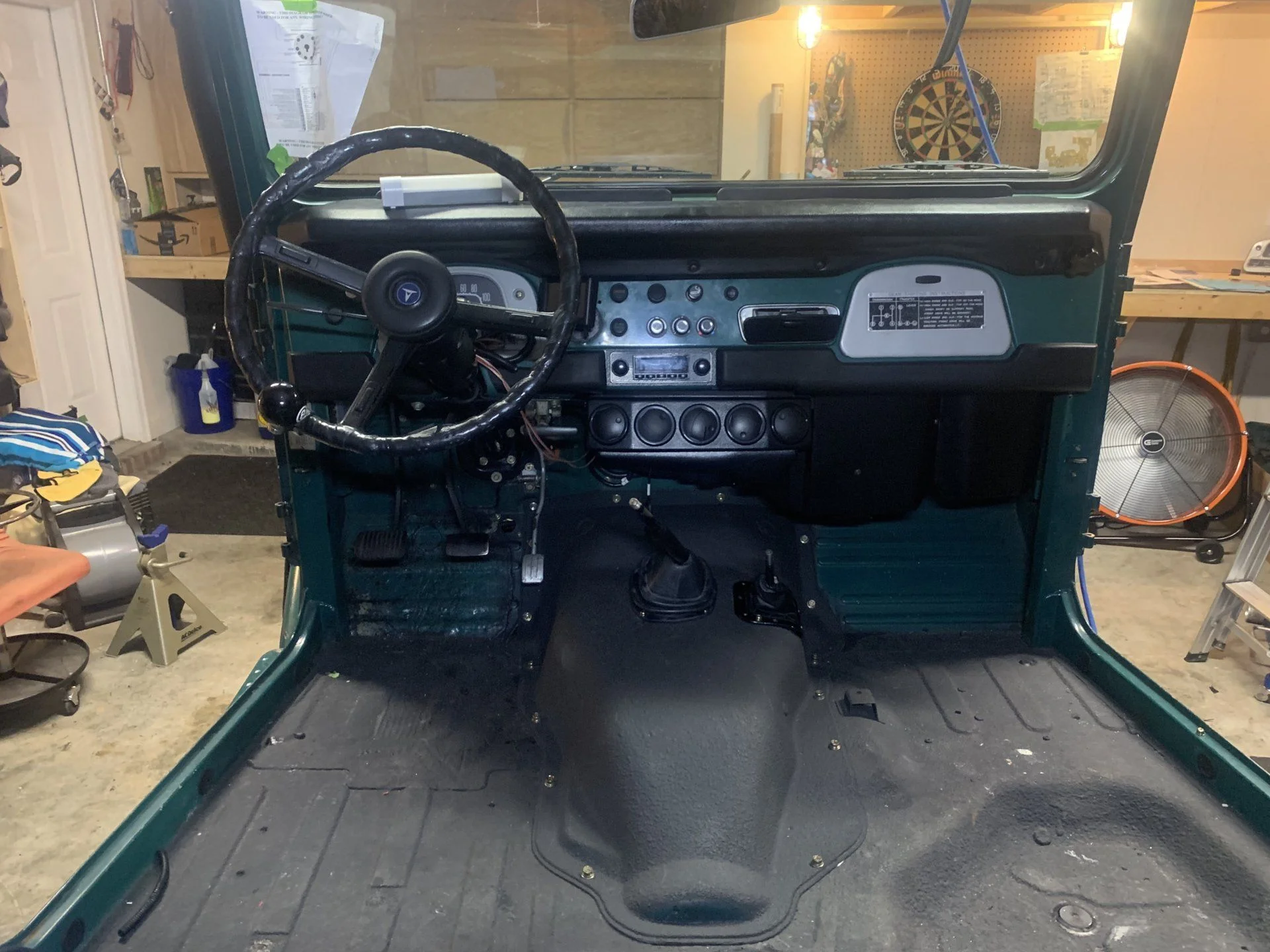

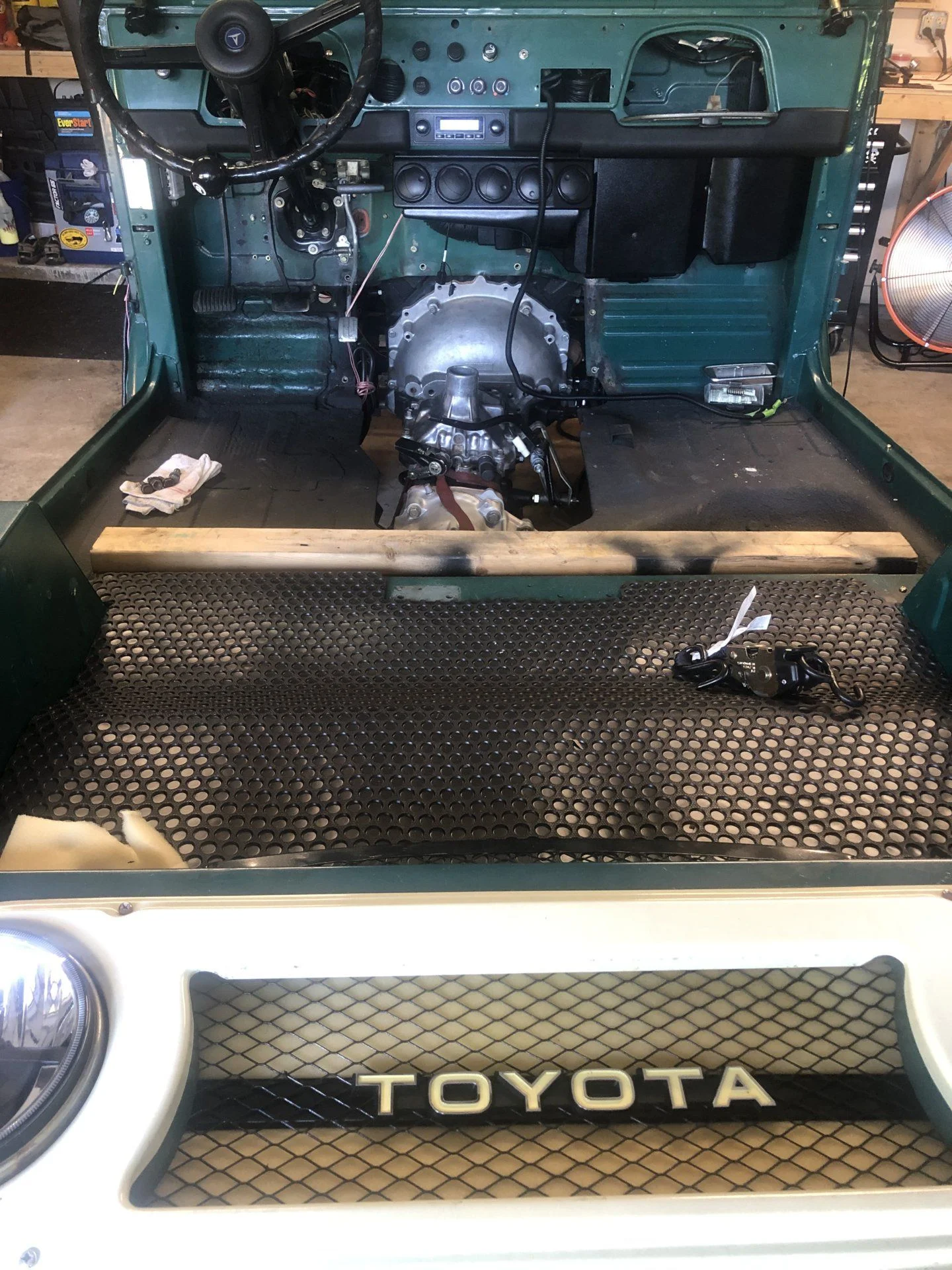

also....yall keep an eye out for a nice trans hump....preferably goblin green but any color will do at this point.....


under_psi

SILVER Star

Joined
Oct 15, 2006
Messages
990
Location
Madison

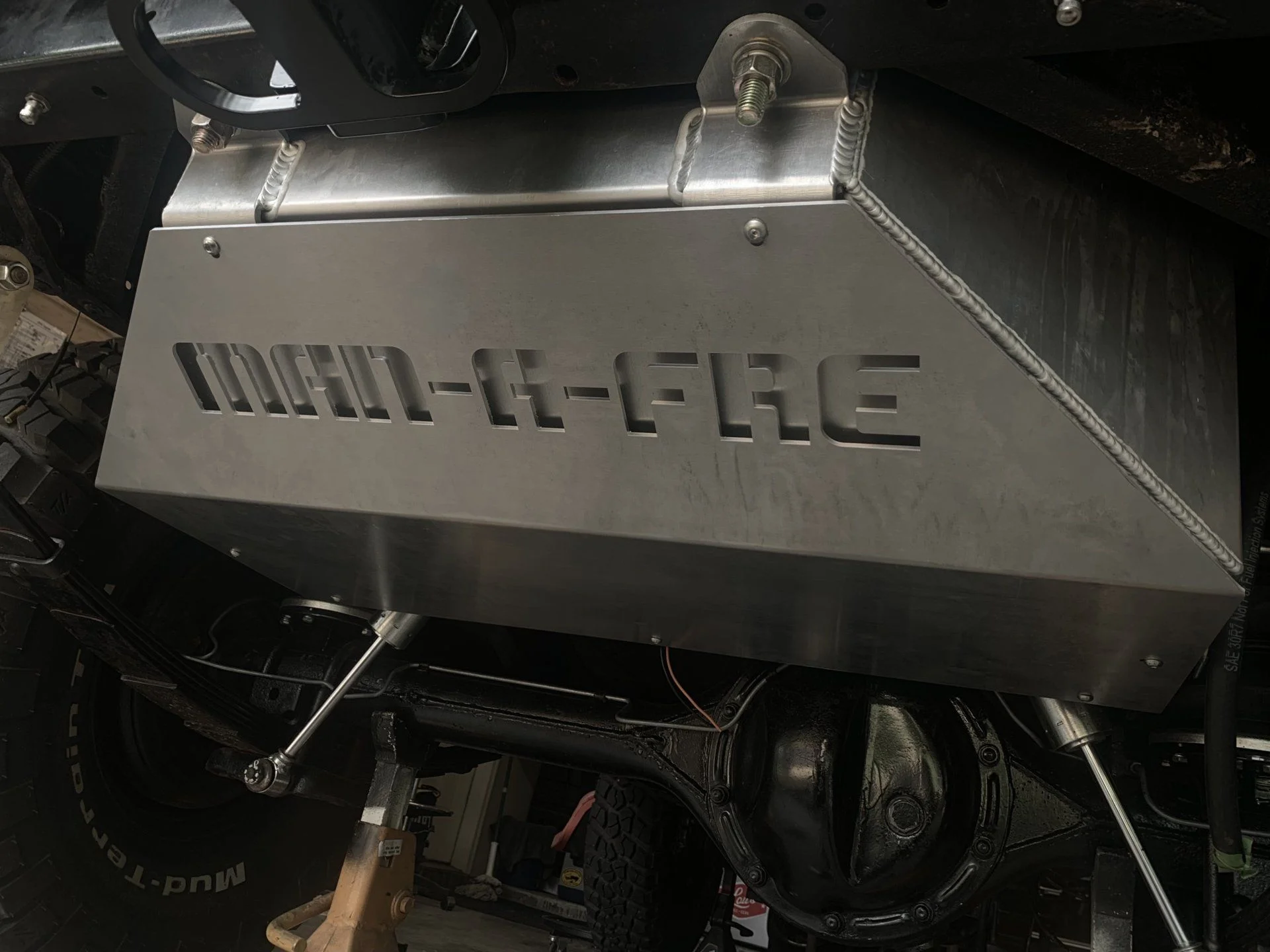

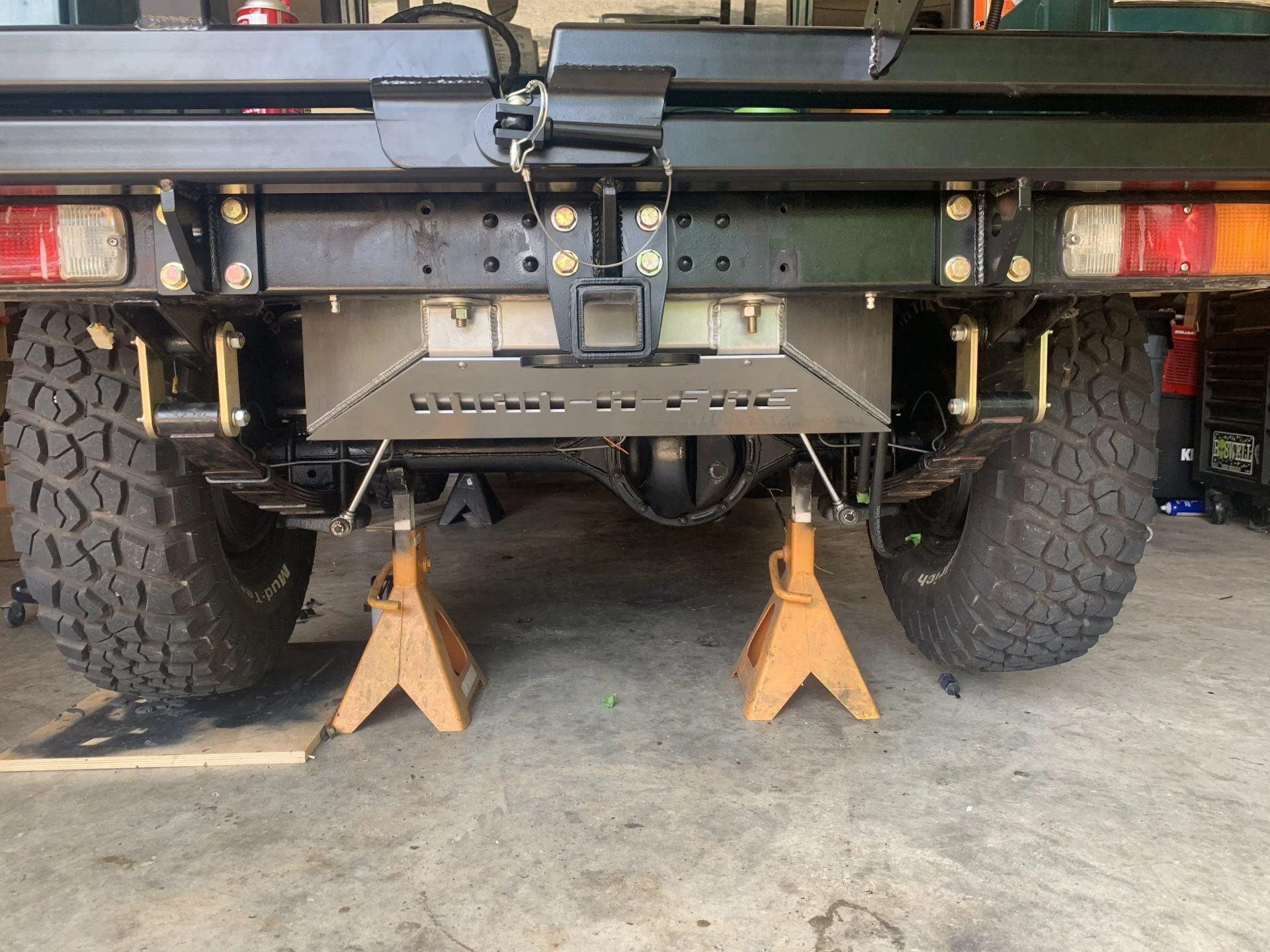

new fuel lines run. and reRun. I decided to eliminate the mechanical pump I have been running and nix the idea of the power surge system. makes sense for me because I'm relocating the battery, adding a plenum and inline filter for the snorkel and also adding the lines and all for the vintage air. Man-A-Fre aluminum fuel tank in too to replace the downey poly tank.

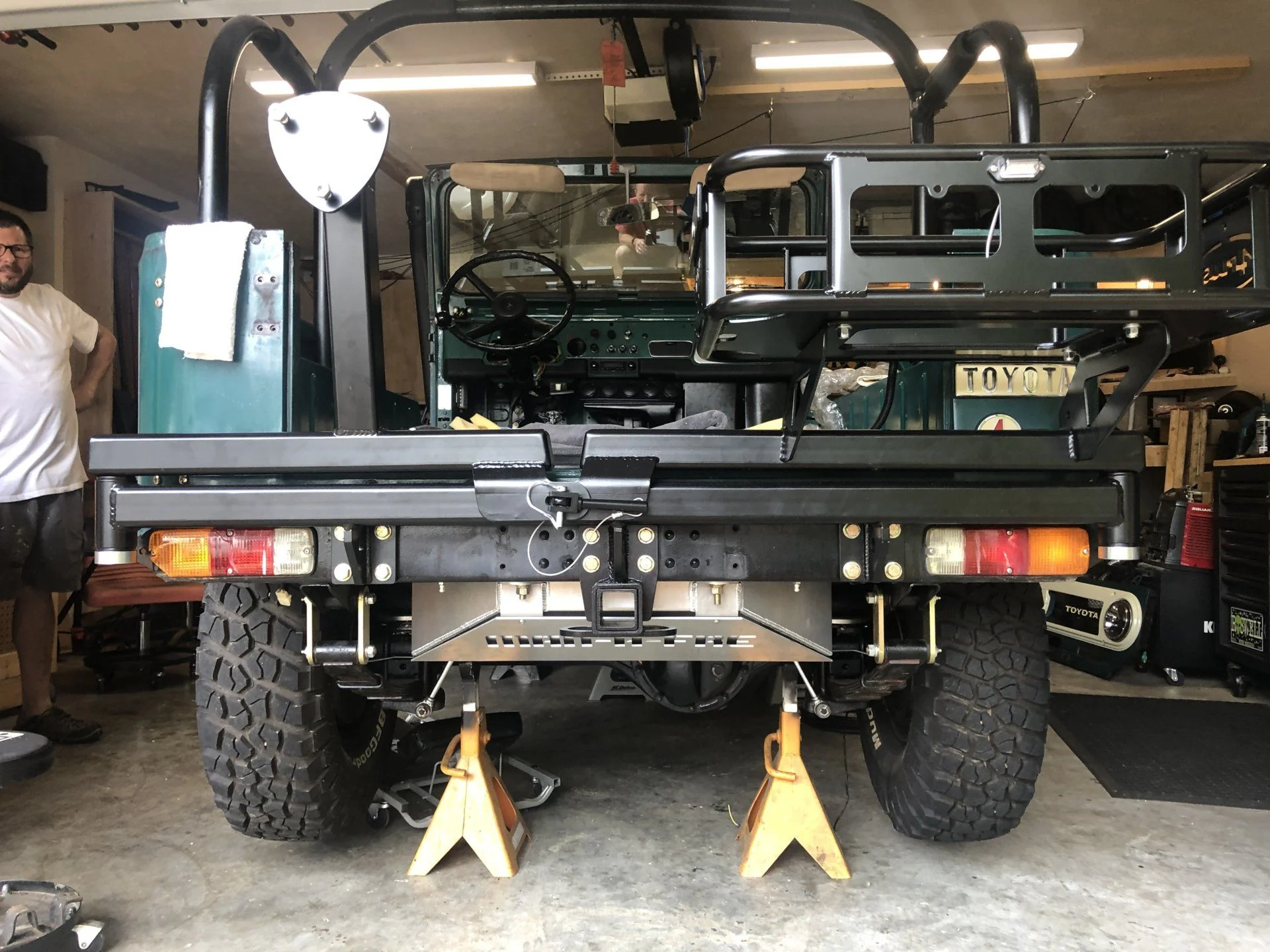

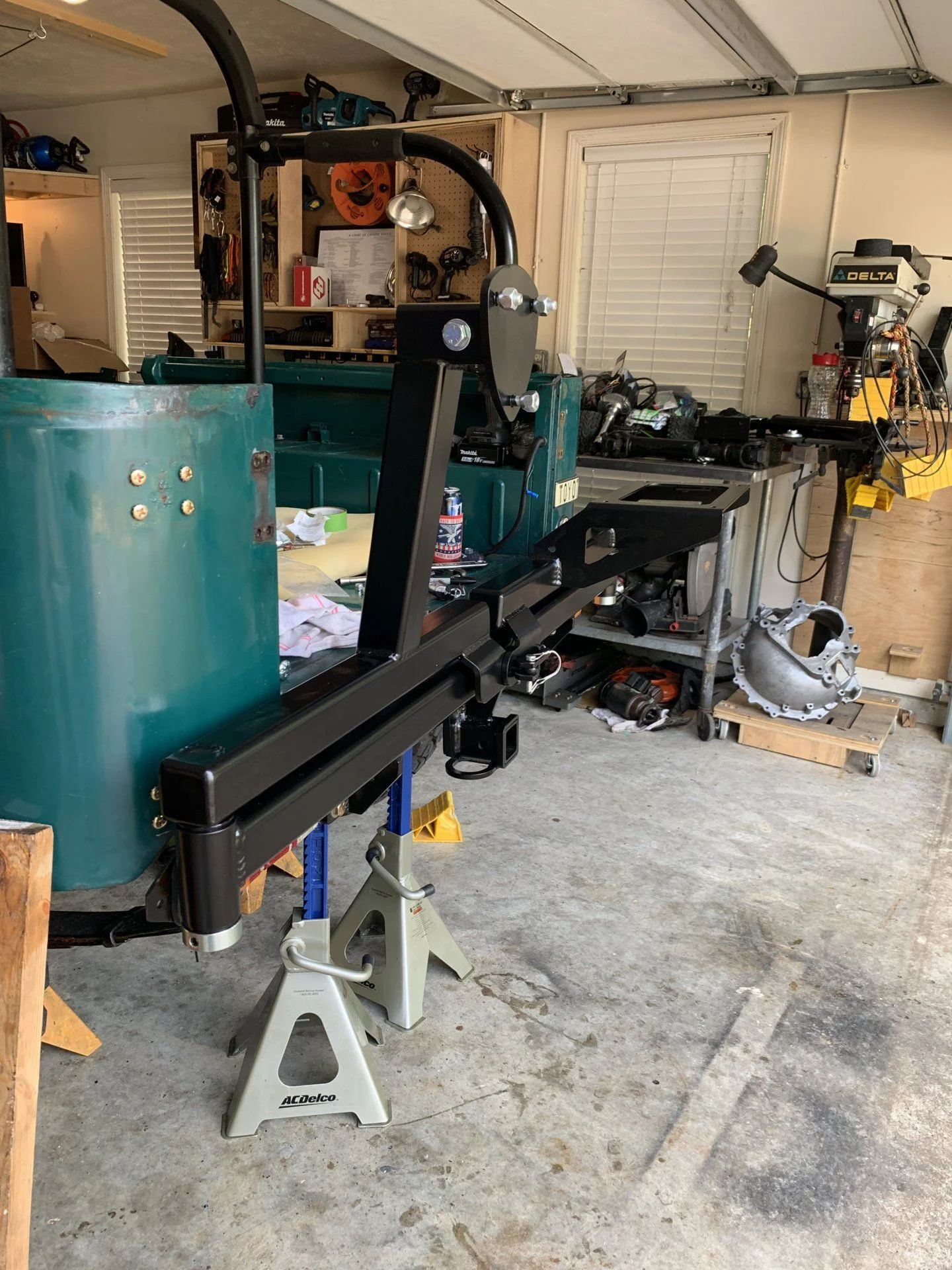

also added a 4plus rear tire carrier and basket swing out

slowly but surely. ive only have one day and a Sunday or two to piddle....



under_psi

SILVER Star

Joined
Oct 15, 2006
Messages
990
Location
Madison

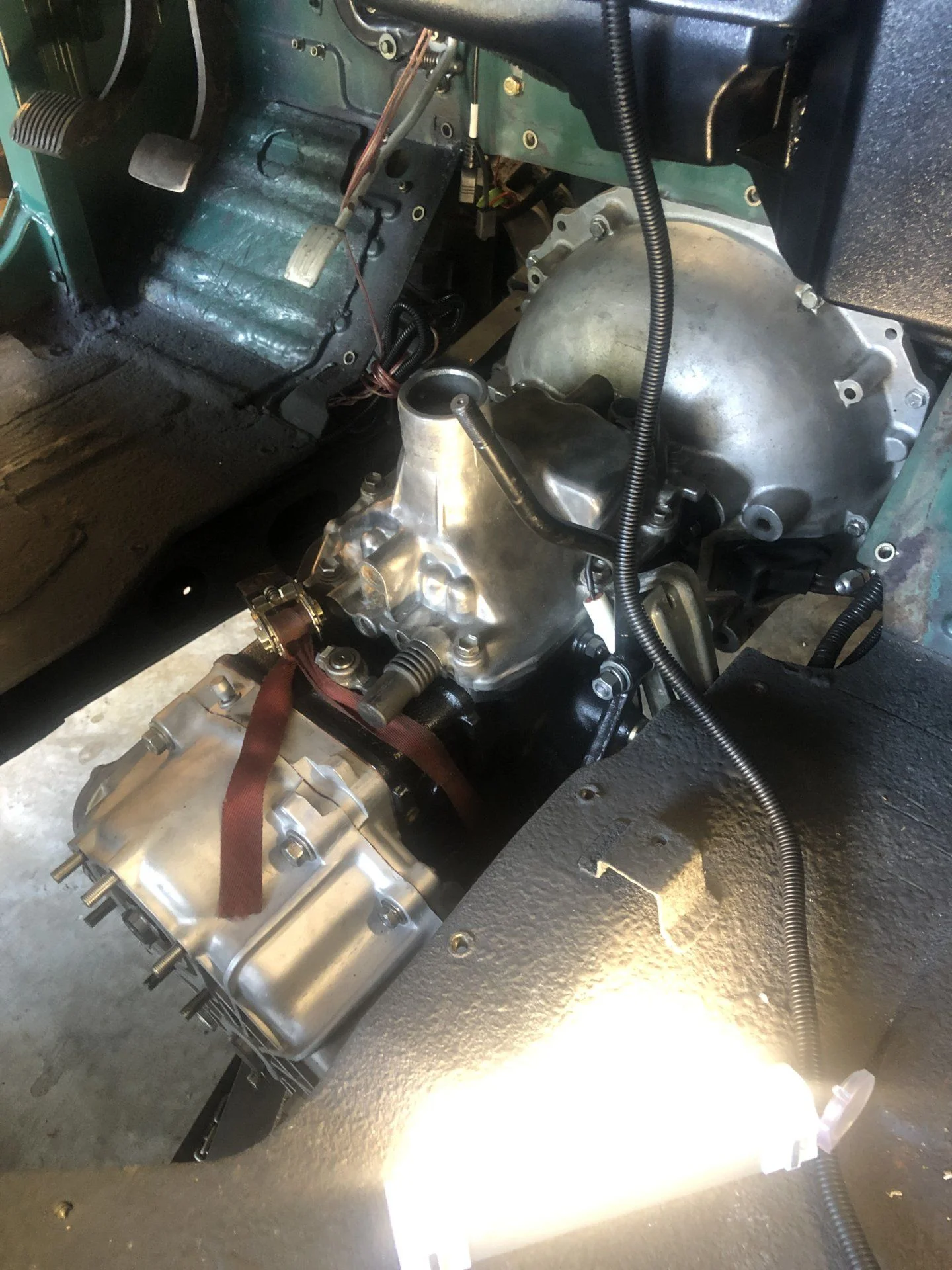

looks like @orangefj45 has me about buttoned up on the trans and transfer case......

to quote Georg, "it was cobbled together very poorly" and he mentioned the use of early front half case, late rear half and different year gear sets and some shaft being cut off and a bushing being milled down to make it work...

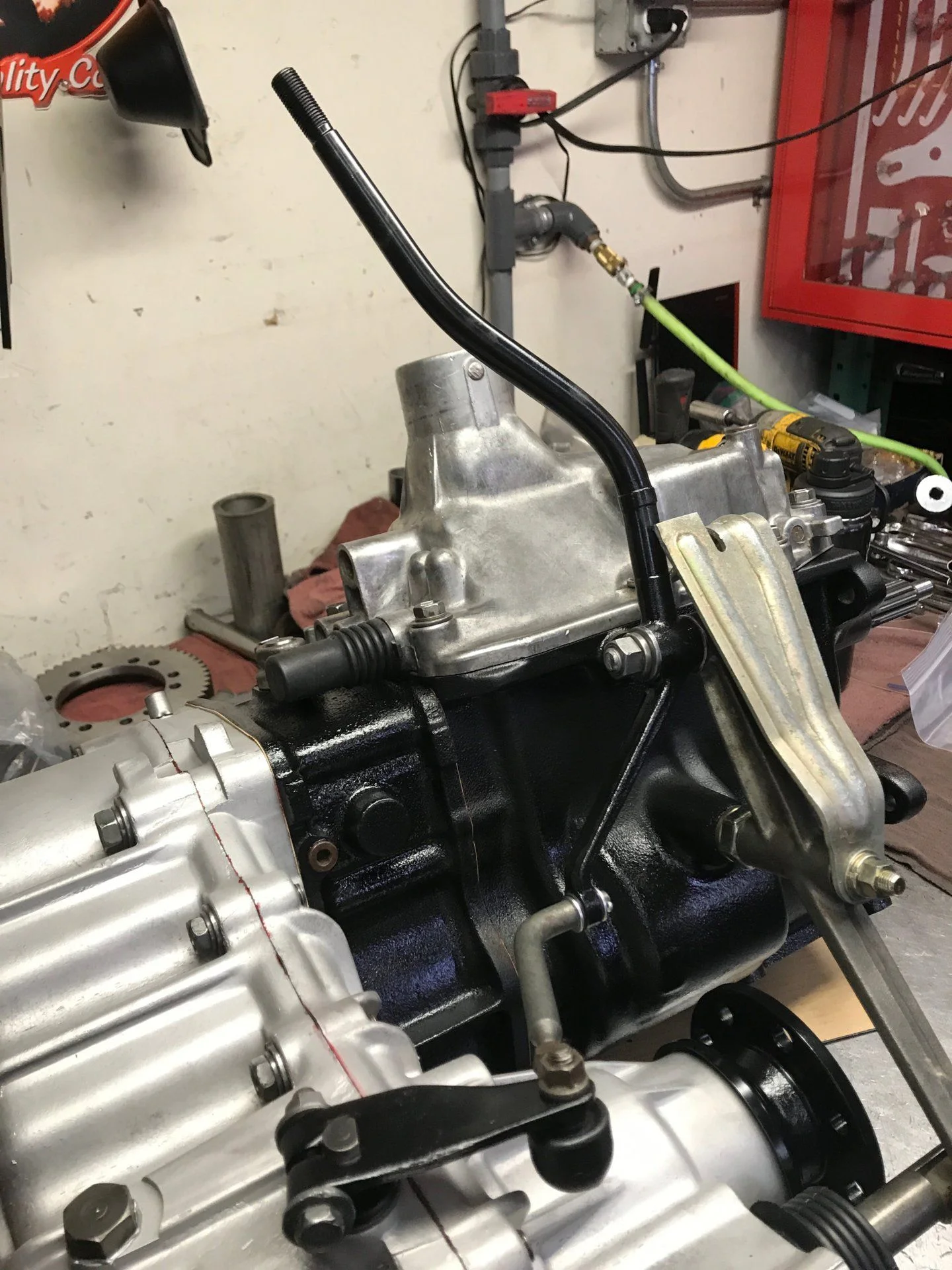

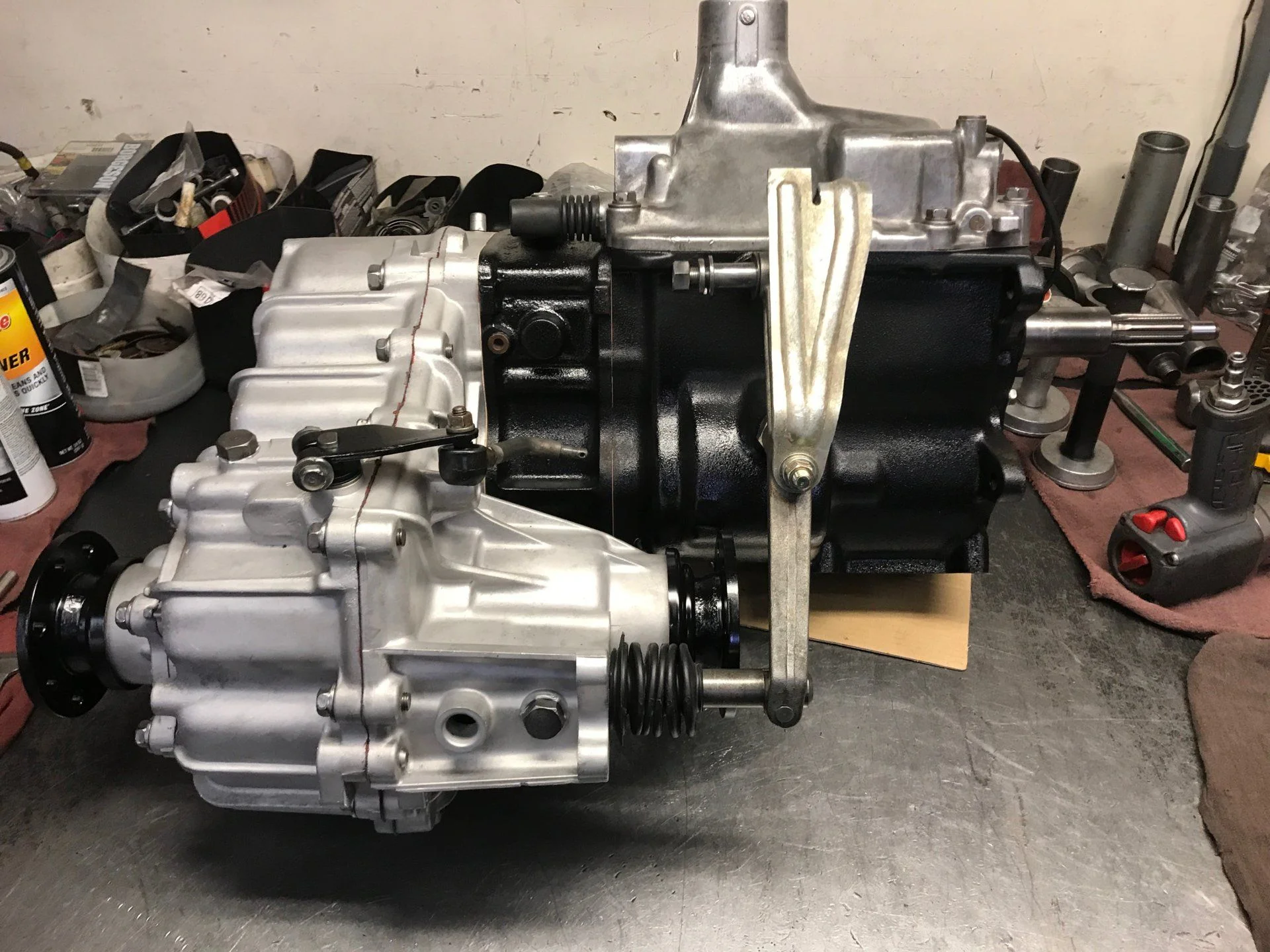

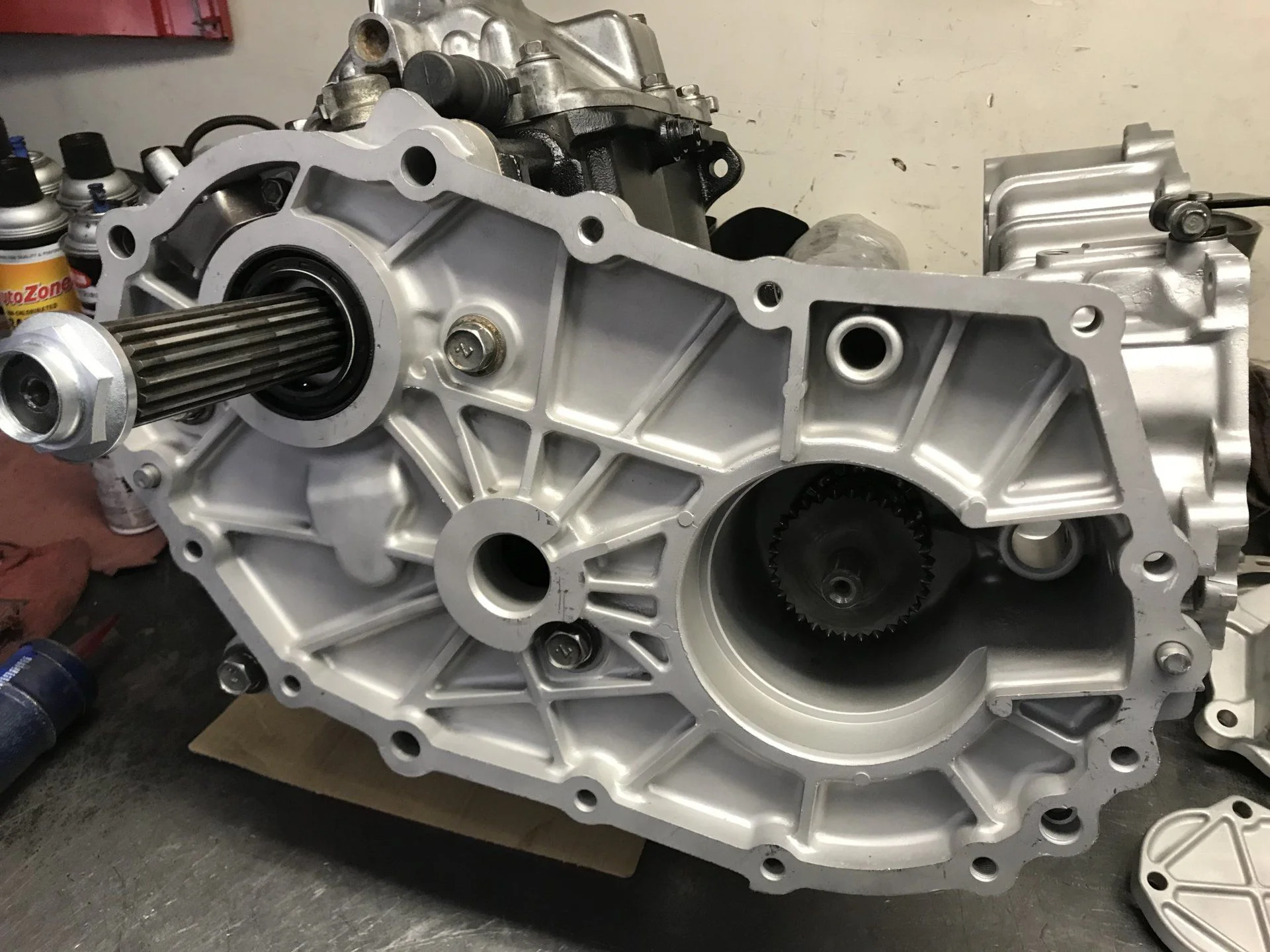

t case - new housings, gears, and a proper shifter!

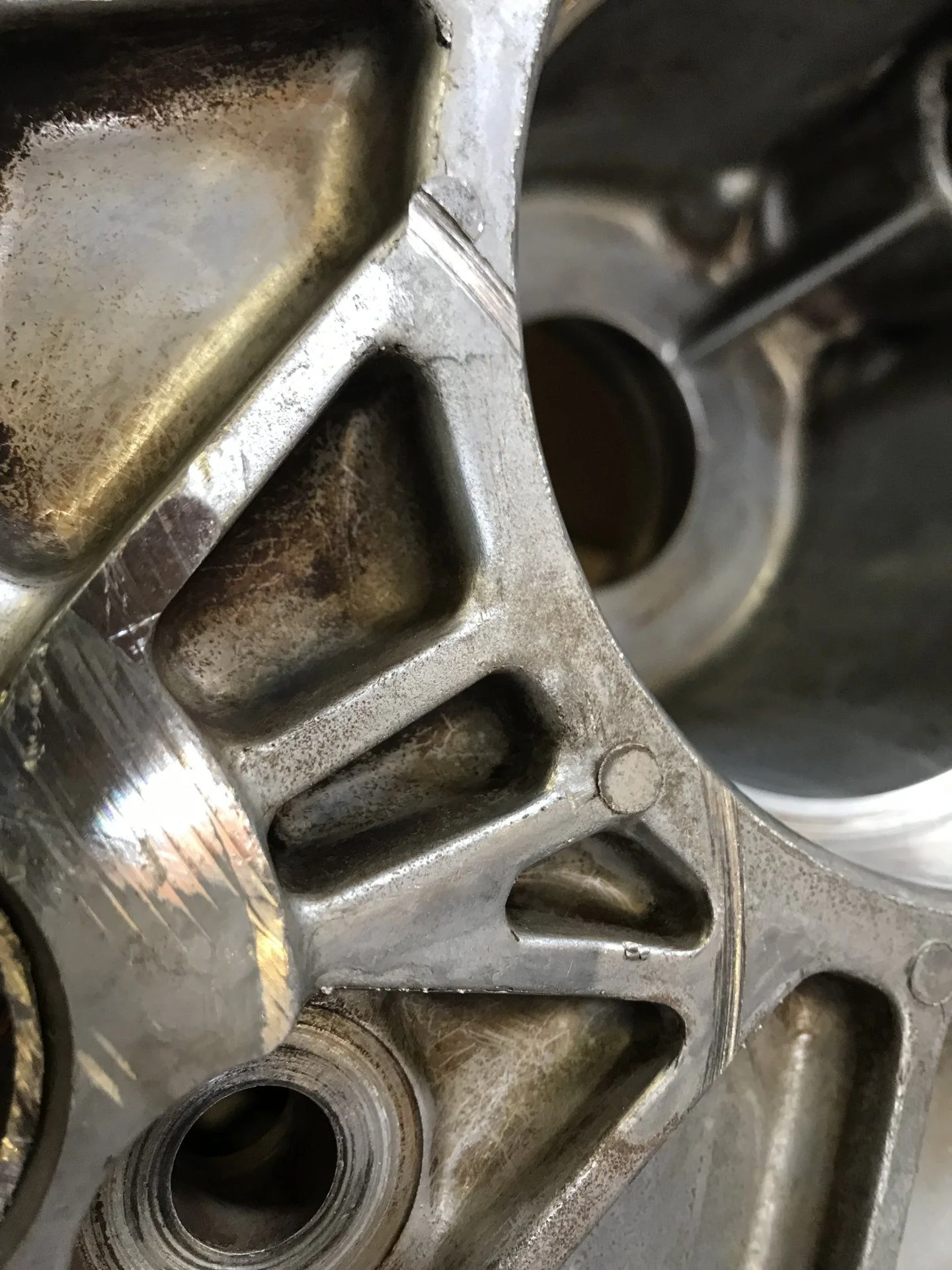

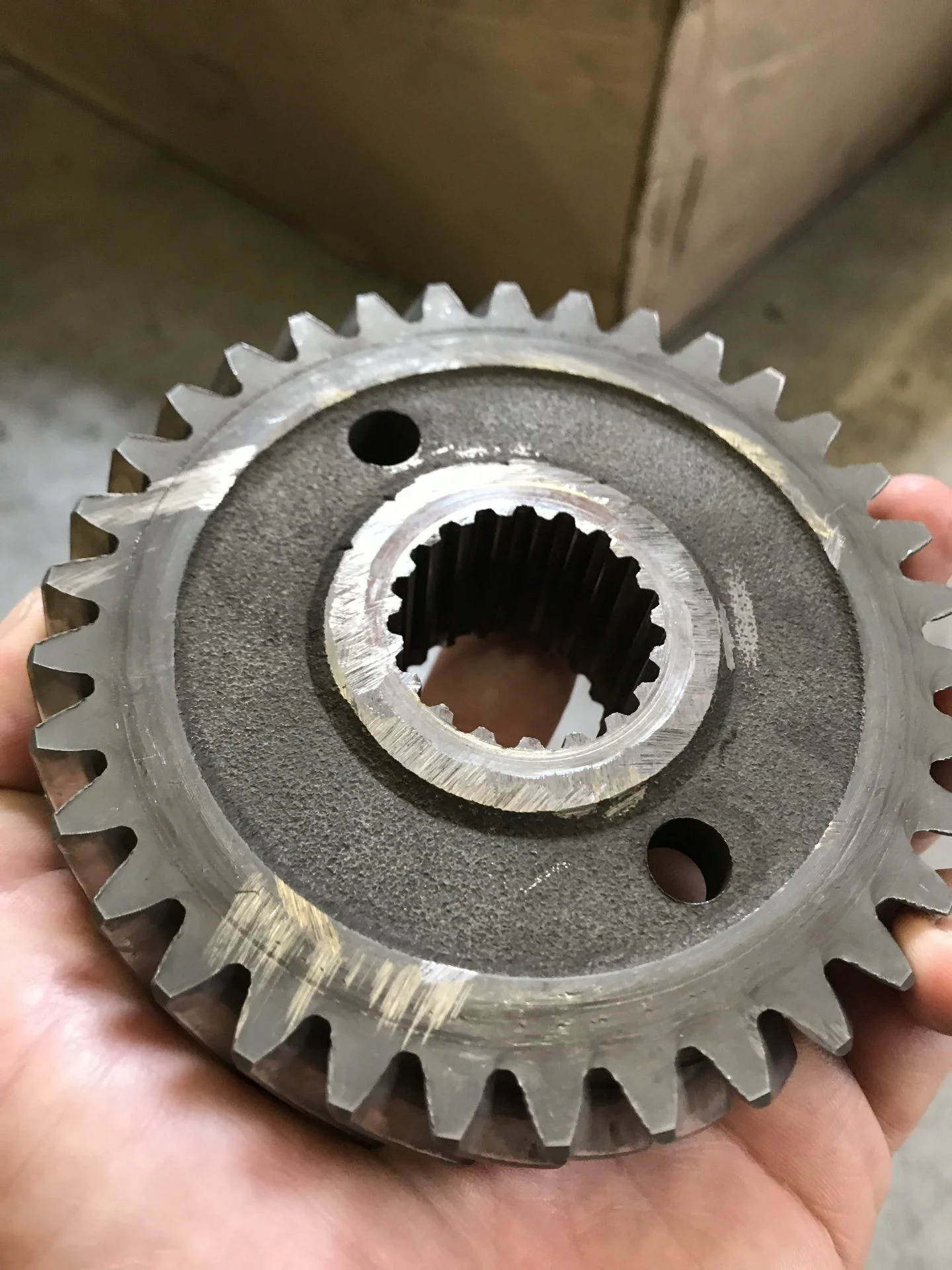

and then there's the whole issue of the rock in the transmission.......new synchro, gear set, and main shaft....

likely would have exploded next time I put it in 4Lo.....



wngrog

SILVER Star



Joined
Feb 10, 2002
Messages
32,315
Location
Canton, Mississippi
Lou got busy since last Tuesday. Lots of little stuff done

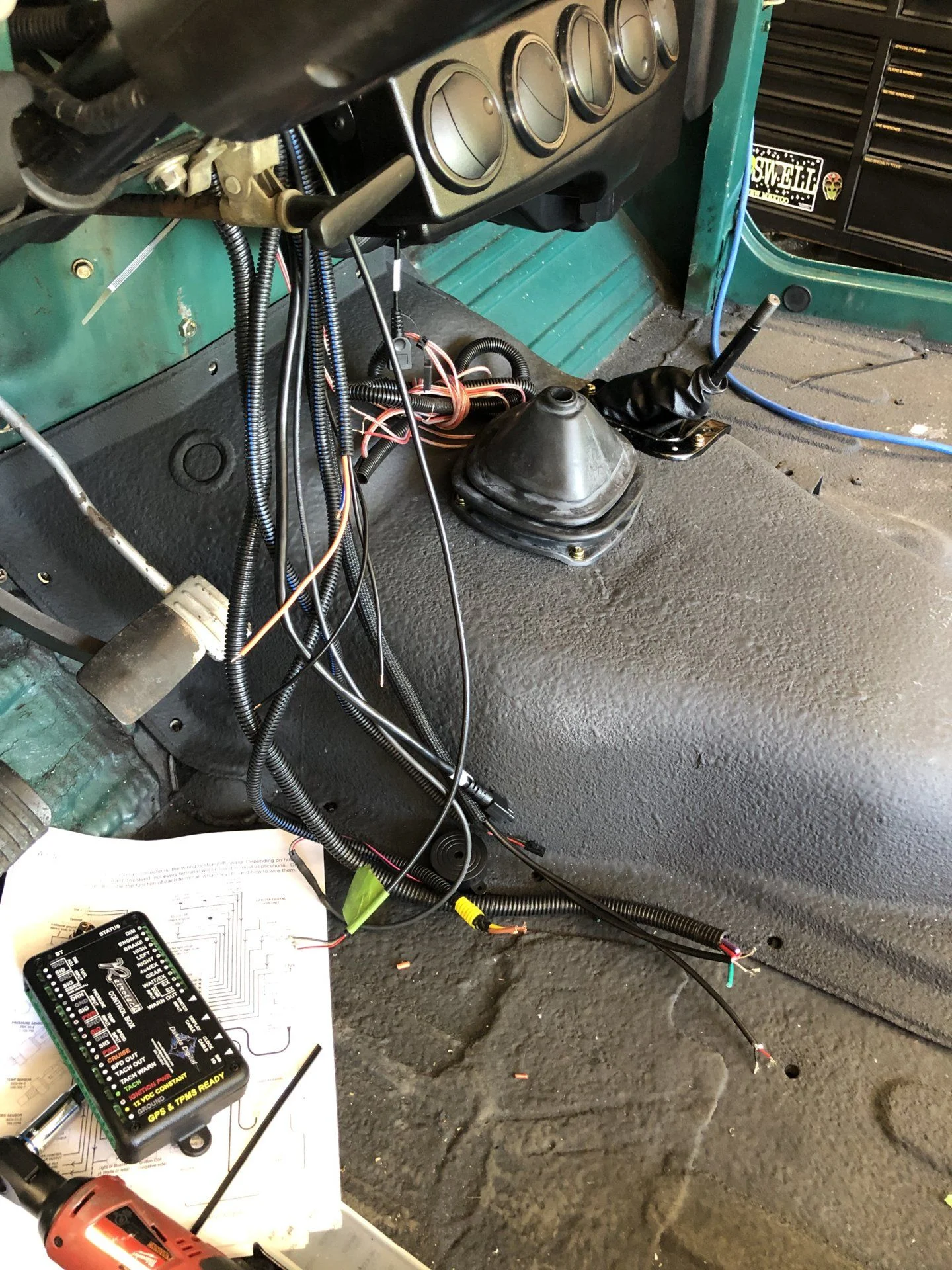

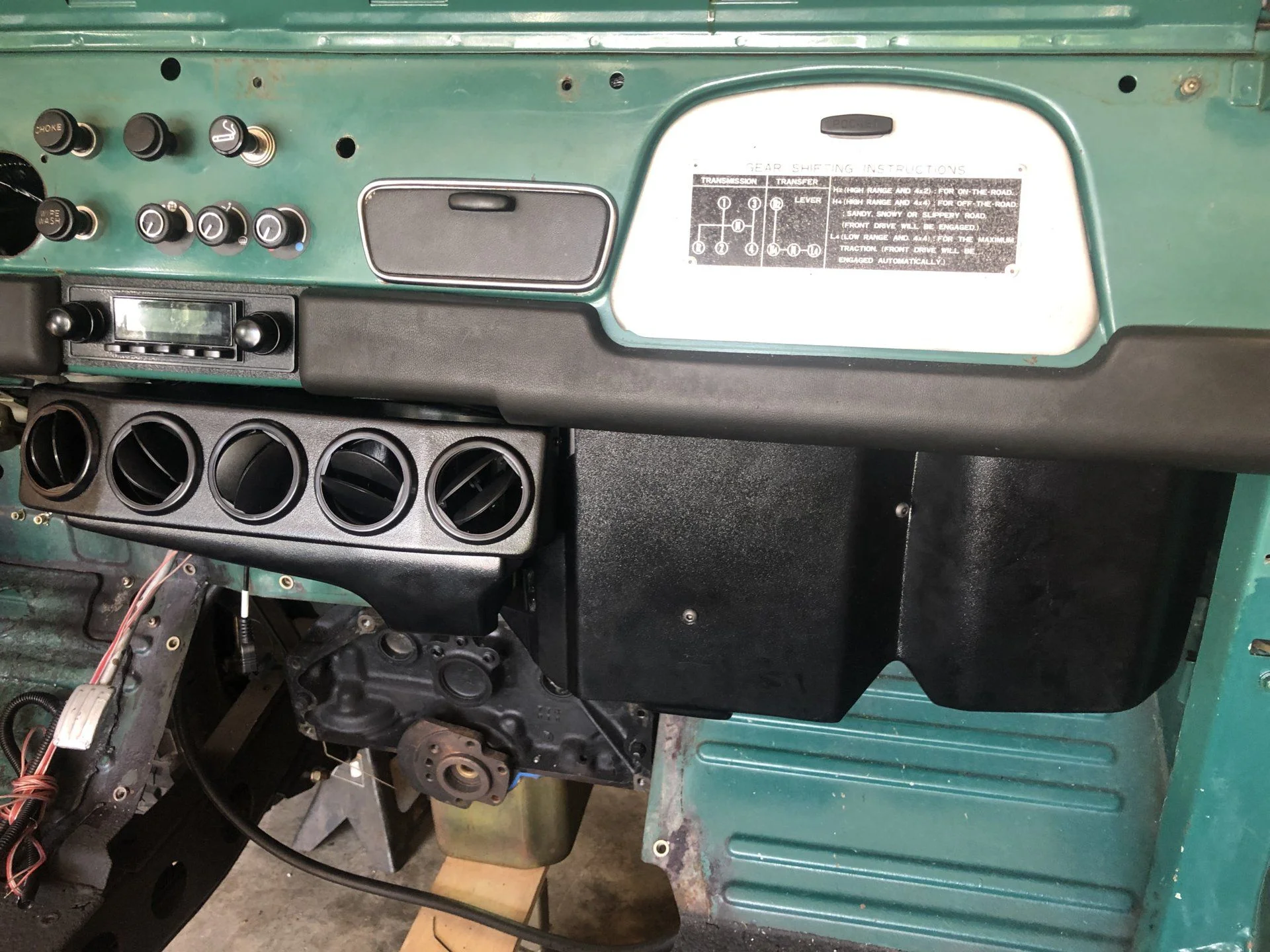

Final wiring at the terminal end is all and plugging stuff in. I see this thing running in a week.

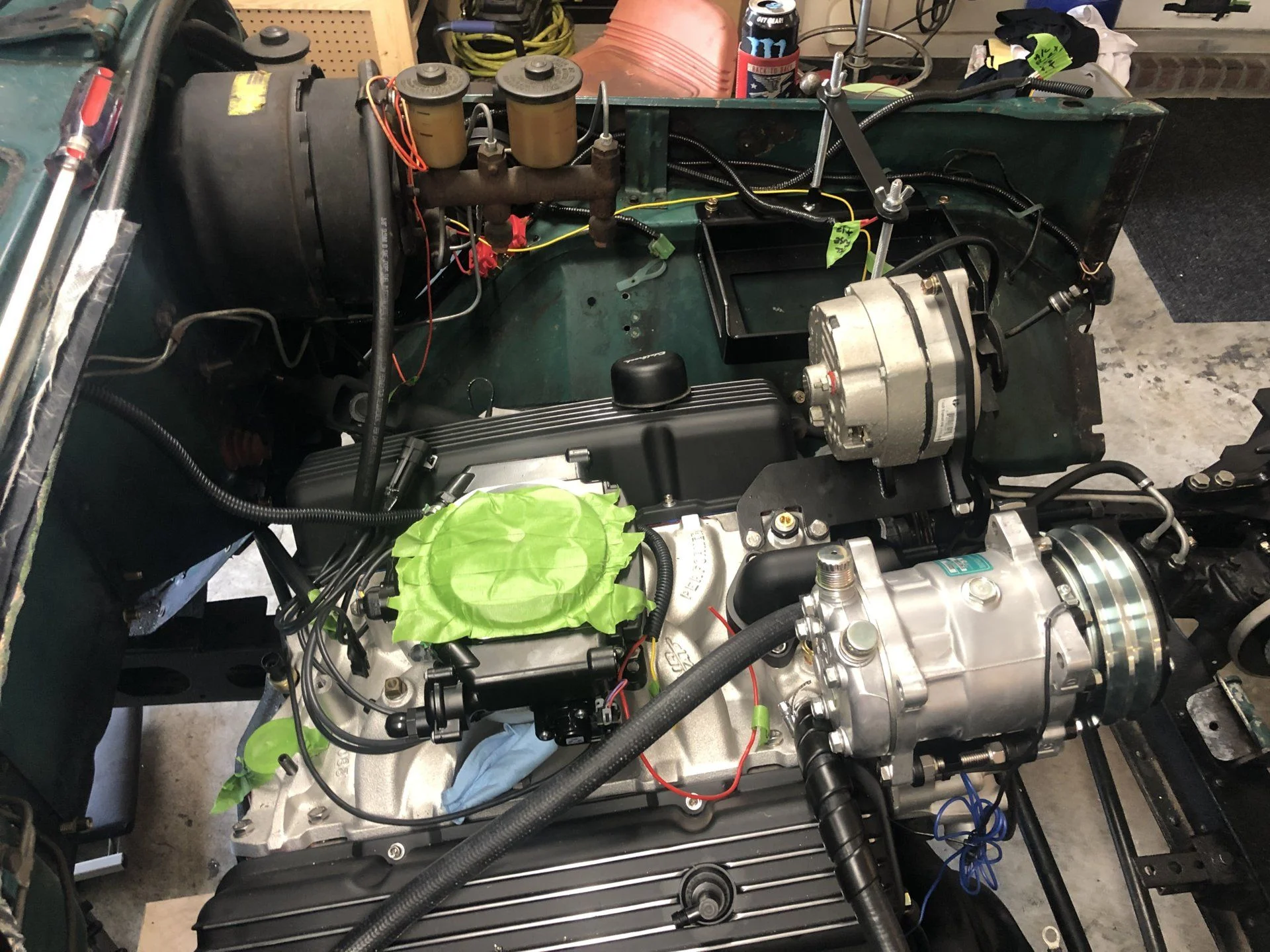

I helped him stab the exhaust and install driveshafts. Then we made AC hoses.

I think all he needs now is time to button it all up.



Dakota Box

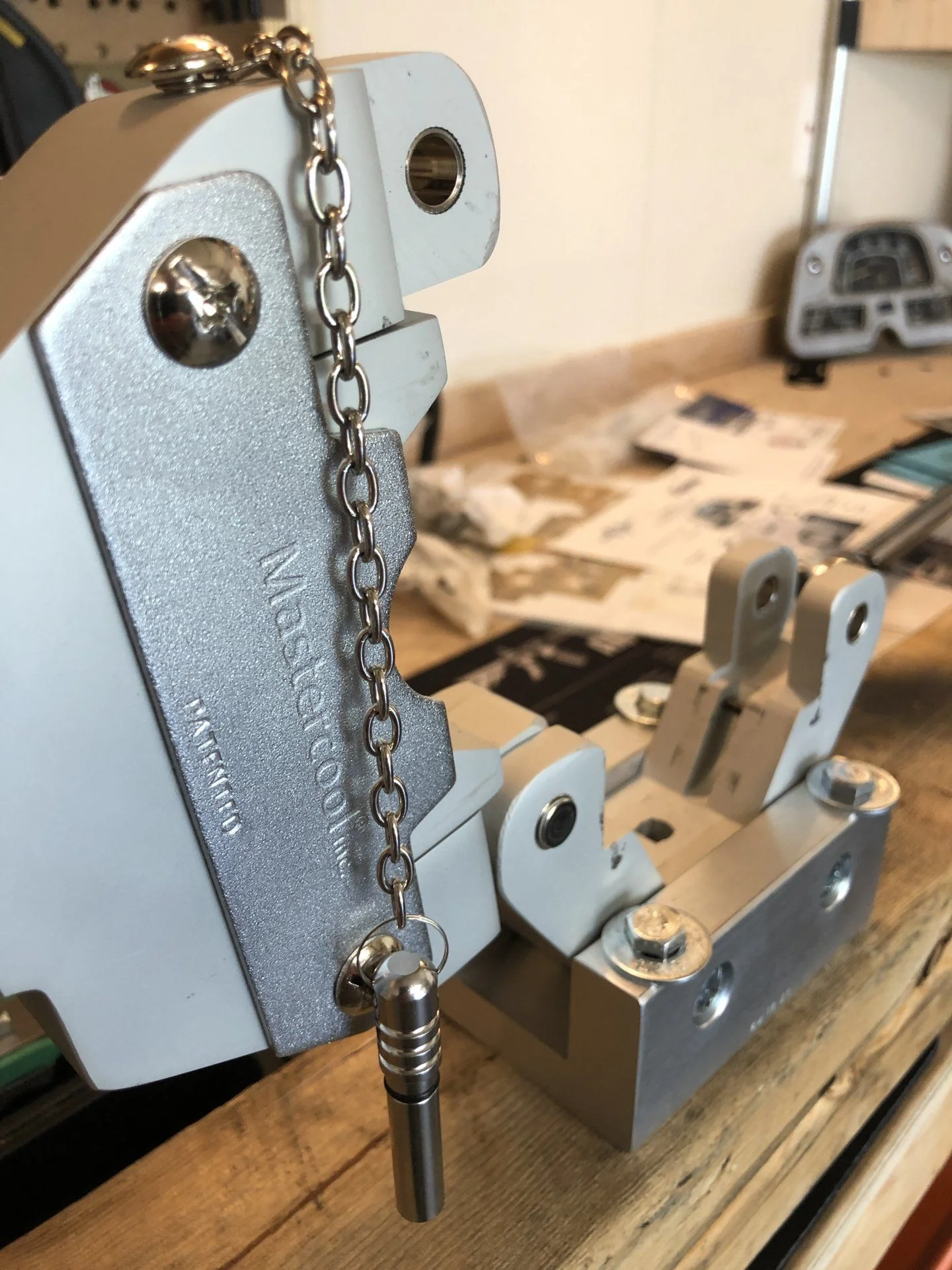

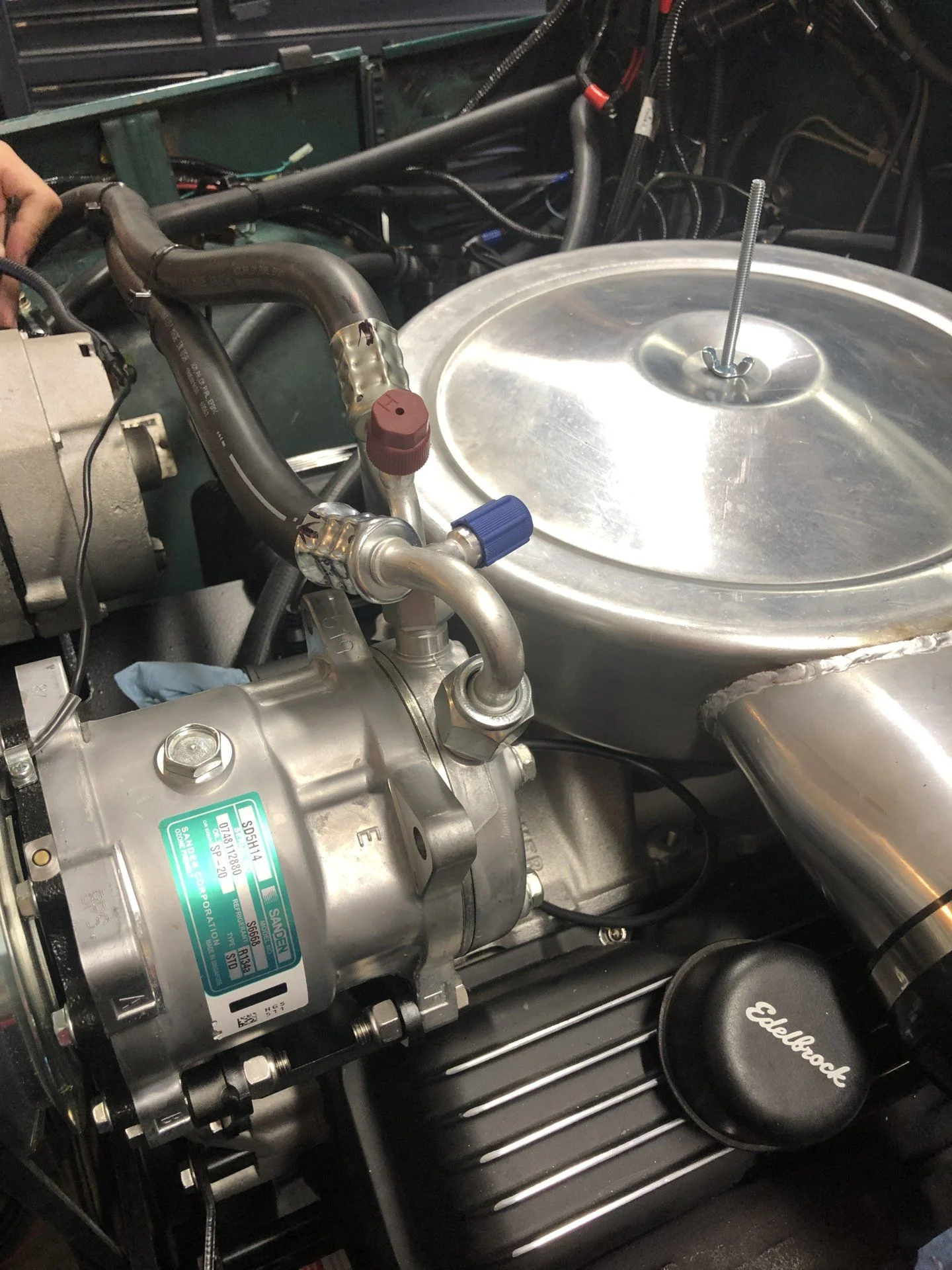

This is the AC hose crimper.

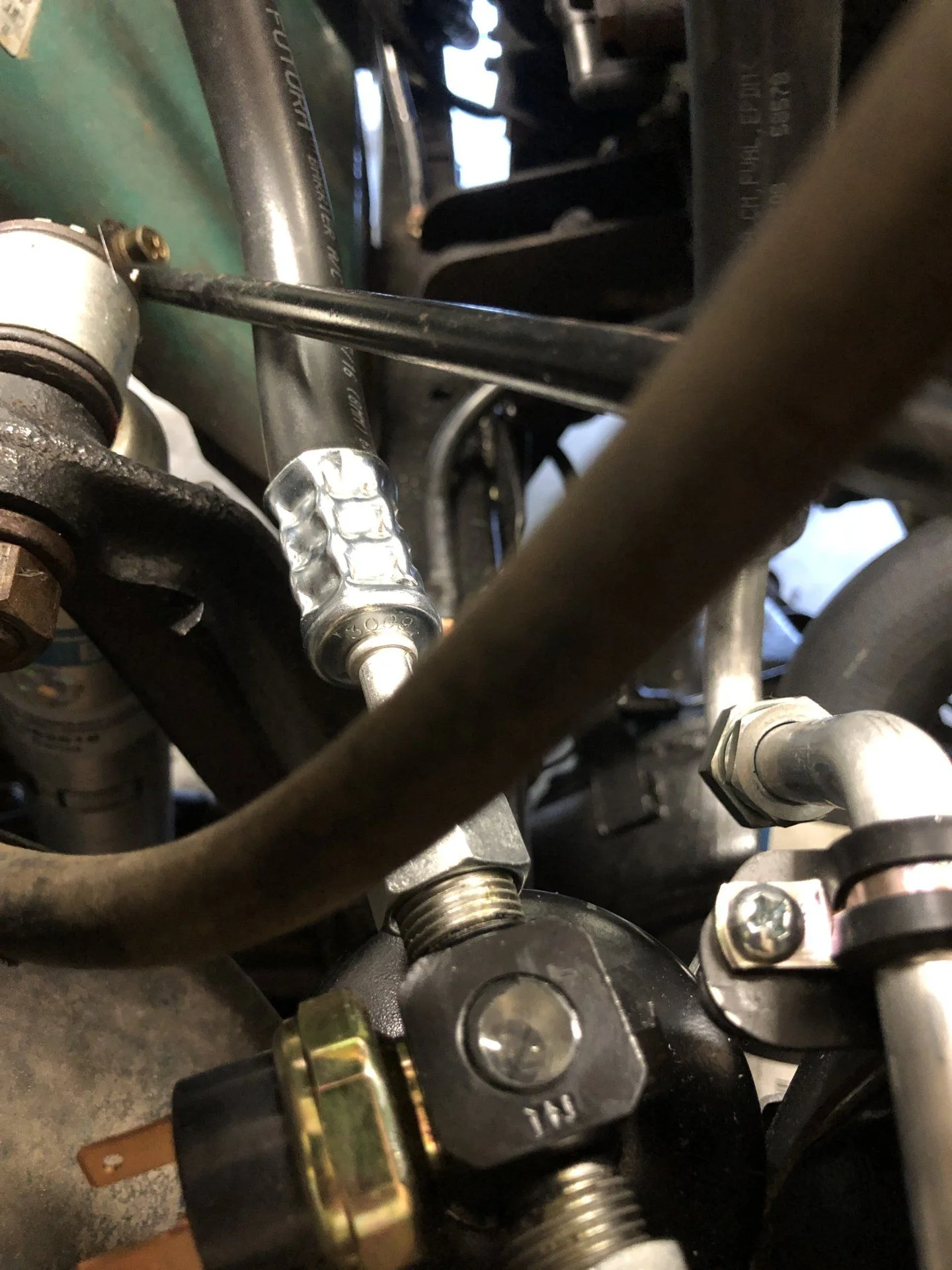

Finished product. Slick.



Cool air cleaner that goes into the snorkel



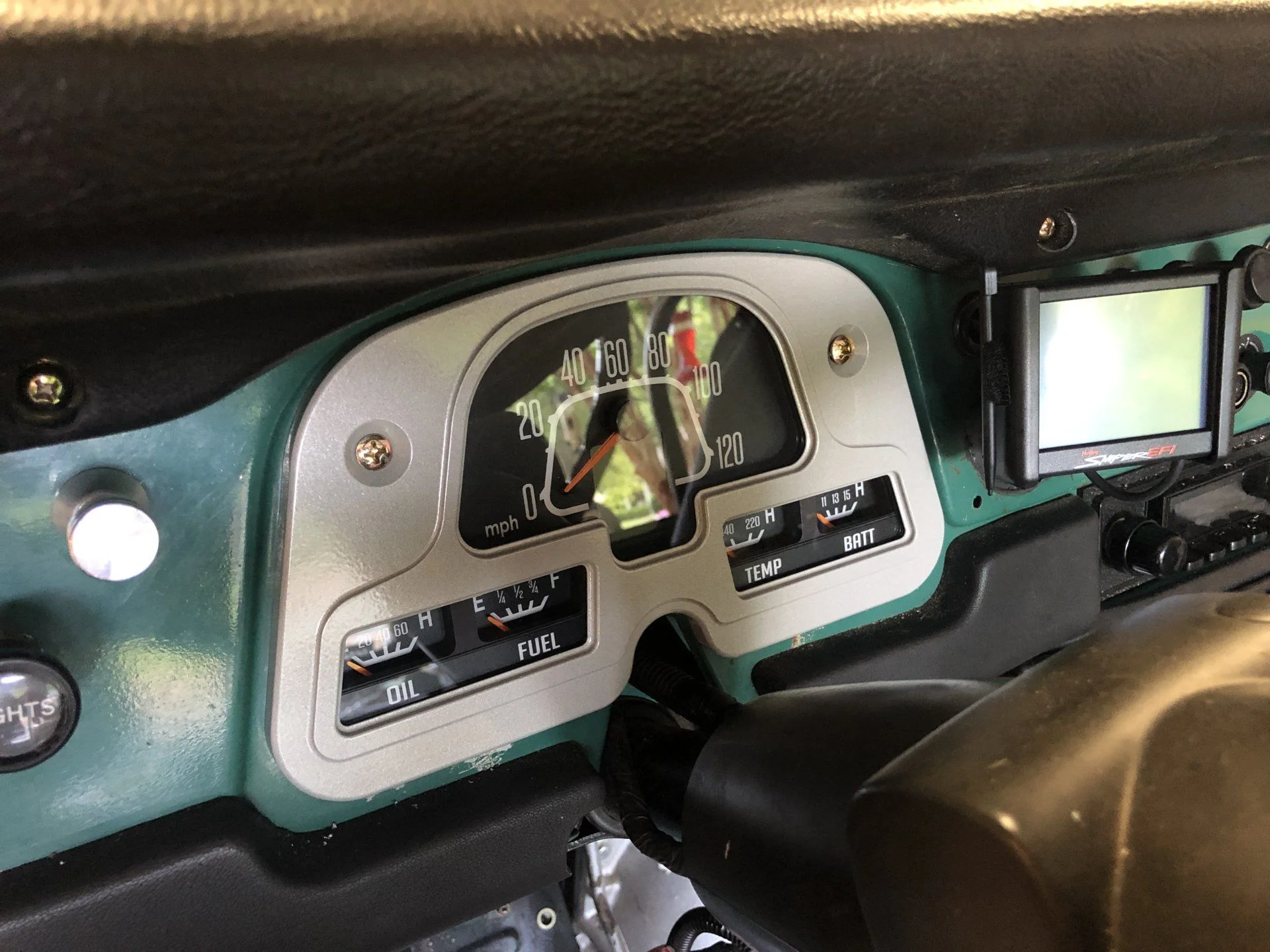

Dakota and Sniper


under_psi

SILVER Star

Joined
Oct 15, 2006
Messages
990
Location
Madison
so close.....I have about 5 12v switched wires and the battery connections left......re connect PS return and radiator hose fitment....

then fluids for those 2. bleed brakes and clutch....

then fire it up!

hope to get it up and running this week.
