Locker Switches - who has installed the OEM ones? (1 Viewer)

[Fisher23]

I have those ARB locker switches installed but I would like to install something more OEM and reliable.

I had a link for the thread that had this but now I can't find it.

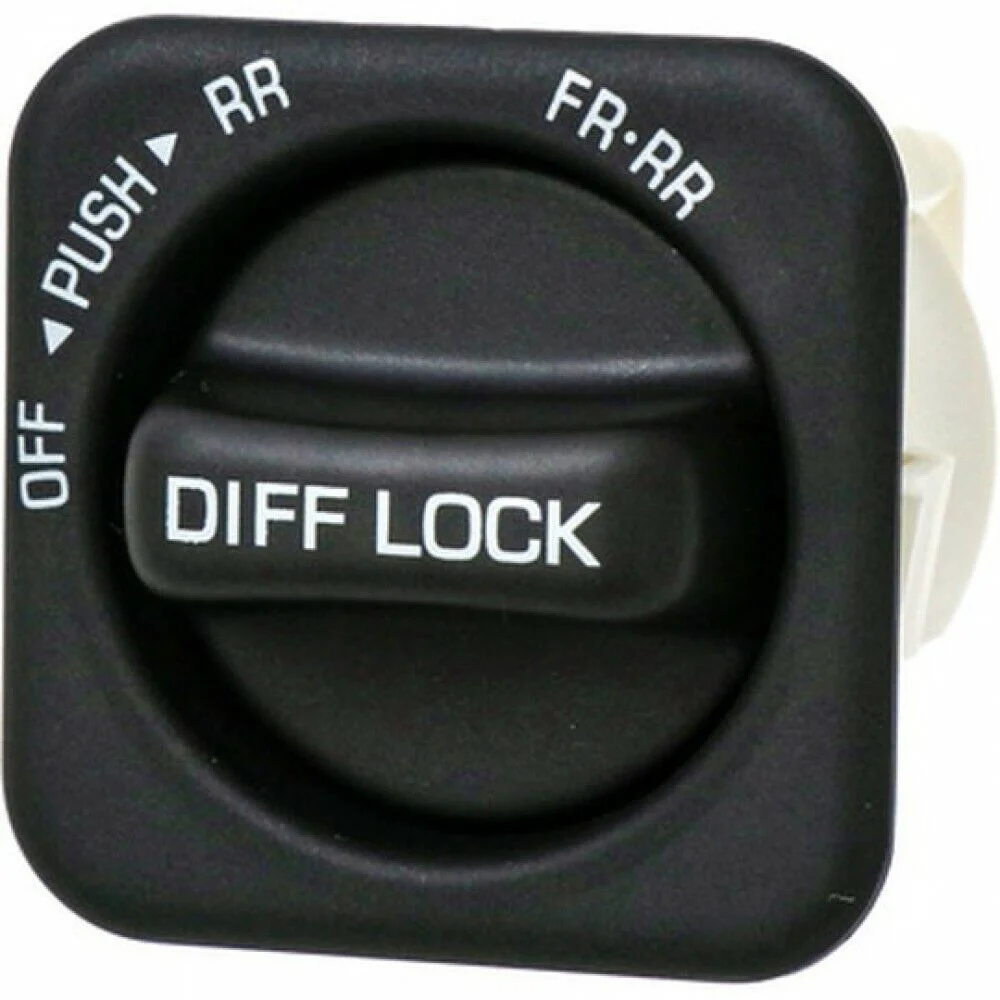

Does someone have an example of installing either the push button or the OEM like I have pictured?

Can I put this in that 4 switch panel area to the right of the steering wheel?

Does some have the part # for the replacement panel that has this and 2 switches?



[turbo8]

For the panel and switch, you can get it from Cruiser Outfitters, I think their P/N is ELEC55447

for just the panel, Toyota P/N 55447-60030-C0 (black) 55447-60030-A0 (tan)

You're probably looking for this thread:

200 Series Factory Locker Switch?

In the Tesla-style head unit thread, there’s a link to a SMARTY Trend screen. If you check out the link and scroll down to the 2008-2015 image of the dash this is pictured. I’m wondering if that is a genuine factory Toyota 200 Series front/rear locking differential switch and accompanying dash...

forum.ih8mud.com



[Fisher23]

Thanks !



[staggrlee]

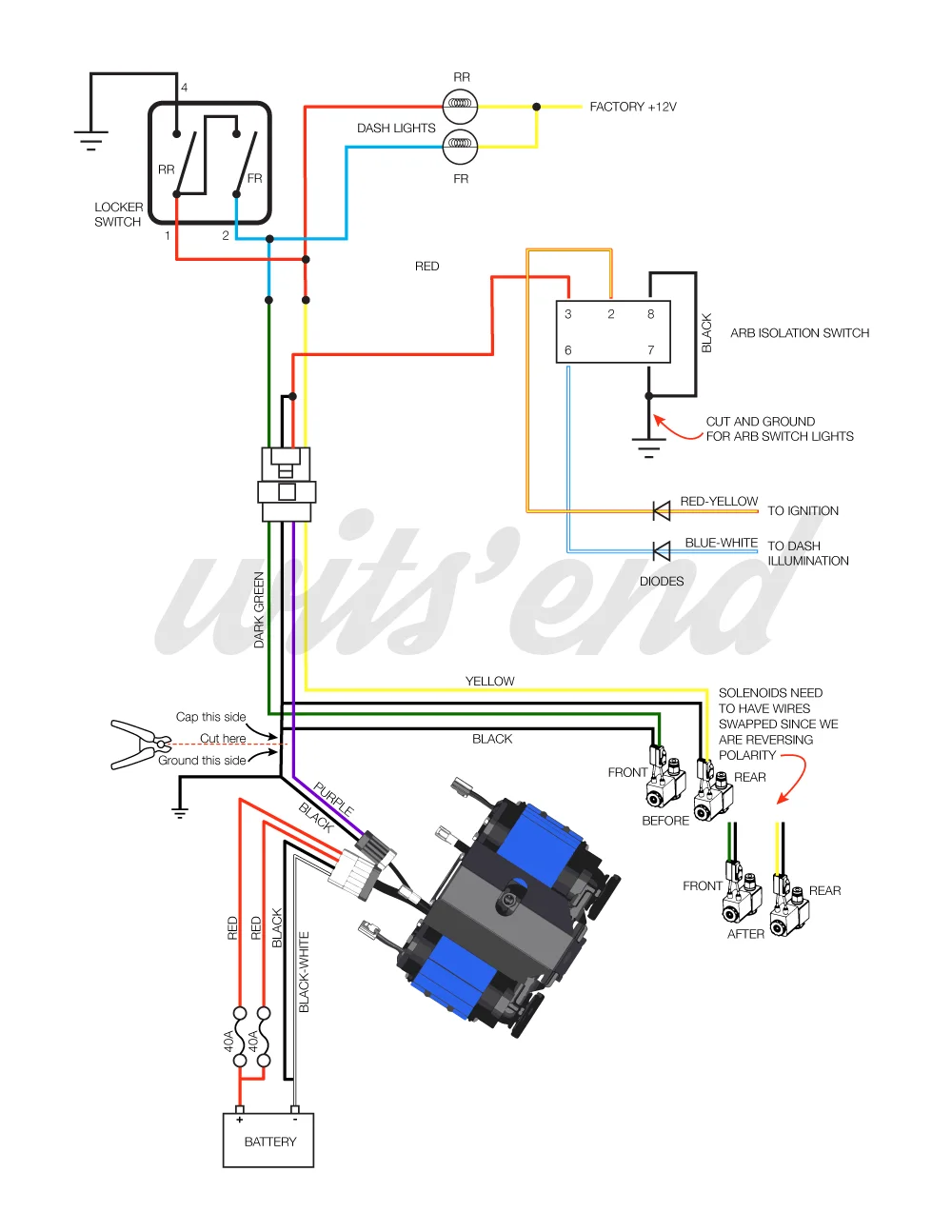

Here's Joey @ Wit's End's wiring diagram for an 80 switch and ARB lockers with the dual compressor. Not sure this 100% applies to the 200 (dash bulbs for instance)...



[cruiseroutfit]

Dash Locker Panel - OEM Toyota - Fits 2008-2021 200 Series (INT55447)

Cruiser Teq is the premier provider of high quality OEM, Japanese, and aftermarket Toyota Land Cruiser parts and accessories.

cruiserteq.com

We use these super regularly on ARB and Eaton e-locker installs for 200's

We offer the switch and a plug kit too!



[DesmoPilot]

I'm running this with ARB air lockers. Works great! Nice thing is that you can reach down and use it just by feel. I like the simplicity of it.



[Fisher23]

I'm running this with ARB air lockers. Works great! Nice thing is that you can reach down and use it just by feel. I like the simplicity of it.

Could you please tell me what switch you are using for the compressor.. or where you got it?



[cruiseroutfit]

Could you please tell me what switch you are using for the compressor.. or where you got it?

FWIW, we often trigger the rear locker and compressor together. There are some considerations to discuss but it’s clean and has worked for many many years in 7x/8x/100/200 applications



[DesmoPilot]

Could you please tell me what switch you are using for the compressor.. or where you got it?

ARB twin compressor is controlled via a Switch-Pro.



[TheComedian]

Will make a picture of mine later when it is lunchtime in 1,5hrs.



[Fisher23]

I found switches to fit, so I'll be replacing the ARB locker switches with this setup when the parts arrive.

The ARB switches have a very thin piece of plastic holding them on the the rocker arm which cracks. The the front part (toggle) falls of the switch.



[TheComedian]

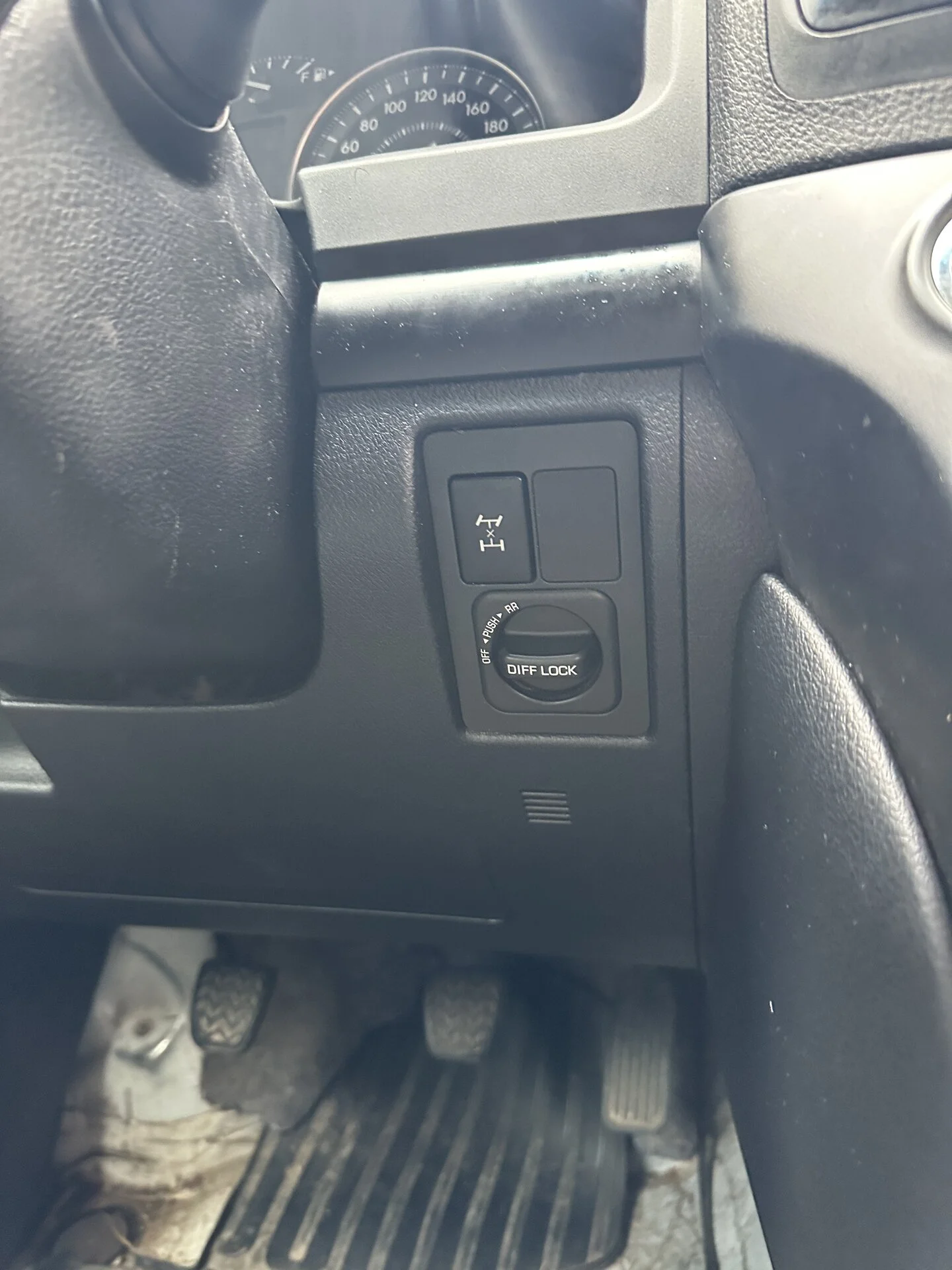

Here the OEM position



[linuxgod]

Here the OEM position
View attachment 3410800

+50bhp for having the right number of pedals too



[Fisher23]

The switch and sub-panel arrived today.

The sub-panel for this switch is slightly smaller than the sub-panel in my 2016.

Has anyone installed this in their 2016+ ?

I'm not sure what year these sub-panels changed size, but it looks like it was 2012 or 2013.
My OEM sub-panel is : 55447-60080c0 - base switch hole 2



[turbo8]

The switch and sub-panel arrived today.

The sub-panel for this switch is slightly smaller than the sub-panel in my 2016.

Has anyone installed this in their 2016+ ?

I'm not sure what year these sub-panels changed size, but it looks like it was 2012 or 2013.
My OEM sub-panel is : 55447-60080c0 - base switch hole 2

Can you post some pictures showing the differences?

I'm seeing your OEM number being interchangeable with the locker switch version.



[Fisher23]

Can you post some pictures showing the differences?

I'm seeing your OEM number being interchangeable with the locker switch version.

I will in a few days.



[cruiseroutfit]

The switch and sub-panel arrived today.

The sub-panel for this switch is slightly smaller than the sub-panel in my 2016.

Has anyone installed this in their 2016+ ?

I'm not sure what year these sub-panels changed size, but it looks like it was 2012 or 2013.
My OEM sub-panel is : 55447-60080c0 - base switch hole 2

We‘ve installed many in newer 200’s all the way up to 2021.



[Fisher23]

I finally had some time to do this. Works excellent.



[isthatalexus]

Dash Locker Panel - OEM Toyota - Fits 2008-2021 200 Series (INT55447)

Cruiser Teq is the premier provider of high quality OEM, Japanese, and aftermarket Toyota Land Cruiser parts and accessories.

cruiserteq.com

We use these super regularly on ARB and Eaton e-locker installs for 200's

We offer the switch and a plug kit too!

PO installed two un-protected rocker switches exactly where you will always bump them with your left knee. Hell for valet situations and when the 'on' light is obsucred by the steering wheel.

All that being said, could I re-wire my Harrop e-Lockers (f+r) to use this switch + plate? (2008 LC200)



[linuxgod]

PO installed two un-protected rocker switches exactly where you will always bump them with your left knee. Hell for valet situations and when the 'on' light is obsucred by the steering wheel.

All that being said, could I re-wire my Harrop e-Lockers (f+r) to use this switch + plate? (2008 LC200)

Yep, others in the forum have done that. I have the 80/100-series locker knob that goes in that larger hole (though mine is mounted somewhere else) and it's wired to mine.
