Another project.

Figuring out how to get a stereo installed in my 78 without hacking the dash.

I just wanted bluetooth only.

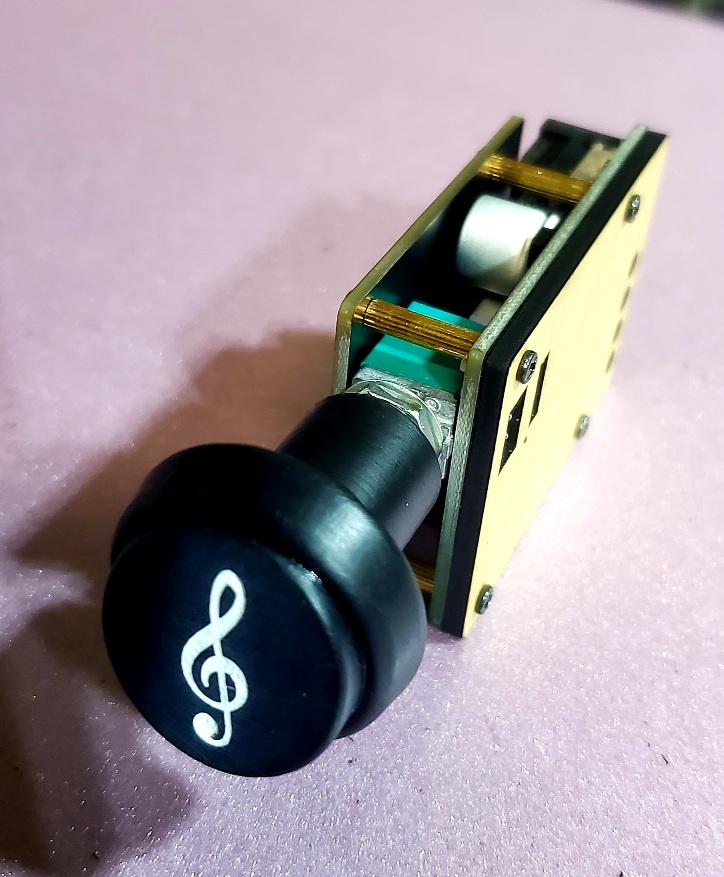

This is what I came up with...

100 watts and it f'n thumps!!!

I make knobs on the side so I came up with this one. Sorta inspired by the cigarette lighter design... :)



thecrazygreek

A.K.A. TheCraftyGreek
GOLD Star
SILVER Star
Joined
Sep 26, 2005
Messages
4,536
Location
Oregon
What’s the makeup?! I am intrigued!!!
Here's some specs..

Bluetooth Version: 5.0 (without occlusion 15m)
2 Channel
Input Sensitivity: 500mV
Speaker: 30-200W, 4-8Ohm
Self-recovery overheat protection, self-recovery short circuit protection

Recommended Power
12V - 8ohm/12W*2; 4ohm/20W*2

Joined
Dec 7, 2013
Messages
25
s*** man... once I get moved into my new house imma have to start building cool things like this... finally put that fancy education I got to work or somethin.

Is the blue tooth reciever always outputting full blast and you use your phone to control everything?


thecrazygreek

A.K.A. TheCraftyGreek
GOLD Star
SILVER Star
Joined
Sep 26, 2005
Messages
4,536
Location
Oregon
s*** man... once I get moved into my new house imma have to start building cool things like this... finally put that fancy education I got to work or somethin.

Is the blue tooth reciever always outputting full blast and you use your phone to control everything?
It has a turn - click for on, keep turning for volume.


thecrazygreek

A.K.A. TheCraftyGreek
GOLD Star
SILVER Star
Joined
Sep 26, 2005
Messages
4,536
Location
Oregon
Can't find it in the classifieds... can you link it here? Looks cool!

There you go.
